Entry time:

Wed Mar 17 10:31:09 2021

Author*:

Subject*:

11.28 DAQ continues OK - no storage

ASIC settings 2019Dec19-16.19.51
      DSSSD#1 slow comparator 0xa
      DSSSD#2 slow comparator 0xa
      DSSSD#3 slow comparator 0xd

BNC PB-5 Pulser
      Amplitude1.0V
      Attenuation x1
      Frequency 2Hz
      tau_d 1ms
      - polarity
      Delay 250ns, tail pulse

10.26 System wide checks

FEE64 module aida09 global clocks failed, 6
 Clock status test result: Passed 11, Failed 1

Understand status as follows
Status bit 3 : firmware PLL that creates clocks from external clock not locked
Status bit 2 : always logic '1'
Status bit 1 : LMK3200(2) PLL and clock distribution chip not locked to external clock
Status bit 0 : LMK3200(1) PLL and clock distribution chip not locked to external clock
If all these bits are not set then the operation of the firmware is unreliable

FEE64 module aida07 failed
FEE64 module aida09 failed
Calibration test result: Passed 10, Failed 2

If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module

Base 		Current 	Difference
aida05 fault 	 0x6acb : 	 0x6acc : 	 1
aida06 fault 	 0x8394 : 	 0x8395 : 	 1
aida07 fault 	 0x8c77 : 	 0x8c7a : 	 3
aida08 fault 	 0x1692 : 	 0x1693 : 	 1
White Rabbit error counter test result: Passed 8, Failed 4

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

FPGA Timestamp error counter test result: Passed 12, Failed 0
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

Returned 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) :	4	8	16	32	64	128	256	512	1k	2k	4k
aida01 :     25     16      3      6      1      3      2      2      3      4     10   : 54676
aida02 :     17     13     14     10      5      5      2      3      3      3      6   : 37516
aida03 :     19     10      8      3      2      3      2      4      2      3      6   : 36220
aida04 :      2      6      2      3      3      2      2      3      2      4     15   : 74360
aida05 :     89     48     20      3      3     34     21     20      6      4      7   : 64324
aida06 :     31     11      1     10      0      1      1      3      4      2      5   : 31140
aida07 :     21     13      8      4      3      2      4      4      3      3      6   : 37756
aida08 :     37     10      2      0      1      2      2      4      3      3      6   : 36932
aida09 :      4     18      6      3      1      3      1      2      3      3      6   : 35872
aida10 :     20      4      1      3      0      2      2      3      3      3      6   : 36320
aida11 :      2      6      6      2      2      4      2      3      2      3      6   : 35672
aida12 :     15     10      2      3      1      2      2      3      3      3      6   : 36428

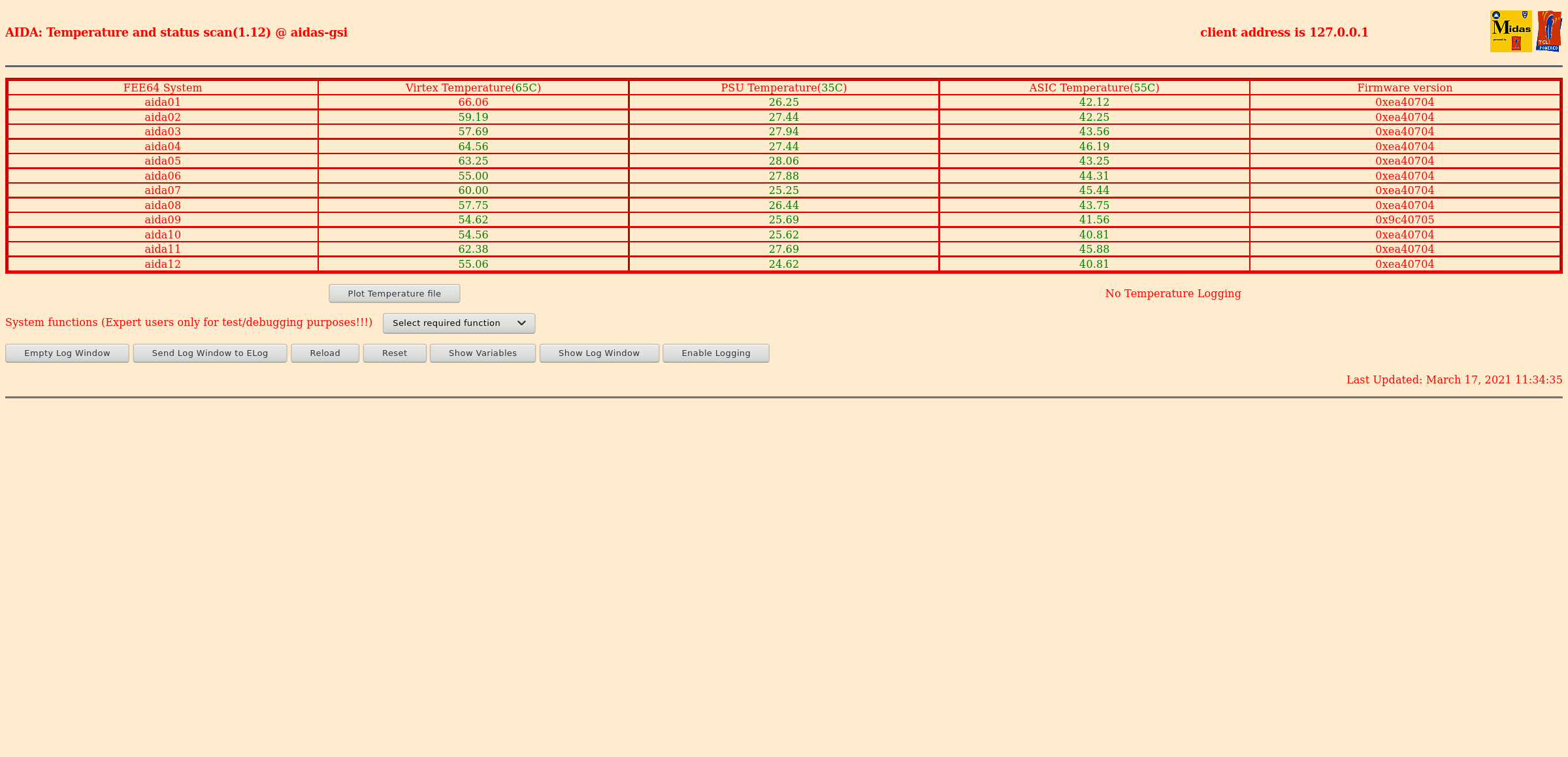

FEE64 Temperatures OK - attachment 1

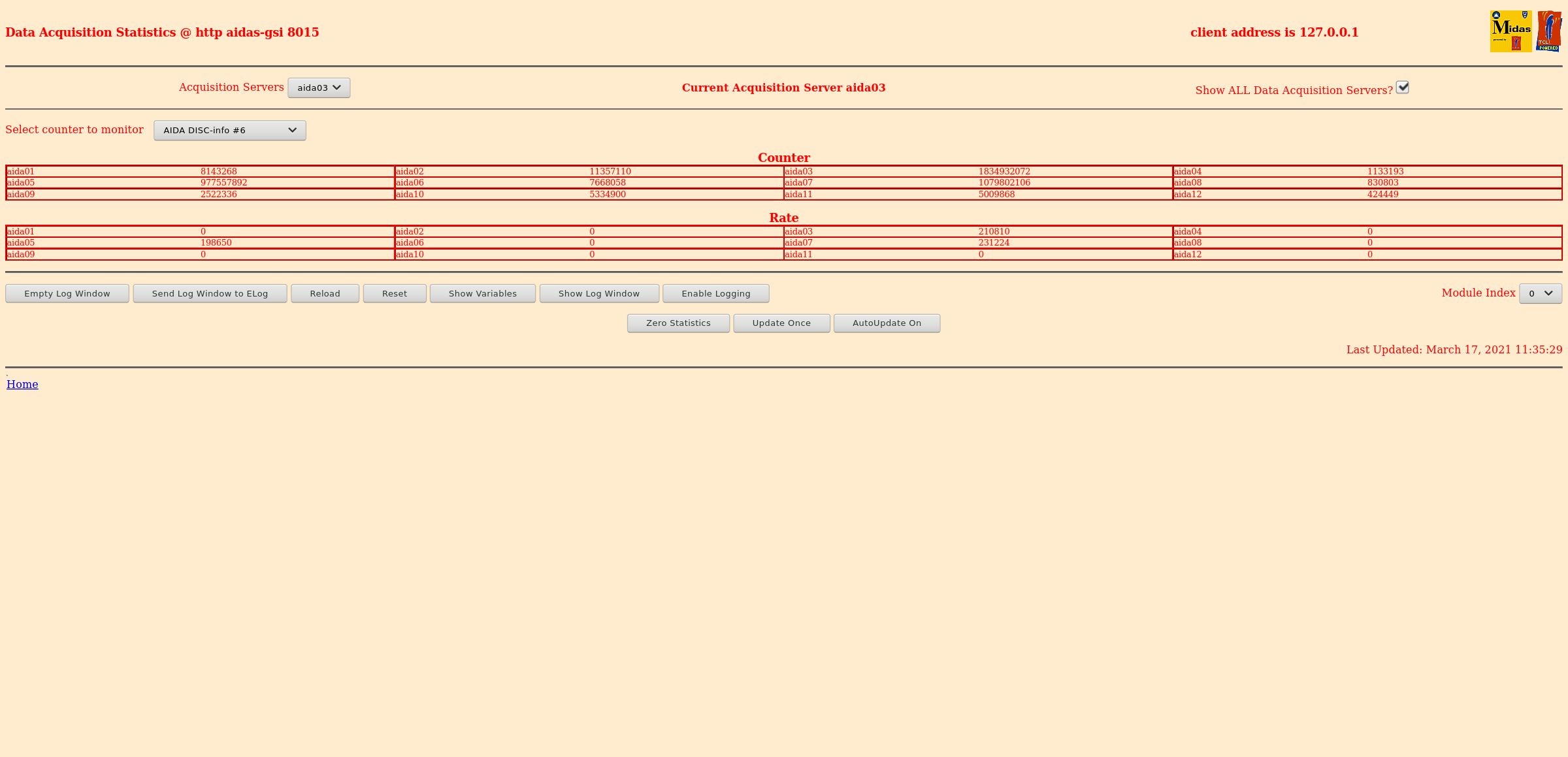

      Good event, disc info #6 & good wave statistics - attachments 2, 3 & 4
           note high disc rates (c. 200k) in FEE64s aida03, aida05 & aida07
      Detector bias & leakage currents OK - attachment 5
      Merger OK - 4.5M data items/s
      TapeServer OK - 15Mb/s

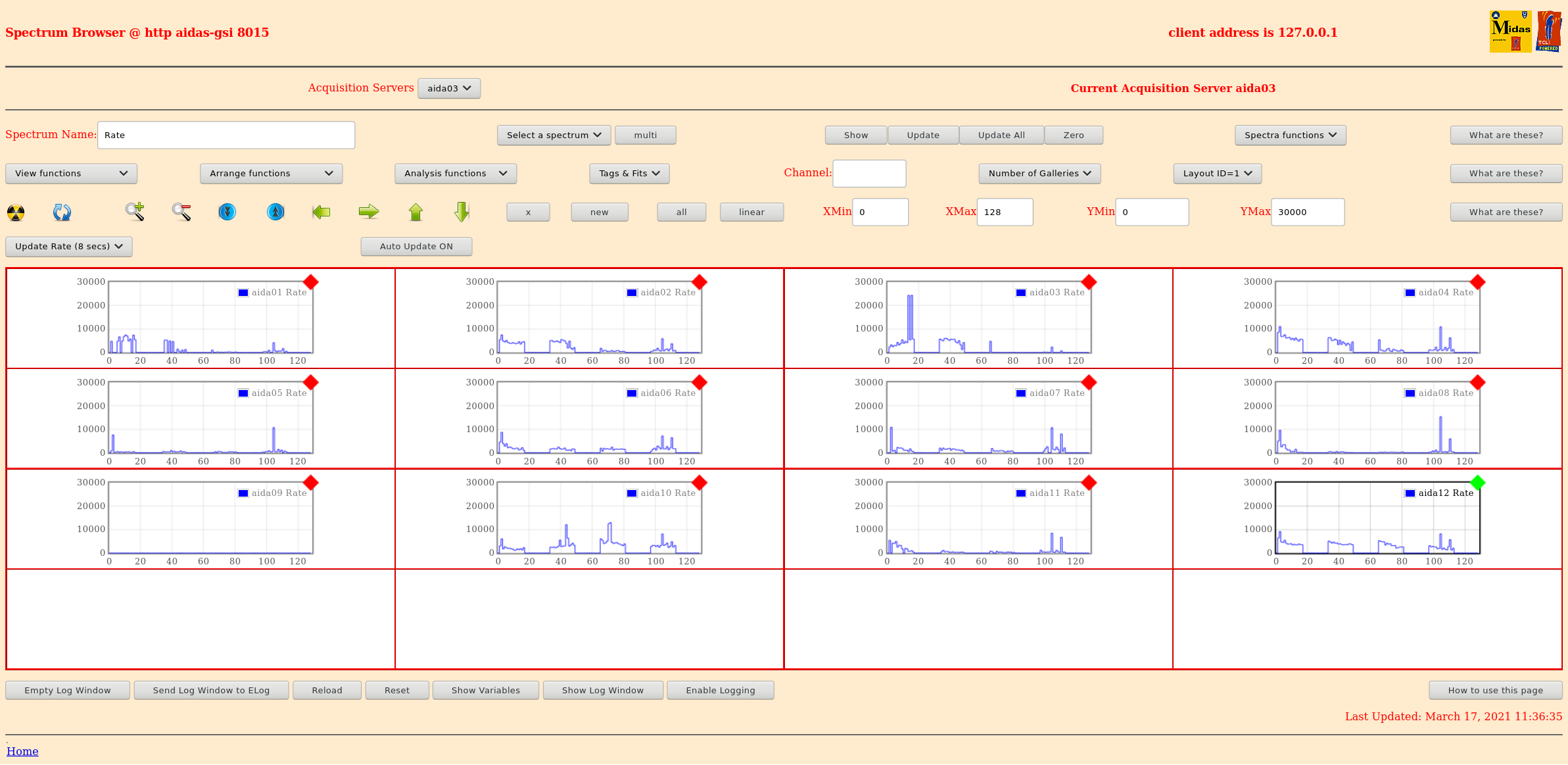

Rate spectra - attachment 6

11.41 Merger errors since yesterday's Elog

MERGE Data Link (20502): bad timestamp  2 3 0xc08e4cce 0x0c1c8460 0x0000f14c5c1c8460 0x166cf14c5c1c8460 0x166cf1515c1c74c0
MERGE Data Link (20502): bad timestamp  2 3 0xc0967f4f 0x0c1c8460 0x0000f14c5c1c8460 0x166cf14c5c1c8460 0x166cf1515c1c74c0
MERGE Data Link (20502): bad timestamp  2 3 0xc0807dc7 0x0c1c9bd0 0x0000f14c5c1c9bd0 0x166cf14c5c1c9bd0 0x166cf1515c1c74c0
MERGE Data Link (20502): bad timestamp  2 3 0xc0957ee9 0x0c1c9bd0 0x0000f14c5c1c9bd0 0x166cf14c5c1c9bd0 0x166cf1515c1c74c0
MERGE Data Link (20502): bad timestamp  2 3 0xc0857eea 0x0c1ca3a0 0x0000f14c5c1ca3a0 0x166cf14c5c1ca3a0 0x166cf1515c1c74c0
MERGE Data Link (20502): bad timestamp  2 3 0xc0977df3 0x0c1ca3a0 0x0000f14c5c1ca3a0 0x166cf14c5c1ca3a0 0x166cf1515c1c74c0
MERGE Data Link (20502): bad timestamp  2 3 0xc08a7edd 0x0c1cab70 0x0000f14c5c1cab70 0x166cf14c5c1cab70 0x166cf1515c1c74c0
MERGE Data Link (20502): bad timestamp  2 3 0xc09c7c7f 0x0c1cab70 0x0000f14c5c1cab70 0x166cf14c5c1cab70 0x166cf1515c1c74c0
MERGE Data Link (20502): bad timestamp  2 3 0xc09d7fd8 0x0c1cb340 0x0000f14c5c1cb340 0x166cf14c5c1cb340 0x166cf1515c1c74c0

:
 :

MERGE Data Link (20502): bad timestamp  2 3 0x8263ffff 0x0433c338 0x000018ff4433c338 0x166d18ff4433c338 0x166d18ff4e17c2c0
MERGE Data Link (20502): bad timestamp  2 3 0x8263ffff 0x0433c356 0x000018ff4433c356 0x166d18ff4433c356 0x166d18ff4e17c2c0
MERGE Data Link (20502): bad timestamp  2 3 0x8263f080 0x0433c36a 0x000018ff4433c36a 0x166d18ff4433c36a 0x166d18ff4e17c2c0
MERGE Data Link (20502): bad timestamp  2 3 0x82630f7f 0x0433c374 0x000018ff4433c374 0x166d18ff4433c374 0x166d18ff4e17c2c0
MERGE Data Link (20502): bad timestamp  2 3 0x8263ffff 0x0433c388 0x000018ff4433c388 0x166d18ff4433c388 0x166d18ff4e17c2c0
MERGE Data Link (20502): bad timestamp  2 3 0x8263ffff 0x0433c3a6 0x000018ff4433c3a6 0x166d18ff4433c3a6 0x166d18ff4e17c2c0
MERGE Data Link (20502): bad timestamp  2 3 0x8263efff 0x0433c3c4 0x000018ff4433c3c4 0x166d18ff4433c3c4 0x166d18ff4e17c2c0
MERGE Data Link (20502): bad timestamp  2 3 0x8263ffff 0x0433c3d8 0x000018ff4433c3d8 0x166d18ff4433c3d8 0x166d18ff4e17c2c0
MERGE Data Link (20502): bad timestamp  2 3 0x8263ffff 0x0433c3f6 0x000018ff4433c3f6 0x166d18ff4433c3f6 0x166d18ff4e17c2c0
MERGE Data Link (20502): bad timestamp  2 3 0x8263efff 0x0433c414 0x000018ff4433c414 0x166d18ff4433c414 0x166d18ff4e17c2c0
MERGE Data Link (20502): bad timestamp  2 3 0x82218ff4 0x0433c41e 0x000018ff4433c41e 0x166d18ff4433c41e 0x166d18ff4e17c2c0

From Tuesday, March 16, 2021 9:54:36.584 PM to Wednesday, March 17, 2021 10:02:05.935 AM

11.46 Grafana record of bias & leakage current for the 7 days to date - attachment 7

11.51 ASIC check load - all FEE64s, all ASICs

11.51 Disable 'no storage' mode and start writing to disk file S452/R58

12.01 R58_18 & R58_19 *no* change

12.16  R58_24 & R58_25 *all* waveforms disabled (Run Control tab)

12.23 R58_27 & R58_28 *all* discriminators disabled (Discriminator tab) *but* disc rates now low - see attachment 8 cf. attachment 3

12.27 Enable 'no storage' mode

12.38 Analysis of files R58_19, R58_25 & R58_28 - see attachments 9, 10 & 11
      Disabling waveforms significantly reduces pause/resume for aida01 - aida08
      Effect of disabling discriminators less clear - disc rate zero for all FEE64s except aida03 (2k).

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

Screenshot_2021-03-17_Temperature_and_status_scan_aidas-gsi.png Original size: 2400x1159

Attachment 2:

Screenshot_2021-03-17_Statistics_aidas-gsi.png Original size: 2400x1159

Attachment 3:

Screenshot_2021-03-17_Statistics_aidas-gsi(1).png Original size: 2400x1159

Attachment 4:

Screenshot_2021-03-17_Statistics_aidas-gsi(2).png Original size: 2400x1159

Attachment 5:

84.png Original size: 502x344

Attachment 6:

Screenshot_2021-03-17_Spectrum_Browser_aidas-gsi.png Original size: 2385x1163

Attachment 7:

85.png Original size: 1409x1030

Attachment 8:

Screenshot_2021-03-17_Statistics_aidas-gsi(3).png Original size: 2400x1159

Attachment 9:

R58_19

 *** TDR format 3.3.0 analyser - TD - January 2019
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  260603204 ( 1825295.6 Hz)
        Other data format:    1316796 (    9223.0 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:       1800 (      12.6 Hz)
                               RESUME:       1800 (      12.6 Hz)
                              SYNC100:        532 (       3.7 Hz)
                              WR48-63:        532 (       3.7 Hz)
                           FEE64 disc:     351517 (    2462.1 Hz)
                             MBS info:     960615 (    6728.3 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:          2 (       0.0 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      142.773 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  1                0.872              137.171
  2                2.370              140.392
  3                4.557              140.929
  4               12.507              102.274
  5                9.566              138.244
  6                0.000              130.460
  7                0.043              132.607
  8               21.086              137.171
  9               14.355              142.539
 10                0.094              126.165
 11               38.783              127.507
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   21184711       1567          0          0        302        302         78         78          0        807          0          0
  1   26163497        939          0          0          5          5         40         40          0        849          0          0
  2   26414580     834315          0          0          9          9         78         78     351513     482628          0          0
  3   30144417     476485          0          0         23         23         54         54          0     476331          0          0
  4    6641111       1448          0          0        716        716          8          8          0          0          0          0
  5   18794955        716          0          0        334        334         24         24          0          0          0          0
  6   13042480         36          0          0          0          0         18         18          0          0          0          0
  7    9502247         42          0          0          1          1         20         20          0          0          0          0
  8   31490514        302          0          0        109        109         42         42          0          0          0          0
  9   33799793        352          0          0         86         86         88         88          4          0          0          2
 10   11018662         96          0          0          2          2         46         46          0          0          0          0
 11   32406237        498          0          0        213        213         36         36          0          0          0          0
 12          0          0          0          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:45075.926s (    0.710 blocks/s,   0.044 Mb/s)

Attachment 10:

R58_25

 *** TDR format 3.3.0 analyser - TD - January 2019
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  261566975 ( 1848651.9 Hz)
        Other data format:     353025 (    2495.0 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        498 (       3.5 Hz)
                               RESUME:        497 (       3.5 Hz)
                              SYNC100:        528 (       3.7 Hz)
                              WR48-63:        528 (       3.7 Hz)
                           FEE64 disc:     350128 (    2474.6 Hz)
                             MBS info:        846 (       6.0 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:          0 (       0.0 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      141.491 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  1                2.252              140.123
  2                1.261              137.707
  3                1.206              132.607
  4                0.000              122.675
  5                0.045              124.017
  6                0.225              128.312
  7                0.137              137.171
  8               25.852              127.238
  9               22.485              137.976
 10                0.119              139.318
 11               34.852              135.828
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   22601243       1010          0          0          5          5         77         77          0        846          0          0
  1   25817640        118          0          0         10         10         49         49          0          0          0          0
  2   26662668     350294          0          0         10         10         73         73     350128          0          0          0
  3   31065481        116          0          0          9          9         49         49          0          0          0          0
  4    7606752         38          0          0          0          0         19         19          0          0          0          0
  5   20370392         52          0          0          3          3         23         23          0          0          0          0
  6   13822142         52          0          0          5          5         21         21          0          0          0          0
  7    9358078         60          0          0          5          5         25         25          0          0          0          0
  8   31862906        361          0          0        132        131         49         49          0          0          0          0
  9   30480452        364          0          0        115        115         67         67          0          0          0          0
 10    7772769         92          0          0          5          5         41         41          0          0          0          0
 11   34146452        468          0          0        199        199         35         35          0          0          0          0
 12          0          0          0          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:45119.996s (    0.709 blocks/s,   0.044 Mb/s)

Attachment 11:

R58_28

 *** TDR format 3.3.0 analyser - TD - January 2019
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  261917114 ( 1867522.0 Hz)
        Other data format:       2886 (      20.6 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        500 (       3.6 Hz)
                               RESUME:        500 (       3.6 Hz)
                              SYNC100:        523 (       3.7 Hz)
                              WR48-63:        523 (       3.7 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:        840 (       6.0 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:          1 (       0.0 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      140.248 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  1                2.196              135.828
  2                1.735              133.949
  3                1.362              133.412
  4                0.000              133.949
  5                0.624              134.218
  6                0.297              110.595
  7                0.085              138.513
  8               26.310              131.265
  9               16.413              138.781
 10                0.037              139.318
 11               35.860              131.265
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   22486922       1022          0          0          7          7         84         84          0        840          0          0
  1   25724429         84          0          0          9          9         33         33          0          0          0          0
  2   26397664        186          0          0          7          7         86         86          0          0          0          0
  3   31045386        104          0          0         11         11         41         41          0          0          0          0
  4    7561349         28          0          0          0          0         14         14          0          0          0          0
  5   20305012         70          0          0          8          8         27         27          0          0          0          0
  6   14228124         40          0          0          6          6         14         14          0          0          0          0
  7    9428091         66          0          0          3          3         30         30          0          0          0          0
  8   31422421        379          0          0        144        145         45         45          0          0          0          0
  9   32040015        335          0          0         92         91         76         76          0          0          0          1
 10    7197353         72          0          0          2          2         34         34          0          0          0          0
 11   34080348        500          0          0        211        211         39         39          0          0          0          0
 12          0          0          0          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:45164.730s (    0.709 blocks/s,   0.044 Mb/s)

Attachment 12:

Drop attachments here...

ELOG V3.1.4-unknown
