Message ID: 209     Entry time: Wed Mar 31 12:46:10 2021
Author: PJCS
Subject: HowTo : Calibrate the LMK3200 clock devices

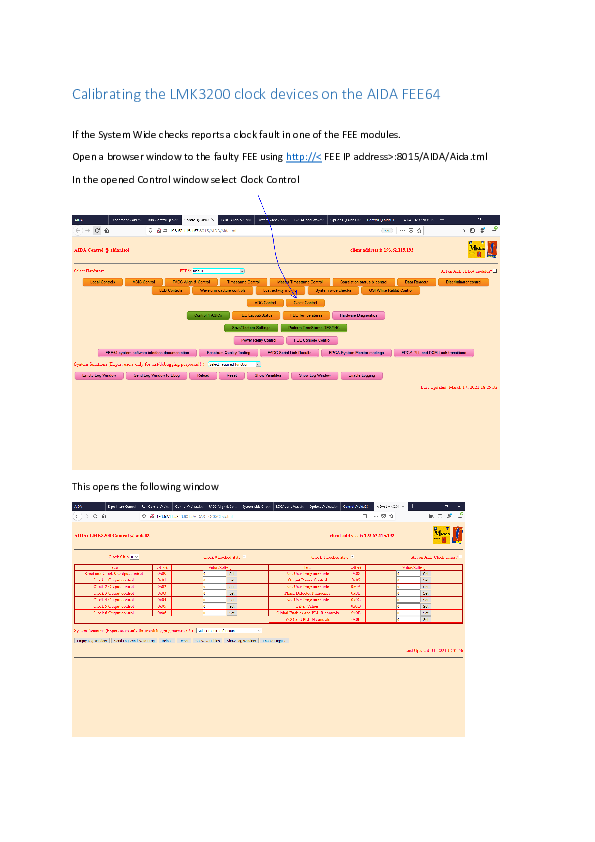

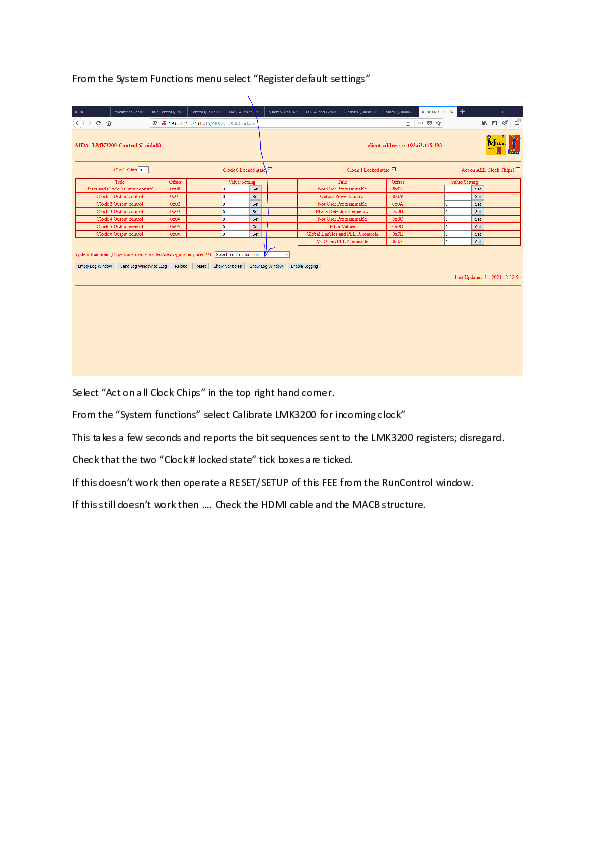

Here is a document showing how and where to calibrate the LMK3200 devices that lock to the system clock and generate the clocks for the ADCs and the FPGA internal logic.

Attachment 1: Calibrating_the_LMK3200_clock_devices_on_the_AIDA_FEE64.pdf  596 kB  Uploaded Wed Mar 31 14:55:22 2021  | Hide | Hide all
Calibrating_the_LMK3200_clock_devices_on_the_AIDA_FEE64.pdf Calibrating_the_LMK3200_clock_devices_on_the_AIDA_FEE64.pdf
