Message ID: 213     Entry time: Fri Apr 9 16:45:29 2021
Author: NH, HA. GA, GZ, OH, TD
Subject: AIDA Noise

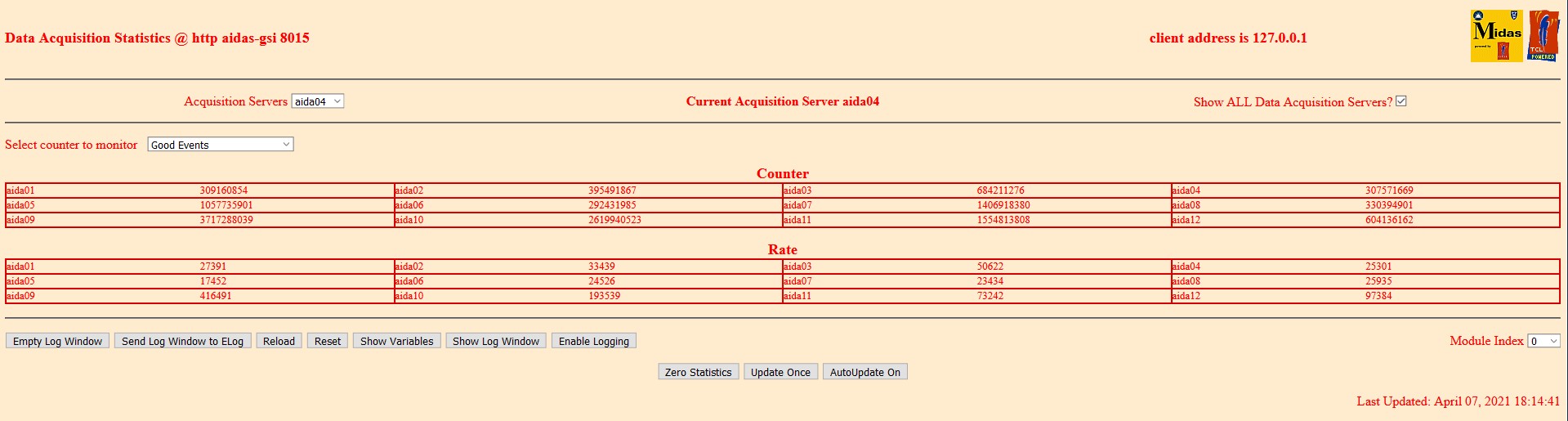

AIDA snout was reconnected and we saw originally a very good reduction in noise from S452 (fig 1)
Occasional bursts of increased rates were noticed, perhaps related to works in S4.

Tape rate at optimal conditions was around 6 MB/s
We still saw some extrinsic noise in waves, two frequencies observed : 1.5 MHz and 100 kHz or so

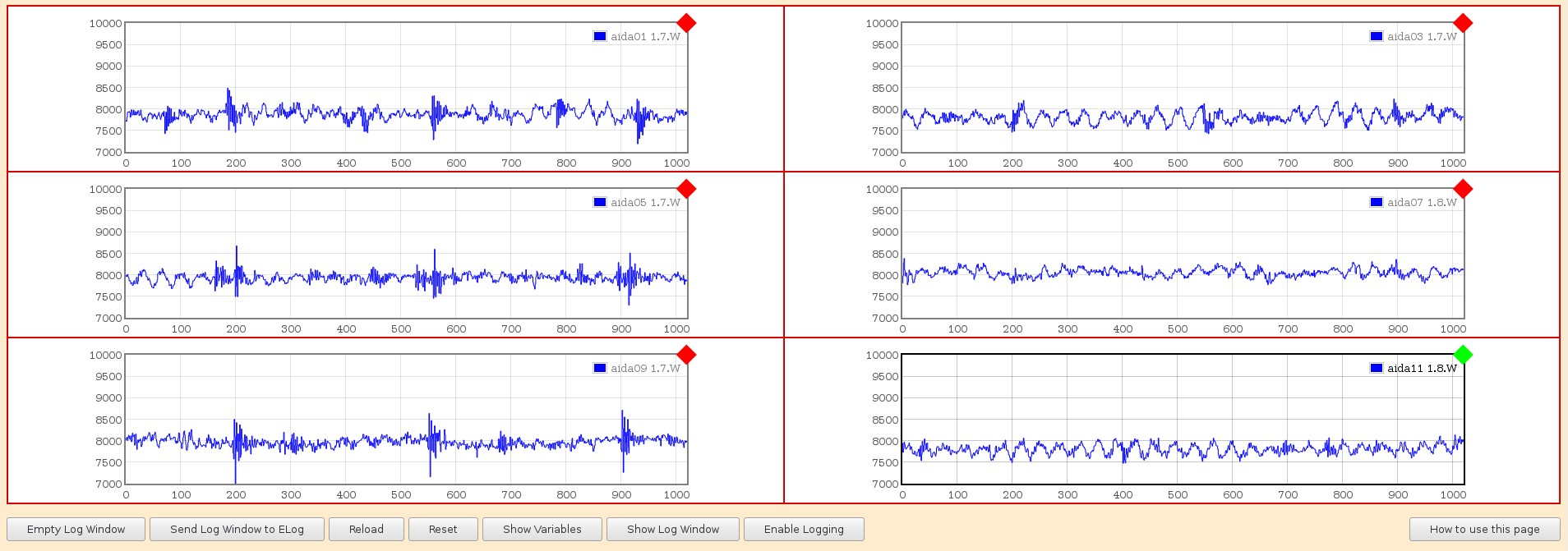

Figs 2, 3 are at 50 MS/s

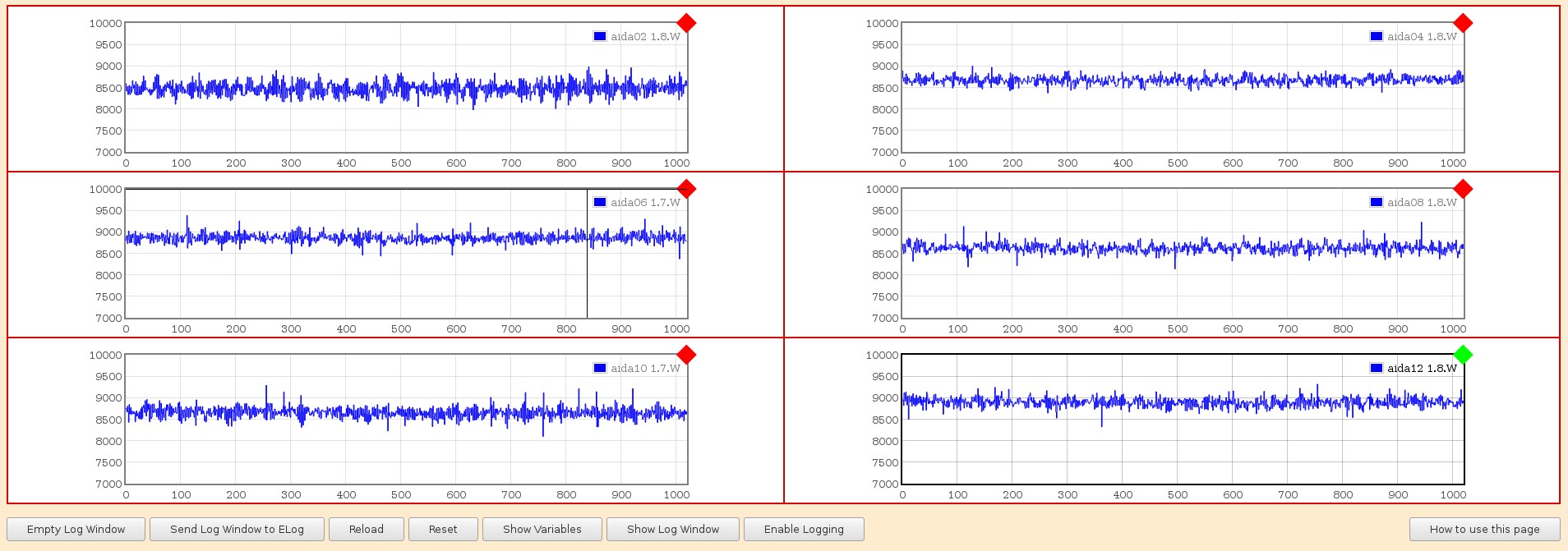

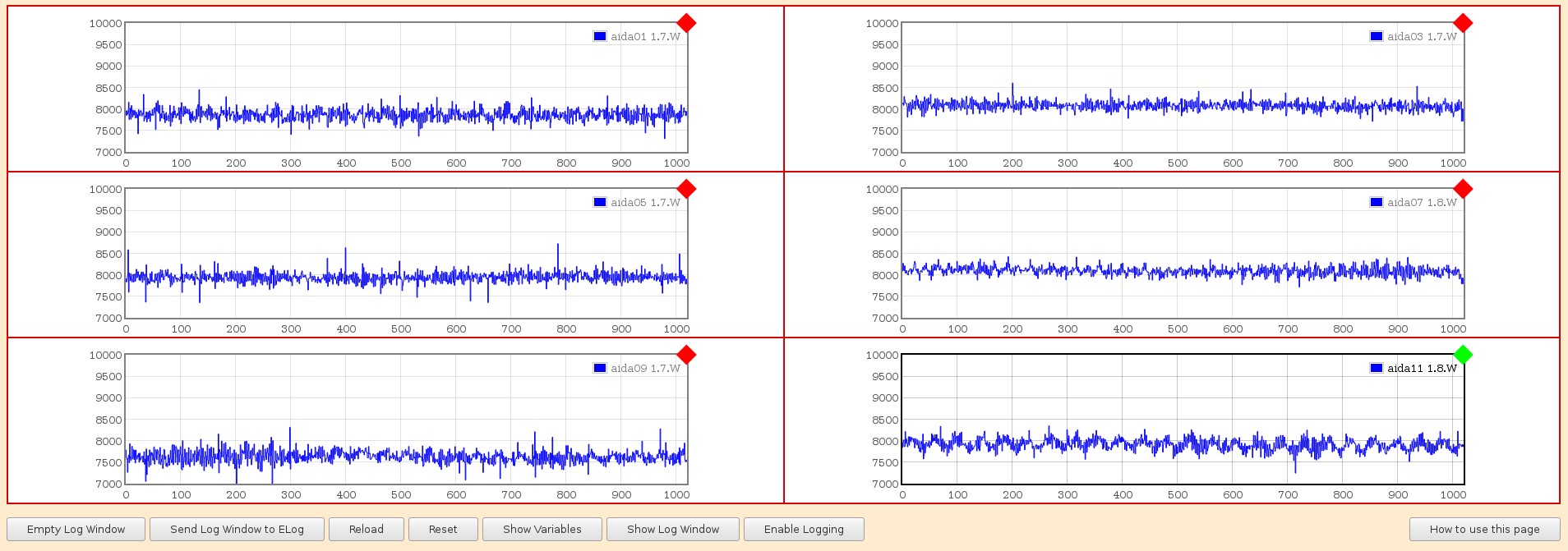

Figs 4, 5 are at 5 MS/s

Today the situation has become a lot worse for reasons still unknown.
aida01 shows very strong noise, frequency 125 kHz or so it seems (still at 5 MS/s)
Amplitude 100 mV or so I think

Investigation still underway
Attachment 1: Image_Pasted_at_2021-4-7_18-15.png.jpeg  161 kB  Uploaded Fri Apr 9 17:46:27 2021  | Hide | Hide all
Attachment 2: Image_Pasted_at_2021-4-8_16-142.png.jpeg  246 kB  Uploaded Fri Apr 9 17:49:43 2021  | Hide | Hide all
Attachment 3: Image_Pasted_at_2021-4-8_16-14.png.jpeg  249 kB  Uploaded Fri Apr 9 17:50:31 2021  | Hide | Hide all
Attachment 4: Image_Pasted_at_2021-4-8_16-17.png.jpeg  264 kB  Uploaded Fri Apr 9 17:50:38 2021  | Hide | Hide all
Attachment 5: Image_Pasted_at_2021-4-8_16-18.png.jpeg  262 kB  Uploaded Fri Apr 9 17:50:44 2021  | Hide | Hide all
Attachment 6: noise_aida_090421.png  133 kB  Uploaded Fri Apr 9 17:51:42 2021  | Hide | Hide all
