Draft saved at 00:00:00
Fields marked with
*
are required
Entry time:
Sat Apr 10 12:15:54 2021
Author
*
:
Subject
*
:

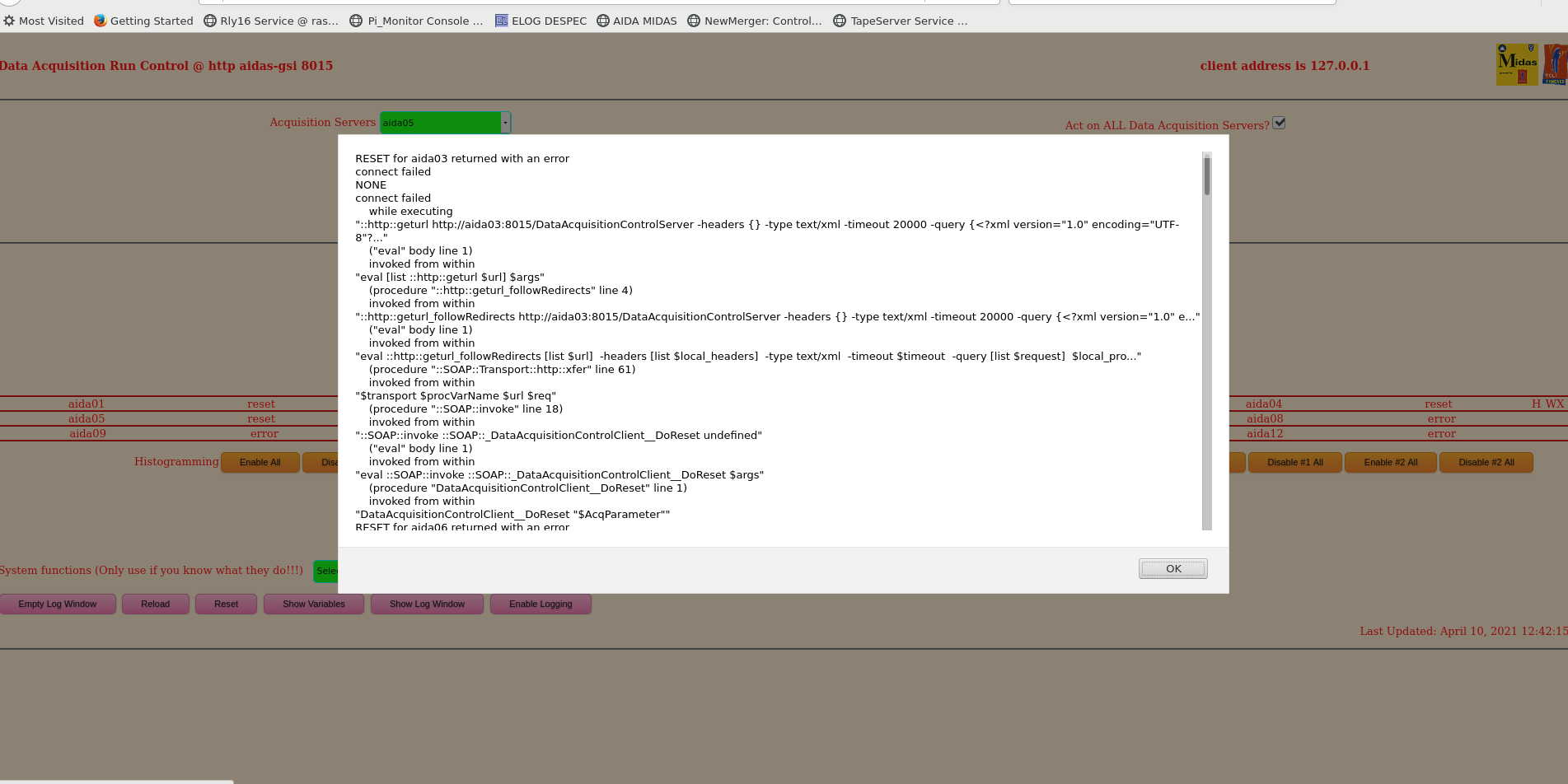

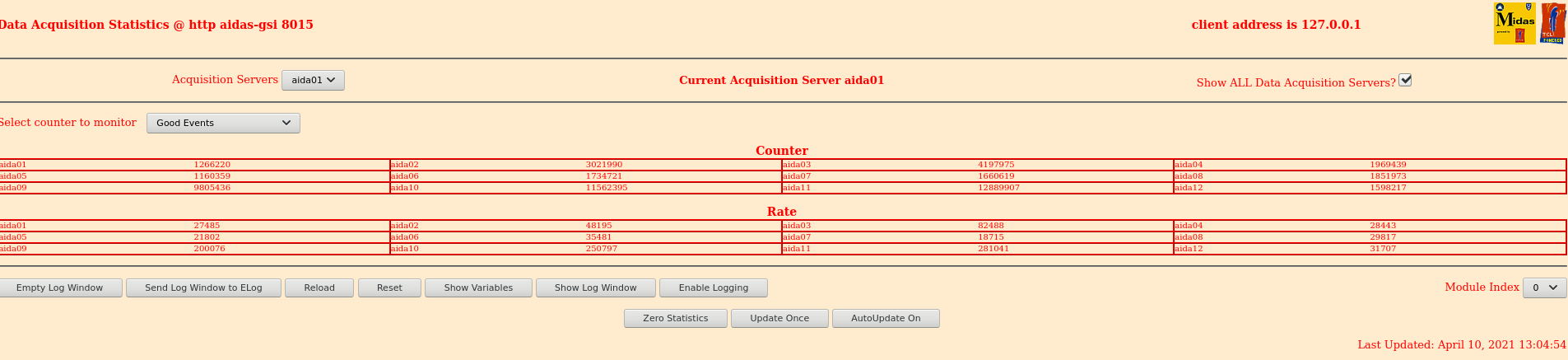

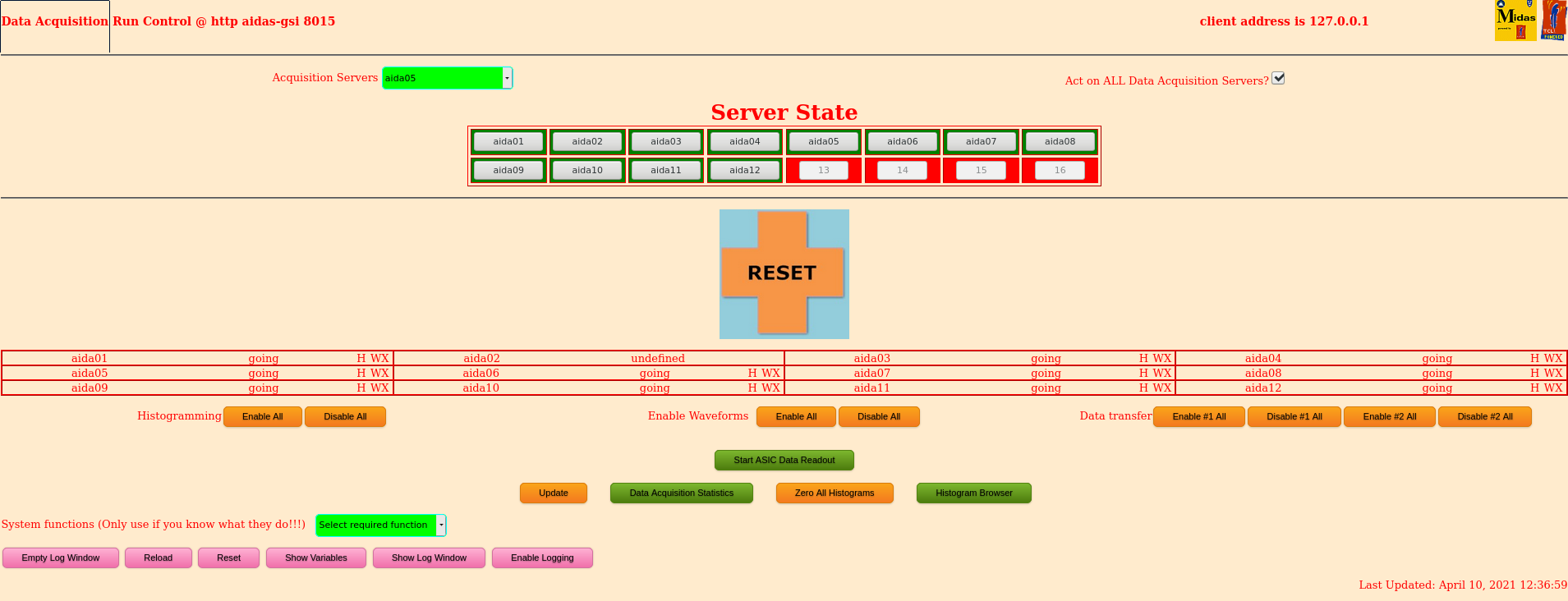

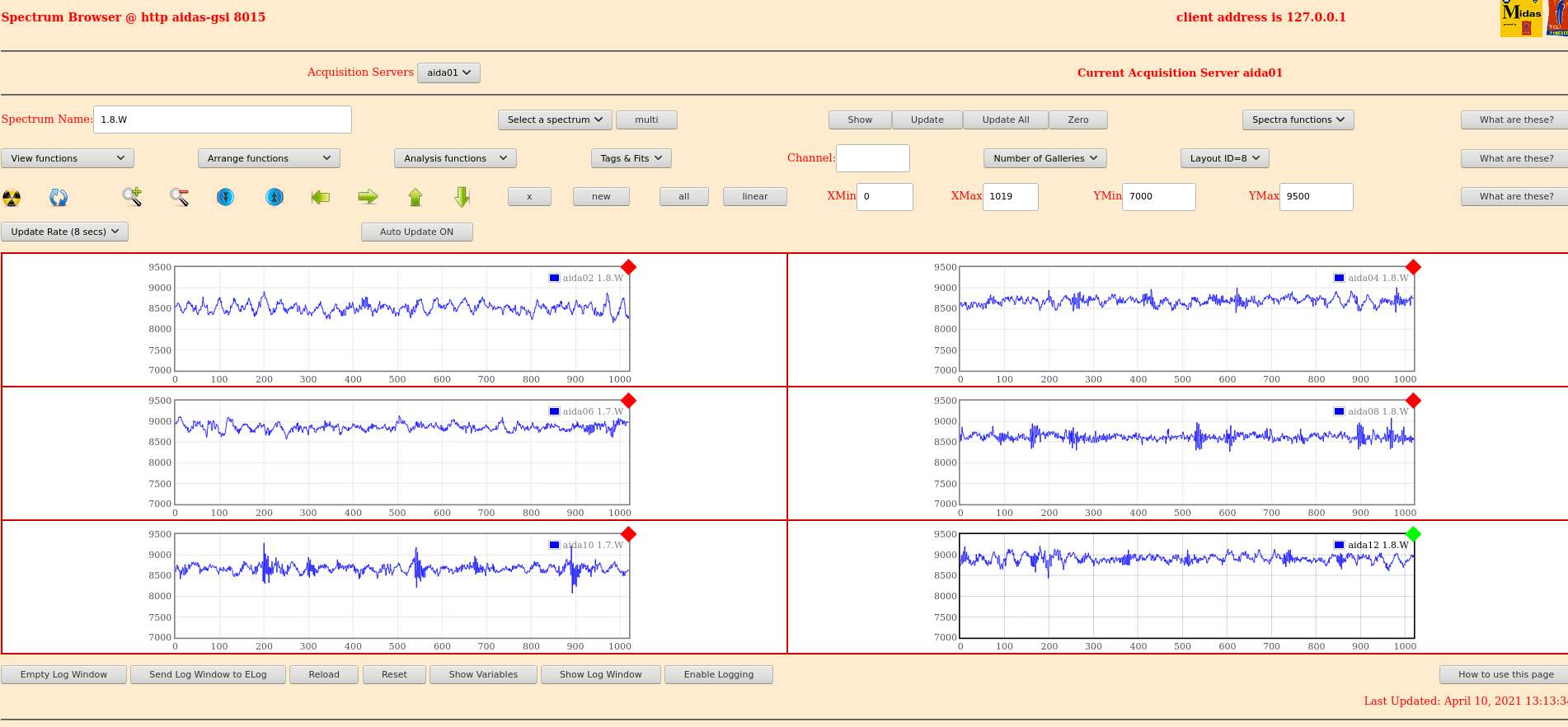

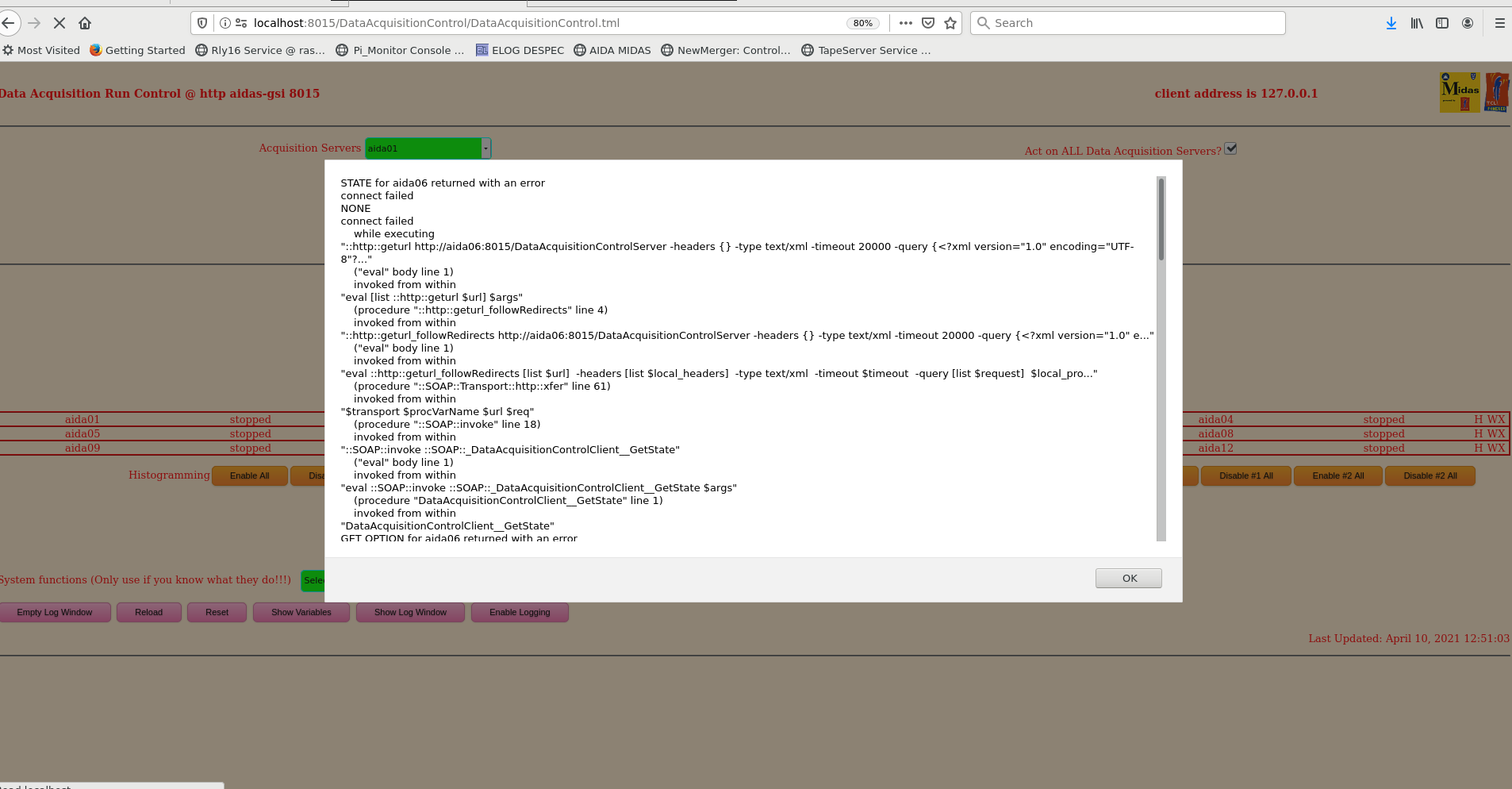

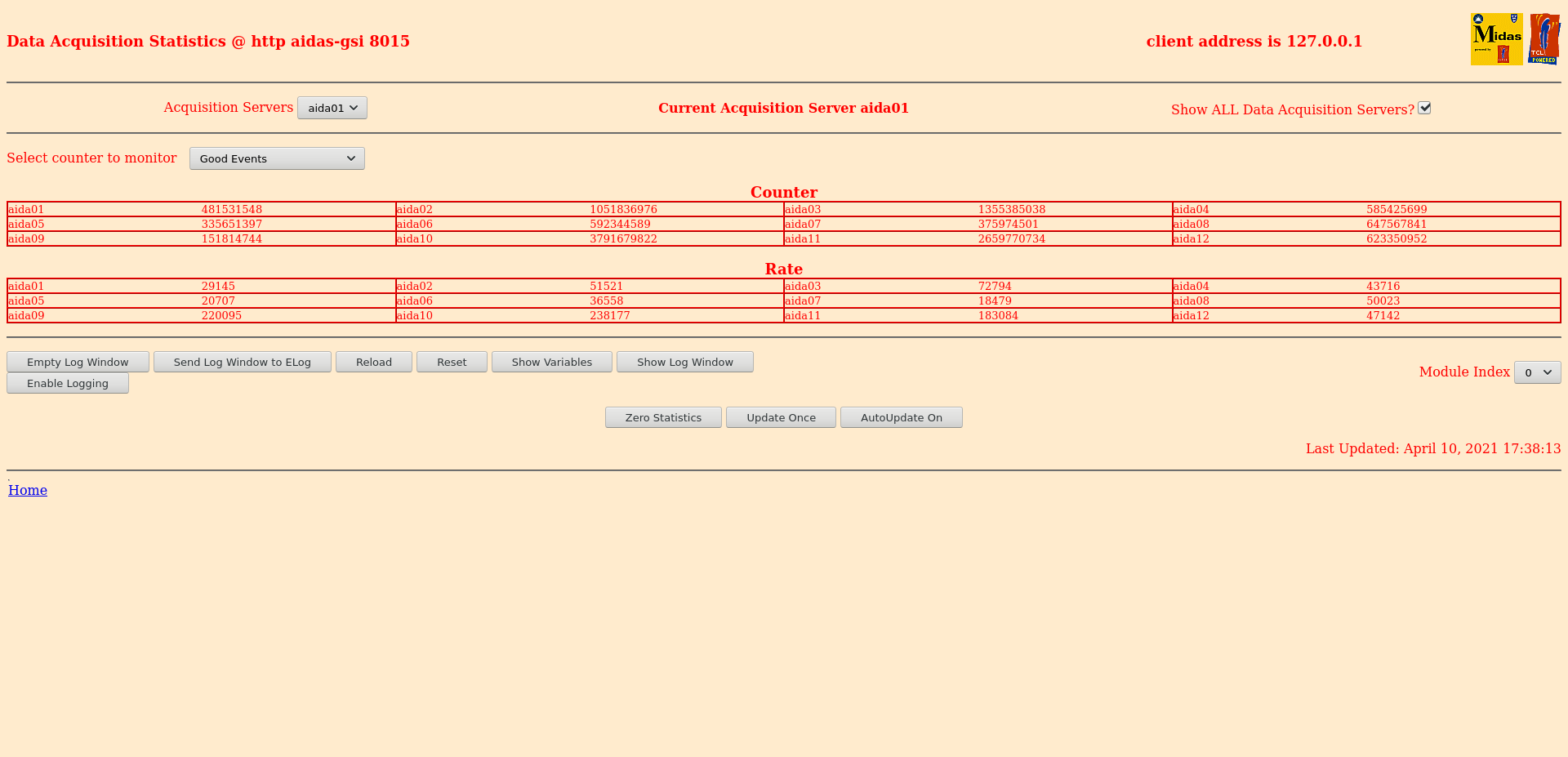

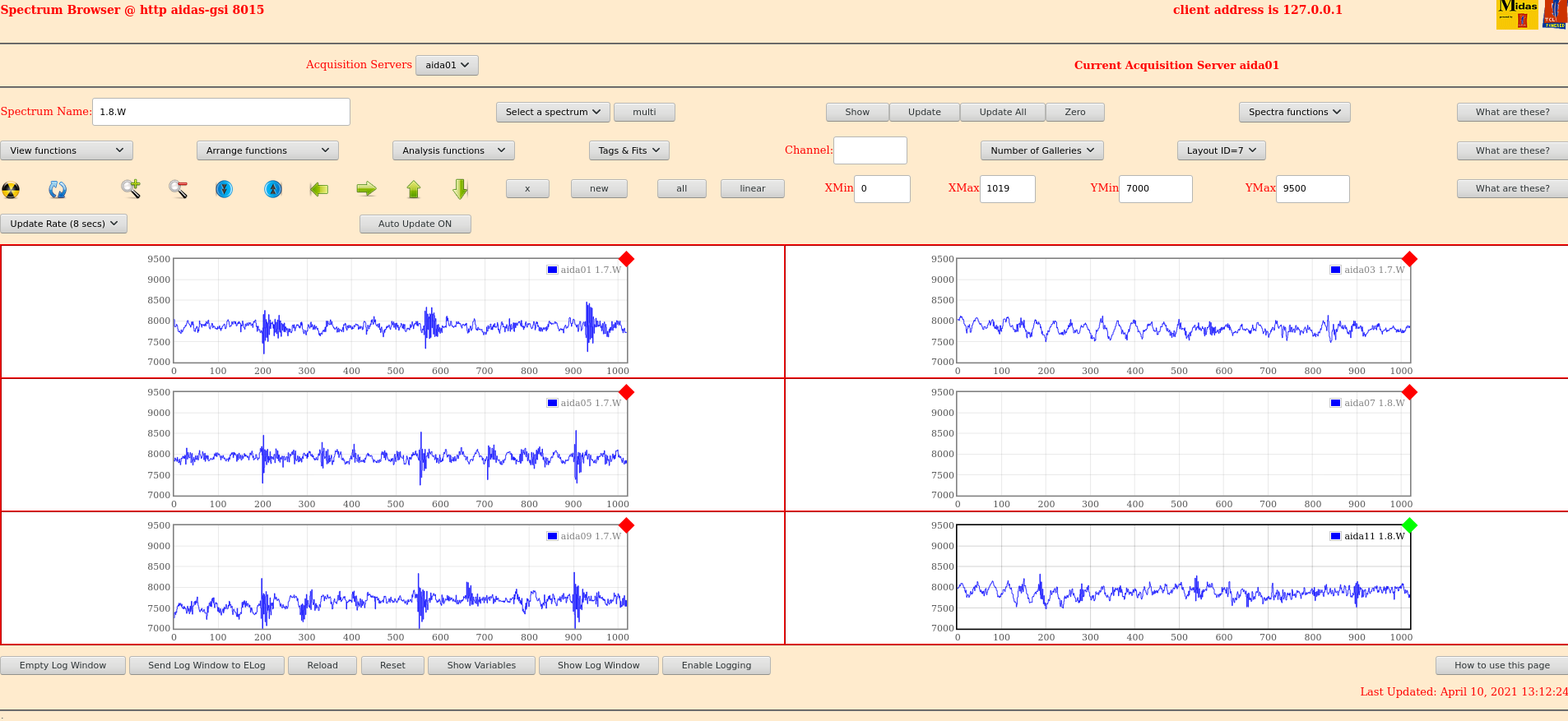

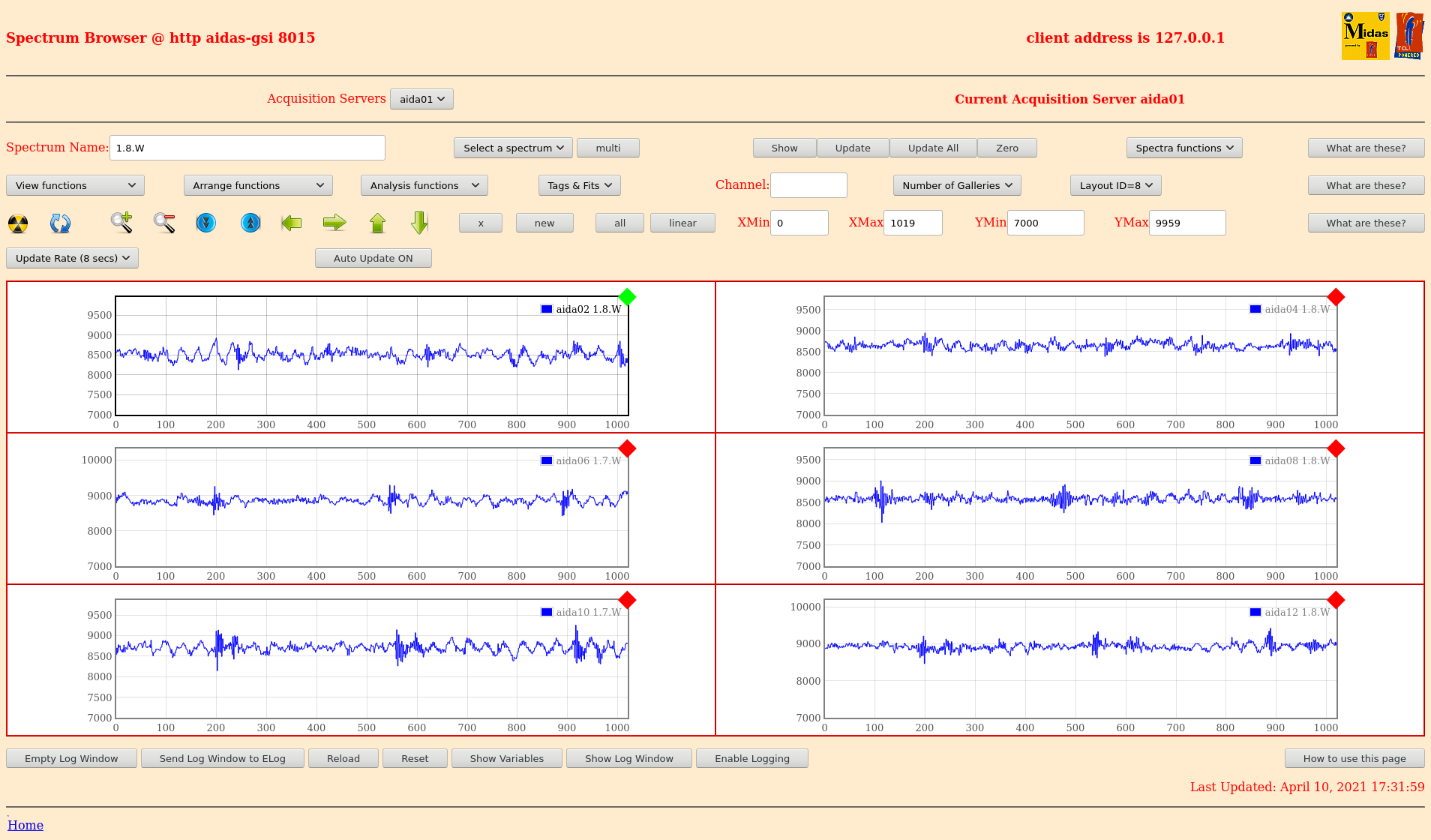

12:37 DAQ found crashed. Had crashed at some time following 7:50am following previous statistics update Unable to recover the FEEs so forced to power cycle Following power cycle statistics much improved from yesterday. In the waveforms the lower frequency component that was prevalent yesterday is no longer visible. The waveforms are not perfect by any means though Also note that following an ASIC synchronisation all of the FEEs lose ADC calibration and must be manually recalibrated. 16.42 UTC+1 per FEE64 1.8.W spectra 20us FSR attachments 7 & 8 200us FSR attachments 9 & 10 2ms FSR attachments 11 & 12 20ms FSR attachments 15 & 16 rate spectra attachment 13 good events statistics attachment 14
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1909x732
Attachment 2:
Original size: 1903x952
Attachment 3:
Original size: 1906x994
Attachment 4:
Original size: 1906x877
Attachment 5:
Original size: 1902x882
Attachment 6:
Original size: 1905x437
Attachment 7:
Original size: 1908x1120
Attachment 8:
Original size: 1908x1120
Attachment 9:
Original size: 1908x1120
Attachment 10:
Original size: 1908x1120
Attachment 11:
Original size: 1908x1120
Attachment 12:
Original size: 1908x1120
Attachment 13:
Original size: 1908x1122
Attachment 14:
Original size: 1920x927
Attachment 15:
Original size: 1908x1120
Attachment 16:
Original size: 1908x1120
