Message ID: 218
Entry time: Tue Apr 13 16:49:41 2021
Reply to this: 219
|
| Author: |
TD |
| Subject: |
Tuesday 13 April |
|
|
Rename Options directory
mv Options Options.BAK-130421
Copy Options.PRISTINE to Options
cp -r Options.PRISTINE Options
chmod -R 777 Options
Start Options directory monitor (will check directory every 5 minutes)
Python ~/oh/OptionsCheck
17.32 Power cycle FEE64s
FEE64 module aida09 global clocks failed, 6
Clock status test result: Passed 11, Failed 1
Understand status as follows
Status bit 3 : firmware PLL that creates clocks from external clock not locked
Status bit 2 : always logic '1'
Status bit 1 : LMK3200(2) PLL and clock distribution chip not locked to external clock
Status bit 0 : LMK3200(1) PLL and clock distribution chip not locked to external clock
If all these bits are not set then the operation of the firmware is unreliable
Calibration test result: Passed 12, Failed 0
If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module
White Rabbit error counter test result: Passed 12, Failed 0
Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR
FPGA Timestamp error counter test result: Passed 12, Failed 0
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last
Returned 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) : 4 8 16 32 64 128 256 512 1k 2k 4k
aida01 : 3 5 2 2 1 3 3 2 2 3 8 : 43348
aida02 : 2 3 0 2 1 2 2 3 2 3 8 : 43424
aida03 : 3 4 0 1 1 2 2 3 2 3 8 : 43404
aida04 : 1 4 2 0 3 3 3 2 2 3 8 : 43396
aida05 : 1 4 2 2 2 3 3 2 2 3 8 : 43396
aida06 : 2 3 2 1 1 2 2 3 2 3 8 : 43424
aida07 : 4 1 3 3 1 3 1 3 2 3 8 : 43368
aida08 : 1 4 2 2 2 3 3 2 2 3 8 : 43396
aida09 : 2 3 3 3 2 4 2 2 2 3 8 : 43312
aida10 : 1 3 1 2 2 3 2 2 2 3 8 : 43116
aida11 : 1 3 3 1 2 3 2 2 2 3 8 : 43116
aida12 : 3 2 1 0 1 2 1 3 2 3 8 : 43116
Note that system wide checks identify 1x file of different size immediately after boot/reset/setup
Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same
FEE : aida01 => Options file size is 1014 Last changed Tue Apr 13 17:59:03 CEST 2021
FEE : aida02 => Options file size is 1025 Last changed Tue Apr 13 17:59:04 CEST 2021
FEE : aida03 => Options file size is 1014 Last changed Tue Apr 13 17:59:03 CEST 2021
FEE : aida04 => Options file size is 1014 Last changed Tue Apr 13 17:59:03 CEST 2021
FEE : aida05 => Options file size is 1014 Last changed Tue Apr 13 17:59:04 CEST 2021
FEE : aida06 => Options file size is 1014 Last changed Tue Apr 13 17:59:03 CEST 2021
FEE : aida07 => Options file size is 1014 Last changed Tue Apr 13 17:59:03 CEST 2021
FEE : aida08 => Options file size is 1014 Last changed Tue Apr 13 17:59:03 CEST 2021
FEE : aida09 => Options file size is 1014 Last changed Tue Apr 13 17:59:03 CEST 2021
FEE : aida10 => Options file size is 1014 Last changed Tue Apr 13 17:59:04 CEST 2021
FEE : aida11 => Options file size is 1014 Last changed Tue Apr 13 17:59:03 CEST 2021
FEE : aida12 => Options file size is 1014 Last changed Tue Apr 13 17:59:05 CEST 2021
06:25:00 PM
FAULTS!
Unknown option in FEE2 Options database
Unknown entry starts:
da_Hist_W_Enable&&TS_SYNC_PHASE&&ExtClk&&Aida.shift&&MACB_TRIG_MODE&&Aida.offset&&RunNumber&&Aida_GroupBase&&Rate.channels&&Stat.channels&&Aida.Vchannels&&ASIC.settings&&WAVE_DMA_HWM&&Ai
da_Hist_D_Enable&&Stat.shift&&Aida.Wchannels&&Aida_Hist_V_Enable&&Include.Aida&&Aida.channels&&DataAcqPgm&&Aida_Hist_H_Enable&&DataFormat&&ASIC_DMA_HWM&&Aida_Hist_L_Enable
06:30:00 PM
FAULTS!
Unknown option in FEE2 Options database
Unknown entry starts:
da_Hist_W_Enable&&TS_SYNC_PHASE&&ExtClk&&Aida.shift&&MACB_TRIG_MODE&&Aida.offset&&RunNumber&&Aida_GroupBase&&Rate.channels&&Stat.channels&&Aida.Vchannels&&ASIC.settings&&WAVE_DMA_HWM&&Ai
da_Hist_D_Enable&&Stat.shift&&Aida.Wchannels&&Aida_Hist_V_Enable&&Include.Aida&&Aida.channels&&DataAcqPgm&&Aida_Hist_H_Enable&&DataFormat&&ASIC_DMA_HWM&&Aida_Hist_L_Enable
Unknown option in FEE2 Options database
Unknown entry starts:
et&&Aida_Hist_W_Enable&&TS_SYNC_PHASE&&ExtClk&&Aida.shift&&MACB_TRIG_MODE&&Aida.offset&&RunNumber&&Aida_GroupBase&&Rate.channels&&Stat.channels&&Aida.Vchannels&&ASIC.settings&&WAVE_DMA_H
WM&&Aida_Hist_D_Enable&&Stat.shift&&Aida.Wchannels&&Aida_Hist_V_Enable&&Include.Aida&&Aida.channels&&DataAcqPgm&&Aida_Hist_H_Enable&&DataFormat&&ASIC_DMA_HWM&&Aida_Hist_L_Enable
FEE64 module aida01 => 7
FEE64 module aida02 => 7
FEE64 module aida03 => 7
FEE64 module aida04 => 7
FEE64 module aida05 => 7
FEE64 module aida06 => 7
FEE64 module aida07 => 7
FEE64 module aida08 => 7
FEE64 module aida09 => 7
FEE64 module aida10 => 7
FEE64 module aida11 => 7
FEE64 module aida12 => 7
ASIC Clock Timestamp check test result: Passed 12, Failed 0
If any of the above values are different from the rest then check the clocks and the White Rabbit decoder status
aida01 timestamp memory No stop found : 0x0
0 0 0 0 0
4 0 0 0 0
8 0 0 0 0
12 0 0 0 0
16 0 0 0 0
20 0 0 0 0
24 0 0 0 0
28 0 0 0 0
aida02 timestamp memory No stop found : 0x0
0 0 0 0 0
4 0 0 0 0
8 0 0 0 0
12 0 0 0 0
16 0 0 0 0
20 0 0 0 0
24 0 0 0 0
28 0 0 0 0
aida03 timestamp memory No stop found : 0x0
0 0 0 0 0
4 0 0 0 0
8 0 0 0 0
12 0 0 0 0
16 0 0 0 0
20 0 0 0 0
24 0 0 0 0
28 0 0 0 0
aida04 timestamp memory No stop found : 0x0
0 0 0 0 0
4 0 0 0 0
8 0 0 0 0
12 0 0 0 0
16 0 0 0 0
20 0 0 0 0
24 0 0 0 0
28 0 0 0 0
aida05 timestamp memory No stop found : 0x0
0 0 0 0 0
4 0 0 0 0
8 0 0 0 0
12 0 0 0 0
16 0 0 0 0
20 0 0 0 0
24 0 0 0 0
28 0 0 0 0
aida06 timestamp memory No stop found : 0x0
0 0 0 0 0
4 0 0 0 0
8 0 0 0 0
12 0 0 0 0
16 0 0 0 0
20 0 0 0 0
24 0 0 0 0
28 0 0 0 0
aida07 timestamp memory No stop found : 0x0
0 0 0 0 0
4 0 0 0 0
8 0 0 0 0
12 0 0 0 0
16 0 0 0 0
20 0 0 0 0
24 0 0 0 0
28 0 0 0 0
aida08 timestamp memory No stop found : 0x0
0 0 0 0 0
4 0 0 0 0
8 0 0 0 0
12 0 0 0 0
16 0 0 0 0
20 0 0 0 0
24 0 0 0 0
28 0 0 0 0
aida09 timestamp memory No stop found : 0x0
0 0 0 0 0
4 0 0 0 0
8 0 0 0 0
12 0 0 0 0
16 0 0 0 0
20 0 0 0 0
24 0 0 0 0
28 0 0 0 0
aida10 timestamp memory No stop found : 0x0
0 0 0 0 0
4 0 0 0 0
8 0 0 0 0
12 0 0 0 0
16 0 0 0 0
20 0 0 0 0
24 0 0 0 0
28 0 0 0 0
aida11 timestamp memory No stop found : 0x0
0 0 0 0 0
4 0 0 0 0
8 0 0 0 0
12 0 0 0 0
16 0 0 0 0
20 0 0 0 0
24 0 0 0 0
28 0 0 0 0
aida12 timestamp memory No stop found : 0x0
0 0 0 0 0
4 0 0 0 0
8 0 0 0 0
12 0 0 0 0
16 0 0 0 0
20 0 0 0 0
24 0 0 0 0
28 0 0 0 0

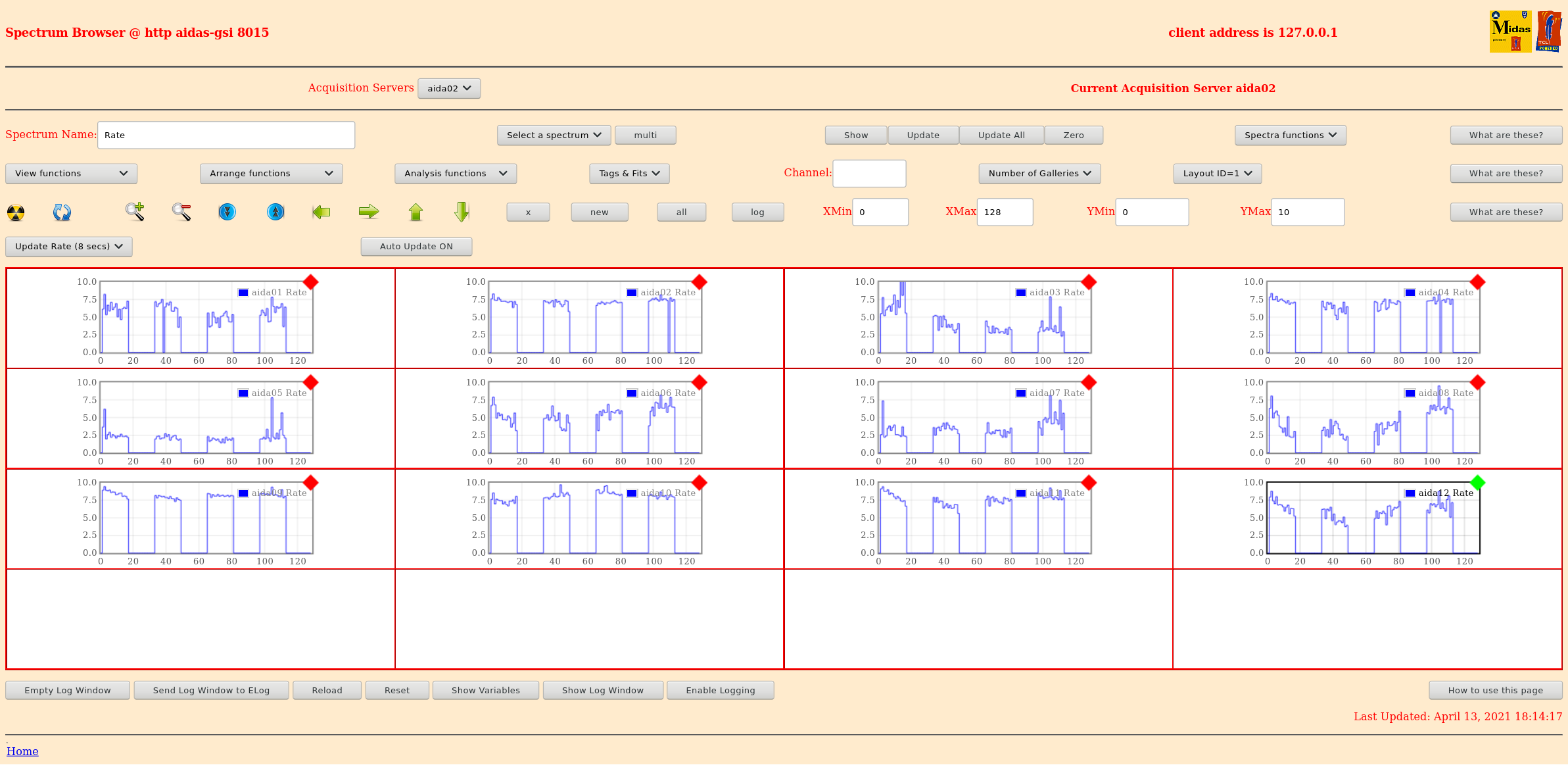

17.14 rate spectra - attachment 1

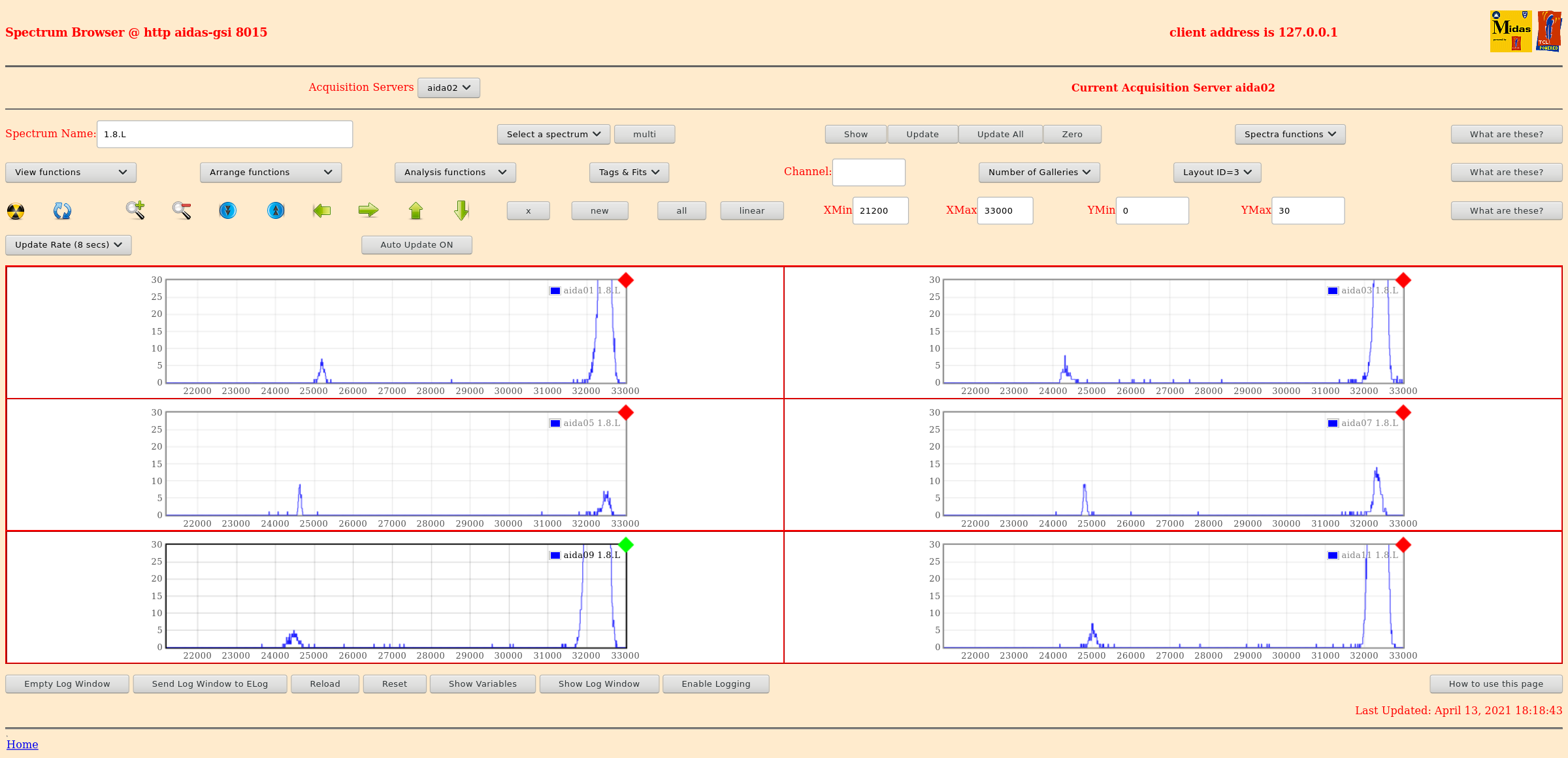

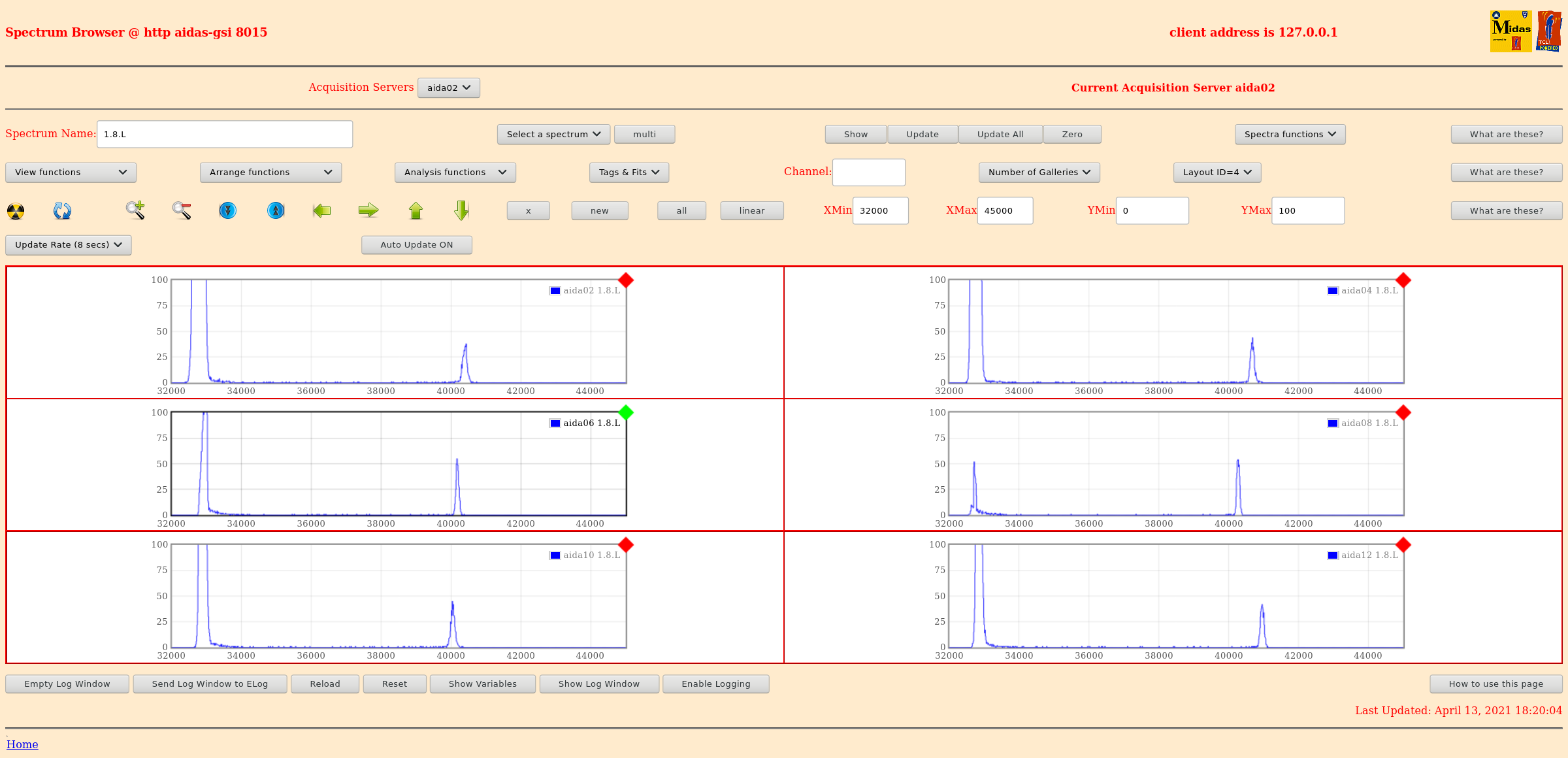

1.8.L spectra - attachments 2 & 3
pulser peak width aida06 c.75 ch FWHM, aida07 c.85 ch FWHM

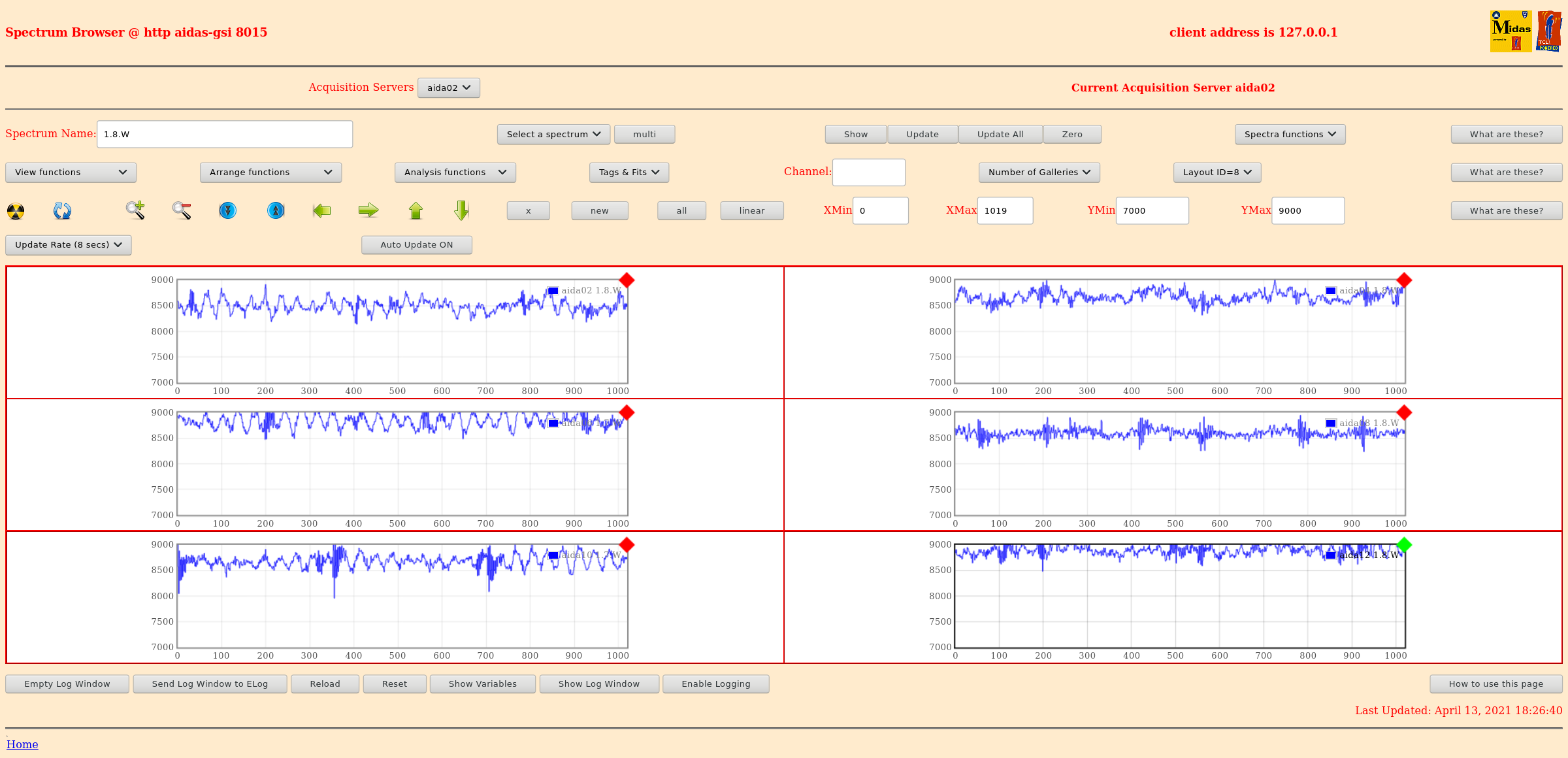

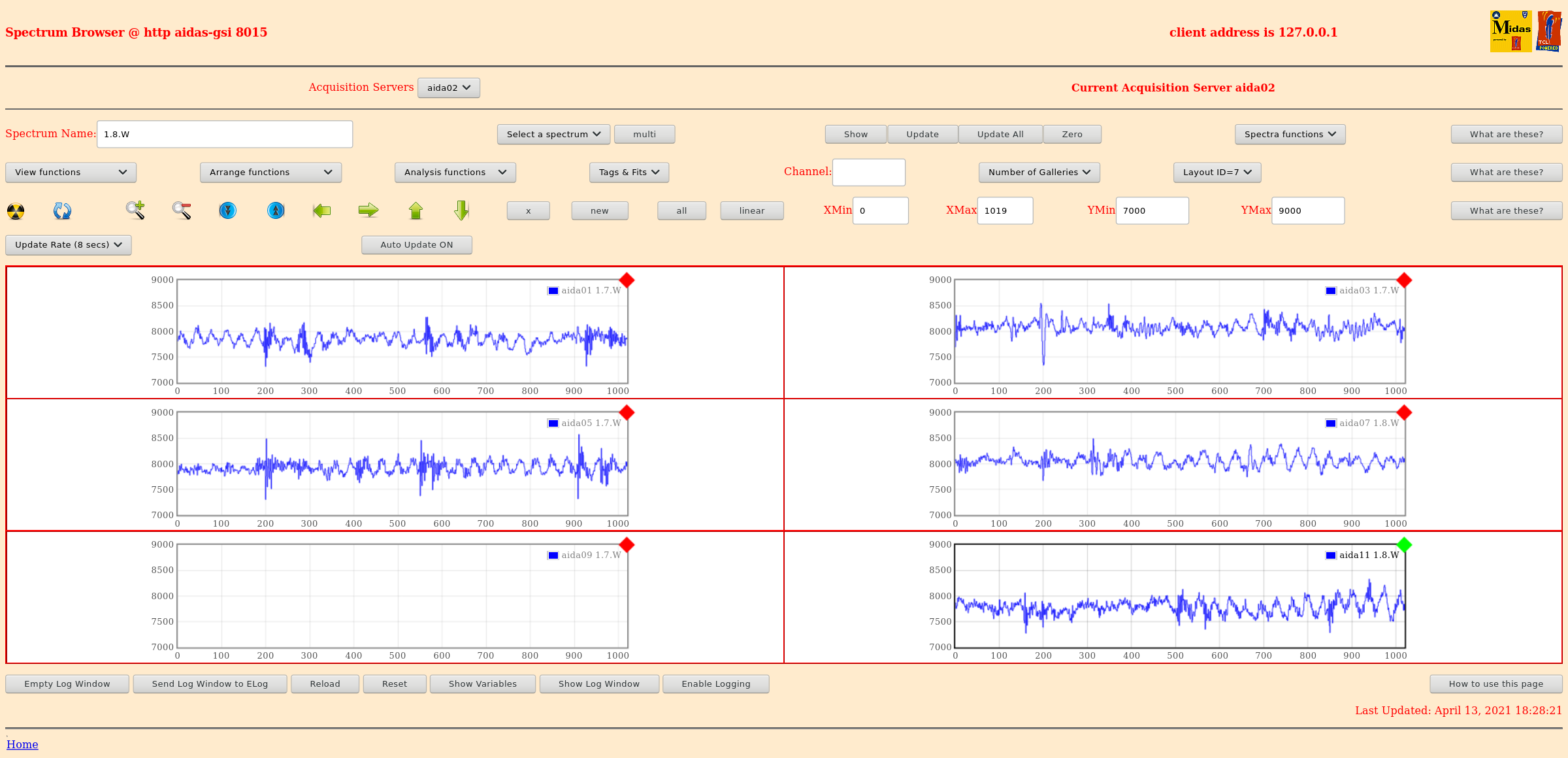

1.8.W spectra - attachments 4 & 5
good events statistics (slow comparator 0xa) - attachment 6
FEE64 temperatures OK - attachment 7
DSSSD bias & leakage currents OK - attachment 8
17.38 DAQ starts file NULL/R14
slow comparator 0xa -> 0x64
BNC PB-5 pulser OFF
alpha background
10:40 CET 14.04.2021 - NH
Close file NULL/R14 |
|
|
|
