system wide checks:

Done around 4am.

#################################

To be noted:

-1- White rabbit and FPGA checks failed for 1 FEE and passed for 11

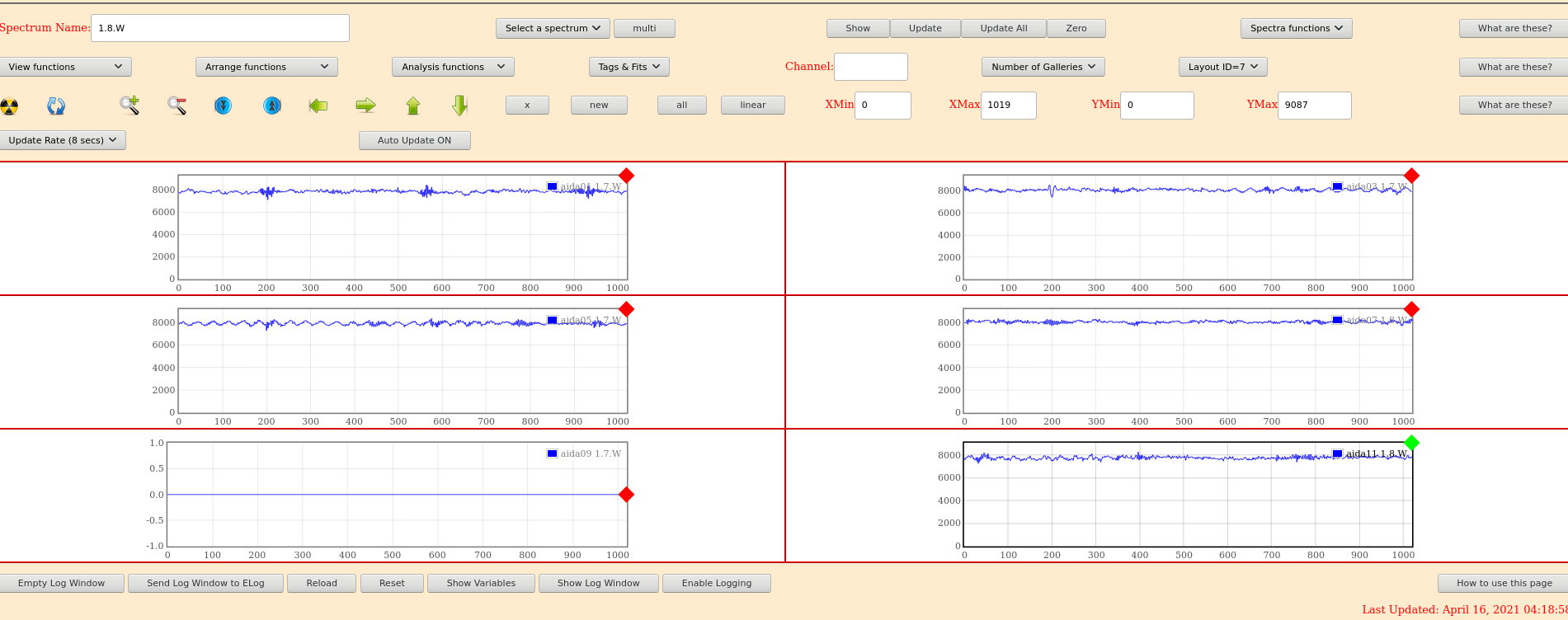

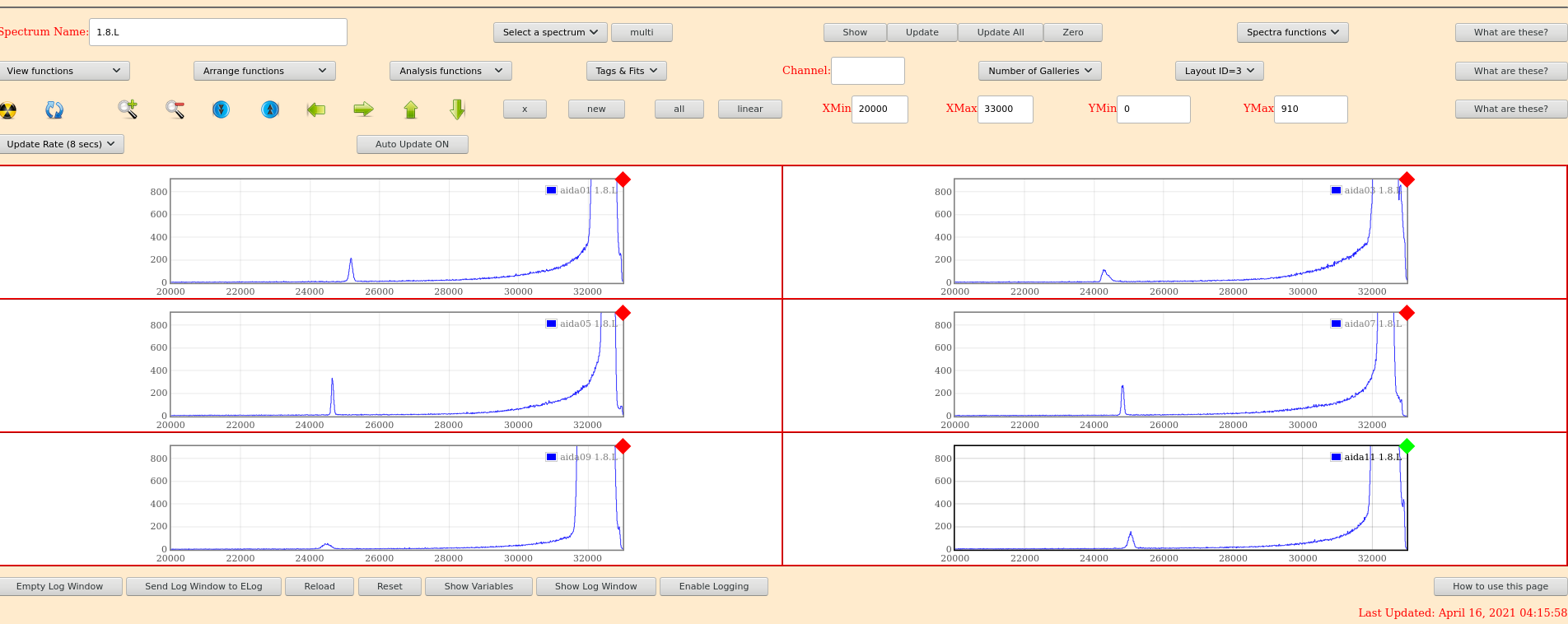

-2- No waveform for AIDA09 in 1.8.L spectrum

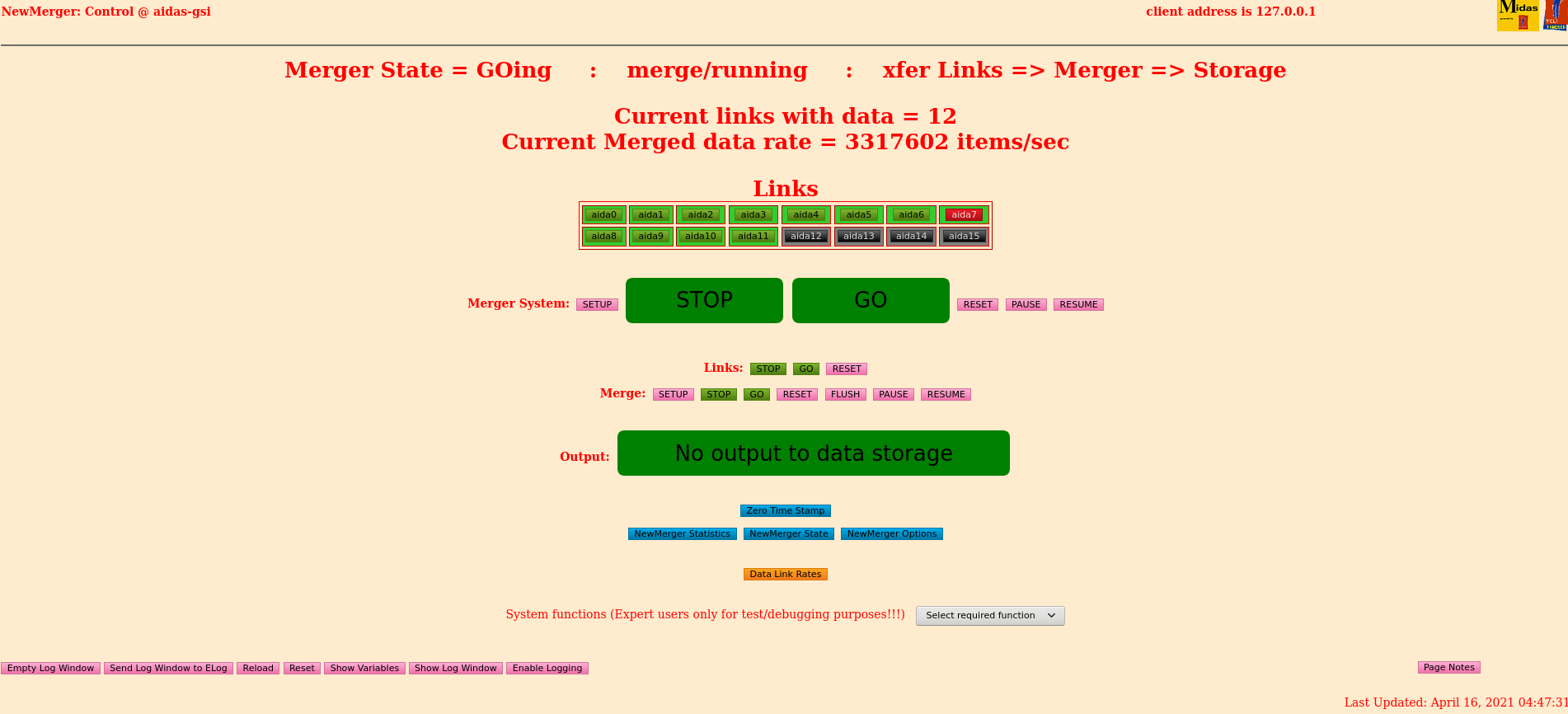

-3- AIDA 7 is red in the NewMerger control window (?)

#################################

Details:

Clock status test result: Passed 12, Failed 0

Understand status as follows
Status bit 3 : firmware PLL that creates clocks from external clock not locked
Status bit 2 : always logic '1'
Status bit 1 : LMK3200(2) PLL and clock distribution chip not locked to external clock
Status bit 0 : LMK3200(1) PLL and clock distribution chip not locked to external clock
If all these bits are not set then the operation of the firmware is unreliable

Calibration test result: Passed 12, Failed 0

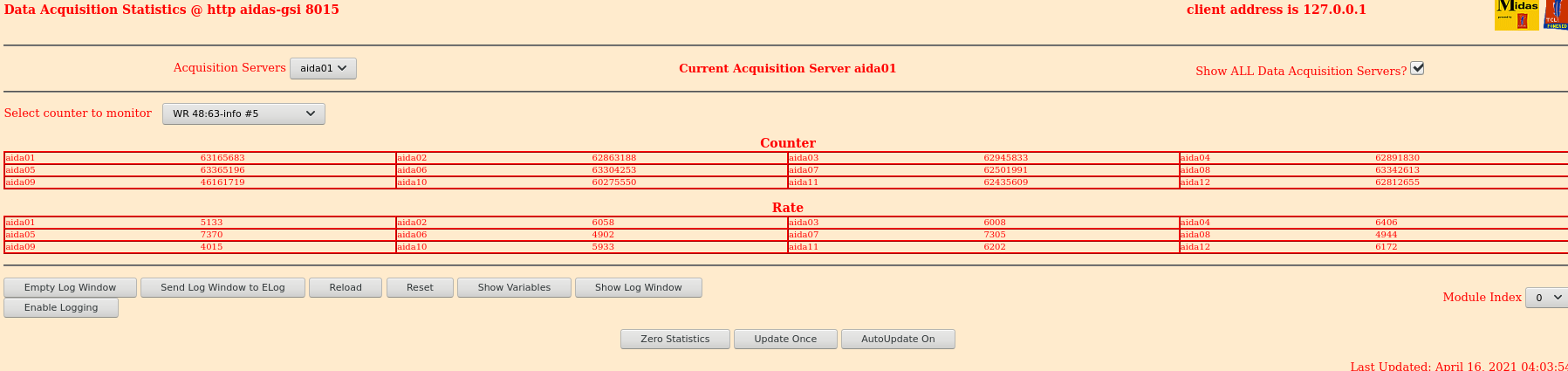

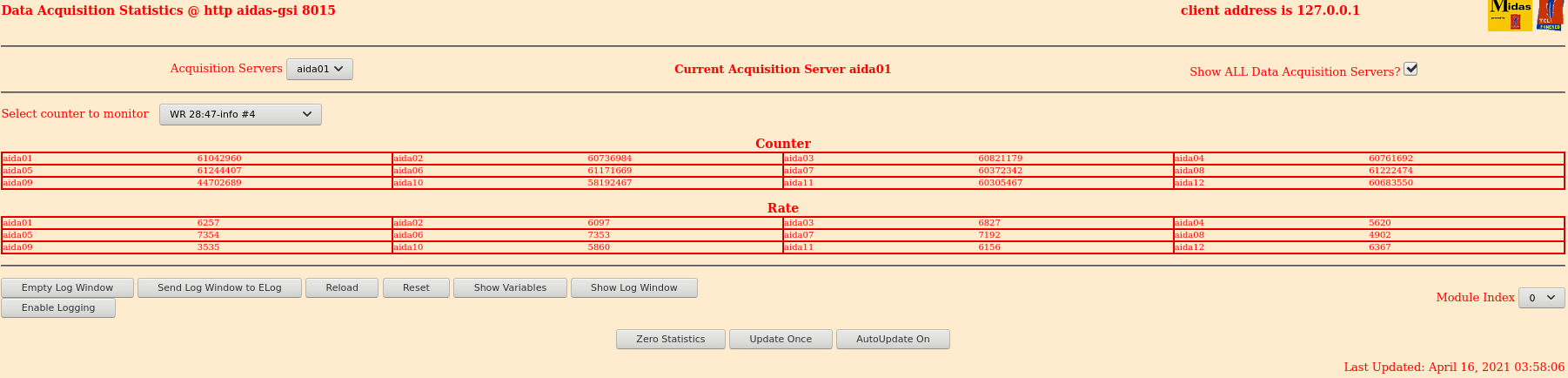

White Rabbit checks:

         Base         Current     Difference
aida07 fault      0xfa8c :      0xfb37 :      171
White Rabbit error counter test result: Passed 11, Failed 1

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

FPGA timestamp check:

             Base         Current         Difference
aida07 fault      0x0 :      0xe :      14
FPGA Timestamp error counter test result: Passed 11, Failed 1
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

Memory check:

Returned 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) :    4    8    16    32    64    128    256    512    1k    2k    4k
aida01 :     45      9      7      3      4      3      2      3      3      3      6   : 36940
aida02 :     23      9      6      7      4      3      2      3      3      3      6   : 36964
aida03 :     40      8      5      4      5      3      2      3      3      3      6   : 36976
aida04 :     37     13      7      3      4      3      4      2      3      3      6   : 36940
aida05 :     35     11      6      3      4      4      2      3      2      4      6   : 38052
aida06 :     42      8      2      3      4      4      2      3      3      3      6   : 36968
aida07 :     42     10      5      5      5      3      2      3      3      3      6   : 37032
aida08 :     40      8      1      6      3      4      2      3      3      3      6   : 36976
aida09 :     18     18     14      8      5      5      5      4      3      2      6   : 36728
aida10 :      1      8      9      6      3      3      1      4      2      3      6   : 36052
aida11 :     24     11     14      6      2      2      4      2      3      3      6   : 36824
aida12 :     17     13      8      5      5      4      2      3      2      3      6   : 36108
