Sat Apr 17 15:29:27 2021
Author
*
:
Subject
*
:

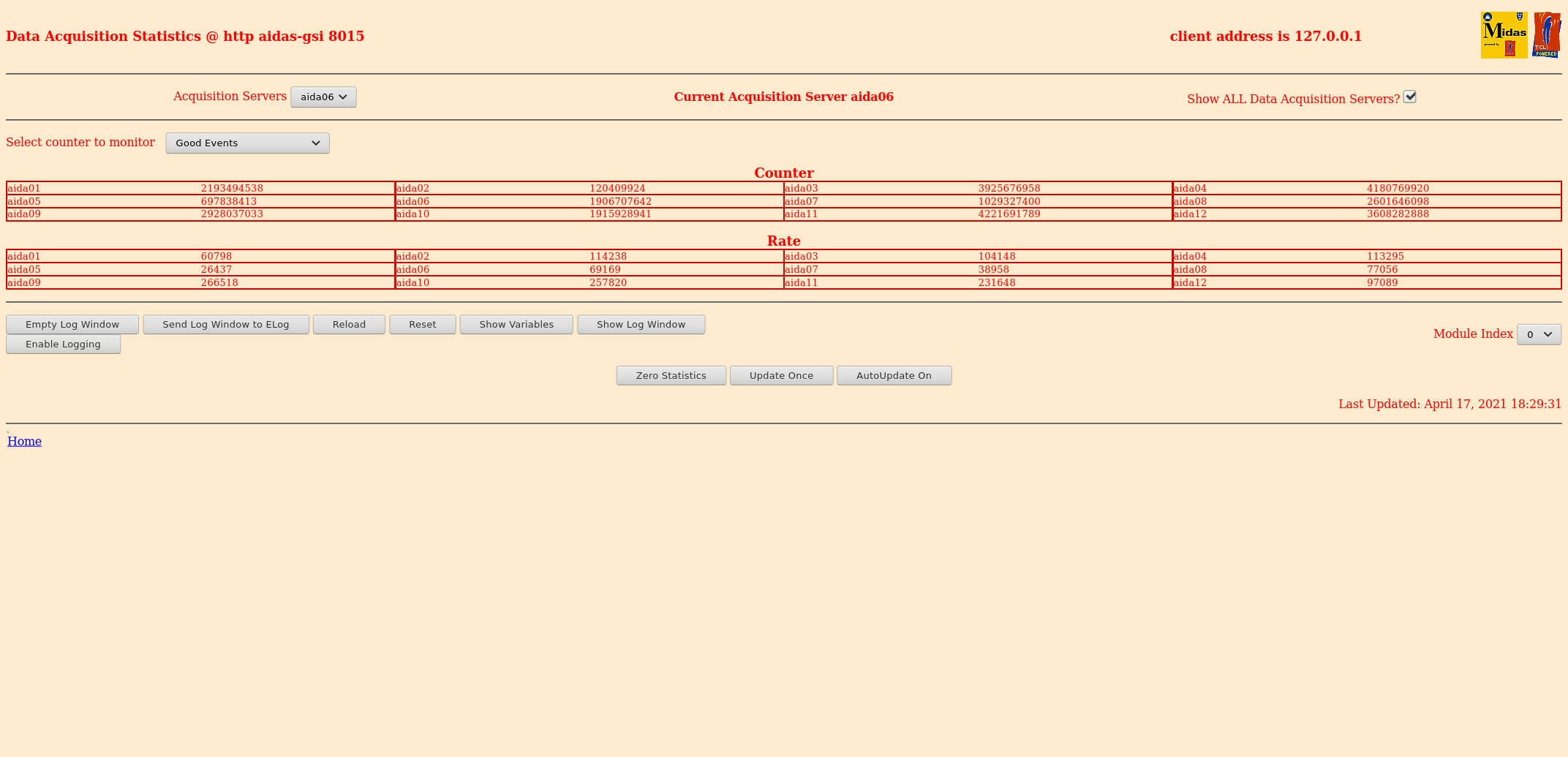

16:21 FEE64 module aida06 failed FEE64 module aida07 failed FEE64 module aida10 failed Calibration test result: Passed 9, Failed 3 If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module Base Current Difference aida05 fault 0x1a52 : 0x1a53 : 1 aida06 fault 0x4f3e : 0x4f3f : 1 aida07 fault 0x3bcd : 0x3bcf : 2 aida08 fault 0xc7c7 : 0xc7c8 : 1 White Rabbit error counter test result: Passed 8, Failed 4 Understand the status reports as follows:- Status bit 3 : White Rabbit decoder detected an error in the received data Status bit 2 : Firmware registered WR error, no reload of Timestamp Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR Base Current Difference aida09 fault 0x0 : 0x1 : 1 aida12 fault 0x0 : 0x2 : 2 FPGA Timestamp error counter test result: Passed 10, Failed 2 If any of these counts are reported as in error The ASIC readout system has detected a timeslip. That is the timestamp read from the time FIFO is not younger than the last Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same FEE : aida01 => Options file size is 1025 Last changed Sat Apr 17 06:14:30 CEST 2021 FEE : aida02 => Options file size is 1014 Last changed Fri Apr 16 00:56:20 CEST 2021 FEE : aida03 => Options file size is 1014 Last changed Wed Apr 14 21:52:04 CEST 2021 FEE : aida04 => Options file size is 1025 Last changed Sat Apr 17 06:07:36 CEST 2021 FEE : aida05 => Options file size is 1025 Last changed Fri Apr 16 00:53:25 CEST 2021 FEE : aida06 => Options file size is 1014 Last changed Wed Apr 14 21:52:04 CEST 2021 FEE : aida07 => Options file size is 1014 Last changed Wed Apr 14 21:52:04 CEST 2021 FEE : aida08 => Options file size is 1014 Last changed Wed Apr 14 21:52:04 CEST 2021 FEE : aida09 => Options file size is 1014 Last changed Wed Apr 14 21:52:05 CEST 2021 FEE : aida10 => Options file size is 1014 Last changed Wed Apr 14 21:52:06 CEST 2021 FEE : aida11 => Options file size is 1014 Last changed Wed Apr 14 21:52:05 CEST 2021 FEE : aida12 => Options file size is 1025 Last changed Wed Apr 14 21:58:54 CEST 2021 18:29 Clock status test result: Passed 12, Failed 0 Understand status as follows Status bit 3 : firmware PLL that creates clocks from external clock not locked Status bit 2 : always logic '1' Status bit 1 : LMK3200(2) PLL and clock distribution chip not locked to external clock Status bit 0 : LMK3200(1) PLL and clock distribution chip not locked to external clock If all these bits are not set then the operation of the firmware is unreliable FEE64 module aida06 failed FEE64 module aida07 failed FEE64 module aida10 failed Calibration test result: Passed 9, Failed 3 If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module Base Current Difference aida05 fault 0x1a52 : 0x1a53 : 1 aida06 fault 0x4f3e : 0x4f3f : 1 aida07 fault 0x3bcd : 0x3bd1 : 4 aida08 fault 0xc7c7 : 0xc7c8 : 1 White Rabbit error counter test result: Passed 8, Failed 4 Understand the status reports as follows:- Status bit 3 : White Rabbit decoder detected an error in the received data Status bit 2 : Firmware registered WR error, no reload of Timestamp Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR Base Current Difference aida09 fault 0x0 : 0x1 : 1 aida12 fault 0x0 : 0x2 : 2 FPGA Timestamp error counter test result: Passed 10, Failed 2 If any of these counts are reported as in error The ASIC readout system has detected a timeslip. That is the timestamp read from the time FIFO is not younger than the last Returned 0 0 0 0 0 0 0 0 0 0 0 0 Mem(KB) : 4 8 16 32 64 128 256 512 1k 2k 4k aida01 : 21 3 4 4 1 3 1 3 3 3 6 : 36332 aida02 : 4 3 13 2 2 3 2 4 2 3 6 : 36152 aida03 : 12 7 5 2 2 3 2 4 2 3 6 : 36088 aida04 : 17 6 9 5 1 1 2 3 3 3 6 : 36452 aida05 : 26 8 0 3 1 1 2 3 3 3 6 : 36296 aida06 : 22 6 9 4 3 4 2 3 3 3 6 : 36952 aida07 : 17 7 3 1 2 3 3 2 3 3 6 : 36300 aida08 : 24 5 4 4 1 1 2 3 3 3 6 : 36360 aida09 : 15 11 3 2 1 3 1 3 3 3 6 : 36292 aida10 : 2 3 5 2 1 2 2 2 3 3 6 : 35824 aida11 : 2 2 0 0 3 2 2 4 2 3 6 : 35800 aida12 : 18 15 7 5 4 3 1 3 3 3 6 : 36688
