Entry time:
Sat Apr 17 19:39:56 2021
Author
*
:
Subject
*
:

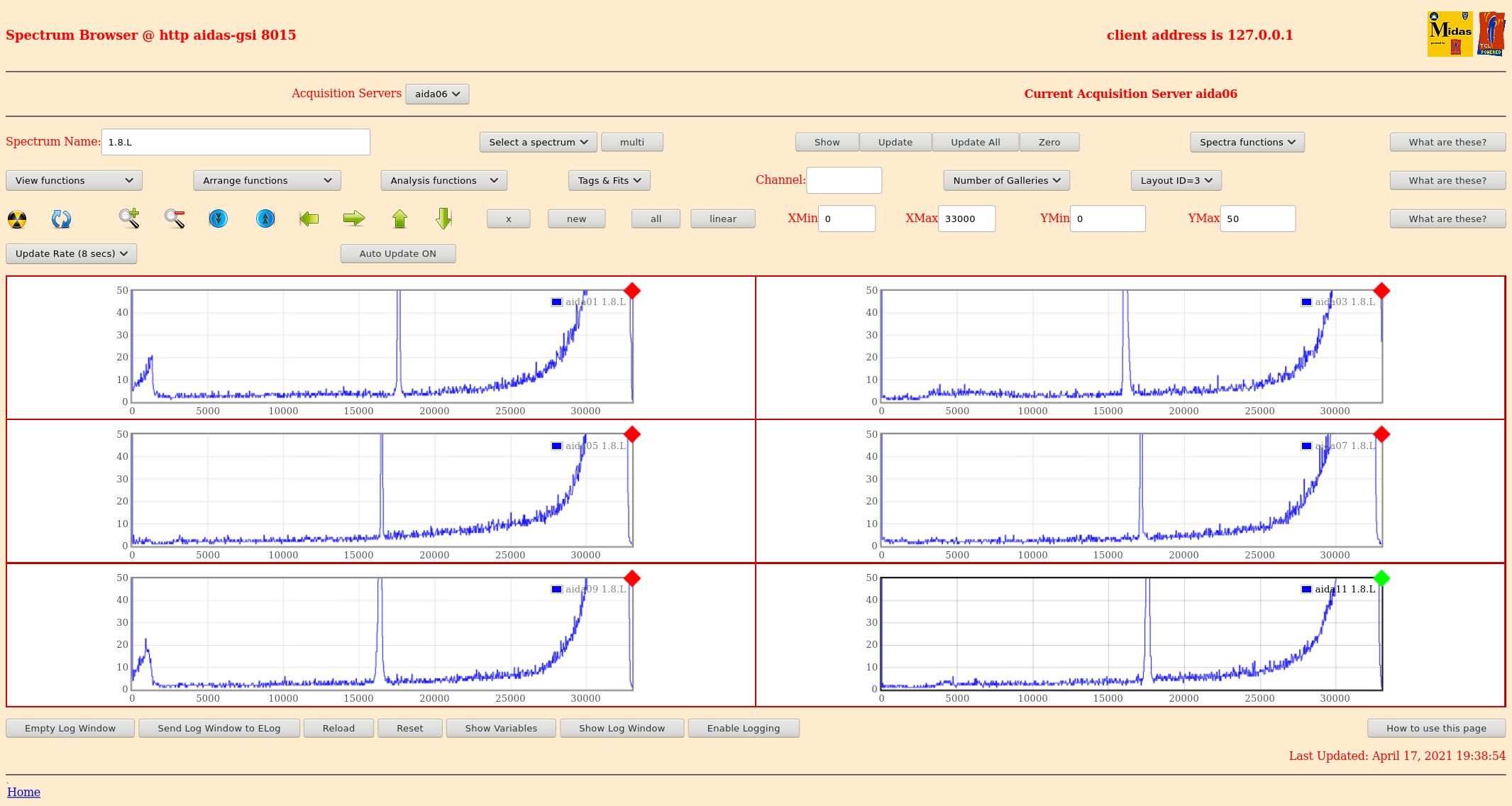

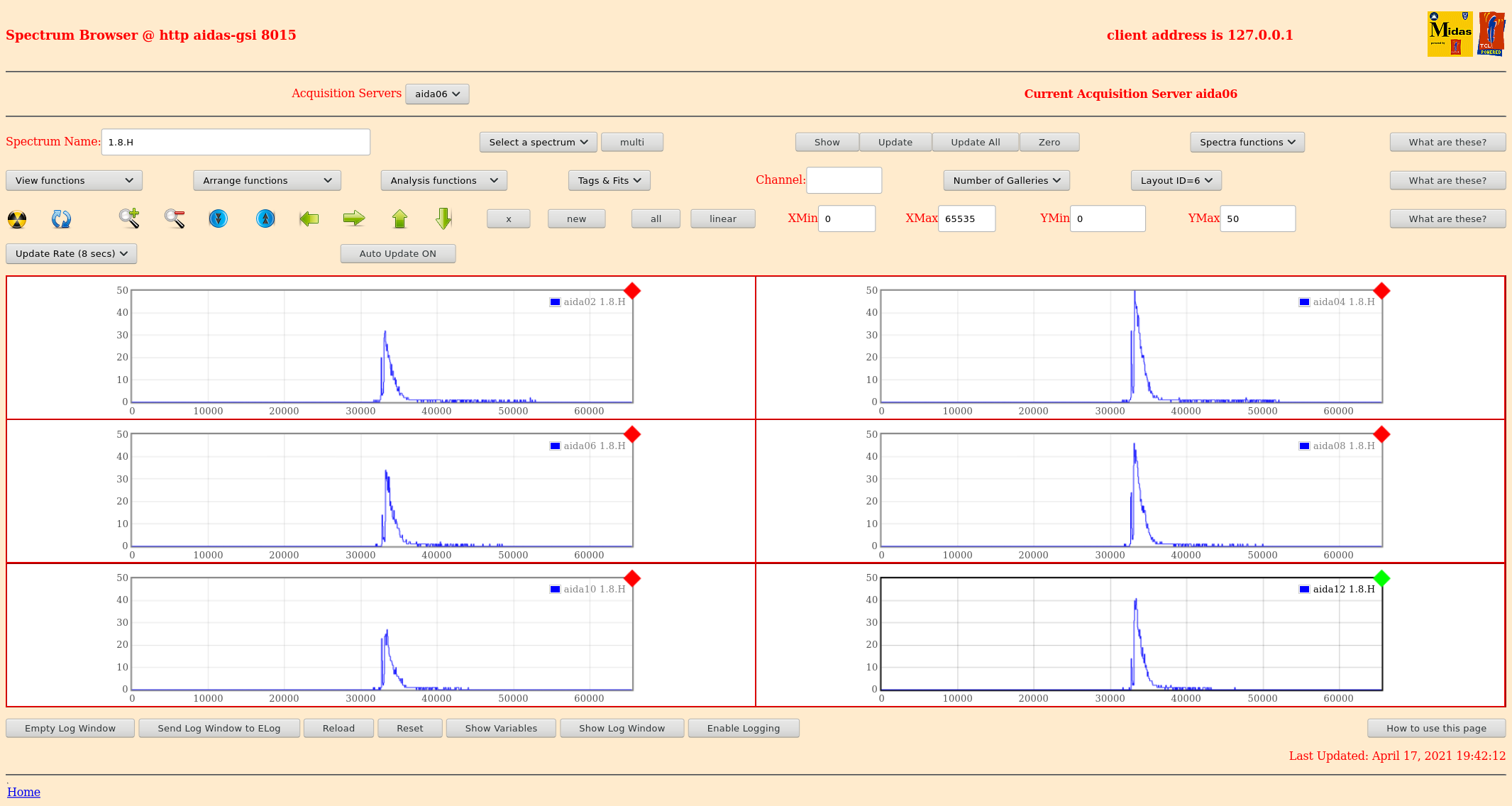

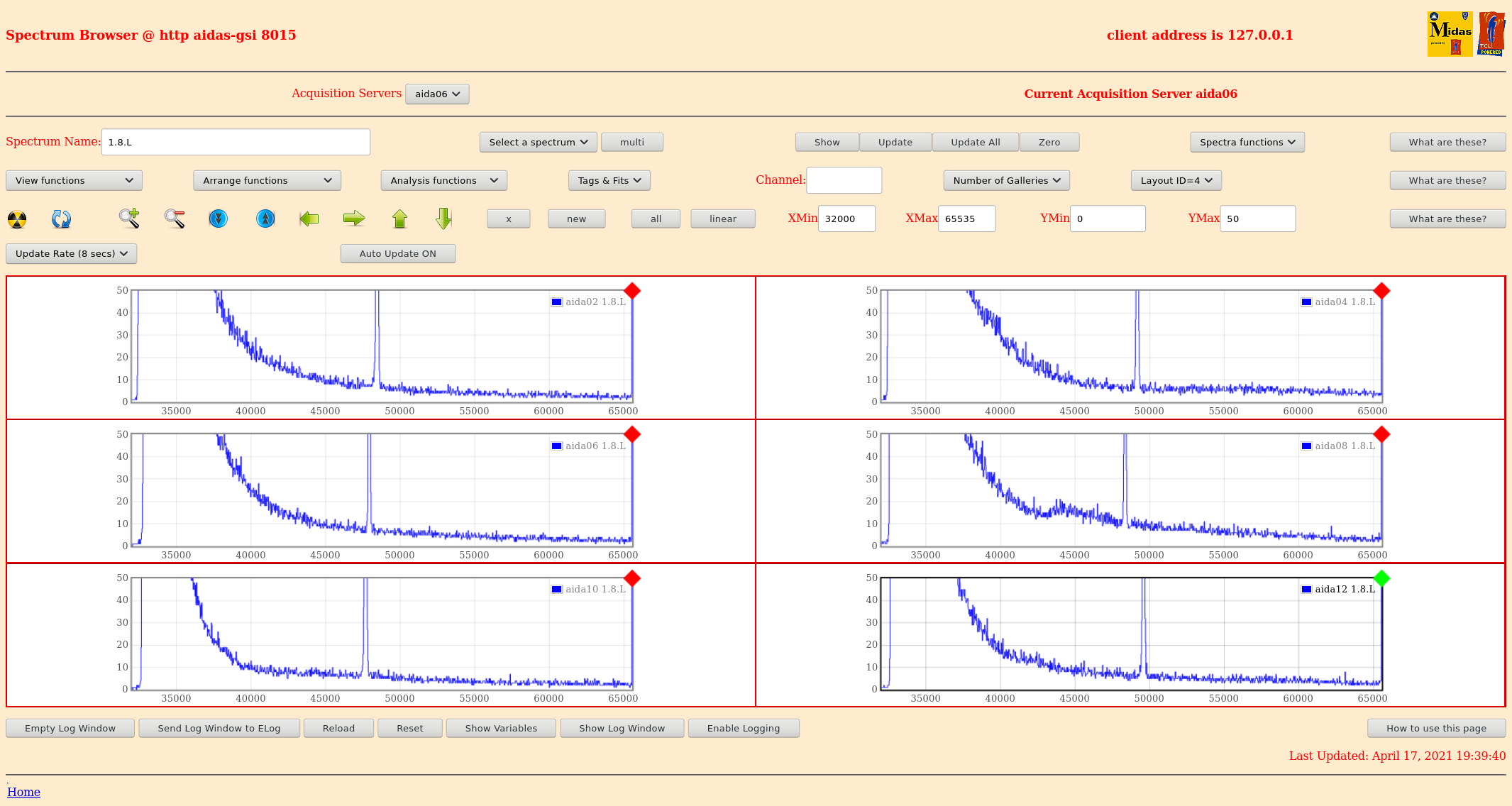

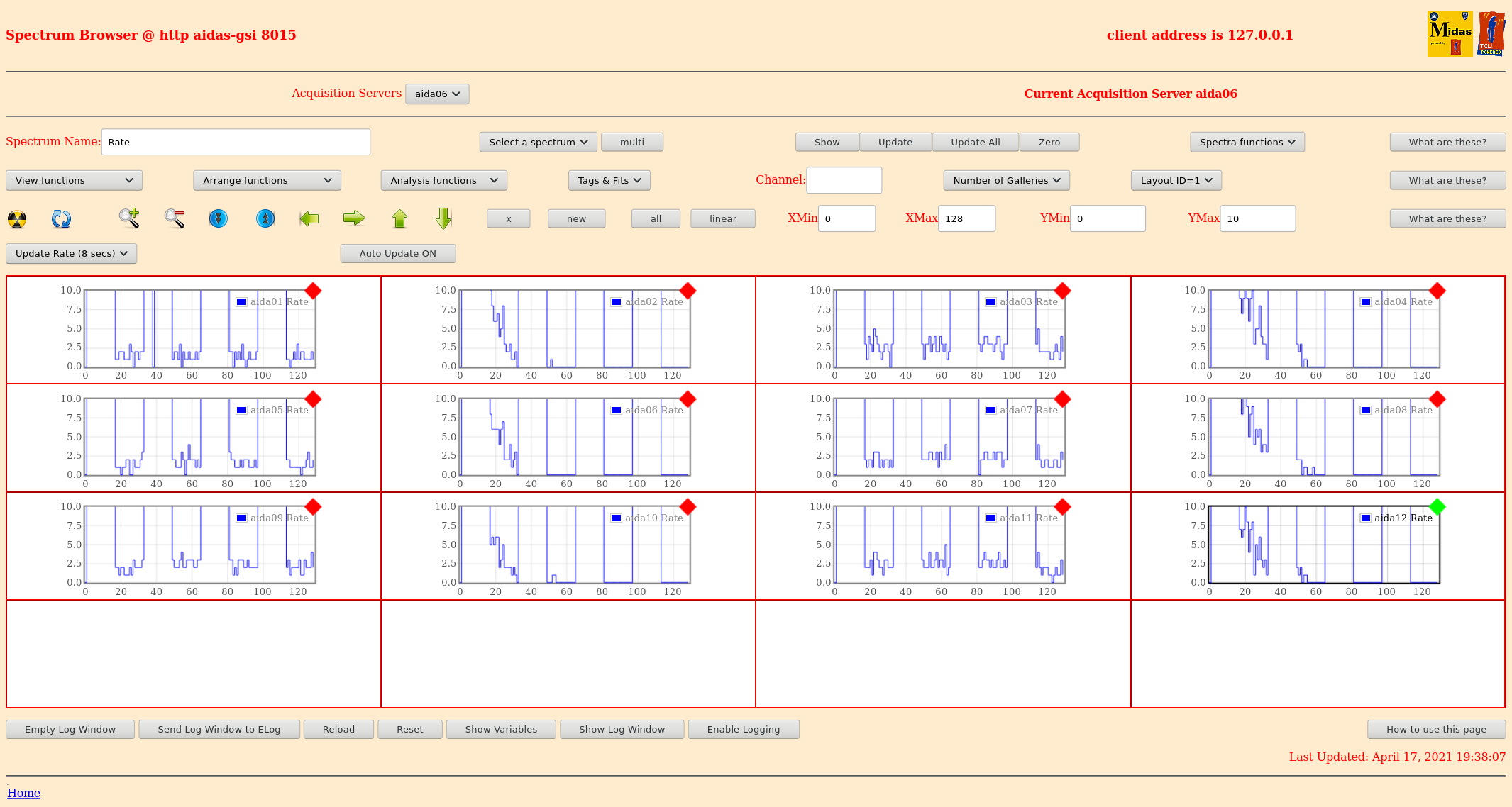

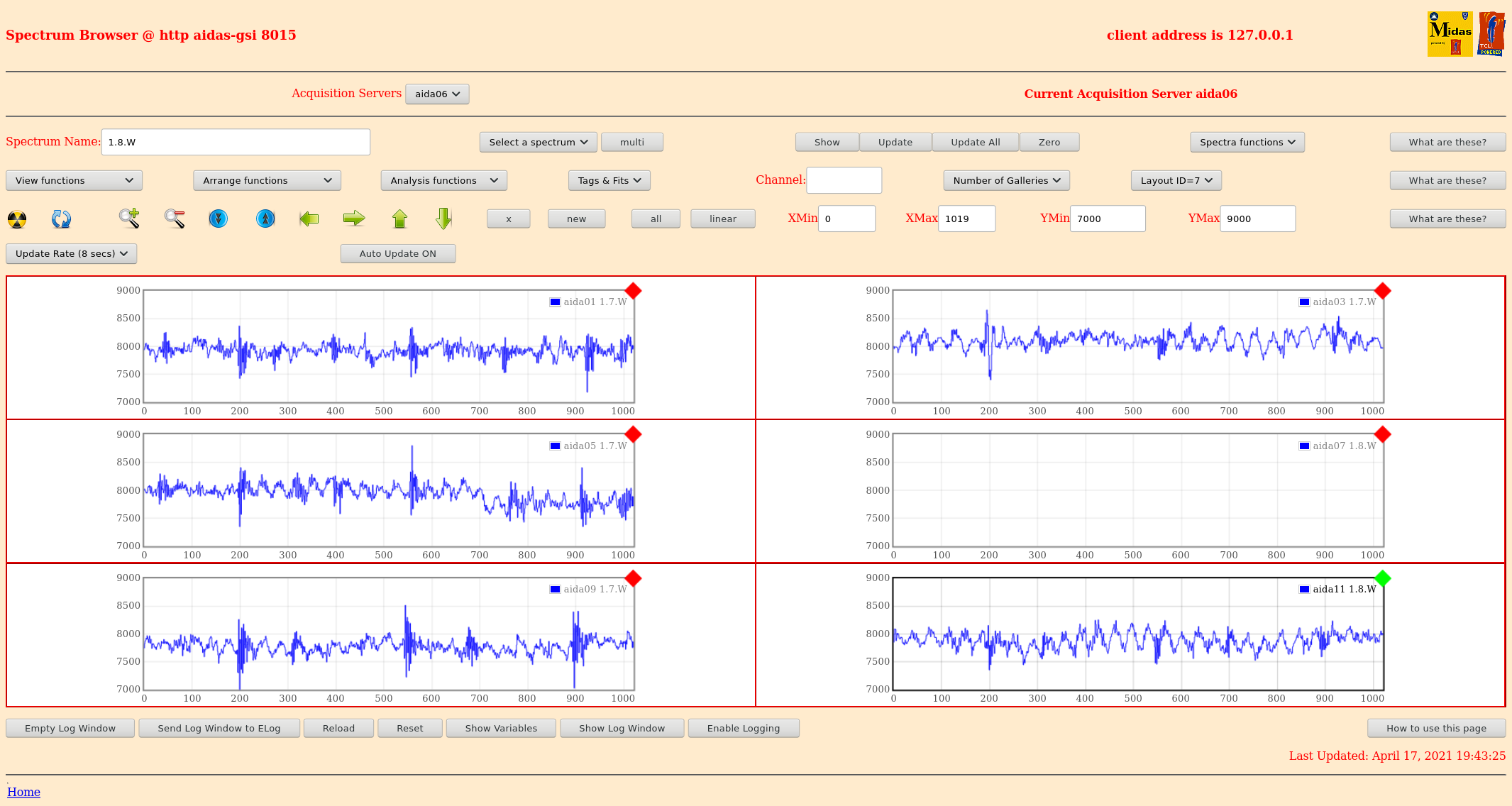

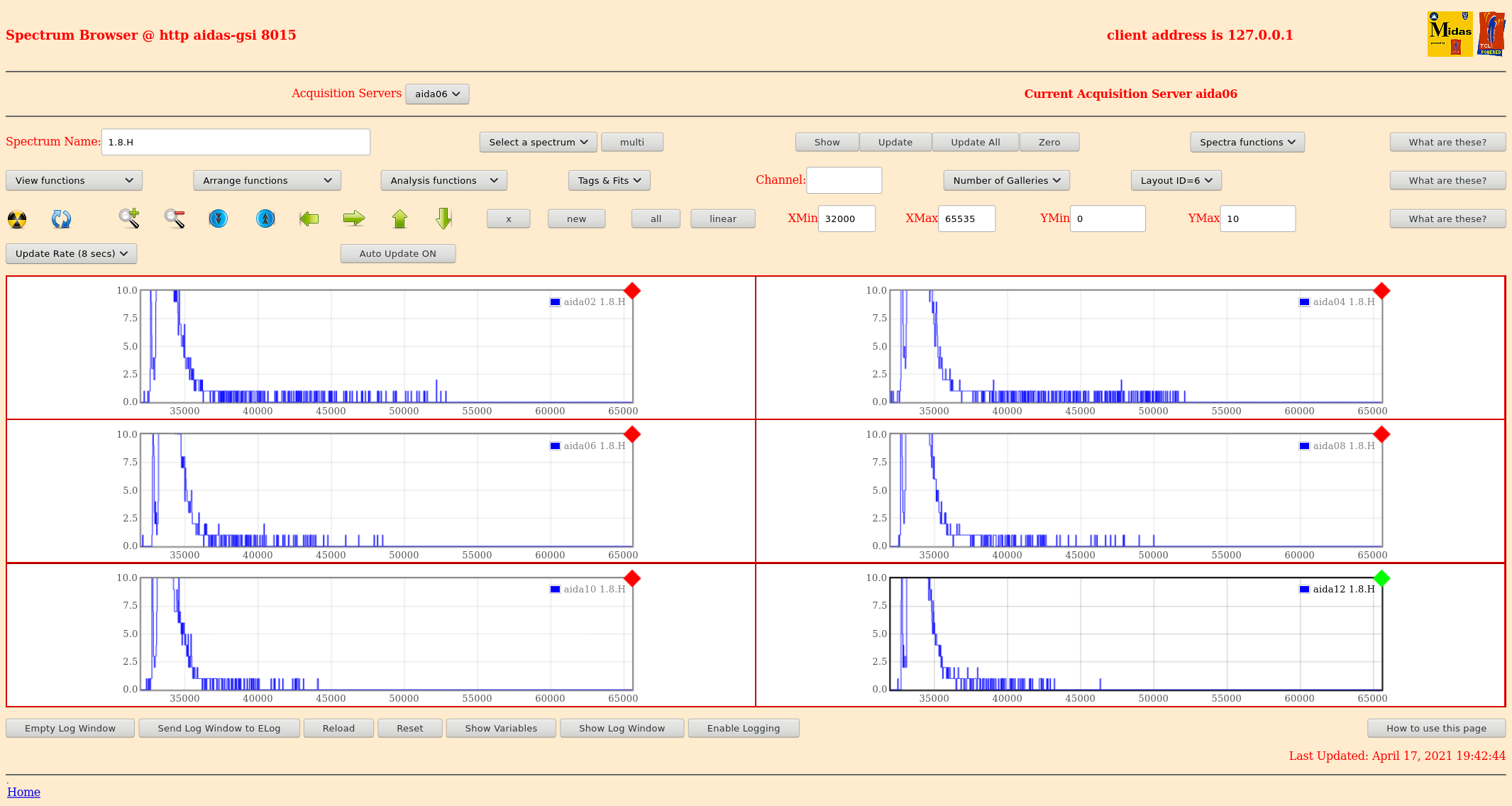

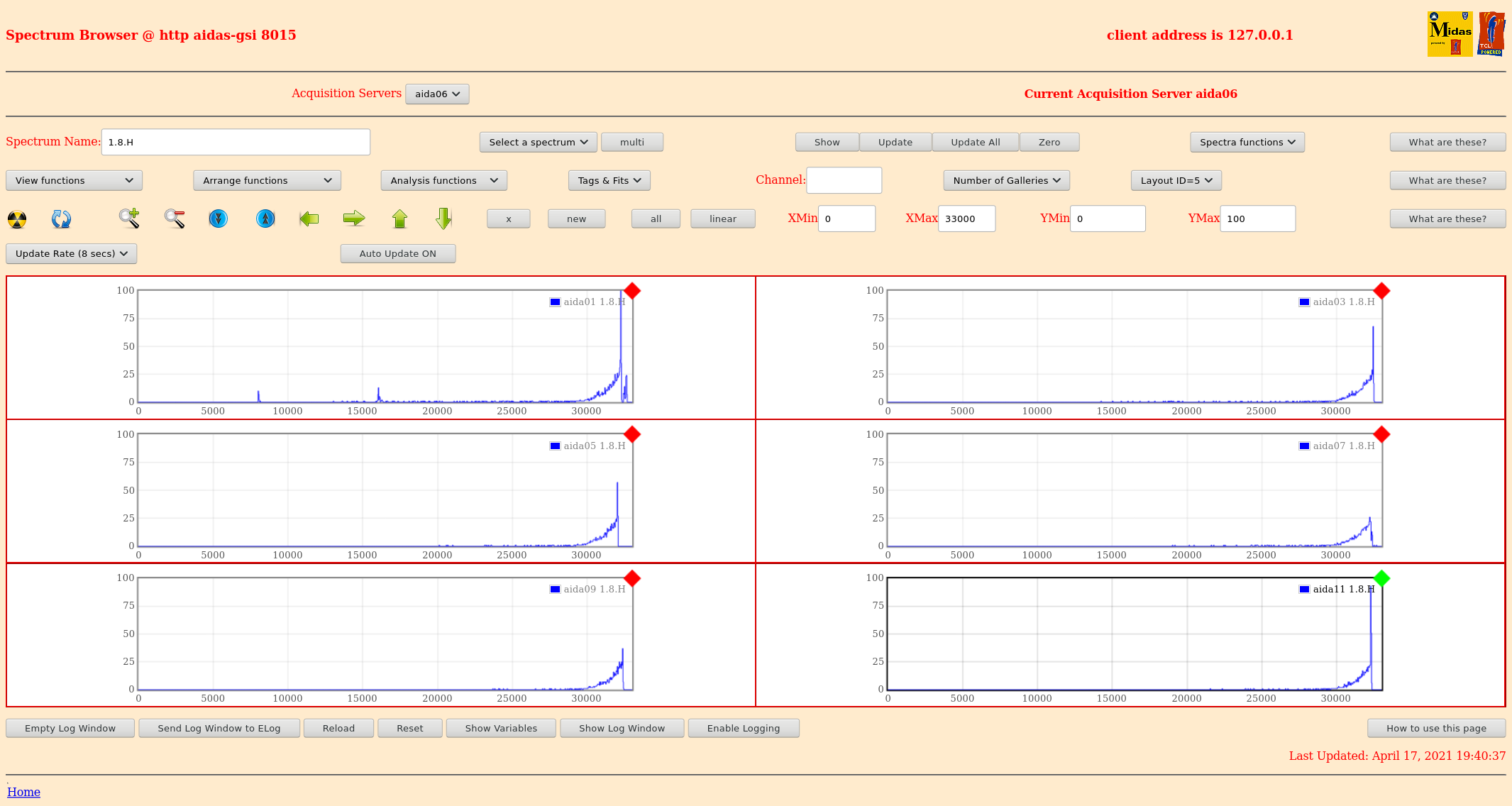

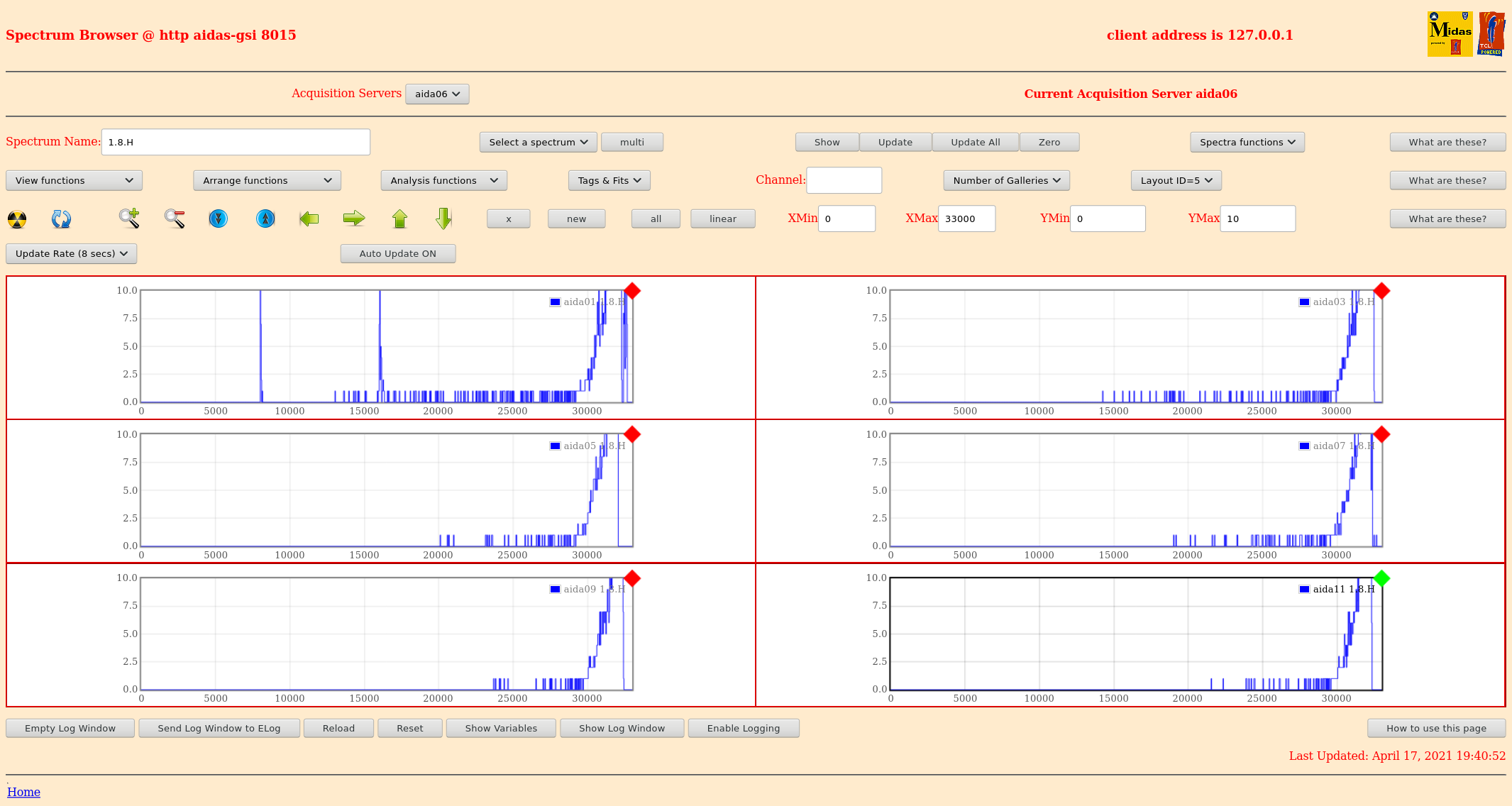

19.37 per FEE64 rate spectra - attachments 1 & 2 1.8.L spectra - attachments 3 & 4 1.8.H spectra - attachments 5-8 1.8.W spectra - attachments 9 & 10 20.42 DAQ contrinues file NULL/R30_233 Base Current Difference aida05 fault 0x1a52 : 0x1a55 : 3 aida06 fault 0x4f3e : 0x4f41 : 3 aida07 fault 0x3bcd : 0x3bd7 : 10 aida08 fault 0xc7c7 : 0xc7ca : 3 White Rabbit error counter test result: Passed 8, Failed 4 Understand the status reports as follows:- Status bit 3 : White Rabbit decoder detected an error in the received data Status bit 2 : Firmware registered WR error, no reload of Timestamp Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR Base Current Difference aida09 fault 0x0 : 0x1 : 1 aida12 fault 0x0 : 0x4 : 4 FPGA Timestamp error counter test result: Passed 10, Failed 2 If any of these counts are reported as in error The ASIC readout system has detected a timeslip. That is the timestamp read from the time FIFO is not younger than the last ------- 23:48 Clock status test result: Passed 12, Failed 0 Understand status as follows Status bit 3 : firmware PLL that creates clocks from external clock not locked Status bit 2 : always logic '1' Status bit 1 : LMK3200(2) PLL and clock distribution chip not locked to external clock Status bit 0 : LMK3200(1) PLL and clock distribution chip not locked to external clock If all these bits are not set then the operation of the firmware is unreliable FEE64 module aida06 failed FEE64 module aida07 failed FEE64 module aida10 failed Calibration test result: Passed 9, Failed 3 If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module Base Current Difference aida05 fault 0x1a52 : 0x1a55 : 3 aida06 fault 0x4f3e : 0x4f41 : 3 aida07 fault 0x3bcd : 0x3bde : 17 aida08 fault 0xc7c7 : 0xc7ca : 3 White Rabbit error counter test result: Passed 8, Failed 4 Understand the status reports as follows:- Status bit 3 : White Rabbit decoder detected an error in the received data Status bit 2 : Firmware registered WR error, no reload of Timestamp Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR Base Current Difference aida09 fault 0x0 : 0x1 : 1 aida12 fault 0x0 : 0x7 : 7 FPGA Timestamp error counter test result: Passed 10, Failed 2 If any of these counts are reported as in error The ASIC readout system has detected a timeslip. That is the timestamp read from the time FIFO is not younger than the last Returned 0 0 0 0 0 0 0 0 0 0 0 0 Mem(KB) : 4 8 16 32 64 128 256 512 1k 2k 4k aida01 : 26 5 6 2 1 3 1 3 3 3 6 : 36336 aida02 : 7 9 10 3 2 2 2 4 2 3 6 : 36068 aida03 : 26 7 8 4 3 4 2 4 2 3 6 : 36448 aida04 : 18 8 2 1 2 2 3 4 2 3 6 : 36168 aida05 : 24 7 9 4 3 1 3 2 2 4 6 : 37352 aida06 : 17 10 3 1 3 5 1 3 3 3 6 : 36644 aida07 : 7 11 2 2 3 2 3 2 4 3 6 : 37268 aida08 : 23 4 1 5 1 1 2 3 3 3 6 : 36332 aida09 : 14 6 3 2 1 3 2 3 3 3 6 : 36504 aida10 : 2 2 2 2 1 2 2 2 3 3 6 : 35768 aida11 : 2 2 1 2 2 2 2 4 2 3 6 : 35816 aida12 : 26 8 5 5 4 3 1 3 3 3 6 : 36632 ----
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 2131x1138
Attachment 2:
Original size: 2131x1138
Attachment 3:
Original size: 2131x1136
Attachment 4:
Original size: 2131x1136
Attachment 5:
Original size: 2131x1136
Attachment 6:
Original size: 2131x1136
Attachment 7:
Original size: 2131x1136
Attachment 8:
Original size: 2131x1136
Attachment 9:
Original size: 2131x1136
Attachment 10:
Original size: 2144x1035
Attachment 11:
Original size: 2144x1035
Attachment 12:
Original size: 502x344
Attachment 13:
Original size: 502x344
