Entry time:

Sun Apr 18 11:18:21 2021

Author*:

Subject*:

12.18 DAQ continues file NULL/R30_490

ASIC settings 2019Dec19-16.19.51
      slow comparator 0x64 -> 0xa

BNC PB-5
      amplitude 2V
      attenuation 1x
      decay time 1ms
      frequency 2Hz

12.22 all histograms zero'd

c. 12.30 219Rn setting

12.35 analysis of R30_490 - see attachment 1

13.15 system wide checks

Clock status test result: Passed 12, Failed 0
Understand status as follows
Status bit 3 : firmware PLL that creates clocks from external clock not locked
Status bit 2 : always logic '1'
Status bit 1 : LMK3200(2) PLL and clock distribution chip not locked to external clock
Status bit 0 : LMK3200(1) PLL and clock distribution chip not locked to external clock
If all these bits are not set then the operation of the firmware is unreliable

FEE64 module aida06 failed
FEE64 module aida07 failed
FEE64 module aida10 failed
Calibration test result: Passed 9, Failed 3
If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module

Base 		Current 	Difference
aida01 fault 	 0x7686 : 	 0x768a : 	 4
aida02 fault 	 0x941d : 	 0x9421 : 	 4
aida03 fault 	 0x7cd7 : 	 0x7cdb : 	 4
aida04 fault 	 0xb86d : 	 0xb871 : 	 4
aida05 fault 	 0x1a59 : 	 0x1a5f : 	 6
aida06 fault 	 0x4f45 : 	 0x4f4b : 	 6
aida07 fault 	 0x3bfc : 	 0x3c04 : 	 8
aida08 fault 	 0xc7ce : 	 0xc7d4 : 	 6
aida09 fault 	 0xb33b : 	 0xb33c : 	 1
White Rabbit error counter test result: Passed 3, Failed 9
Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

Base 		Current 		Difference
aida12 fault 	 0xa : 	 0xb : 	 1
FPGA Timestamp error counter test result: Passed 11, Failed 1
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

Returned 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) :	4	8	16	32	64	128	256	512	1k	2k	4k
aida01 :     23     10      3      1      1      2      1      3      3      3      6   : 36156
aida02 :      2     11      7      4      2      2      2      4      2      3      6   : 36048
aida03 :     21      8      6      4      5      4      3      3      2      3      6   : 36276
aida04 :     19     11     14      3      2      3      2      4      2      3      6   : 36324
aida05 :     25      4      5      4      4      2      1      3      2      4      6   : 37460
aida06 :     13      9     15      1      3      5      1      3      3      3      6   : 36812
aida07 :     19     10      6      1      3      3      2      2      4      3      6   : 37212
aida08 :     23      6      4      2      1      1      3      4      2      3      6   : 36044
aida09 :     11      5      5      1      2      4      3      3      2      3      6   : 35908
aida10 :     14      5      6      5      3      1      3      3      2      3      6   : 35744
aida11 :     16      5      3      0      3      3      1      4      2      3      6   : 35800
aida12 :     12     10      0      2      4      4      1      3      3      3      6   : 36544

Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same

FEE : aida01 =>   Options file size is 1025 	 Last changed Sat Apr 17 06:14:30 CEST 2021
 FEE : aida02 =>   Options file size is 1014 	 Last changed Fri Apr 16 00:56:20 CEST 2021
 FEE : aida03 =>   Options file size is 1014 	 Last changed Wed Apr 14 21:52:04 CEST 2021
 FEE : aida04 =>   Options file size is 1025 	 Last changed Sat Apr 17 06:07:36 CEST 2021
 FEE : aida05 =>   Options file size is 1025 	 Last changed Fri Apr 16 00:53:25 CEST 2021
 FEE : aida06 =>   Options file size is 1014 	 Last changed Wed Apr 14 21:52:04 CEST 2021
 FEE : aida07 =>   Options file size is 1014 	 Last changed Wed Apr 14 21:52:04 CEST 2021
 FEE : aida08 =>   Options file size is 1014 	 Last changed Wed Apr 14 21:52:04 CEST 2021
 FEE : aida09 =>   Options file size is 1014 	 Last changed Wed Apr 14 21:52:05 CEST 2021
 FEE : aida10 =>   Options file size is 1014 	 Last changed Wed Apr 14 21:52:06 CEST 2021
 FEE : aida11 =>   Options file size is 1014 	 Last changed Wed Apr 14 21:52:05 CEST 2021
 FEE : aida12 =>   Options file size is 1025 	 Last changed Wed Apr 14 21:58:54 CEST 2021

*no faults detected by ~/oh/OptionsCheck.py

13.10 Detector biases & leakage currents OK - see attachment 2

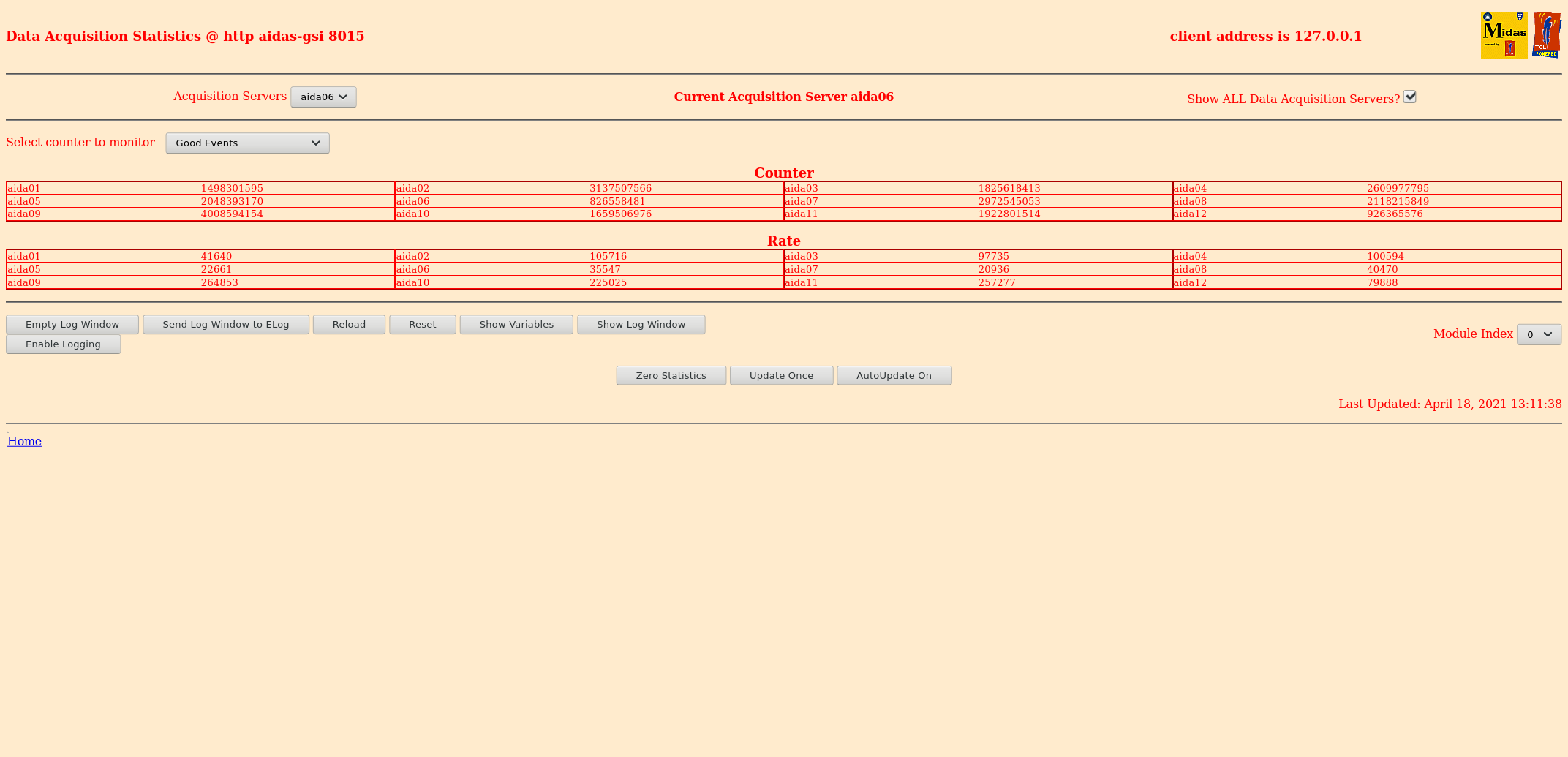

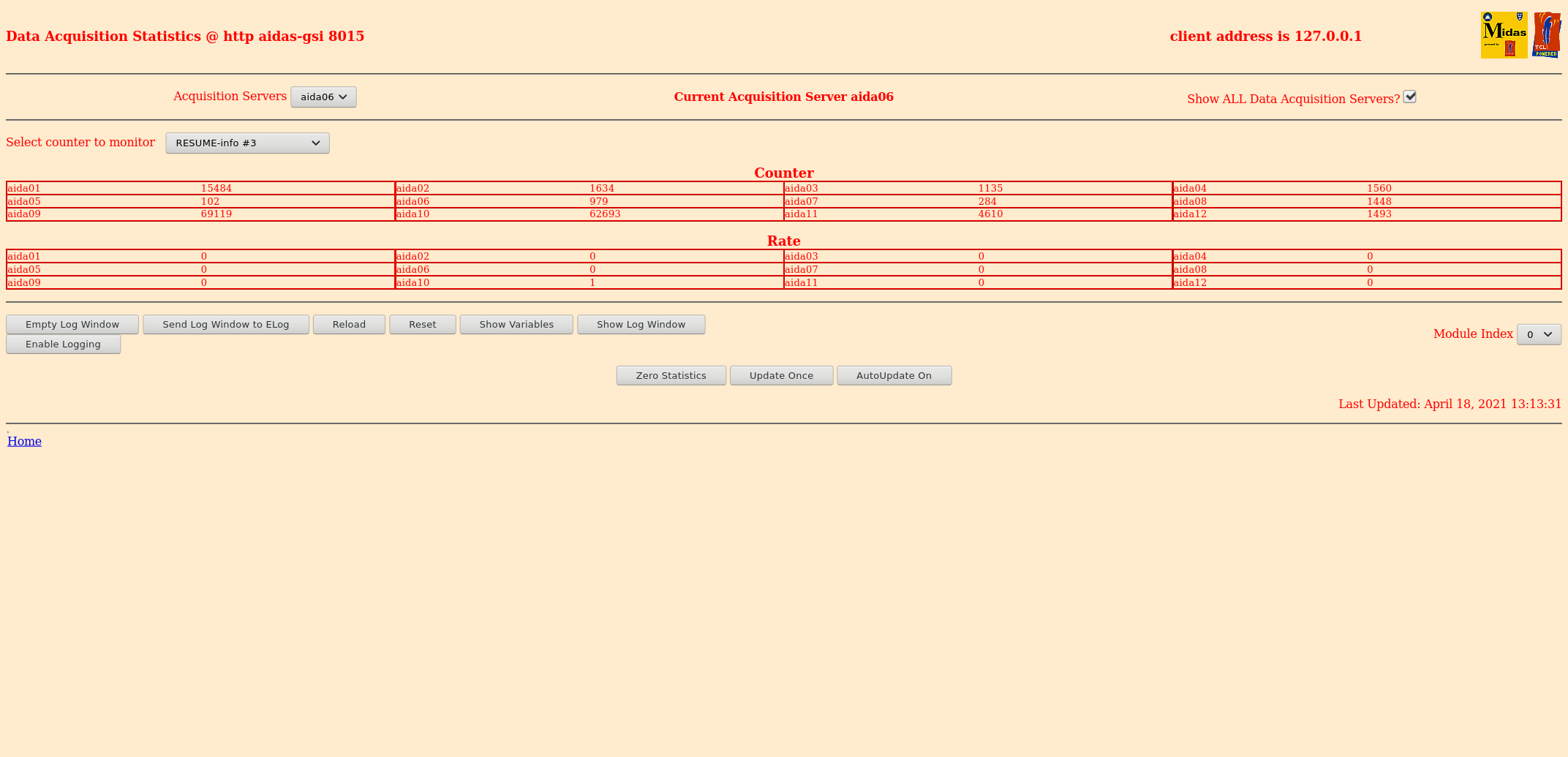

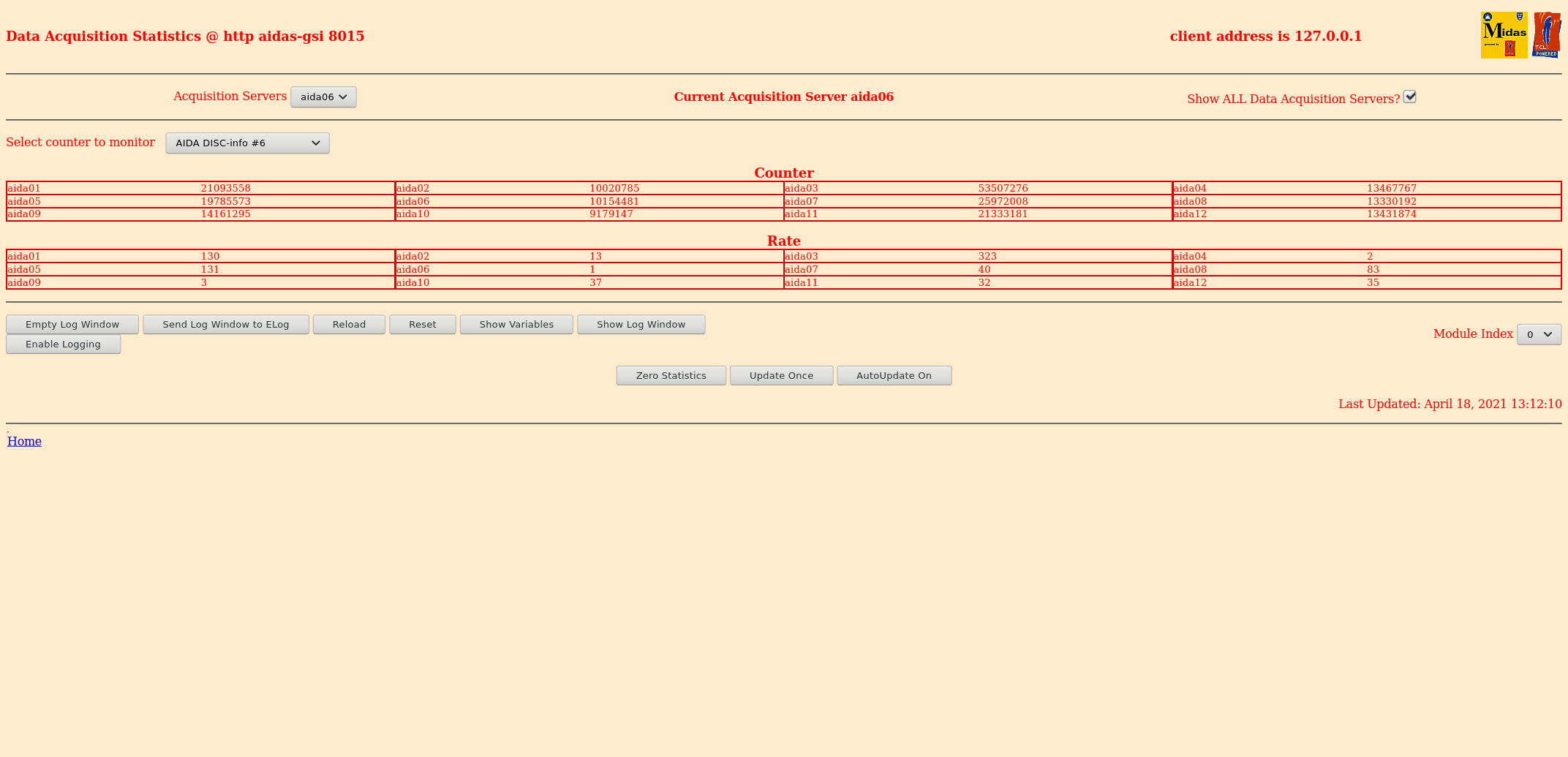

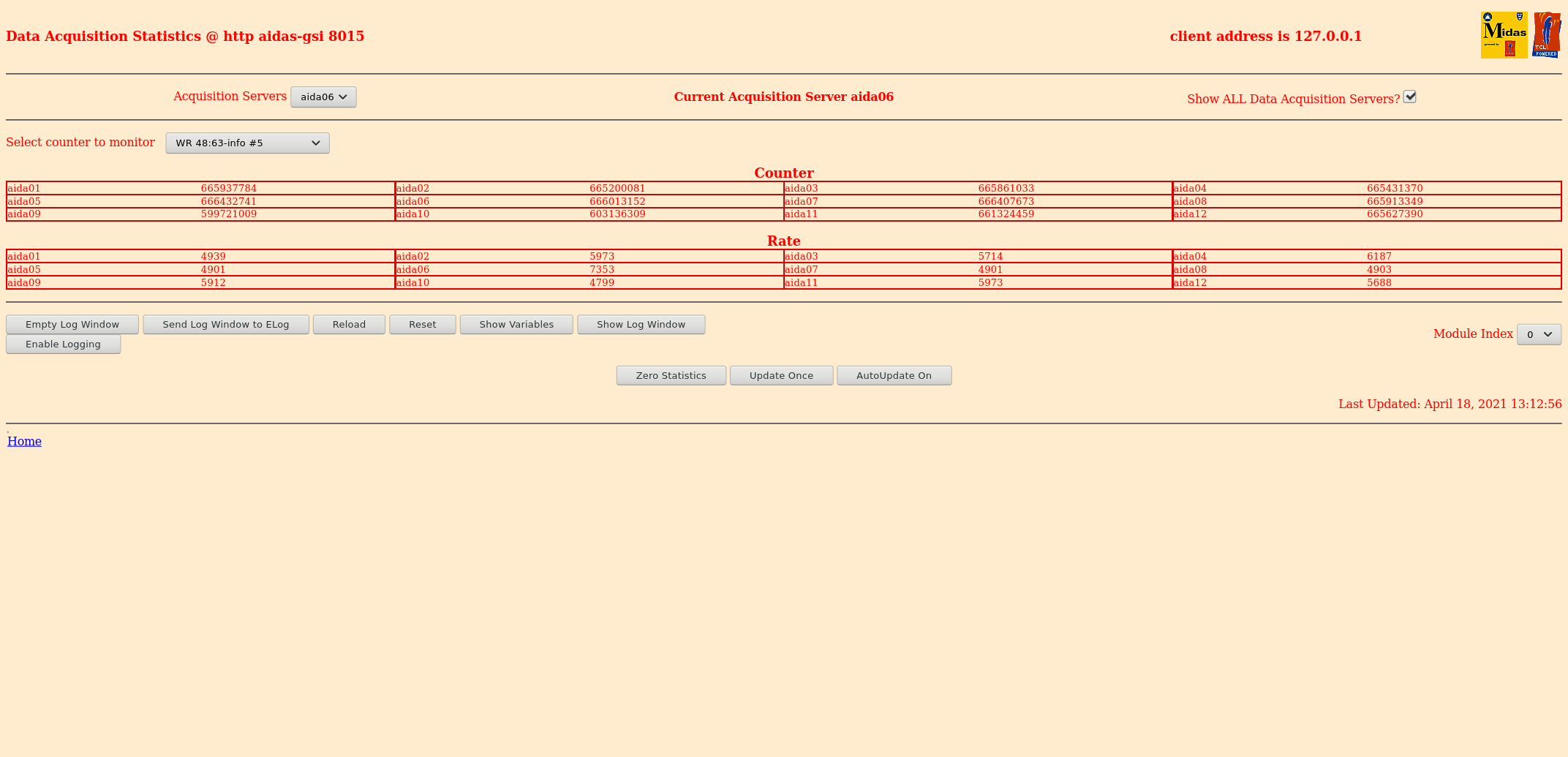

      Statistics - good events, adc data, disc data, info code 4 & 5, pause, resume, correlation info - attachments 3-12

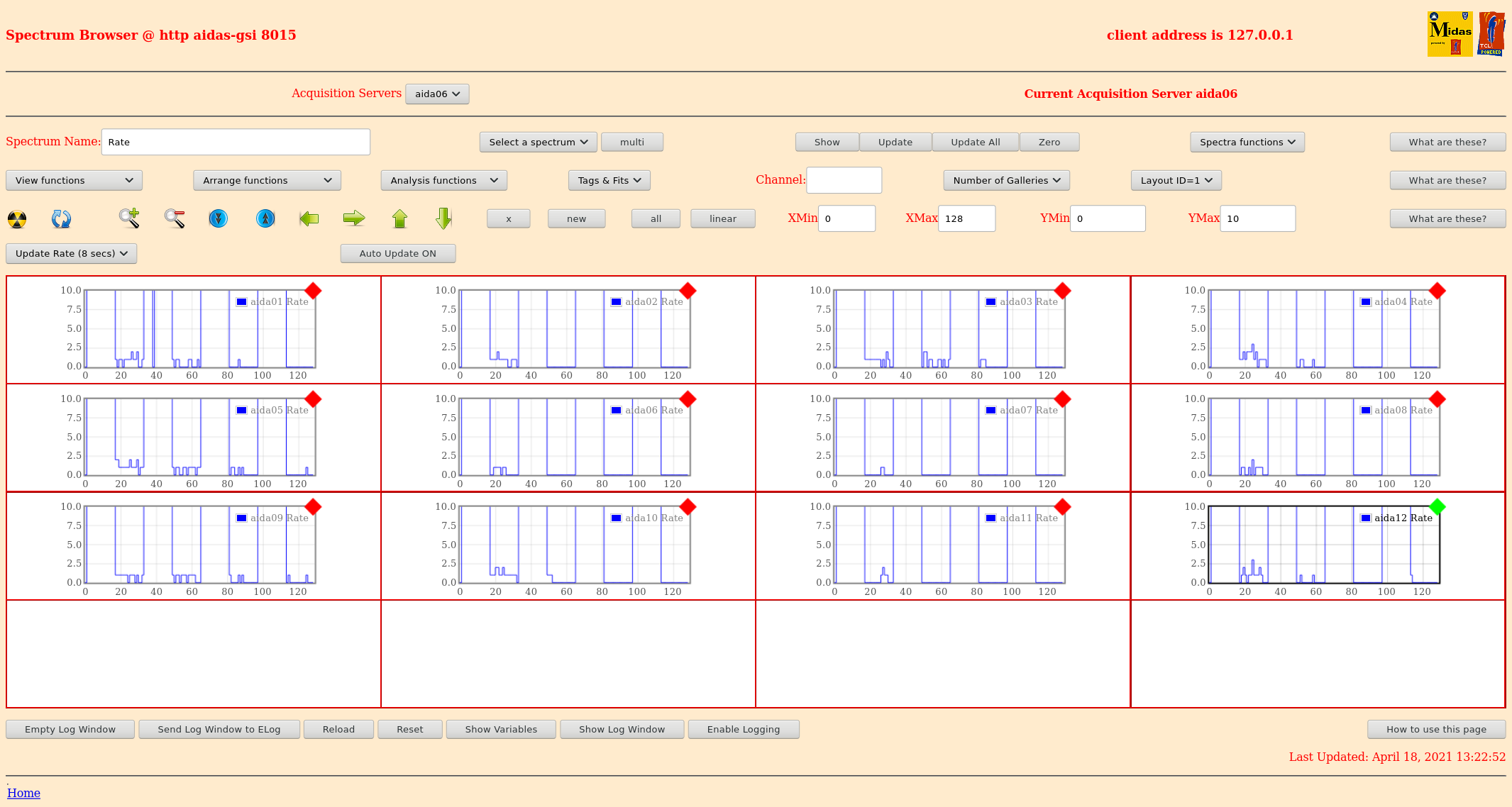

      per FEE64 rate spectra - attachments 13-14

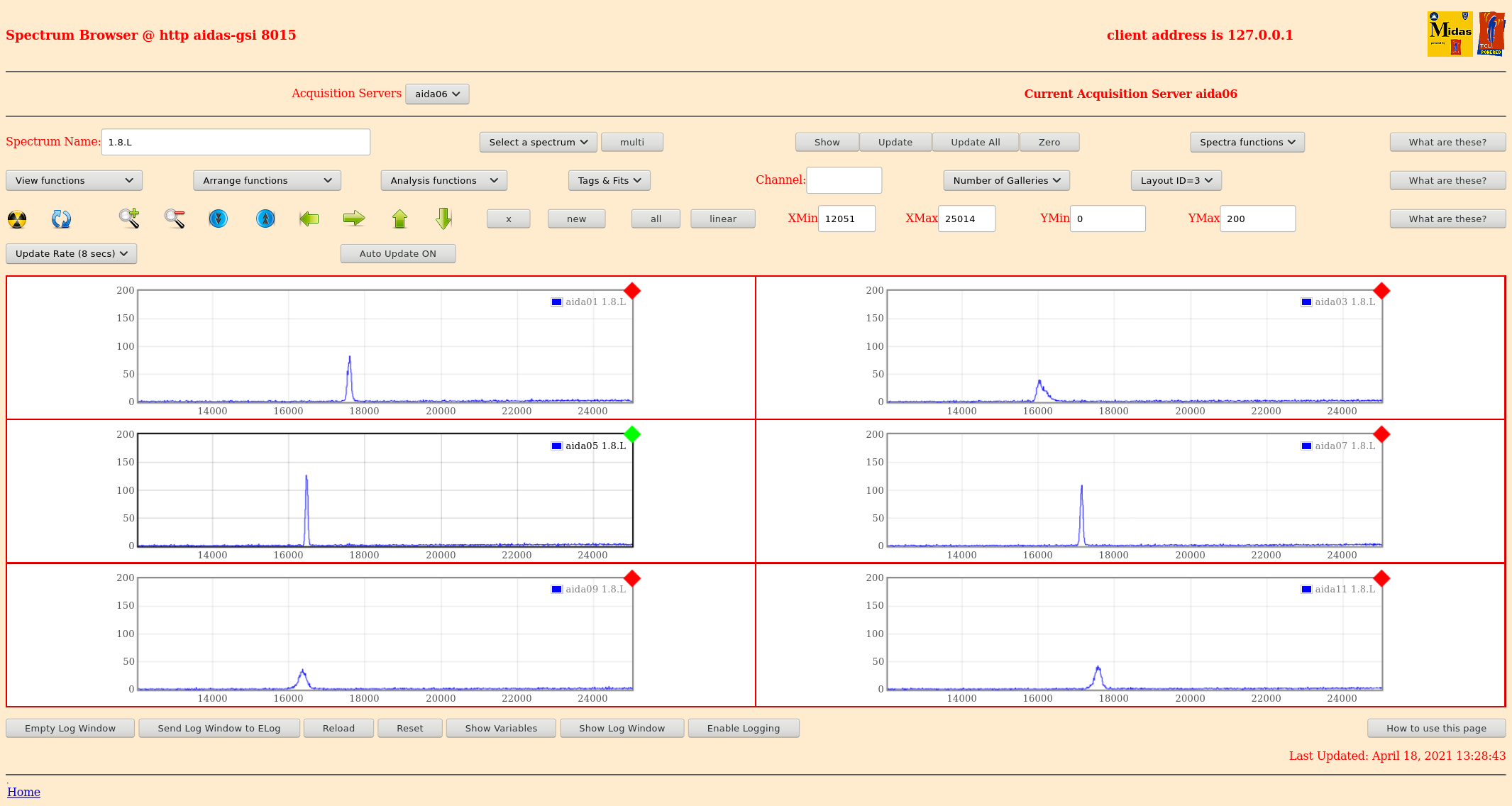

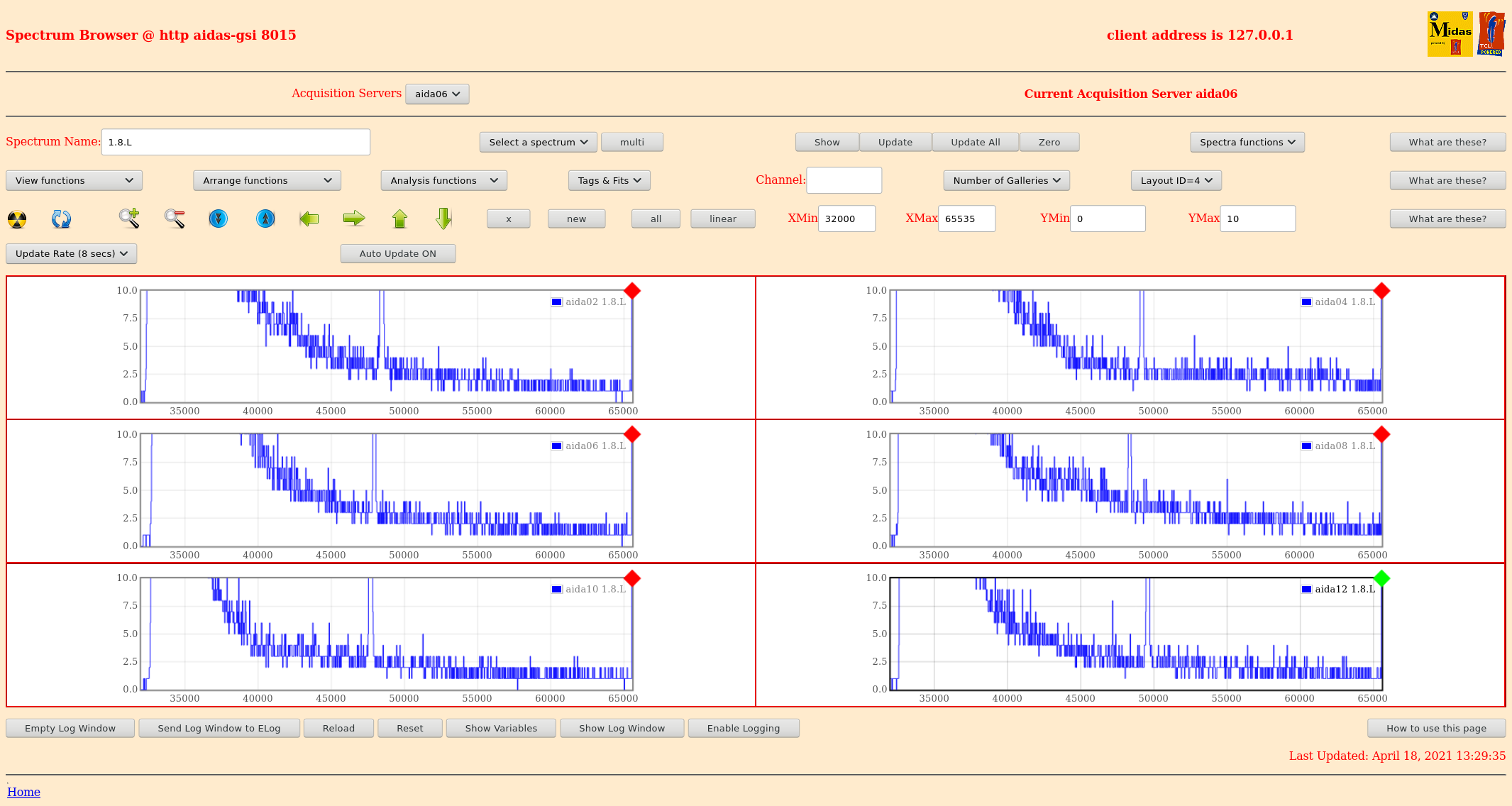

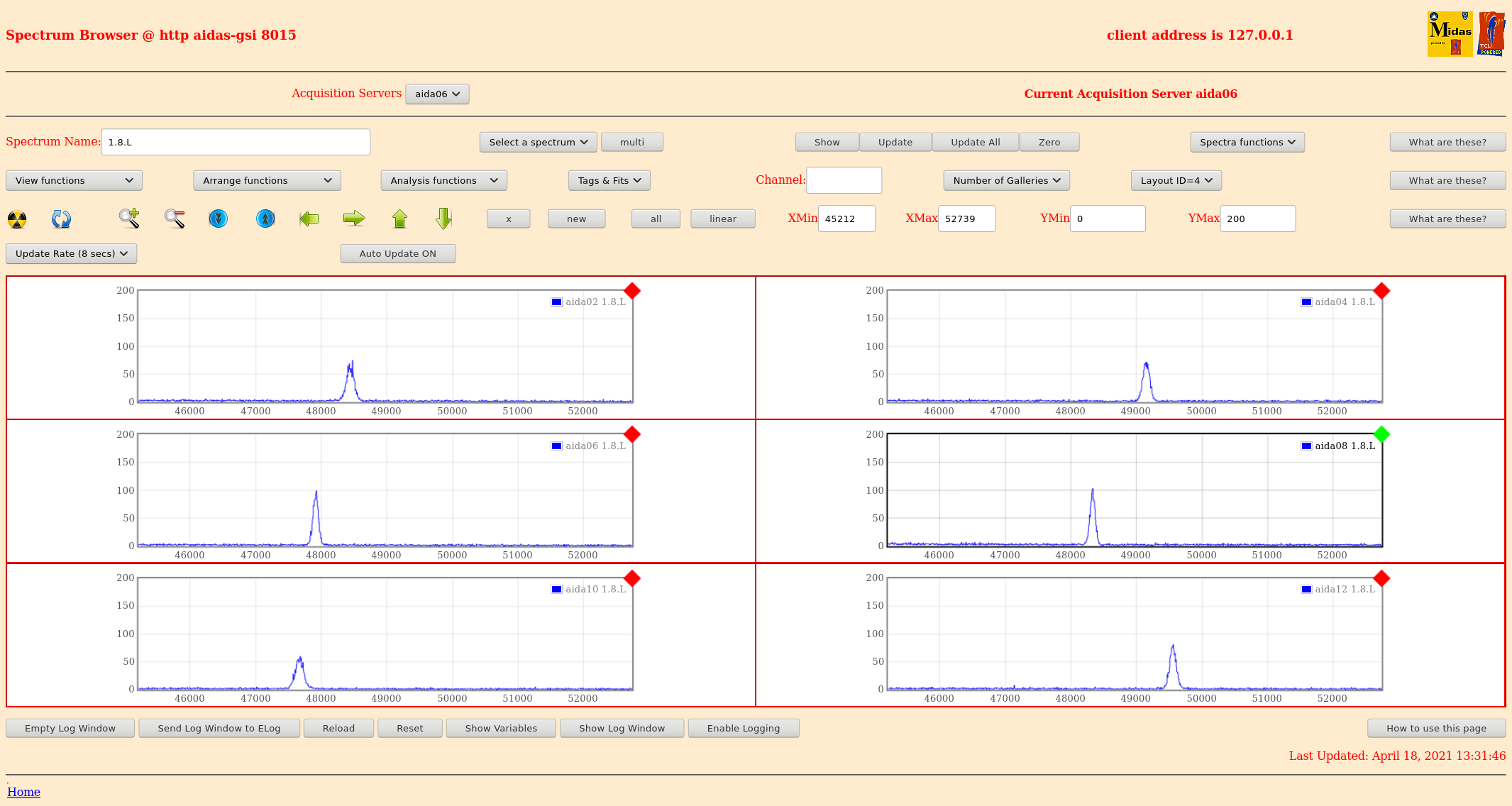

      1.8.L spectra - attachments 15-18

pulser peak widths
       1 80
       2 113
       3 308
       4 105
       5 50
       6 91
       7 61
       8 90
       9 200
       10 133
       11 187
       12 107

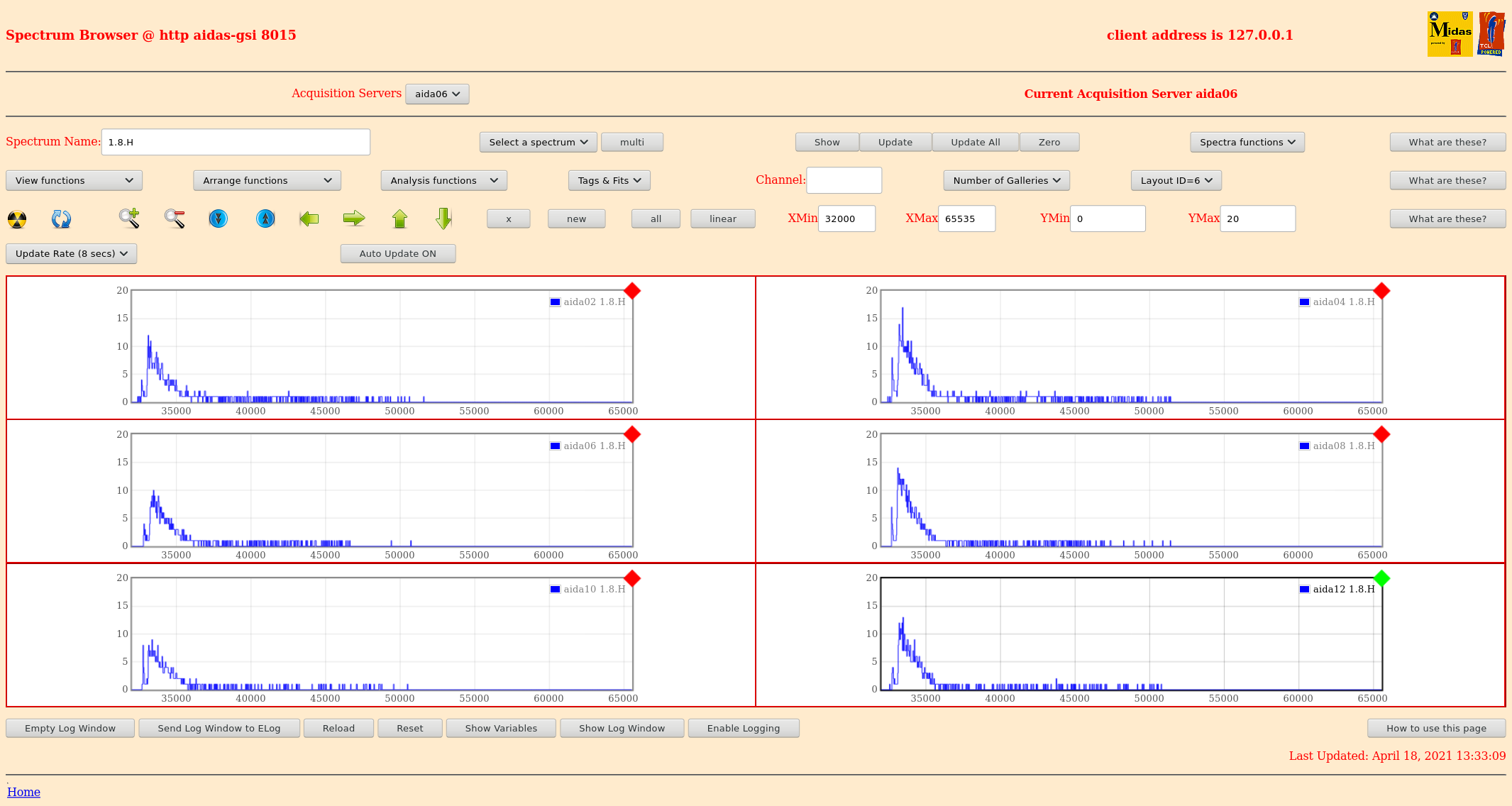

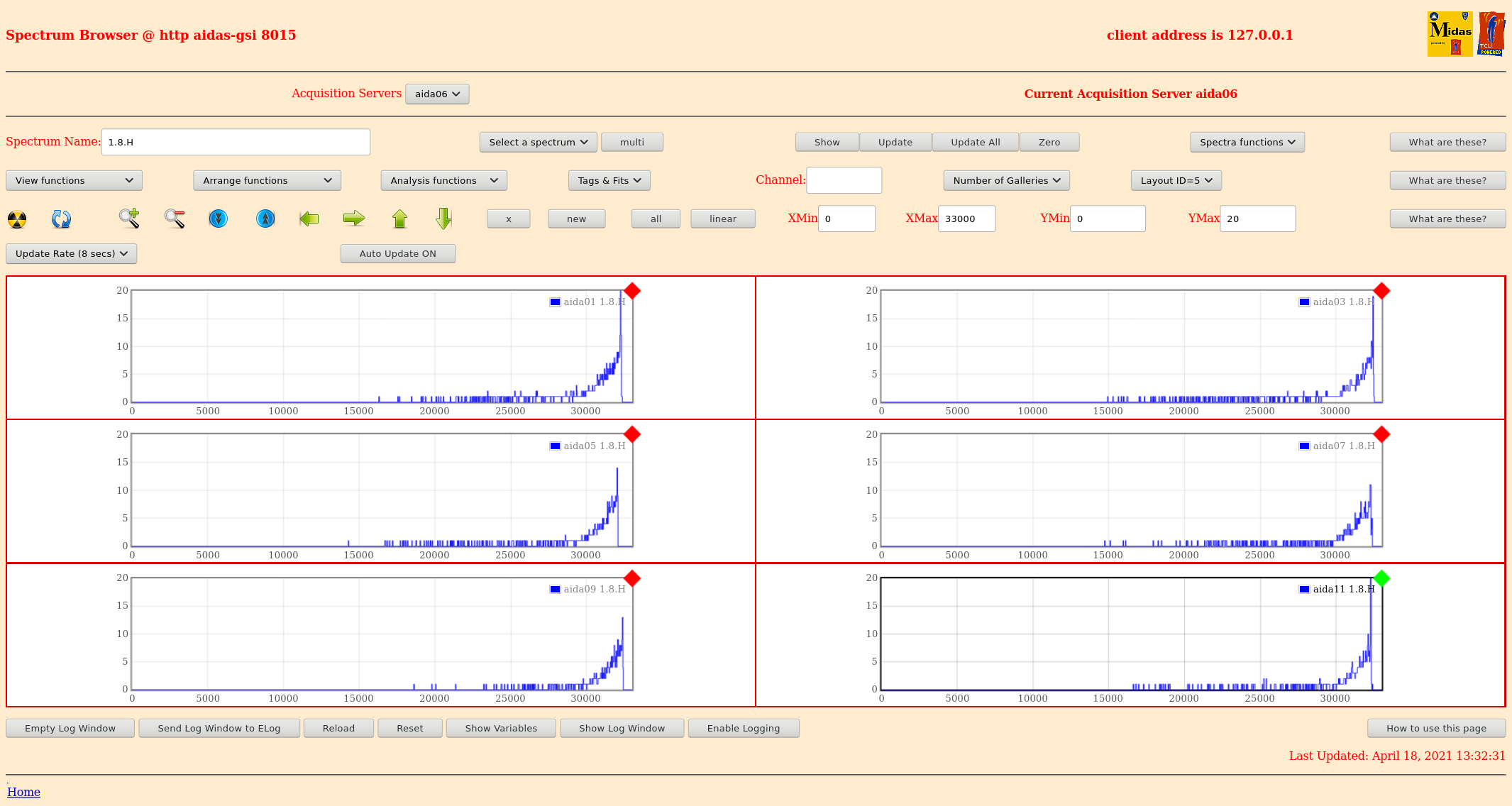

      1.8.H spectra - attachments 19-20

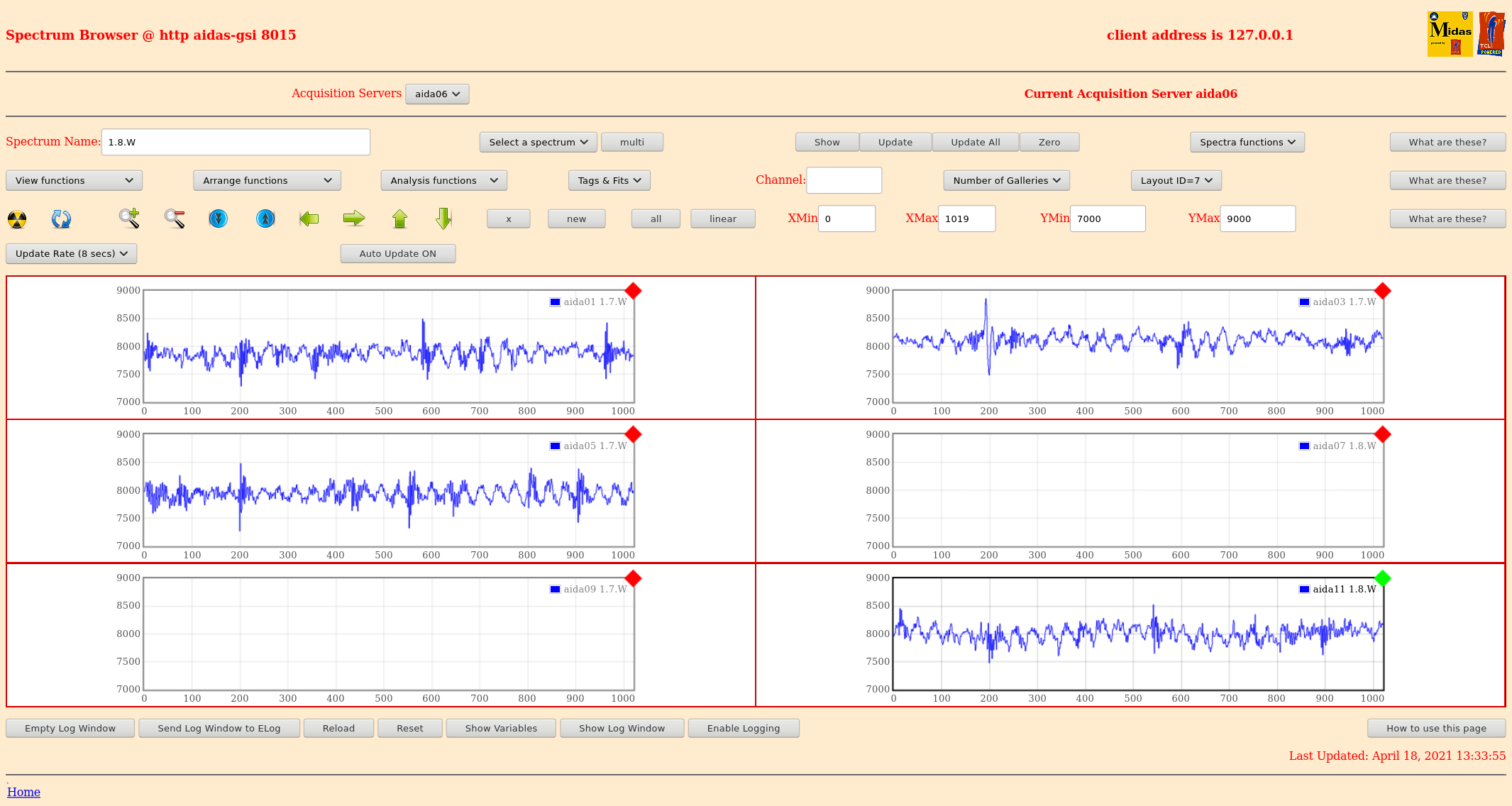

      1.8.W spectra - attachments 21-22

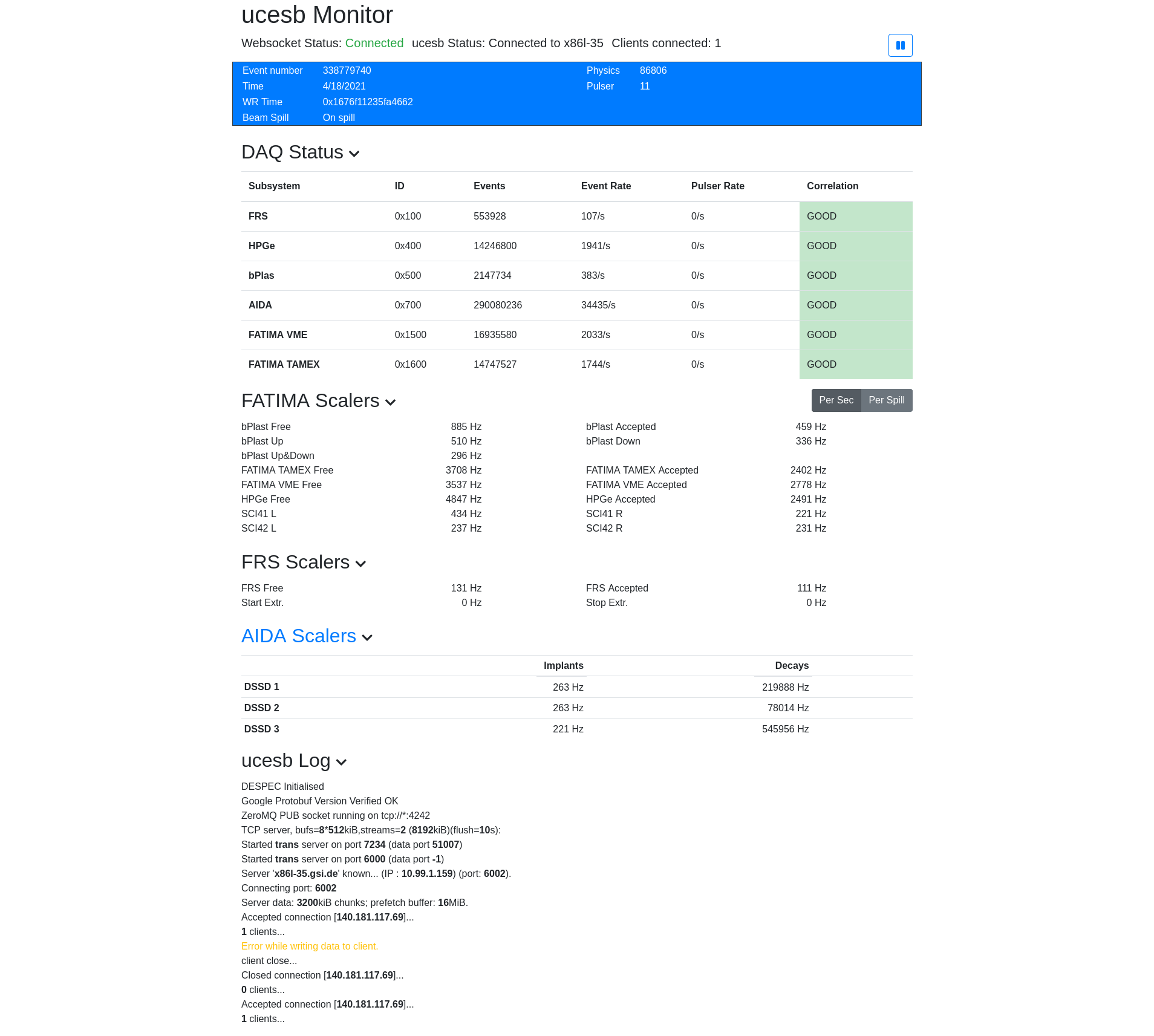

      ucesb - attachment 23
       implant rates DSSSD#1-3 to c. 1kHz
      grafana - AIDA DSSSD leakage currents for previous 2 days - attachment 24
      merger & merger/tape server/mbs data tranfser - attachment 25
       no recent merger warning/error messages

13.30 225At setting

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

R30_490

 *** TDR format 3.3.0 analyser - TD - January 2019
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  256516272 ( 1223332.2 Hz)
        Other data format:    5403728 (   25770.5 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:      32781 (     156.3 Hz)
                              WR48-63:      32781 (     156.3 Hz)
                           FEE64 disc:     828389 (    3950.6 Hz)
                             MBS info:    4509777 (   21507.2 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     263493 (    1256.6 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      209.687 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  1                0.000               76.433
  2                0.000               87.604
  3                0.000               78.795
  4                0.000              195.707
  5                0.000              158.854
  6                0.000              193.755
  7                0.000              152.656
  8                0.000               23.126
  9                0.000               23.243
 10                0.000               11.178
 11                0.000              108.457
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0    9851554      72944          0          0          0          0       1261       1261      69168       1254          0      26448
  1   21158309      48956          0          0          0          0       2701       2701      43554          0          0      16374
  2   17027137    1992411          0          0          0          0       2376       2376     156273    1831386          0      25239
  3   18790255    1894647          0          0          0          0       2567       2567      58490    1831023          0      23746
  4    2269151     296174          0          0          0          0        339        339      74660     220836          0      26646
  5    8373135     260125          0          0          0          0       1152       1152      43783     214038          0      16230
  6    4256540     286725          0          0          0          0        532        532      81589     204072          0      25586
  7    9526319     267328          0          0          0          0       1246       1246      57668     207168          0      22643
  8   54059298      76554          0          0          0          0       6619       6619      63316          0          0      22746
  9   49446691      53505          0          0          0          0       6256       6256      40993          0          0      14045
 10   45199495      92635          0          0          0          0       5711       5711      81213          0          0      23246
 11   16558388      61724          0          0          0          0       2021       2021      57682          0          0      20544
 12          0          0          0          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:44645.059s (    0.717 blocks/s,   0.045 Mb/s)

Attachment 2:

50.png Original size: 502x344

Attachment 3:

Screenshot_2021-04-18_Statistics_aidas-gsi(1).png Original size: 2400x1159

Attachment 4:

Screenshot_2021-04-18_Temperature_and_status_scan_aidas-gsi(2).png Original size: 2400x1159

Attachment 5:

Screenshot_2021-04-18_Statistics_aidas-gsi(2).png Original size: 2144x1035

Attachment 6:

Screenshot_2021-04-18_Statistics_aidas-gsi(3).png Original size: 2144x1035

Attachment 7:

Screenshot_2021-04-18_Statistics_aidas-gsi(4).png Original size: 2144x1035

Attachment 8:

Screenshot_2021-04-18_Statistics_aidas-gsi(5).png Original size: 2144x1035

Attachment 9:

Screenshot_2021-04-18_Statistics_aidas-gsi(6).png Original size: 2144x1035

Attachment 10:

Screenshot_2021-04-18_Statistics_aidas-gsi(7).png Original size: 2144x1035

Attachment 11:

Screenshot_2021-04-18_Statistics_aidas-gsi(8).png Original size: 2144x1035

Attachment 12:

Screenshot_2021-04-18_Statistics_aidas-gsi(9).png Original size: 2144x1035

Attachment 13:

Screenshot_2021-04-18_Spectrum_Browser_aidas-gsi.png Original size: 2131x1138

Attachment 14:

Screenshot_2021-04-18_Spectrum_Browser_aidas-gsi(1).png Original size: 2131x1138

Attachment 15:

Screenshot_2021-04-18_Spectrum_Browser_aidas-gsi(2).png Original size: 2131x1136

Attachment 16:

Screenshot_2021-04-18_Spectrum_Browser_aidas-gsi(3).png Original size: 2131x1136

Attachment 17:

Screenshot_2021-04-18_Spectrum_Browser_aidas-gsi(4).png Original size: 2131x1136

Attachment 18:

Screenshot_2021-04-18_Spectrum_Browser_aidas-gsi(5).png Original size: 2131x1136

Attachment 19:

Screenshot_2021-04-18_Spectrum_Browser_aidas-gsi(6).png Original size: 2131x1136

Attachment 20:

Screenshot_2021-04-18_Spectrum_Browser_aidas-gsi(7).png Original size: 2131x1136

Attachment 21:

Screenshot_2021-04-18_Spectrum_Browser_aidas-gsi(8).png Original size: 2131x1136

Attachment 22:

Screenshot_2021-04-18_Spectrum_Browser_aidas-gsi(9).png Original size: 2131x1136

Attachment 23:

Screenshot_2021-04-18_ucesb.png Original size: 1908x1713

Attachment 24:

Screenshot_2021-04-18_AIDA_Alerting_-_Grafana.png Original size: 1920x877

Attachment 25:

51.png Original size: 3840x1080

Attachment 26:

Drop attachments here...

ELOG V3.1.4-unknown
