Entry time:

Mon Apr 19 06:46:15 2021

Author*:

Subject*:

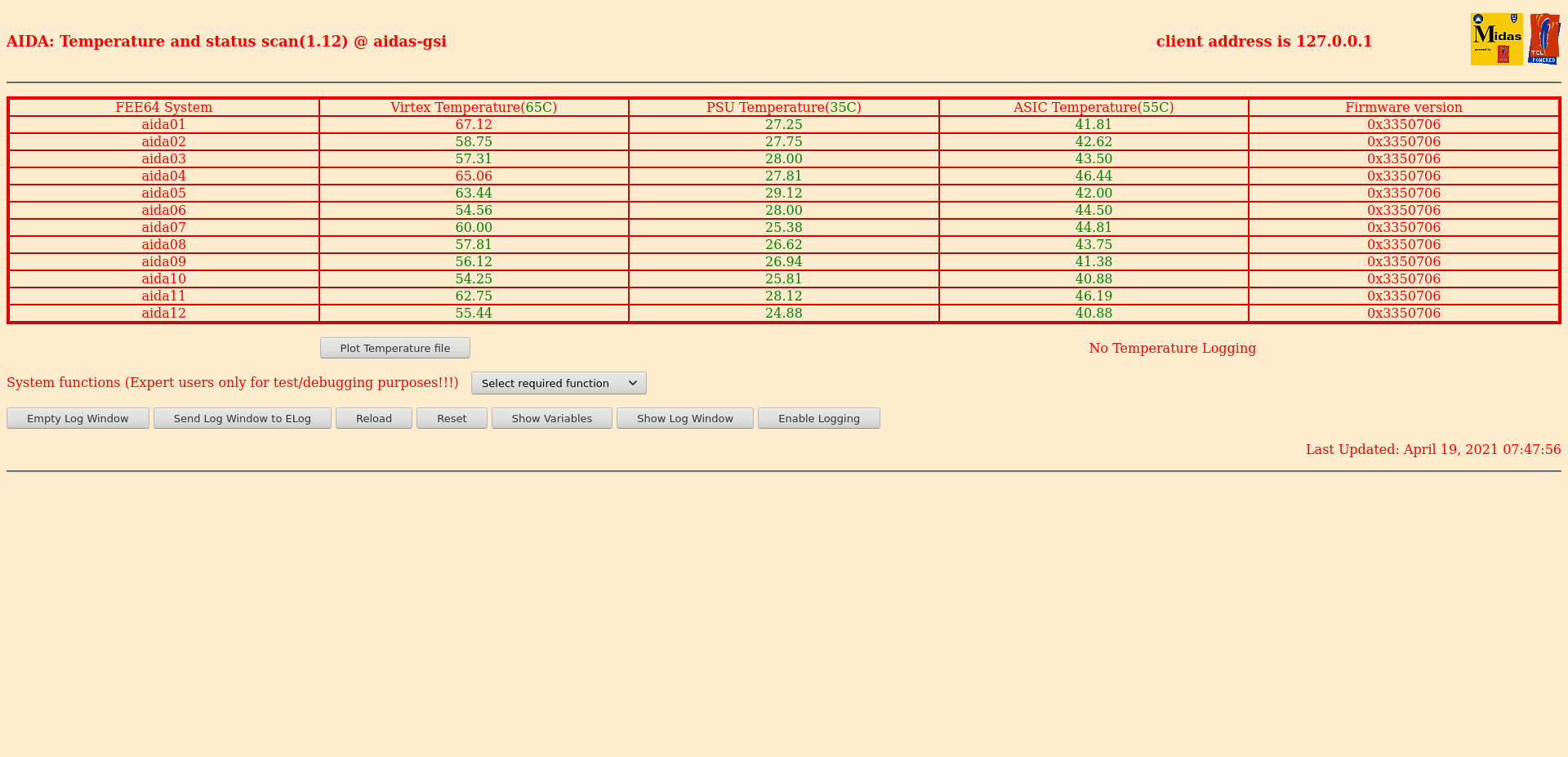

07:47

&nbsp;&nbsp; &nbsp;
Clock status test result: Passed 12, Failed 0

Understand status as follows
Status bit 3 : firmware PLL that creates clocks from external clock not locked
Status bit 2 : always logic &#39;1&#39;&nbsp;
Status bit 1 : LMK3200(2) PLL and clock distribution chip not locked to external clock
Status bit 0 : LMK3200(1) PLL and clock distribution chip not locked to external clock
If all these bits are not set then the operation of the firmware is unreliable

&nbsp; &nbsp;&nbsp;
FEE64 module aida06 failed
FEE64 module aida07 failed
FEE64 module aida10 failed
Calibration test result: Passed 9, Failed 3

If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module

&nbsp;

&nbsp;&nbsp; &nbsp;
&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp; Base &nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;Current &nbsp;&nbsp; &nbsp;Difference
aida01 fault &nbsp;&nbsp; &nbsp; 0x7686 : &nbsp;&nbsp; &nbsp; 0x768a : &nbsp;&nbsp; &nbsp; 4 &nbsp;
aida02 fault &nbsp;&nbsp; &nbsp; 0x941d : &nbsp;&nbsp; &nbsp; 0x9421 : &nbsp;&nbsp; &nbsp; 4 &nbsp;
aida03 fault &nbsp;&nbsp; &nbsp; 0x7cd7 : &nbsp;&nbsp; &nbsp; 0x7cdb : &nbsp;&nbsp; &nbsp; 4 &nbsp;
aida04 fault &nbsp;&nbsp; &nbsp; 0xb86d : &nbsp;&nbsp; &nbsp; 0xb871 : &nbsp;&nbsp; &nbsp; 4 &nbsp;
aida05 fault &nbsp;&nbsp; &nbsp; 0x1a59 : &nbsp;&nbsp; &nbsp; 0x1a61 : &nbsp;&nbsp; &nbsp; 8 &nbsp;
aida06 fault &nbsp;&nbsp; &nbsp; 0x4f45 : &nbsp;&nbsp; &nbsp; 0x4f4d : &nbsp;&nbsp; &nbsp; 8 &nbsp;
aida07 fault &nbsp;&nbsp; &nbsp; 0x3bfc : &nbsp;&nbsp; &nbsp; 0x3c46 : &nbsp;&nbsp; &nbsp; 74 &nbsp;
aida08 fault &nbsp;&nbsp; &nbsp; 0xc7ce : &nbsp;&nbsp; &nbsp; 0xc7d5 : &nbsp;&nbsp; &nbsp; 7 &nbsp;
aida09 fault &nbsp;&nbsp; &nbsp; 0xb33b : &nbsp;&nbsp; &nbsp; 0xb33c : &nbsp;&nbsp; &nbsp; 1 &nbsp;
White Rabbit error counter test result: Passed 3, Failed 9

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

&nbsp;

&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;
&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp; Base &nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;Current &nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;Difference
aida09 fault &nbsp;&nbsp; &nbsp; 0x1 : &nbsp;&nbsp; &nbsp; 0x2 : &nbsp;&nbsp; &nbsp; 1 &nbsp;
aida12 fault &nbsp;&nbsp; &nbsp; 0xa : &nbsp;&nbsp; &nbsp; 0x35 : &nbsp;&nbsp; &nbsp; 43 &nbsp;
FPGA Timestamp error counter test result: Passed 10, Failed 2
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

&nbsp;

&nbsp;&nbsp; &nbsp;
Returned 0 0 0 0 0 0 0 0 0 0 0 0 &nbsp;
Mem(KB) :&nbsp;&nbsp; &nbsp;4&nbsp;&nbsp; &nbsp;8&nbsp;&nbsp; &nbsp;16&nbsp;&nbsp; &nbsp;32&nbsp;&nbsp; &nbsp;64&nbsp;&nbsp; &nbsp;128&nbsp;&nbsp; &nbsp;256&nbsp;&nbsp; &nbsp;512&nbsp;&nbsp; &nbsp;1k&nbsp;&nbsp; &nbsp;2k&nbsp;&nbsp; &nbsp;4k
aida01 : &nbsp; &nbsp; 19 &nbsp; &nbsp; 18 &nbsp; &nbsp; 10 &nbsp; &nbsp; &nbsp;7 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;6 &nbsp; : 36380
aida02 : &nbsp; &nbsp; 11 &nbsp; &nbsp; 15 &nbsp; &nbsp; &nbsp;5 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;6 &nbsp; : 36692
aida03 : &nbsp; &nbsp; 15 &nbsp; &nbsp; 11 &nbsp; &nbsp; 13 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;6 &nbsp; : 36164
aida04 : &nbsp; &nbsp; 22 &nbsp; &nbsp; 14 &nbsp; &nbsp; 20 &nbsp; &nbsp; &nbsp;5 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;6 &nbsp; : 36456
aida05 : &nbsp; &nbsp; &nbsp;7 &nbsp; &nbsp; &nbsp;7 &nbsp; &nbsp; &nbsp;5 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;6 &nbsp; : 36132
aida06 : &nbsp; &nbsp; 21 &nbsp; &nbsp; 14 &nbsp; &nbsp; &nbsp;6 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;6 &nbsp; : 37028
aida07 : &nbsp; &nbsp; 11 &nbsp; &nbsp; &nbsp;8 &nbsp; &nbsp; &nbsp;7 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;6 &nbsp; : 37212
aida08 : &nbsp; &nbsp; 18 &nbsp; &nbsp; 10 &nbsp; &nbsp; &nbsp;7 &nbsp; &nbsp; &nbsp;5 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;6 &nbsp; : 36072
aida09 : &nbsp; &nbsp; 24 &nbsp; &nbsp; 23 &nbsp; &nbsp; 18 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;6 &nbsp; : 36504
aida10 : &nbsp; &nbsp; &nbsp;6 &nbsp; &nbsp; 19 &nbsp; &nbsp; &nbsp;5 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;6 &nbsp; : 35520
aida11 : &nbsp; &nbsp; 22 &nbsp; &nbsp; 15 &nbsp; &nbsp; &nbsp;7 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;6 &nbsp; : 35648
aida12 : &nbsp; &nbsp; 35 &nbsp; &nbsp; 13 &nbsp; &nbsp; &nbsp;8 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;5 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;6 &nbsp; : 36724

&nbsp;

At 8:30 DAQ and Temperature Scan stopped working properly.

&nbsp;

11:00

It was noted that at the time that AIDA dropped out ~8:30 the beam also dropped out. It seems a bit of a coincidence

TD and MS powercycled the FEEs after the first crash and restarted MIDAS but not the merger. This recovered the FEEs but did not re-establish the links between the FEEs and the Merger.

Another powercycle was performed this time with a full reset of the merger and the links were restored. Upon restoring there was a large amount of noise in across all FEEs on average a 50% increase across all FEEs but in DSSD a factor of 4-6 increase was common.

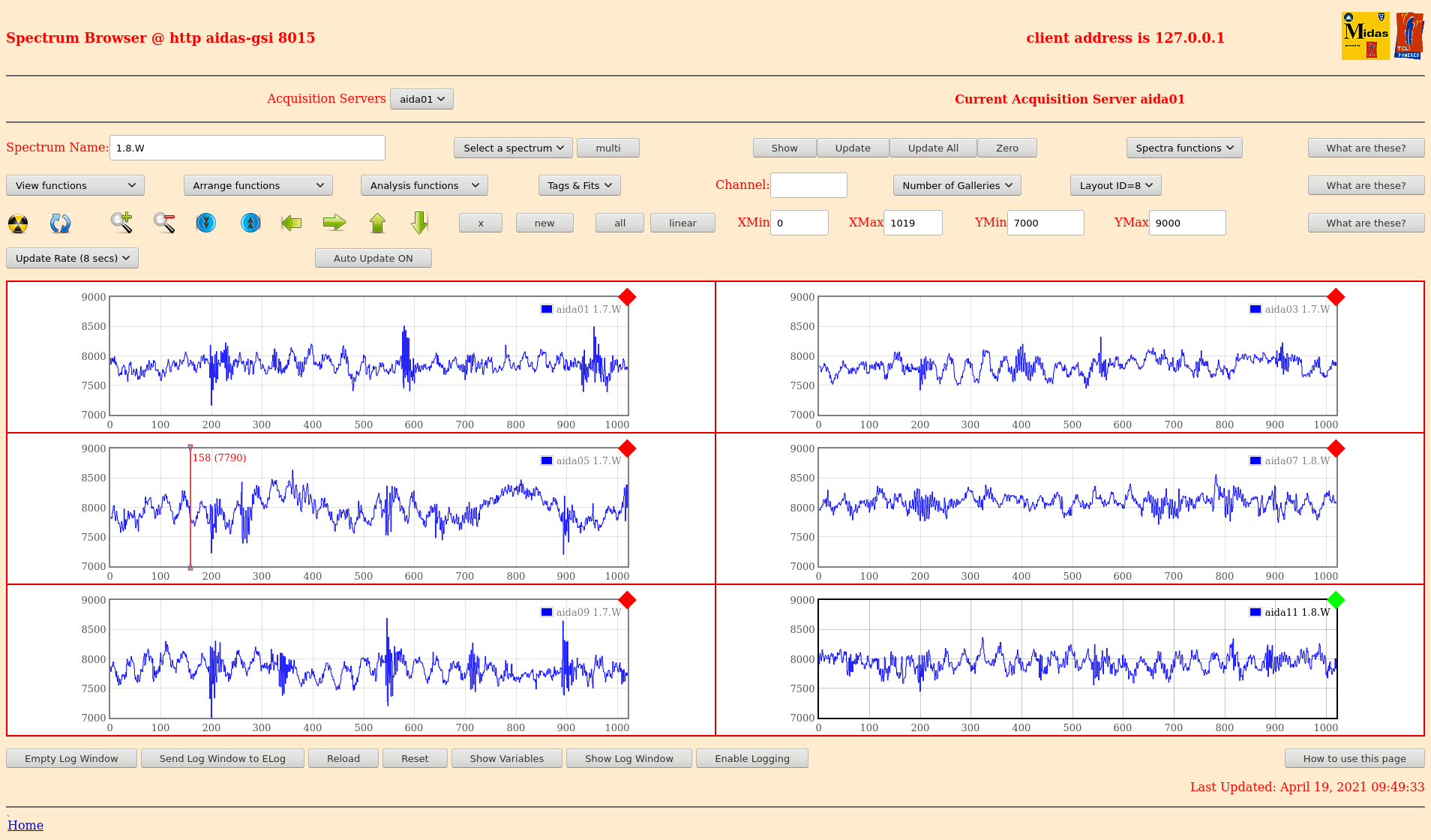

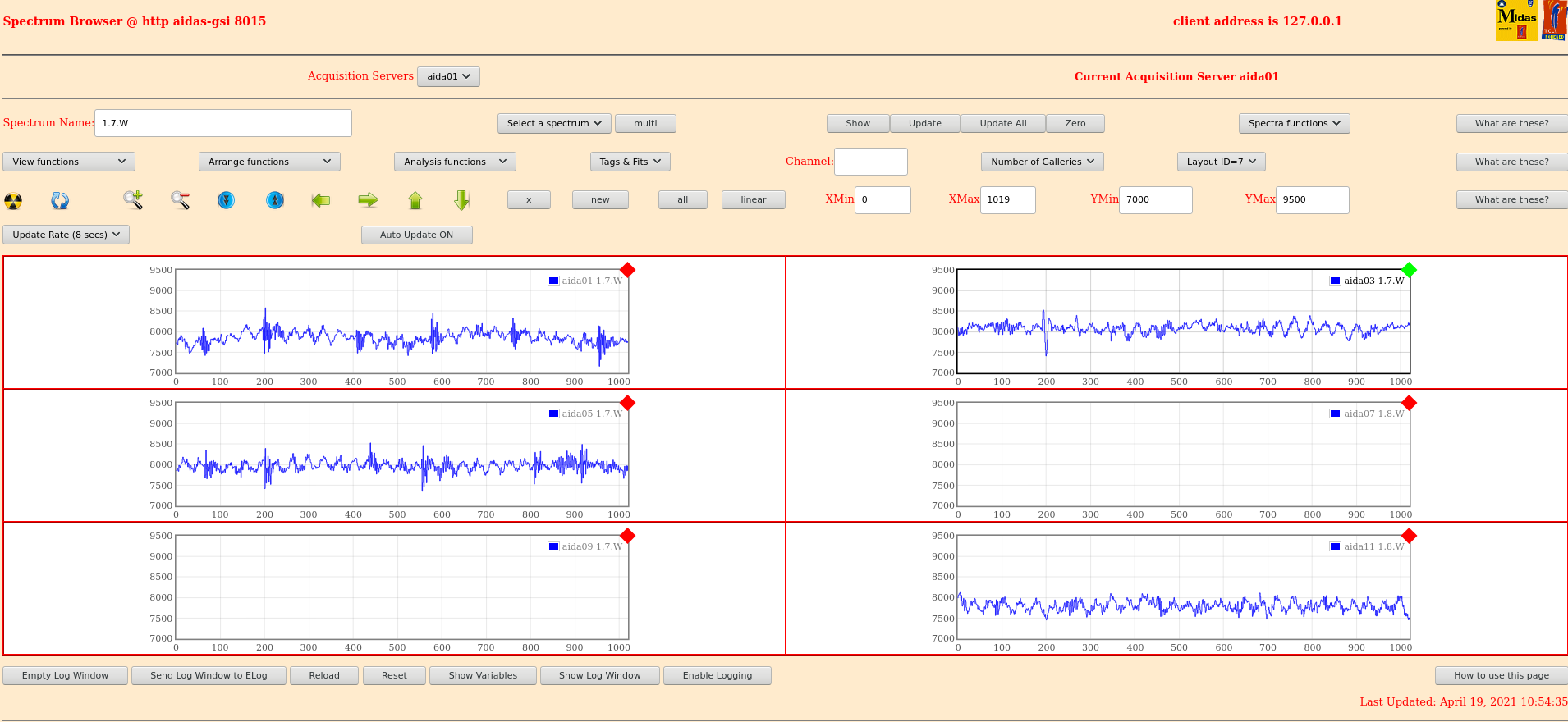

In the waveforms large 100kHz transiets could be seen - attachment 4

A further power-cycle was performed by OH. The rates following this powercycle are better than just before the power cycle but have not recovered to pre-glitch levels.

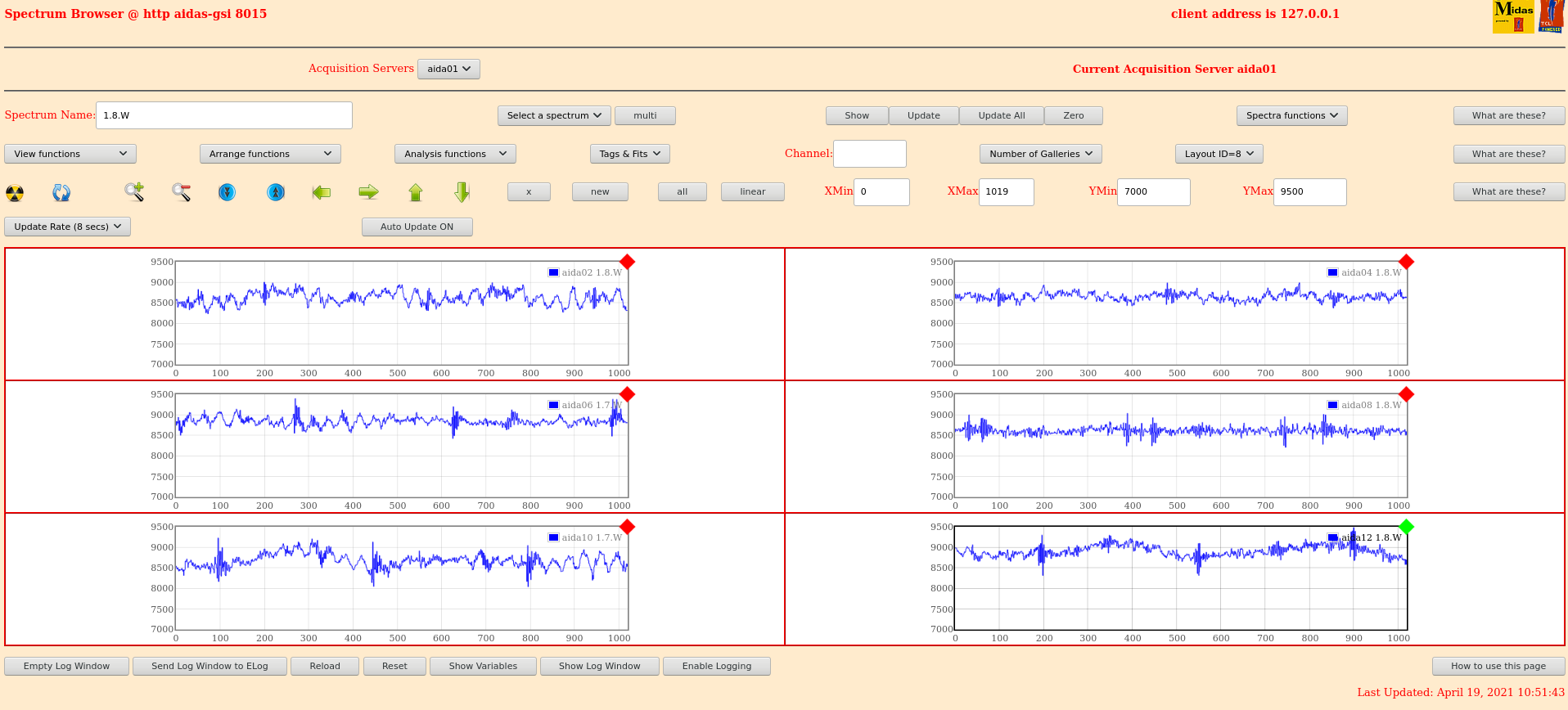

The waveforms here are much improved though - attachment 5 and 6

&nbsp;

11:45

FEE64 module aida09 global clocks failed, 6
&nbsp;Clock status test result: Passed 11, Failed 1

&nbsp;

FEE64 module aida01 failed
FEE64 module aida02 failed
FEE64 module aida03 failed
FEE64 module aida04 failed
FEE64 module aida05 failed
FEE64 module aida06 failed
FEE64 module aida07 failed
FEE64 module aida08 failed
FEE64 module aida09 failed
FEE64 module aida10 failed
FEE64 module aida11 failed
FEE64 module aida12 failed
Calibration test result: Passed 0, Failed 12

If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module

&nbsp;

&nbsp;&nbsp; &nbsp;
White Rabbit error counter test result: Passed 12, Failed 0

&nbsp;

FPGA Timestamp error counter test result: Passed 12, Failed 0
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

&nbsp;

&nbsp;&nbsp; &nbsp;
Returned 0 0 0 0 0 0 0 0 0 0 0 0 &nbsp;
Mem(KB) :&nbsp;&nbsp; &nbsp;4&nbsp;&nbsp; &nbsp;8&nbsp;&nbsp; &nbsp;16&nbsp;&nbsp; &nbsp;32&nbsp;&nbsp; &nbsp;64&nbsp;&nbsp; &nbsp;128&nbsp;&nbsp; &nbsp;256&nbsp;&nbsp; &nbsp;512&nbsp;&nbsp; &nbsp;1k&nbsp;&nbsp; &nbsp;2k&nbsp;&nbsp; &nbsp;4k
aida01 : &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 40148
aida02 : &nbsp; &nbsp; &nbsp;5 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39380
aida03 : &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39692
aida04 : &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;0 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39664
aida05 : &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;7 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;0 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 40160
aida06 : &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 40192
aida07 : &nbsp; &nbsp; 23 &nbsp; &nbsp; &nbsp;7 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;0 &nbsp; &nbsp; &nbsp;0 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39988
aida08 : &nbsp; &nbsp; 23 &nbsp; &nbsp; 11 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;0 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39860
aida09 : &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;7 &nbsp; : 40396
aida10 : &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39852
aida11 : &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;0 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39116
aida12 : &nbsp; &nbsp; &nbsp;5 &nbsp; &nbsp; &nbsp;8 &nbsp; &nbsp; &nbsp;0 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39668
