| DESPEC |
 |
|
|
|
Message ID: 246
Entry time: Mon Apr 19 13:27:08 2021
|
| Author: |
RDP |
| Subject: |
Monday 19th April 12 noon shift |
|
|
12.30 There appear to be fewer HEC events in aida09 cf. aida11 and upstream DSSSDs
Decrease aida09 asic #1-4 HEC fast comparator 0x2 -> 0x1
Online/nearline analyses of daat files indicates that this does not resolve the issue
Some timestamp issues
MERGE Data Link (23725): bad timestamp 11 3 0x8b620008 0x0287be94 0x00003dd78287be94 0x16773dd78287be94 0x16773dd78287beb2
MERGE Data Link (23725): bad timestamp 11 3 0x8b610040 0x073302ce 0x00003df3e73302ce 0x16773df3e73302ce 0x16773df3e73302ec
MERGE Data Link (23725): bad timestamp 11 3 0x8b610020 0x0a54b794 0x00003e4e4a54b794 0x16773e4e4a54b794 0x16773e4e4a54b7b2
MERGE Data Link (23725): bad timestamp 11 3 0x8b610020 0x052da21e 0x00003f68f52da21e 0x16773f68f52da21e 0x16773f68f52da232
MERGE Data Link (23725): bad timestamp 11 3 0x8b620008 0x0061489e 0x000040aa8061489e 0x167740aa8061489e 0x167740aa806148a8
MERGE Data Link (23725): bad timestamp 11 3 0x8b610008 0x04029d5e 0x00004169c4029d5e 0x16774169c4029d5e 0x16774169c4029d68
MERGE Data Link (23725): bad timestamp 11 3 0x8b630004 0x08dfcb14 0x0000417fd8dfcb14 0x1677417fd8dfcb14 0x1677417fd8dfcb28
MERGE Data Link (23725): bad timestamp 11 3 0x8b630020 0x08dfcb1e 0x0000417fd8dfcb1e 0x1677417fd8dfcb1e 0x1677417fd8dfcb28
13.50 Increased DSSSD# 3 bias from -100V
-100V -6.325uA
-110V -6.500uA
-120V -6.800uA
|
|
|
|
.png.png "Screenshot_2021-04-19_Temperature_and_status_scan_aidas-gsi(2).png")
|
|

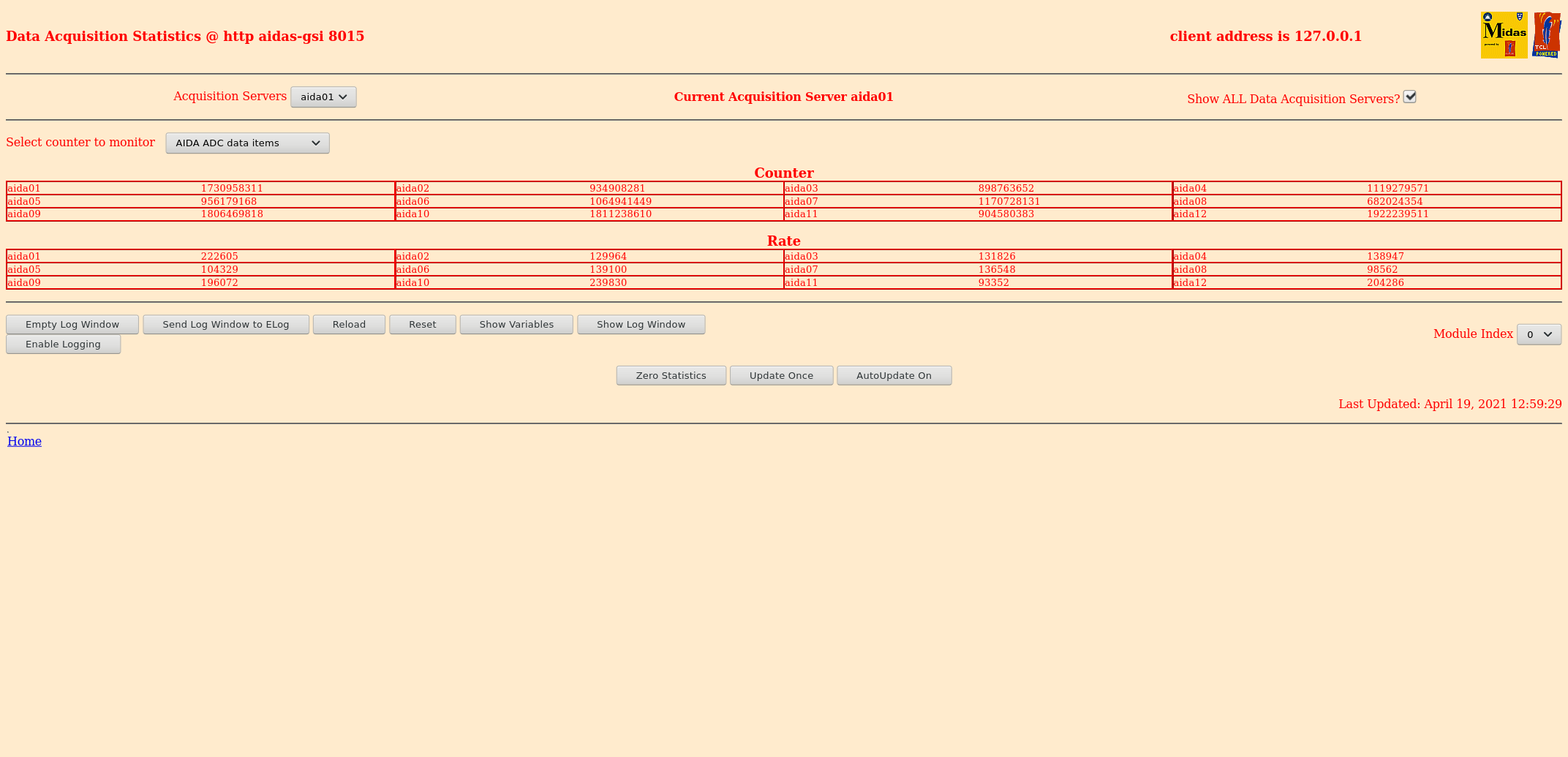

.png.png "Screenshot_2021-04-19_Statistics_aidas-gsi(2).png")
|
