Mon Apr 19 19:19:18 2021
Author
*
:
Subject
*
:

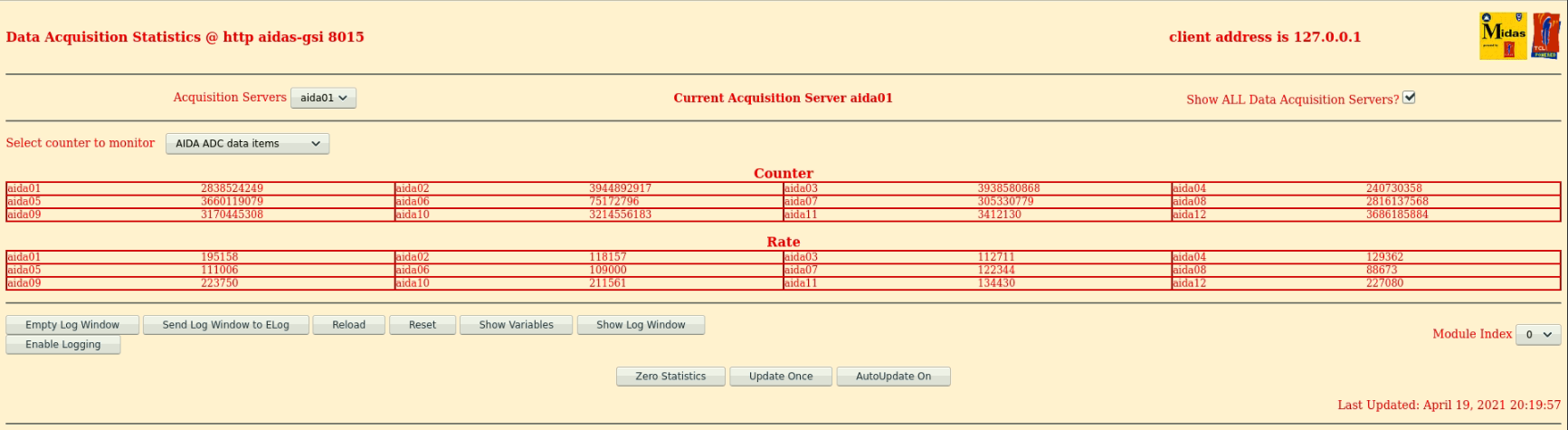

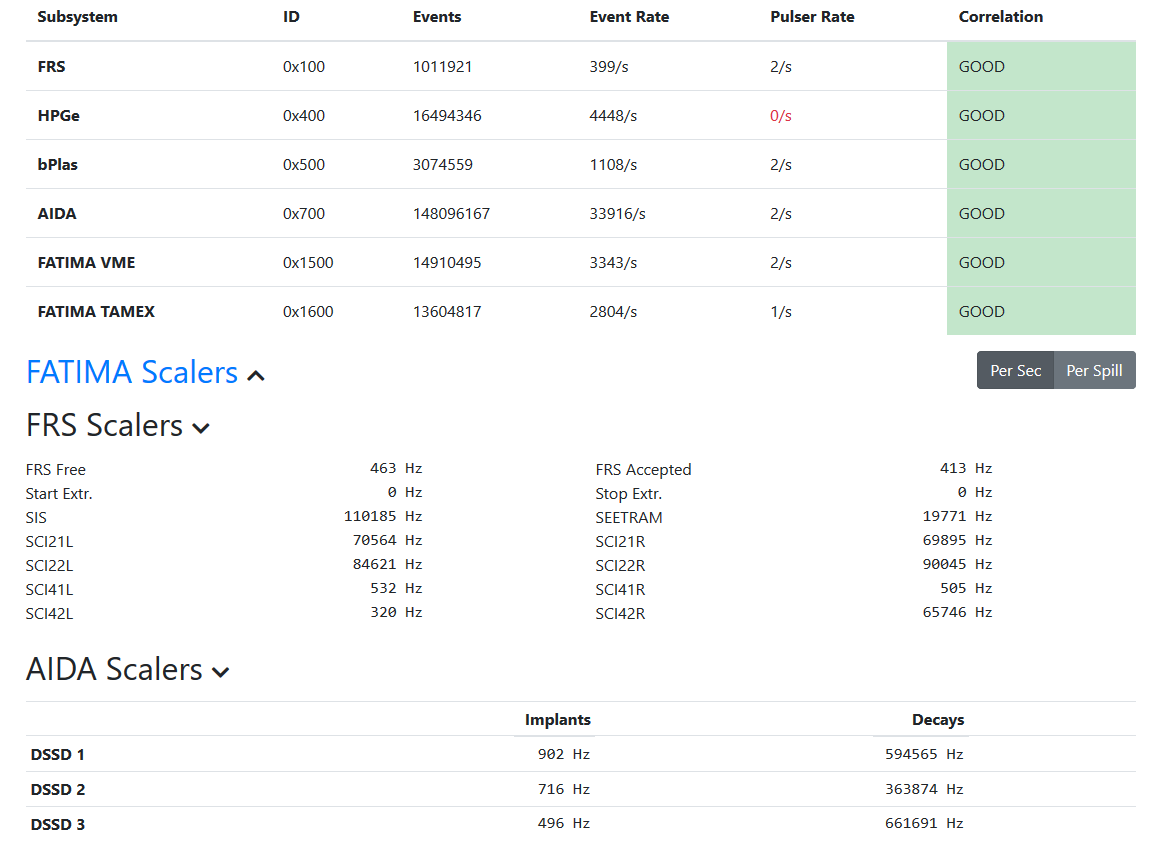

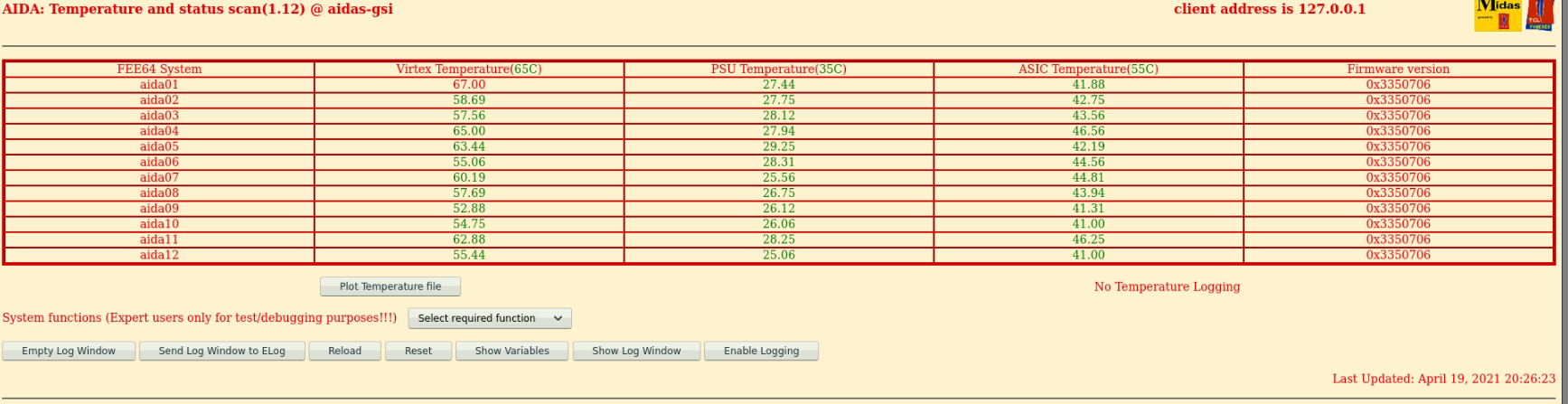

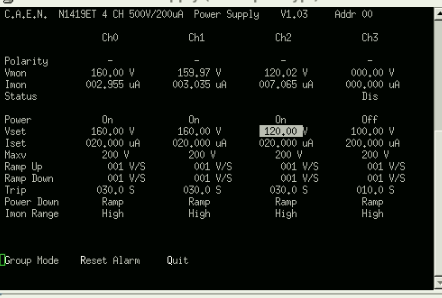

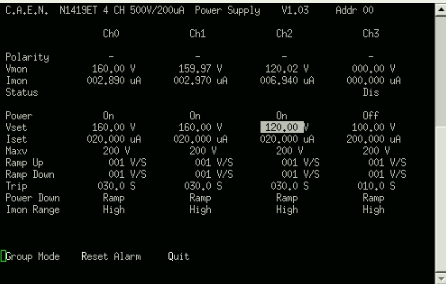

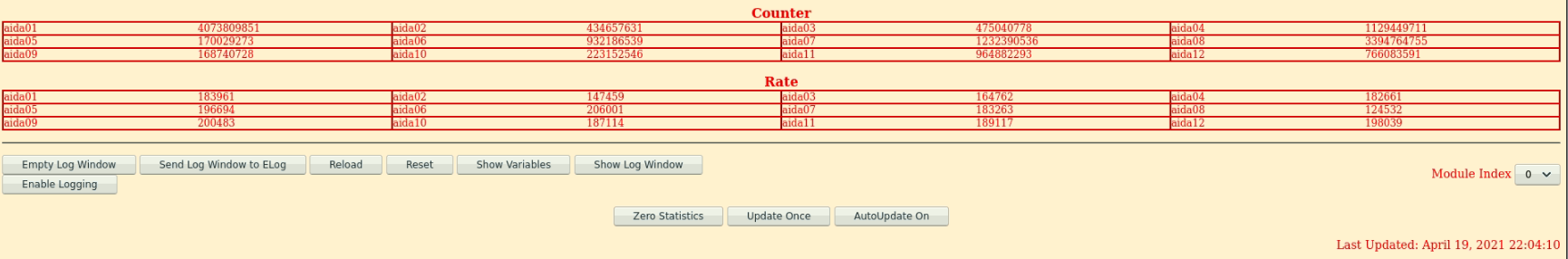

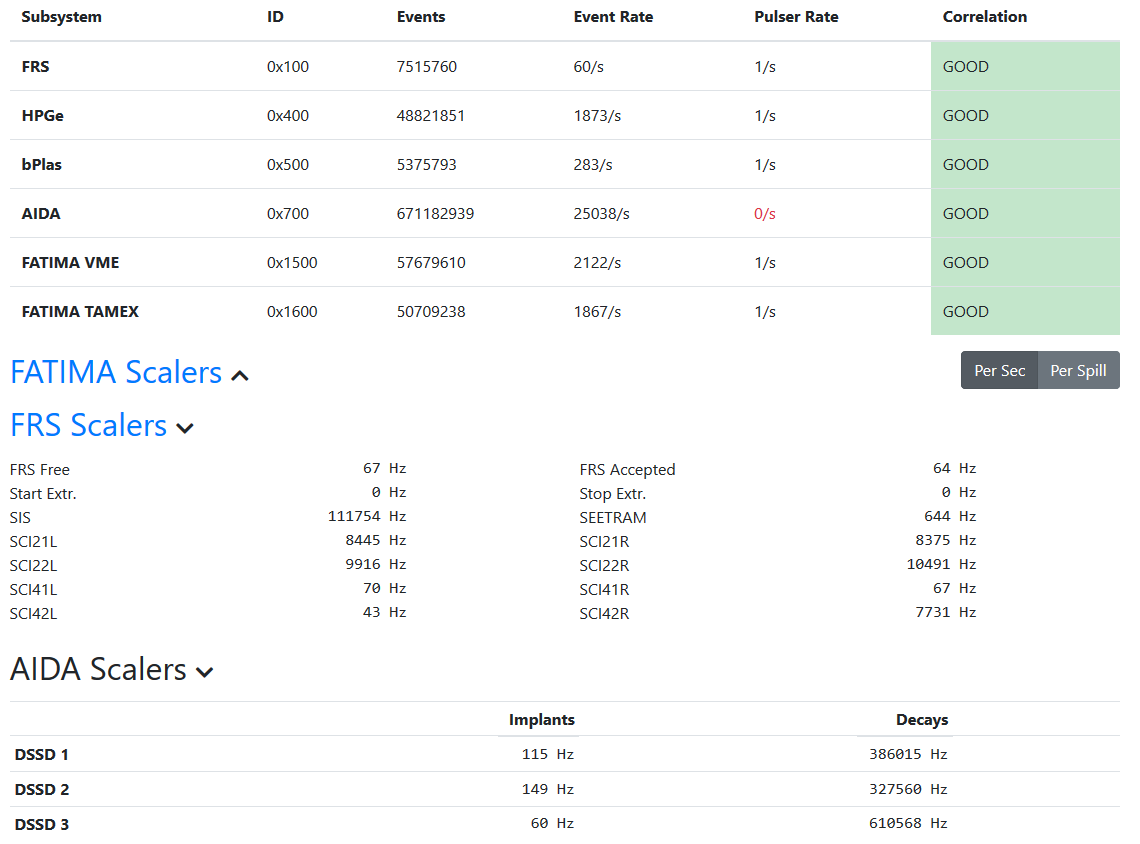

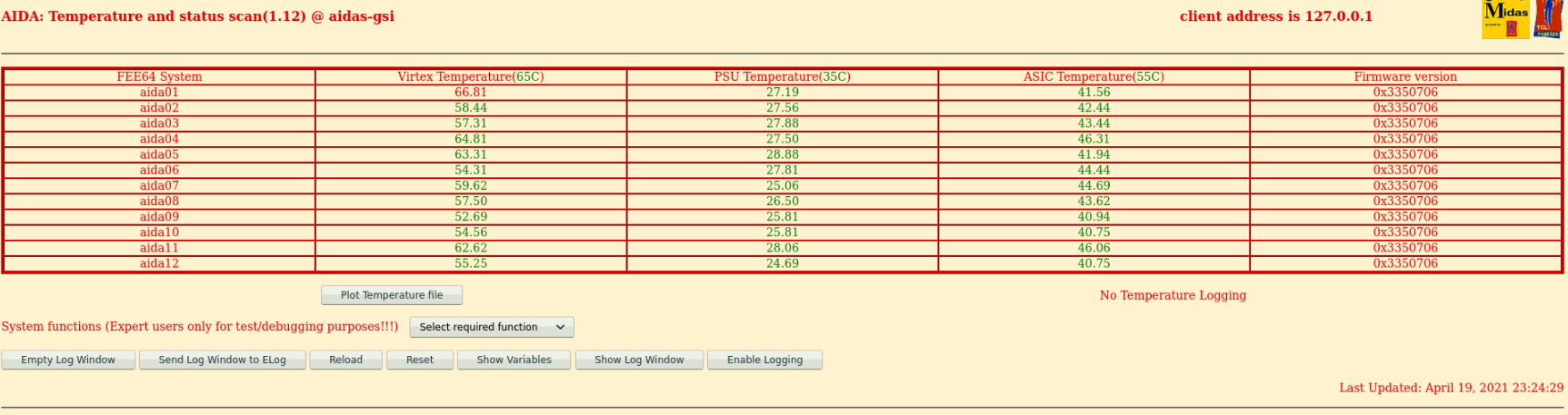

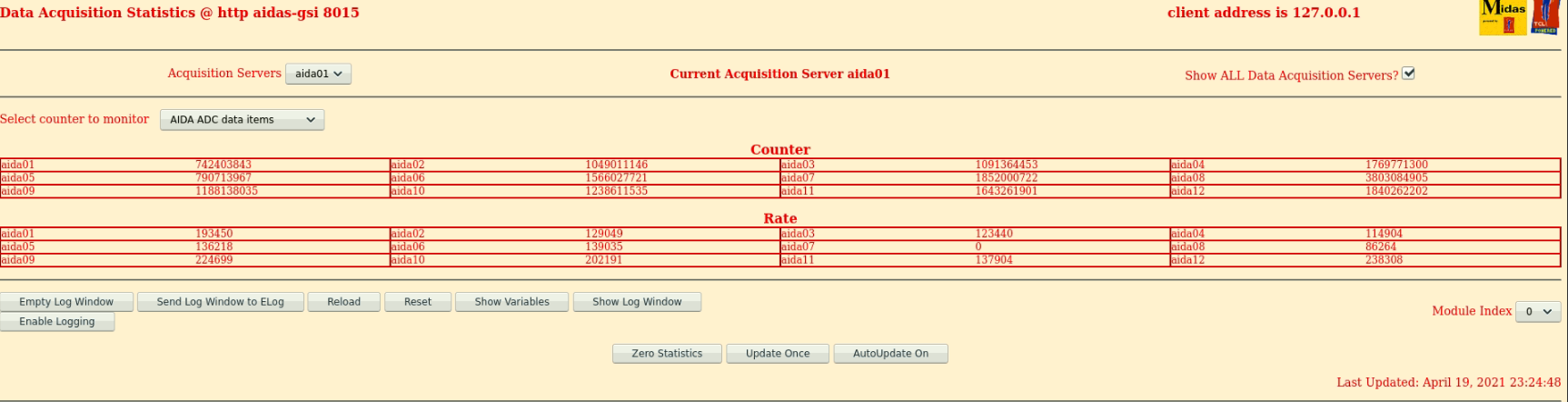

20:19 Statistics OK (attach 1) No faults found Ucesb OK (attach 2) Temps OK (attach 3) Bias OK (attach 4) System-wide checks - as per last check aida09 fails clock (OK) aida07 and 09 fail calibration (OK) Base Current Difference aida05 fault 0xdb9a : 0xdb9d : 3 aida06 fault 0xb74f : 0xb752 : 3 aida07 fault 0xd052 : 0xd05f : 13 aida08 fault 0xe4c1 : 0xe4c4 : 3 aida09 fault 0xaf4b : 0xaf4d : 2 White Rabbit error counter test result: Passed 7, Failed 5 Understand the status reports as follows:- Status bit 3 : White Rabbit decoder detected an error in the received data Status bit 2 : Firmware registered WR error, no reload of Timestamp Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR Base Current Difference aida12 fault 0x0 : 0x29 : 41 FPGA Timestamp error counter test result: Passed 11, Failed 1 If any of these counts are reported as in error The ASIC readout system has detected a timeslip. That is the timestamp read from the time FIFO is not younger than the last Returned 0 0 0 0 0 0 0 0 0 0 0 0 Mem(KB) : 4 8 16 32 64 128 256 512 1k 2k 4k aida01 : 0 3 2 2 2 5 2 3 2 3 6 : 35704 aida02 : 19 4 1 1 1 2 2 3 3 3 6 : 36316 aida03 : 12 9 2 1 2 2 2 3 3 3 6 : 36408 aida04 : 16 3 5 4 2 4 2 3 3 3 6 : 36776 aida05 : 41 10 10 3 3 3 3 3 3 3 6 : 37172 aida06 : 25 21 9 3 2 3 1 4 3 3 6 : 37116 aida07 : 10 7 1 2 1 3 2 2 3 3 6 : 35952 aida08 : 33 7 5 1 1 2 2 3 3 3 6 : 36460 aida09 : 12 7 4 2 2 2 2 2 2 4 6 : 36968 aida10 : 16 6 2 1 1 4 3 3 2 3 6 : 35824 aida11 : 2 0 1 2 2 2 2 4 2 3 6 : 35800 aida12 : 15 6 2 0 2 4 2 2 3 3 6 : 36108 20:48 Started compressing *old* runs on Screen 2, Workspace 5 nice -n10 gzip -v R[...]_* 21:00 Stats OK, UCESB OK, No faults 21:07 Go4 spectra erased by remote shifters. 21:15 Local shifters report correlations lost. Beam may be intermittently removed for checks. 21:30 Still no beam. DAQ issues locally. AIDA MBS link had to be restarted due to operator mistake. 21:37 Beam back. Stats OK, UCESB OK, No faults found. System wide checks: Clock - aida09 fails All modules now fail ADC calibration FEE64 module aida01 failed FEE64 module aida02 failed FEE64 module aida03 failed FEE64 module aida04 failed FEE64 module aida05 failed FEE64 module aida06 failed FEE64 module aida07 failed FEE64 module aida08 failed FEE64 module aida09 failed FEE64 module aida10 failed FEE64 module aida11 failed FEE64 module aida12 failed Calibration test result: Passed 0, Failed 12 Base Current Difference aida05 fault 0xdb9a : 0xdb9d : 3 aida06 fault 0xb74f : 0xb752 : 3 aida07 fault 0xd052 : 0xd061 : 15 aida08 fault 0xe4c1 : 0xe4c4 : 3 aida09 fault 0xaf4b : 0xaf4d : 2 White Rabbit error counter test result: Passed 7, Failed 5 Base Current Difference aida12 fault 0x0 : 0x36 : 54 FPGA Timestamp error counter test result: Passed 11, Failed 1 If any of these counts are reported as in error The ASIC readout system has detected a timeslip. That is the timestamp read from the time FIFO is not younger than the last Returned 0 0 0 0 0 0 0 0 0 0 0 0 Mem(KB) : 4 8 16 32 64 128 256 512 1k 2k 4k aida01 : 2 6 3 1 2 4 2 4 2 3 6 : 36104 aida02 : 2 3 0 2 2 4 2 2 3 3 6 : 36064 aida03 : 6 3 3 3 2 2 2 2 4 3 6 : 36928 aida04 : 15 5 8 4 3 3 2 3 3 3 6 : 36772 aida05 : 10 5 8 4 4 4 3 2 3 3 6 : 36688 aida06 : 14 17 10 3 3 3 1 4 3 3 6 : 37120 aida07 : 3 4 1 1 1 2 2 2 3 3 6 : 35740 aida08 : 12 5 7 2 2 4 1 2 3 3 6 : 35976 aida09 : 0 6 2 0 2 2 2 2 2 4 6 : 36816 aida10 : 4 2 5 2 1 4 2 4 2 3 6 : 36080 aida11 : 14 3 2 3 1 2 2 4 2 3 6 : 35856 aida12 : 1 2 0 2 1 4 1 3 3 3 6 : 36244 22:05 Stats OK (attach 5) Temps OK (attach 6) Bias OK (attach 7) System wide checks as before - see above. 22:13 ADC calibration - Only 06,07 and 09 now fail (TD re-calibrated remotely) 22:53 Beam off to allow access to S4 to reboot VME crate (akash). 22:58 Started compressing *old* runs on Screen 2, Workspace 5 nice -n10 gzip -v R[1-2][0-9]_* R[3][0-2]_* aka everything *except* R33_* 23:11: Beam is back. Stats and UCESB as before. 23:24: Stats OK (attach 8) Temps OK (attach 9) Bias OK (attach 10) UCESB OK (attach 11) System-wide checks Clock: 06 fails Calibration: 06,07,09 fail Base Current Difference aida05 fault 0xdb9a : 0xdb9d : 3 aida06 fault 0xb74f : 0xb752 : 3 aida07 fault 0xd052 : 0xd066 : 20 aida08 fault 0xe4c1 : 0xe4c4 : 3 aida09 fault 0xaf4b : 0xaf4d : 2 White Rabbit error counter test result: Passed 7, Failed 5 Base Current Difference aida05 fault 0xdb9a : 0xdb9d : 3 aida06 fault 0xb74f : 0xb752 : 3 aida07 fault 0xd052 : 0xd066 : 20 aida08 fault 0xe4c1 : 0xe4c4 : 3 aida09 fault 0xaf4b : 0xaf4d : 2 White Rabbit error counter test result: Passed 7, Failed 5 Returned 0 0 0 0 0 0 0 0 0 0 0 0 Mem(KB) : 4 8 16 32 64 128 256 512 1k 2k 4k aida01 : 15 8 2 2 3 4 3 3 2 3 6 : 35996 aida02 : 8 12 4 1 2 4 3 2 3 3 6 : 36448 aida03 : 2 4 2 4 3 3 1 3 3 3 6 : 36360 aida04 : 7 8 4 4 2 4 3 3 3 3 6 : 37020 aida05 : 3 5 7 4 3 3 3 3 3 3 6 : 36964 aida06 : 2 6 8 2 3 4 2 3 3 3 6 : 36792 aida07 : 8 4 5 2 0 3 1 2 3 4 6 : 37712 aida08 : 26 11 3 1 1 3 1 3 3 3 6 : 36304 aida09 : 22 4 2 2 3 4 1 3 3 3 6 : 36504 aida10 : 21 6 6 2 0 4 2 3 3 3 6 : 36644 aida11 : 22 7 2 3 2 1 2 4 2 3 6 : 35856 aida12 : 16 9 2 2 3 3 2 2 3 3 6 : 36136
