Entry time:
Tue Apr 20 19:00:00 2021
Author
*
:
Subject
*
:

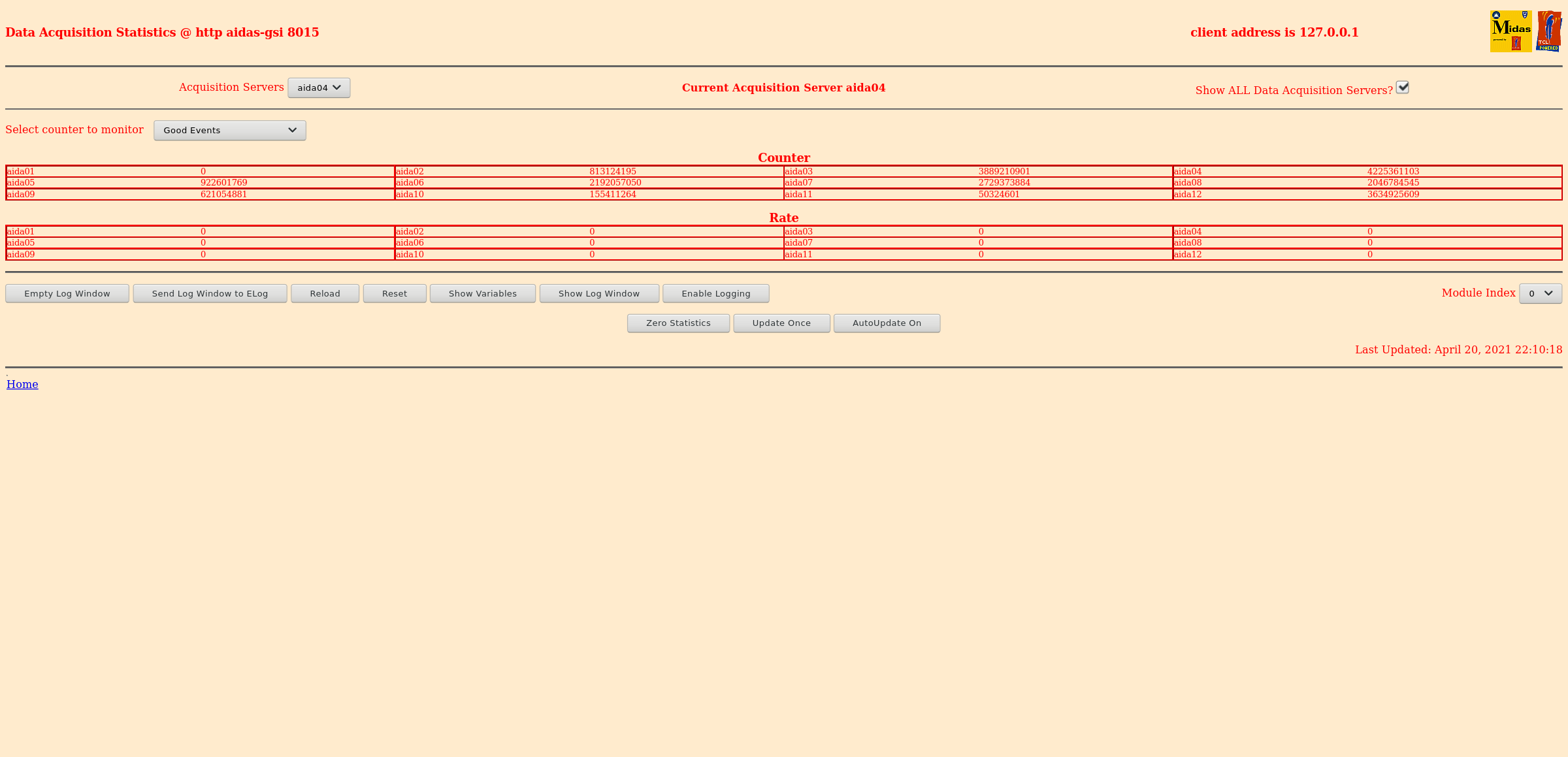

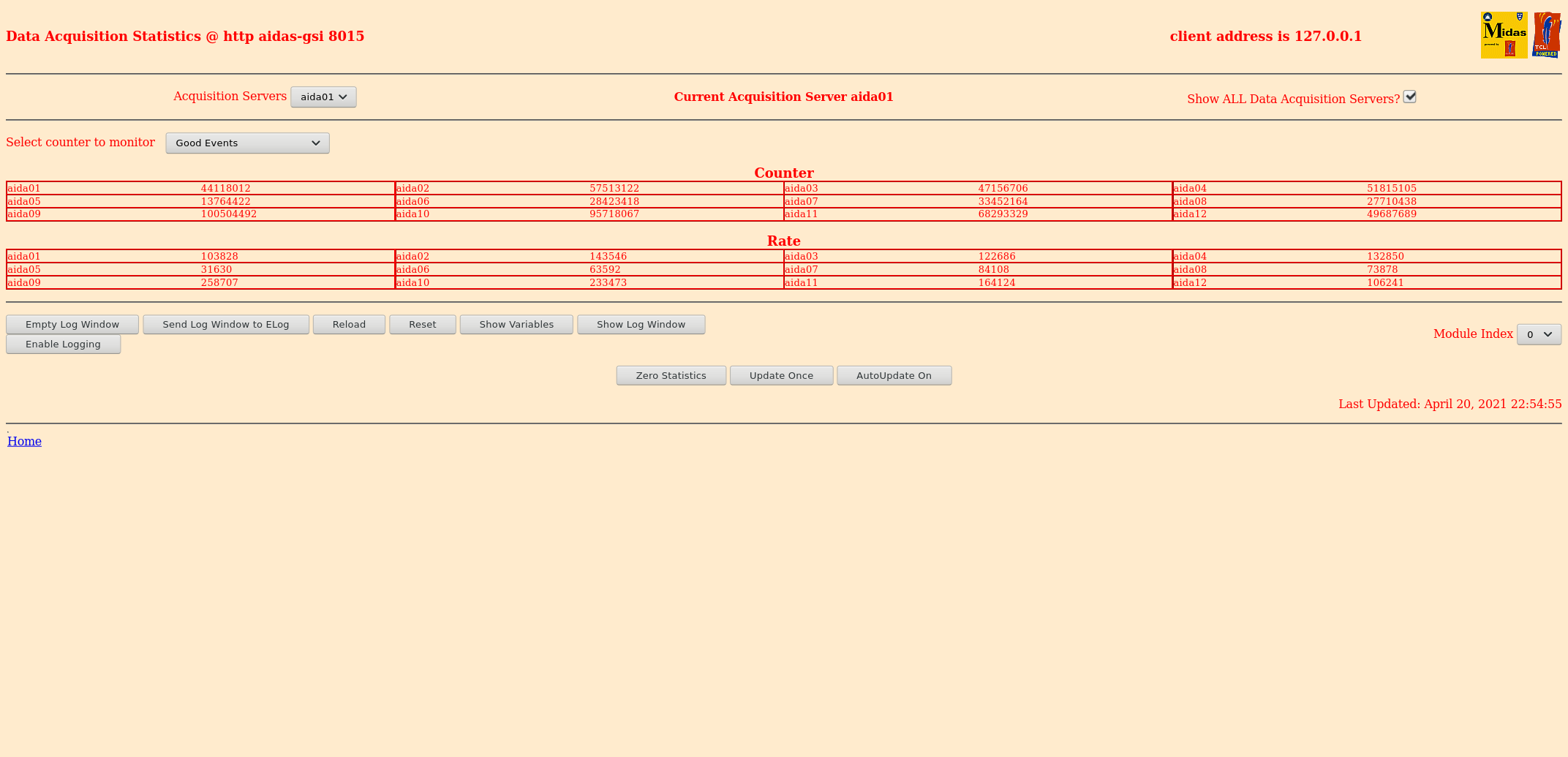

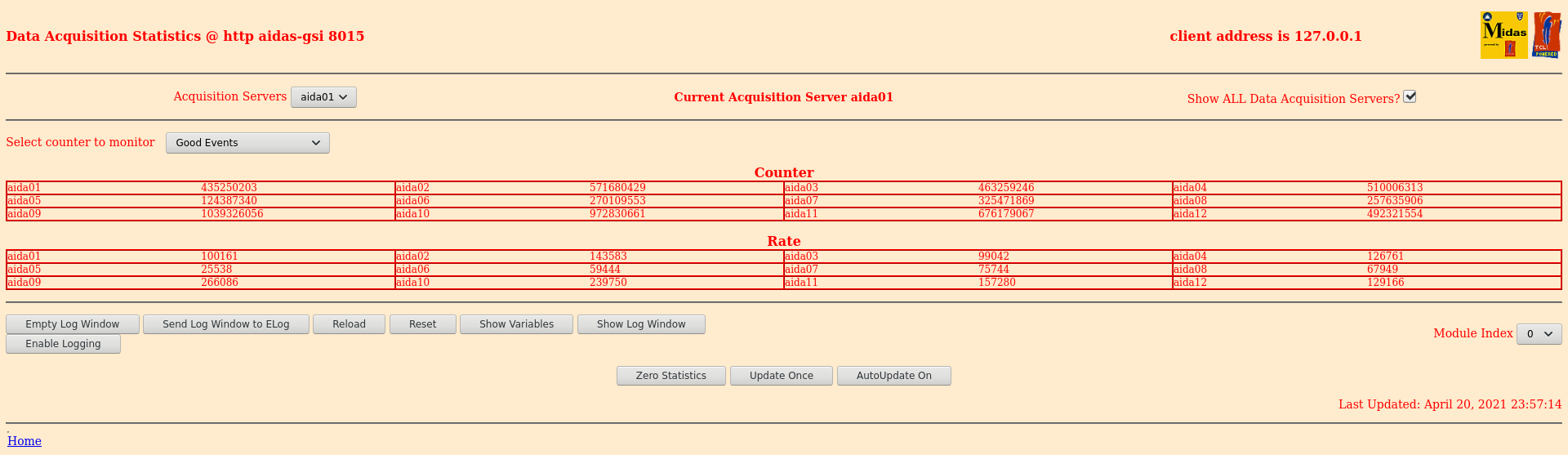

20:00 Taking over from Liam, all systems good. 20:30 DB No faults. Stats good ucesb ok 20:58 DB No faults. Stats good Temps good ucesb ok 21:31 DB No faults. Stats good Temps good ucesb ok 22:02 DB No faults. Stats good elog:254/3 Temps good elog:254/4 ucesb ok elog:254/1 Current ok elog:254/2 ADC Calibration check: FEE64 module aida06 failed Calibration test result: Passed 11, Failed 1 22:06 ucesb - DAQ Error - Onsite team checking daq crash Tape server icon stopped spinning Stats Rates 0, Counter aida01 zeroed but others normal. elog:254/5 Called Tom. Tried resetting in midas, no luck. Full reboot of DAQ and midas required. According to log at 22:07 aida01 reset Data taking stopped at 22:04 file R45_193 22:50 After a full power cycle all appear to be up and running well. Starting full checks. 23:00 Clock status test result: Passed 12, Failed 0 Calibration test result: Passed 12, Failed 0 White Rabbit error counter test result: Passed 12, Failed 0 Check FPGA is having a page error Returned 0 0 0 0 0 0 0 0 0 0 0 0 Mem(KB) : 4 8 16 32 64 128 256 512 1k 2k 4k aida01 : 4 8 2 2 1 3 1 4 2 3 7 : 39792 aida02 : 13 9 2 4 2 3 2 3 2 3 7 : 39708 aida03 : 19 5 4 3 1 3 1 4 2 3 7 : 39892 aida04 : 14 5 2 2 0 5 2 3 2 3 7 : 39744 aida05 : 16 11 3 2 2 4 3 2 1 4 7 : 40584 aida06 : 15 9 5 2 2 2 1 4 2 3 7 : 39828 aida07 : 15 9 3 3 2 2 1 4 2 3 7 : 39828 aida08 : 21 4 3 4 2 2 1 4 2 3 7 : 39844 aida09 : 11 6 1 2 3 4 2 3 2 3 7 : 39788 aida10 : 0 6 4 2 0 3 2 3 2 3 7 : 39472 aida11 : 16 7 2 0 1 3 2 3 2 3 7 : 39512 aida12 : 3 7 4 1 3 2 2 3 2 3 7 : 39524 DB No faults. Stats good elog:254/6 Temps good elog:254/7 aida01 had been high during reboot issue, >70, but now is back down Current ok elog:254/8 ucesb ok 23:25 DB No faults. Stats good Temps good ucesb ok 23:42 No Beam 23:48 Beam Back 23:57 DB No faults. Stats good elog:254/11 Temps good elog:254/12 ucesb ok elog:254/9 Current ok elog:254/10 Clock status test result: Passed 12, Failed 0 Calibration test result: Passed 12, Failed 0 White Rabbit error counter test result: Passed 12, Failed 0 *FPGA check page error* Returned 0 0 0 0 0 0 0 0 0 0 0 0 Mem(KB) : 4 8 16 32 64 128 256 512 1k 2k 4k aida01 : 27 9 5 2 1 2 1 4 2 3 7 : 39812 aida02 : 13 9 5 2 2 2 1 4 2 3 7 : 39820 aida03 : 21 8 3 2 2 2 1 4 2 3 7 : 39812 aida04 : 13 4 3 1 1 5 2 3 2 3 7 : 39780 aida05 : 24 5 3 2 2 4 2 3 2 3 7 : 39800 aida06 : 16 5 5 2 2 2 1 4 2 3 7 : 39800 aida07 : 22 6 2 2 1 3 1 4 2 3 7 : 39848 aida08 : 21 8 2 3 2 2 1 4 2 3 7 : 39828 aida09 : 18 7 1 1 3 4 2 3 2 3 7 : 39792 aida10 : 19 3 3 1 0 3 2 3 2 3 7 : 39476 aida11 : 17 4 4 0 1 3 2 3 2 3 7 : 39524 aida12 : 13 4 3 2 3 1 2 3 2 3 7 : 39428 00:04 Handing over to Corrigan
