Entry time:

Wed Apr 21 06:56:42 2021

Author*:

Subject*:

8:00


&nbsp;

&nbsp;&nbsp; &nbsp;
Clock status test result: Passed 12, Failed 0

Understand status as follows
Status bit 3 : firmware PLL that creates clocks from external clock not locked
Status bit 2 : always logic &#39;1&#39;&nbsp;
Status bit 1 : LMK3200(2) PLL and clock distribution chip not locked to external clock
Status bit 0 : LMK3200(1) PLL and clock distribution chip not locked to external clock
If all these bits are not set then the operation of the firmware is unreliable
&nbsp;

FEE64 module aida01 failed
FEE64 module aida02 failed
FEE64 module aida03 failed
FEE64 module aida04 failed
FEE64 module aida05 failed
FEE64 module aida06 failed
FEE64 module aida07 failed
FEE64 module aida08 failed
FEE64 module aida09 failed
FEE64 module aida10 failed
FEE64 module aida11 failed
FEE64 module aida12 failed
Calibration test result: Passed 0, Failed 12

If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module

&nbsp;

&nbsp;&nbsp; &nbsp;
White Rabbit error counter test result: Passed 12, Failed 0

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

&nbsp;

&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp; Base &nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;Current &nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;Difference
aida12 fault &nbsp;&nbsp; &nbsp; 0x0 : &nbsp;&nbsp; &nbsp; 0x15 : &nbsp;&nbsp; &nbsp; 21 &nbsp;
FPGA Timestamp error counter test result: Passed 11, Failed 1
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

&nbsp;

&nbsp;&nbsp; &nbsp;
Returned 0 0 0 0 0 0 0 0 0 0 0 0 &nbsp;
Mem(KB) :&nbsp;&nbsp; &nbsp;4&nbsp;&nbsp; &nbsp;8&nbsp;&nbsp; &nbsp;16&nbsp;&nbsp; &nbsp;32&nbsp;&nbsp; &nbsp;64&nbsp;&nbsp; &nbsp;128&nbsp;&nbsp; &nbsp;256&nbsp;&nbsp; &nbsp;512&nbsp;&nbsp; &nbsp;1k&nbsp;&nbsp; &nbsp;2k&nbsp;&nbsp; &nbsp;4k
aida01 : &nbsp; &nbsp; 19 &nbsp; &nbsp; &nbsp;6 &nbsp; &nbsp; &nbsp;7 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39596
aida02 : &nbsp; &nbsp; 25 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39548
aida03 : &nbsp; &nbsp; 28 &nbsp; &nbsp; &nbsp;5 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39528
aida04 : &nbsp; &nbsp; 27 &nbsp; &nbsp; &nbsp;6 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 40316
aida05 : &nbsp; &nbsp; &nbsp;9 &nbsp; &nbsp; &nbsp;9 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 40652
aida06 : &nbsp; &nbsp; 21 &nbsp; &nbsp; &nbsp;7 &nbsp; &nbsp; &nbsp;6 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39564
aida07 : &nbsp; &nbsp; 20 &nbsp; &nbsp; &nbsp;7 &nbsp; &nbsp; &nbsp;5 &nbsp; &nbsp; &nbsp;0 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39448
aida08 : &nbsp; &nbsp; 21 &nbsp; &nbsp; &nbsp;5 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39708
aida09 : &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;0 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39564
aida10 : &nbsp; &nbsp; 20 &nbsp; &nbsp; &nbsp;6 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39728
aida11 : &nbsp; &nbsp; 18 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 38952
aida12 : &nbsp; &nbsp; 19 &nbsp; &nbsp; &nbsp;8 &nbsp; &nbsp; &nbsp;7 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39772

&nbsp;

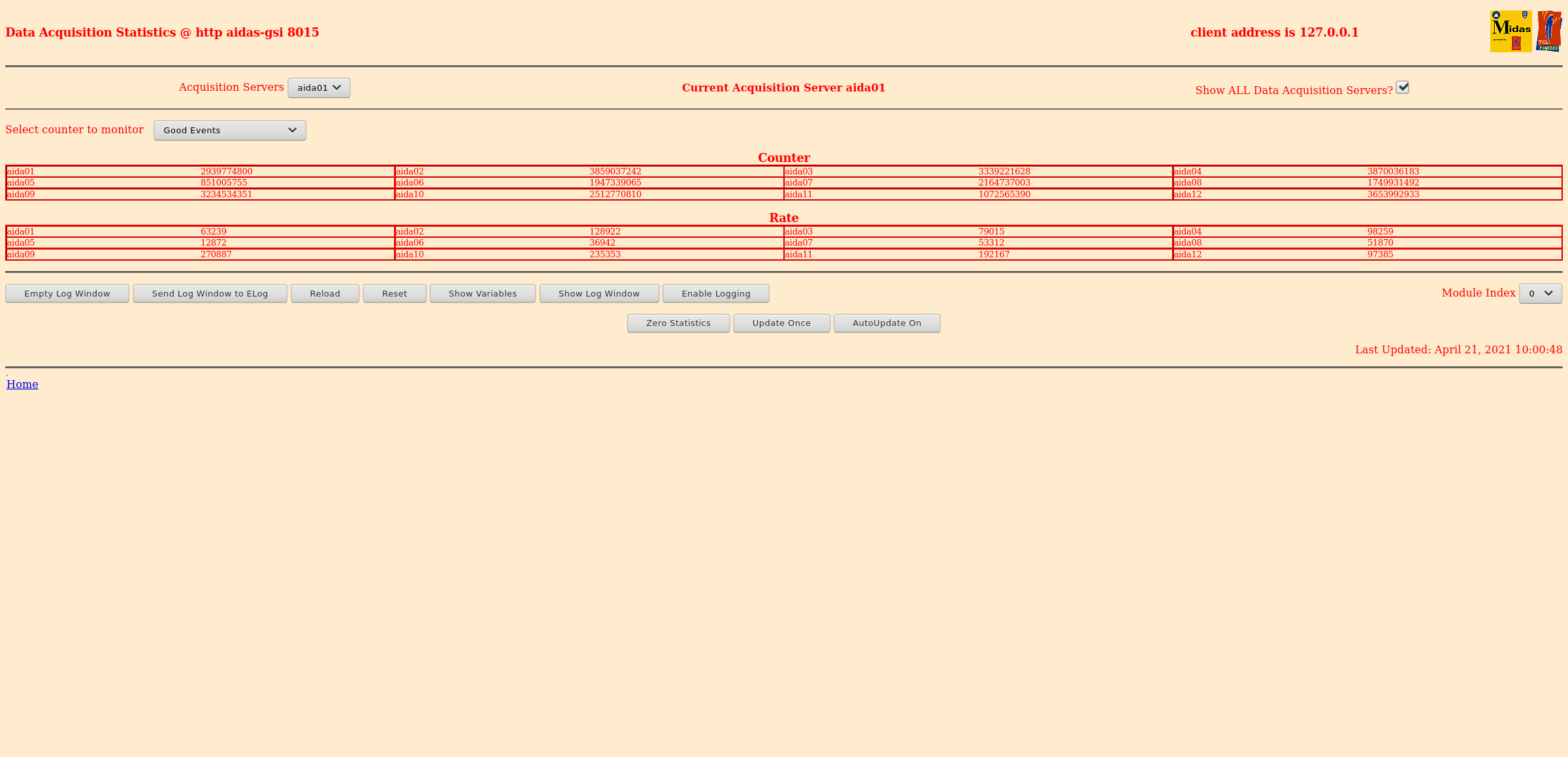

From the merger statistics during the night there have been 1355757 TS errors in aida12. Corrigan said they have been quiet since around 3am though.

10:00

Clock status test result: Passed 12, Failed 0

&nbsp;

&nbsp;&nbsp; &nbsp;
FEE64 module aida01 failed
FEE64 module aida02 failed
FEE64 module aida03 failed
FEE64 module aida04 failed
FEE64 module aida06 failed
FEE64 module aida07 failed
FEE64 module aida08 failed
FEE64 module aida09 failed
FEE64 module aida10 failed
FEE64 module aida11 failed
FEE64 module aida12 failed
Calibration test result: Passed 1, Failed 11

If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module

&nbsp;

&nbsp;&nbsp; &nbsp;
White Rabbit error counter test result: Passed 12, Failed 0

&nbsp;

&nbsp;&nbsp; &nbsp;
&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp; Base &nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;Current &nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;Difference
aida12 fault &nbsp;&nbsp; &nbsp; 0x0 : &nbsp;&nbsp; &nbsp; 0x15 : &nbsp;&nbsp; &nbsp; 21 &nbsp;
FPGA Timestamp error counter test result: Passed 11, Failed 1
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

&nbsp;

&nbsp;&nbsp; &nbsp;
Returned 0 0 0 0 0 0 0 0 0 0 0 0 &nbsp;
Mem(KB) :&nbsp;&nbsp; &nbsp;4&nbsp;&nbsp; &nbsp;8&nbsp;&nbsp; &nbsp;16&nbsp;&nbsp; &nbsp;32&nbsp;&nbsp; &nbsp;64&nbsp;&nbsp; &nbsp;128&nbsp;&nbsp; &nbsp;256&nbsp;&nbsp; &nbsp;512&nbsp;&nbsp; &nbsp;1k&nbsp;&nbsp; &nbsp;2k&nbsp;&nbsp; &nbsp;4k
aida01 : &nbsp; &nbsp; 15 &nbsp; &nbsp; &nbsp;7 &nbsp; &nbsp; &nbsp;6 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39508
aida02 : &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;0 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39780
aida03 : &nbsp; &nbsp; 23 &nbsp; &nbsp; &nbsp;8 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;0 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39548
aida04 : &nbsp; &nbsp; 23 &nbsp; &nbsp; &nbsp;9 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 40244
aida05 : &nbsp; &nbsp; 14 &nbsp; &nbsp; &nbsp;7 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;7 &nbsp; : 40784
aida06 : &nbsp; &nbsp; 18 &nbsp; &nbsp; &nbsp;5 &nbsp; &nbsp; &nbsp;5 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39808
aida07 : &nbsp; &nbsp; 27 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39420
aida08 : &nbsp; &nbsp; 23 &nbsp; &nbsp; &nbsp;6 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39804
aida09 : &nbsp; &nbsp; 18 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;6 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39592
aida10 : &nbsp; &nbsp; &nbsp;6 &nbsp; &nbsp; &nbsp;9 &nbsp; &nbsp; &nbsp;5 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39696
aida11 : &nbsp; &nbsp; 16 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39536
aida12 : &nbsp; &nbsp; 18 &nbsp; &nbsp; &nbsp;5 &nbsp; &nbsp; &nbsp;7 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;0 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39808

&nbsp;

10:22

NH Noticed that the ASIC clocks had not been synchronised following the last AIDA restart. - attachment 7
As the beam is having issues they are not currently recording
I have now synchronised the ASIC clocks.
All ADC are now calibrated

&nbsp;

11:06

Used the beam off time to change the drive writing to. Now writing to /media/ThirdDrive/TapeData/S460/R50

11:10

Beam is back they will start writing to file again


12:00

&nbsp;&nbsp; &nbsp;
Clock status test result: Passed 12, Failed 0

&nbsp;

&nbsp;&nbsp; &nbsp;
Calibration test result: Passed 12, Failed 0

If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module

&nbsp;

&nbsp;&nbsp; &nbsp;
White Rabbit error counter test result: Passed 12, Failed 0

&nbsp;

&nbsp;&nbsp; &nbsp;
&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp; Base &nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;Current &nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;Difference
aida12 fault &nbsp;&nbsp; &nbsp; 0x0 : &nbsp;&nbsp; &nbsp; 0x17 : &nbsp;&nbsp; &nbsp; 23 &nbsp;
FPGA Timestamp error counter test result: Passed 11, Failed 1
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

&nbsp;

&nbsp;&nbsp; &nbsp;
Returned 0 0 0 0 0 0 0 0 0 0 0 0 &nbsp;
Mem(KB) :&nbsp;&nbsp; &nbsp;4&nbsp;&nbsp; &nbsp;8&nbsp;&nbsp; &nbsp;16&nbsp;&nbsp; &nbsp;32&nbsp;&nbsp; &nbsp;64&nbsp;&nbsp; &nbsp;128&nbsp;&nbsp; &nbsp;256&nbsp;&nbsp; &nbsp;512&nbsp;&nbsp; &nbsp;1k&nbsp;&nbsp; &nbsp;2k&nbsp;&nbsp; &nbsp;4k
aida01 : &nbsp; &nbsp; 20 &nbsp; &nbsp; &nbsp;5 &nbsp; &nbsp; &nbsp;5 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39720
aida02 : &nbsp; &nbsp; 16 &nbsp; &nbsp; &nbsp;8 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;0 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39648
aida03 : &nbsp; &nbsp; &nbsp;9 &nbsp; &nbsp; &nbsp;7 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39692
aida04 : &nbsp; &nbsp; &nbsp;8 &nbsp; &nbsp; &nbsp;7 &nbsp; &nbsp; &nbsp;5 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;5 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39720
aida05 : &nbsp; &nbsp; 20 &nbsp; &nbsp; &nbsp;5 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39976
aida06 : &nbsp; &nbsp; 25 &nbsp; &nbsp; &nbsp;8 &nbsp; &nbsp; &nbsp;0 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39748
aida07 : &nbsp; &nbsp; 24 &nbsp; &nbsp; &nbsp;8 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39776
aida08 : &nbsp; &nbsp; 22 &nbsp; &nbsp; &nbsp;9 &nbsp; &nbsp; &nbsp;0 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39776
aida09 : &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39620
aida10 : &nbsp; &nbsp; 13 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39412
aida11 : &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;4 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39184
aida12 : &nbsp; &nbsp; 16 &nbsp; &nbsp; 10 &nbsp; &nbsp; &nbsp;7 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;1 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;2 &nbsp; &nbsp; &nbsp;3 &nbsp; &nbsp; &nbsp;7 &nbsp; : 39424

&nbsp;
