12:30 MBS has crashed
      This time AIDA is still running fine.

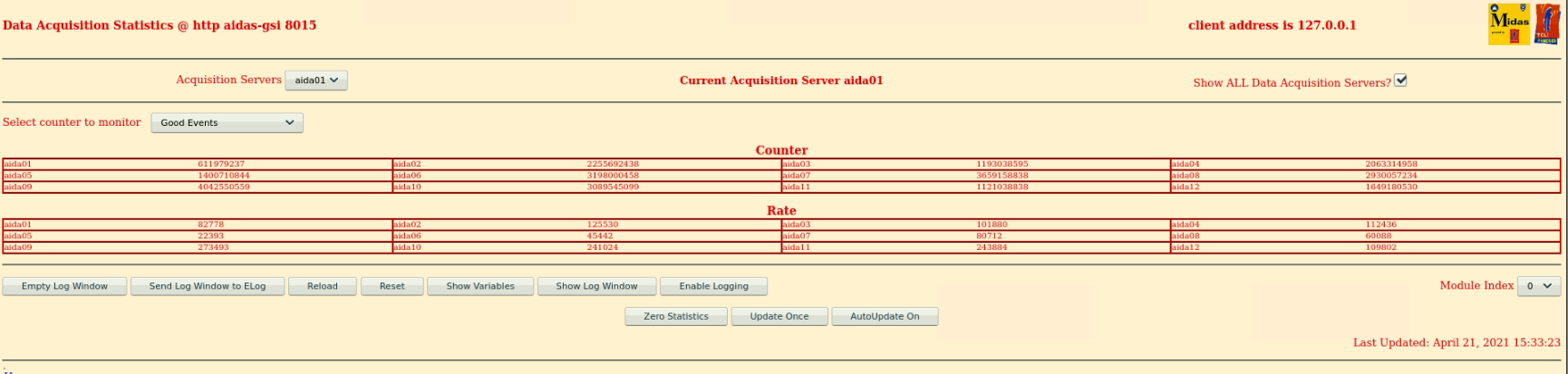

Stats ok - attachment 1

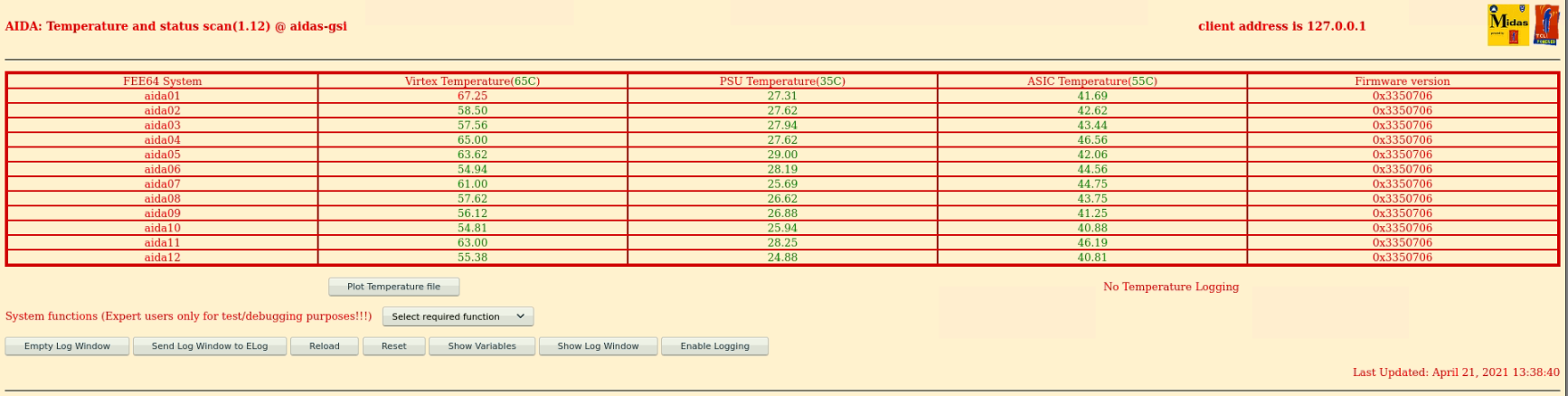

      Temperature - attachment 2

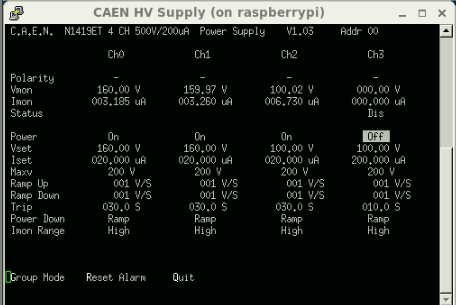

      Bias and leakage currents - attachment 3

      All system wide checks ok *except*

			 Base 		Current 		Difference
aida12 fault 	 0x0 : 	 0x19 : 	 25
FPGA Timestamp error counter test result: Passed 11, Failed 1
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

Now also note errors on aida7 and aida03 in the merger TS errors
     (0 represents the sum across all FEE)
0	1355800	0x0014b018
1	0	0x00000000
2	0	0x00000000
3	33	0x00000021
4	0	0x00000000
5	0	0x00000000
6	0	0x00000000
7	10	0x0000000a
8	0	0x00000000
9	0	0x00000000
10	0	0x00000000
11	1355757	0x0014afed

15:30 CA takes over

Stats ok - attachment 4
      Temperature - attachment 5
      Bias and leakage currents - attachment 6

all system wide checks ok *except*

Base 		Current 		Difference
aida12 fault 	 0x0 : 	 0x19 : 	 27
FPGA Timestamp error counter test result: Passed 11, Failed 1
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

15:42 db check and ucesb ok
