Entry time:

Sun Apr 25 10:22:16 2021

Author*:

Subject*:

11.25 All system wide checks OK *except*

Base 		Current 	Difference
aida01 fault 	 0xc95f : 	 0xc960 : 	 1
aida02 fault 	 0x8bbe : 	 0x8bbf : 	 1
aida03 fault 	 0xae9d : 	 0xae9e : 	 1
aida04 fault 	 0x6e2 : 	 0x6e3 : 	 1
aida05 fault 	 0x31a2 : 	 0x31a4 : 	 2
aida05 : WR status 0x10
 aida06 fault 	 0x22e7 : 	 0x22ea : 	 3
aida07 fault 	 0x438d : 	 0x438f : 	 2
aida08 fault 	 0x61eb : 	 0x61ed : 	 2
White Rabbit error counter test result: Passed 4, Failed 8
Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

Returned 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) :	4	8	16	32	64	128	256	512	1k	2k	4k
aida01 :     55     21     31      6      3      2      2      3      2      3      4   : 28148
aida02 :     28      3      5      4      0      3      1      3      3      3      6   : 36312
aida03 :     25     10      2      2      2      4      1      3      3      3      6   : 36500
aida04 :     14      7     10      1      2      2      2      3      3      3      6   : 36528
aida05 :     58     35     28      6      4      2      2      3      3      3      4   : 29312
aida06 :     16     11      6      1      0      4      1      3      3      3      6   : 36376
aida07 :     75     31     25      9      4      3      2      2      2      3      4   : 27988
aida08 :     28      7      1      1      1      4      1      3      3      3      6   : 36376
aida09 :     50     48     28     10      3      3      3      4      2      3      4   : 29320
aida10 :     26      5      4      3      1      3      2      4      2      3      6   : 36080
aida11 :     21      7      5      3      5      2      2      4      2      3      6   : 36220
aida12 :     64     29     26      7      3      1      2      3      2      3      4   : 28072

Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same

FEE : aida01 =>   Options file size is 1026 	 Last changed Sat Apr 24 03:57:22 CEST 2021
 FEE : aida02 =>   Options file size is 1014 	 Last changed Fri Apr 16 00:56:20 CEST 2021
 FEE : aida03 =>   Options file size is 1014 	 Last changed Wed Apr 14 21:52:04 CEST 2021
 FEE : aida04 =>   Options file size is 1025 	 Last changed Sat Apr 17 06:07:36 CEST 2021
 FEE : aida05 =>   Options file size is 1025 	 Last changed Fri Apr 16 00:53:25 CEST 2021
 FEE : aida06 =>   Options file size is 1014 	 Last changed Wed Apr 14 21:52:04 CEST 2021
 FEE : aida07 =>   Options file size is 1014 	 Last changed Wed Apr 14 21:52:04 CEST 2021
 FEE : aida08 =>   Options file size is 1014 	 Last changed Wed Apr 14 21:52:04 CEST 2021
 FEE : aida09 =>   Options file size is 1014 	 Last changed Wed Apr 14 21:52:05 CEST 2021
 FEE : aida10 =>   Options file size is 1014 	 Last changed Wed Apr 14 21:52:06 CEST 2021
 FEE : aida11 =>   Options file size is 1014 	 Last changed Wed Apr 14 21:52:05 CEST 2021
 FEE : aida12 =>   Options file size is 1025 	 Last changed Mon Apr 19 09:05:25 CEST 2021

Most recent merger errors reported - server terminal now reset & clear'd

MERGE Data Link (4408): bad timestamp  10 3 0xc2b67d8f 0x0b50c3e2 0x0000f437cb50c3e2 0x1678f437cb50c3e2 0x1678f43a16f1e6b2
MERGE Data Link (4408): bad timestamp  10 3 0xc2877f27 0x0b50cbb2 0x0000f437cb50cbb2 0x1678f437cb50cbb2 0x1678f43a16f1e6b2
MERGE Data Link (4408): bad timestamp  10 3 0xc2a07fcd 0x0b50cbb2 0x0000f437cb50cbb2 0x1678f437cb50cbb2 0x1678f43a16f1e6b2
MERGE Data Link (4408): bad timestamp  10 3 0xc2b77c9c 0x0b50cbb2 0x0000f437cb50cbb2 0x1678f437cb50cbb2 0x1678f43a16f1e6b2
MERGE Data Link (4408): bad timestamp  10 3 0xc28b7d9c 0x0b50d382 0x0000f437cb50d382 0x1678f437cb50d382 0x1678f43a16f1e6b2
MERGE Data Link (4408): bad timestamp  10 3 0xc2937e6c 0x0b50e322 0x0000f437cb50e322 0x1678f437cb50e322 0x1678f43a16f1e6b2
MERGE Data Link (4408): bad timestamp  10 3 0xc2a17d78 0x0b50e322 0x0000f437cb50e322 0x1678f437cb50e322 0x1678f43a16f1e6b2
MERGE Data Link (4408): bad timestamp  10 3 0xc2817fff 0x0b50eaf2 0x0000f437cb50eaf2 0x1678f437cb50eaf2 0x1678f43a16f1e6b2
MERGE Data Link (4408): bad timestamp  10 3 0xc2b77ecf 0x06fb3d52 0x0000f437cb50eaf2 0x1678f437c6fb3d52 0x1678f43a16f1e6b2

11.25 Grafana DSSSD bias |& leakage currents for previous 7 days - attachment 1

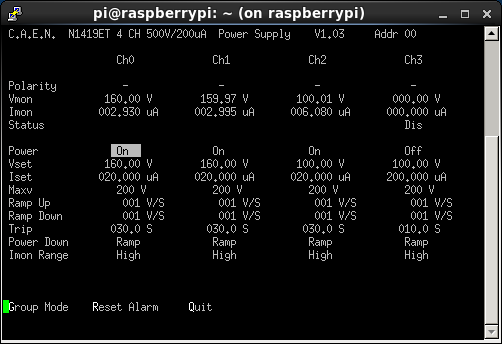

      DSSSD bias |& leakage currents Ok - attachment 2

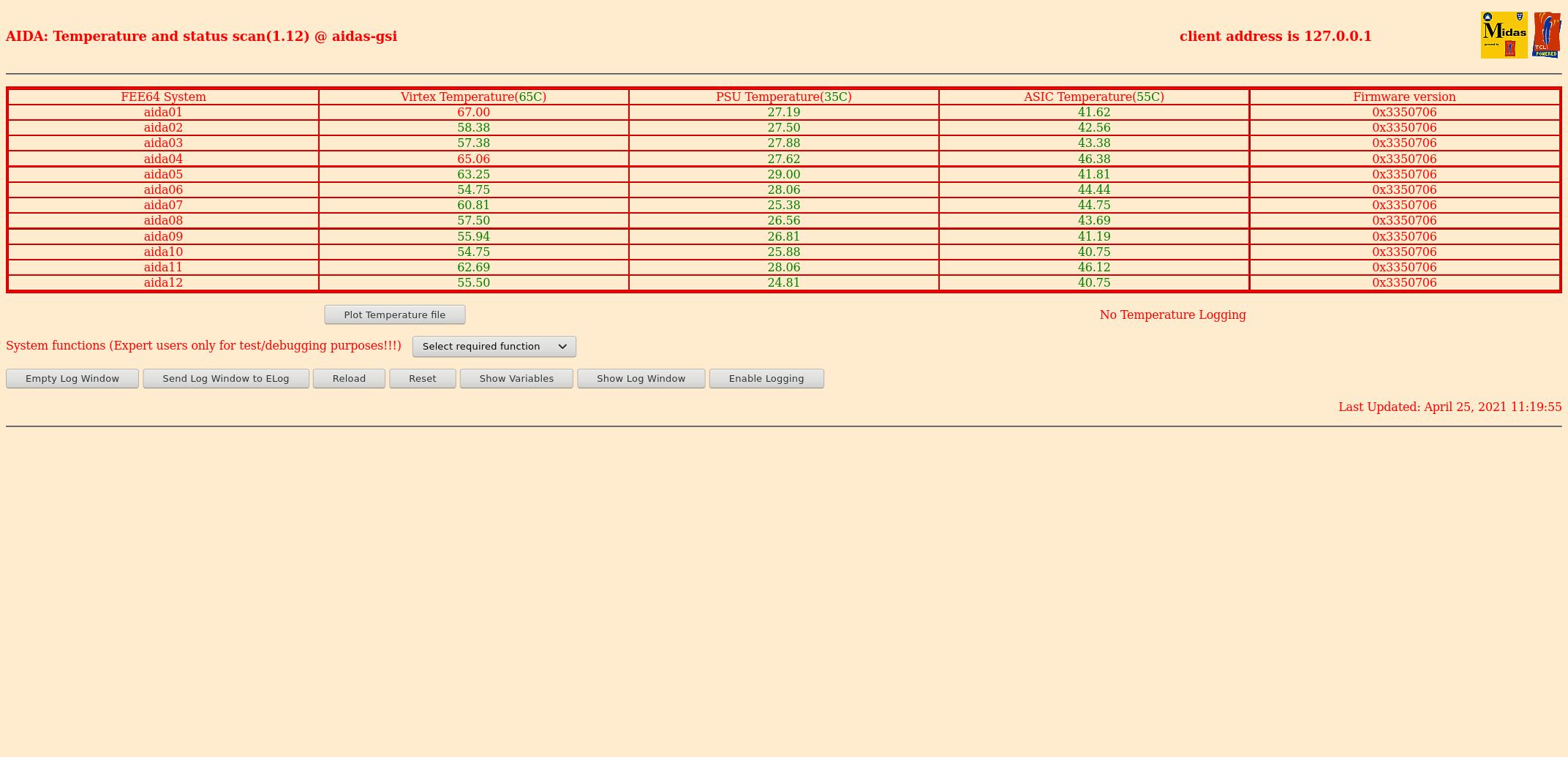

      FEE64 temps OK - attachment 3
      good event stats - attachment 4

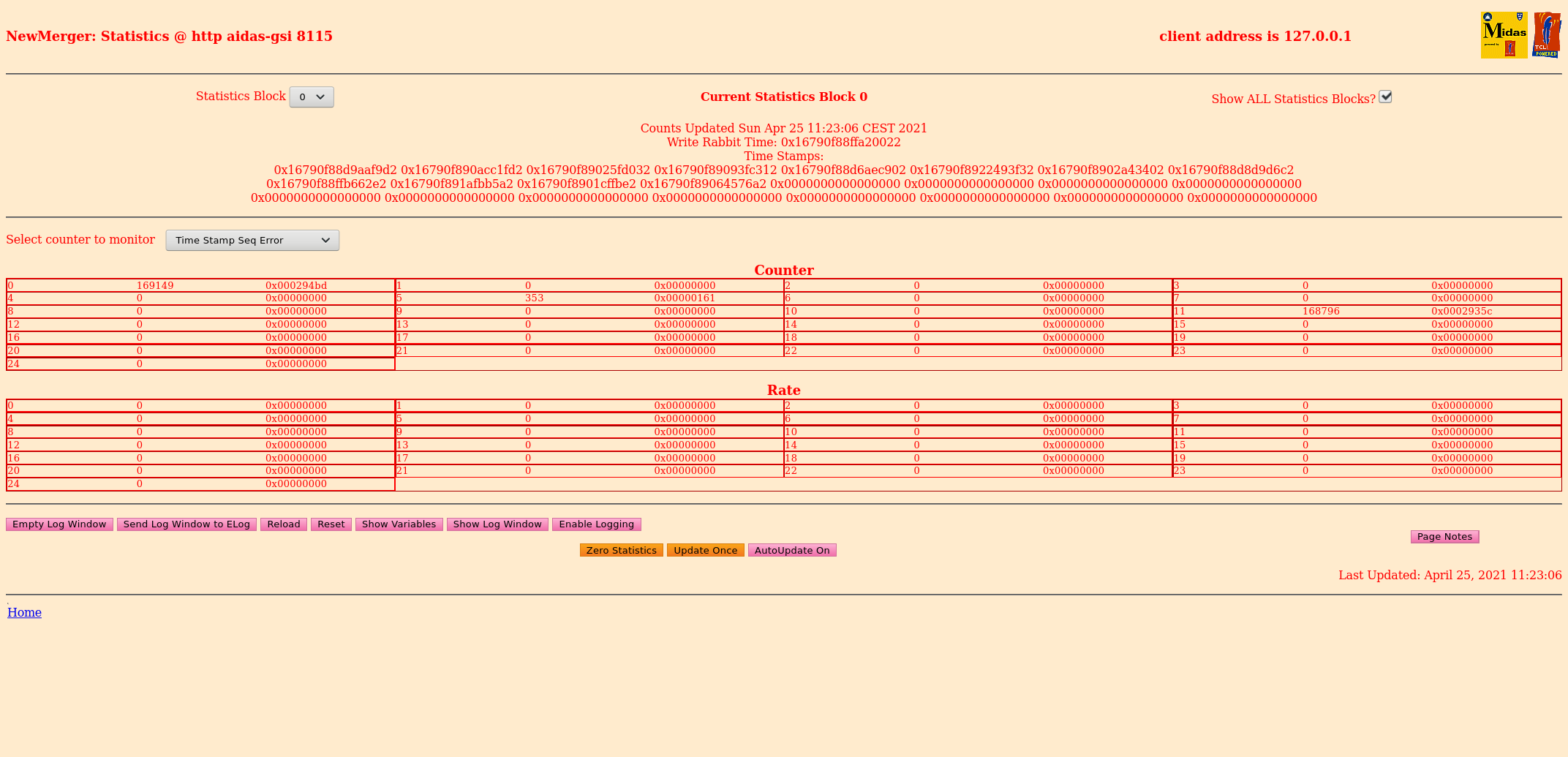

      merger time seq errors - attachment 5

All histograms, stats and merge stats zero'd
      WR decoder errors *new*  baseline

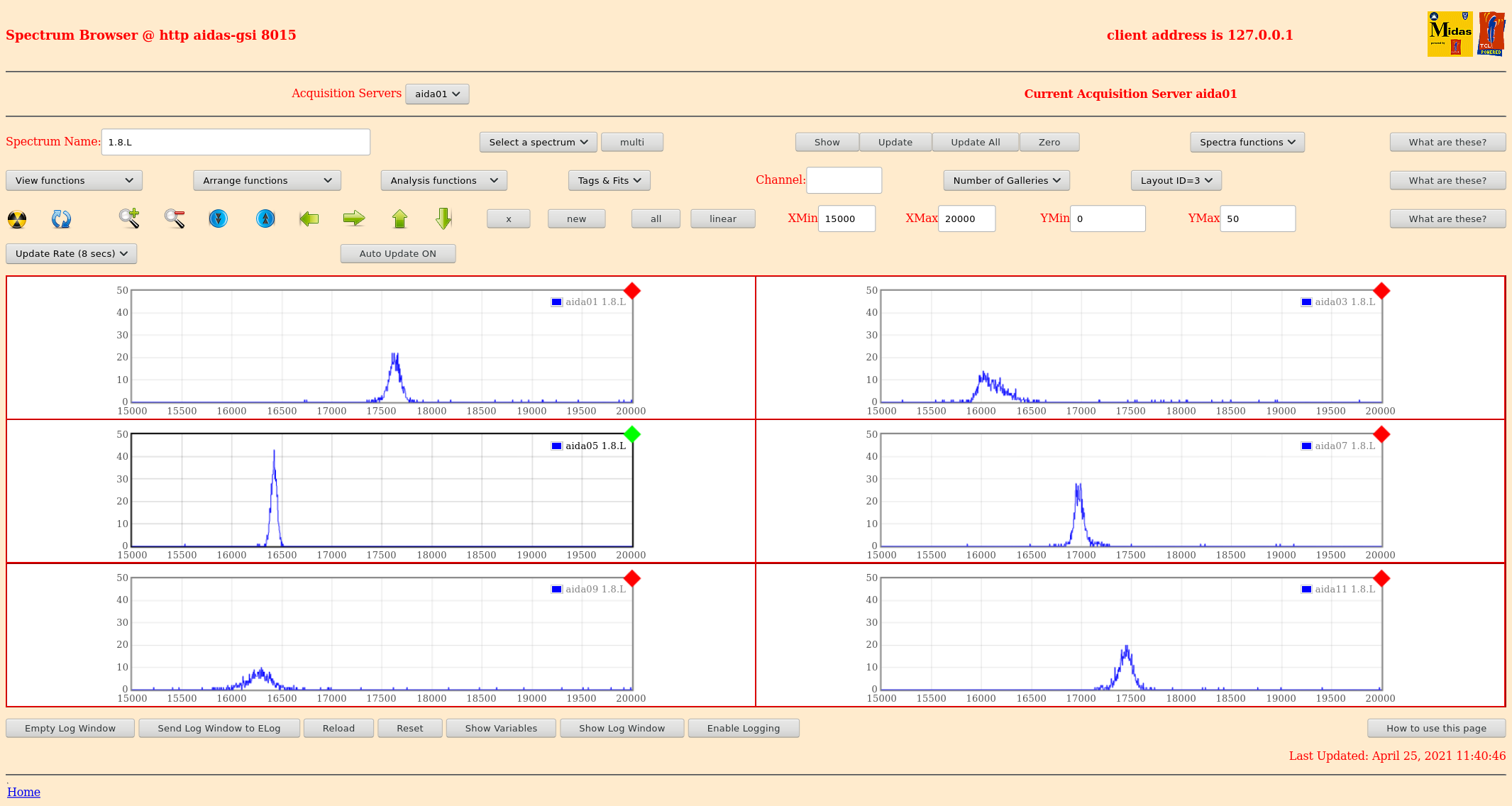

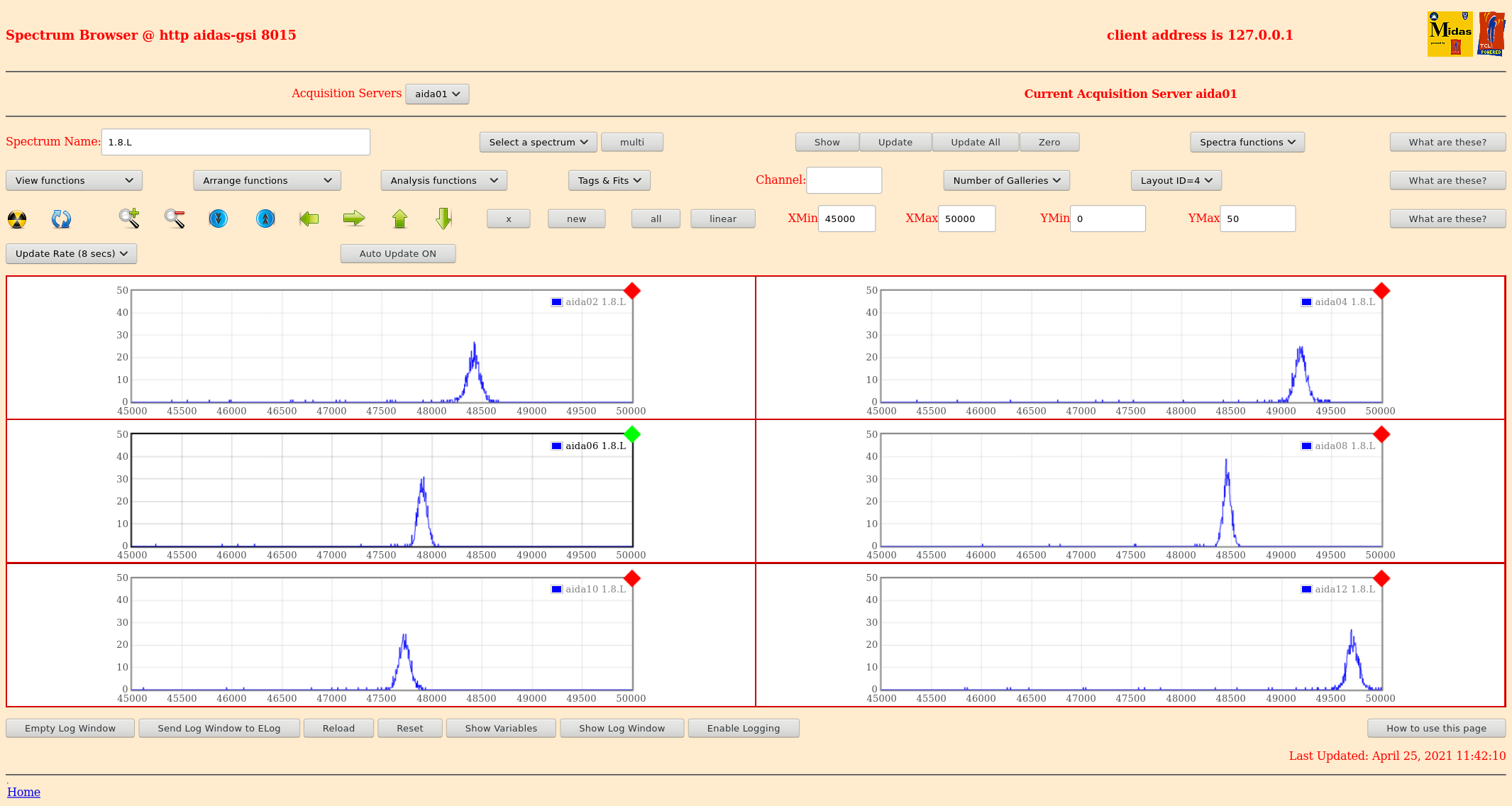

11.45 1.8.L spectra - attachments 6 & 7
      peak width FWHM aida05 65 ch, aida06 95 ch
      1.8.W spectra = attachments 8 & 9

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

Screenshot_2021-04-25_AIDA_Alerting_-_Grafana.png Original size: 2400x1096

Attachment 2:

300.png Original size: 502x344

Attachment 3:

Screenshot_2021-04-25_Temperature_and_status_scan_aidas-gsi.png Original size: 2144x1035

Attachment 4:

Screenshot_2021-04-25_Statistics_aidas-gsi.png Original size: 2144x1035

Attachment 5:

Screenshot_2021-04-25_NewMerger_Statistics_aidas-gsi.png Original size: 2144x1035

Attachment 6:

Screenshot_2021-04-25_Spectrum_Browser_aidas-gsi.png Original size: 2131x1136

Attachment 7:

Screenshot_2021-04-25_Spectrum_Browser_aidas-gsi(1).png Original size: 2131x1136

Attachment 8:

Screenshot_2021-04-25_Spectrum_Browser_aidas-gsi(2).png Original size: 2131x1136

Attachment 9:

Screenshot_2021-04-25_Spectrum_Browser_aidas-gsi(3).png Original size: 2131x1136
