| DESPEC |
 |
|
|
|
Message ID: 290
Entry time: Tue May 4 12:11:39 2021
|
| Author: |
OH TD |
| Subject: |
Bias test of triple |
|
|
13:11 System wide checks all ok except *aida02 fails ADC calibration*
Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same
FEE : aida01 => Options file size is 1025 Last changed Tue May 04 10:57:38 CEST 2021
FEE : aida02 => Options file size is 1014 Last changed Thu Apr 29 14:43:46 CEST 2021
FEE : aida03 => Options file size is 1014 Last changed Thu Apr 29 14:43:50 CEST 2021
FEE : aida04 => Options file size is 1014 Last changed Thu Apr 29 14:43:53 CEST 2021
FEE : aida05 => Options file size is 1014 Last changed Thu Apr 29 14:43:55 CEST 2021
FEE : aida06 => Options file size is 1014 Last changed Thu Apr 29 14:43:59 CEST 2021
FEE : aida07 => Options file size is 1014 Last changed Thu Apr 29 14:44:02 CEST 2021
FEE : aida08 => Options file size is 1014 Last changed Thu Apr 29 14:44:05 CEST 2021
FEE : aida09 => Options file size is 1014 Last changed Thu Apr 29 14:44:08 CEST 2021
FEE : aida10 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida11 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida12 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida13 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida14 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida15 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida16 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
ASIC clocks have been synchronised and ADC re-calibrated

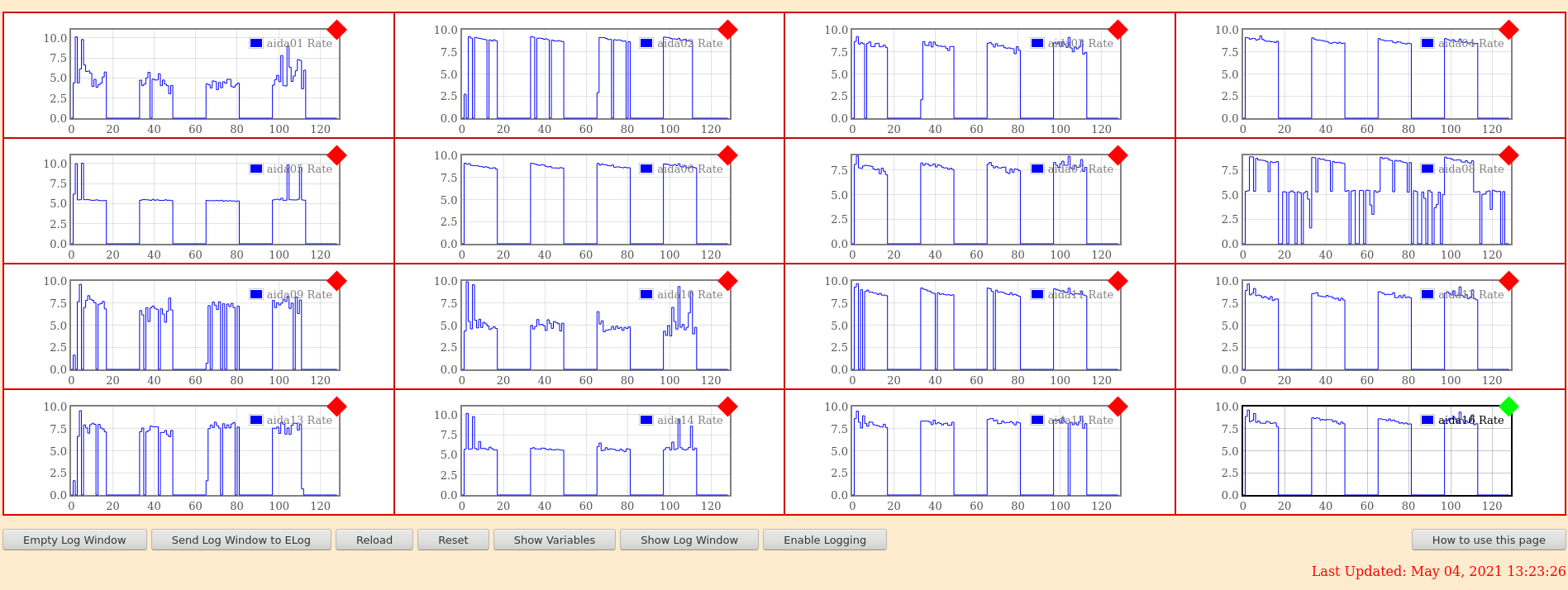

Rate spectra - attachment 1

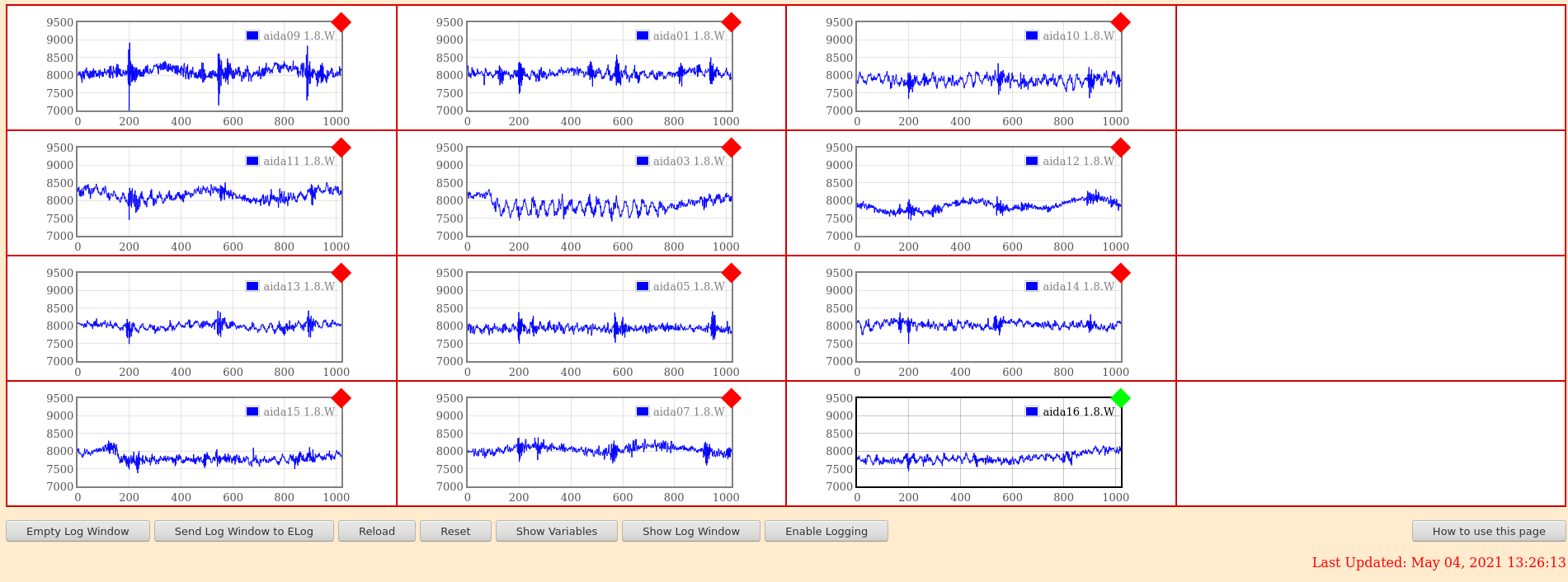

Layout7 - attachment 2

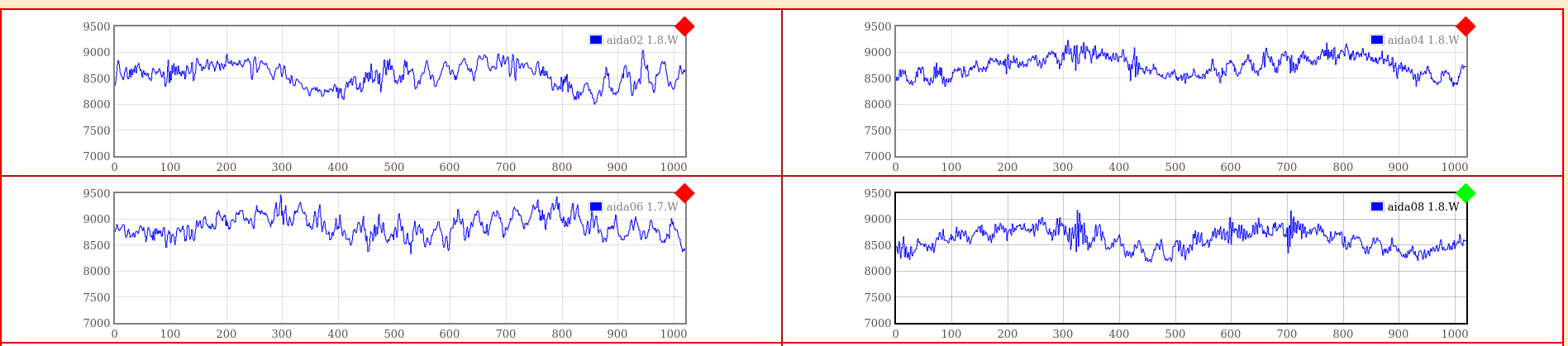

Layout8 - attachment 3
Detectors at 130V
Statistics - attachment 4
V-I Curve - attachment 5
Voltage Ch0 Ch1
10 1.345 1.49
20 2.01 2.285
30 2.405 2.8
40 2.635 3.13
50 2.82 3.37
60 2.95 3.57
70 3.08 3.725
80 3.185 3.865
90 3.26 3.98
100 3.33 4.105
110 3.42 4.22
120 3.525 4.35
130 3.64 4.46
140 3.79 4.37
150 3.98 4.37
150+10min 3.9 4.485 |
|
|
|
|
|
|
|
|
|
|
