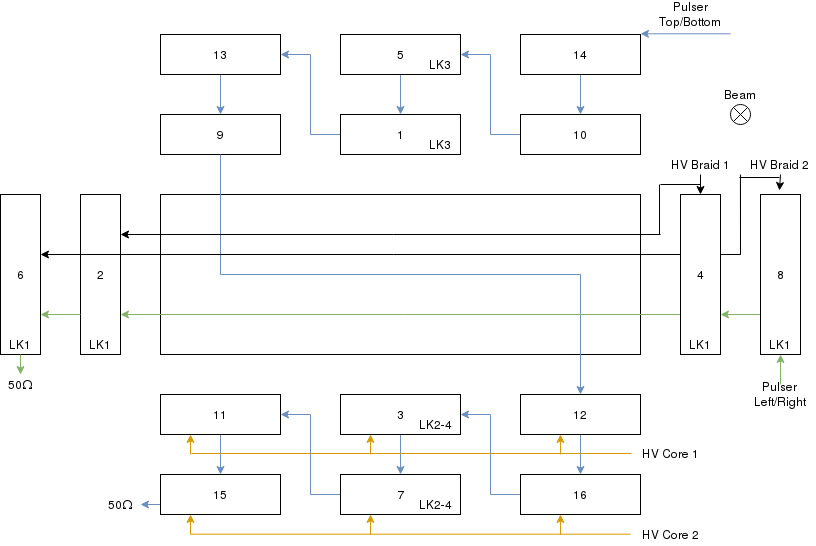

A figure showing the FEE64 numbers (a previous diagram had 2/6 and 4/8 on the wrong side of the DSSD) and the wiring of pulser/HV Also the jumpers connected to the boards As always diagram is looking with direction of beam Edit: Figure as signals (HV/Pulser) come from the beam right not beam left Otherwise OK
