Entry time:
Thu May 6 16:59:20 2021
Author
*
:
Subject
*
:

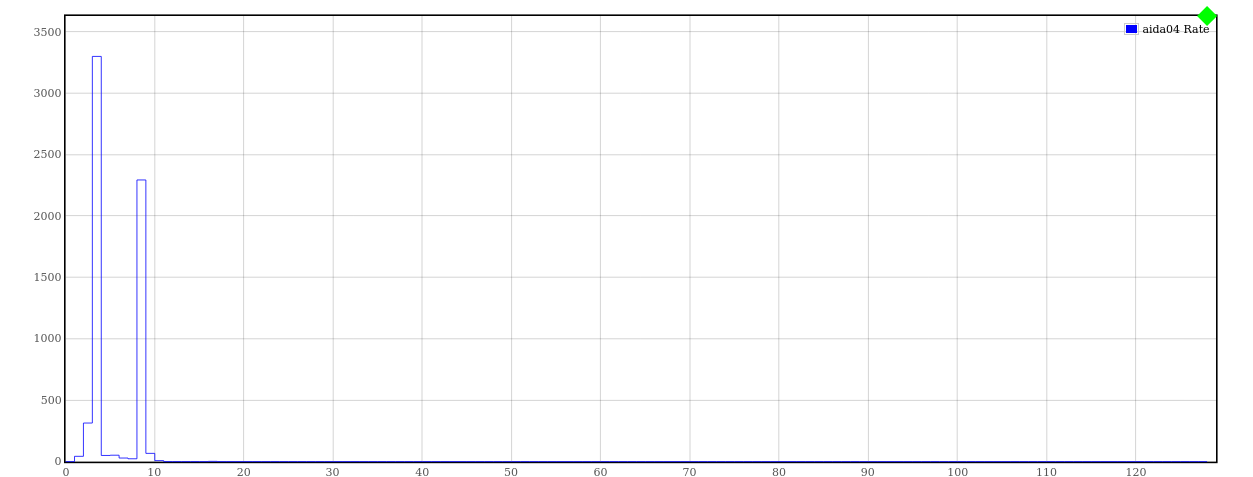

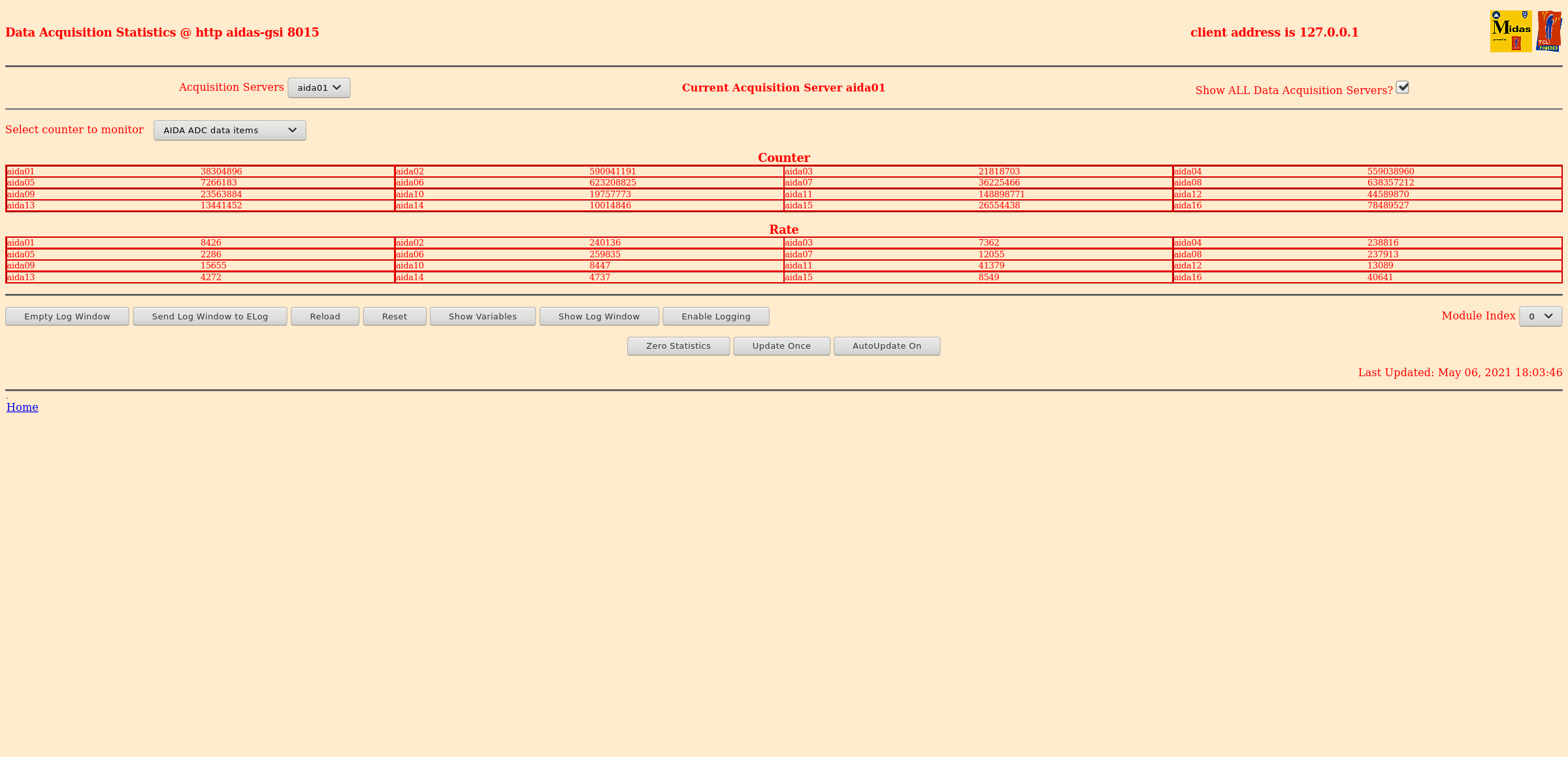

18.09 NH has installed jumpers LK2-4 for *all* adaptor PCBs per FEE64 rate spectra - attachments 1-4 attachment 4 with BNC PB-5 pulser 10Hz ADC data items stats - attachment 5 1.8.W spectra - attachments 6 & 7 Observe significant reduction in DSSSD/ribbon cable boundary channel rates - status quo ante Tuesday 4 May https://elog.ph.ed.ac.uk/DESPEC/291 ? 1.8.L spectra - attachments 8 & 9 pulser peak width aida01 85 ch FWHM, aida2 295 ch FWHM 19:21 Alpha run started May21/R6 Statistics dominated by aida04 with a rate of 6k System wide checks all ok except: Base Current Difference aida13 fault 0x0 : 0x17 : 23 FPGA Timestamp error counter test result: Passed 15, Failed 1 If any of these counts are reported as in error The ASIC readout system has detected a timeslip. That is the timestamp read from the time FIFO is not younger than the last Writing to file at ~300kB/s Rate spectra for aida04 shows dominated by first asic - attachment 10 1*L spectra for aida04 asic 1 - attachment 11 20.25 per FEE64 rate spectra - attachment 12 handful of hot channels aida06, 09 & 10 ADC data item stats - attachment 13
