Entry time:

Sat May 8 09:05:04 2021

Author*:

Subject*:

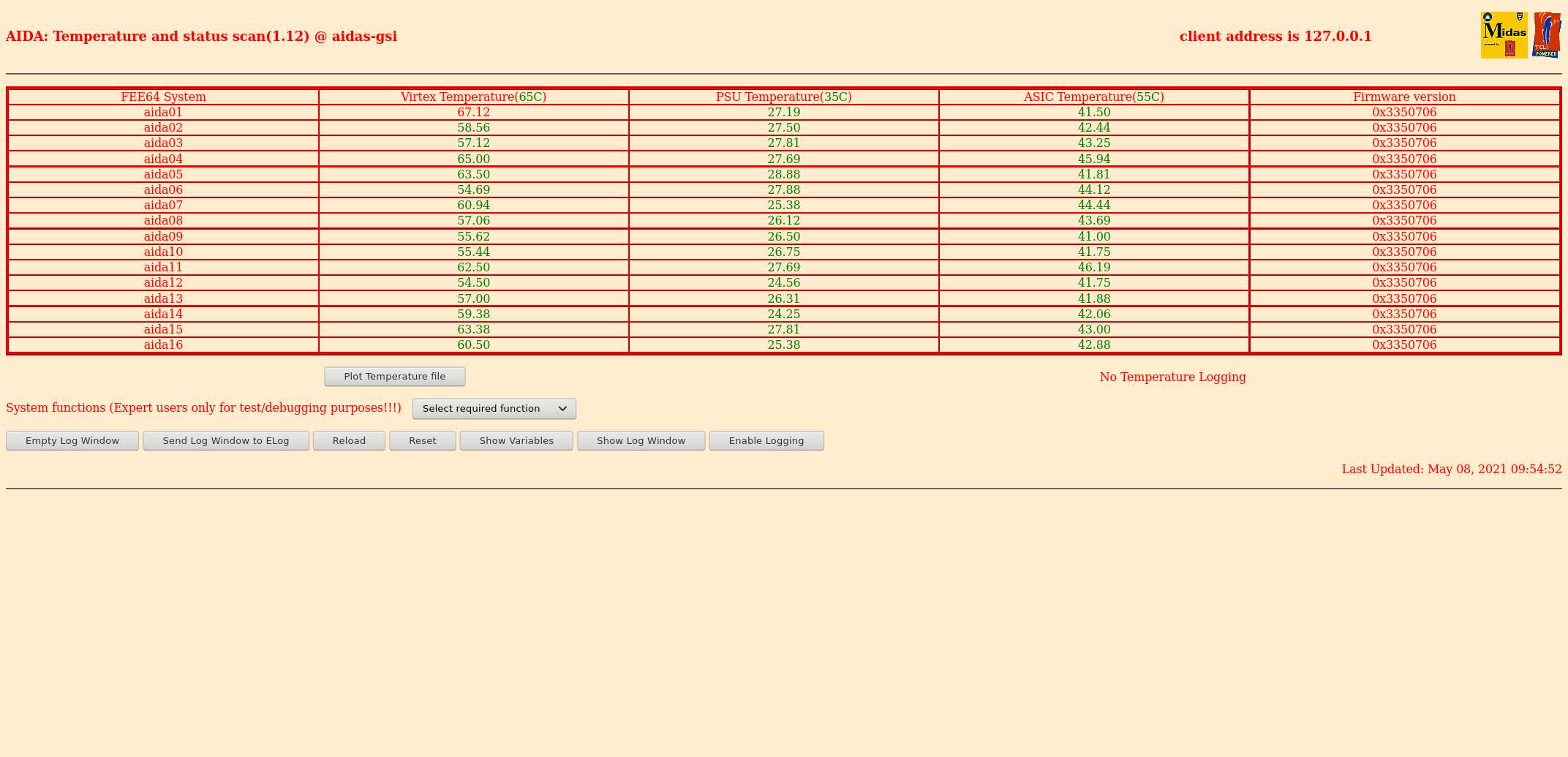

09.54 FEE64 temperatures OK - attachment 1

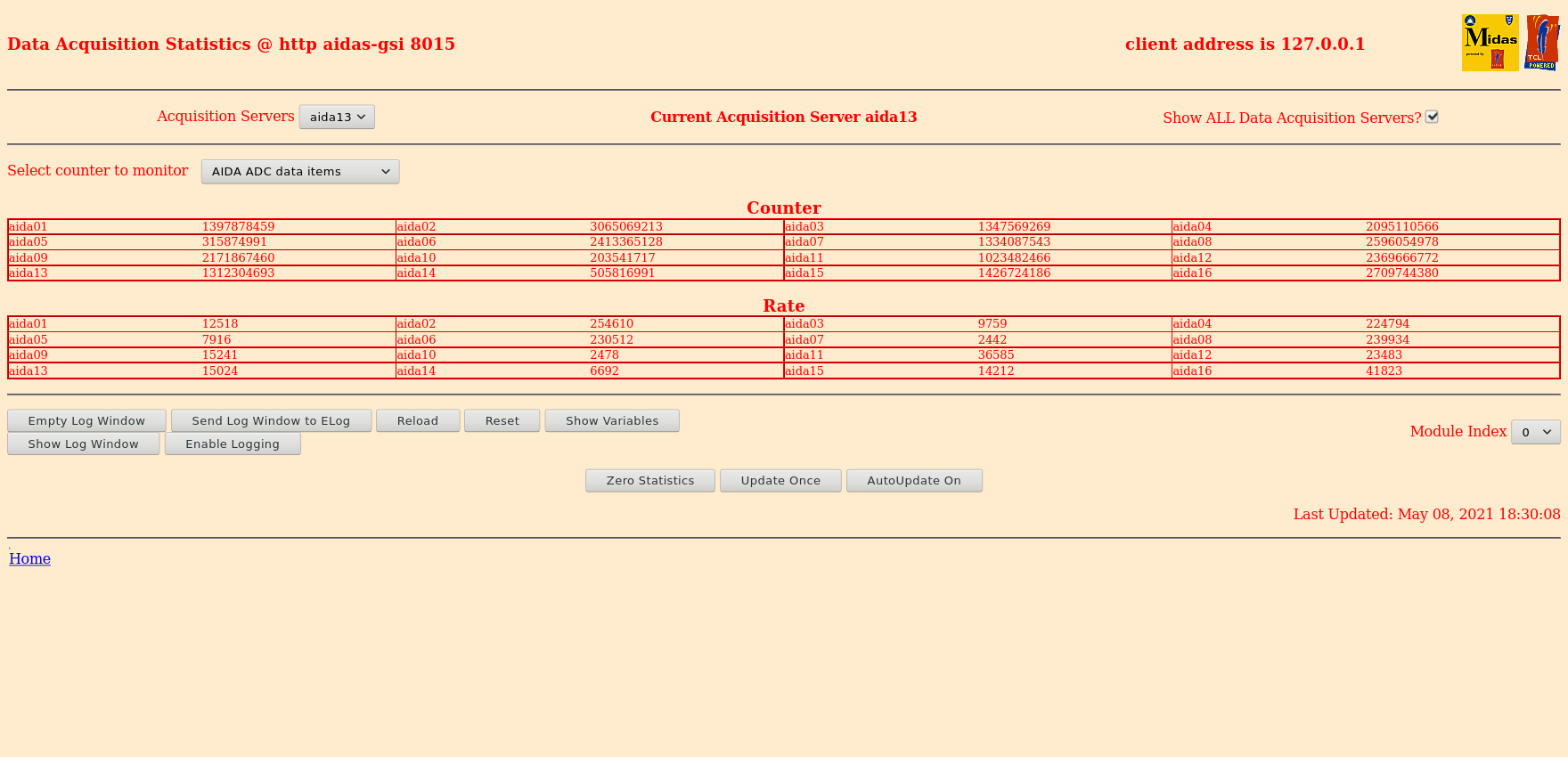

      ADC data item stats OK - attachment 2
       p+n FEE64s 11x <100k, 1x <200k
      Rate spectra - attachments 3 & 4
       before and after ASIC check load
      1.8.L spectra - attachments 5 & 6
      1.8.W spectra 20us FSR - attachments 7 & 8
      Disc, WR-28-47, pause, resume info data items - attachments 9-12
       note large number pause/resume for aida13 - legacy numbers since last restart/zero?

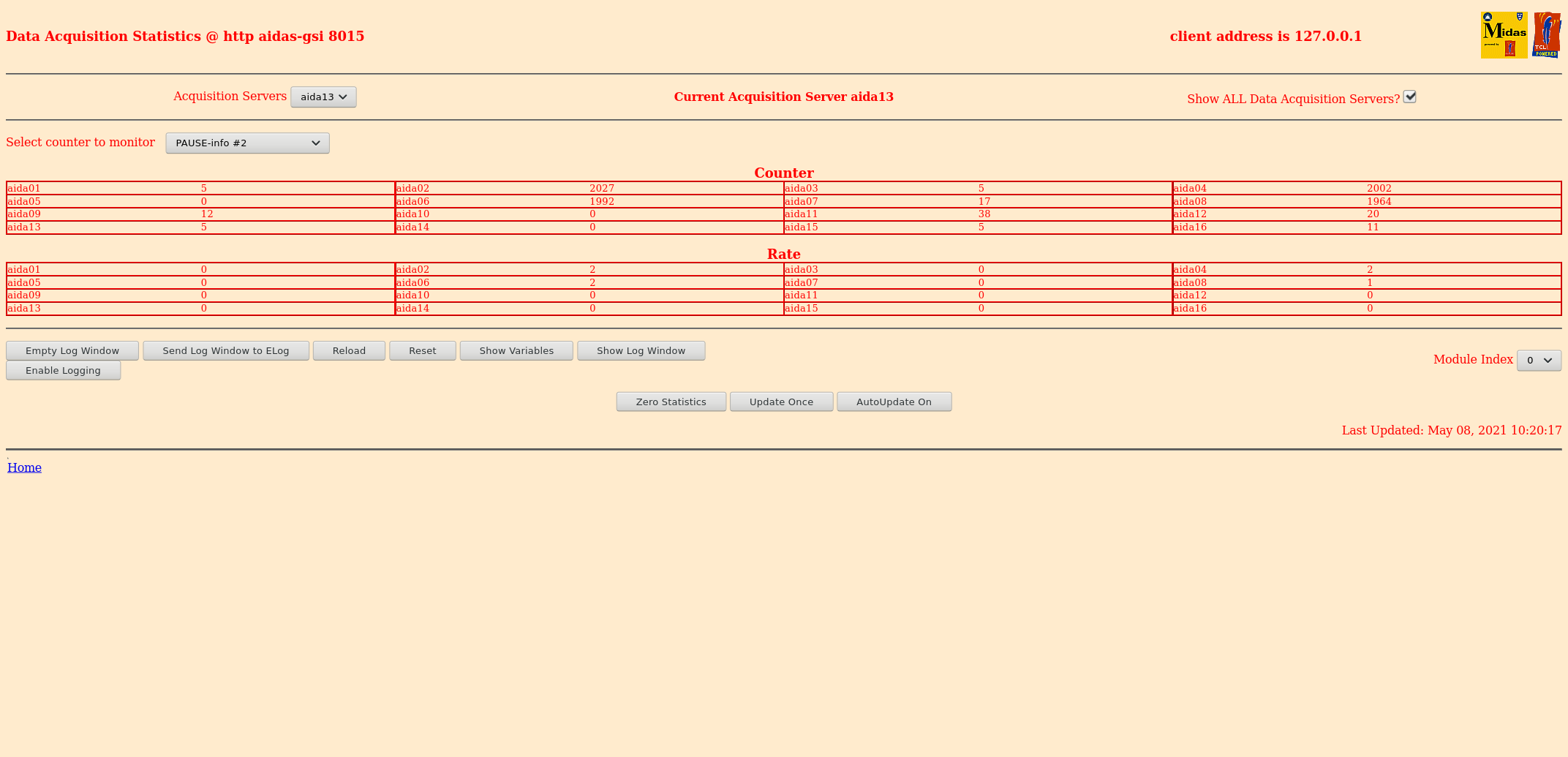

       attachment 16 for pause stats since stats zero at 10.02 - looks OK
      Grafana DSSSD bias & leakage currents for most recent 48h OK - atatchment 13
      DSSSD bias & leakage currents - attachment 14
      Merger stats/merger/tape server messages - attachment 15

10.02 All histograms and stats zero'd

10.06 All system wide checks OK *except*

Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same

FEE : aida01 =>   Options file size is 1026 	 Last changed Thu May 06 15:29:51 CEST 2021
 FEE : aida02 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:46 CEST 2021
 FEE : aida03 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:50 CEST 2021
 FEE : aida04 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:53 CEST 2021
 FEE : aida05 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:55 CEST 2021
 FEE : aida06 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:59 CEST 2021
 FEE : aida07 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:02 CEST 2021
 FEE : aida08 =>   Options file size is 1025 	 Last changed Wed May 05 12:15:54 CEST 2021
 FEE : aida09 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:08 CEST 2021
 FEE : aida10 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida11 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida12 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida13 =>   Options file size is 1025 	 Last changed Fri May 07 19:40:34 CEST 2021
 FEE : aida14 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida15 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida16 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021

10.25 Pulser peak width aida01 97 ch FWHM, aida02 350 ch FWHM
       peak widths are increasing cf. earlier this week - see https://elog.ph.ed.ac.uk/DESPEC/291 , https://elog.ph.ed.ac.uk/DESPEC/298

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

Screenshot_2021-05-08_Temperature_and_status_scan_aidas-gsi.png Original size: 2144x1035

Attachment 2:

Screenshot_2021-05-08_Statistics_aidas-gsi.png Original size: 2144x1035

Attachment 3:

Screenshot_2021-05-08_Spectrum_Browser_aidas-gsi.png Original size: 2131x1138

Attachment 4:

Screenshot_2021-05-08_Spectrum_Browser_aidas-gsi(1).png Original size: 2131x1138

Attachment 5:

Screenshot_2021-05-08_Spectrum_Browser_aidas-gsi(2).png Original size: 2131x1138

Attachment 6:

Screenshot_2021-05-08_Spectrum_Browser_aidas-gsi(3).png Original size: 2131x1134

Attachment 7:

Screenshot_2021-05-08_Spectrum_Browser_aidas-gsi(4).png Original size: 2131x1138

Attachment 8:

Screenshot_2021-05-08_Spectrum_Browser_aidas-gsi(5).png Original size: 2131x1136

Attachment 9:

Screenshot_2021-05-08_Statistics_aidas-gsi(1).png Original size: 2144x1035

Attachment 10:

Screenshot_2021-05-08_Statistics_aidas-gsi(2).png Original size: 2144x1035

Attachment 11:

Screenshot_2021-05-08_Statistics_aidas-gsi(3).png Original size: 2144x1035

Attachment 12:

Screenshot_2021-05-08_Statistics_aidas-gsi(4).png Original size: 2144x1035

Attachment 13:

Screenshot_2021-05-08_AIDA_Alerting_-_Grafana.png Original size: 1756x1091

Attachment 14:

500.png Original size: 502x344

Attachment 15:

501.png Original size: 3840x1080

Attachment 16:

Screenshot_2021-05-08_Statistics_aidas-gsi(5).png Original size: 2144x1035

Attachment 17:

Screenshot_2021-05-08_Statistics_aidas-gsi(5).png Original size: 2144x1035

Attachment 18:

Screenshot_2021-05-08_Statistics_aidas-gsi(6).png Original size: 1760x850

Attachment 19:

Screenshot_2021-05-08_Temperature_and_status_scan_aidas-gsi(1).png Original size: 1760x850

Attachment 20:

Screenshot_2021-05-08_Spectrum_Browser_aidas-gsi(6).png Original size: 1749x1110

Attachment 21:

Screenshot_2021-05-08_Spectrum_Browser_aidas-gsi(7).png Original size: 1749x1109

Attachment 22:

Screenshot_2021-05-08_Spectrum_Browser_aidas-gsi(8).png Original size: 1749x1110

Attachment 23:

Screenshot_2021-05-08_Statistics_aidas-gsi(7).png Original size: 1760x850

Attachment 24:

Screenshot_2021-05-08_Statistics_aidas-gsi(8).png Original size: 1760x850

Attachment 25:

Screenshot_2021-05-08_Statistics_aidas-gsi(9).png Original size: 1760x850

Attachment 26:

Screenshot_2021-05-08_Spectrum_Browser_aidas-gsi(9).png Original size: 1749x1110

Attachment 27:

Screenshot_2021-05-08_Statistics_aidas-gsi(10).png Original size: 1760x850

Attachment 28:
