Message ID: 305     Entry time: Tue May 11 07:21:24 2021
Author: OH
Subject: Tuesday 11 May
08:20 System wide checks all ok except
		 Base 		Current 	Difference
aida01 fault 	 0xc10c : 	 0xc10e : 	 2
aida02 fault 	 0xbe2a : 	 0xbe2c : 	 2
aida03 fault 	 0xf665 : 	 0xf667 : 	 2
aida04 fault 	 0xeabd : 	 0xeabf : 	 2
aida05 fault 	 0x36c8 : 	 0x36ca : 	 2
aida06 fault 	 0x2ea2 : 	 0x2ea4 : 	 2
aida07 fault 	 0x9186 : 	 0x9188 : 	 2
aida08 fault 	 0x5443 : 	 0x5445 : 	 2
White Rabbit error counter test result: Passed 8, Failed 8

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

and


		 Base 		Current 	Difference
aida01 fault 	 0xc10c : 	 0xc10e : 	 2
aida02 fault 	 0xbe2a : 	 0xbe2c : 	 2
aida03 fault 	 0xf665 : 	 0xf667 : 	 2
aida04 fault 	 0xeabd : 	 0xeabf : 	 2
aida05 fault 	 0x36c8 : 	 0x36ca : 	 2
aida06 fault 	 0x2ea2 : 	 0x2ea4 : 	 2
aida07 fault 	 0x9186 : 	 0x9188 : 	 2
aida08 fault 	 0x5443 : 	 0x5445 : 	 2
White Rabbit error counter test result: Passed 8, Failed 8

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

    Statistics still high - attachment 1

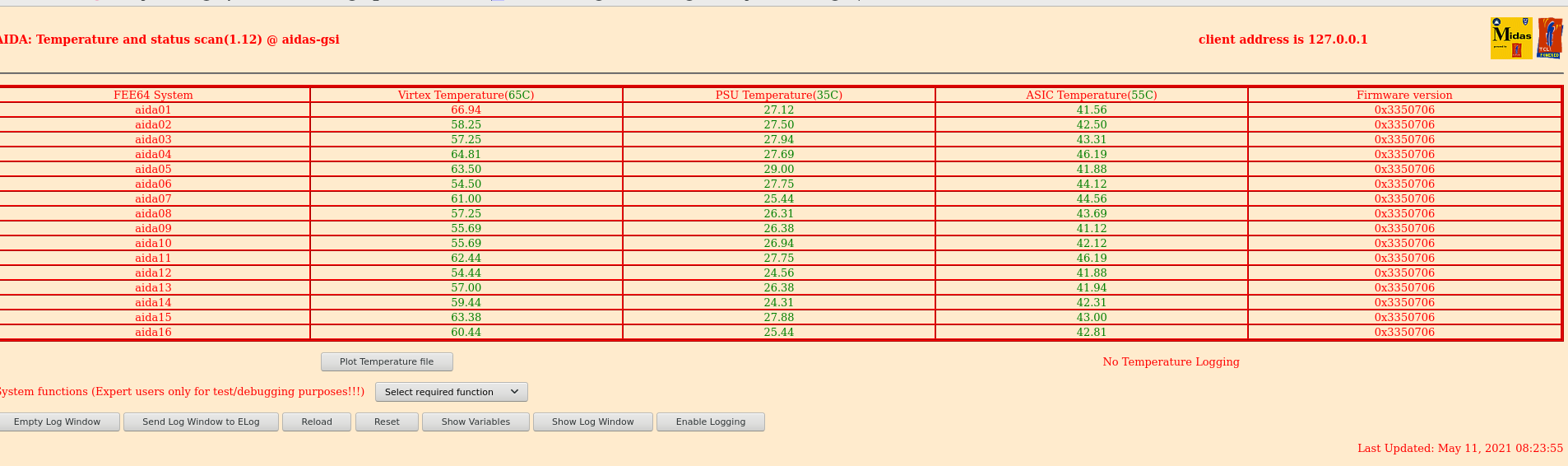

    Temperatures ok - attachment 2
    Bias and leakage currents ok - attachment 3
Attachment 1: 210511_0823_Stats.png  60 kB  Uploaded Tue May 11 08:25:52 2021  | Hide | Hide all
Attachment 2: 210511_0824_Temp.png  108 kB  Uploaded Tue May 11 08:25:52 2021  | Hide | Hide all
Attachment 3: 210511_0825_Bias.png  6 kB  Uploaded Tue May 11 08:25:52 2021  | Hide | Hide all
