Entry time:
Wed May 12 15:03:10 2021
Author
*
:
Subject
*
:

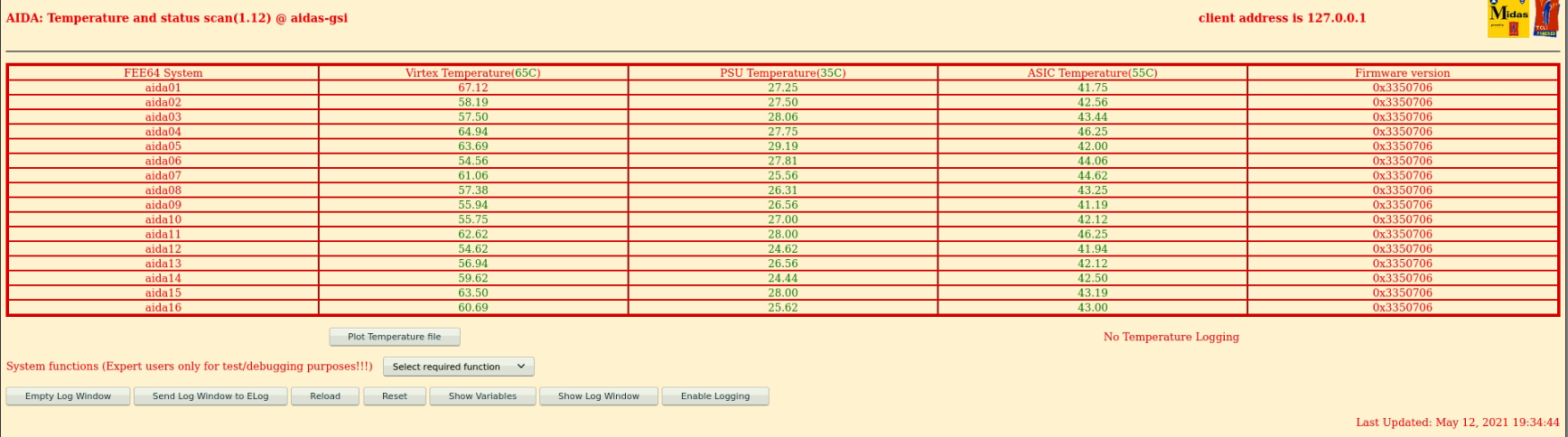

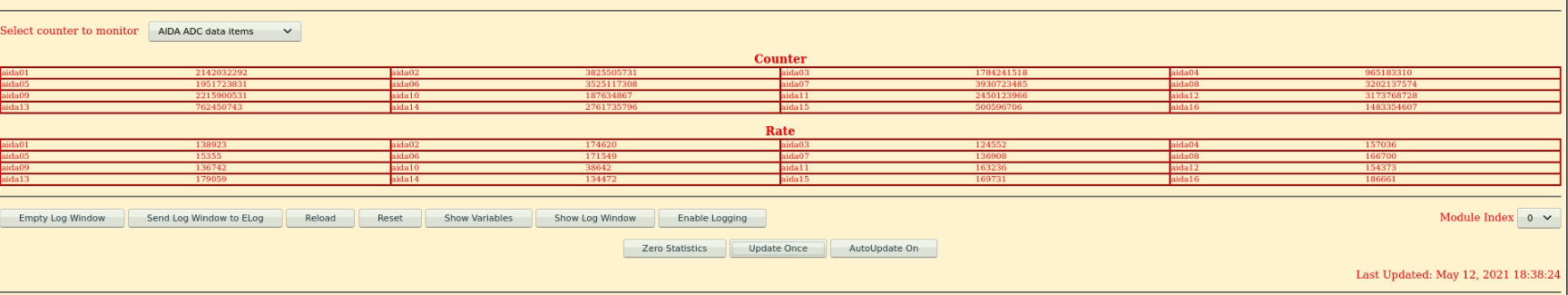

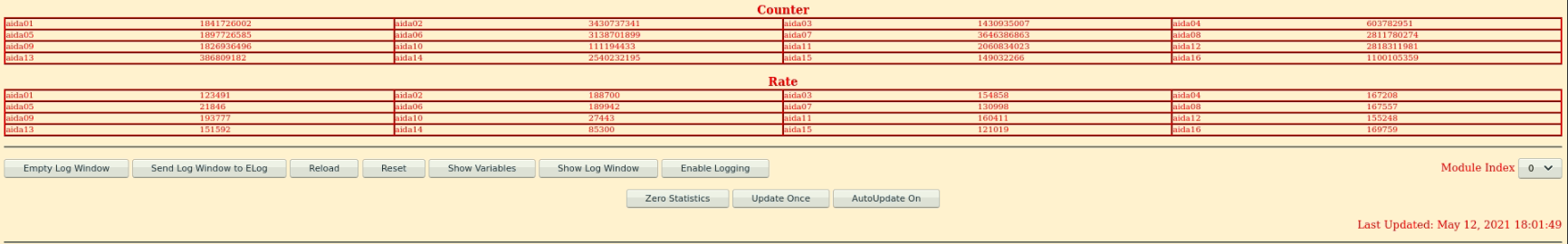

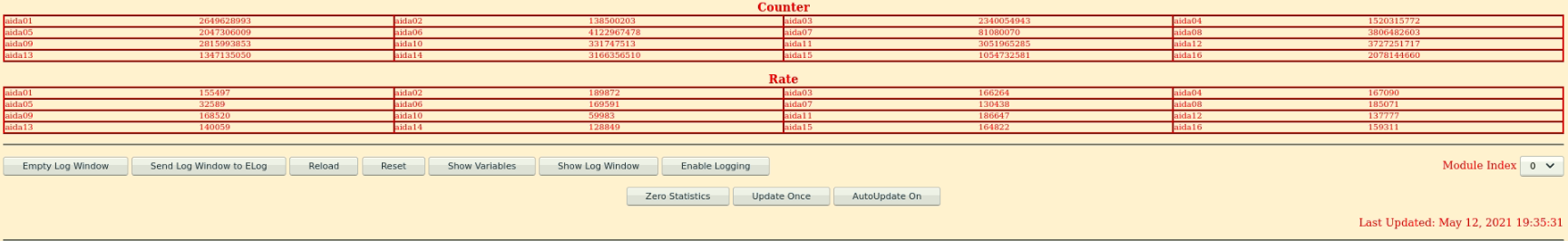

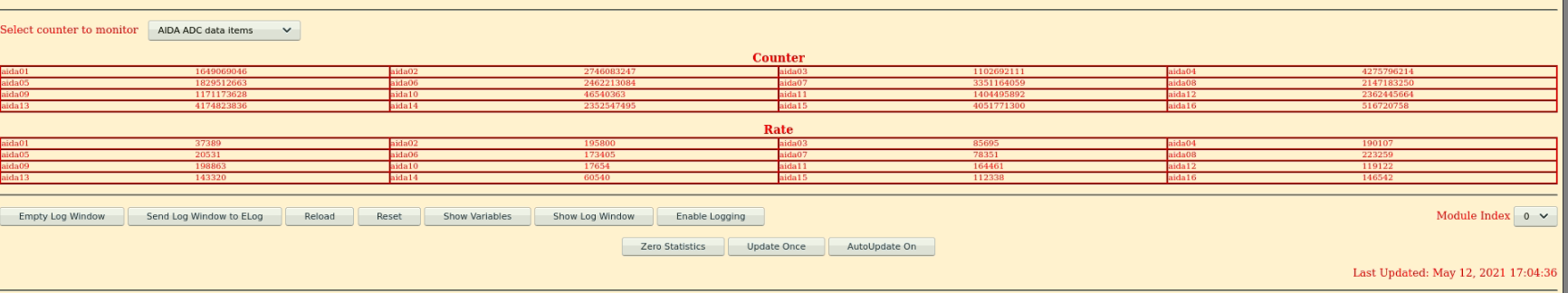

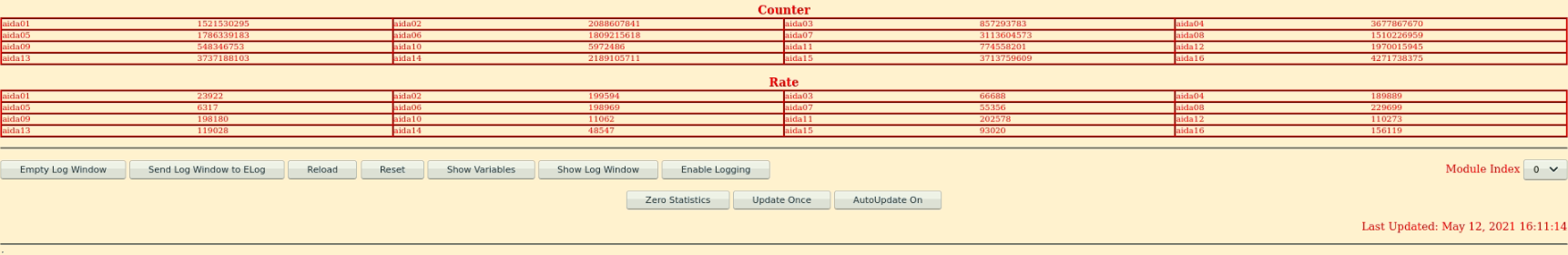

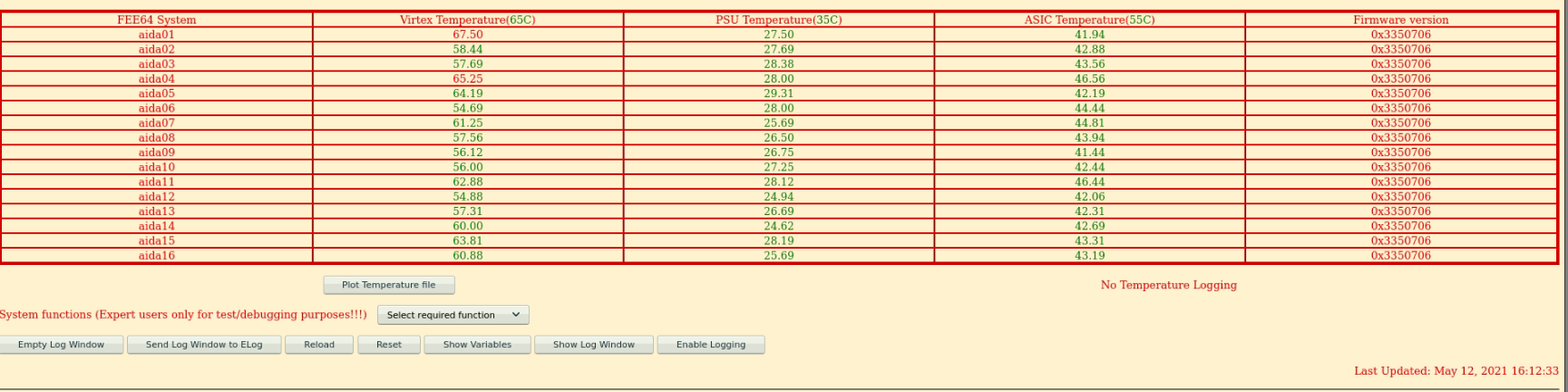

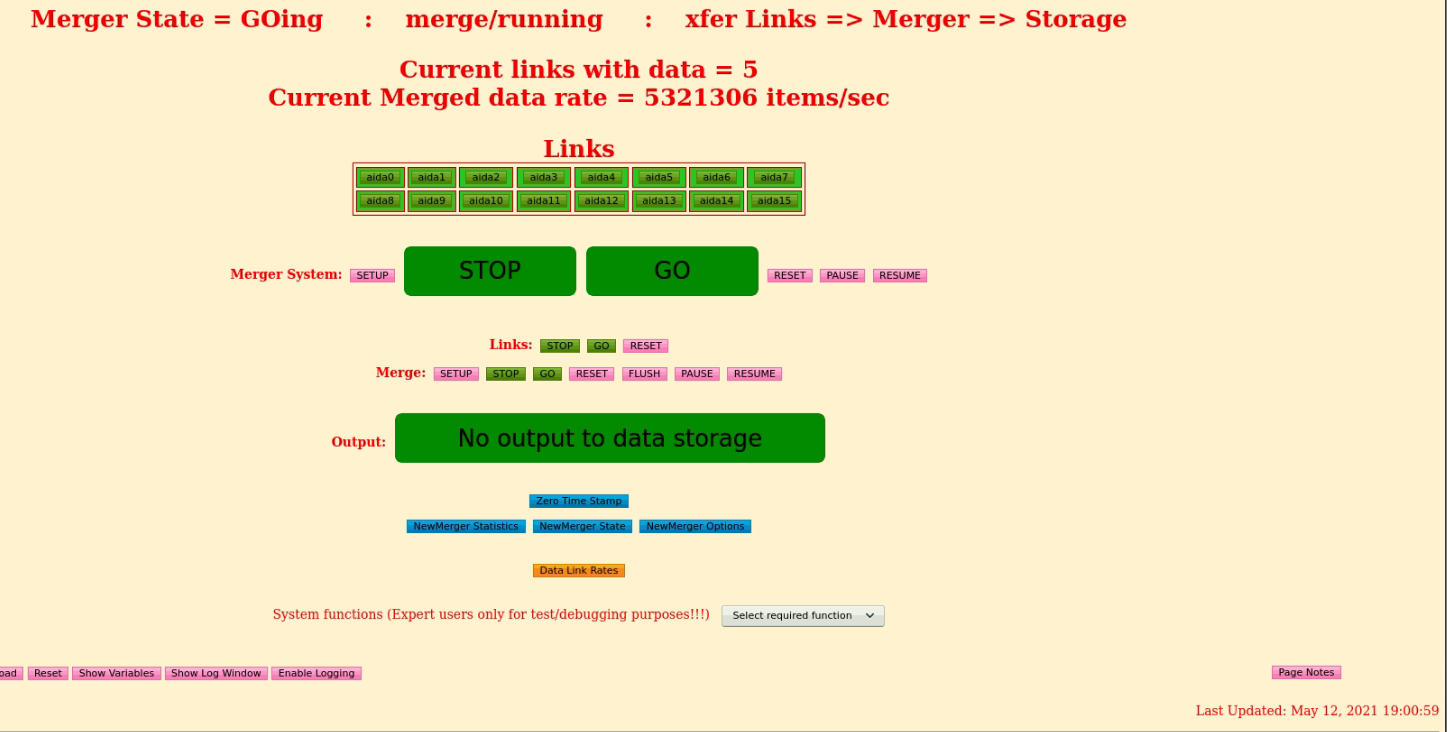

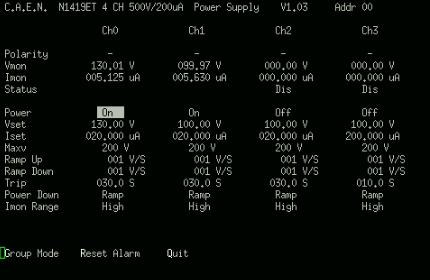

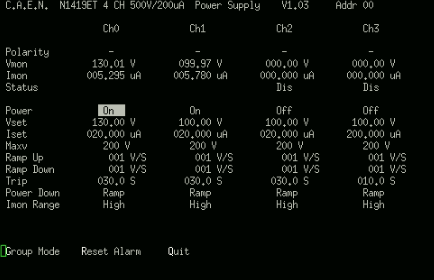

16:00 Shift change Statistics OK (attach 1) Temps OK (attach 2) Bias OK (attach 3) System wide checks Clock, ADC - OK WR Base Current Difference aida05 fault 0x36ca : 0x36cb : 1 White Rabbit error counter test result: Passed 15, Failed 1 FPGA Base Current Difference aida13 fault 0xa : 0x4b : 65 FPGA Timestamp error counter test result: Passed 15, Failed 1 If any of these counts are reported as in error The ASIC readout system has detected a timeslip. That is the timestamp read from the time FIFO is not younger than the last Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Mem(KB) : 4 8 16 32 64 128 256 512 1k 2k 4k aida01 : 15 5 6 1 1 2 2 3 3 3 6 : 36388 aida02 : 21 10 2 2 2 3 2 2 3 3 6 : 36100 aida03 : 25 5 3 1 0 3 3 2 3 3 6 : 36188 aida04 : 5 2 0 3 2 3 2 3 3 3 6 : 36484 aida05 : 16 6 3 1 2 4 1 3 2 4 6 : 37440 aida06 : 2 2 2 2 2 3 1 3 3 3 6 : 36216 aida07 : 16 9 3 0 3 4 3 2 3 3 6 : 36472 aida08 : 0 7 1 1 2 2 3 3 2 3 6 : 35560 aida09 : 15 7 4 2 2 4 2 3 2 3 6 : 35700 aida10 : 3 7 3 4 1 3 1 4 1 4 6 : 36788 aida11 : 5 1 3 1 1 4 3 3 2 3 6 : 35756 aida12 : 5 5 0 3 2 3 2 4 2 3 6 : 35996 aida13 : 2 5 1 2 2 4 3 3 2 3 6 : 35840 aida14 : 19 5 3 1 1 2 1 3 3 3 6 : 36100 aida15 : 20 6 6 2 1 3 2 2 3 3 6 : 36064 aida16 : 7 9 4 1 3 4 2 3 2 3 6 : 35716 File size change Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same FEE : aida01 => Options file size is 1026 Last changed Mon May 10 16:47:51 CEST 2021 FEE : aida02 => Options file size is 1014 Last changed Thu Apr 29 14:43:46 CEST 2021 FEE : aida03 => Options file size is 1014 Last changed Thu Apr 29 14:43:50 CEST 2021 FEE : aida04 => Options file size is 1014 Last changed Thu Apr 29 14:43:53 CEST 2021 FEE : aida05 => Options file size is 1014 Last changed Thu Apr 29 14:43:55 CEST 2021 FEE : aida06 => Options file size is 1014 Last changed Thu Apr 29 14:43:59 CEST 2021 FEE : aida07 => Options file size is 1014 Last changed Thu Apr 29 14:44:02 CEST 2021 FEE : aida08 => Options file size is 1025 Last changed Wed May 05 12:15:54 CEST 2021 FEE : aida09 => Options file size is 1014 Last changed Thu Apr 29 14:44:08 CEST 2021 FEE : aida10 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021 FEE : aida11 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021 FEE : aida12 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021 FEE : aida13 => Options file size is 1025 Last changed Fri May 07 19:40:34 CEST 2021 FEE : aida14 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021 FEE : aida15 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021 FEE : aida16 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021 16:20 Beam is back. Currently on File R1_200 16:43 Beam is being optimised. 17:00 UCESB OK Stats OK (attach 4) Temps OK Bias OK (attach 5) System-wide checks as before 17:30 Beam rate is quite high (up to 2000 Hz peak on ucesb). Stats still OK 17:52 Started compressing R1_1* 18:00 UCESB ok (attach 5) Stats OK (attach 6) Temps OK Bias OK (attach 7) System wide checks as before 19:00 UCESB ok (as before) Stats OK (attach 8) Temps OK Bias OK (attach 9) Merger OK (attach 10) 19:32 UCESB ok Stats OK (attach 11) Temps OK (attach 12) Bias OK (attach 13) System wide checks as before 19:51 Shift handed over to James S
