01:50 Beam on
The leakage current and the voltages been monitered every half an hour and logged in the excel sheet, looks decreasing.
Tempetratures OK

Rates OK

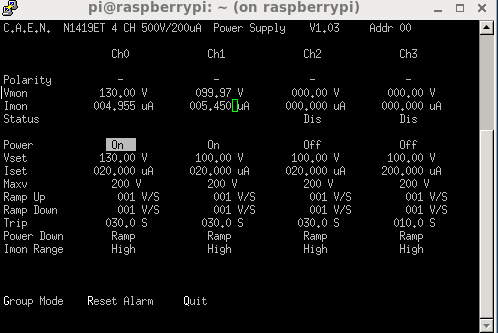

Attachment 1 Voltages

Atachment 2 Rates

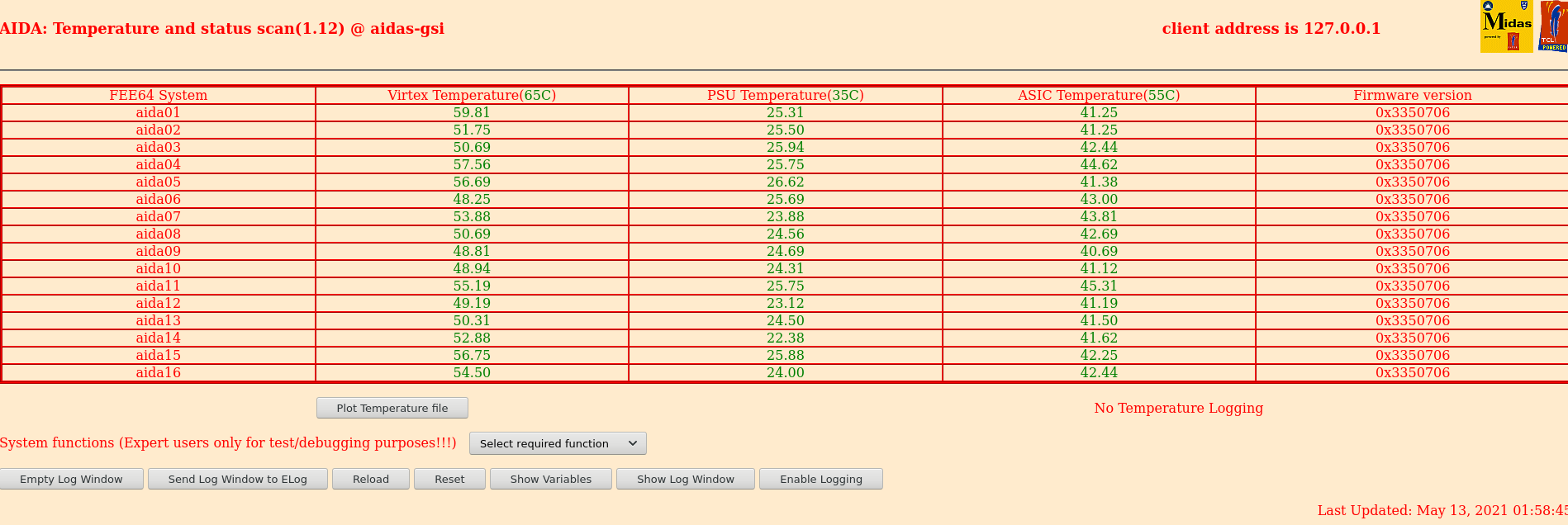

Atachment 3 Temperatures

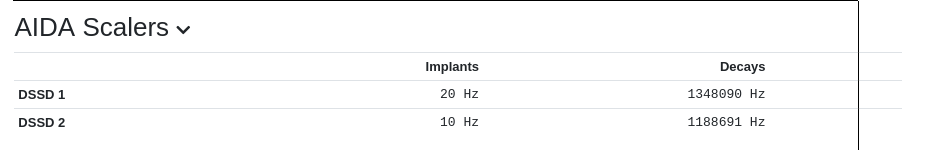

Attachment 4 ucesb rates less than 1 kHz

System wide check are ok except:

Base Current Difference
aida05 fault  0x36ca :  0x36ce :  4
White Rabbit error counter test result: Passed 15, Failed 1

Understand the status reports as follows:
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

Base Current Difference
aida13 fault 0xa :  0xe9 :  223
FPGA Timestamp error counter test result: Passed 15, Failed 1
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) : 4 8 16 32 64 128 256 512 1k 2k 4k
aida01 : 0 5 3 0 1 4 3 3 3 3 6 : 36760
aida02 : 7 9 0 2 2 4 2 3 3 3 6 : 36644
aida03 : 1 3 2 1 2 1 2 3 3 3 6 : 36188
aida04 : 3 1 2 0 2 3 2 3 3 3 6 : 36404
aida05 : 20 9 3 2 2 3 2 2 3 3 6 : 36104
aida06 : 4 10 0 2 2 4 2 2 3 3 6 : 36128
aida07 : 3 1 2 1 3 3 2 3 3 3 6 : 36500
aida08 : 2 4 3 2 3 4 2 3 2 3 6 : 35672
aida09 : 1 6 3 3 1 4 2 3 2 3 6 : 35588
aida10 : 5 6 4 2 1 3 2 3 2 3 6 : 35460
aida11 : 23 8 2 2 2 3 3 4 2 3 6 : 36348
aida12 : 8 4 2 2 2 3 2 4 2 3 6 : 36000
aida13 : 2 5 3 1 2 4 3 3 2 3 6 : 35840
aida14 : 3 6 2 2 2 3 2 4 2 3 6 : 35996
aida15 : 2 4 3 3 0 4 1 3 3 3 6 : 36280
aida16 : 7 7 5 1 3 4 2 3 2 3 6 : 35716

System wide checks ok except

Base   Current  Difference
aida05 fault   0x36ca :   0x36d0 :   6
White Rabbit error counter test result: Passed 15, Failed 1

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

Base   Current   Difference
aida05 fault   0x0 :   0x1 :   1
aida13 fault   0xa :   0xe9 :   223
FPGA Timestamp error counter test result: Passed 14, Failed 2
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

05:41 AIDA 05 has dropped out. Will restart the system

05:58 DAQ recovered from powercycle
 p+n strips at 0xa
 n+n strips at 0x20
 ADC control register at 0xFF
 All waveforms turned off in LED

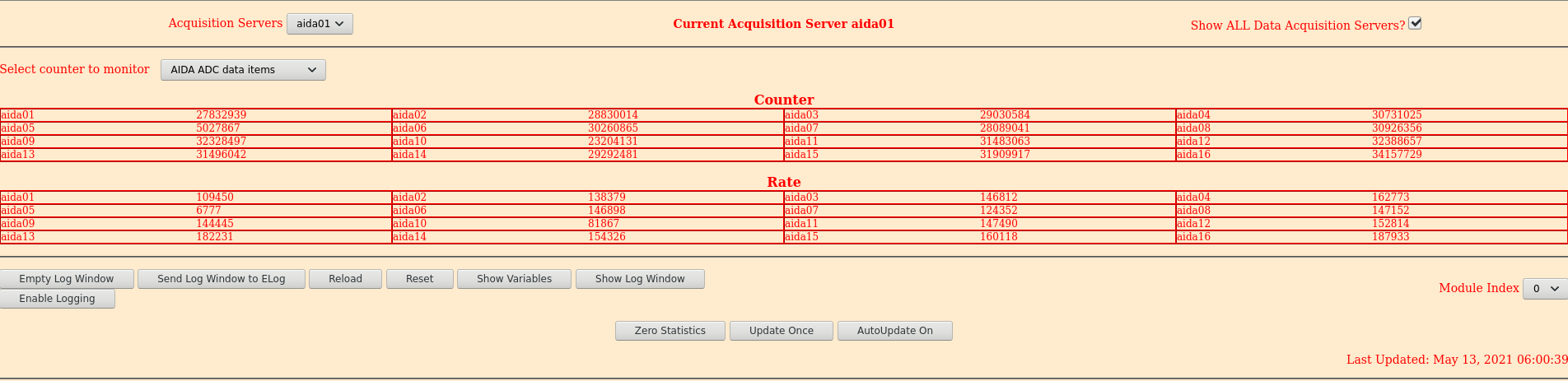

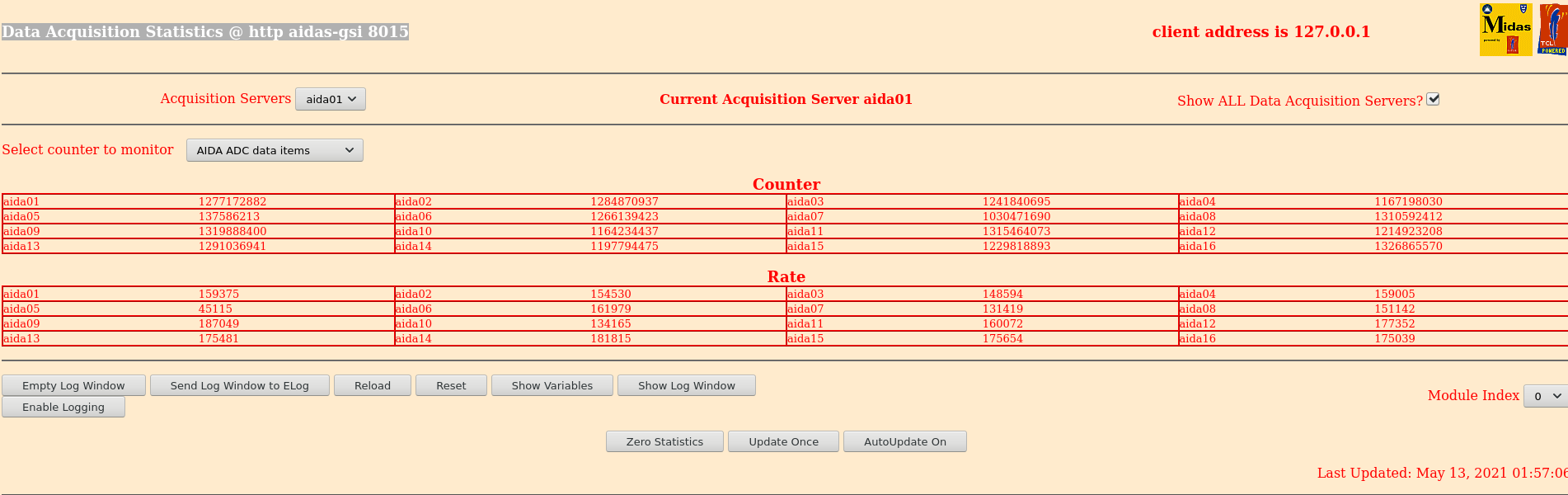

Statistics - attachment 5
 Correlation scaler in FEE 3 and 4 are mostly tracking 1:1

06:34 Local users have been unable to recover MBS
      And have been unable to contact local experts

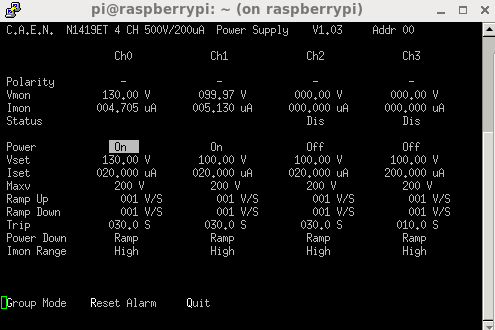

07:22 Bias and leakage currents ok - attachment 6
 Stats attachment -7
