Entry time:
Thu May 13 07:10:17 2021
Author
*
:
Subject
*
:

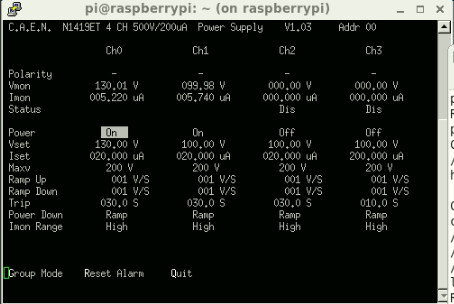

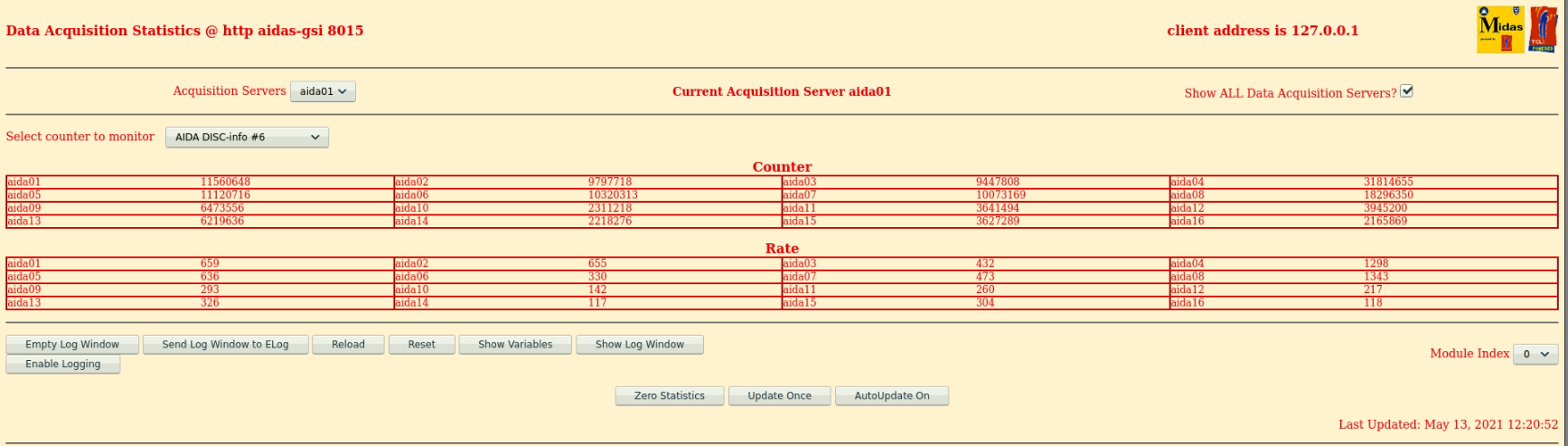

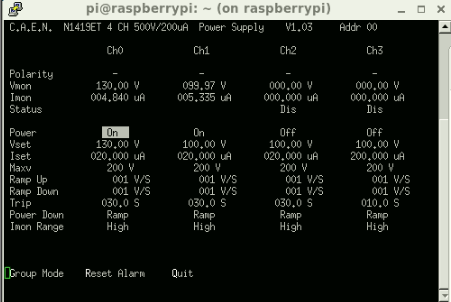

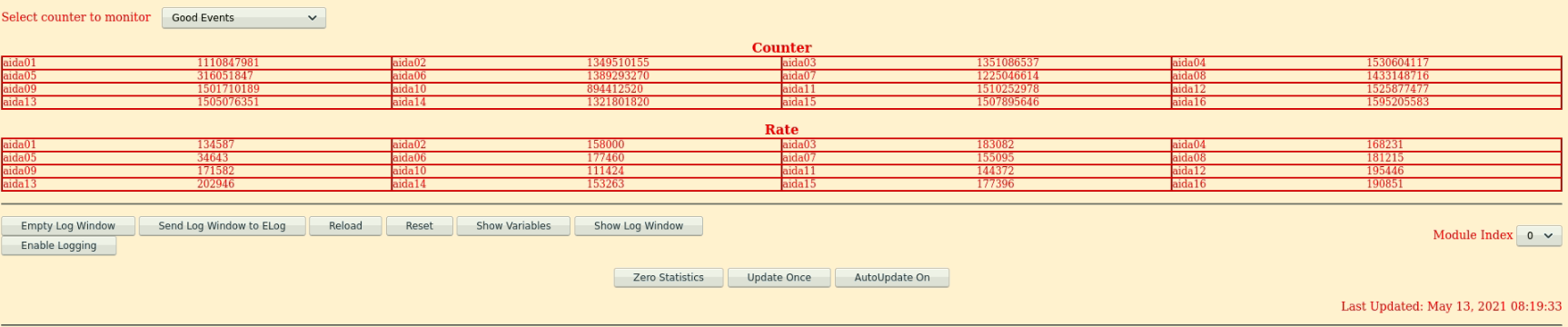

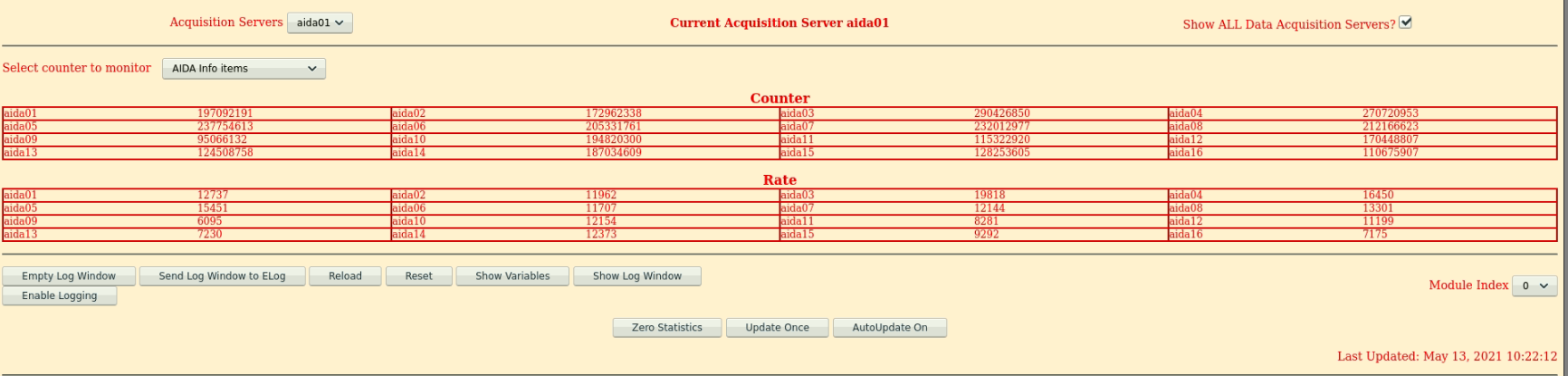

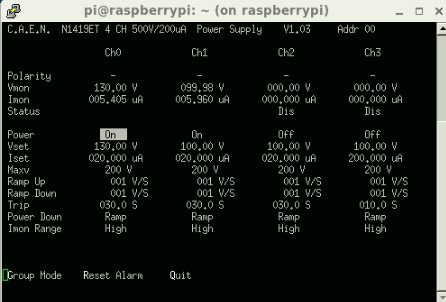

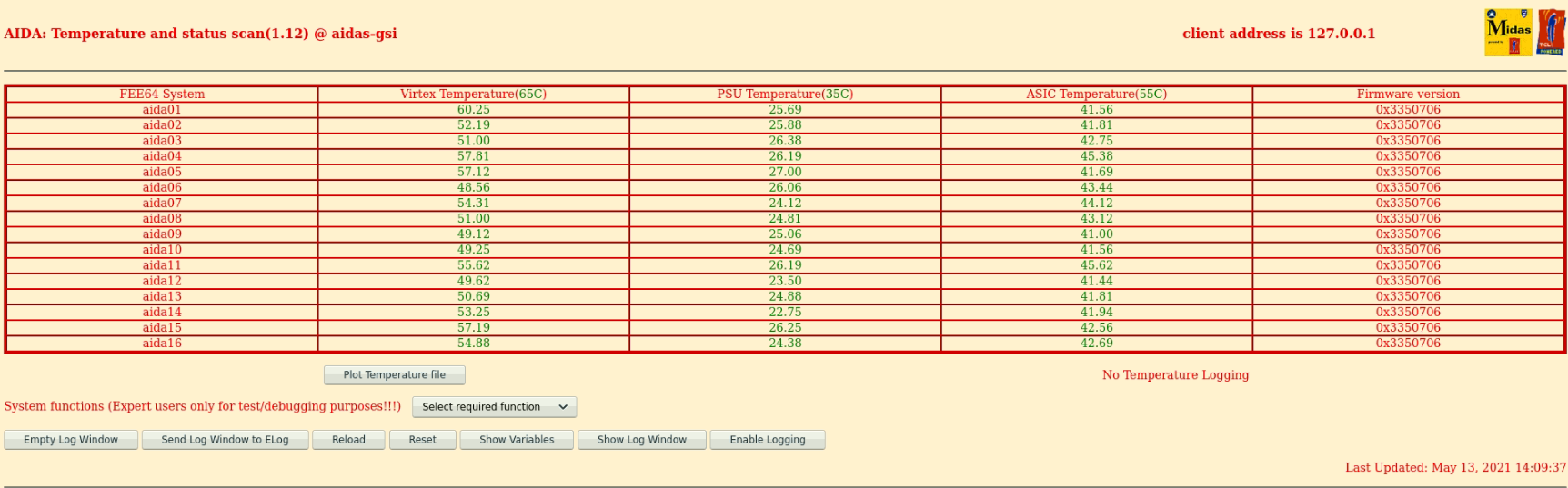

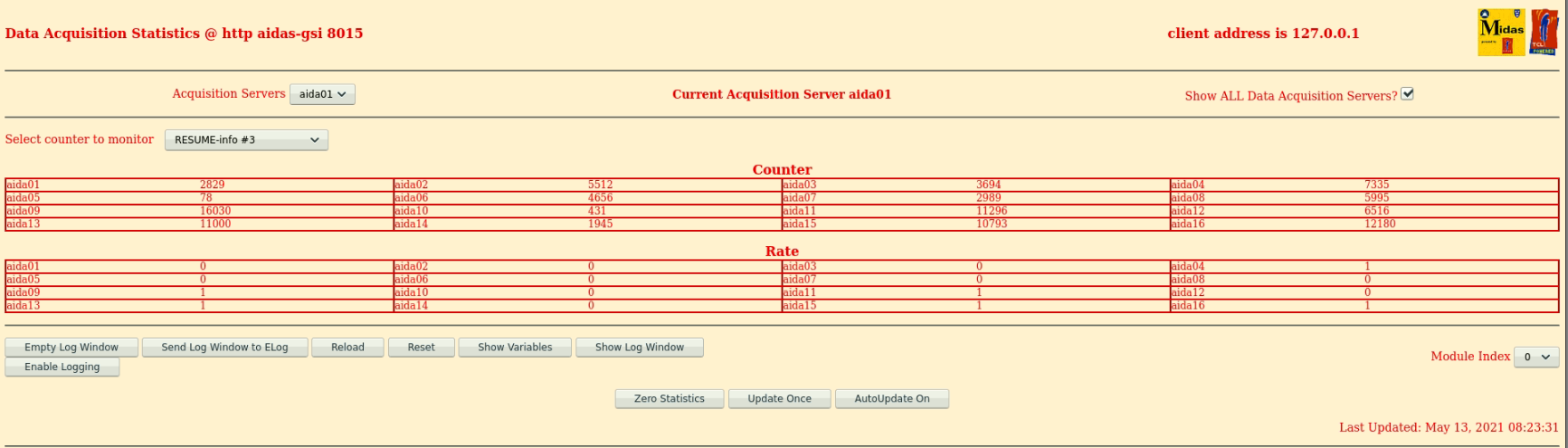

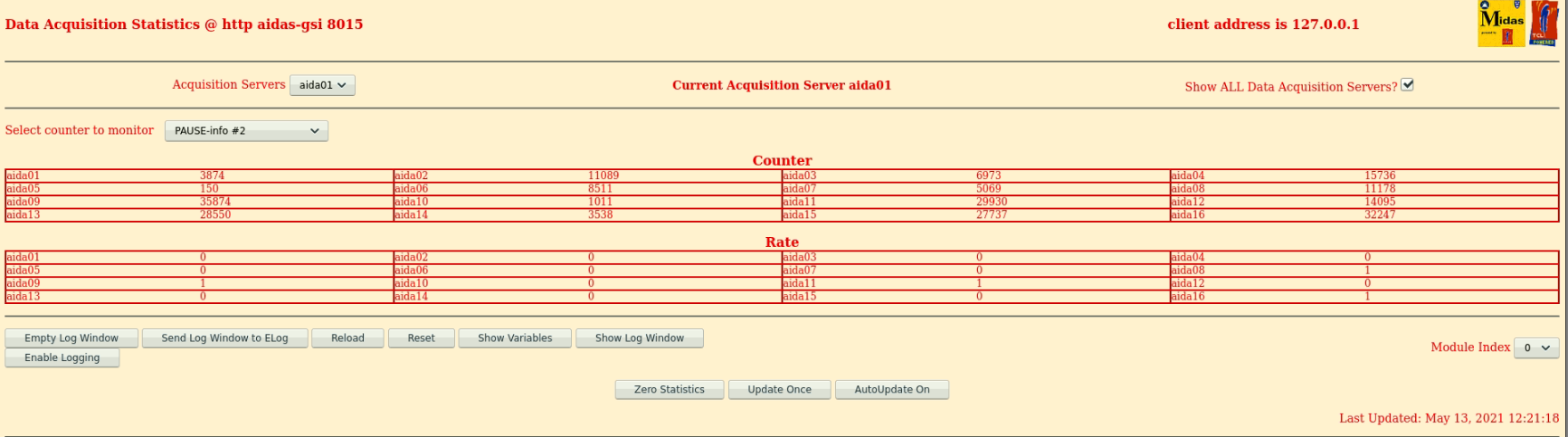

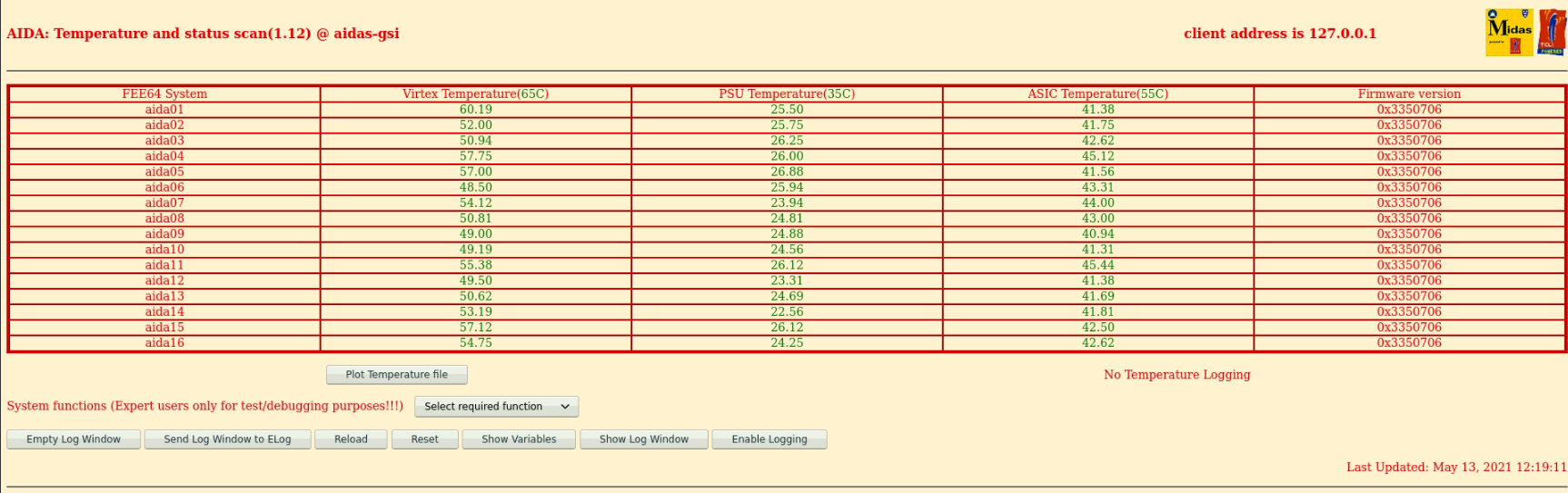

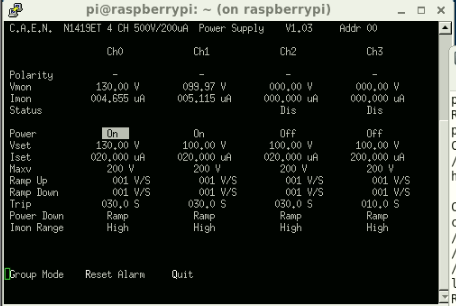

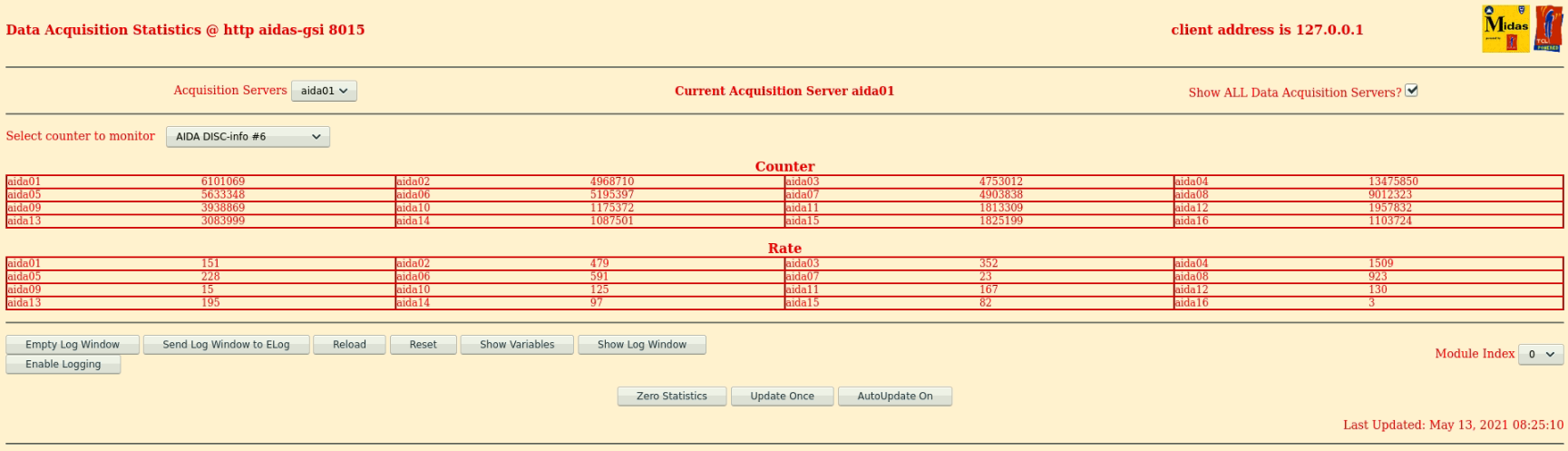

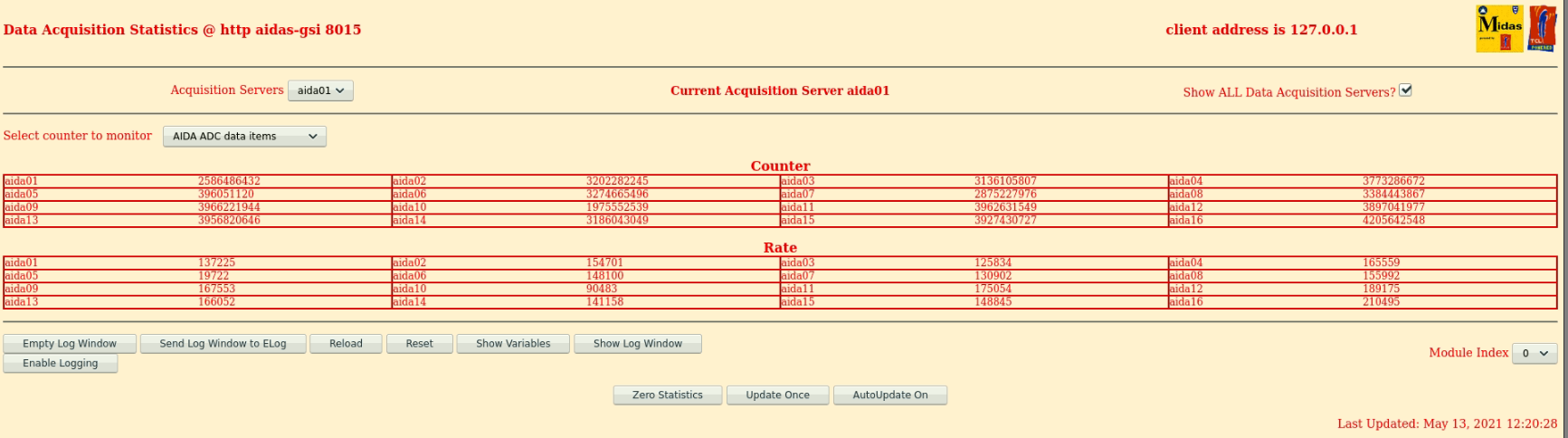

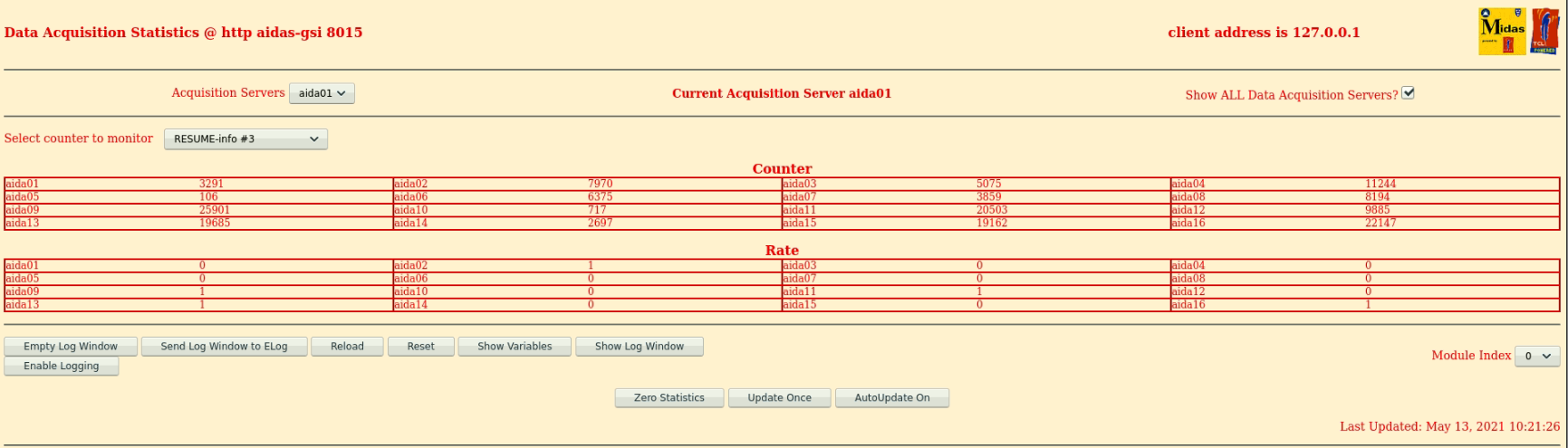

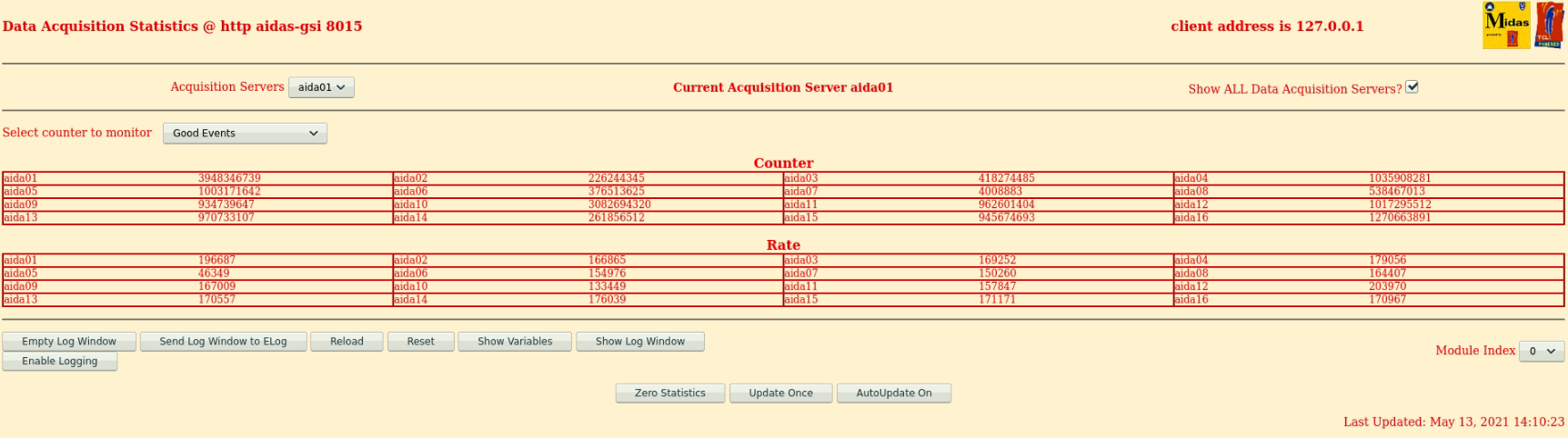

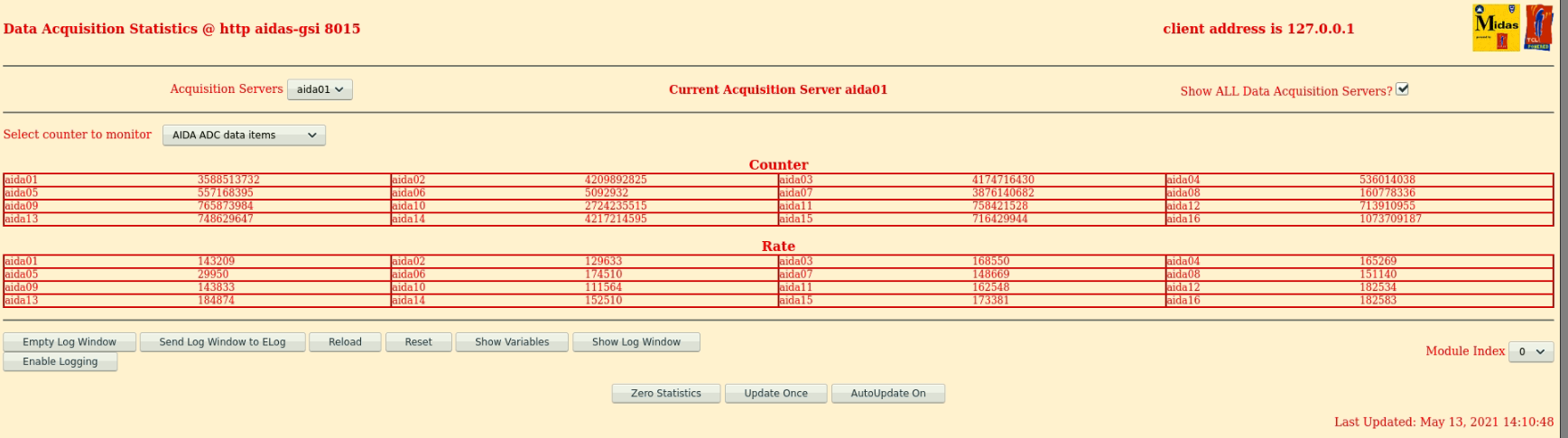

08:10 all system wide checks ok *except* all FEE64 modules fail ADC calibration WR decoder status: Base Current Difference aida01 fault 0xf932 : 0xf933 : 1 aida02 fault 0x62ec : 0x62ed : 1 aida03 fault 0x8679 : 0x867a : 1 aida04 fault 0xf0e4 : 0xf0e5 : 1 aida05 fault 0x9db8 : 0x9db9 : 1 aida06 fault 0x7f18 : 0x7f19 : 1 aida07 fault 0xdd2c : 0xdd2d : 1 aida08 fault 0x1557 : 0x1558 : 1 White Rabbit error counter test result: Passed 8, Failed 8 Understand the status reports as follows:- Status bit 3 : White Rabbit decoder detected an error in the received data Status bit 2 : Firmware registered WR error, no reload of Timestamp Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR 08:16 attempt to recalibrate ADCs using FADC align and control - unsuccessful on all 08:18 FEE64 temps ok - attachment 1 bias/leakage currents ok - attachment 2 statistics - attachments 3-8 10:13 all system wide checks ok *except* all FEE64 modules fail ADC calibration WR decoder status: Base Current Difference aida01 fault 0xf932 : 0xf933 : 1 aida02 fault 0x62ec : 0x62ed : 1 aida03 fault 0x8679 : 0x867a : 1 aida04 fault 0xf0e4 : 0xf0e5 : 1 aida05 fault 0x9db8 : 0x9db9 : 1 aida06 fault 0x7f18 : 0x7f19 : 1 aida07 fault 0xdd2c : 0xdd2d : 1 aida08 fault 0x1557 : 0x1558 : 1 White Rabbit error counter test result: Passed 8, Failed 8 Understand the status reports as follows:- Status bit 3 : White Rabbit decoder detected an error in the received data Status bit 2 : Firmware registered WR error, no reload of Timestamp Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR 10:16 FEE64 temps ok - attachment 9 bias/leakage currents ok - attachment 10 statistics - attachments 11-16 12:16 all system wide checks ok *except* all FEE64 modules fail ADC calibration WR decoder status: Base Current Difference aida01 fault 0xf932 : 0xf933 : 1 aida02 fault 0x62ec : 0x62ed : 1 aida03 fault 0x8679 : 0x867a : 1 aida04 fault 0xf0e4 : 0xf0e5 : 1 aida05 fault 0x9db8 : 0x9dba : 2 aida06 fault 0x7f18 : 0x7f19 : 1 aida07 fault 0xdd2c : 0xdd2d : 1 aida08 fault 0x1557 : 0x1558 : 1 White Rabbit error counter test result: Passed 8, Failed 8 Understand the status reports as follows:- Status bit 3 : White Rabbit decoder detected an error in the received data Status bit 2 : Firmware registered WR error, no reload of Timestamp Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR 12:16 FEE64 temps ok - attachment 17 bias/leakage currents ok - attachment 18 statistics - attachments 19-25 14:08 all system wide checks ok *except* all FEE64 modules fail ADC calibration WR decoder status: Base Current Difference aida01 fault 0xf932 : 0xf933 : 1 aida02 fault 0x62ec : 0x62ed : 1 aida03 fault 0x8679 : 0x867a : 1 aida04 fault 0xf0e4 : 0xf0e5 : 1 aida05 fault 0x9db8 : 0x9dba : 2 aida06 fault 0x7f18 : 0x7f19 : 1 aida07 fault 0xdd2c : 0xdd2d : 1 aida08 fault 0x1557 : 0x1558 : 1 White Rabbit error counter test result: Passed 8, Failed 8 Understand the status reports as follows:- Status bit 3 : White Rabbit decoder detected an error in the received data Status bit 2 : Firmware registered WR error, no reload of Timestamp Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR FEE64 temps ok - attachment 16 bias/leakage currents ok - attachment 27 statistics - attachments 28-35
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1725x539
Attachment 2:
Original size: 456x306
Attachment 3:
Original size: 1726x360
Attachment 4:
Original size: 1724x413
Attachment 5:
Original size: 1725x489
Attachment 6:
Original size: 1733x495
Attachment 7:
Original size: 1730x495
Attachment 8:
Original size: 1729x497
Attachment 9:
Original size: 1730x530
Attachment 10:
Original size: 451x302
Attachment 11:
Original size: 1727x493
Attachment 12:
Original size: 1733x492
Attachment 13:
Original size: 1731x483
Attachment 14:
Original size: 1726x493
Attachment 15:
Original size: 1731x495
Attachment 16:
Original size: 1732x415
Attachment 17:
Original size: 1726x543
Attachment 18:
Original size: 454x304
Attachment 19:
Original size: 1733x492
Attachment 20:
Original size: 1733x484
Attachment 21:
Original size: 1735x493
Attachment 22:
Original size: 1733x483
Attachment 23:
Original size: 1728x488
Attachment 24:
Original size: 1736x490
Attachment 25:
Original size: 1730x493
Attachment 26:
Original size: 1724x537
Attachment 27:
Original size: 446x302
Attachment 28:
Original size: 1724x482
Attachment 29:
Original size: 1737x485
Attachment 30:
Original size: 1727x490
Attachment 31:
Original size: 1734x489
Attachment 32:
Original size: 1733x491
Attachment 33:
Original size: 1731x491
Attachment 34:
Original size: 1735x482
