19:08 System Check
Rates from ucesb below 1 kHz

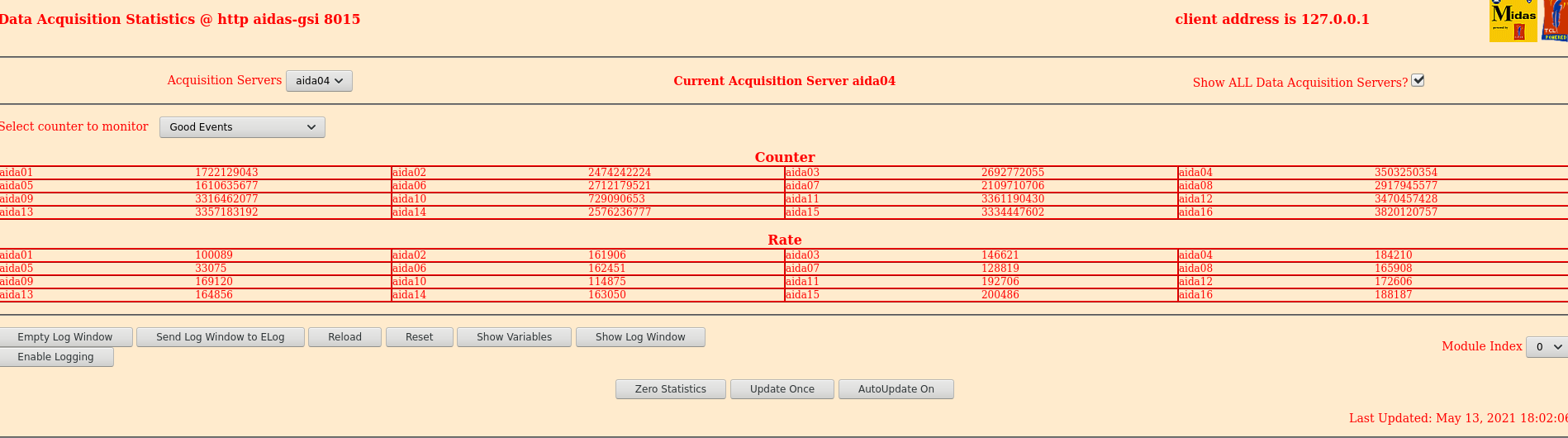

Atachment 1 Stats
Atachment 2 Temperatures
Atachment 3 Voltages
System wide checks are all ok except
ADC calibration all failed
FEE64 module aida01 failed
FEE64 module aida02 failed
FEE64 module aida03 failed
FEE64 module aida04 failed
FEE64 module aida05 failed
FEE64 module aida06 failed
FEE64 module aida07 failed
FEE64 module aida08 failed
FEE64 module aida09 failed
FEE64 module aida10 failed
FEE64 module aida11 failed
FEE64 module aida12 failed
FEE64 module aida13 failed
FEE64 module aida14 failed
FEE64 module aida15 failed
FEE64 module aida16 failed
Calibration test result: Passed 0, Failed 16
If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module
White rabbit
Base Current Difference
aida01 fault 0xf932 : 0xf933 : 1
aida02 fault 0x62ec : 0x62ed : 1
aida03 fault 0x8679 : 0x867a : 1
aida04 fault 0xf0e4 : 0xf0e5 : 1
aida05 fault 0x9db8 : 0x9dba : 2
aida06 fault 0x7f18 : 0x7f19 : 1
aida07 fault 0xdd2c : 0xdd2d : 1
aida08 fault 0x1557 : 0x1558 : 1
White Rabbit error counter test result: Passed 8, Failed 8
Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR
FPGA all passed
Memory information
Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) : 4 8 16 32 64 128 256 512 1k 2k 4k
aida01 : 6 2 2 1 2 4 3 4 2 3 7 : 40424
aida02 : 3 4 2 2 1 2 1 3 3 3 7 : 40140
aida03 : 10 10 0 3 2 4 2 4 2 3 7 : 40280
aida04 : 3 2 0 2 2 3 2 3 1 4 7 : 40540
aida05 : 4 9 2 3 2 4 3 3 1 4 7 : 41048
aida06 : 8 6 1 1 2 3 2 2 3 3 7 : 40064
aida07 : 1 4 0 1 1 3 1 3 3 3 7 : 40196
aida08 : 1 4 2 2 2 4 3 4 2 3 7 : 40452
aida09 : 8 5 2 2 1 2 1 3 3 3 7 : 40168
aida10 : 22 5 4 2 1 3 1 4 2 3 7 : 39872
aida11 : 2 1 2 1 2 2 3 3 2 3 7 : 39632
aida12 : 8 5 2 2 1 3 1 4 2 3 7 : 39784
aida13 : 18 8 2 1 0 2 3 3 2 3 7 : 39624
aida14 : 23 12 2 2 1 2 2 4 2 3 7 : 40028
aida15 : 3 5 3 2 2 3 1 4 2 3 7 : 39844
aida16 : 0 2 1 2 1 4 2 4 2 3 7 : 40096
|
