00:00 OH Takes over.
 PULSER SETTINGS
---------------------------
 Pulse is ON
 Positive Tail Pulse
 Trigger Source is Internal Clock
 Trigger Threshold is 3.5
 Amplitude   : 2.0 Volts
 Rep Rate    : 2.0 hZ
 Delay       : 250.0 ns
 Fall Time   : 1 ms
 Attenuation : 1
 Display is  : Volts
 Equivalent keV is : 200.0
 Ramp Start at 0.01 Volts
 Ramp Stop  at 9.99 Volts
 Ramp Start at 1.0 keV
 Ramp Stop  at 999.0 keV
 Ramp Time  is 60 seconds
 # Ramp Cycles is 1

OK
0x210

p+n Thresholds 0xa (100keV)
 n+n Threshold 0x20 (320keV)

01:00 System wide checks
 Clock status ok
 ADC calibration fail as expected (Waveforms off)
 WR Errors
		 Base 		Current 	Difference
aida01 fault 	 0xf932 : 	 0xf933 : 	 1
aida02 fault 	 0x62ec : 	 0x62ed : 	 1
aida03 fault 	 0x8679 : 	 0x867a : 	 1
aida04 fault 	 0xf0e4 : 	 0xf0e5 : 	 1
aida05 fault 	 0x9db8 : 	 0x9dbf : 	 7
aida06 fault 	 0x7f18 : 	 0x7f19 : 	 1
aida07 fault 	 0xdd2c : 	 0xdd2d : 	 1
aida08 fault 	 0x1557 : 	 0x1558 : 	 1
White Rabbit error counter test result: Passed 8, Failed 8

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

FPGA Errors

                Base Current Difference
aida05 fault 	 0x0 : 	 0x2 : 	 2
FPGA Timestamp error counter test result: Passed 15, Failed 1
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

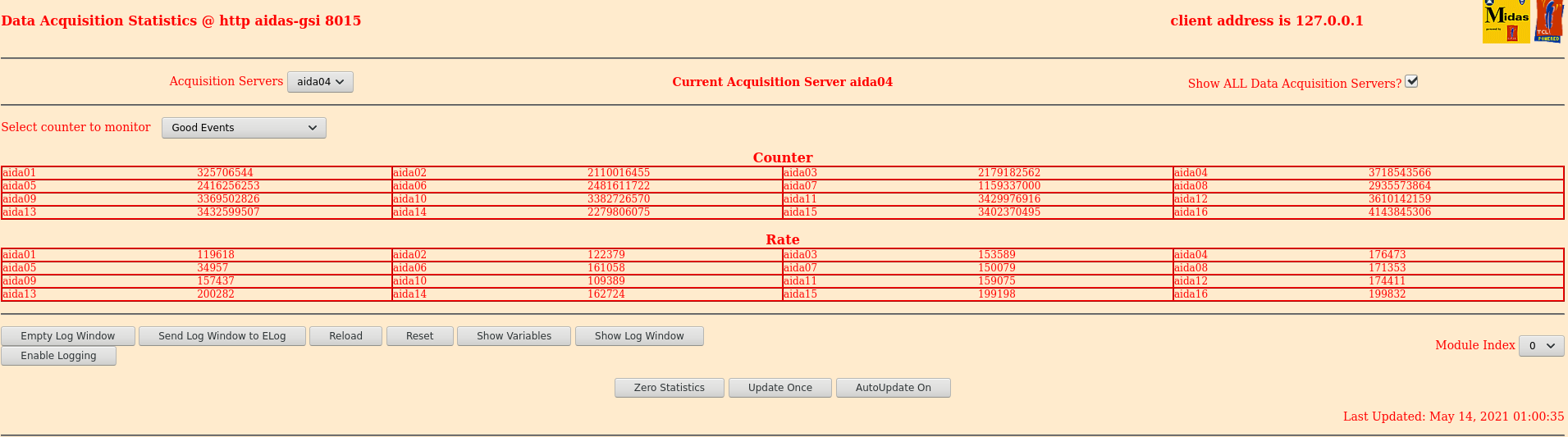

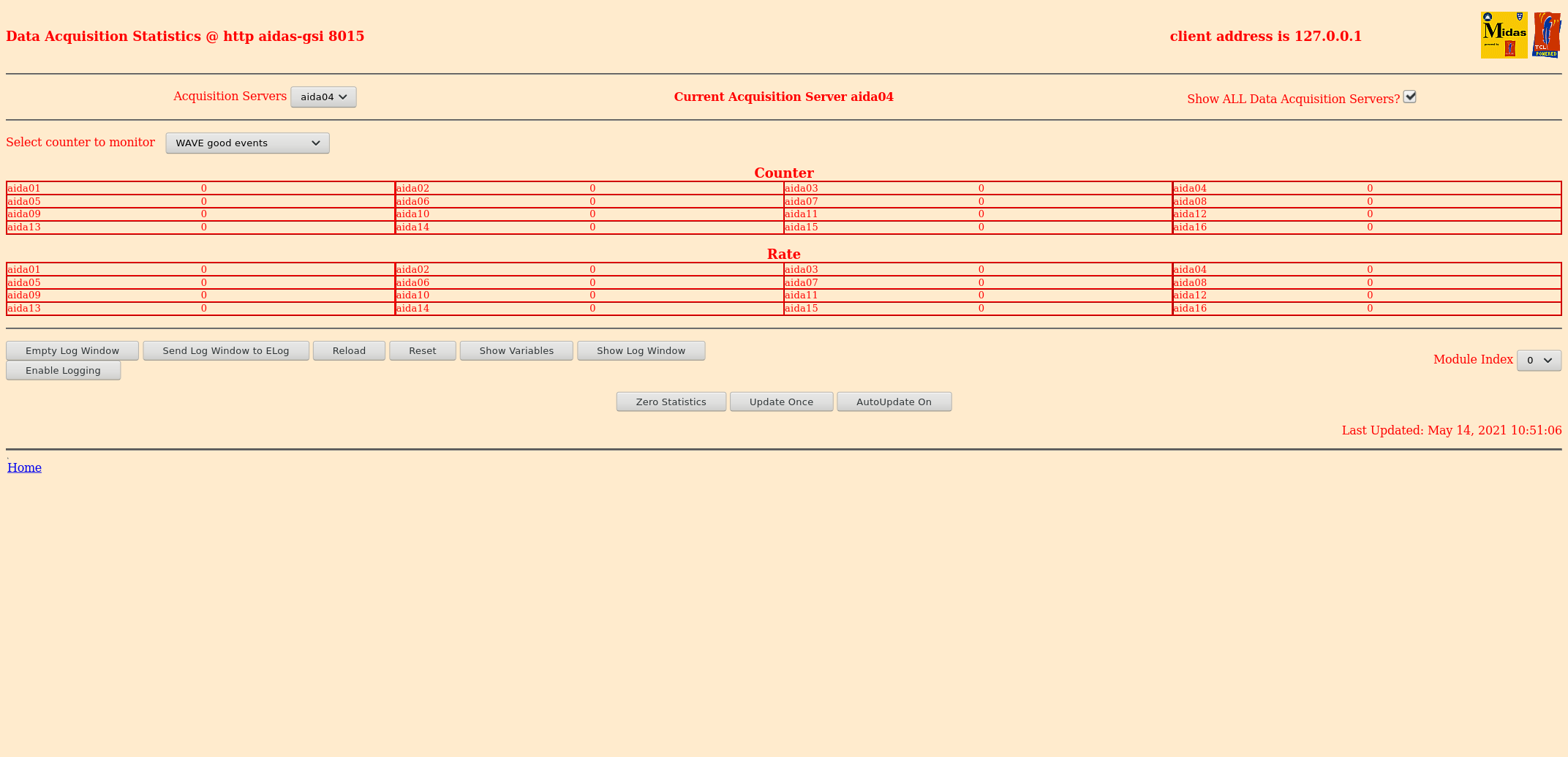

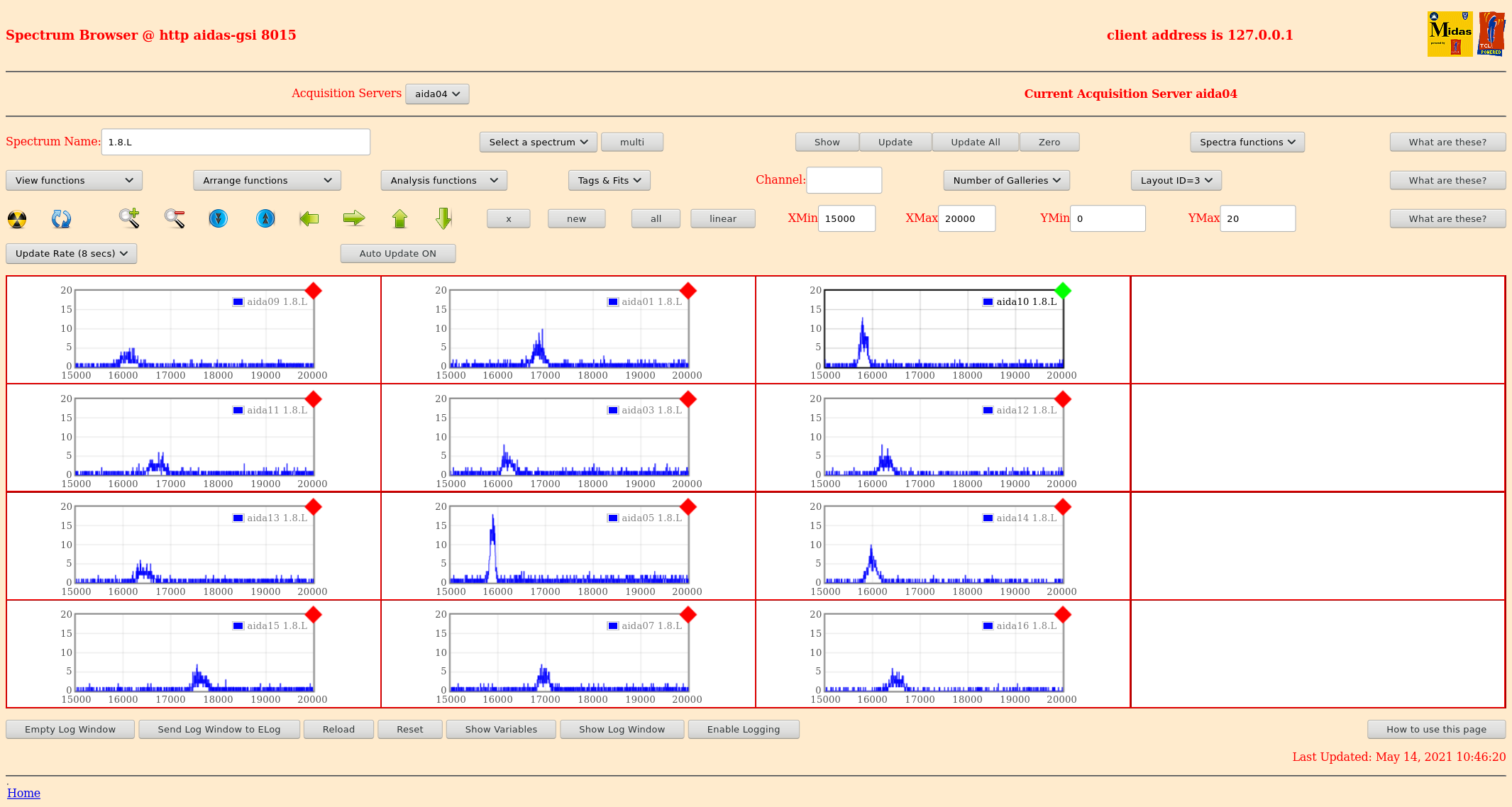

Statistics ok - attachment 1

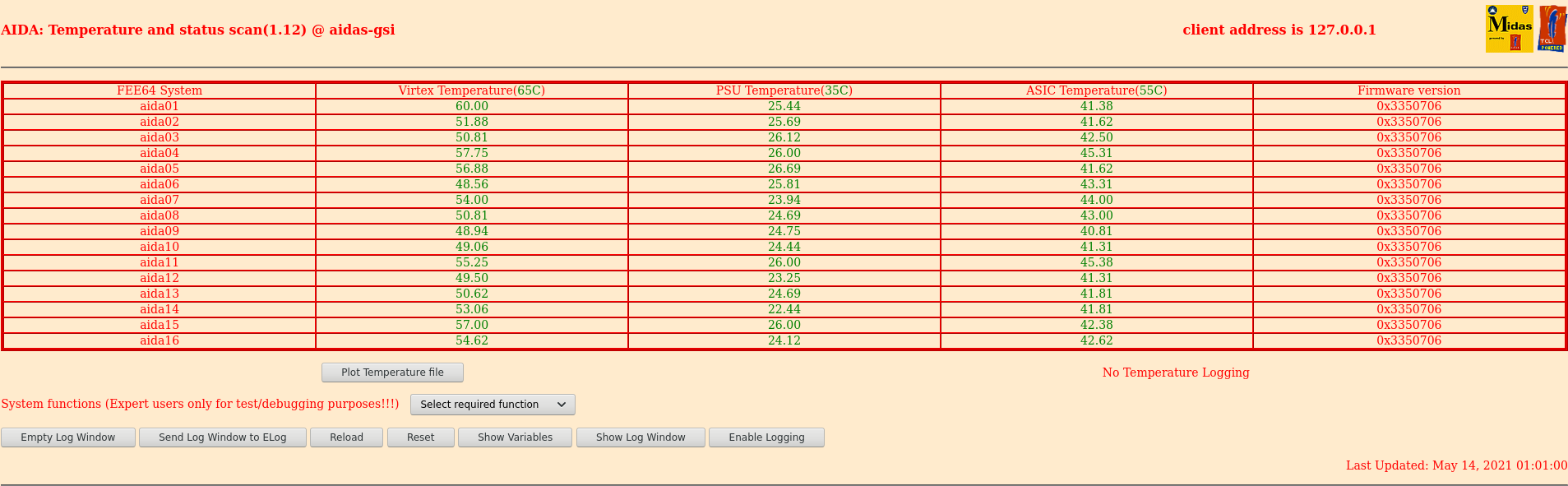

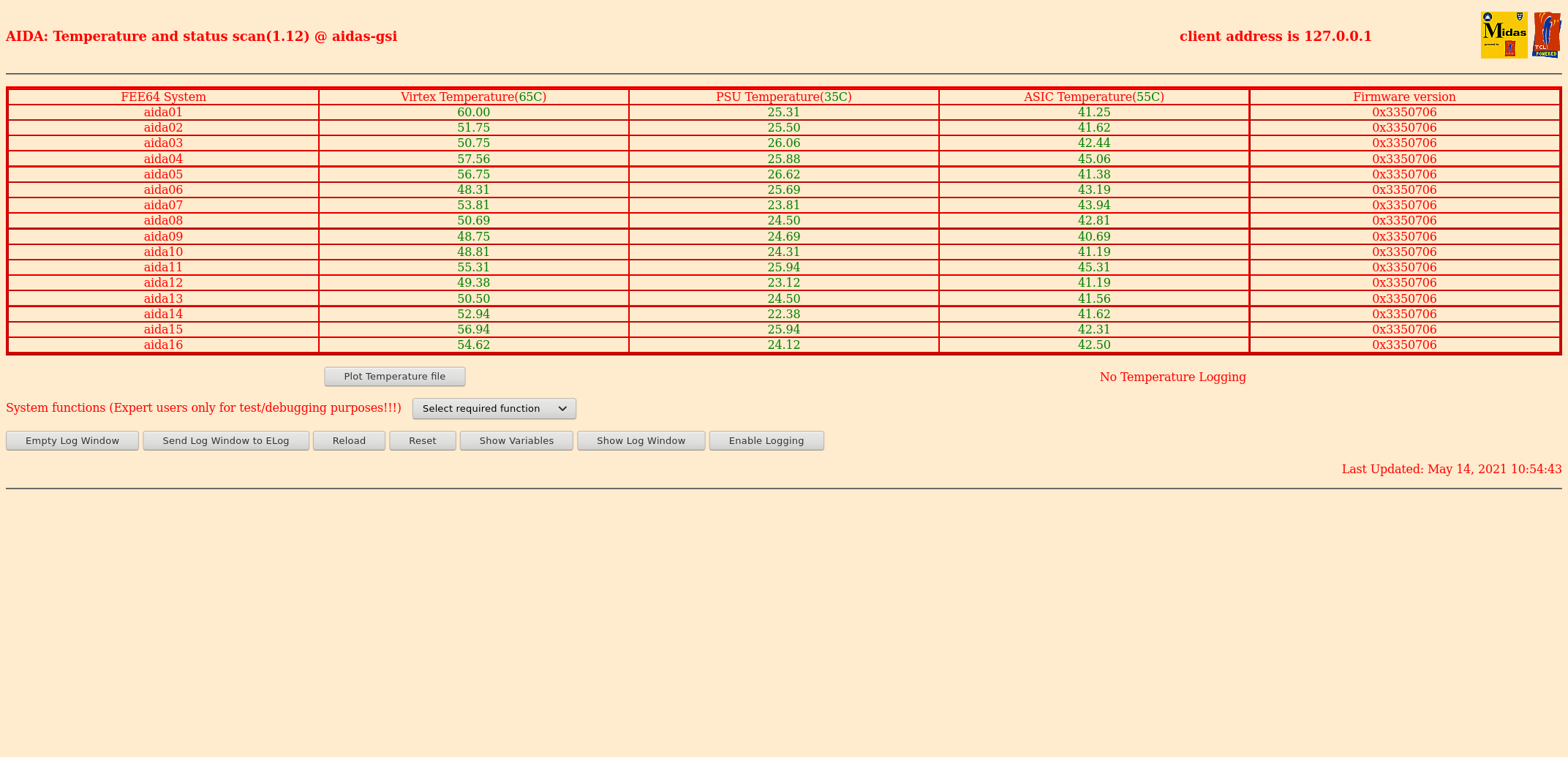

 Temp ok - attachment 2

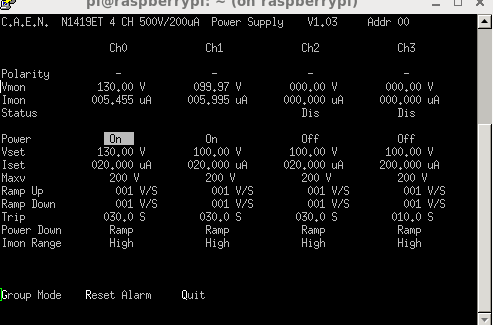

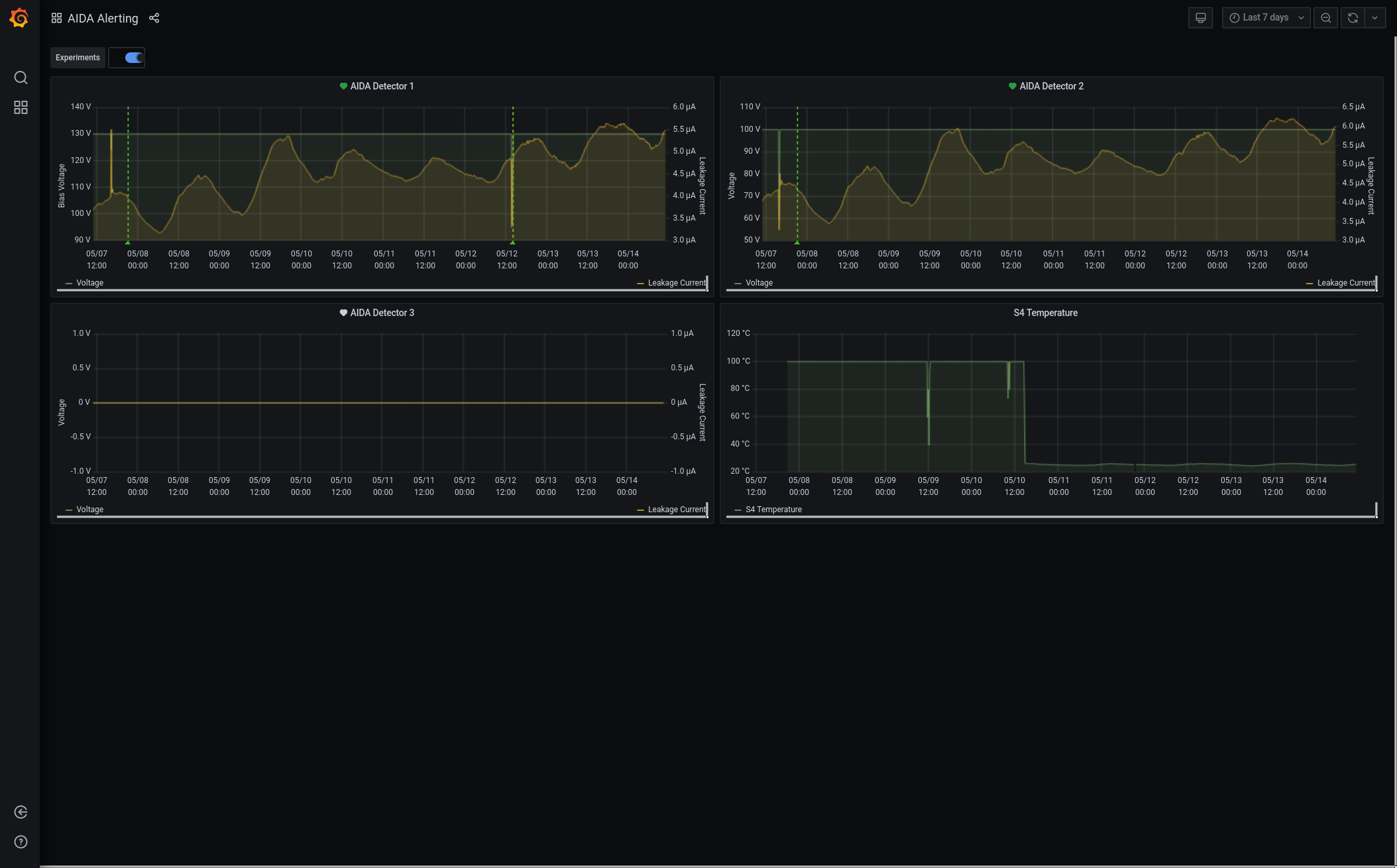

 Bias and leakage current ok - attachment 3

01:42 Comparing the CS of AIDA3 and 4
      Stats have been running for a while (Believe since 5am)

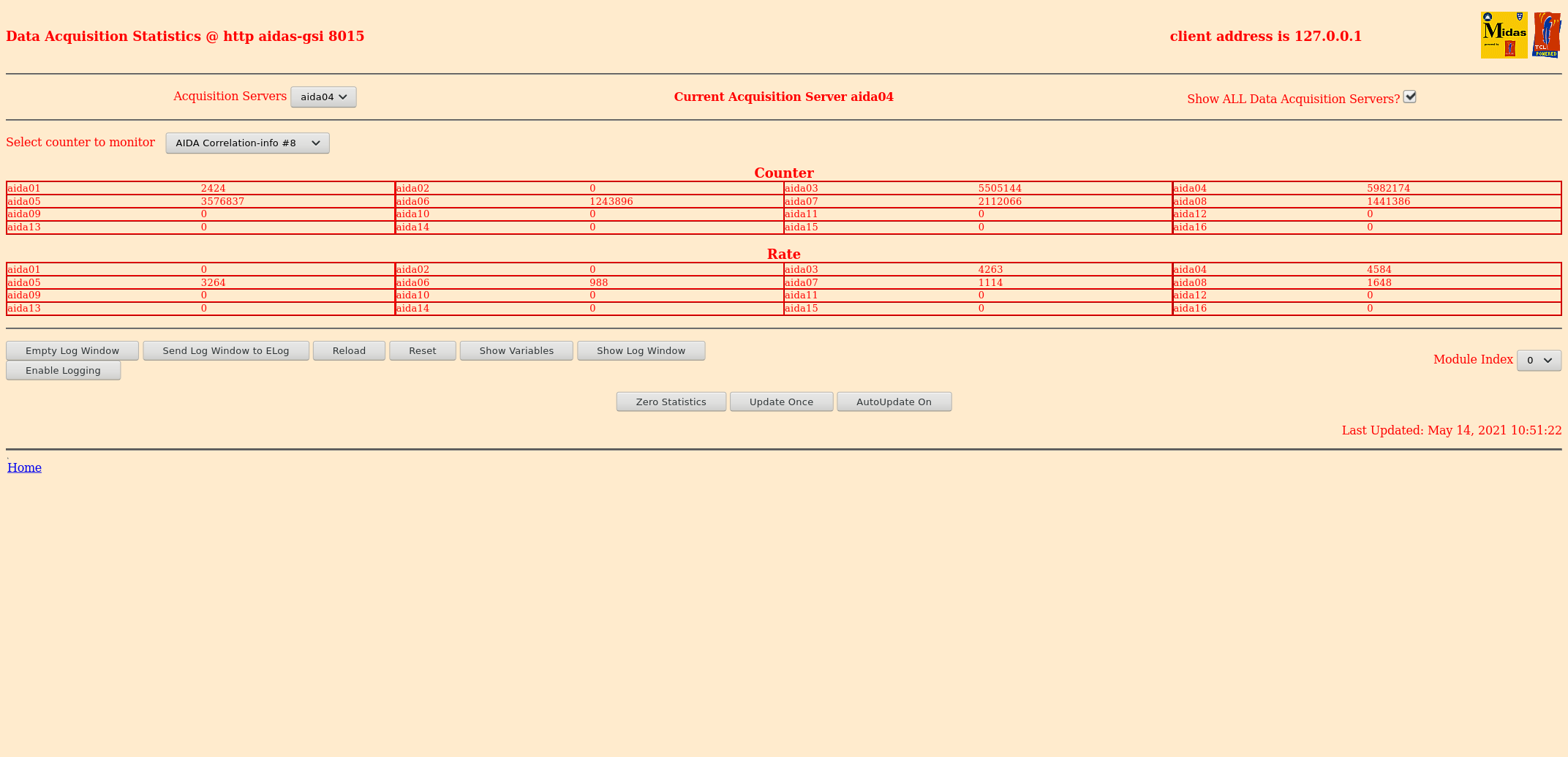

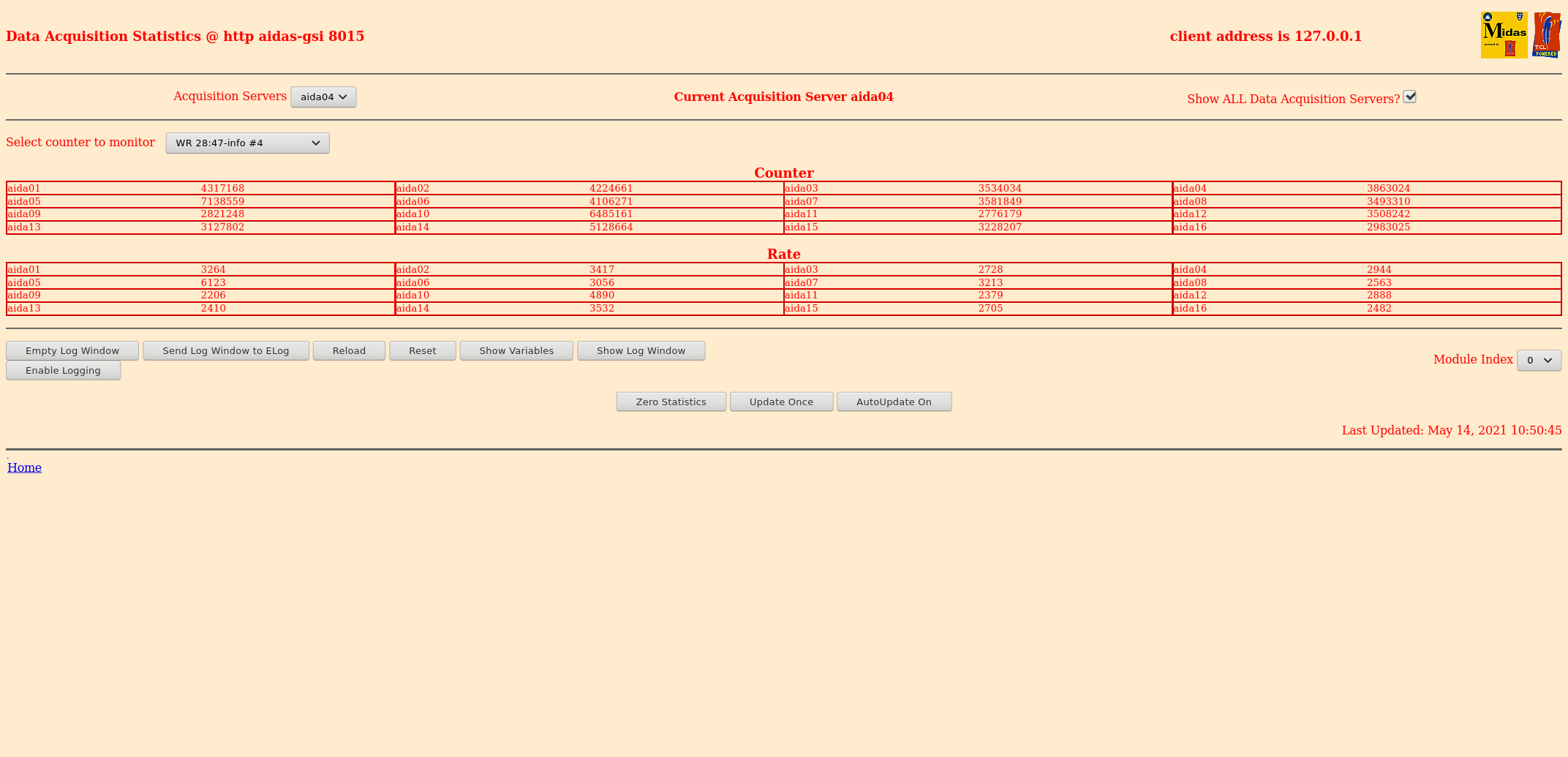

      Looking at the counter ratio - attachment 4
      We still have a deadtime of around 14% in FEE4 (Assuming FEE3 has no dead time)

01:56 Noticed /media/ThirdDrive was at 97% full
      Let DESPEC locals know I would like to use the next run stop to change the directory.
      They said they could do it now so they stopped their run.
      Changed the symbolic link to /media/1e2....
      Now writing to R4_

03:26 MBS DAQ Stopped as beam stopped
03:33 Beam back now and DAQ running again

04:44 System wide checks as before

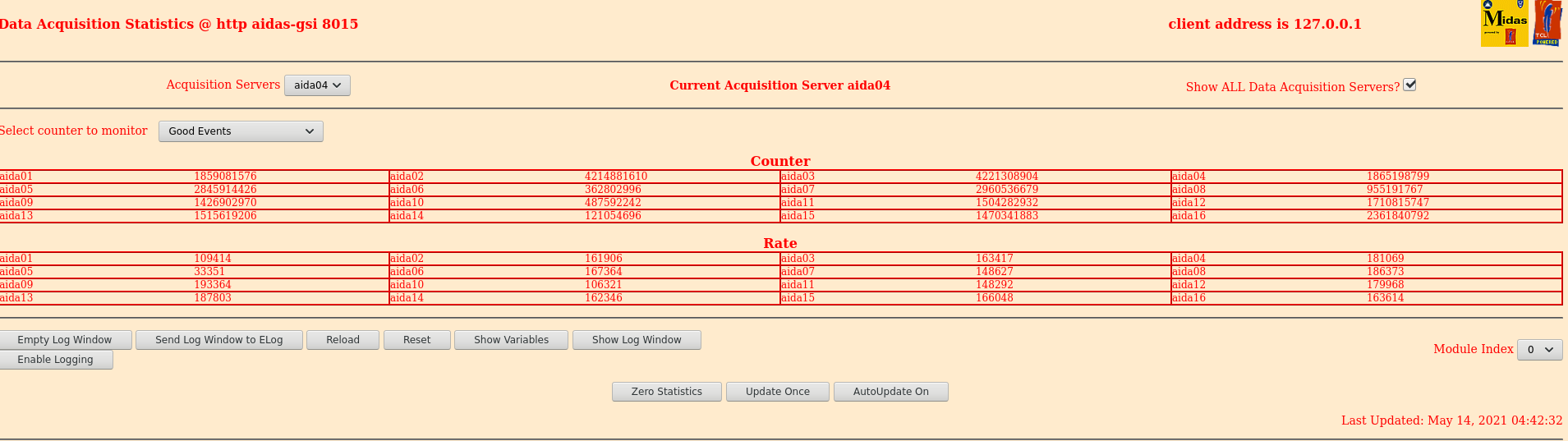

      Statistics ok - attachment 5
      Temperatures ok - attachment - 7

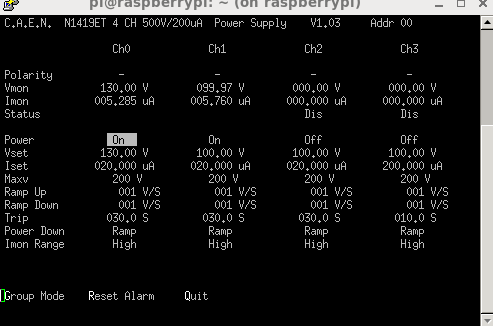

      Bias and leakage currents ok - attachment 6

05:53 MBS stops run as beam drops
06:00 MBS started a new run as beam is back

07:37 System wide checks clock ok and FPGA as before
      WR additional difference on FEE5

		 Base 		Current 	Difference
aida01 fault 	 0xf932 : 	 0xf933 : 	 1
aida02 fault 	 0x62ec : 	 0x62ed : 	 1
aida03 fault 	 0x8679 : 	 0x867a : 	 1
aida04 fault 	 0xf0e4 : 	 0xf0e5 : 	 1
aida05 fault 	 0x9db8 : 	 0x9dc0 : 	 8
aida06 fault 	 0x7f18 : 	 0x7f19 : 	 1
aida07 fault 	 0xdd2c : 	 0xdd2d : 	 1
aida08 fault 	 0x1557 : 	 0x1558 : 	 1
White Rabbit error counter test result: Passed 8, Failed 8

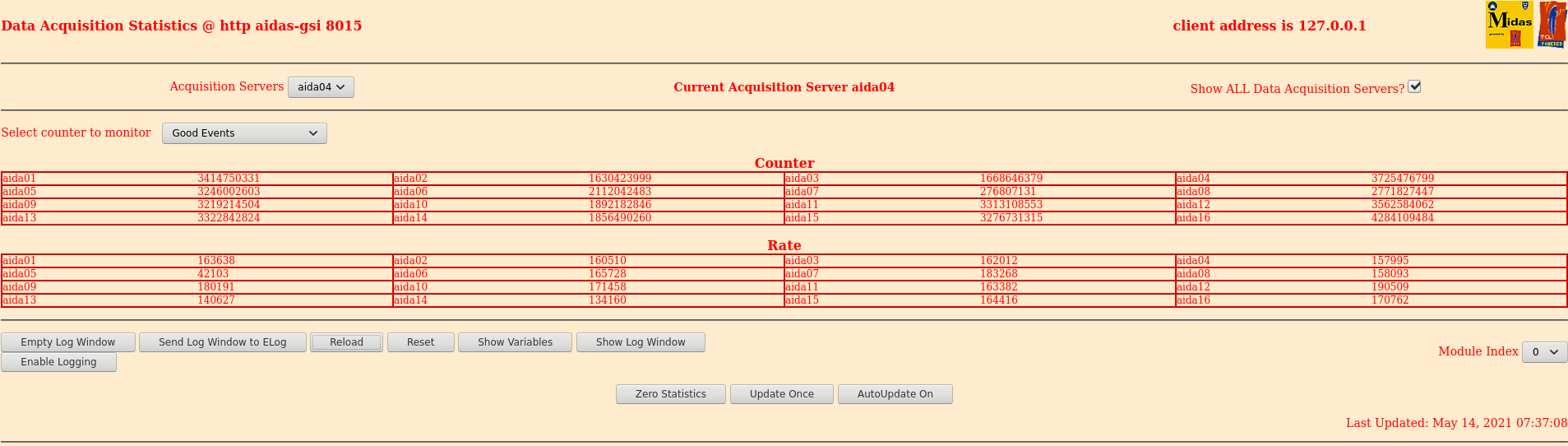

Statistics ok - attachment 8
     Temp ok - attachment 9

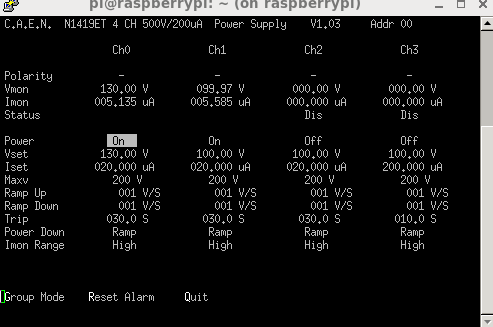

     Bias and leakage ok - attachment 10
