08:00 CA takes over

08:28 Problem at UNILAC - no beam

09:30 all system wide checks ok *except*

all FEE64 fail ADC calibration (no waveforms)

WR decoder status:

Base 		Current 	Difference
aida01 fault 	 0xf932 : 	 0xf933 : 	 1
aida02 fault 	 0x62ec : 	 0x62ed : 	 1
aida03 fault 	 0x8679 : 	 0x867a : 	 1
aida04 fault 	 0xf0e4 : 	 0xf0e5 : 	 1
aida05 fault 	 0x9db8 : 	 0x9dc2 : 	 10
aida06 fault 	 0x7f18 : 	 0x7f19 : 	 1
aida07 fault 	 0xdd2c : 	 0xdd2d : 	 1
aida08 fault 	 0x1557 : 	 0x1558 : 	 1
White Rabbit error counter test result: Passed 8, Failed 8

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

FPGA timestamp errors:

Base 		Current 		Difference
aida05 fault 	 0x0 : 	 0x2 : 	 2
FPGA Timestamp error counter test result: Passed 15, Failed 1
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

09:36 FEE64 Temperatures ok - attachment 1

Detector bias / leakage currents ok - attachment 2

Statistics - attachments 3-8

09:50 beam is back - writing to file R4_265

09:56 FRS adjusting degrader settings (S4) - temporarily remove to check counts in scintillator vs AIDA

10:10 FRS increase degrader thickness

10.28 all histograms, stats and merger stats zero'd

10.50 all system wide checks ok *except*
		 Base 		Current 	Difference
aida01 fault 	 0xf932 : 	 0xf933 : 	 1
aida02 fault 	 0x62ec : 	 0x62ed : 	 1
aida03 fault 	 0x8679 : 	 0x867a : 	 1
aida04 fault 	 0xf0e4 : 	 0xf0e5 : 	 1
aida05 fault 	 0x9db8 : 	 0x9dc2 : 	 10
aida06 fault 	 0x7f18 : 	 0x7f19 : 	 1
aida07 fault 	 0xdd2c : 	 0xdd2d : 	 1
aida08 fault 	 0x1557 : 	 0x1558 : 	 1
White Rabbit error counter test result: Passed 8, Failed 8

Base 		Current 		Difference
aida05 fault 	 0x0 : 	 0x3 : 	 3
FPGA Timestamp error counter test result: Passed 15, Failed 1
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) :	4	8	16	32	64	128	256	512	1k	2k	4k
aida01 :      3      2      2      2      2      2      2      4      3      3      6   : 36860
aida02 :      7      3      5      1      2      5      2      4      3      3      6   : 37284
aida03 :      7      5      3      1      4      4      2      3      3      3      6   : 36756
aida04 :      3      1     20      4      2      3      3      5      1      3      6   : 36052
aida05 :     19     25     26      6      2      2      3      2      2      3      6   : 35828
aida06 :      1      3     16      1      3      4      1      5      1      3      6   : 35580
aida07 :      6      4      1      2      3      3      2      3      3      3      6   : 36552
aida08 :      8      5      2      3      2      3      2      2      2      4      6   : 37064
aida09 :      9      7      1      2      2      4      2      3      3      3      6   : 36652
aida10 :      2      5      3      1      1      4      2      3      3      3      6   : 36544
aida11 :     16      4      4      2      1      2      2      3      3      3      6   : 36384
aida12 :      2      1      1      3      1      2      2      3      3      3      6   : 36288
aida13 :      0      1      1      2      0      4      3      2      3      3      6   : 36184
aida14 :      6      3      2      0      2      3      2      3      3      3      6   : 36432
aida15 :     25      8      2      1      2      3      1      2      2      4      6   : 36836
aida16 :      3      5      1      2      2      2      3      2      3      3      6   : 36100

Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same

FEE : aida01 =>   Options file size is 1026 	 Last changed Thu May 13 05:49:42 CEST 2021
 FEE : aida02 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:46 CEST 2021
 FEE : aida03 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:50 CEST 2021
 FEE : aida04 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:53 CEST 2021
 FEE : aida05 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:55 CEST 2021
 FEE : aida06 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:59 CEST 2021
 FEE : aida07 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:02 CEST 2021
 FEE : aida08 =>   Options file size is 1025 	 Last changed Wed May 05 12:15:54 CEST 2021
 FEE : aida09 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:08 CEST 2021
 FEE : aida10 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida11 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida12 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida13 =>   Options file size is 1025 	 Last changed Fri May 07 19:40:34 CEST 2021
 FEE : aida14 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida15 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida16 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021

10.50 DAQ continues S496/R4_304

11:18 FEE64 Temperatures ok - attachment 9

Detector bias & leakage currents ok - attachment 10

statistics - attachments 11-16

15:00 FEE64           avg. CPU usage (%)

1               52
      2               55
      3               55
      4               60
      5               93
      6               50
      7               53
      8               55
      9               55
      10              51
      11              50
      12              67
      13              56
      14              55
      15              55
      16              58

15:08 all system wide checks ok *except*

all FEE64 fail ADC calibration (no waveform)

WR decoder status:

Base 		Current 	Difference
aida01 fault 	 0xf932 : 	 0xf933 : 	 1
aida02 fault 	 0x62ec : 	 0x62ed : 	 1
aida03 fault 	 0x8679 : 	 0x867a : 	 1
aida04 fault 	 0xf0e4 : 	 0xf0e5 : 	 1
aida05 fault 	 0x9db8 : 	 0x9dc3 : 	 11
aida06 fault 	 0x7f18 : 	 0x7f19 : 	 1
aida07 fault 	 0xdd2c : 	 0xdd2d : 	 1
aida08 fault 	 0x1557 : 	 0x1558 : 	 1
White Rabbit error counter test result: Passed 8, Failed 8

FPGA errors:

15:10 Temperatures ok - attachment 17

Detector bias / leakage current ok - attachment 18

Statistics - attachments 18 -24

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

Screenshot_from_2021-05-14_08-32-16.png Original size: 1721x534

Attachment 2:

Screenshot_from_2021-05-14_08-32-45.png Original size: 452x302

Attachment 3:

Screenshot_from_2021-05-14_08-33-11.png Original size: 1730x489

Attachment 4:

Screenshot_from_2021-05-14_08-33-33.png Original size: 1733x484

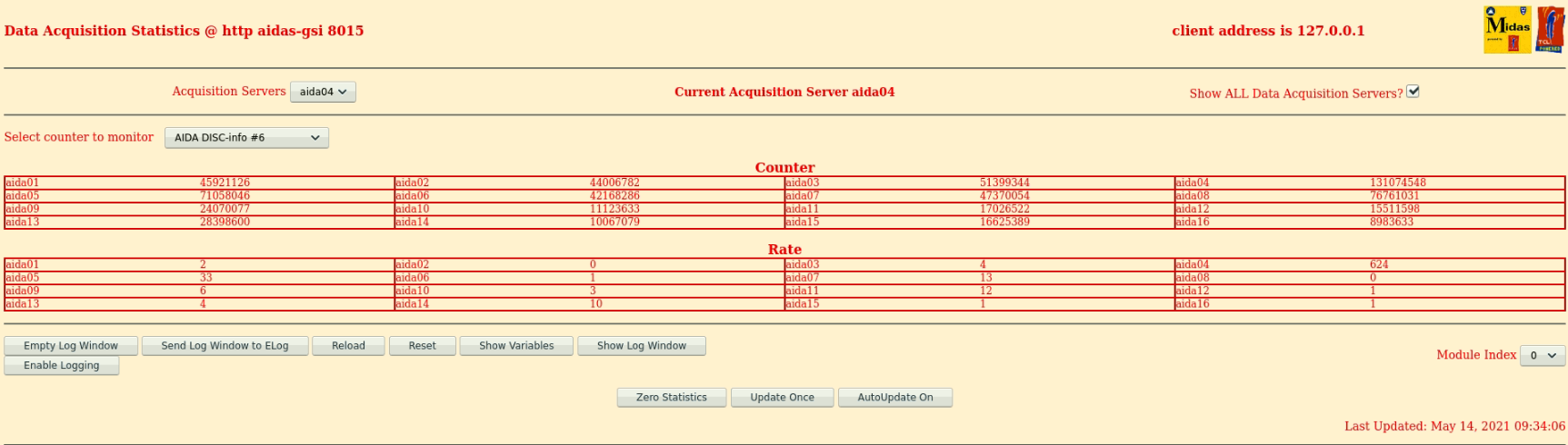

Attachment 5:

Screenshot_from_2021-05-14_08-34-12.png Original size: 1725x490

Attachment 6:

Screenshot_from_2021-05-14_08-34-44.png Original size: 1725x490

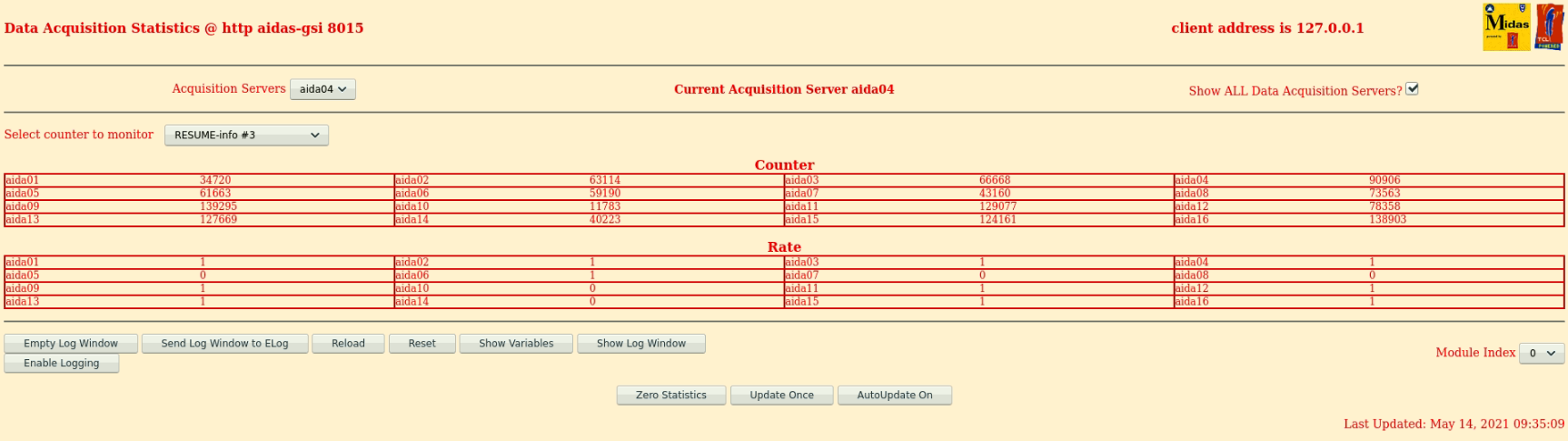

Attachment 7:

Screenshot_from_2021-05-14_08-35-17.png Original size: 1726x485

Attachment 8:

Screenshot_from_2021-05-14_08-35-55.png Original size: 1723x478

Attachment 9:

Screenshot_from_2021-05-14_10-17-25.png Original size: 1739x678

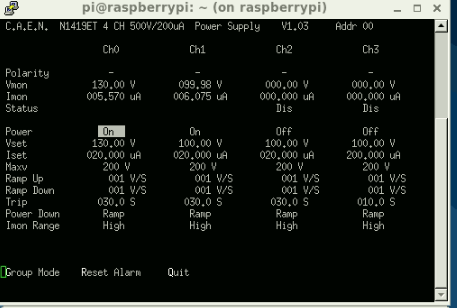

Attachment 10:

Screenshot_from_2021-05-14_10-17-43.png Original size: 457x308

Attachment 11:

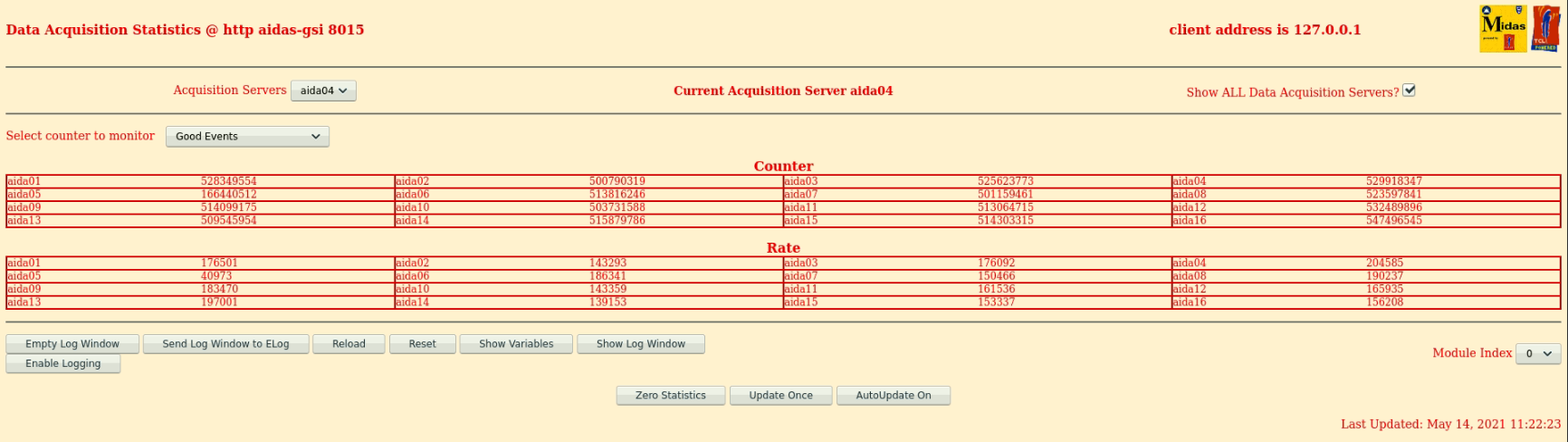

Screenshot_from_2021-05-14_10-22-39.png Original size: 1732x488

Attachment 12:

Screenshot_from_2021-05-14_10-23-13.png Original size: 1723x491

Attachment 13:

Screenshot_from_2021-05-14_10-23-41.png Original size: 1726x493

Attachment 14:

Screenshot_from_2021-05-14_10-24-12.png Original size: 1734x482

Attachment 15:

Screenshot_from_2021-05-14_10-24-37.png Original size: 1726x483

Attachment 16:

Screenshot_from_2021-05-14_10-25-20.png Original size: 1726x492

Attachment 17:

Screenshot_from_2021-05-14_14-07-48.png Original size: 1728x535

Attachment 18:

Screenshot_from_2021-05-14_14-11-23.png Original size: 463x311

Attachment 19:

Screenshot_from_2021-05-14_14-13-21.png Original size: 1728x489

Attachment 20:

Screenshot_from_2021-05-14_14-13-38.png Original size: 1721x482

Attachment 21:

Screenshot_from_2021-05-14_14-14-12.png Original size: 1728x490

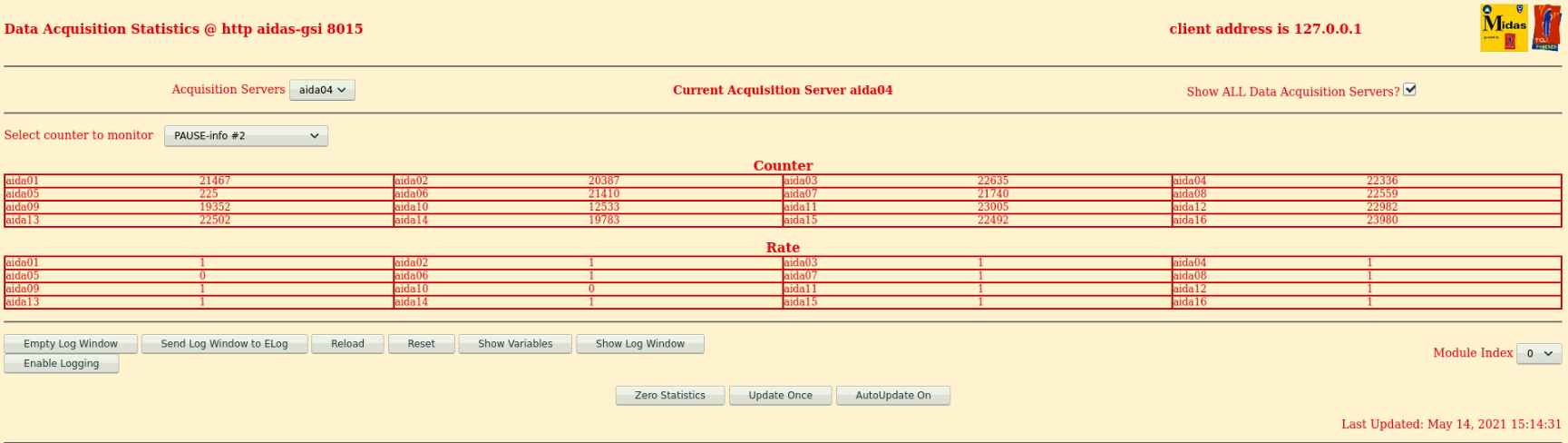

Attachment 22:

Screenshot_from_2021-05-14_14-14-39.png Original size: 1729x488

Attachment 23:

Screenshot_from_2021-05-14_14-15-06.png Original size: 1734x489

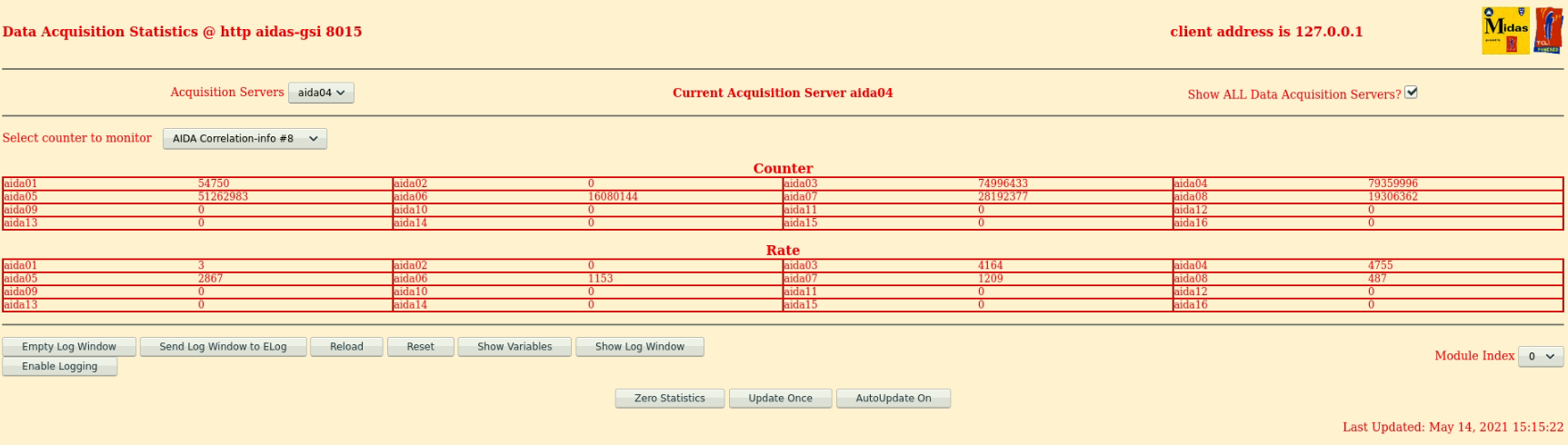

Attachment 24:
