| DESPEC |
 |
|
|
|
Message ID: 317
Entry time: Fri May 14 14:57:32 2021
|
| Author: |
CB + OH, TD, NH |
| Subject: |
Friday 14th May 16:00-20:00 |
|
|
16:00 Shift taken over from CA
16:00
Temperatures OK. Attach 1.
Upon reloading aida11 first returns "No respose" for all values.
Upon refreshing, aida11 responds but aida 9 returns "No response".
Upon refreshing again, attach 1.
Bias OK. Attach 2.
Statistics OK. Attach 3-7
System-wide checks
Clock OK
ADC - all fail
Base Current Difference
aida01 fault 0xf932 : 0xf933 : 1
aida02 fault 0x62ec : 0x62ed : 1
aida03 fault 0x8679 : 0x867a : 1
aida04 fault 0xf0e4 : 0xf0e5 : 1
aida05 fault 0x9db8 : 0x9dc3 : 11
aida06 fault 0x7f18 : 0x7f19 : 1
aida07 fault 0xdd2c : 0xdd2d : 1
aida08 fault 0x1557 : 0x1558 : 1
White Rabbit error counter test result: Passed 8, Failed 8
Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR
Base Current Difference
aida05 fault 0x0 : 0x3 : 3
FPGA Timestamp error counter test result: Passed 15, Failed 1
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last
Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) : 4 8 16 32 64 128 256 512 1k 2k 4k
aida01 : 32 28 25 7 1 4 1 3 2 3 6 : 36112
aida02 : 43 28 29 5 4 2 3 4 1 3 6 : 36092
aida03 : 39 26 28 5 4 3 2 5 1 3 6 : 36428
aida04 : 9 5 21 8 5 4 4 4 2 2 6 : 35292
aida05 : 46 32 26 7 2 2 2 2 2 3 6 : 35768
aida06 : 4 5 16 1 3 4 2 4 1 3 6 : 35352
aida07 : 47 21 25 5 4 3 1 4 1 3 6 : 35604
aida08 : 62 33 32 6 0 2 3 3 3 2 6 : 35520
aida09 : 33 25 28 7 3 5 2 4 1 3 6 : 36140
aida10 : 47 29 22 6 3 2 2 2 2 3 6 : 35716
aida11 : 39 30 29 6 2 3 1 3 2 3 6 : 36124
aida12 : 38 36 20 6 3 2 3 3 3 2 6 : 35448
aida13 : 42 29 24 3 4 2 3 3 3 2 6 : 35440
aida14 : 31 28 18 7 3 3 4 4 2 2 6 : 35228
aida15 : 48 25 30 5 3 2 4 4 2 2 6 : 35272
aida16 : 37 16 28 6 3 3 2 2 2 3 6 : 35796
Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same
FEE : aida01 => Options file size is 1026 Last changed Thu May 13 05:49:42 CEST 2021
FEE : aida02 => Options file size is 1014 Last changed Thu Apr 29 14:43:46 CEST 2021
FEE : aida03 => Options file size is 1014 Last changed Thu Apr 29 14:43:50 CEST 2021
FEE : aida04 => Options file size is 1014 Last changed Thu Apr 29 14:43:53 CEST 2021
FEE : aida05 => Options file size is 1014 Last changed Thu Apr 29 14:43:55 CEST 2021
FEE : aida06 => Options file size is 1014 Last changed Thu Apr 29 14:43:59 CEST 2021
FEE : aida07 => Options file size is 1014 Last changed Thu Apr 29 14:44:02 CEST 2021
FEE : aida08 => Options file size is 1025 Last changed Wed May 05 12:15:54 CEST 2021
FEE : aida09 => Options file size is 1014 Last changed Thu Apr 29 14:44:08 CEST 2021
FEE : aida10 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida11 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida12 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida13 => Options file size is 1025 Last changed Fri May 07 19:40:34 CEST 2021
FEE : aida14 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida15 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida16 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
16:15 Control handed over to OH temporarily.
16:25 AIDA stopped. OH attempts to update Merger. Discriminators off.
16:29 AIDA restart begins.
16:33 AIDA restarted.
16:40 Dead time still very high ~50% in most FEEs.
16:50 Checking effect of threshold on dead time.
16:53 Checking waveform effect on deadtime. DAQ stopped. Turning waveforms on, threshold increased to max. This
*reduces* deadtime to <10%.
Sampling ADCs were disabled (switched off) late Wednesday evening.
17:01 DAQ can be restarted.
17:27 Finished checking effect of threshold on dead time. 120 keV front. 320 keV back.
17:33 Analysis of R5_45 - x strips 0xc - y strips 0x20
17:40 OH hands back control.
Temperature OK - attach 10
Bias OK - attach 11
Stats - attach 12-17
System-wide checks
Clock - all pass
ADC - all pass
WR
Base Current Difference
aida01 fault 0xf932 : 0xf933 : 1
aida02 fault 0x62ec : 0x62ed : 1
aida03 fault 0x8679 : 0x867a : 1
aida04 fault 0xf0e4 : 0xf0e5 : 1
aida05 fault 0x9db8 : 0x9dc3 : 11
aida06 fault 0x7f18 : 0x7f19 : 1
aida07 fault 0xdd2c : 0xdd2d : 1
aida08 fault 0x1557 : 0x1558 : 1
White Rabbit error counter test result: Passed 8, Failed 8
Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR
Base Current Difference
aida05 fault 0x0 : 0x3 : 3
FPGA Timestamp error counter test result: Passed 15, Failed 1
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last
Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) : 4 8 16 32 64 128 256 512 1k 2k 4k
aida01 : 56 35 27 8 1 4 1 2 2 3 6 : 35816
aida02 : 43 31 27 5 3 1 3 3 2 3 6 : 36404
aida03 : 45 28 28 16 4 2 2 4 1 3 6 : 36180
aida04 : 2 2 18 12 4 3 3 4 2 2 6 : 34872
aida05 : 28 28 24 10 2 2 2 2 1 4 6 : 36752
aida06 : 28 11 9 5 2 3 3 3 1 3 6 : 35064
aida07 : 52 24 23 9 4 3 1 2 2 3 6 : 35744
aida08 : 21 26 27 8 0 2 3 3 3 2 6 : 35284
aida09 : 40 32 26 10 3 5 1 3 1 3 6 : 35520
aida10 : 46 23 27 7 3 1 1 3 3 3 6 : 36928
aida11 : 49 31 20 10 2 2 1 2 2 3 6 : 35516
aida12 : 39 35 17 9 2 2 3 4 3 2 6 : 35940
aida13 : 40 32 20 7 4 2 3 4 3 2 6 : 36032
aida14 : 33 33 16 10 3 4 3 4 3 2 6 : 36236
aida15 : 53 27 25 12 3 2 4 4 2 2 6 : 35452
aida16 : 35 22 32 15 3 4 3 3 1 3 6 : 36060
Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same
FEE : aida01 => Options file size is 1026 Last changed Thu May 13 05:49:42 CEST 2021
FEE : aida02 => Options file size is 1014 Last changed Thu Apr 29 14:43:46 CEST 2021
FEE : aida03 => Options file size is 1014 Last changed Thu Apr 29 14:43:50 CEST 2021
FEE : aida04 => Options file size is 1025 Last changed Fri May 14 16:54:56 CEST 2021
FEE : aida05 => Options file size is 1014 Last changed Thu Apr 29 14:43:55 CEST 2021
FEE : aida06 => Options file size is 1014 Last changed Thu Apr 29 14:43:59 CEST 2021
FEE : aida07 => Options file size is 1014 Last changed Thu Apr 29 14:44:02 CEST 2021
FEE : aida08 => Options file size is 1025 Last changed Wed May 05 12:15:54 CEST 2021
FEE : aida09 => Options file size is 1014 Last changed Thu Apr 29 14:44:08 CEST 2021
FEE : aida10 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida11 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida12 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida13 => Options file size is 1025 Last changed Fri May 07 19:40:34 CEST 2021
FEE : aida14 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida15 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida16 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
18:30
Temperatures - OK (attach 18)
Bias OK (attach 19)
Stats - attach 20-24
System-wide checks
Clock - all pass
ADC - all pass
Base Current Difference
aida01 fault 0xf932 : 0xf933 : 1
aida02 fault 0x62ec : 0x62ed : 1
aida03 fault 0x8679 : 0x867a : 1
aida04 fault 0xf0e4 : 0xf0e5 : 1
aida05 fault 0x9db8 : 0x9dc3 : 11
aida06 fault 0x7f18 : 0x7f19 : 1
aida07 fault 0xdd2c : 0xdd2d : 1
aida08 fault 0x1557 : 0x1558 : 1
White Rabbit error counter test result: Passed 8, Failed 8
Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR
Base Current Difference
aida05 fault 0x0 : 0x3 : 3
FPGA Timestamp error counter test result: Passed 15, Failed 1
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last
Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) : 4 8 16 32 64 128 256 512 1k 2k 4k
aida01 : 41 31 31 8 1 4 1 2 2 3 6 : 35788
aida02 : 42 31 29 5 3 2 4 4 1 3 6 : 36304
aida03 : 29 30 29 16 4 3 2 4 1 3 6 : 36276
aida04 : 28 4 20 12 4 3 4 4 2 2 6 : 35280
aida05 : 25 28 23 10 2 2 2 2 1 4 6 : 36724
aida06 : 5 3 10 5 2 4 2 2 2 3 6 : 35308
aida07 : 38 26 22 9 4 3 1 2 2 3 6 : 35688
aida08 : 52 30 28 8 0 2 2 3 3 2 6 : 35200
aida09 : 22 26 21 10 3 4 1 4 1 3 6 : 35704
aida10 : 37 28 25 7 3 1 1 3 3 3 6 : 36900
aida11 : 53 30 20 10 2 3 2 2 2 3 6 : 35908
aida12 : 37 34 17 10 2 2 3 4 3 2 6 : 35956
aida13 : 47 34 16 7 4 2 3 4 3 2 6 : 36012
aida14 : 37 29 17 10 3 4 3 4 3 2 6 : 36236
aida15 : 44 28 25 12 3 2 4 4 2 2 6 : 35424
aida16 : 40 21 33 15 3 4 1 3 1 3 6 : 35576
18:40 Analysed R5_67. Attached. Dead time improved. Max ~1.5%
19:40 Temperatures OK
Bias OK - attach 26

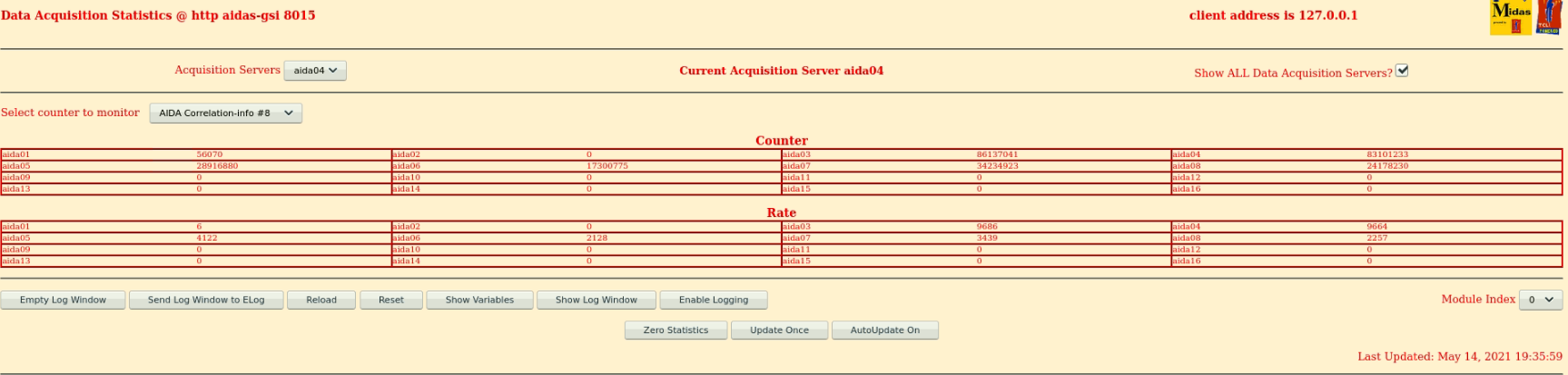

Stats - attach 27-32
System-wide checks
Clock, ADC - all pass
WR
Base Current Difference
aida01 fault 0xf932 : 0xf934 : 2
aida02 fault 0x62ec : 0x62ee : 2
aida03 fault 0x8679 : 0x867b : 2
aida04 fault 0xf0e4 : 0xf0e6 : 2
aida05 fault 0x9db8 : 0x9dc4 : 12
aida06 fault 0x7f18 : 0x7f1a : 2
aida07 fault 0xdd2c : 0xdd2e : 2
aida08 fault 0x1557 : 0x1559 : 2
White Rabbit error counter test result: Passed 8, Failed 8
Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR
Base Current Difference
aida05 fault 0x0 : 0x3 : 3
FPGA Timestamp error counter test result: Passed 15, Failed 1
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last
Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) : 4 8 16 32 64 128 256 512 1k 2k 4k
aida01 : 41 33 30 8 1 4 1 2 2 3 6 : 35788
aida02 : 51 30 30 5 3 2 3 4 1 3 6 : 36092
aida03 : 52 31 28 16 4 2 2 5 1 3 6 : 36744
aida04 : 6 8 20 12 4 4 3 4 2 2 6 : 35096
aida05 : 30 31 22 10 2 2 2 2 1 4 6 : 36752
aida06 : 12 6 10 5 2 3 3 2 2 3 6 : 35488
aida07 : 53 24 21 9 4 3 1 3 2 3 6 : 36228
aida08 : 36 28 28 9 0 2 3 3 3 2 6 : 35408
aida09 : 27 28 25 10 3 4 2 3 1 3 6 : 35548
aida10 : 50 23 26 7 3 1 1 3 3 3 6 : 36928
aida11 : 42 28 22 10 3 3 2 2 2 3 6 : 35944
aida12 : 39 35 15 10 2 2 2 4 3 2 6 : 35684
aida13 : 43 34 17 7 4 2 3 4 3 2 6 : 36012
aida14 : 42 32 16 10 3 4 3 4 3 2 6 : 36264
aida15 : 36 30 25 12 3 2 4 3 3 2 6 : 35920
aida16 : 40 21 25 15 3 4 2 3 1 3 6 : 35704
Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same
FEE : aida01 => Options file size is 1026 Last changed Thu May 13 05:49:42 CEST 2021
FEE : aida02 => Options file size is 1014 Last changed Thu Apr 29 14:43:46 CEST 2021
FEE : aida03 => Options file size is 1014 Last changed Thu Apr 29 14:43:50 CEST 2021
FEE : aida04 => Options file size is 1025 Last changed Fri May 14 16:54:56 CEST 2021
FEE : aida05 => Options file size is 1014 Last changed Thu Apr 29 14:43:55 CEST 2021
FEE : aida06 => Options file size is 1014 Last changed Thu Apr 29 14:43:59 CEST 2021
FEE : aida07 => Options file size is 1014 Last changed Thu Apr 29 14:44:02 CEST 2021
FEE : aida08 => Options file size is 1025 Last changed Wed May 05 12:15:54 CEST 2021
FEE : aida09 => Options file size is 1014 Last changed Thu Apr 29 14:44:08 CEST 2021
FEE : aida10 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida11 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida12 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida13 => Options file size is 1025 Last changed Fri May 07 19:40:34 CEST 2021
FEE : aida14 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida15 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida16 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
19:40 Analysed R5_86. Attached. Dead time as before.
19:57 Shift handed over to James S |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - January 2019
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 257173968 ( 1605341.2 Hz)
Other data format: 4746032 ( 29625.9 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 149 ( 0.9 Hz)
RESUME: 149 ( 0.9 Hz)
SYNC100: 32597 ( 203.5 Hz)
WR48-63: 32597 ( 203.5 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 4680540 ( 29217.0 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 198582 ( 1239.6 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 160.199 s
FEE elapsed dead time(s) elapsed idle time(s)
1 1.826 60.560
2 1.857 72.569
3 3.101 18.747
4 0.000 149.092
5 0.725 60.979
6 0.276 85.413
7 1.668 27.289
8 2.719 31.235
9 0.000 157.899
10 6.867 10.073
11 2.634 42.733
12 0.375 69.093
13 0.000 148.656
14 0.255 79.878
15 3.499 32.266
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 8318308 3120 0 0 3 3 1077 1077 0 960 0 11152
1 17482671 4536 0 0 10 10 2258 2258 0 0 0 22118
2 12591028 1472109 0 0 7 7 1790 1790 0 1468515 0 17237
3 26467090 1465014 0 0 17 17 3574 3574 0 1457832 0 25917
4 2005748 477188 0 0 0 0 331 331 0 476526 0 4838
5 16244903 298514 0 0 5 5 2012 2012 0 294480 0 14514
6 11816116 567974 0 0 7 7 1554 1554 0 564852 0 9683
7 24437155 423701 0 0 8 8 3155 3155 0 417375 0 17498
8 22741388 5724 0 0 10 10 2852 2852 0 0 0 21729
9 1027419 274 0 0 0 0 137 137 0 0 0 1781
10 39497864 9636 0 0 47 47 4771 4771 0 0 0 12114
11 19835466 4892 0 0 8 8 2438 2438 0 0 0 4107
12 15299334 3708 0 0 8 8 1846 1846 0 0 0 19448
13 3576125 840 0 0 0 0 420 420 0 0 0 1437
14 13120071 3182 0 0 7 7 1584 1584 0 0 0 12115
15 22713282 5620 0 0 12 12 2798 2798 0 0 0 2894
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time:63108.355s ( 0.507 blocks/s, 0.032 Mb/s)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - January 2019
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 255938817 ( 1305497.2 Hz)
Other data format: 5981183 ( 30508.9 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 114 ( 0.6 Hz)
RESUME: 113 ( 0.6 Hz)
SYNC100: 32730 ( 166.9 Hz)
WR48-63: 32730 ( 166.9 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 5915496 ( 30173.9 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 257806 ( 1315.0 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 196.047 s
FEE elapsed dead time(s) elapsed idle time(s)
1 2.111 102.399
2 0.513 105.076
3 3.587 39.451
4 0.000 182.105
5 0.792 103.780
6 0.167 115.991
7 1.244 72.680
8 0.805 56.828
9 0.000 190.127
10 2.629 6.967
11 0.295 76.751
12 0.222 114.996
13 0.000 188.225
14 0.031 124.690
15 2.491 63.947
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 8223770 3364 0 0 2 2 1092 1092 0 1176 0 13825
1 16628095 4338 0 0 12 12 2157 2157 0 0 0 28636
2 13173045 1831289 0 0 3 3 1864 1864 0 1827555 0 22667
3 27251797 1807380 0 0 13 13 3668 3668 0 1800018 0 33190
4 2564061 622927 0 0 0 0 404 404 0 622119 0 6108
5 14810679 385418 0 0 6 6 1903 1903 0 381600 0 19053
6 12067625 742516 0 0 6 6 1616 1616 0 739272 0 12600
7 21266971 549224 0 0 11 11 2723 2723 0 543756 0 22659
8 23290358 5786 0 0 5 5 2888 2888 0 0 0 28199
9 1157906 324 0 0 0 0 162 162 0 0 0 2443
10 45608185 11489 0 0 27 26 5718 5718 0 0 0 16139
11 20146427 4876 0 0 6 6 2432 2432 0 0 0 5579
12 13411417 3300 0 0 7 7 1643 1643 0 0 0 24922
13 2681820 654 0 0 0 0 327 327 0 0 0 1925
14 11884997 2904 0 0 1 1 1451 1451 0 0 0 15892
15 21771664 5394 0 0 15 15 2682 2682 0 0 0 3969
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time:67311.180s ( 0.475 blocks/s, 0.030 Mb/s)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - January 2019
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 256871525 ( 1549964.4 Hz)
Other data format: 5048475 ( 30462.5 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 133 ( 0.8 Hz)
RESUME: 132 ( 0.8 Hz)
SYNC100: 32617 ( 196.8 Hz)
WR48-63: 32617 ( 196.8 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 4982976 ( 30067.3 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 217412 ( 1311.9 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 165.727 s
FEE elapsed dead time(s) elapsed idle time(s)
1 1.819 66.425
2 0.365 78.785
3 3.792 29.131
4 0.000 149.995
5 0.868 74.751
6 0.080 85.583
7 2.138 33.988
8 2.899 39.410
9 0.000 164.566
10 6.499 11.006
11 1.139 43.564
12 0.944 80.601
13 0.000 152.925
14 0.102 87.597
15 2.546 36.680
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 8622288 3316 0 0 4 3 1158 1158 0 993 0 11812
1 17129008 4510 0 0 12 12 2243 2243 0 0 0 24429
2 13474006 1553973 0 0 6 6 1869 1869 0 1550223 0 19028
3 26129234 1524704 0 0 20 20 3374 3374 0 1517916 0 27835
4 2168475 521045 0 0 0 0 352 352 0 520341 0 5247
5 15823578 326080 0 0 4 4 1963 1963 0 322146 0 16074
6 12515224 622754 0 0 2 2 1625 1625 0 619500 0 10516
7 23990039 458079 0 0 12 12 3099 3099 0 451857 0 18924
8 22108276 5660 0 0 13 13 2817 2817 0 0 0 24206
9 1062355 236 0 0 0 0 118 118 0 0 0 1949
10 41223894 10244 0 0 40 40 5082 5082 0 0 0 13136
11 20572413 4974 0 0 7 7 2480 2480 0 0 0 4577
12 14036482 3446 0 0 3 3 1720 1720 0 0 0 21370
13 3191210 818 0 0 0 0 409 409 0 0 0 1573
14 12949121 3198 0 0 3 3 1596 1596 0 0 0 13450
15 21875922 5438 0 0 7 7 2712 2712 0 0 0 3286
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time:70812.570s ( 0.452 blocks/s, 0.028 Mb/s)
|
