20.30

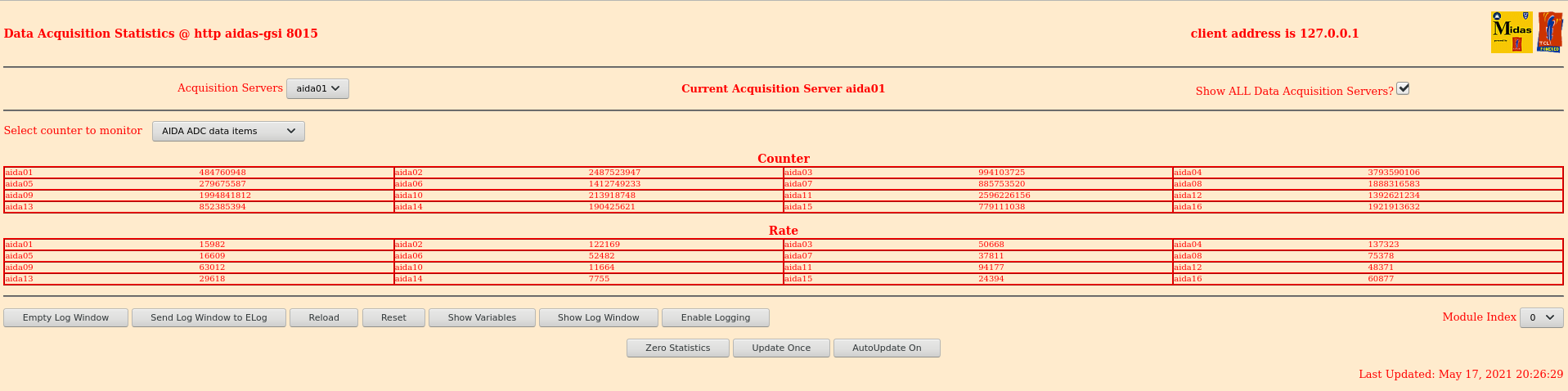

Checked stats, seem okay (Fig 1)

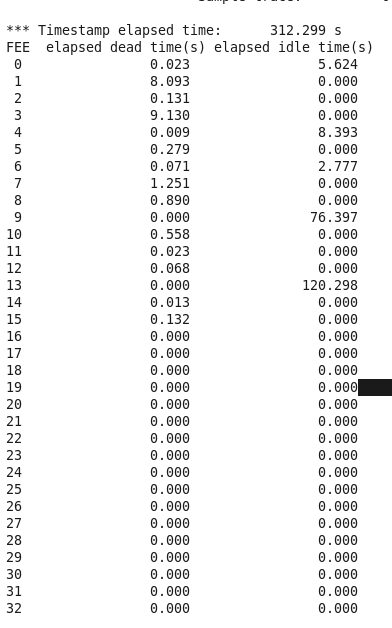

Ran R14_99 through analyser, dead times all good (Fig 2)
Merger rate 1.8M items/s
Tape server 6.4MB/s

21.00
Checked stats seem okay (Fig 3)
Ran R14_106 through analyser, dead times all good (Fig 4)

21.30
Checked stats seem okay (Fig 5)
Ran R14_112 through analyser, dead times all good (Fig 6)

22.00
Stats okay (Fig 7)

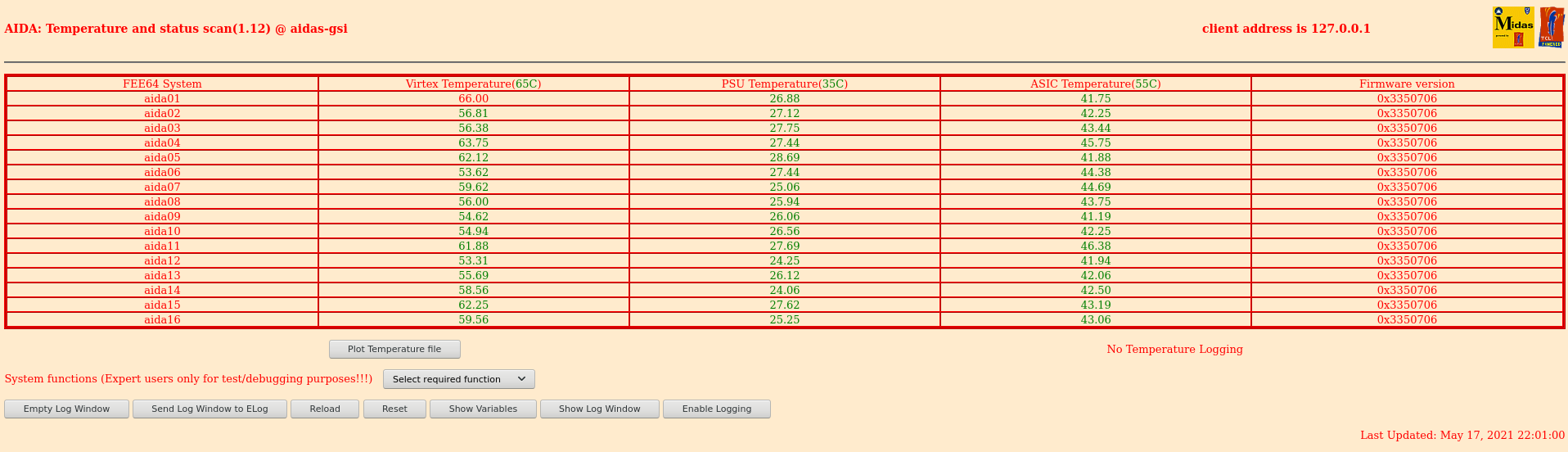

FEE temps okay (Fig 8)

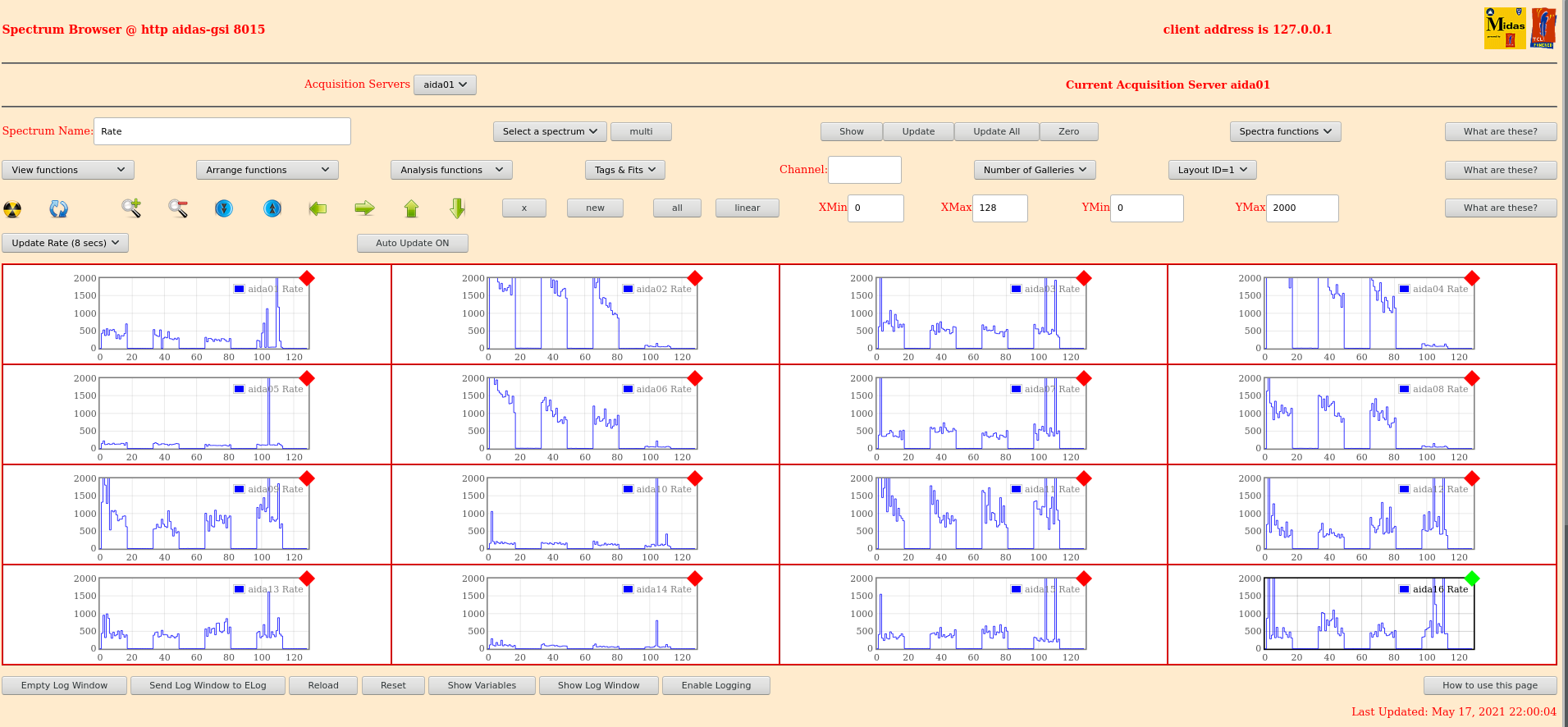

Rate spectra (Fig 9)

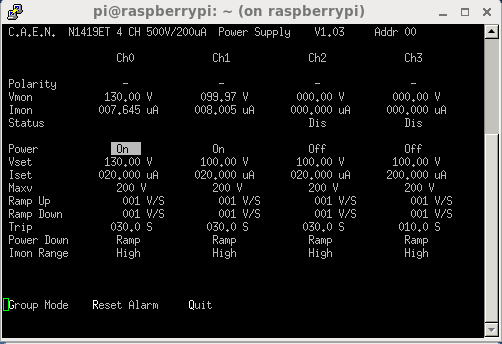

Leakage currents (Fig 10)

System wide checks:
Clock status all passed

White rabbit 1 fail:
		 Base 		Current 	Difference
aida05 fault 	 0x4da : 	 0x4e7 : 	 13
White Rabbit error counter test result: Passed 15, Failed 1

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

FPGA timestamp all passed

Merger rate 2.4M items/s
Tape server 6.3MB/s

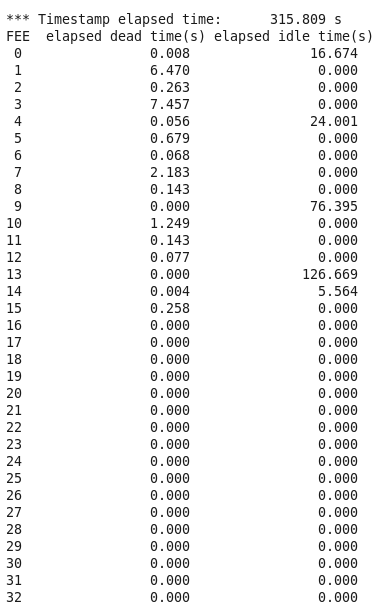

Ran R14_119 through analyser, dead times all good (Fig 11)

22.30

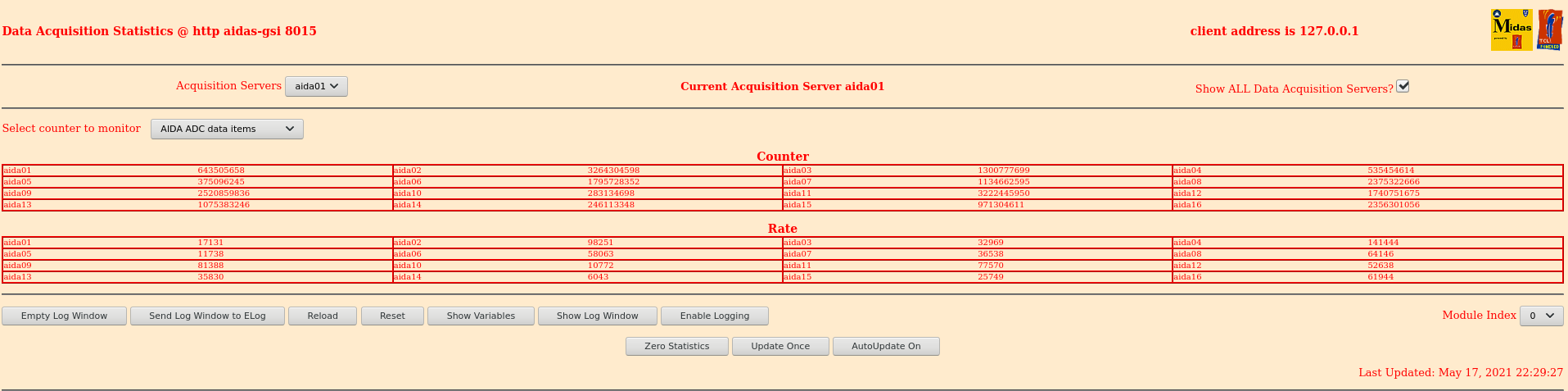

Checked stats seem okay (Fig 12)
Ran R14_123 through analyser, dead times all good (Fig 13)

23.00
Checked stats seem okay (Fig 14)
Ran R14_129 through analyser, dead times all good (Fig 15)

23.30
Checked stats seem okay (Fig 16)

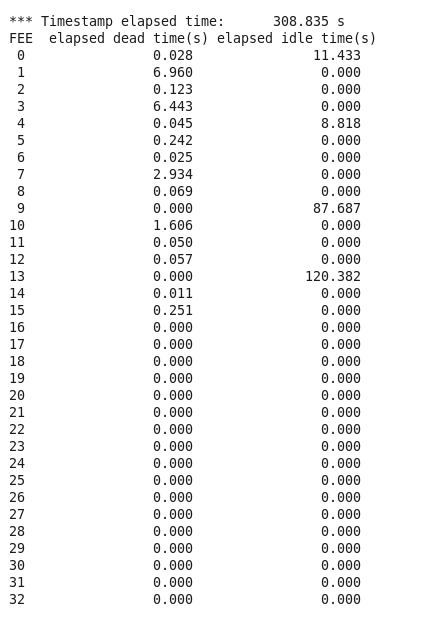

Ran R14_135 through analyser, dead times all good (Fig 17)

24.00
Stats okay (Fig 18)

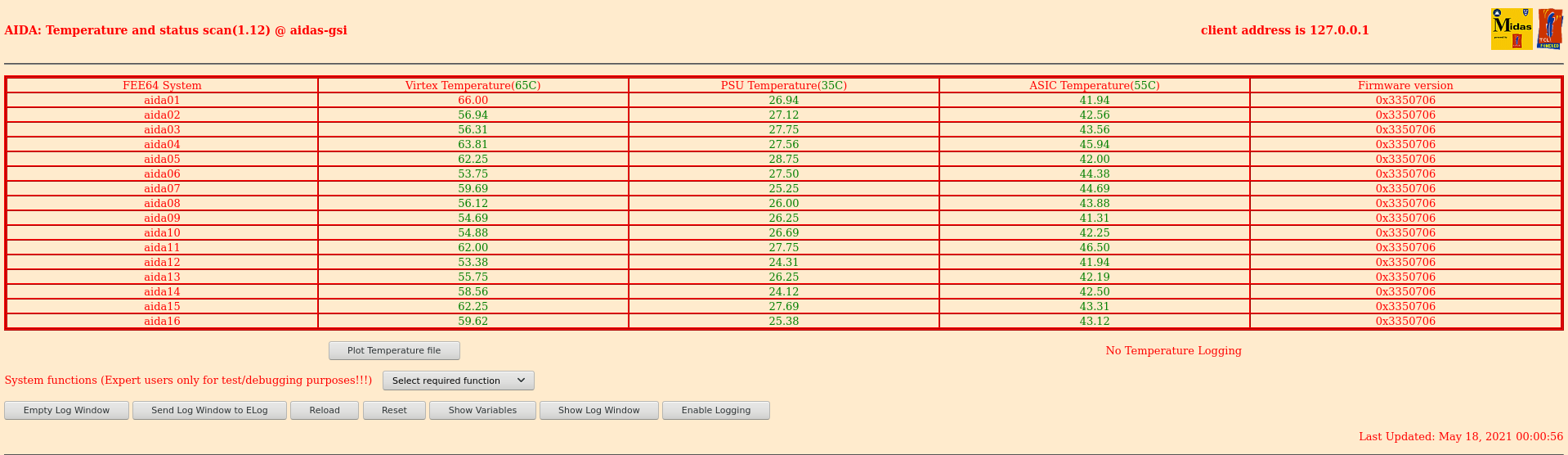

FEE temps okay (Fig 19)

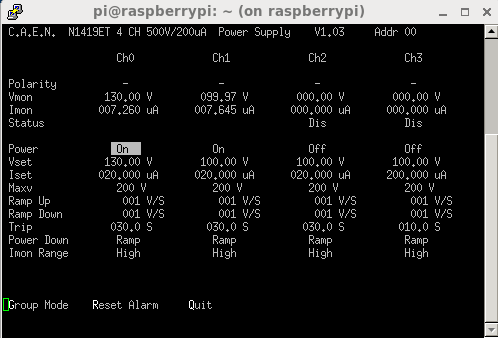

Leakage currents (Fig 20)

System wide checks:
Clock status all passed

White rabbit 1 fail:
		 Base 		Current 	Difference
aida05 fault 	 0x4da : 	 0x4eb : 	 17
White Rabbit error counter test result: Passed 15, Failed 1

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

FPGA timestamp all passed

Merger rate 2.5M items/s
Tape server 6.5MB/s

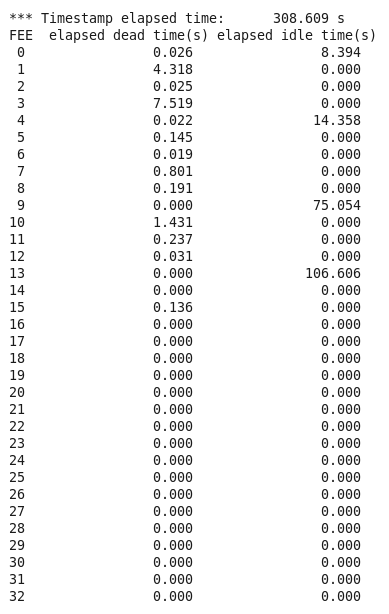

Ran R14_142 through analyser, dead times all good (Fig 21)
