Entry time:Tue May 18 14:57:43 2021
Author*:
Subject*:

Encoding:

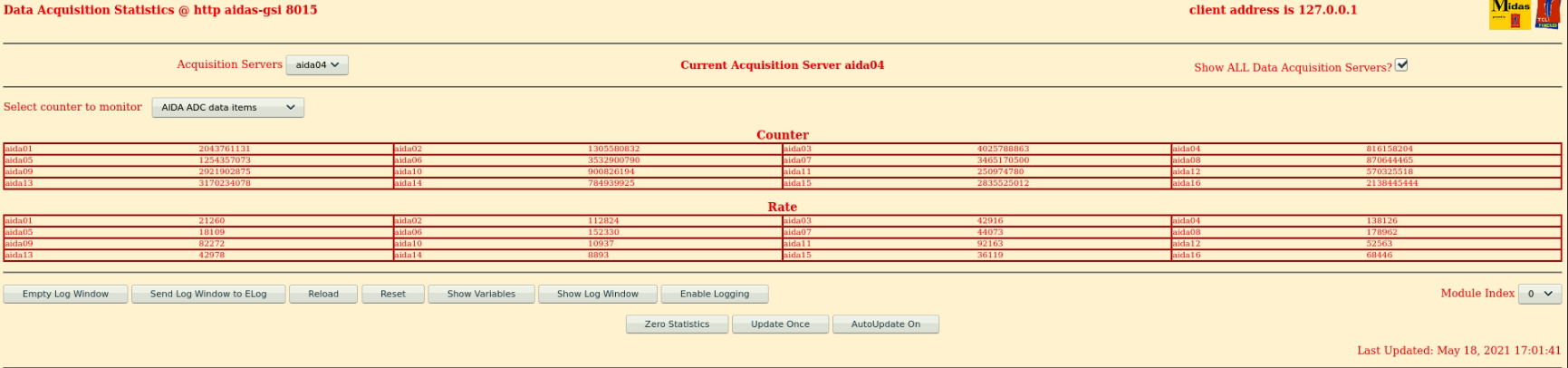

Attachment 1:
Make smaller Original size Make larger   Rotate left Rotate right   Delete attachment    Stats1.png  Original size: 1730x415

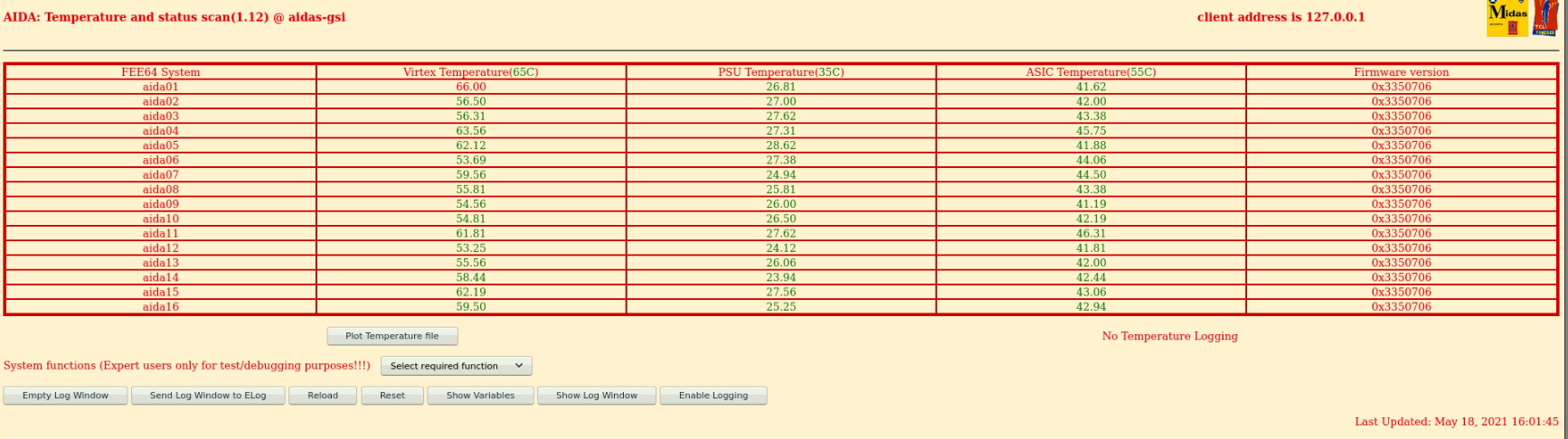

Attachment 2:
Make smaller Original size Make larger   Rotate left Rotate right   Delete attachment    Temps1.png  Original size: 1734x486
Attachment 3:
Make smaller Original size Make larger   Rotate left Rotate right   Delete attachment    Bias1.png  Original size: 435x280
Attachment 4: Analysis_R14_342
 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  252065796 ( 1015168.3 Hz)
        Other data format:    9854206 (   39686.8 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        242 (       1.0 Hz)
                               RESUME:        241 (       1.0 Hz)
                              SYNC100:      32924 (     132.6 Hz)
                              WR48-63:      32924 (     132.6 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    9787875 (   39419.6 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     499592 (    2012.1 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      248.300 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.028               16.674
  1                4.476                0.000
  2                0.095                0.000
  3                4.784                0.000
  4                0.046               31.798
  5                8.905                0.000
  6                0.093                3.062
  7                8.121                0.000
  8                0.937                0.000
  9                0.000               59.989
 10                0.965                0.000
 11                0.025                0.000
 12                0.042                0.000
 13                0.000               63.078
 14                0.061                0.000
 15                0.217                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0    5702434       2900          0          0          3          3        703        703          0       1488          0      26833
  1   25200522       6341          0          0         31         30       3140       3140          0          0          0      55809
  2   10737118    2562866          0          0          3          3       1687       1687          0    2559486          0      44132
  3   32448674    2519917          0          0         37         37       4558       4558          0    2510727          0      63444
  4    3679860    1335111          0          0          5          5        577        577          0    1333947          0      11808
  5   37244520     759044          0          0         62         62       4940       4940          0     749040          0      34314
  6    9560033    1568630          0          0          3          3       1348       1348          0    1565928          0      23903
  7   40864979    1077667          0          0         66         66       5138       5138          0    1067259          0      40193
  8   17664728       4388          0          0          6          6       2188       2188          0          0          0      56741
  9    2360528        644          0          0          0          0        322        322          0          0          0       4285
 10   20213561       5020          0          0         12         12       2498       2498          0          0          0      34696
 11   11474187       2786          0          0          1          1       1392       1392          0          0          0      10298
 12    8797735       2188          0          0          1          1       1093       1093          0          0          0      49042
 13    2441760        604          0          0          0          0        302        302          0          0          0       3463
 14    7875814       1932          0          0          4          4        962        962          0          0          0      33004
 15   15799343       4168          0          0          8          8       2076       2076          0          0          0       7627
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   34.352s (  931.544 blocks/s,  58.222 Mb/s)

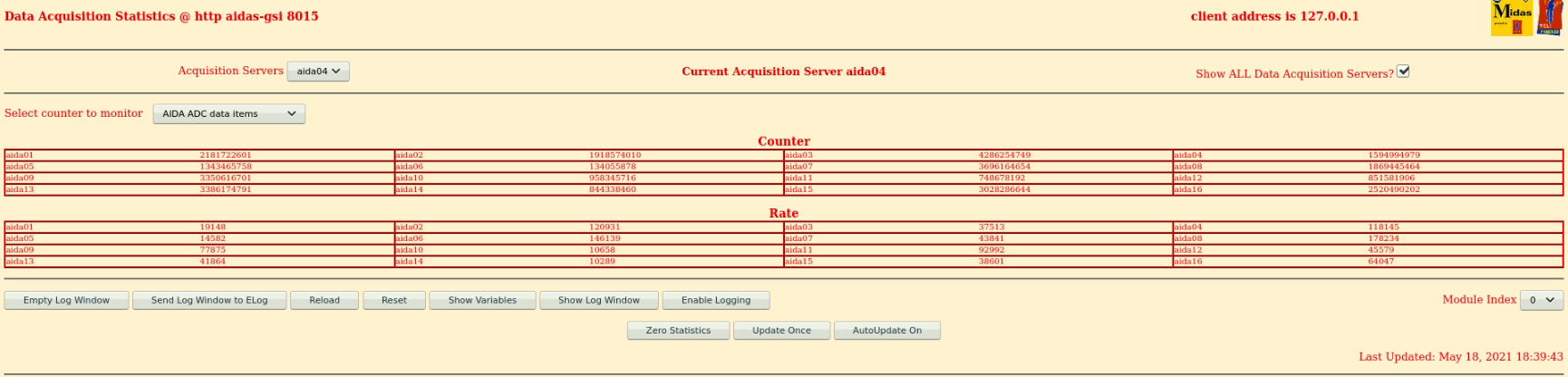

Attachment 5:
Make smaller Original size Make larger   Rotate left Rotate right   Delete attachment    Stats2.png  Original size: 1731x406

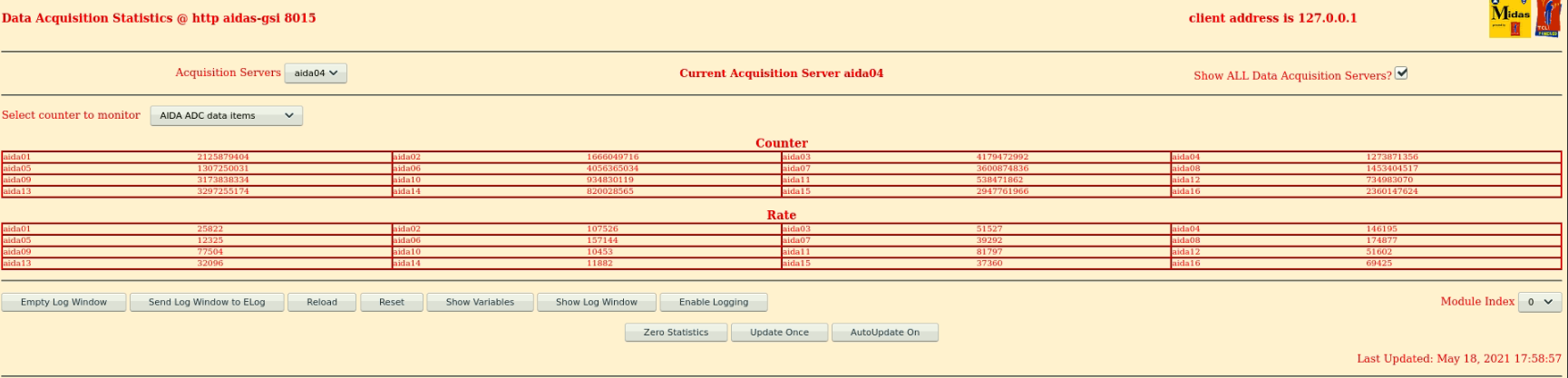

Attachment 6:
Make smaller Original size Make larger   Rotate left Rotate right   Delete attachment    Bias2.png  Original size: 436x285
Attachment 7:
Make smaller Original size Make larger   Rotate left Rotate right   Delete attachment    Stats3.png  Original size: 1729x417
Attachment 8:
Make smaller Original size Make larger   Rotate left Rotate right   Delete attachment    Bias3.png  Original size: 430x278
Attachment 9: Analysis_R14_371
 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  252182561 ( 1038396.9 Hz)
        Other data format:    9737439 (   40095.3 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        234 (       1.0 Hz)
                               RESUME:        234 (       1.0 Hz)
                              SYNC100:      32904 (     135.5 Hz)
                              WR48-63:      32904 (     135.5 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    9671163 (   39822.4 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     493534 (    2032.2 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      242.858 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.060               15.876
  1                5.312                0.000
  2                0.091                0.000
  3                3.590                0.000
  4                0.163               29.634
  5                9.407                0.000
  6                0.049                0.000
  7                6.820                0.000
  8                2.387                0.000
  9                0.000               29.724
 10                0.676                0.000
 11                0.043                0.000
 12                0.046                0.000
 13                0.000               57.696
 14                0.016                3.102
 15                0.214                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0    5708701       2832          0          0          4          4        686        686          0       1452          0      26548
  1   24896226       6554          0          0         36         36       3241       3241          0          0          0      54251
  2   10734245    2512200          0          0          3          3       1683       1683          0    2508828          0      43373
  3   32202526    2481239          0          0         32         32       4391       4391          0    2472393          0      63125
  4    3649395    1322612          0          0         11         11        611        611          0    1321368          0      11610
  5   36874871     743171          0          0         64         64       4722       4722          0     733599          0      33565
  6    9551266    1557362          0          0          1          1       1434       1434          0    1554492          0      23558
  7   41439213    1089893          0          0         57         57       5374       5374          0    1079031          0      40478
  8   17460031       4238          0          0          7          7       2112       2112          0          0          0      55845
  9    2360192        582          0          0          0          0        291        291          0          0          0       4290
 10   20593873       5182          0          0          6          6       2585       2585          0          0          0      34440
 11   11697470       2942          0          0          2          2       1469       1469          0          0          0      10244
 12    8815559       2192          0          0          1          1       1095       1095          0          0          0      48502
 13    2454200        586          0          0          0          0        293        293          0          0          0       3481
 14    7942567       1924          0          0          2          2        960        960          0          0          0      32639
 15   15802226       3930          0          0          8          8       1957       1957          0          0          0       7585
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   33.879s (  944.541 blocks/s,  59.034 Mb/s)
Attachment 10:
Make smaller Original size Make larger   Rotate left Rotate right   Delete attachment    Stats4.png  Original size: 1730x416
Attachment 11:
Make smaller Original size Make larger   Rotate left Rotate right   Delete attachment    Bias4.png  Original size: 429x277
Attachment 12:
Drop attachments here...

ELOG V3.1.4-unknown
