19.50
Stats okay (Fig 1)

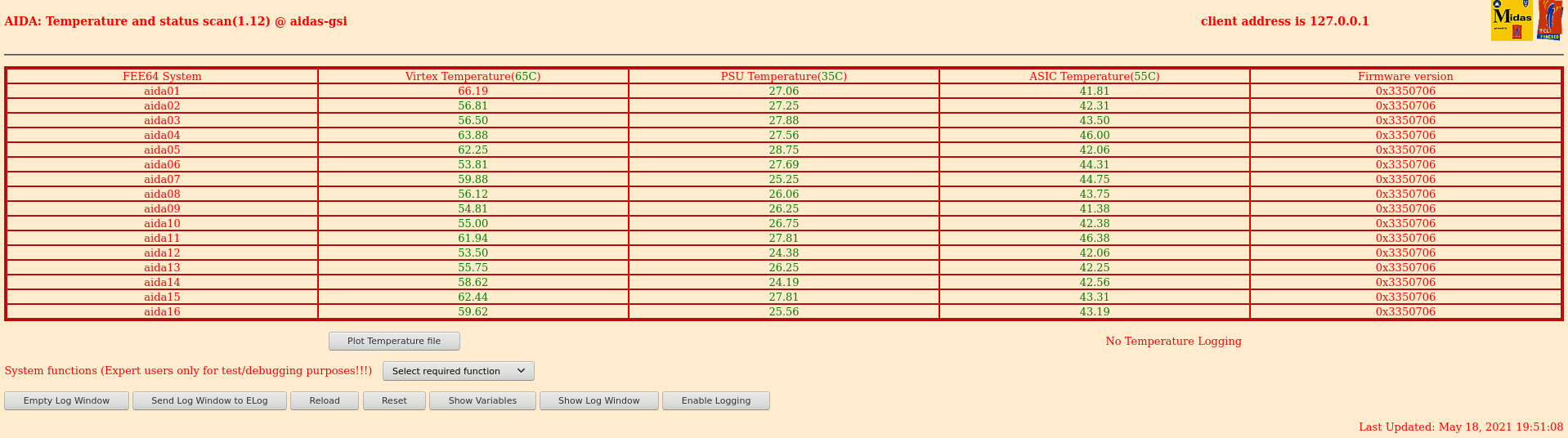

FEE temps okay (Fig 2)

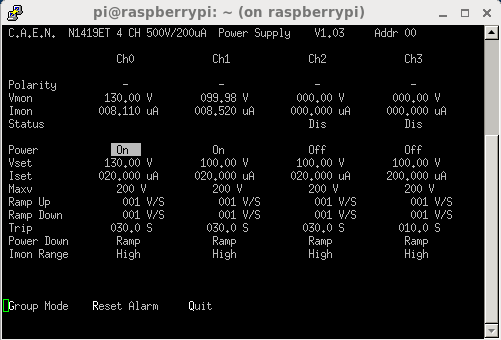

Bias okay (Fig 3)

System wide checks okay except:

		 Base 		Current 	Difference
aida05 fault 	 0x500 : 	 0x520 : 	 32
White Rabbit error counter test result: Passed 15, Failed 1

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

Merger rate ~1.8M items/s
Tape server ~7MB/s

Analysed R14_399, deadtimes are okay (Fig 4)

20.30
Stats okay (Fig 5)
Analysed R14_407, deadtimes are okay (Fig 6)

21.00
Stats okay (Fig 7)

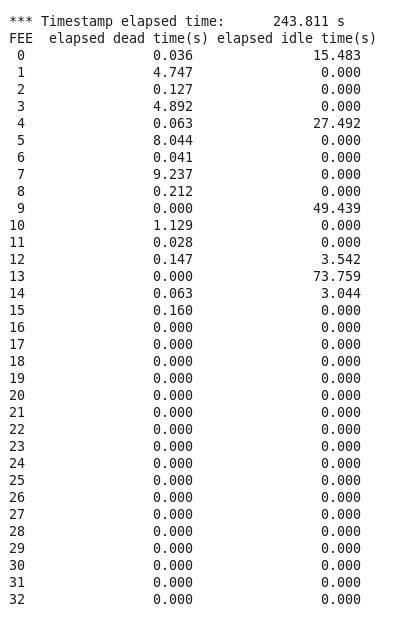

Analysed R14_415, deadtimes are okay (Fig 8)

21.30

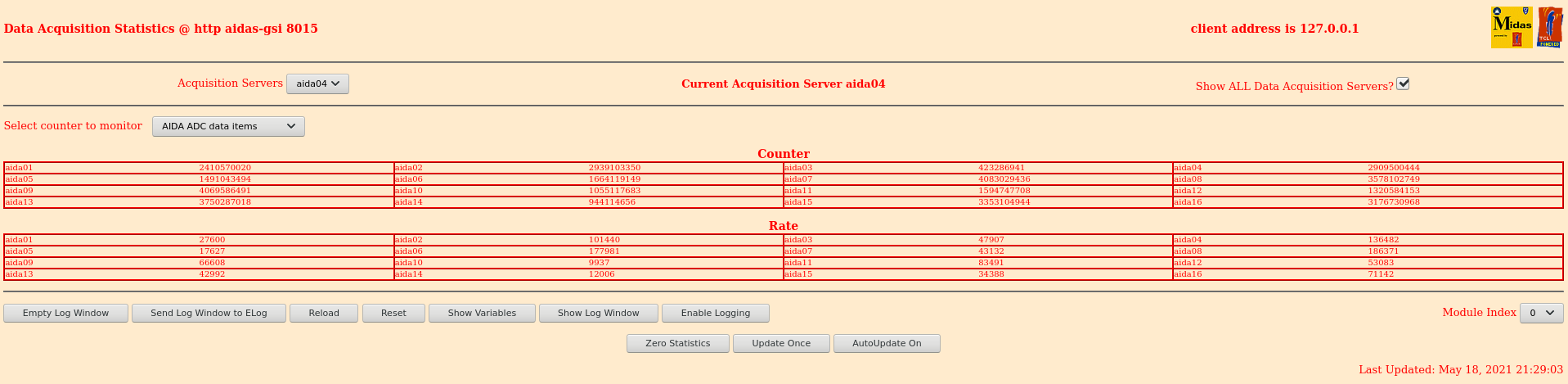

Stats okay (Fig 9)

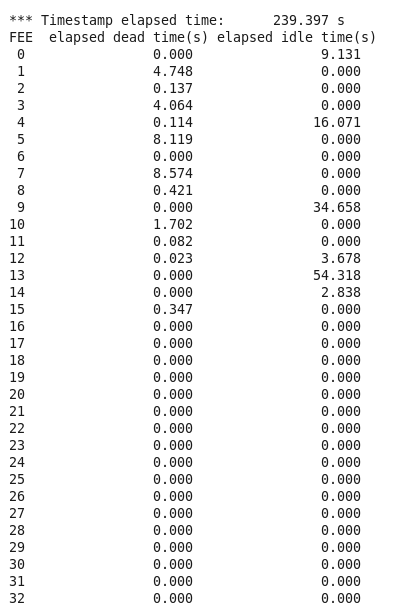

Analysed R14_422, deadtimes are okay (Fig 10)

22.00

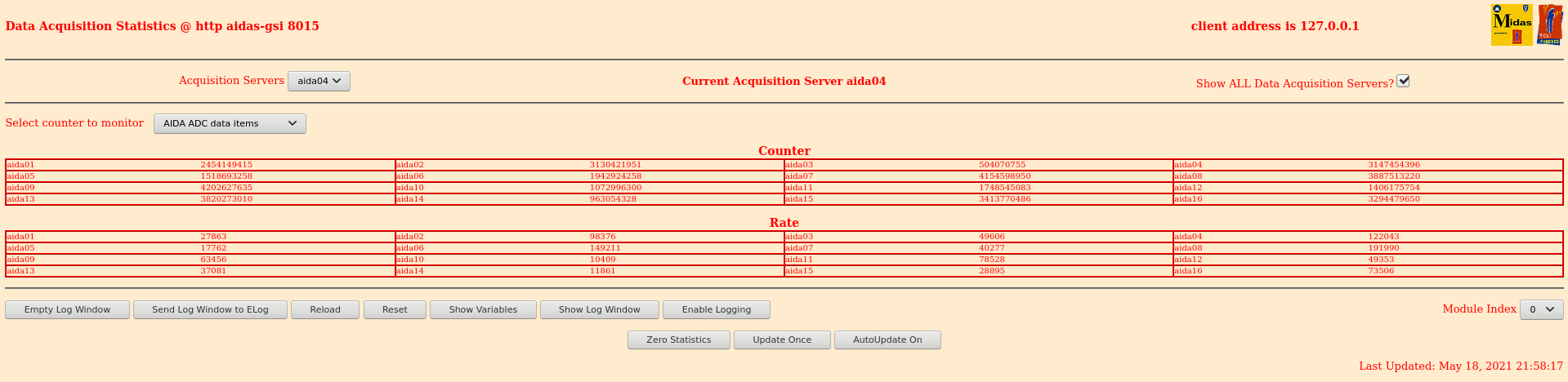

Stats okay (Fig 11)
FEE temps okay (Fig 12)
Bias okay (Fig 13)

System wide checks okay except:

		 Base 		Current 	Difference
aida05 fault 	 0x500 : 	 0x524 : 	 36
White Rabbit error counter test result: Passed 15, Failed 1

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

Merger rate ~2.3M items/s
Tape server ~8MB/s

Analysed R14_430, deadtimes are okay (Fig 14)

22.30
Stats okay (Fig 15)
Analysed R14_438, deadtimes are okay (Fig 16)
FEE8 deadtime seems to be abit higher (7s previous now 11s, total elapsed time both 232s) but still within 5%

23.00
Stats okay (Fig 17)

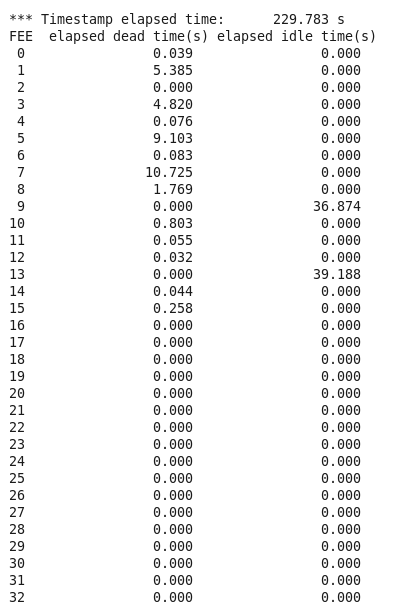

Analysed R14_445, deadtimes are okay (Fig 18)

23.30
Stats okay (Fig 19)
Analysed R14_454, deadtimes are okay (Fig 20)

24.00
Stats okay (Fig 21)

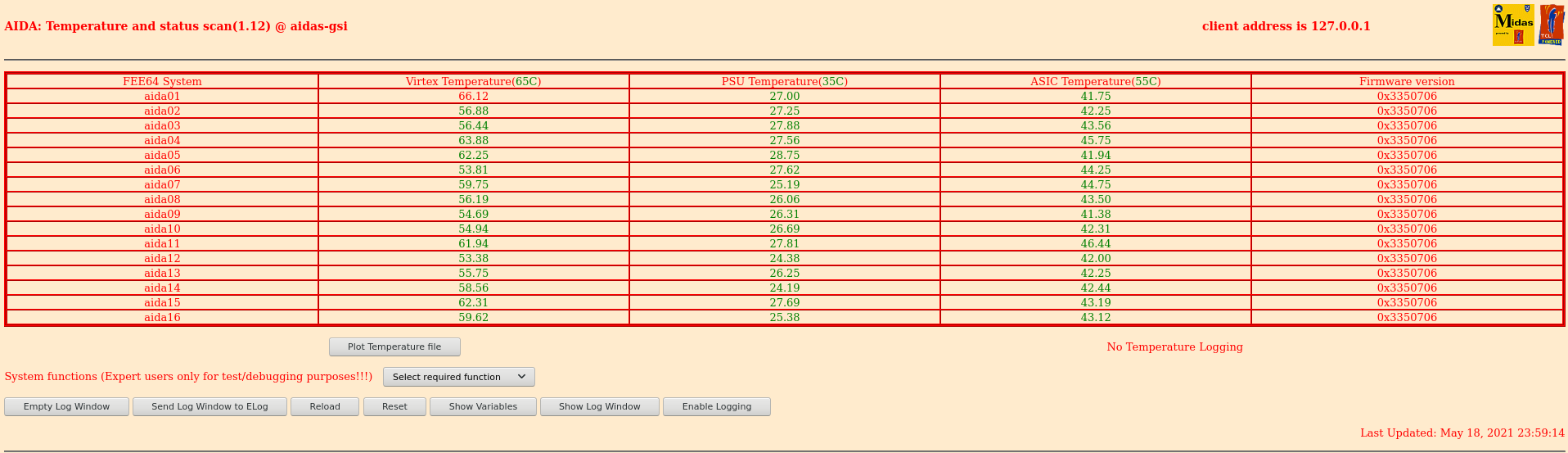

FEE temps okay (Fig 22)

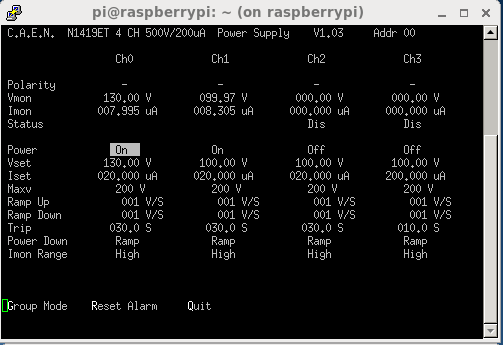

Bias okay (Fig 23)

System wide checks okay except:

		 Base 		Current 	Difference
aida05 fault 	 0x500 : 	 0x529 : 	 41
White Rabbit error counter test result: Passed 15, Failed 1

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

The difference has increased over time (not sure if an issue)

Merger rate ~3M items/s
Tape server ~8MB/s

Analysed R14_462, deadtimes are okay (Fig 24)
