Entry time:

Tue May 18 23:11:40 2021

Author*:

Subject*:

00:00 CA takes over
      LS has performed usual checks, see previous Elog entry - all ok

00:30 stats ok
      R14_470 deadtime at 4.4%

02:10 system wide checks ok except:

all ADC fail calibration (expected, no waveforms)

WR decoder status

Base 		Current 	Difference
aida05 fault 	 0x500 : 	 0x52f : 	 47
White Rabbit error counter test result: Passed 15, Failed 1

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

02:12 FEE64 Temps ok - attachment 1
      Stats ok - attachment 2

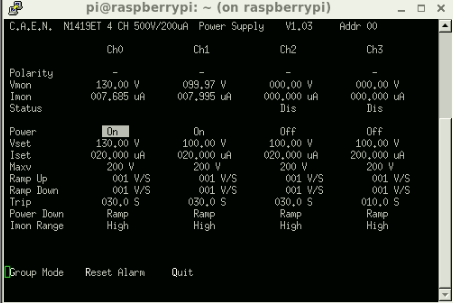

      detector bias / leakage currents ok - attachment 3
      dead-times ok - R14_497 max 4% - attachment 4

03:27 DAQ continues ok - writing to file R14_517

04:07 system wide checks ok except:

all ADC fail calibration (expected, no waveforms)

WR decoder status

Base 		Current 	Difference
aida05 fault 	 0x500 : 	 0x537 : 	 55
White Rabbit error counter test result: Passed 15, Failed 1

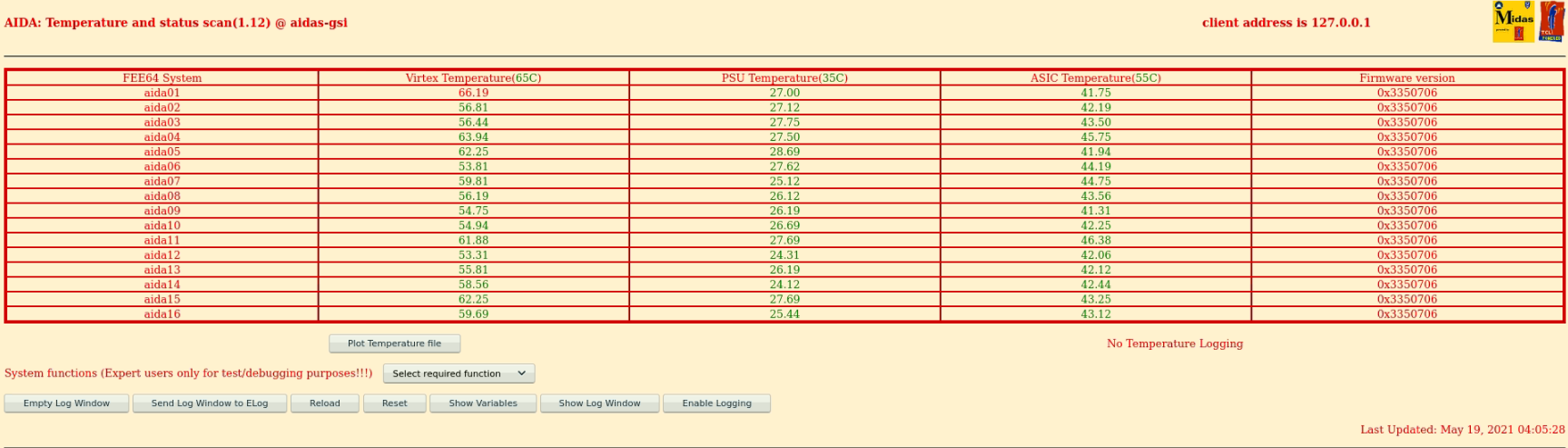

FEE64 Temps ok - attachment 6
      Stats ok - attachment 5

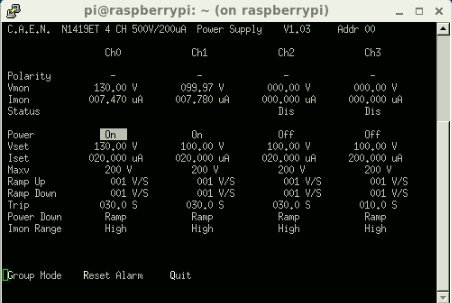

      detector bias / leakage currents ok - attachment 7

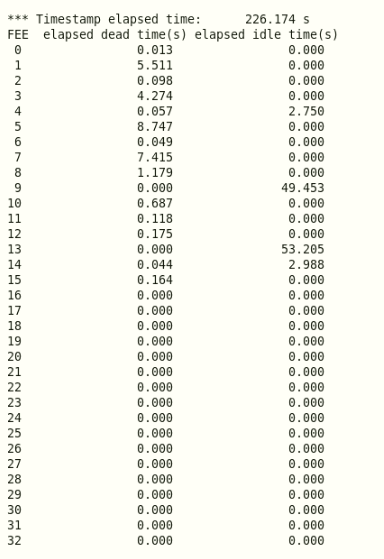

      dead-times ok - R14_526 max 4% - attachment 8

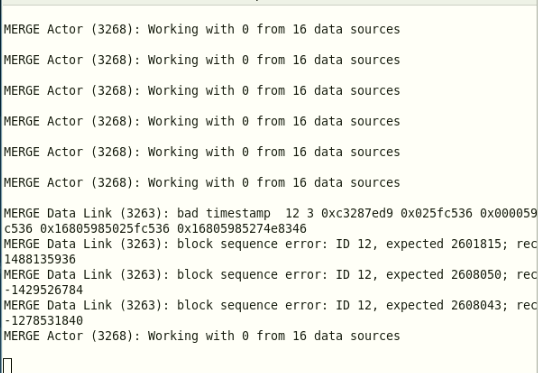

05:27 bad timestamp error in merger terminal - attachment 9

06:05 all system wide checks ok except;

all ADC fail calibration (expected, no waveforms)

WR decoder status

Base 		Current 	Difference
aida05 fault 	 0x500 : 	 0x53d : 	 61
White Rabbit error counter test result: Passed 15, Failed 1

06:07 FEE64 Temps ok - attachment 10

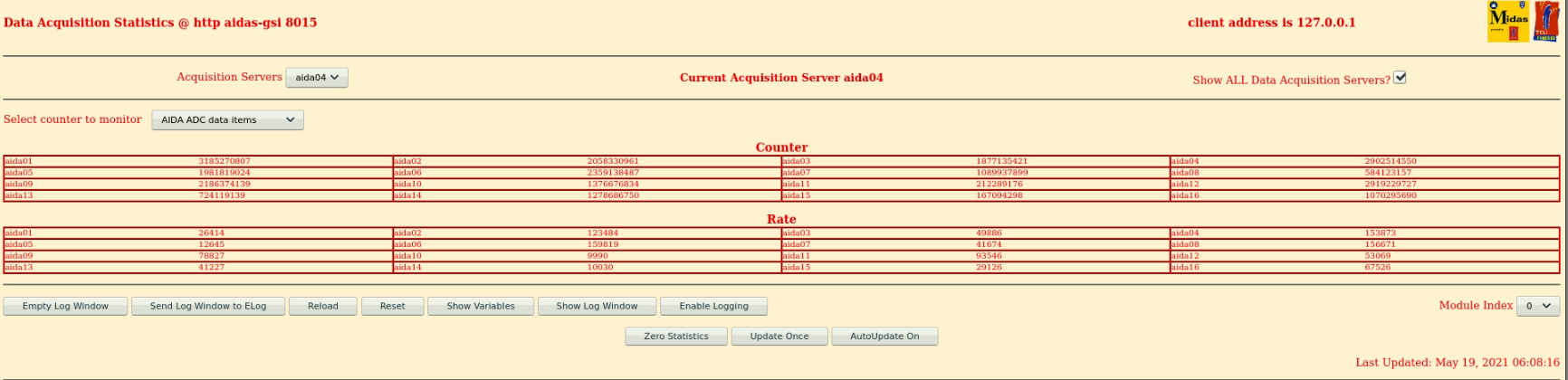

      Stats ok - attachment 11
      detector bias / leakage currents ok - attachment 12

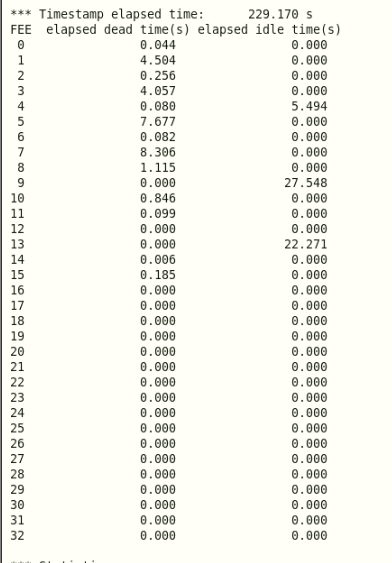

      dead-times ok - R14_558 max 3.6% - attachment 13

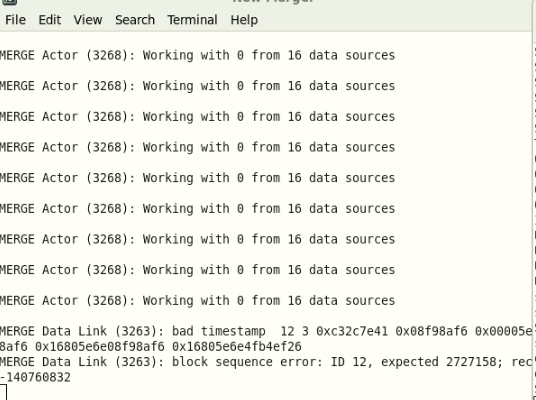

07:01 another bad timestamp error in merger terminal - attachment 14
