Entry time:
Fri Mar 22 13:47:32 2019
Author
*
:
Subject
*
:

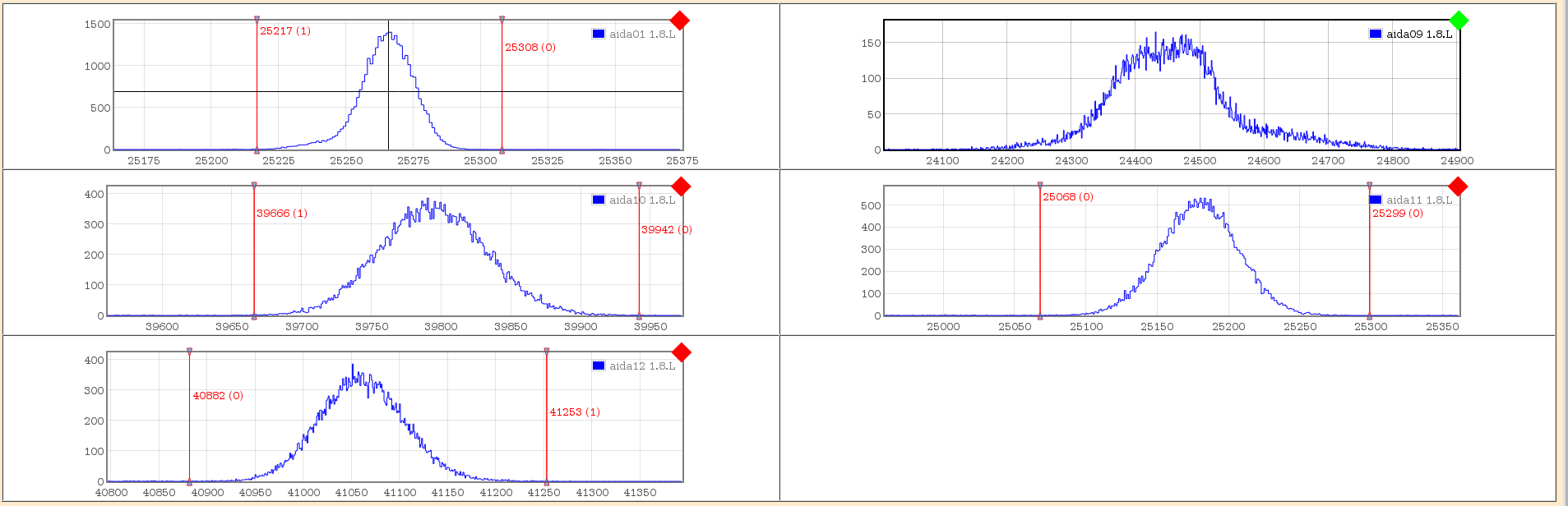

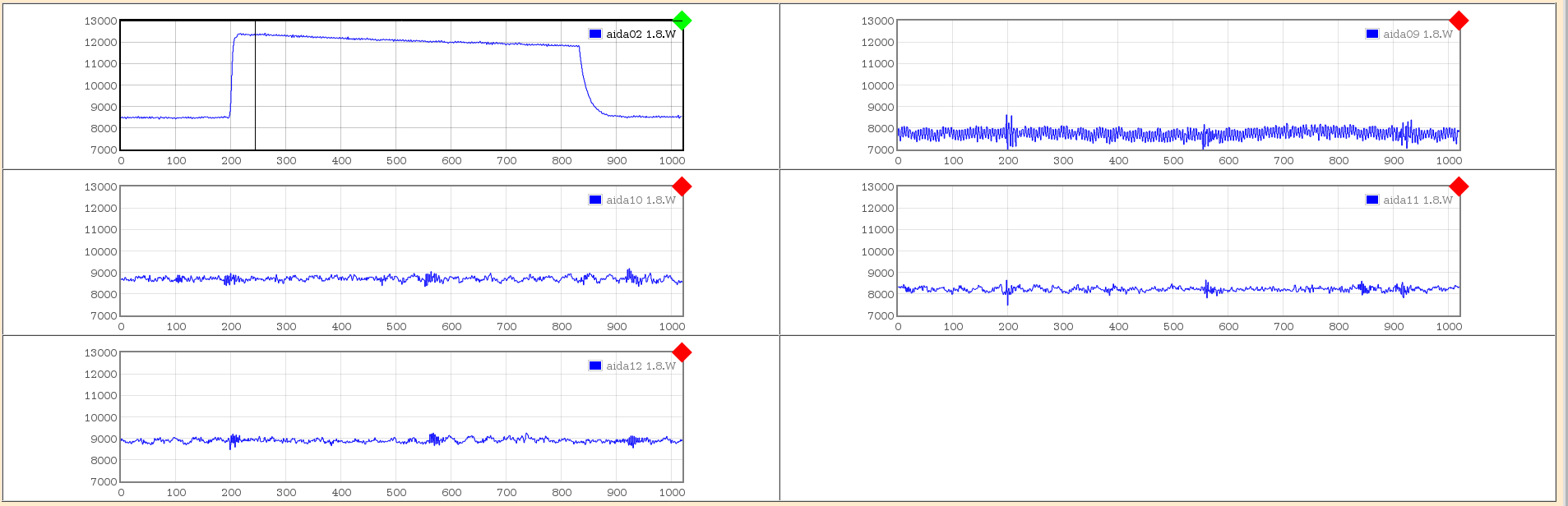

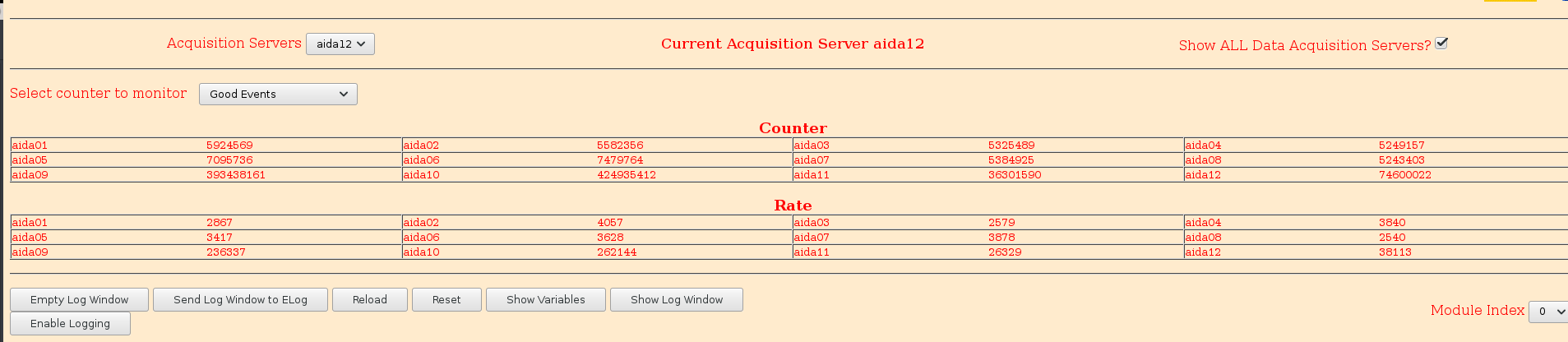

<p>Pulser widths of AIDA modules, resolution is fairly typical. AIDA09 still noisier than other DSSD channels.</p> <p>Figure 1: Picture of pulser peaks<br /> Figure 2: Raw waves (AIDA01 did not calibrate, so AIDA02 used instead as "non DSSD module")<br /> Figure 3: Good Events</p> <p>Fast comparator threshold (LEC/MEC) changed to 0xFF</p> <p>AIDA09 seems noiser than before(?) but is known to be noisy.</p> <p>AIDA01: 24.22</p> <p>AIDA09: 205.21</p> <p>AIDA10: 88.60</p> <p>AIDA11: 63.33</p> <p>AIDA12: 102.69</p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1907x616
Attachment 2:
Original size: 1907x616
Attachment 3:
Original size: 1907x416
