15:55 Took over from OH

16:00
Stats OK - attach 1
Temps OK - attach 2
Bias  OK - attach 3

System wide checks
All OK, except ADC all fail (as before) and WR

Base 		Current 	Difference
aida05 fault 	 0x500 : 	 0x567 : 	 103
White Rabbit error counter test result: Passed 15, Failed 1

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

Analysed R14_691. Attach 4. Dead time <5%

16:34 MBS changes file.

17:00
Stats OK - attach 5
Temps OK - as before
System wide checks as before

 Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same

FEE : aida01 =>   Options file size is 1026 	 Last changed Mon May 17 11:43:04 CEST 2021
 FEE : aida02 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:46 CEST 2021
 FEE : aida03 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:50 CEST 2021
 FEE : aida04 =>   Options file size is 1025 	 Last changed Fri May 14 16:54:56 CEST 2021
 FEE : aida05 =>   Options file size is 1025 	 Last changed Mon May 17 06:25:41 CEST 2021
 FEE : aida06 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:59 CEST 2021
 FEE : aida07 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:02 CEST 2021
 FEE : aida08 =>   Options file size is 1025 	 Last changed Wed May 05 12:15:54 CEST 2021
 FEE : aida09 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:08 CEST 2021
 FEE : aida10 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida11 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida12 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida13 =>   Options file size is 1025 	 Last changed Fri May 07 19:40:34 CEST 2021
 FEE : aida14 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida15 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida16 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021

17:55
Stats OK - attach 6
Temps OK - as before

Leakage current approaching 10 uA - attach 7

System-wide checks - as before except
		 Base 		Current 	Difference
aida05 fault 	 0x500 : 	 0x568 : 	 104
White Rabbit error counter test result: Passed 15, Failed 1

18:01 MBS switches to new file

18:52
Stats OK - attach 8
Temps OK - as before

System-wide checks as before

Analysed R14_741. Avg. dead time slightly increased to 5.1%. Attach 9

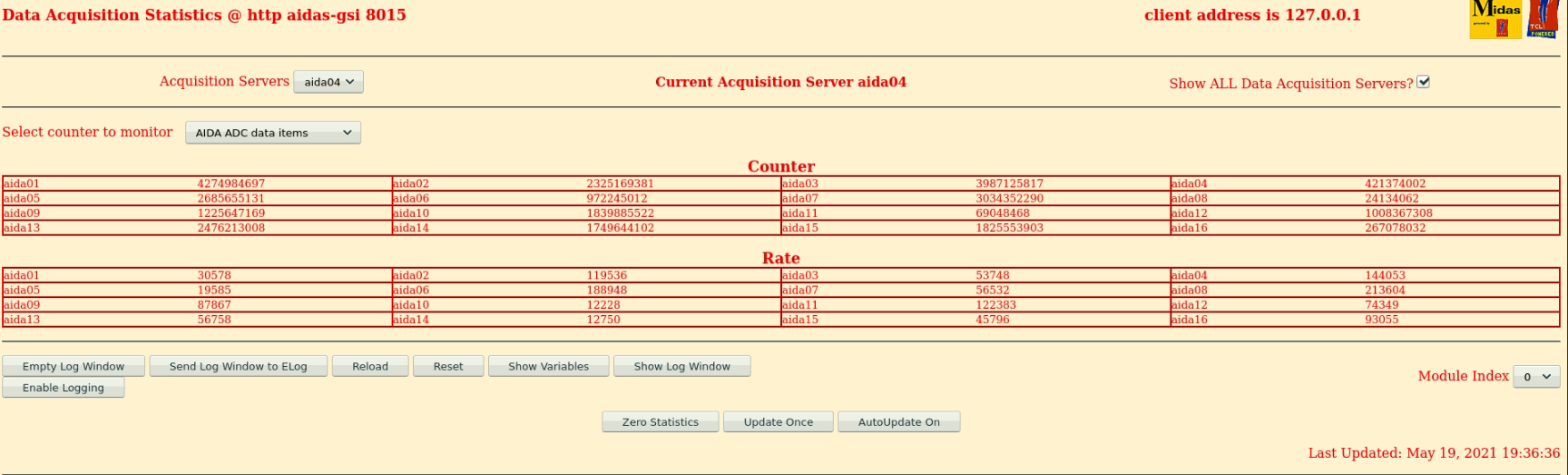

19:36 Stats OK - attach 10
Bias - attach 11

19:48 Shift handed over to LS

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

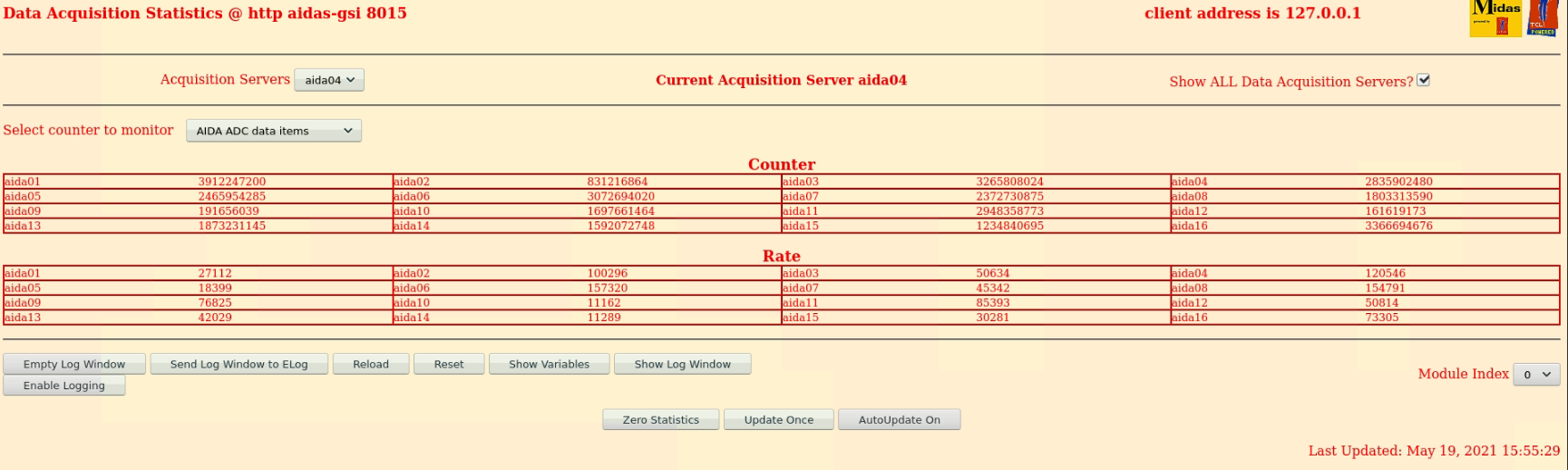

Attachment 1:

Stats1.png Original size: 1729x518

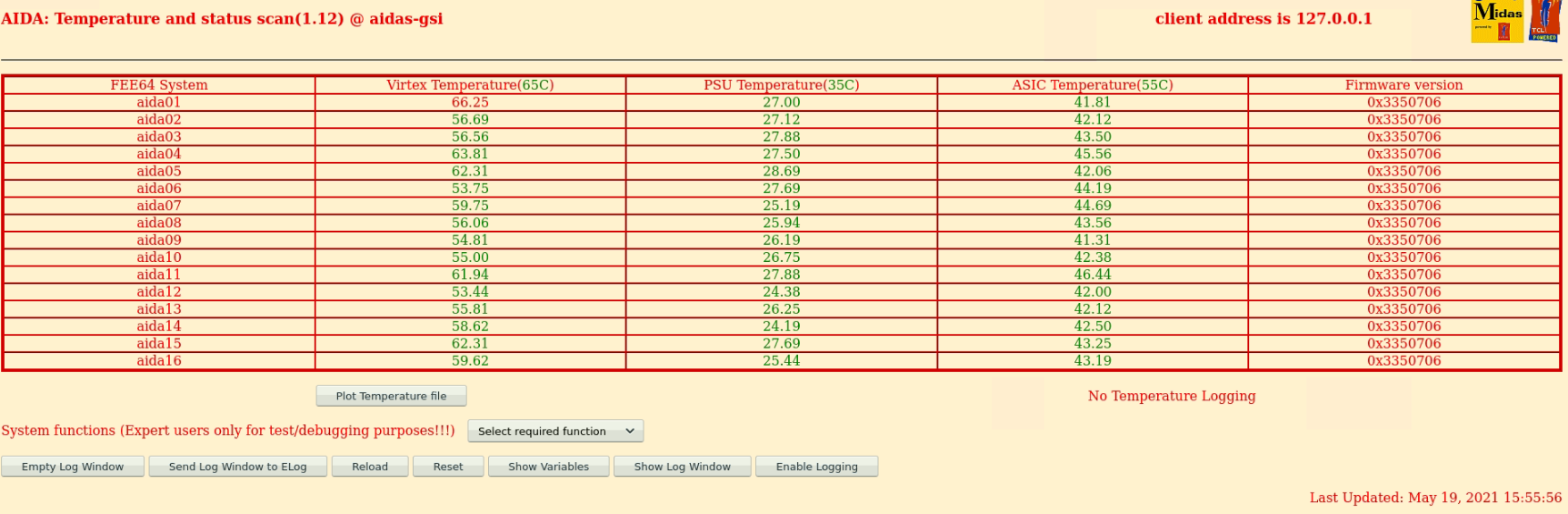

Attachment 2:

Temps1.png Original size: 1725x565

Attachment 3:

Bias1.png Original size: 433x279

Attachment 4:

Analysis_R14_691

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  251761346 (  995725.1 Hz)
        Other data format:   10158654 (   40177.8 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        199 (       0.8 Hz)
                               RESUME:        199 (       0.8 Hz)
                              SYNC100:      32942 (     130.3 Hz)
                              WR48-63:      32942 (     130.3 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:   10092372 (   39915.7 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     503210 (    1990.2 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      252.842 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.053               17.526
  1                1.803                0.000
  2                0.604                2.918
  3                3.773                0.000
  4                0.070               17.512
  5                9.601                0.000
  6                0.278                0.000
  7                9.149                0.000
  8                0.114                0.000
  9                0.000               64.964
 10                0.536                0.000
 11                0.070                0.000
 12                0.024                6.415
 13                0.000               66.391
 14                0.036                7.395
 15                0.097                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0    6023981       3019          0          0          3          3        749        749          0       1515          0      26768
  1   22620294       5924          0          0         14         14       2948       2948          0          0          0      55394
  2   11082857    2607083          0          0          5          5       1799       1799          0    2603475          0      43681
  3   30564809    2580290          0          0         26         26       4295       4295          0    2571648          0      65104
  4    3958862    1393424          0          0          7          7        678        678          0    1392054          0      11940
  5   37388332     780379          0          0         62         62       4752       4752          0     770751          0      33878
  6   10191568    1631763          0          0          8          8       1480       1480          0    1628787          0      23955
  7   39960208    1134610          0          0         55         55       5179       5179          0    1124142          0      42303
  8   17144158       4230          0          0          3          3       2112       2112          0          0          0      56568
  9    2458065        662          0          0          0          0        331        331          0          0          0       4321
 10   20331742       4810          0          0          6          6       2399       2399          0          0          0      34970
 11   11809904       2968          0          0          4          4       1480       1480          0          0          0      10406
 12    9134013       2250          0          0          1          1       1124       1124          0          0          0      49240
 13    2508032        620          0          0          0          0        310        310          0          0          0       3587
 14    8541585       2182          0          0          2          2       1089       1089          0          0          0      33394
 15   18042936       4440          0          0          3          3       2217       2217          0          0          0       7701
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   33.672s (  950.348 blocks/s,  59.397 Mb/s)

Attachment 5:

Stats2.png Original size: 1721x515

Attachment 6:

Stats3.png Original size: 1723x519

Attachment 7:

Bias3.png Original size: 431x275

Attachment 8:

Analysis_R14_741

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  253670855 ( 1280798.3 Hz)
        Other data format:    8249145 (   41650.4 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        236 (       1.2 Hz)
                               RESUME:        236 (       1.2 Hz)
                              SYNC100:      32737 (     165.3 Hz)
                              WR48-63:      32737 (     165.3 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    8183199 (   41317.4 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     413031 (    2085.4 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      198.057 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.011                2.771
  1                4.649                0.000
  2                0.028                0.000
  3                4.808                0.000
  4                0.111                7.488
  5                7.093                0.000
  6                0.128                0.000
  7               10.340                0.000
  8                0.971                0.000
  9                0.000               24.260
 10                0.713                0.000
 11                0.245                0.000
 12                0.122                0.000
 13                0.000               21.524
 14                0.232                0.000
 15                1.605                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0    5709345       2725          0          0          1          1        769        769          0       1185          0      22625
  1   23799538       6034          0          0         27         27       2990       2990          0          0          0      44162
  2   11722022    2092139          0          0          1          1       1767       1767          0    2088603          0      36240
  3   29654318    2044332          0          0         38         38       3940       3940          0    2036376          0      53125
  4    3438629    1158241          0          0          8          8        579        579          0    1157067          0       9655
  5   33876189     636041          0          0         60         60       4396       4396          0     627129          0      27488
  6   10663472    1364583          0          0          5          5       1426       1426          0    1361721          0      20341
  7   38937063     921272          0          0         54         54       5023       5023          0     911118          0      34159
  8   16044621       3966          0          0          9          9       1974       1974          0          0          0      46740
  9    2236927        610          0          0          0          0        305        305          0          0          0       3583
 10   23087850       5792          0          0          6          6       2890       2890          0          0          0      28946
 11   13996775       3362          0          0          8          8       1673       1673          0          0          0       8557
 12    9568717       2316          0          0          4          4       1154       1154          0          0          0      40620
 13    2488330        626          0          0          0          0        313        313          0          0          0       2902
 14    9604847       2392          0          0          6          6       1190       1190          0          0          0      27522
 15   18842212       4714          0          0          9          9       2348       2348          0          0          0       6366
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   34.094s (  938.588 blocks/s,  58.662 Mb/s)

Attachment 9:

Stats4.png Original size: 1734x515

Attachment 10:

Stats6.png Original size: 1728x523

Attachment 11:

Bias6.png Original size: 435x285

Attachment 12:

Drop attachments here...

ELOG V3.1.4-unknown
