20.00

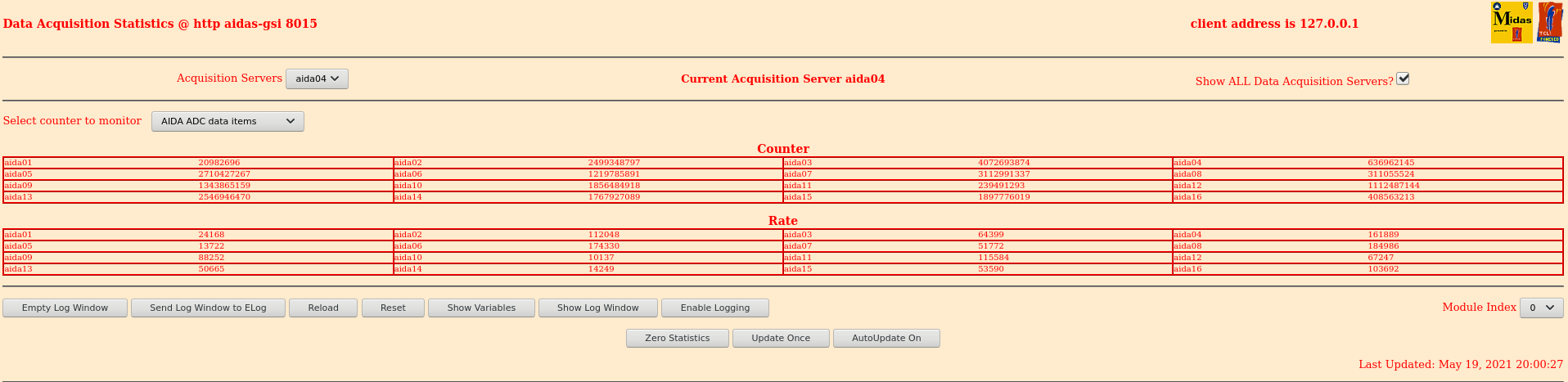

Stats okay (Fig 1)
Analysed R14_762 deadtimes are okay (Fig 2)

20.30
Stats okay (Fig 3)

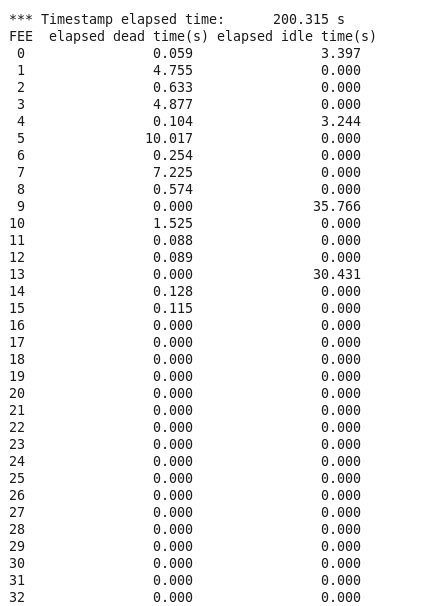

Analysed R14_771 deadtimes are okay (Fig 4)

21.00
Stats okay (Fig 5)

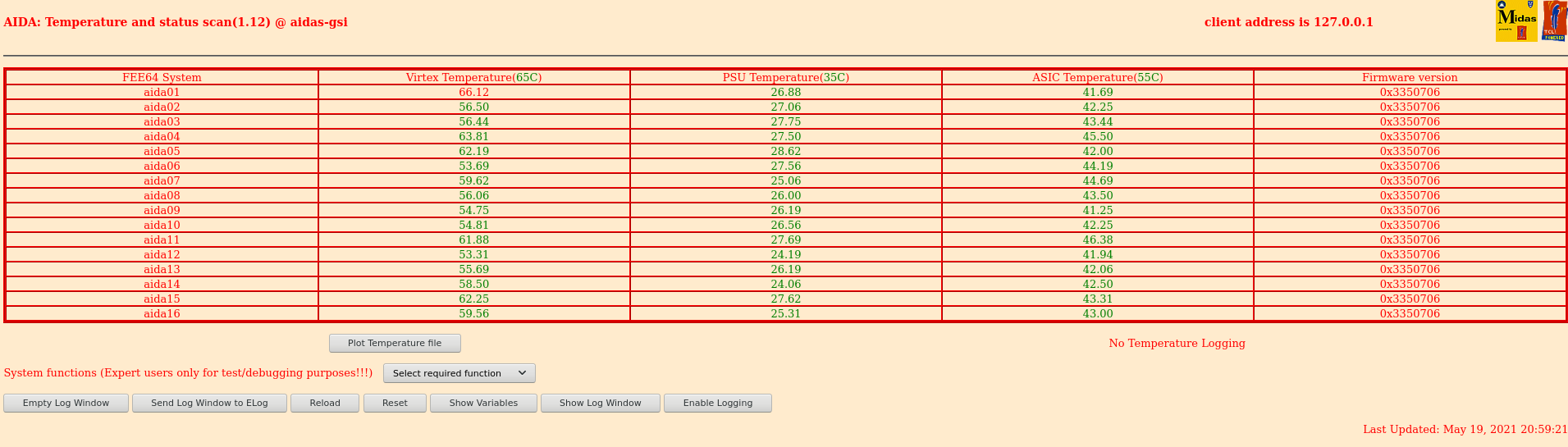

FEE temps okay (Fig 6)

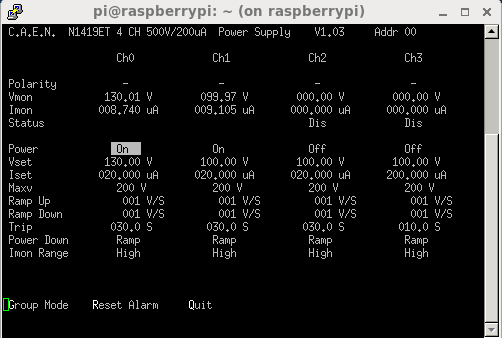

Bias (Fig 7)

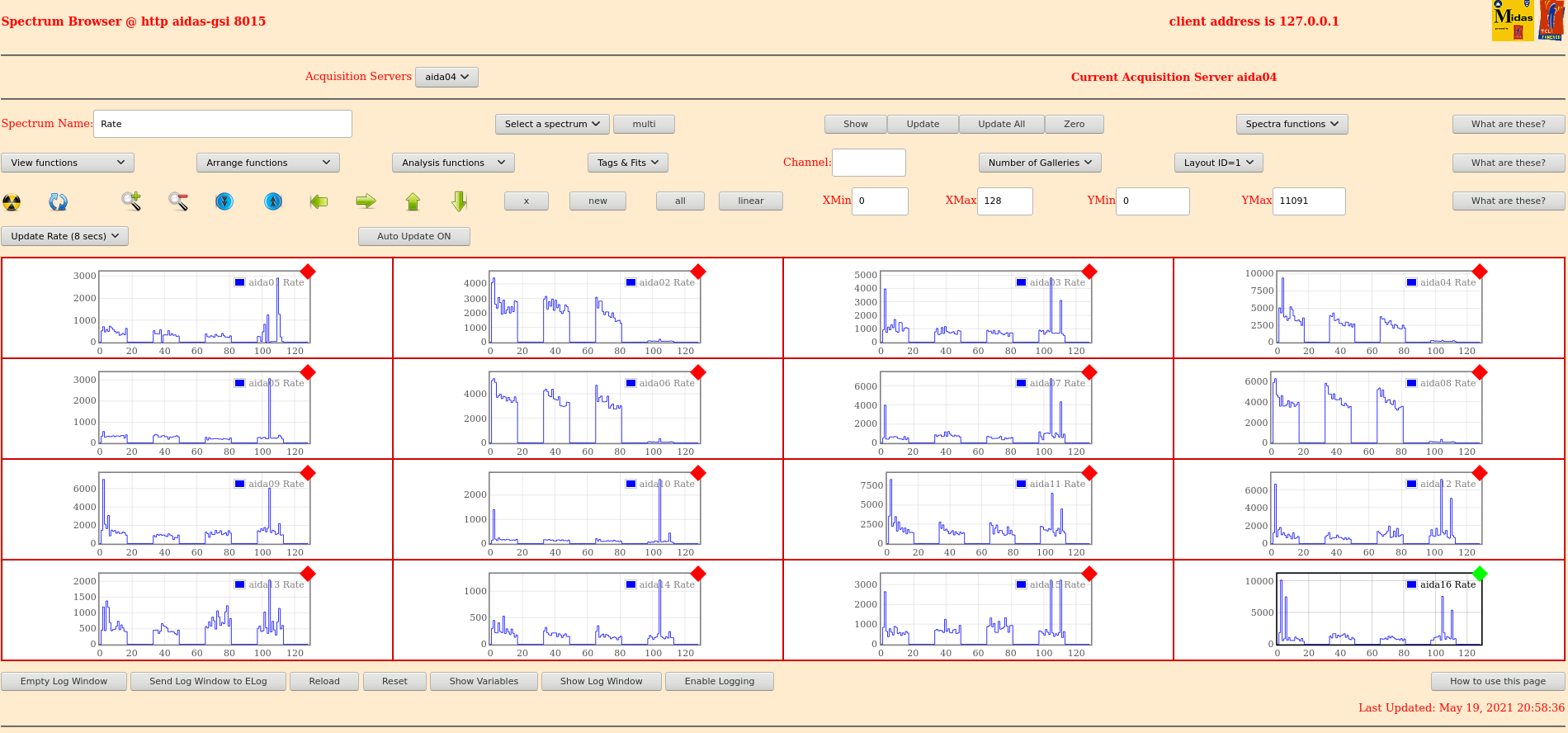

Rate spectra (Fig 8)

System wide checks okay except white rabbit 1 fail:
		 Base 		Current 	Difference
aida05 fault 	 0x500 : 	 0x569 : 	 105
White Rabbit error counter test result: Passed 15, Failed 1

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

Merger rate ~2.8M items/s
Tape server ~10MB/s

Analysed R14_781 deadtimes are okay (Fig 9)

21.30
Stats okay (Fig 10)

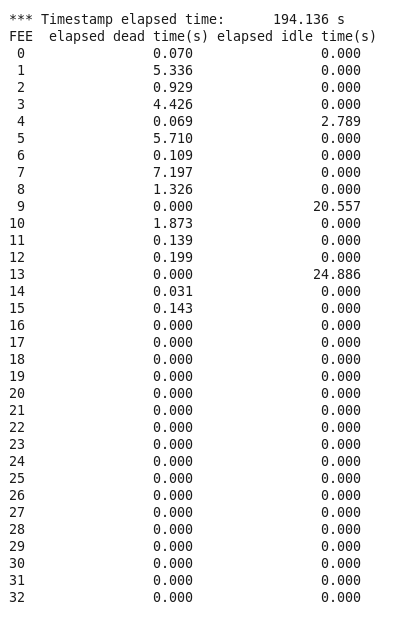

Analysed R14_789 deadtimes are okay (Fig 11)

22.00
Stats okay (Fig 12)

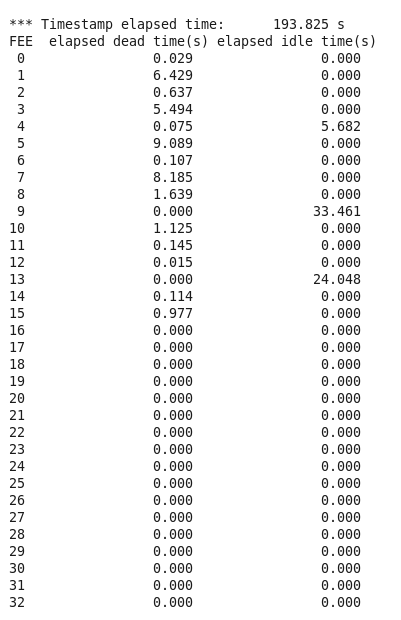

Analysed R14_799 deadtimes are okay (Fig 13)

22.30

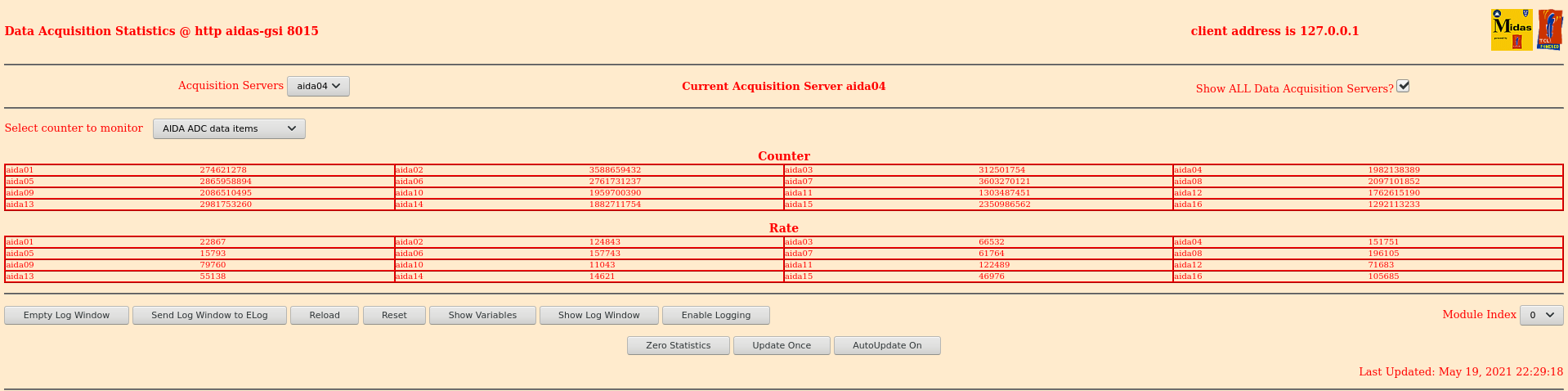

Stats okay (Fig 14)
Analysed R14_807 deadtimes are okay (Fig 15)

23.00
Stats okay (Fig 16)

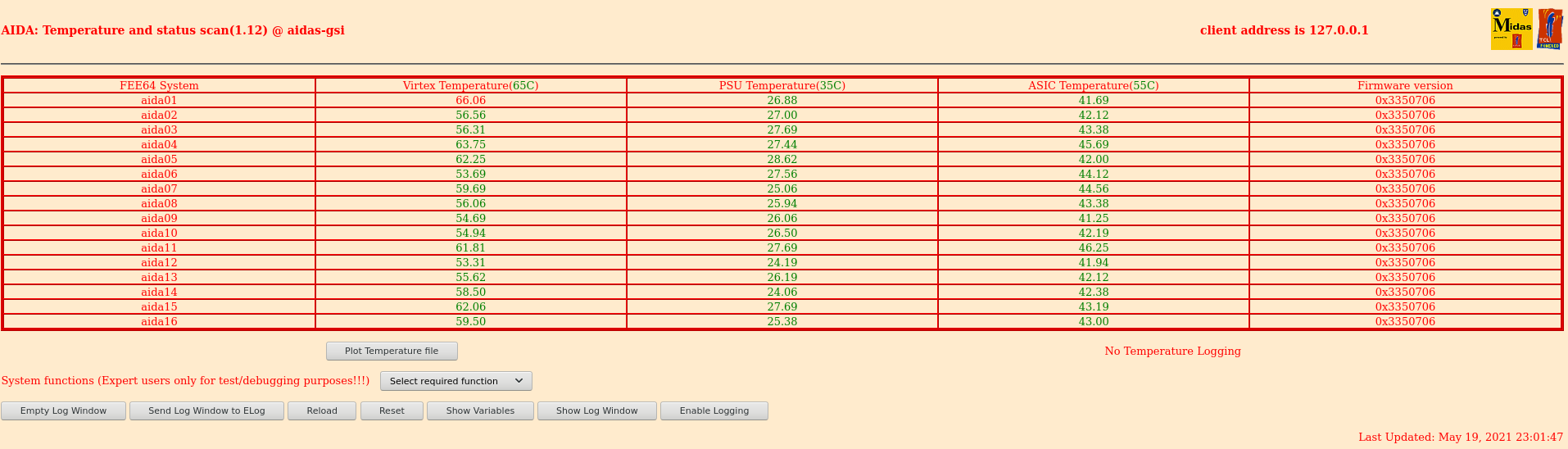

FEE temps okay (Fig 17)

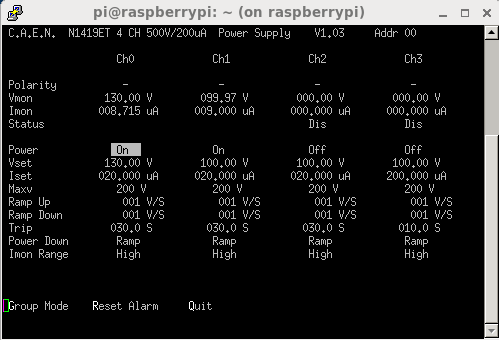

Bias (Fig 18)

System wide checks okay except white rabbit 1 fail:
		 Base 		Current 	Difference
aida05 fault 	 0x500 : 	 0x569 : 	 105
White Rabbit error counter test result: Passed 15, Failed 1

Merger rate ~3M items/s
Tape server ~10MB/s

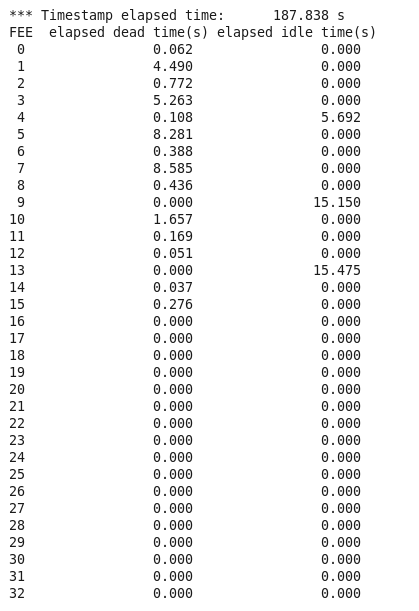

Analysed R14_819 deadtimes are okay (Fig 19)

23.30

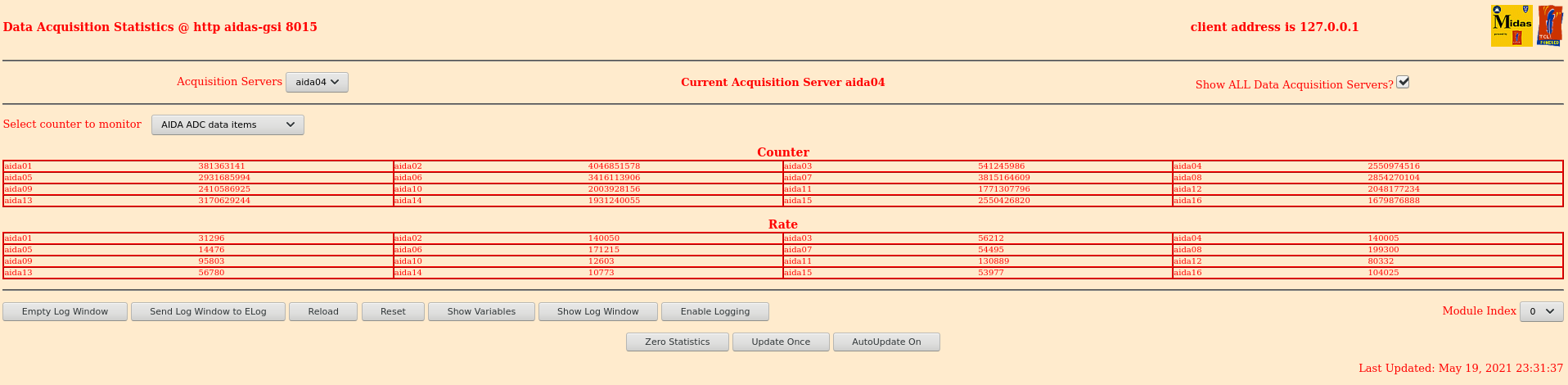

Stats okay (Fig 20)
Analysed R14_827 deadtimes are okay (Fig 21)
