Entry time:
Fri May 21 15:03:48 2021
Author
*
:
Subject
*
:

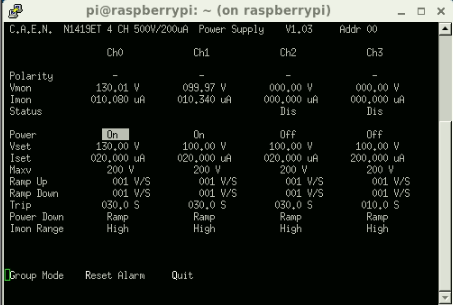

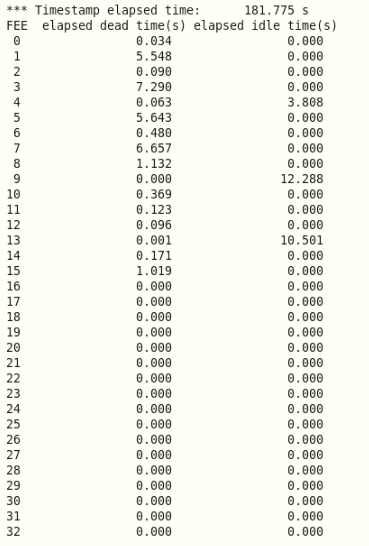

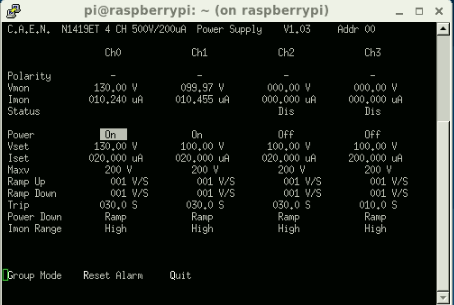

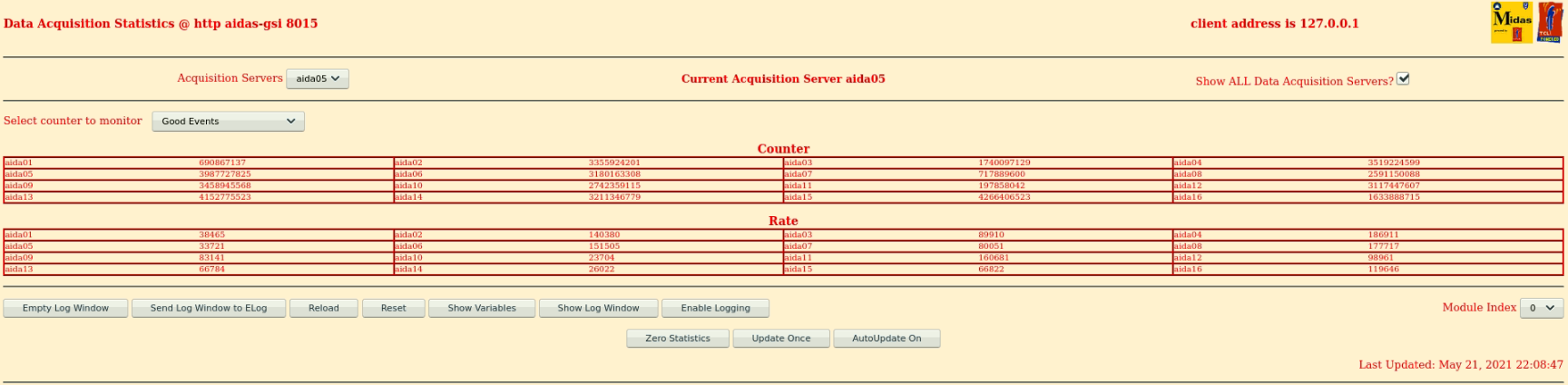

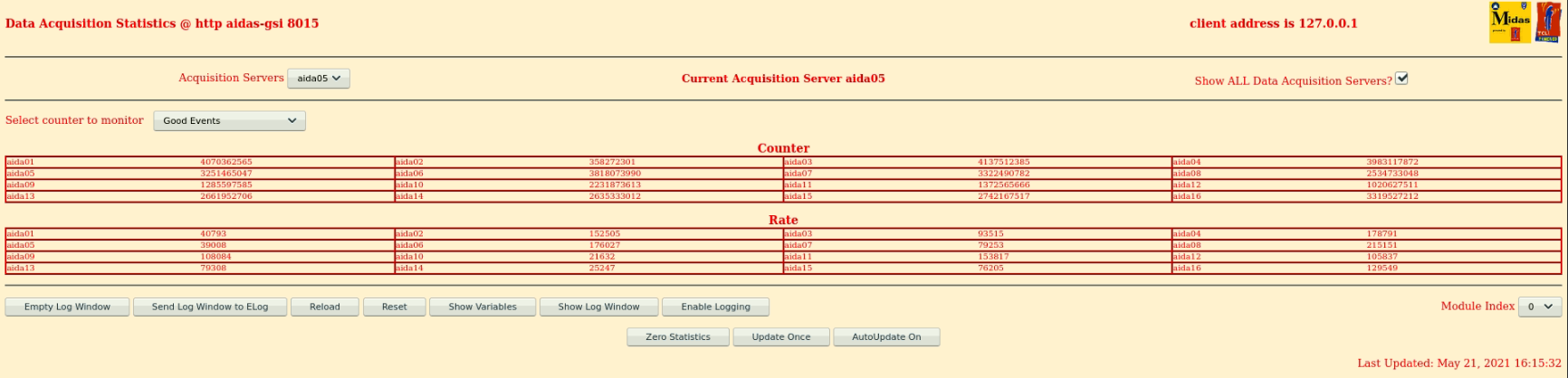

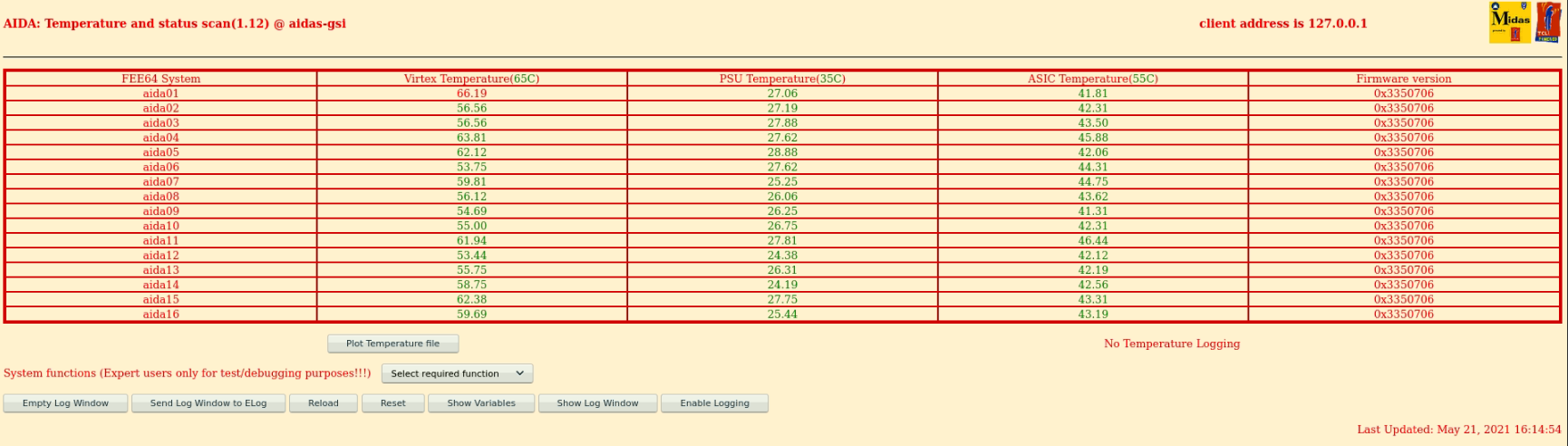

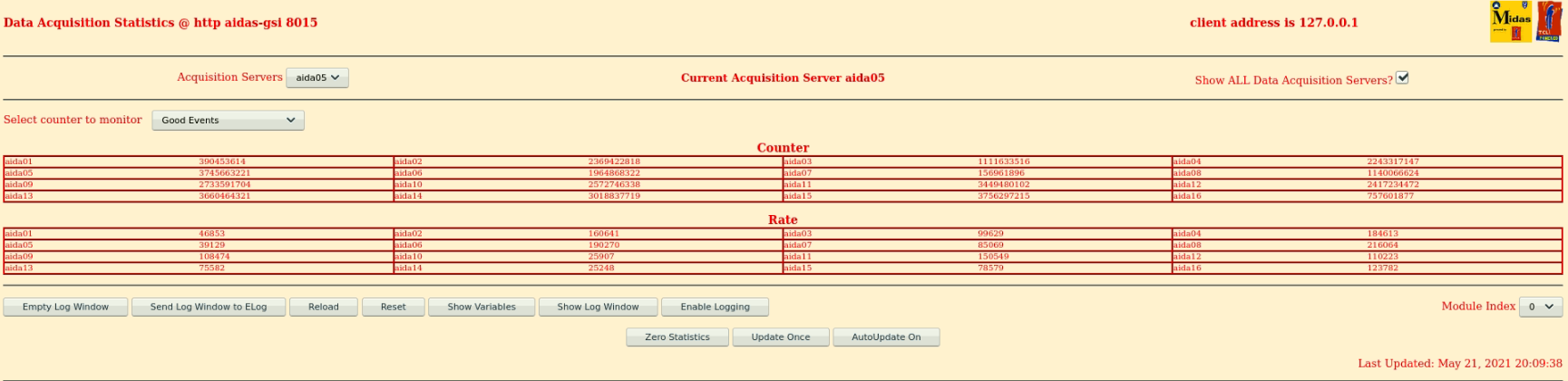

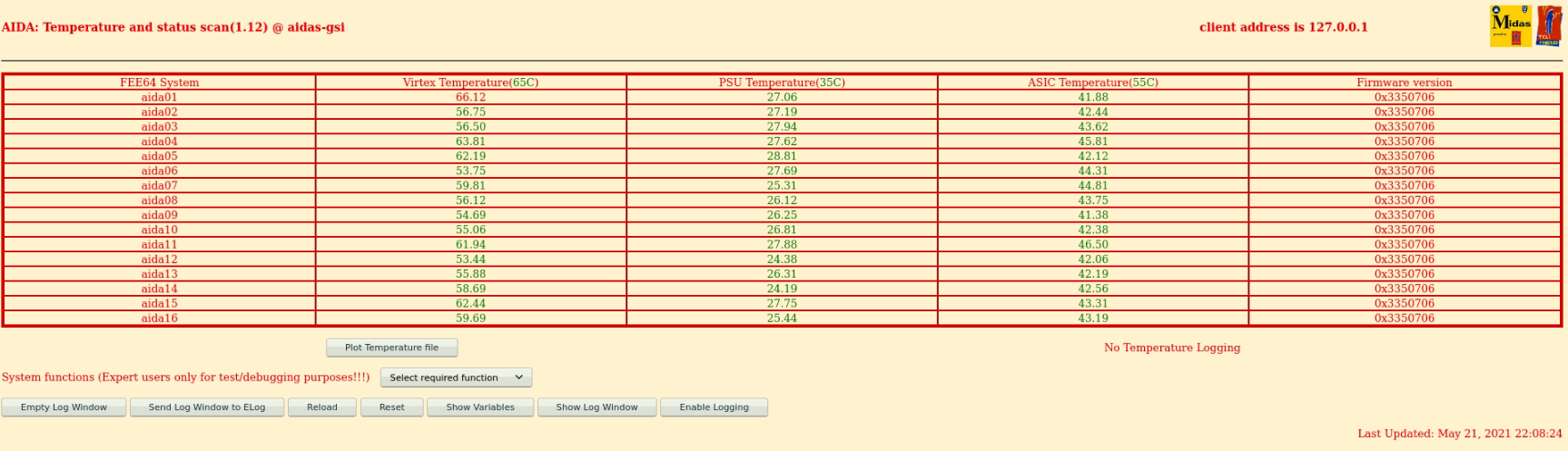

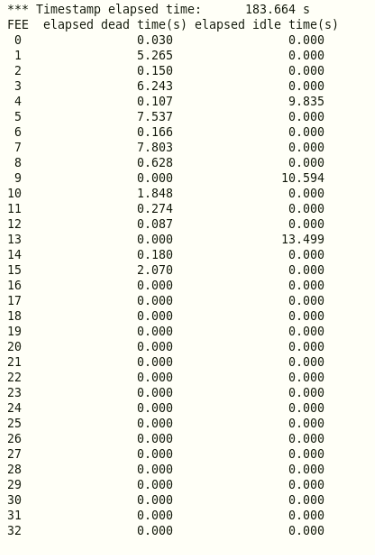

16:00 CA takes over DSSD1 n+n sides 0x20 on ASICs 1-3 and 0x64 on ASIC 4 DSSD2 n+n sides 0x1b on ASICs 1-3 and 0x64 on ASIC 4 PULSER SETTINGS --------------------------- Pulse is ON Positive Tail Pulse Trigger Source is Internal Clock Trigger Threshold is 3.5 Amplitude : 2.0 Volts Rep Rate : 2.0 hZ Delay : 250.0 ns Fall Time : 1 ms Attenuation : 1 Display is : Volts Equivalent keV is : 200.0 Ramp Start at 0.01 Volts Ramp Stop at 9.99 Volts Ramp Start at 1.0 keV Ramp Stop at 999.0 keV Ramp Time is 60 seconds # Ramp Cycles is 1 16:14 system wide checks all ok *except* Base Current Difference aida05 fault 0x500 : 0x570 : 112 White Rabbit error counter test result: Passed 15, Failed 1 Understand the status reports as follows:- Status bit 3 : White Rabbit decoder detected an error in the received data Status bit 2 : Firmware registered WR error, no reload of Timestamp Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR 16:17 temperatures ok - attachment 1 statistics ok - attachment 2 detector bias / leakage currents ok - attachment 3 analysis of R14_1625 - FEE7 deadtime at 4.5% 18:06 system wide checks all ok *except* Base Current Difference aida05 fault 0x500 : 0x571 : 113 White Rabbit error counter test result: Passed 15, Failed 1 Understand the status reports as follows:- Status bit 3 : White Rabbit decoder detected an error in the received data Status bit 2 : Firmware registered WR error, no reload of Timestamp Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR 18:07 temperatures ok - attachment 4 statistics ok - attachment 5 detector bias / leakage currents ok - attachment 6 analysis of R14_1662 - FEE7 deadtime at 4.3% 19:07 DAQ continues ok - writing to file R14_1682 20:07 system wide checks all ok *except* Base Current Difference aida05 fault 0x500 : 0x572 : 114 White Rabbit error counter test result: Passed 15, Failed 1 Understand the status reports as follows:- Status bit 3 : White Rabbit decoder detected an error in the received data Status bit 2 : Firmware registered WR error, no reload of Timestamp Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR 20:10 temperatures ok - attachment 7 statistics ok - attachment 8 detector bias / leakage currents ok - attachment 9 analysis of R14_1703 - max deadtime at 4.0% - attachment 10 20:35 rate spectra - attachment 11 HEC spectra - attachment 12 & 13 20:36 all histograms zeroed 20:37 DAQ continues ok - writing to file R14_1712 20:45 /media/1e121361-83d3-4825-b6ae-9700b07e0ca7 at 94% use. ~ 12 hours until 100% at 10 MB/s data rate, not accounting for compression of older files 21:12 no beam - writing to file R14_1723 21:17 beam is back 22:07 system wide checks all ok - WR decoder fault same as entry at 20:07 22:08 temperatures ok - attachment 14 statistics ok - attachment 15 detector bias / leakage currents ok - attachment 16 analysis of R14_1740 - max deadtime at 4.2% - attachment 17
