| DESPEC |
 |
|
|
|
Message ID: 343
Entry time: Fri May 21 23:19:23 2021
|
| Author: |
TD |
| Subject: |
Saturday 22 May 00:00-08:00 |
|
|
00.16 413Gb remaining /TapeData filesystem
estimate 413/2 x 177s = 10.15h to filesystem full - OK
00.18 All histograms, statistics and merger statistics zero'd
00.57 All system wide checks OK *except*
Base Current Difference
aida05 fault 0x500 : 0x572 : 114
White Rabbit error counter test result: Passed 15, Failed 1
Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR
Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) : 4 8 16 32 64 128 256 512 1k 2k 4k
aida01 : 19 9 3 4 1 5 2 2 3 3 6 : 36356
aida02 : 4 8 7 2 4 3 3 3 2 3 6 : 35968
aida03 : 12 9 6 2 5 3 2 3 3 3 6 : 36824
aida04 : 11 5 9 2 2 2 2 4 3 3 6 : 37028
aida05 : 24 9 2 1 2 3 2 3 4 3 6 : 37608
aida06 : 25 6 3 4 2 4 3 3 3 3 6 : 37060
aida07 : 3 3 3 1 3 3 2 2 2 2 7 : 37044
aida08 : 20 4 2 3 1 3 2 2 3 3 6 : 36016
aida09 : 15 8 2 5 0 3 3 2 3 3 6 : 36284
aida10 : 16 6 4 1 2 3 3 2 2 4 6 : 37328
aida11 : 20 2 2 1 1 3 2 2 3 3 6 : 35936
aida12 : 1 2 1 2 3 4 1 2 4 3 6 : 36900
aida13 : 25 10 4 1 0 3 2 3 3 3 6 : 36500
aida14 : 20 6 9 2 2 5 1 2 2 4 6 : 37200
aida15 : 31 9 5 2 3 3 1 3 3 3 6 : 36500
aida16 : 24 4 2 3 1 4 2 3 3 3 6 : 36672
Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same
FEE : aida01 => Options file size is 1026 Last changed Mon May 17 11:43:04 CEST 2021
FEE : aida02 => Options file size is 1014 Last changed Thu Apr 29 14:43:46 CEST 2021
FEE : aida03 => Options file size is 1014 Last changed Thu Apr 29 14:43:50 CEST 2021
FEE : aida04 => Options file size is 1025 Last changed Fri May 14 16:54:56 CEST 2021
FEE : aida05 => Options file size is 1025 Last changed Mon May 17 06:25:41 CEST 2021
FEE : aida06 => Options file size is 1014 Last changed Thu Apr 29 14:43:59 CEST 2021
FEE : aida07 => Options file size is 1014 Last changed Thu Apr 29 14:44:02 CEST 2021
FEE : aida08 => Options file size is 1025 Last changed Wed May 05 12:15:54 CEST 2021
FEE : aida09 => Options file size is 1014 Last changed Thu Apr 29 14:44:08 CEST 2021
FEE : aida10 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida11 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida12 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida13 => Options file size is 1025 Last changed Fri May 07 19:40:34 CEST 2021
FEE : aida14 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida15 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida16 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
01.12 Lost activity monitor - attachment 1

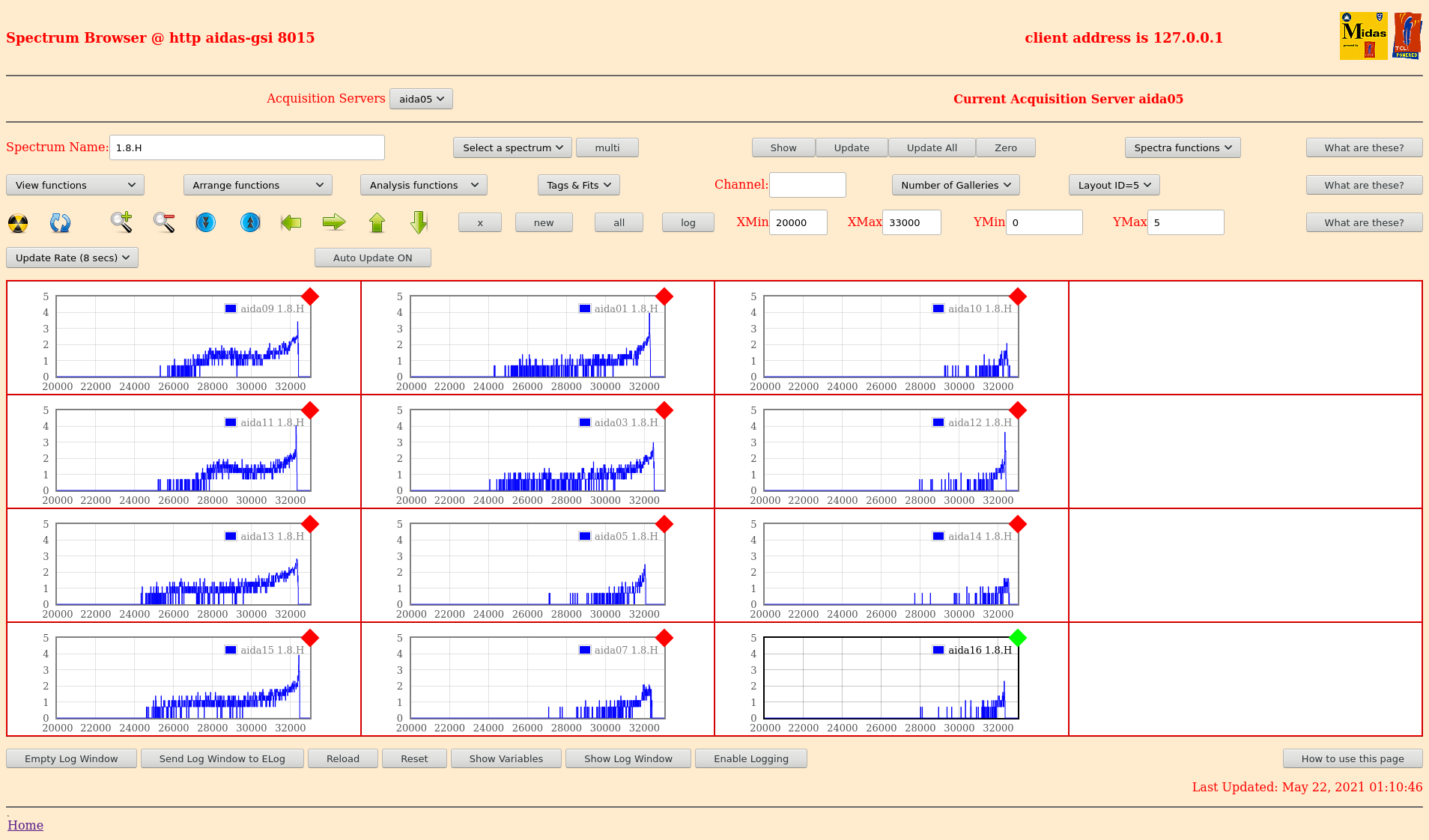

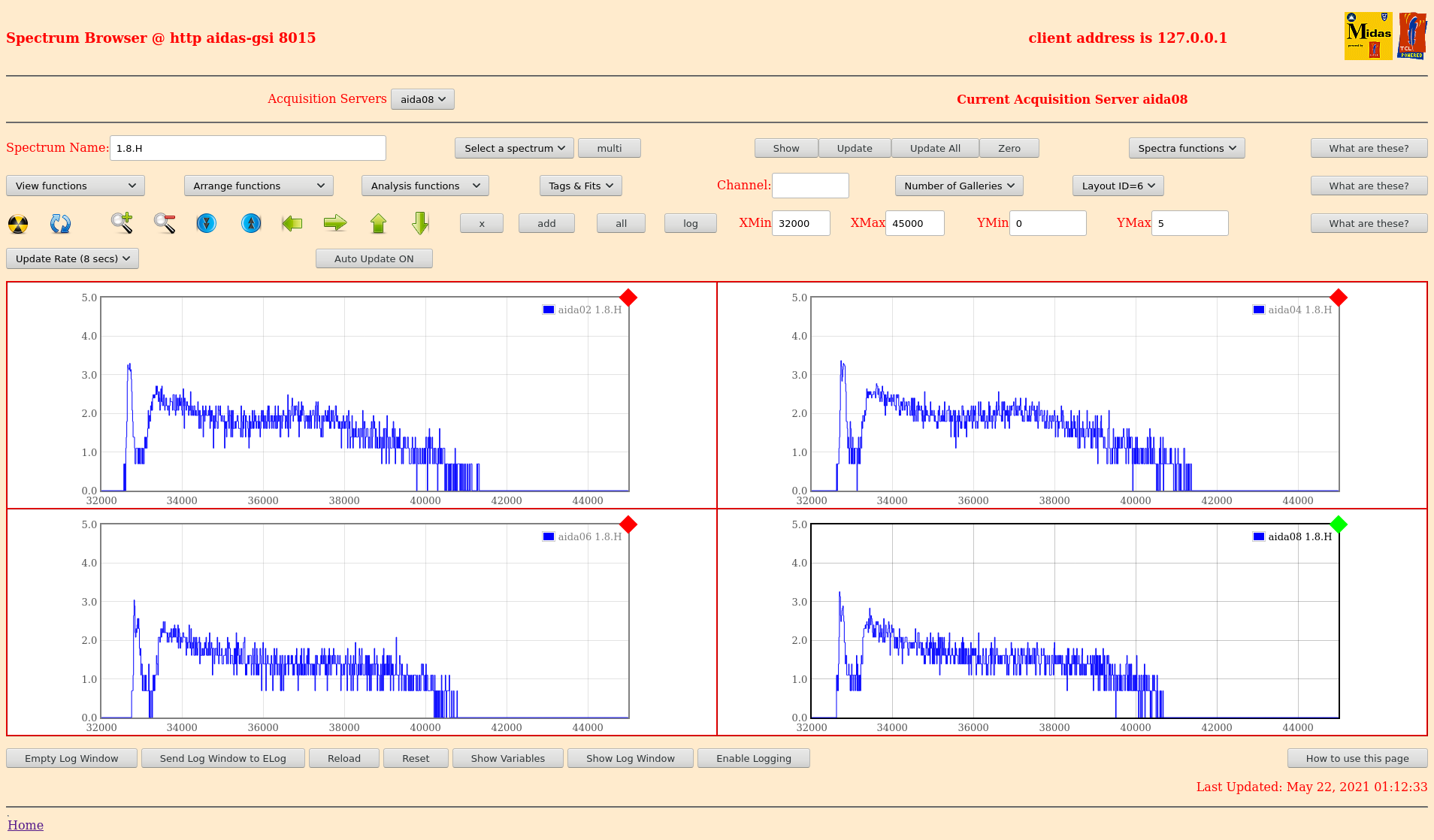

1.8.H spectra - attachments 2 & 3

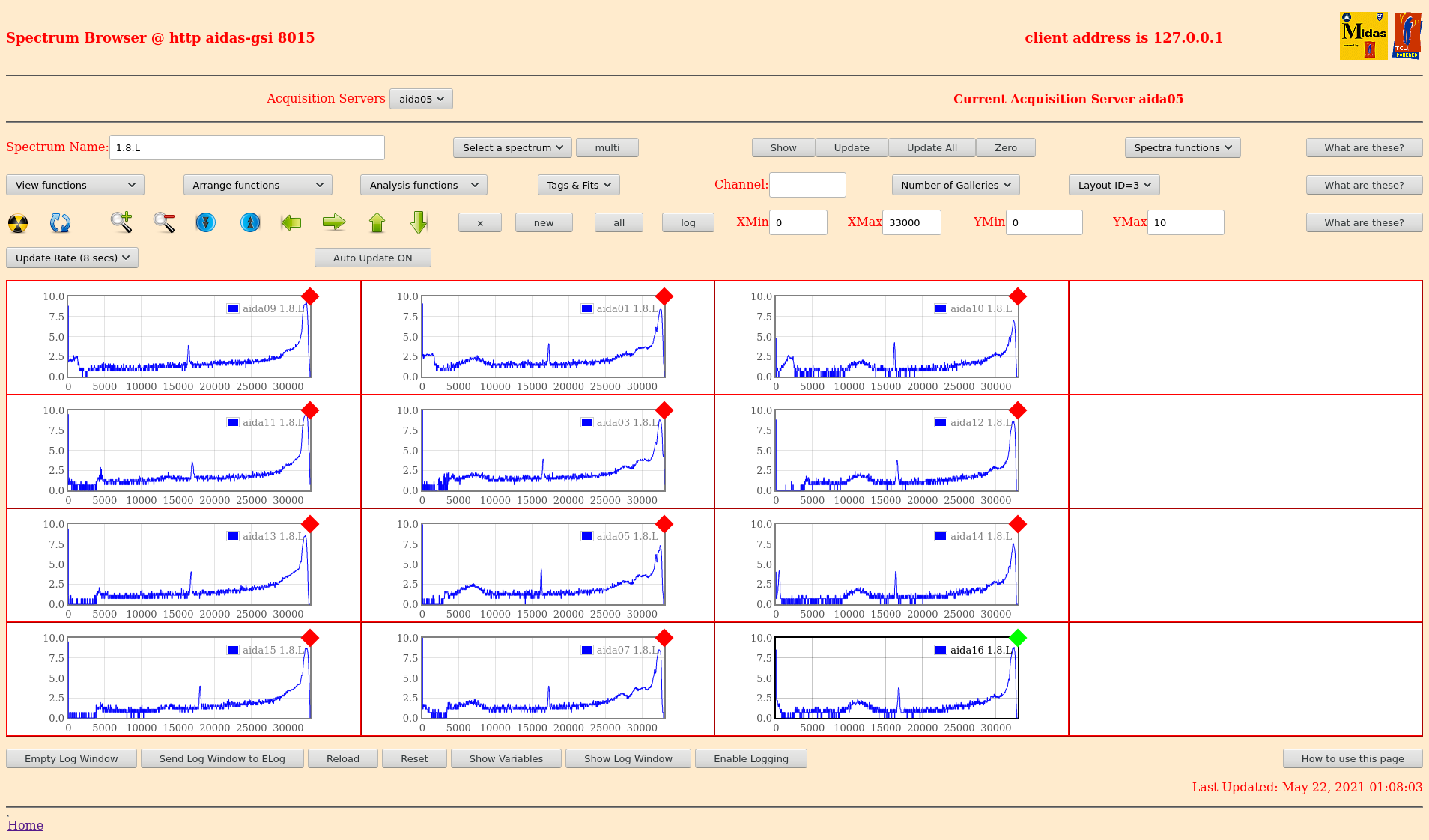

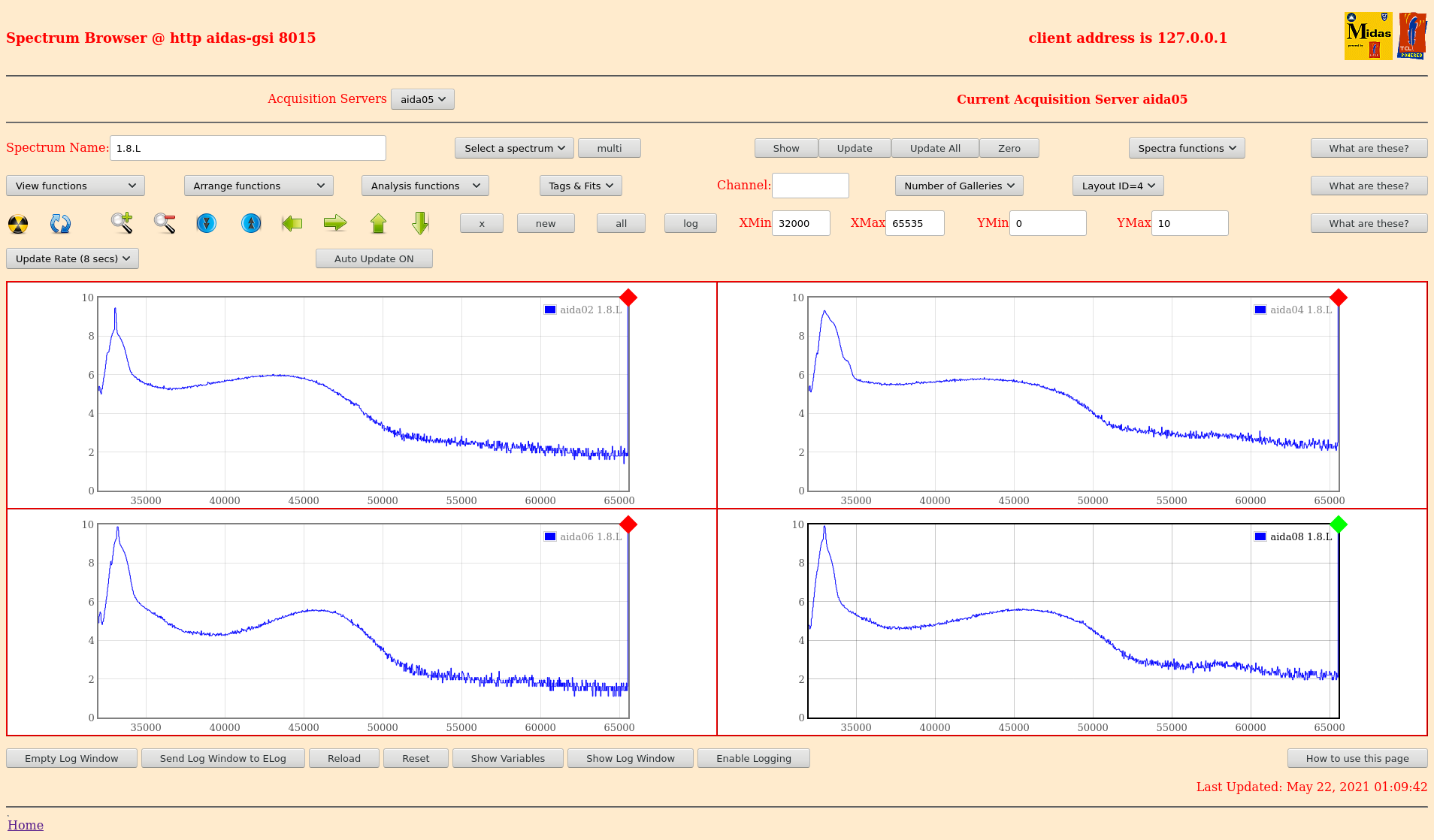

1.8.L spectra - attachments 4-6
aida01 pulser peak width 120 ch FWHM

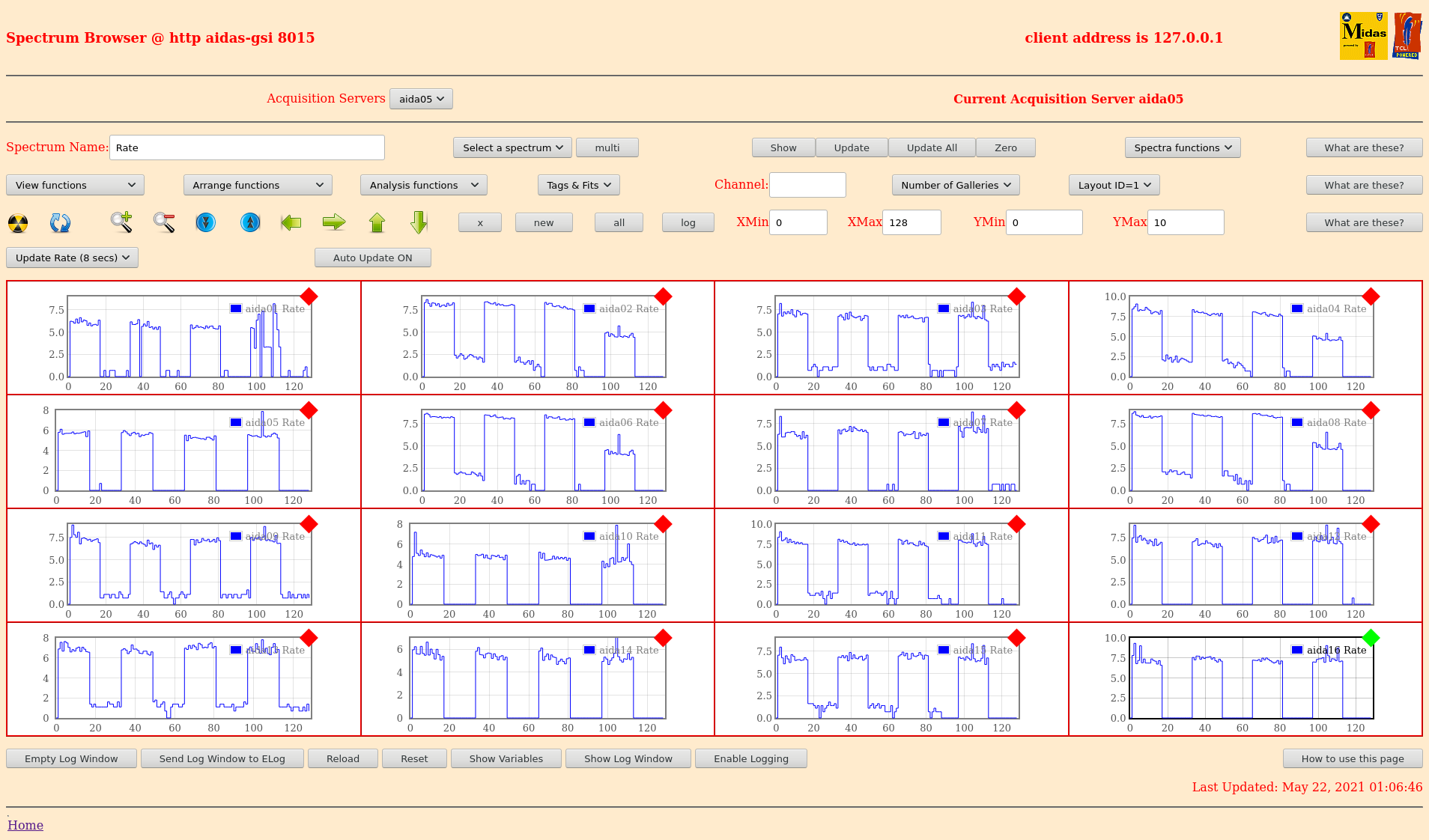

Rate specttra - attachments 7 & 8
01.06 Lost activity monitor - attachment 9
ucesb - attachment 10
Grafana - DSSSD bias & leakage currents past 7 days - attachment 11

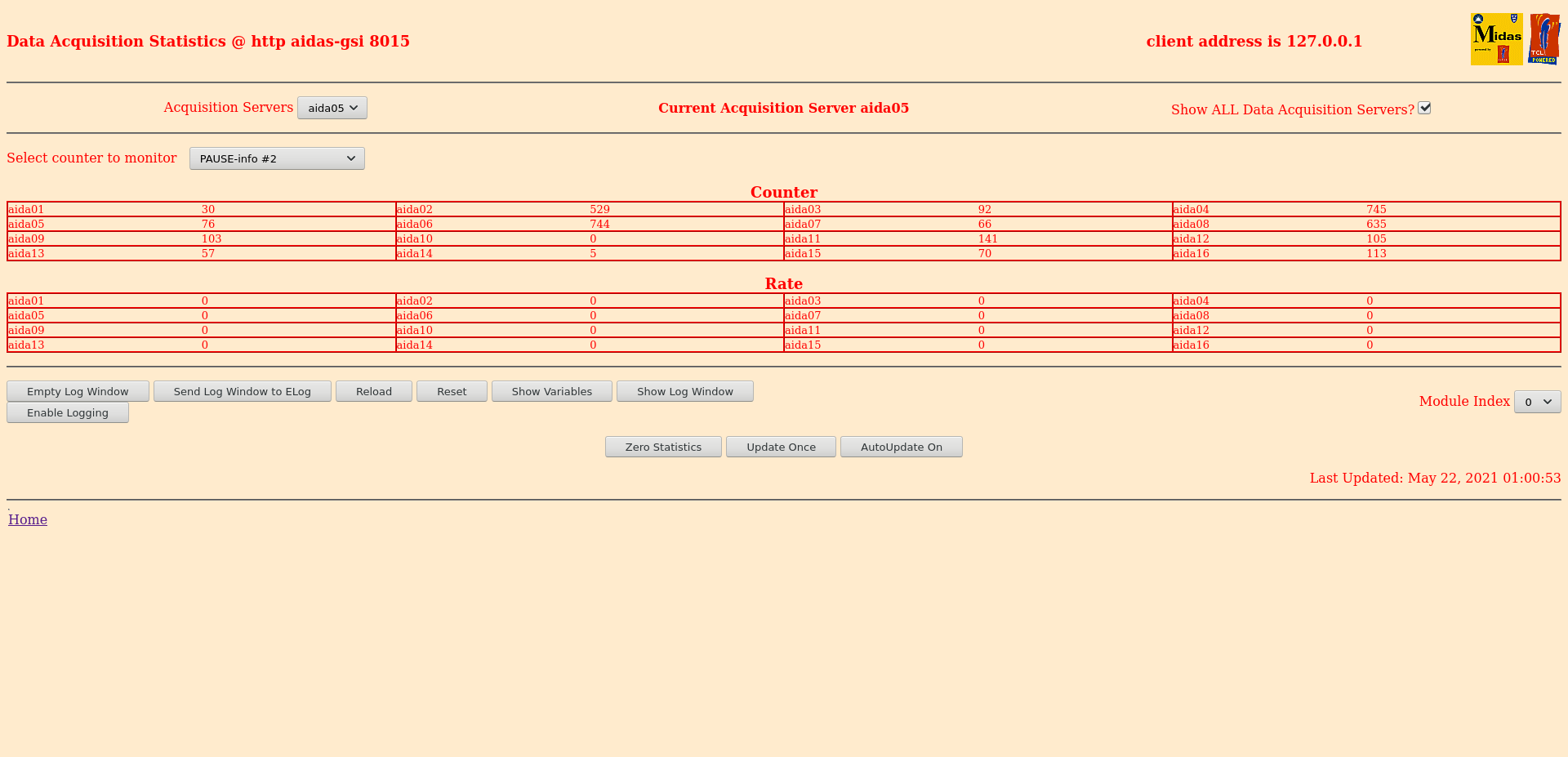

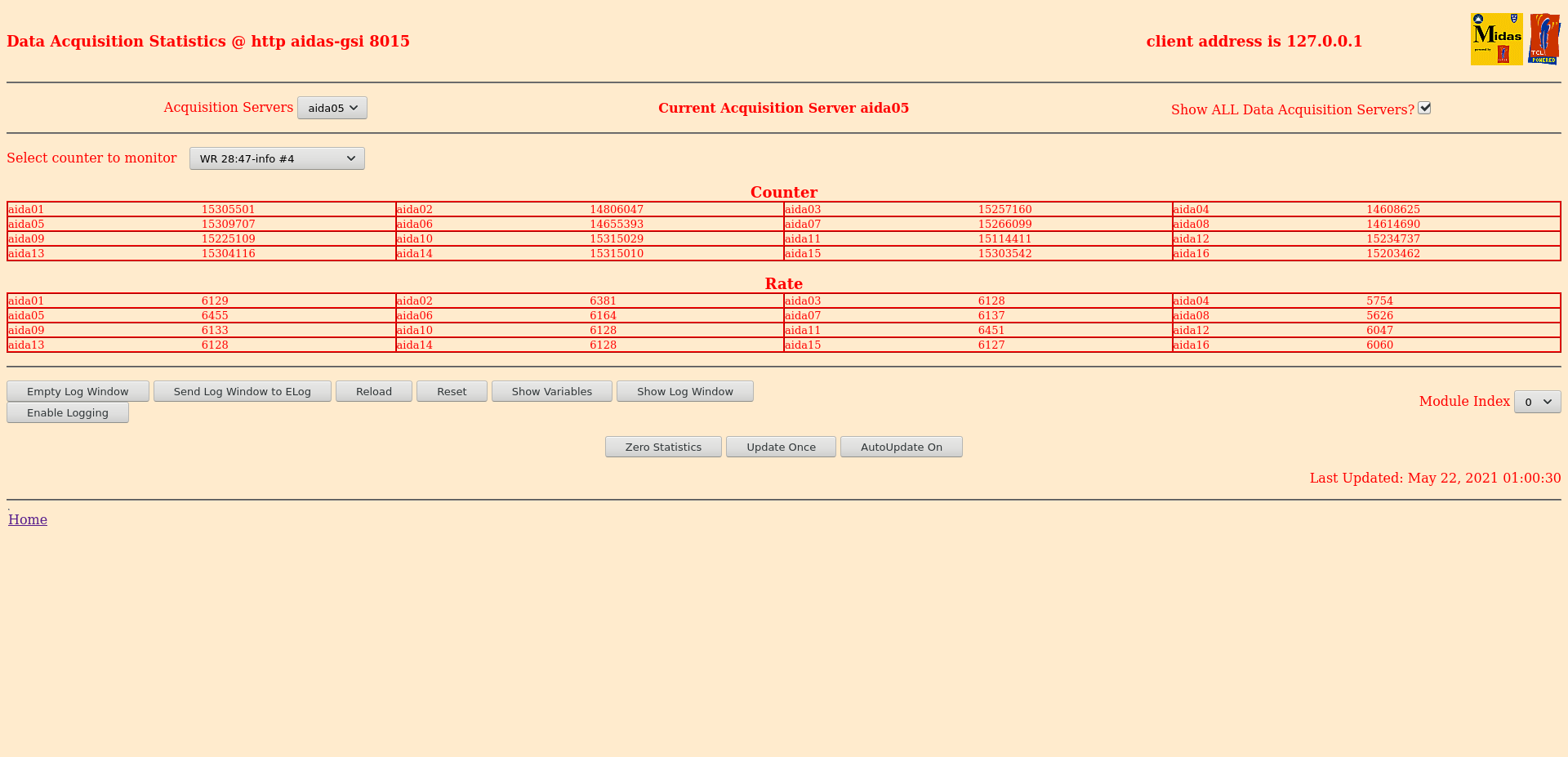

statistics - adc data, disc data, WR 28-47, pause, correlation scaler, good wave events - attachments 12-17
FEE64 temperatures OK - attachment 18
DSSSD bias & leakage currents OK - attachment 19
Merger/Tape Server/Merger stats - attachment 20
no merger warning/error messages since last restart
01.26 Analysis file S496/R14_1798 - attachment 21
aida08 5.5% deadtime
01.17 Disk space remaining /TapeData filesystem
[npg@aidas-gsi S496]$ df -h
Filesystem Size Used Avail Use% Mounted on
/dev/mapper/vg_aidasgsi-lv_root
50G 18G 30G 37% /
tmpfs 7.9G 706M 7.2G 9% /dev/shm
/dev/sda2 477M 42M 410M 10% /boot
/dev/sda1 200M 264K 200M 1% /boot/efi
/dev/mapper/vg_aidasgsi-lv_home
401G 90G 292G 24% /home
/dev/mapper/vg_aidas2-lv_home
7.2T 6.4T 395G 95% /media/1e121361-83d3-4825-b6ae-8700b07e0ca7
/dev/sdd1 7.2T 5.6T 1.3T 82% /media/SecondDrive
/dev/sdc1 7.2T 6.6T 259G 97% /media/ThirdDrive
estimate 395/2 x 177s = 9.7h to filesystem full - OK
01.30 despec shift reports no data reported by ucesb
aida stats & tape server ok - no data being forwarded to MBS by data relay
01.39 despec shift restart FATIMA DAQ - data forwarding to MBS by data relay resumes - AIDA file S496/R14_1811
04.35 System wide checks all OK *except*
Base Current Difference
aida05 fault 0x500 : 0x573 : 115
White Rabbit error counter test result: Passed 15, Failed 1
Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR
[npg@aidas-gsi S496]$ df -h
Filesystem Size Used Avail Use% Mounted on
/dev/mapper/vg_aidasgsi-lv_root
50G 18G 30G 37% /
tmpfs 7.9G 661M 7.2G 9% /dev/shm
/dev/sda2 477M 42M 410M 10% /boot
/dev/sda1 200M 264K 200M 1% /boot/efi
/dev/mapper/vg_aidasgsi-lv_home
401G 90G 292G 24% /home
/dev/mapper/vg_aidas2-lv_home
7.2T 6.5T 337G 96% /media/1e121361-83d3-4825-b6ae-8700b07e0ca7
/dev/sdd1 7.2T 5.6T 1.3T 82% /media/SecondDrive
/dev/sdc1 7.2T 6.6T 259G 97% /media/ThirdDrive
estimate 337/2 x 177s = 8.3h to filesystem full - OK
FEE64 temperatures OK - attachment 22
ADC data item statistics OK - attachment 24
DSSSD bias & leakage current OK - attachment 26
analysis of file S496/R14_1920 - attachment 28
aida04 deadtime 5.0%
07.10 Ssystem wide checks all OK *except*
Base Current Difference
aida05 fault 0x500 : 0x573 : 115
White Rabbit error counter test result: Passed 15, Failed 1
Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR
[npg@aidas-gsi S496]$ df -h
Filesystem Size Used Avail Use% Mounted on
/dev/mapper/vg_aidasgsi-lv_root
50G 18G 30G 37% /
tmpfs 7.9G 662M 7.2G 9% /dev/shm
/dev/sda2 477M 42M 410M 10% /boot
/dev/sda1 200M 264K 200M 1% /boot/efi
/dev/mapper/vg_aidasgsi-lv_home
401G 90G 292G 24% /home
/dev/mapper/vg_aidas2-lv_home
7.2T 6.5T 287G 96% /media/1e121361-83d3-4825-b6ae-8700b07e0ca7
/dev/sdd1 7.2T 5.6T 1.3T 82% /media/SecondDrive
/dev/sdc1 7.2T 6.6T 259G 97% /media/ThirdDrive
estimate 287/2 x 178s = 7.1h to filesystem full - OK

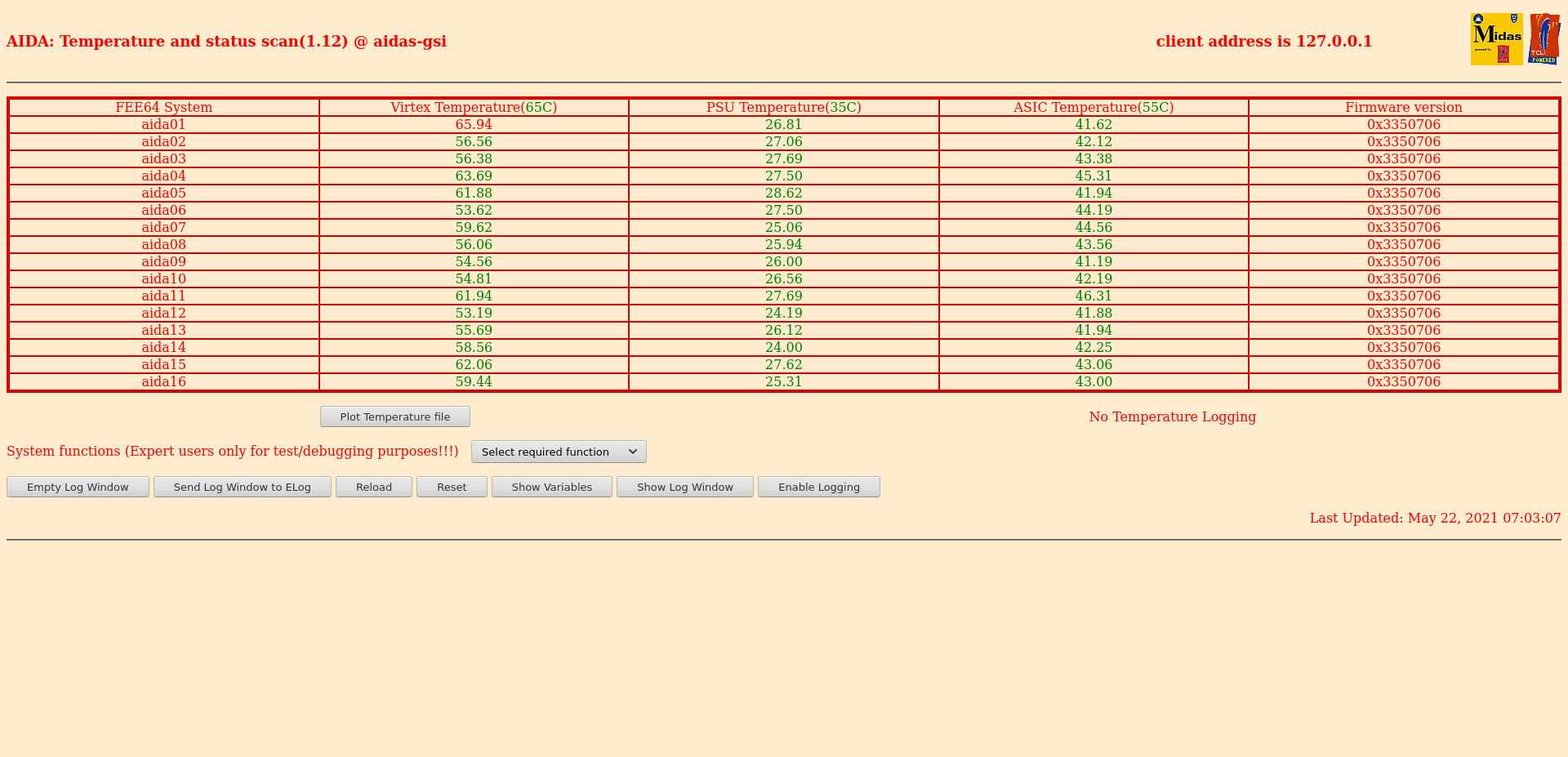

FEE64 temperatures OK - attachment 23
ADC data item statistics OK - attachment 25
DSSSD bias & leakage current OK - attachment 27
analysis of file S496/R14_1920 - attachment 29
aida04 deadtime 4.4%
07.35 Found MBS data monitor kill'd
Restarted MBS data relay and data monitor OK
08.00 beam off - end of S496
08.28 Tape Server -> no storage mode
DAQ continues
09.58 All slow comparators -> 0x64
BNC PB-5 OFF
file S496/R15
alpha background
Tape server 200kb/s, merger 260k data items/s |
|
.png.png "Screenshot_2021-05-22_Lost_activity_monitor_aidas-gsi(1).png")
|
|
.png.png "Screenshot_2021-05-22_Spectrum_Browser_aidas-gsi(7).png")
|
|
.png.png "Screenshot_2021-05-22_Spectrum_Browser_aidas-gsi(6).png")
|
|
.png.png "Screenshot_2021-05-22_Spectrum_Browser_aidas-gsi(5).png")
|
|
.png.png "Screenshot_2021-05-22_Spectrum_Browser_aidas-gsi(3).png")
|
|
.png.png "Screenshot_2021-05-22_Spectrum_Browser_aidas-gsi(2).png")
|
|
.png.png "Screenshot_2021-05-22_Spectrum_Browser_aidas-gsi(1).png")
|
|
|
|
|
|
|
|
|
|
.png.png "Screenshot_2021-05-22_Statistics_aidas-gsi(5).png")
|
|
.png.png "Screenshot_2021-05-22_Statistics_aidas-gsi(4).png")
|
|
.png.png "Screenshot_2021-05-22_Statistics_aidas-gsi(3).png")
|
|
.png.png "Screenshot_2021-05-22_Statistics_aidas-gsi(2).png")
|
|
.png.png "Screenshot_2021-05-22_Statistics_aidas-gsi(1).png")
|
|
|
|
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 254662088 ( 1433466.5 Hz)
Other data format: 7257912 ( 40854.0 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 256 ( 1.4 Hz)
RESUME: 257 ( 1.4 Hz)
SYNC100: 32661 ( 183.8 Hz)
WR48-63: 32661 ( 183.8 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 7192077 ( 40483.5 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 365795 ( 2059.0 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 177.655 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.112 0.000
1 5.898 0.000
2 0.060 0.000
3 7.669 0.000
4 0.073 7.902
5 7.648 0.000
6 0.356 0.000
7 9.852 0.000
8 1.513 0.000
9 0.000 15.513
10 2.639 0.000
11 0.903 0.000
12 0.687 0.000
13 0.000 6.517
14 0.073 0.000
15 0.212 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 5664289 2546 0 0 5 5 737 737 0 1062 0 19821
1 24002581 6376 0 0 39 39 3149 3149 0 0 0 40581
2 12140787 1878978 0 0 3 3 1758 1758 0 1875456 0 32794
3 29094115 1803103 0 0 54 54 3917 3917 0 1795161 0 46229
4 3034023 1008057 0 0 6 6 480 480 0 1007085 0 8526
5 29014047 561174 0 0 54 54 3636 3636 0 553794 0 24714
6 11191428 1180757 0 0 3 3 1528 1528 0 1177695 0 17521
7 34103710 790567 0 0 51 52 4320 4320 0 781824 0 29424
8 17182670 4348 0 0 9 9 2165 2165 0 0 0 41538
9 2132311 520 0 0 0 0 260 260 0 0 0 3304
10 25432181 6308 0 0 12 12 3142 3142 0 0 0 25046
11 16063496 3832 0 0 8 8 1908 1908 0 0 0 7738
12 11072472 2756 0 0 4 4 1374 1374 0 0 0 35884
13 2789016 664 0 0 0 0 332 332 0 0 0 2683
14 11165568 2934 0 0 4 4 1463 1463 0 0 0 24254
15 20579394 4992 0 0 4 4 2492 2492 0 0 0 5738
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 41.474s ( 771.565 blocks/s, 48.223 Mb/s)
|
|
.png.png "Screenshot_2021-05-22_Statistics_aidas-gsi(7).png")
|
|
.png.png "Screenshot_2021-05-22_Temperature_and_status_scan_aidas-gsi(2).png")
|
|
.png.png "Screenshot_2021-05-22_Statistics_aidas-gsi(6).png")
|
|
.png.png "Screenshot_2021-05-22_Temperature_and_status_scan_aidas-gsi(1).png")
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 254778017 ( 1461534.6 Hz)
Other data format: 7141983 ( 40970.0 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 228 ( 1.3 Hz)
RESUME: 228 ( 1.3 Hz)
SYNC100: 32649 ( 187.3 Hz)
WR48-63: 32649 ( 187.3 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 7076229 ( 40592.8 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 358653 ( 2057.4 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 174.322 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.023 0.000
1 8.071 0.000
2 0.956 0.000
3 6.628 0.000
4 0.186 12.353
5 5.668 0.000
6 0.255 0.000
7 8.669 0.000
8 1.570 0.000
9 0.000 28.420
10 2.125 0.000
11 0.164 0.000
12 0.103 0.000
13 0.000 11.688
14 0.094 0.000
15 1.340 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 5294176 2413 0 0 1 1 685 685 0 1041 0 18715
1 22878067 6136 0 0 44 44 3024 3024 0 0 0 38998
2 11959613 1840531 0 0 7 7 1681 1681 0 1837155 0 31909
3 28914032 1781740 0 0 51 51 3845 3845 0 1773948 0 44969
4 2970776 981532 0 0 7 7 454 454 0 980610 0 8409
5 29112496 551278 0 0 40 40 3688 3688 0 543822 0 24330
6 11438278 1149690 0 0 4 4 1643 1643 0 1146396 0 17361
7 34470364 802023 0 0 41 41 4342 4342 0 793257 0 30254
8 17110979 4312 0 0 6 6 2150 2150 0 0 0 40990
9 2129568 524 0 0 0 0 262 262 0 0 0 3068
10 25946722 6422 0 0 9 9 3202 3202 0 0 0 25071
11 16268948 3960 0 0 3 3 1977 1977 0 0 0 7119
12 11320269 2746 0 0 3 3 1370 1370 0 0 0 35684
13 2799924 716 0 0 0 0 358 358 0 0 0 2469
14 11389376 2772 0 0 2 2 1384 1384 0 0 0 23994
15 20774429 5188 0 0 10 10 2584 2584 0 0 0 5313
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 43.000s ( 744.186 blocks/s, 46.512 Mb/s)
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 254781729 ( 1428365.9 Hz)
Other data format: 7138271 ( 40018.8 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 226 ( 1.3 Hz)
RESUME: 227 ( 1.3 Hz)
SYNC100: 32665 ( 183.1 Hz)
WR48-63: 32665 ( 183.1 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 7072488 ( 39650.0 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 352885 ( 1978.4 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 178.373 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.017 2.836
1 6.610 0.000
2 0.573 0.000
3 7.826 0.000
4 0.024 14.831
5 7.215 0.000
6 0.482 0.000
7 6.876 0.000
8 0.394 0.000
9 0.000 17.832
10 1.157 0.000
11 1.395 0.000
12 0.037 0.000
13 0.004 9.016
14 0.101 0.000
15 1.578 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 5306415 2397 0 0 1 1 665 665 0 1065 0 18998
1 22746335 6008 0 0 36 36 2968 2968 0 0 0 37812
2 11931383 1875609 0 0 5 5 1756 1756 0 1872087 0 31542
3 28584441 1795513 0 0 57 57 3773 3773 0 1787853 0 43417
4 2954259 971818 0 0 3 3 494 494 0 970824 0 8522
5 28608195 543853 0 0 51 52 3567 3567 0 536616 0 24072
6 11355091 1133078 0 0 6 6 1573 1573 0 1129920 0 16979
7 34582740 783003 0 0 34 34 4406 4406 0 774123 0 29465
8 17425265 4332 0 0 7 7 2159 2159 0 0 0 40811
9 2130016 550 0 0 0 0 275 275 0 0 0 3176
10 26903024 6616 0 0 4 4 3304 3304 0 0 0 24219
11 16400506 4036 0 0 5 5 2013 2013 0 0 0 7163
12 11085724 2934 0 0 1 1 1466 1466 0 0 0 35361
13 2664218 650 0 0 1 1 324 324 0 0 0 2574
14 11252748 2738 0 0 4 4 1365 1365 0 0 0 23421
15 20851369 5136 0 0 11 11 2557 2557 0 0 0 5353
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 43.672s ( 732.737 blocks/s, 45.796 Mb/s)
|
