14.37 DAQ continues file S496/R15_14

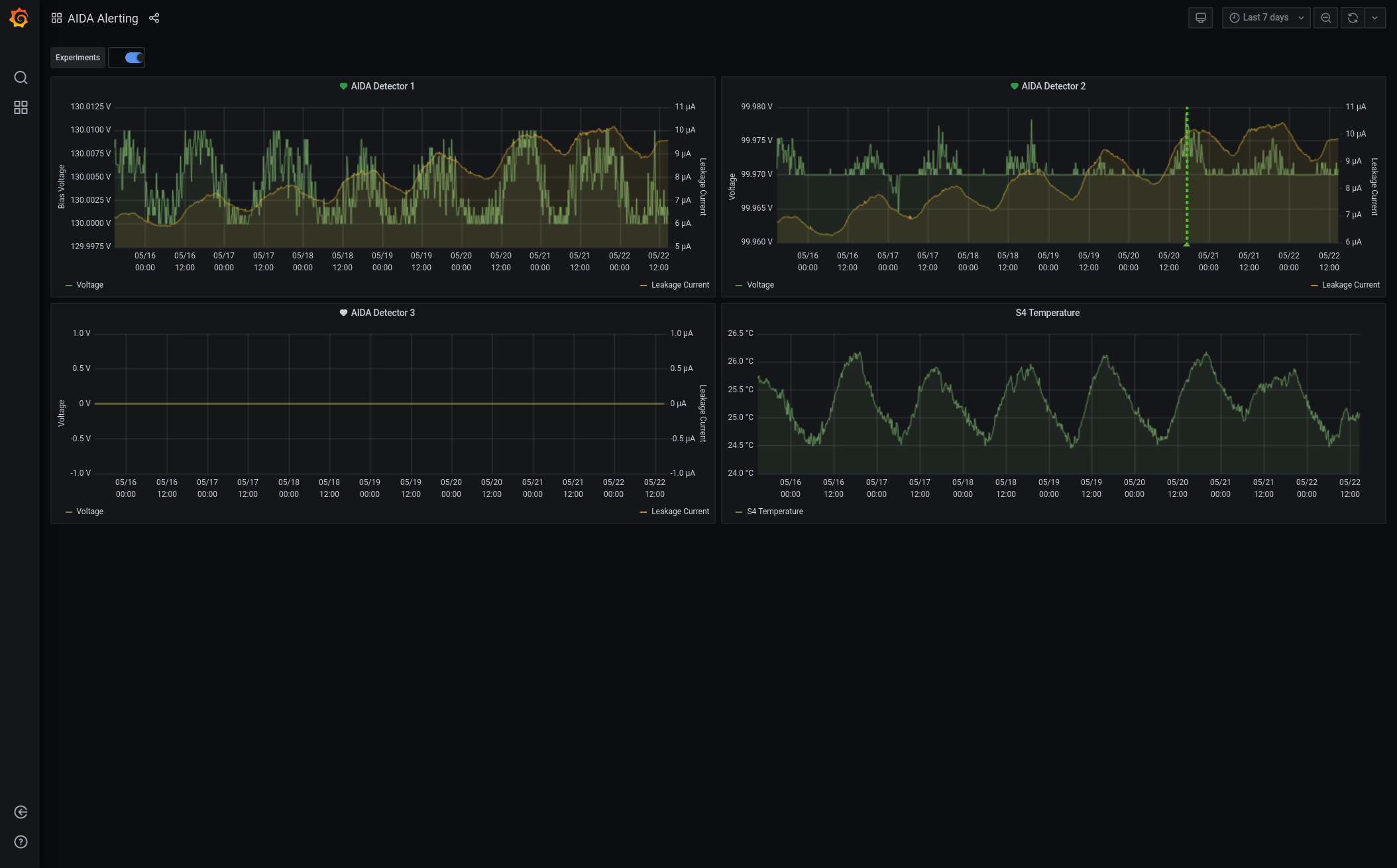

Grafana - DSSSD bias & leakage current - attachment 1

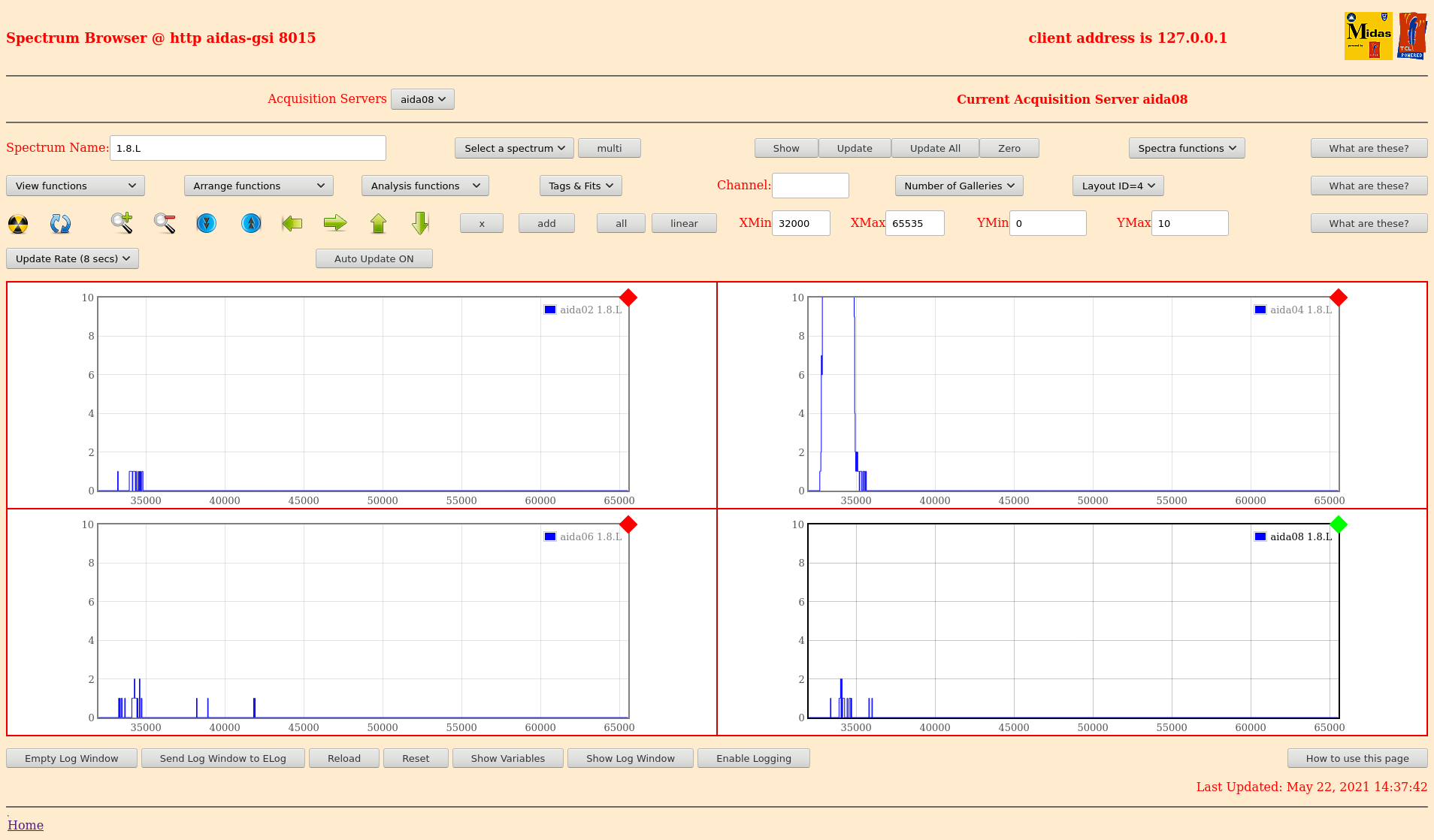

      1.8.L spectra - attachments 2 & 3

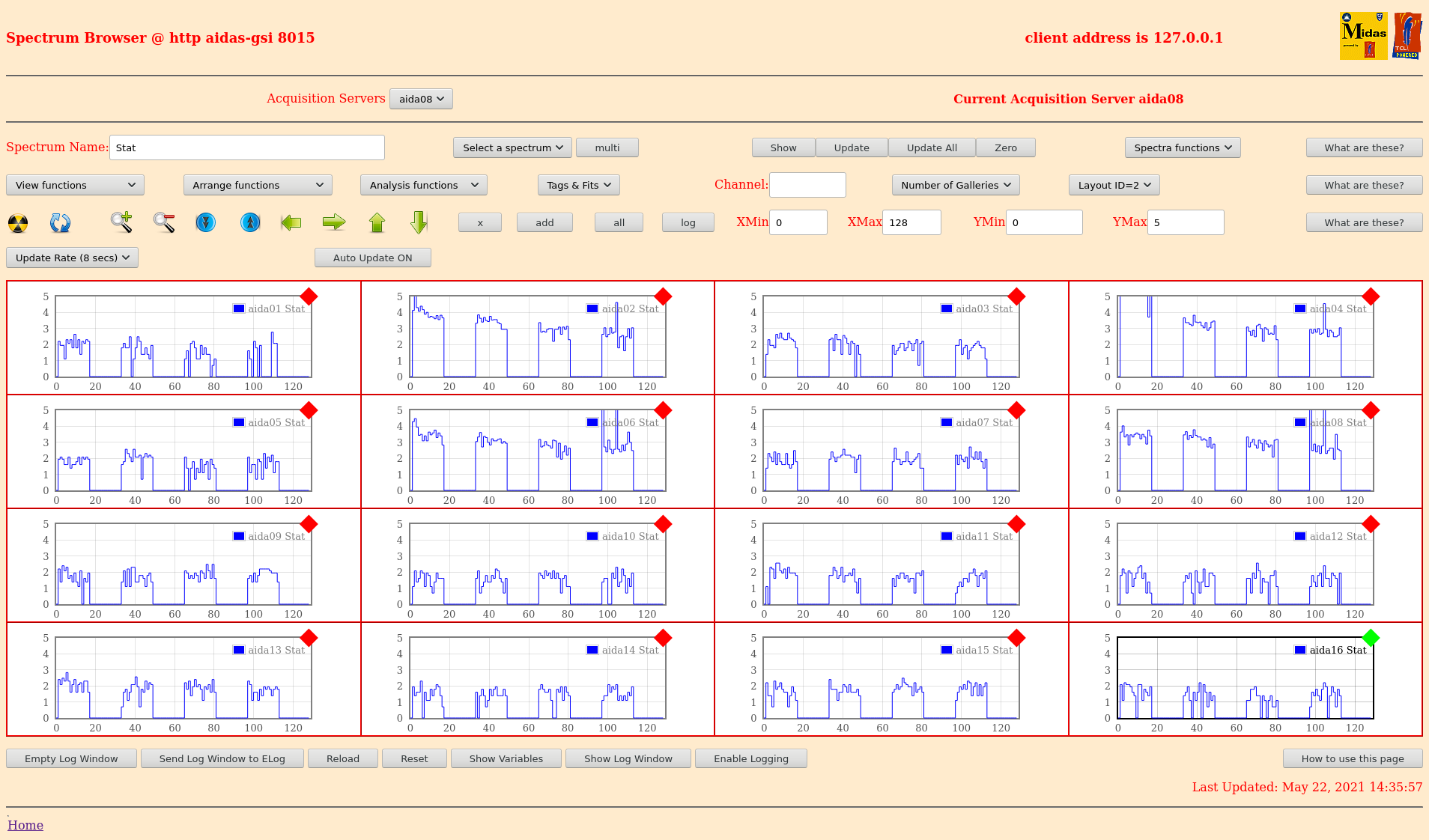

      Stat spectra - attachments 4 & 5
      FEE64 temperatures OK - attachment 6

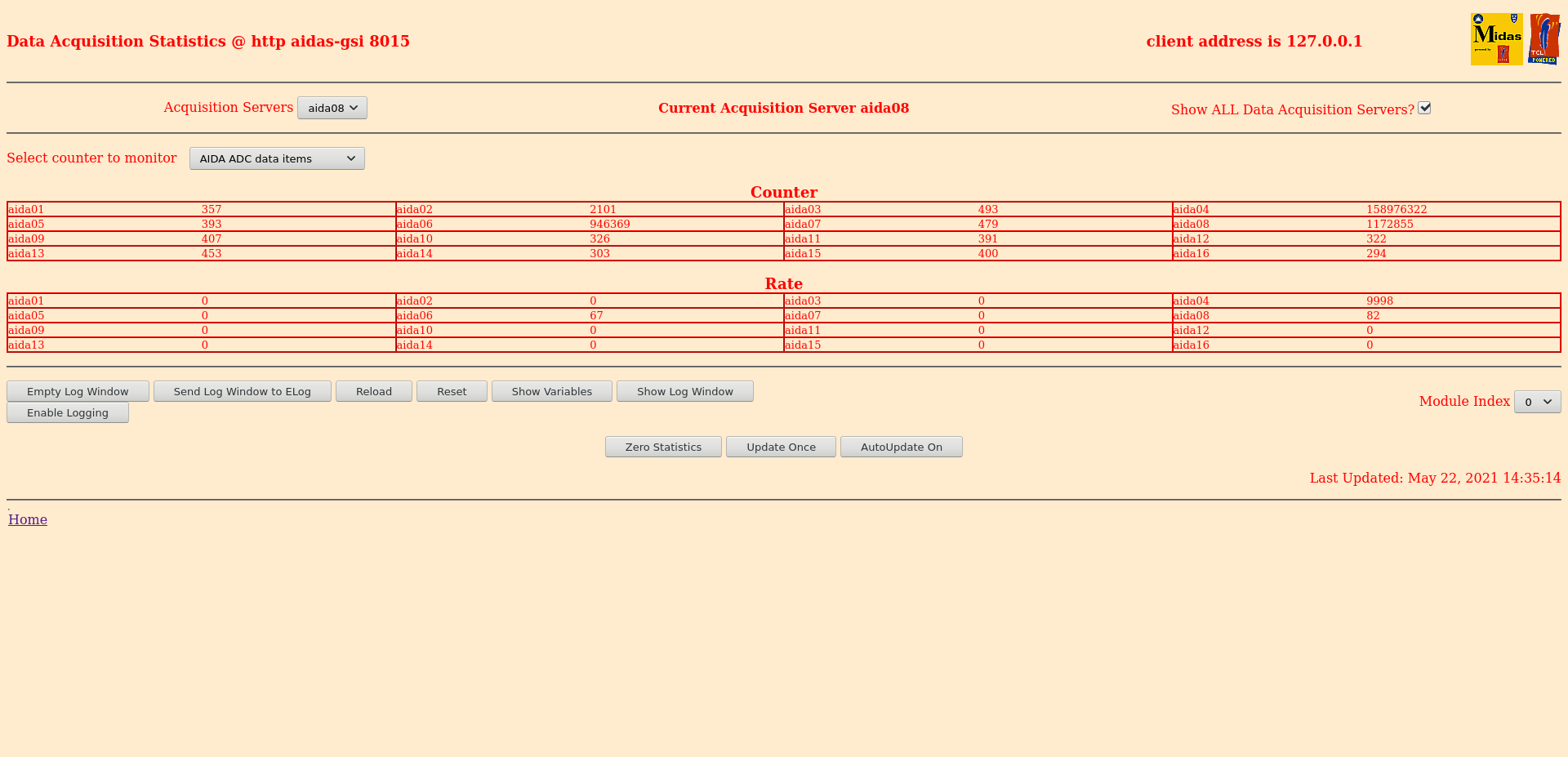

      stats - ADC data items, pause items OK - attachments 7 & 8
      DSSSD bias & leakage current OK - attachment 9
      Merger/Tape Server/Merger stats - attachment 10
      analysis of file S496/R14_1920 - attachment 11
       all FEE64 deadtime 0% as expected

17.30 aida01, 3, 5, 9 & 11 have hot HEC channels
       ASIC check fixes
      All histogram, statistics & merger statistics zero'd

DAQ continues
      Note gamma-ray source tests have started with FATIMA and DEGAS

20.20 Analysis file R15_19 - attachment 12

[npg@aidas-gsi S496]$ df -h
Filesystem            Size  Used Avail Use% Mounted on
/dev/mapper/vg_aidasgsi-lv_root
                       50G   18G   30G  37% /
tmpfs                 7.9G  665M  7.2G   9% /dev/shm
/dev/sda2             477M   42M  410M  10% /boot
/dev/sda1             200M  264K  200M   1% /boot/efi
/dev/mapper/vg_aidasgsi-lv_home
                      401G   90G  292G  24% /home
/dev/mapper/vg_aidas2-lv_home
                      7.2T  6.3T  530G  93% /media/1e121361-83d3-4825-b6ae-8700b07e0ca7
/dev/sdd1             7.2T  5.6T  1.3T  82% /media/SecondDrive
/dev/sdc1             7.2T  6.6T  259G  97% /media/ThirdDrive

estimate 90/2 x 3168s = 40h to filesystem full - OK

20.22 All system wide checks OK *except*

Base 		Current 	Difference
aida01 fault 	 0xf82c : 	 0xf82f : 	 3
aida02 fault 	 0xdda6 : 	 0xdda9 : 	 3
aida03 fault 	 0xb13d : 	 0xb140 : 	 3
aida04 fault 	 0xf4cd : 	 0xf4d0 : 	 3
aida05 fault 	 0x500 : 	 0x575 : 	 117
aida06 fault 	 0xc6e7 : 	 0xc6e9 : 	 2
aida07 fault 	 0x4920 : 	 0x4922 : 	 2
aida08 fault 	 0xbd9a : 	 0xbd9c : 	 2
White Rabbit error counter test result: Passed 8, Failed 8

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) :	4	8	16	32	64	128	256	512	1k	2k	4k
aida01 :      8      4      6      6      1      4      3      3      4      3      6   : 38048
aida02 :     11      8     10      3      4      4      3      4      3      3      6   : 37740
aida03 :      2      8      3      3      2      2      1      4      2      4      6   : 37720
aida04 :     26     15     17      4      4      2      1      4      2      4      6   : 38256
aida05 :     15      6      4      1      1      2      1      3      3      4      6   : 38156
aida06 :      7      7     16      6      3      4      2      2      3      4      6   : 38612
aida07 :     11      5     12      3      3      3      2      3      1      3      7   : 38836
aida08 :     13      6      7      2      1      2      2      2      3      4      6   : 37972
aida09 :     23      3      8      5      0      5      3      3      4      3      6   : 38164
aida10 :     12      5      7      1      2      2      4      3      2      4      6   : 37992
aida11 :     19      2      7      1      2      2      1      2      3      4      6   : 37740
aida12 :     21      5      3      3      3      3      1      2      3      4      6   : 37964
aida13 :     18      7      7      1      2      4      2      3      2      4      6   : 37776
aida14 :      8      3     13      7      2      4      2      3      2      4      6   : 37992
aida15 :     11      5     14      1      3      4      2      3      2      4      6   : 37908
aida16 :     17      6      6      2      2      3      1      2      3      4      6   : 37908

Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same

FEE : aida01 =>   Options file size is 1026 	 Last changed Mon May 17 11:43:04 CEST 2021
 FEE : aida02 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:46 CEST 2021
 FEE : aida03 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:50 CEST 2021
 FEE : aida04 =>   Options file size is 1025 	 Last changed Fri May 14 16:54:56 CEST 2021
 FEE : aida05 =>   Options file size is 1025 	 Last changed Mon May 17 06:25:41 CEST 2021
 FEE : aida06 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:59 CEST 2021
 FEE : aida07 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:02 CEST 2021
 FEE : aida08 =>   Options file size is 1025 	 Last changed Wed May 05 12:15:54 CEST 2021
 FEE : aida09 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:08 CEST 2021
 FEE : aida10 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida11 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida12 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida13 =>   Options file size is 1025 	 Last changed Fri May 07 19:40:34 CEST 2021
 FEE : aida14 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida15 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida16 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021

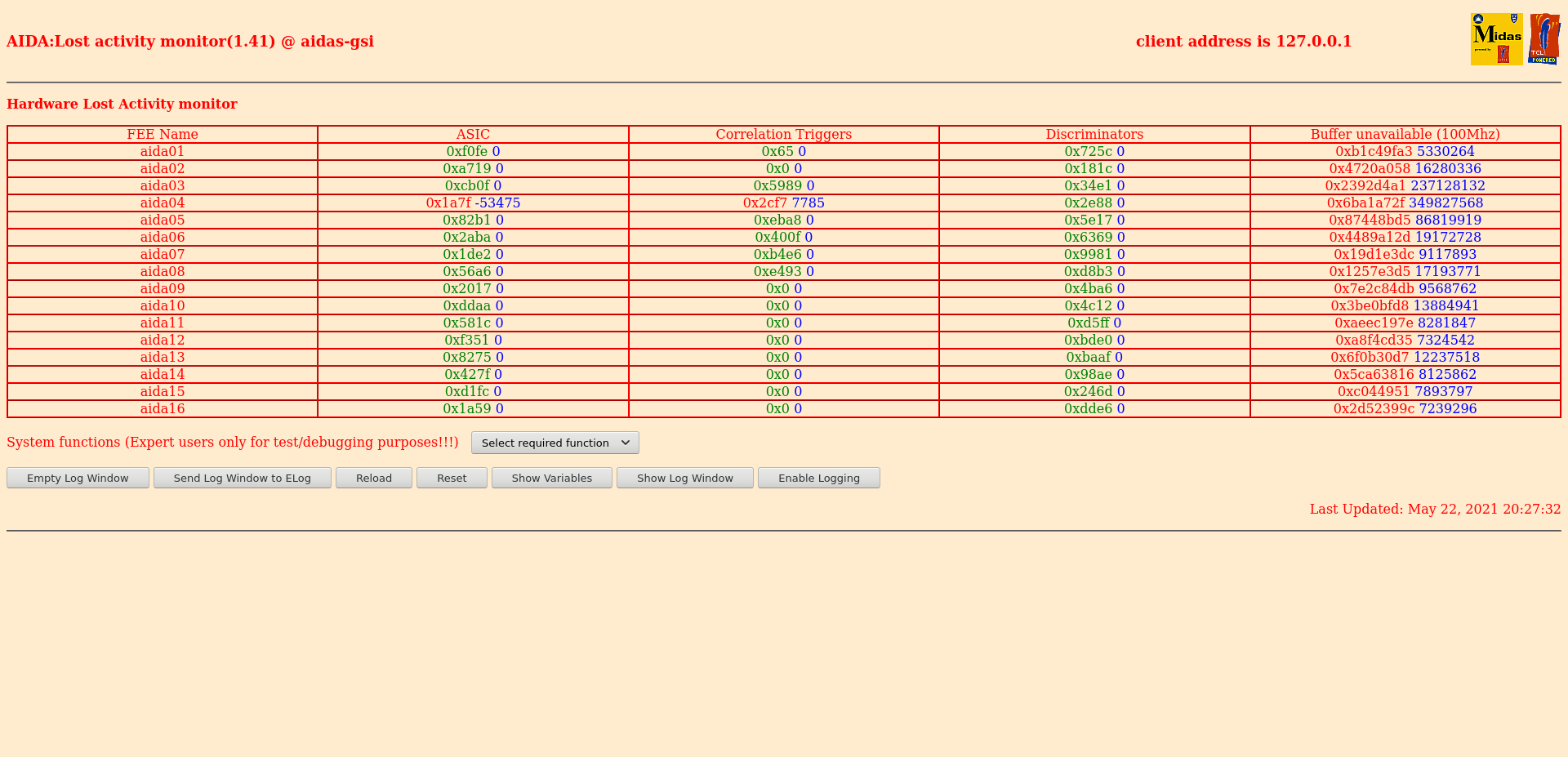

19.30 Lost activity monitors - attachments 13-15

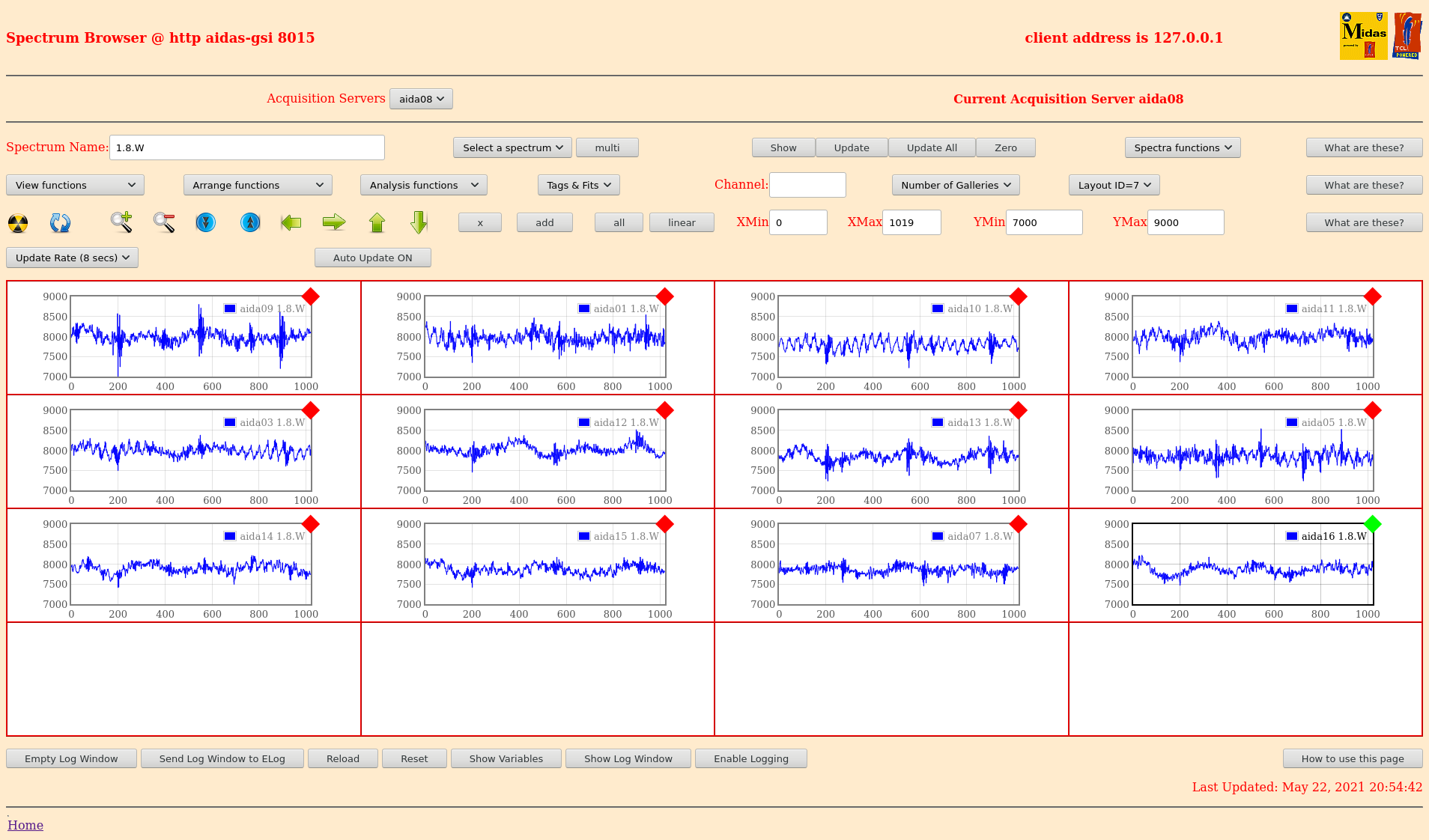

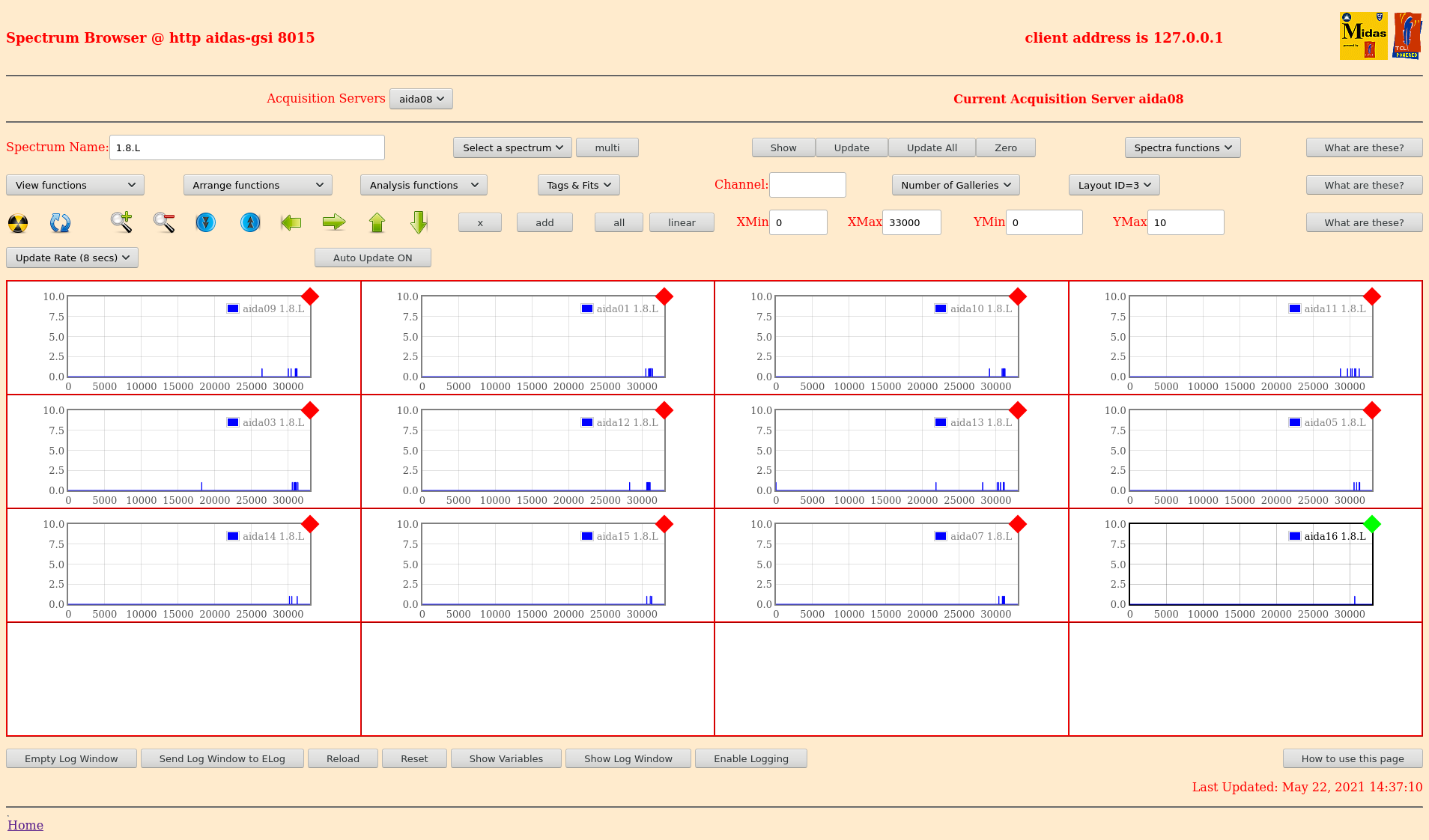

20.54 1.8.W spectra 20us FSR attachments 16 & 23
      1.8.W spectra 200us FSR attachments 17 & 22
      1.8.W spectra 2ms FSR attachments 18 & 21
      1.8.W spectra 20ms FSR attachments 19 & 20
