00.40 Unable to connect to FEE64s 1-7
DAQ power cycled OK
ASIC settings 2021Apr29-13-16-00
slow comparator 0x64 *all* FEE64s
BNC PB-5 OFF
file S496/R16
alpha background
07.17 Some hot HEC channels
ASIC check fixes issue
System wide checks OK *except*
Base Current Difference
aida06 fault 0x5457 : 0x5457 : 0
aida06 : WR status 0x10
White Rabbit error counter test result: Passed 15, Failed 1
Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR
Base Current Difference
aida12 fault 0x0 : 0x1cd : 461
FPGA Timestamp error counter test result: Passed 15, Failed 1
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last
Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) : 4 8 16 32 64 128 256 512 1k 2k 4k
aida01 : 16 9 4 3 1 4 3 2 1 4 7 : 40552
aida02 : 3 2 2 1 2 3 3 2 2 4 7 : 41308
aida03 : 14 5 0 1 1 3 2 4 2 3 7 : 40000
aida04 : 14 4 5 1 3 3 1 4 2 3 7 : 39944
aida05 : 12 4 1 3 2 3 3 2 2 4 7 : 41408
aida06 : 8 3 2 1 2 4 2 3 3 4 7 : 42744
aida07 : 10 4 3 2 1 2 2 3 2 4 7 : 41464
aida08 : 7 5 2 0 3 3 3 2 2 4 7 : 41380
aida09 : 10 5 1 1 1 2 2 3 2 4 7 : 41408
aida10 : 11 6 3 2 1 3 2 2 2 4 7 : 41100
aida11 : 12 8 3 2 2 2 3 2 1 4 7 : 40288
aida12 : 9 9 3 1 2 3 3 2 1 4 7 : 40380
aida13 : 10 4 0 1 1 2 1 3 2 4 7 : 41128
aida14 : 9 4 2 1 1 2 1 3 2 4 7 : 41156
aida15 : 5 4 0 3 3 3 3 3 2 4 7 : 41940
aida16 : 9 6 3 2 0 2 1 3 2 4 7 : 41156
Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same
FEE : aida01 => Options file size is 1026 Last changed Sun May 23 00:29:48 CEST 2021
FEE : aida02 => Options file size is 1025 Last changed Sun May 23 00:19:21 CEST 2021
FEE : aida03 => Options file size is 1014 Last changed Thu Apr 29 14:43:50 CEST 2021
FEE : aida04 => Options file size is 1025 Last changed Fri May 14 16:54:56 CEST 2021
FEE : aida05 => Options file size is 1025 Last changed Mon May 17 06:25:41 CEST 2021
FEE : aida06 => Options file size is 1014 Last changed Thu Apr 29 14:43:59 CEST 2021
FEE : aida07 => Options file size is 1014 Last changed Thu Apr 29 14:44:02 CEST 2021
FEE : aida08 => Options file size is 1025 Last changed Sun May 23 00:16:54 CEST 2021
FEE : aida09 => Options file size is 1014 Last changed Thu Apr 29 14:44:08 CEST 2021
FEE : aida10 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida11 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida12 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida13 => Options file size is 1025 Last changed Fri May 07 19:40:34 CEST 2021
FEE : aida14 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida15 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida16 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021

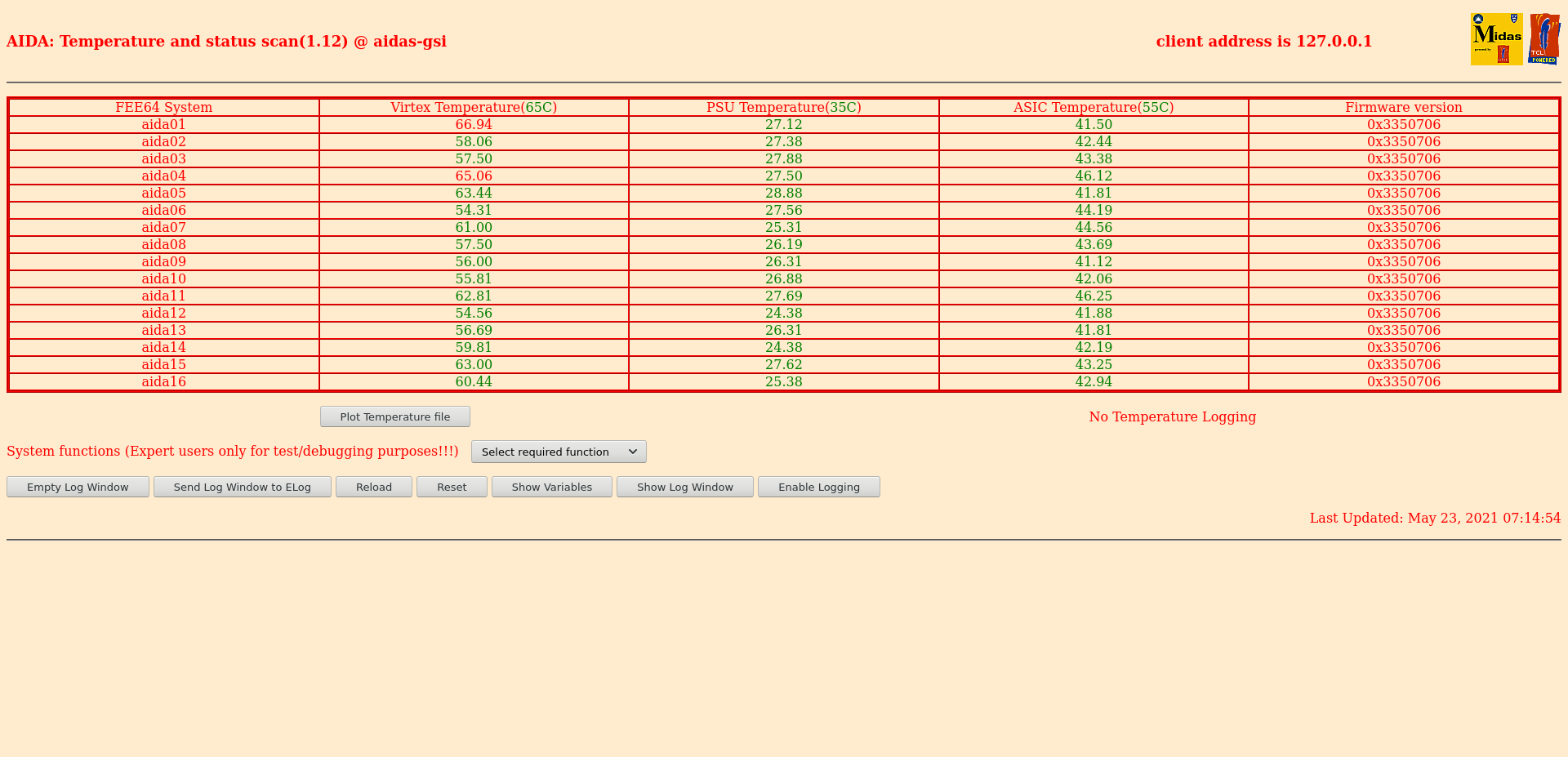

FEE64 temperatures OK - attachment 1
ADC data item stats - attachment 2

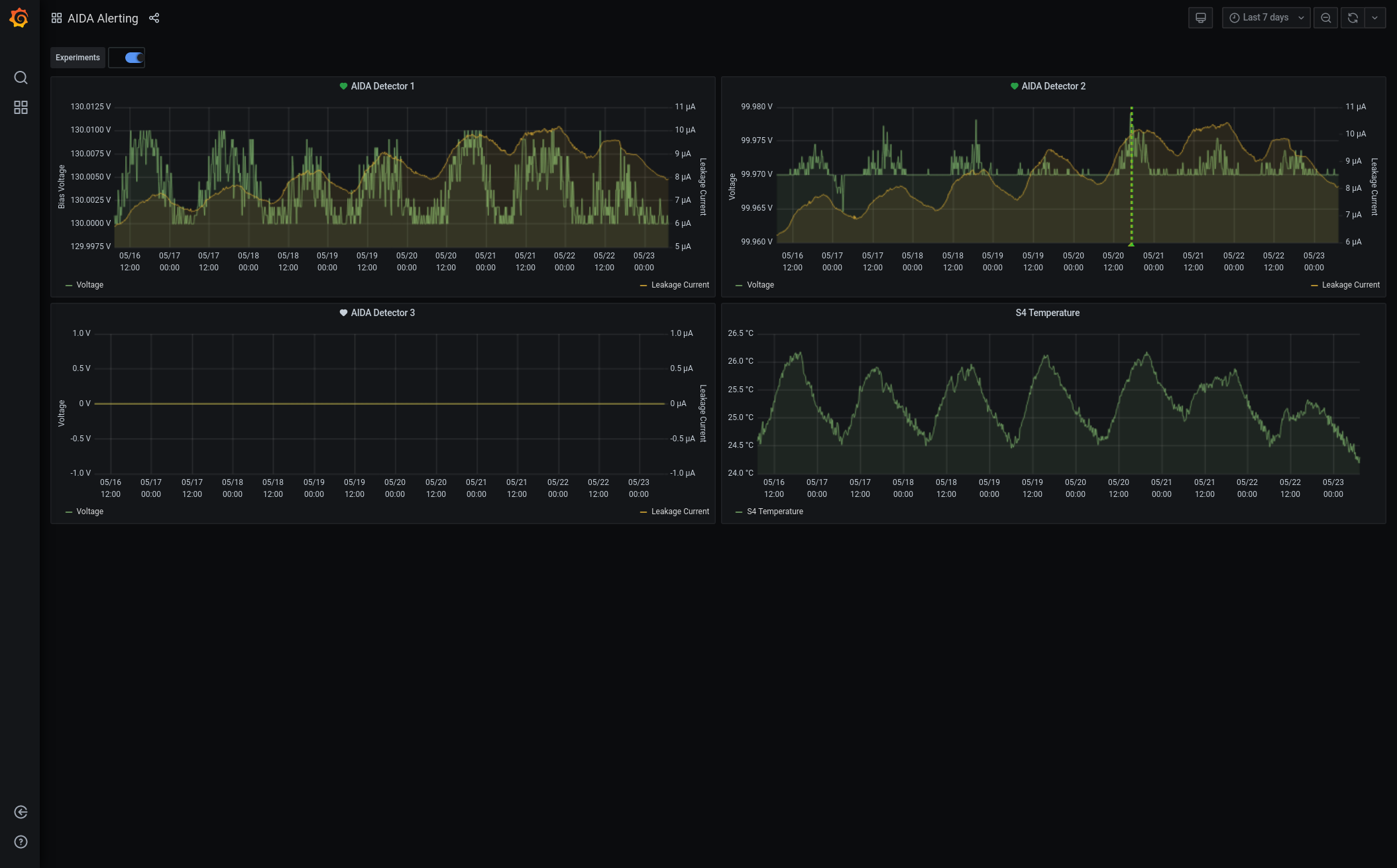

Grafana DSSSD bias & leakage currents most recent 7 days - attachment 3
DSSSD bias & leakage currents OK - attachment 4
11.18 Analysis of file S496/R16_33 - attachment 5
[npg@aidas-gsi S496]$ df -h
Filesystem Size Used Avail Use% Mounted on
/dev/mapper/vg_aidasgsi-lv_root
50G 18G 30G 37% /
tmpfs 7.9G 685M 7.2G 9% /dev/shm
/dev/sda2 477M 42M 410M 10% /boot
/dev/sda1 200M 264K 200M 1% /boot/efi
/dev/mapper/vg_aidasgsi-lv_home
401G 90G 292G 24% /home
/dev/mapper/vg_aidas2-lv_home
7.2T 6.0T 867G 88% /media/1e121361-83d3-4825-b6ae-8700b07e0ca7
/dev/sdd1 7.2T 5.6T 1.3T 82% /media/SecondDrive
/dev/sdc1 7.2T 6.6T 259G 97% /media/ThirdDrive
867/2 x 3279s = 16.5 days to filesystem full - OK
12.11 aida15 zero data/poll stats - re-loaded DAQ program OK
aida04 unable to connect - multiple merger starts ineffective - aida04 rebooted and DAQ re-started OK
DAQ continues file S496/R18 |
|
|
|
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 47385414 ( 14450.2 Hz)
Other data format: 214534594 ( 65422.3 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 61 ( 0.0 Hz)
RESUME: 61 ( 0.0 Hz)
SYNC100: 44215 ( 13.5 Hz)
WR48-63: 44215 ( 13.5 Hz)
FEE64 disc: 1311957 ( 400.1 Hz)
MBS info: 213134085 ( 64995.2 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 0 ( 0.0 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 3279.230 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.000 0.000
1 0.000 0.000
2 0.386 0.000
3 1.000 0.000
4 0.000 0.000
5 0.000 2849.824
6 0.000 0.000
7 0.000 2608.689
8 0.000 0.000
9 0.000 0.000
10 0.000 0.000
11 0.000 0.000
12 0.000 0.000
13 0.000 0.000
14 0.000 0.000
15 0.000 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 71 0 0 0 0 0 0 0 0 0 0 0
1 1455 0 0 0 0 0 0 0 0 0 0 0
2 87 106617422 0 0 35 35 20186 20186 0 106576980 0 0
3 39184250 107913590 0 0 26 26 22238 22238 1311957 106557105 0 0
4 63 0 0 0 0 0 0 0 0 0 0 0
5 3345685 1512 0 0 0 0 756 756 0 0 0 0
6 60 0 0 0 0 0 0 0 0 0 0 0
7 4853274 2070 0 0 0 0 1035 1035 0 0 0 0
8 69 0 0 0 0 0 0 0 0 0 0 0
9 45 0 0 0 0 0 0 0 0 0 0 0
10 70 0 0 0 0 0 0 0 0 0 0 0
11 68 0 0 0 0 0 0 0 0 0 0 0
12 89 0 0 0 0 0 0 0 0 0 0 0
13 57 0 0 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0 0 0 0
15 71 0 0 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 44.293s ( 722.462 blocks/s, 45.154 Mb/s)
|
