07.30 Hot HEC channels multiple FEE64s
      ASIC check fixes

10.56 DAQ continues OK file S496/R18_75

System wide checks OK * except*

FEE64 module aida06 global clocks failed, 6
 Clock status test result: Passed 15, Failed 1

Understand status as follows
Status bit 3 : firmware PLL that creates clocks from external clock not locked
Status bit 2 : always logic '1'
Status bit 1 : LMK3200(2) PLL and clock distribution chip not locked to external clock
Status bit 0 : LMK3200(1) PLL and clock distribution chip not locked to external clock
If all these bits are not set then the operation of the firmware is unreliable

Base 		Current 	Difference
aida01 fault 	 0x82b0 : 	 0x82b1 : 	 1
aida02 fault 	 0xfe72 : 	 0xfe73 : 	 1
aida03 fault 	 0x97f4 : 	 0x97f5 : 	 1
aida04 fault 	 0x950 : 	 0x951 : 	 1
aida05 fault 	 0x8e93 : 	 0x8e94 : 	 1
aida06 fault 	 0x545a : 	 0x545b : 	 1
aida07 fault 	 0xc04d : 	 0xc04e : 	 1
aida08 fault 	 0xa0f7 : 	 0xa0f8 : 	 1
White Rabbit error counter test result: Passed 8, Failed 8

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) :	4	8	16	32	64	128	256	512	1k	2k	4k
aida01 :      1      2      7      2      1      4      3      2      1      4      7   : 40452
aida02 :     13      3      3      1      3      4      2      2      2      4      7   : 41308
aida03 :     17      6      2      2      1      4      2      3      2      3      7   : 39700
aida04 :      8      6      1      0      1      3      1      4      2      3      7   : 39712
aida05 :     10      3      5      3      4      3      3      2      1      4      7   : 40560
aida06 :      4      4      2      0      2      3      2      3      3      4      7   : 42576
aida07 :      5      3      2      3      1      3      1      3      2      4      7   : 41324
aida08 :     11      5      1      1      2      3      3      2      2      4      7   : 41348
aida09 :      7      4      3      0      2      3      1      3      2      4      7   : 41324
aida10 :     11      4      2      2      2      3      2      4      1      4      7   : 41132
aida11 :     18      5      0      2      2      4      2      2      1      4      7   : 40240
aida12 :      2      3      0      1      2      3      2      2      2      4      7   : 41024
aida13 :      4      5      1      2      2      3      2      4      1      4      7   : 41096
aida14 :      9      3      1      2      1      4      2      2      2      4      7   : 41164
aida15 :      2      3      1      3      2      2      3      3      2      4      7   : 41744
aida16 :      5      5      2      0      3      3      2      4      1      4      7   : 41116

Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same

FEE : aida01 =>   Options file size is 1026 	 Last changed Sun May 23 12:04:25 CEST 2021
 FEE : aida02 =>   Options file size is 1025 	 Last changed Sun May 23 00:19:21 CEST 2021
 FEE : aida03 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:50 CEST 2021
 FEE : aida04 =>   Options file size is 1025 	 Last changed Fri May 14 16:54:56 CEST 2021
 FEE : aida05 =>   Options file size is 1025 	 Last changed Mon May 17 06:25:41 CEST 2021
 FEE : aida06 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:59 CEST 2021
 FEE : aida07 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:02 CEST 2021
 FEE : aida08 =>   Options file size is 1025 	 Last changed Sun May 23 00:16:54 CEST 2021
 FEE : aida09 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:08 CEST 2021
 FEE : aida10 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida11 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida12 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida13 =>   Options file size is 1025 	 Last changed Fri May 07 19:40:34 CEST 2021
 FEE : aida14 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida15 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida16 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021

Grafana - DSSSD bias & leakage current - most recent 7 days - attachment 1

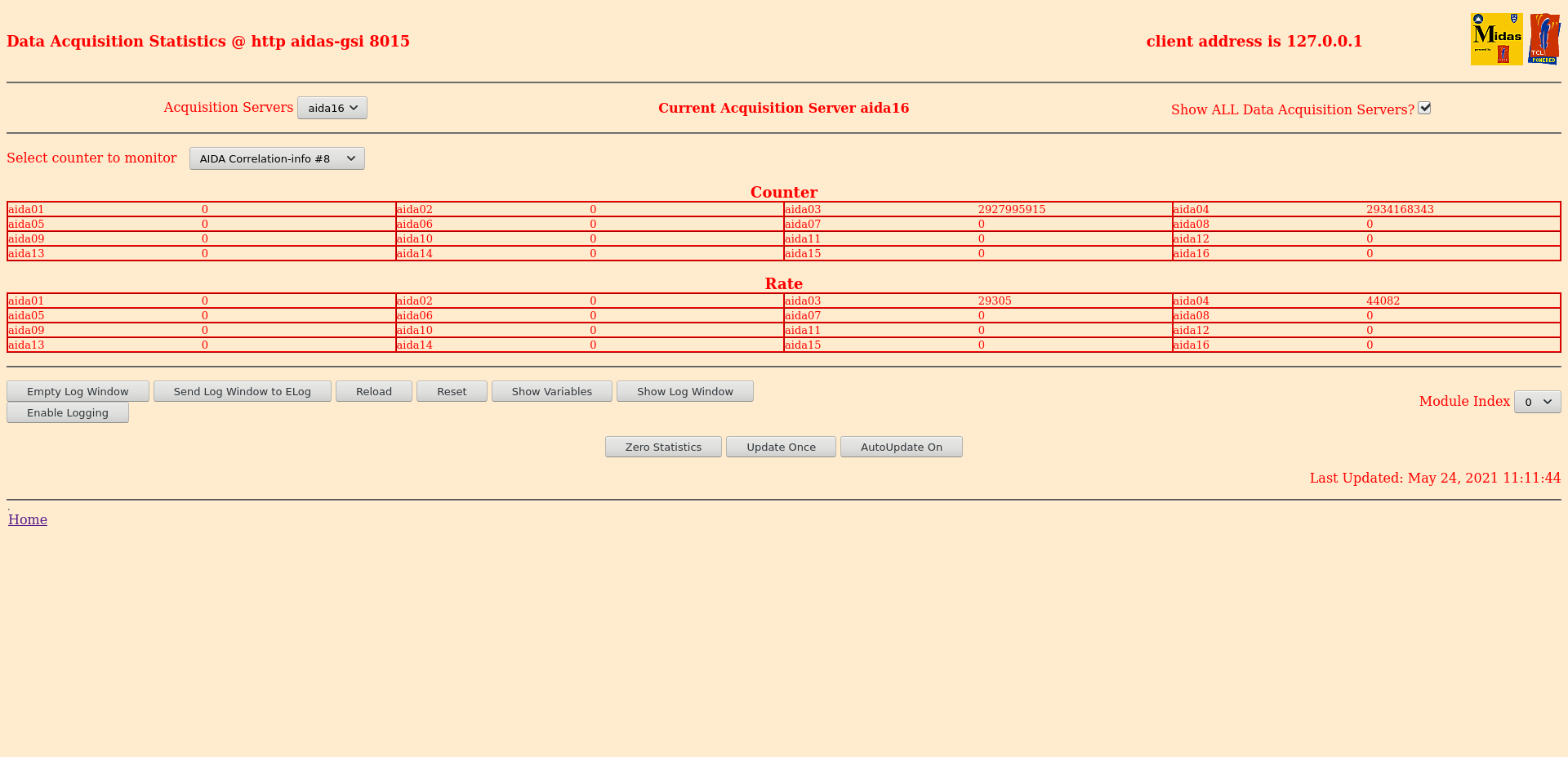

      Statistics - disc, pause, WR 28-47, correlation scaler - attachments 2-5

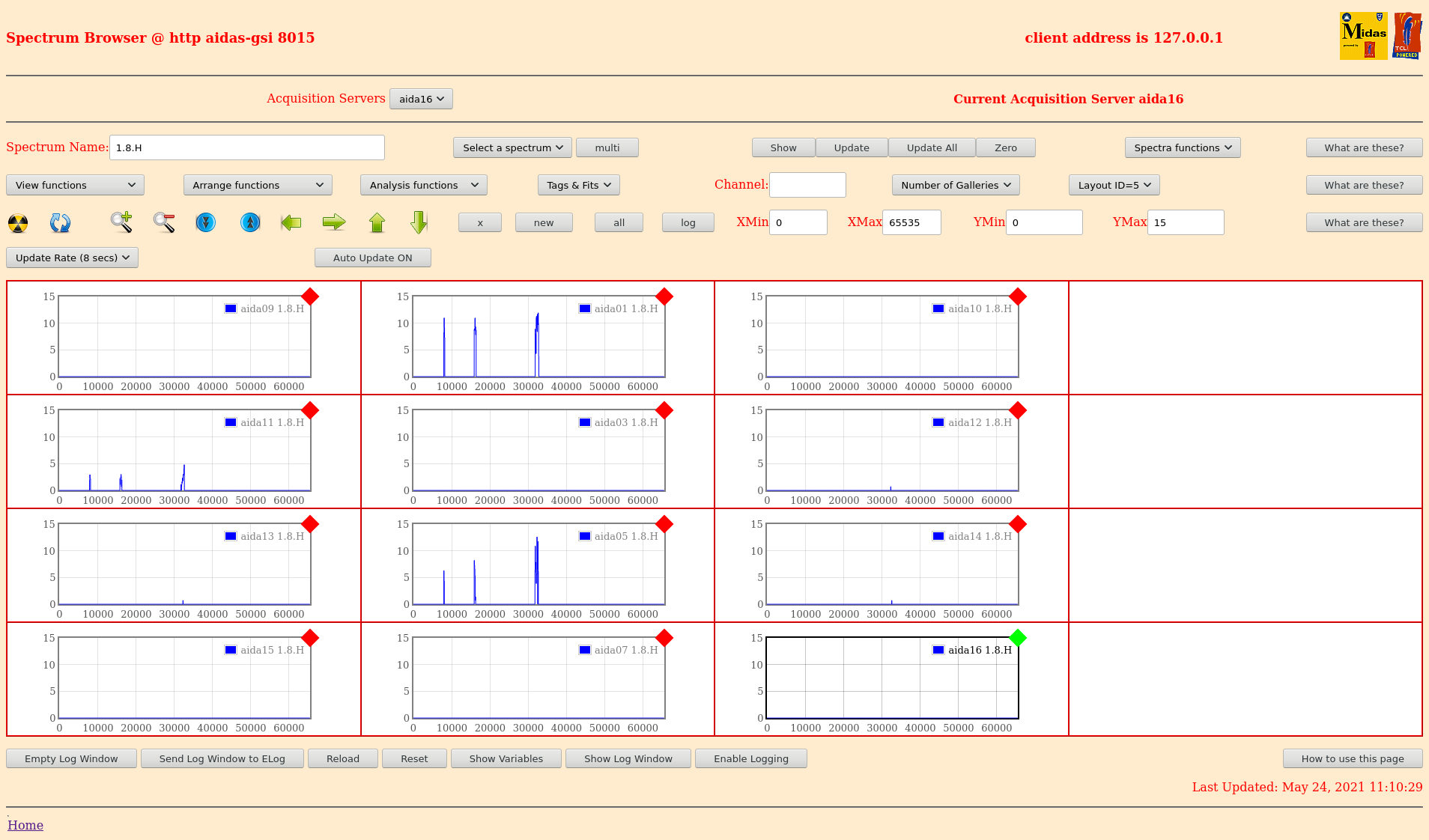

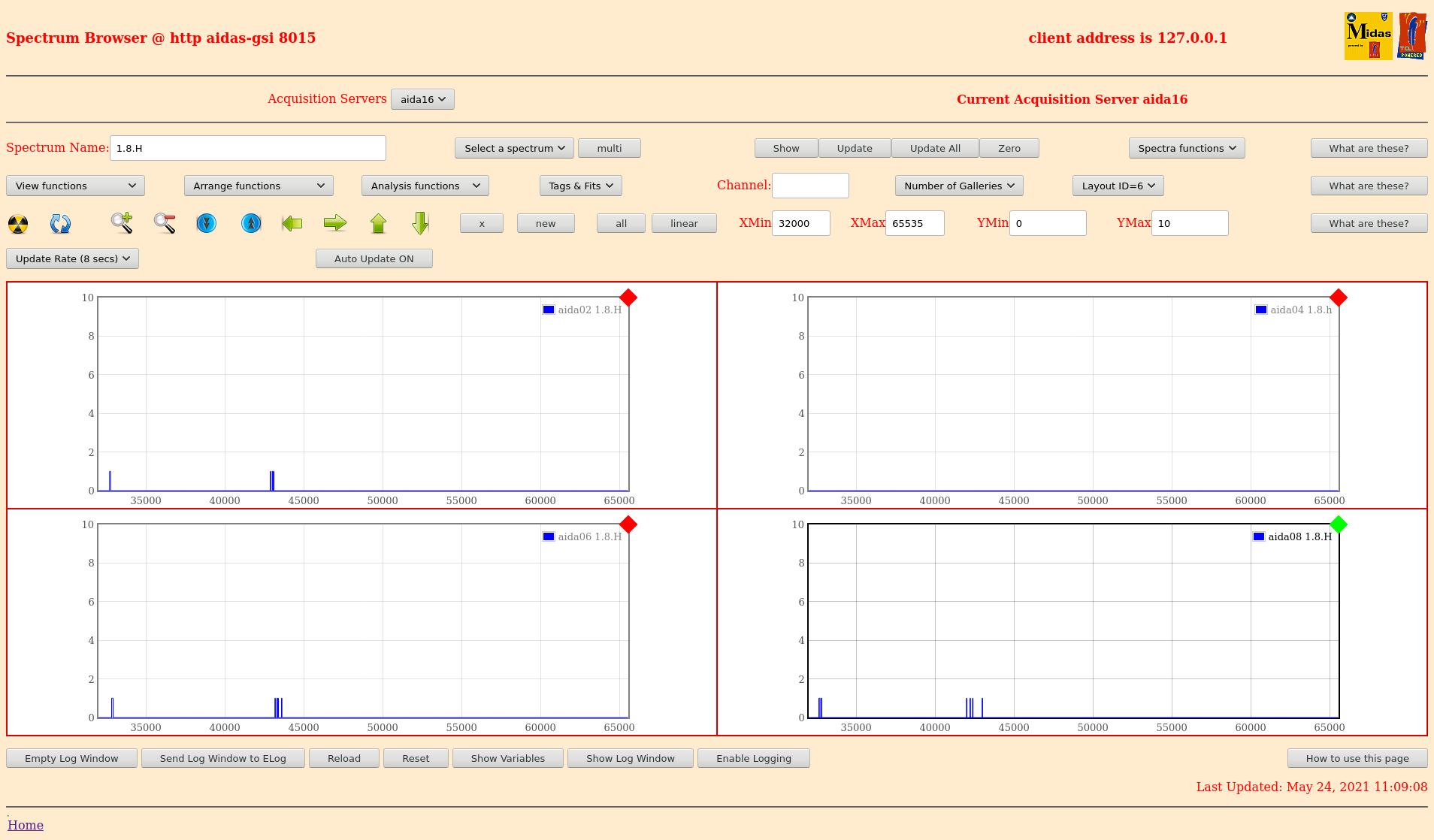

      1.8.H spectra - attachments 6-8
      1.8.L spectra - attachments 9 & 10
      Stat spectra - attachments 11 & 12
      1.8.W spectra - 20us FSR - attachments 13 & 14

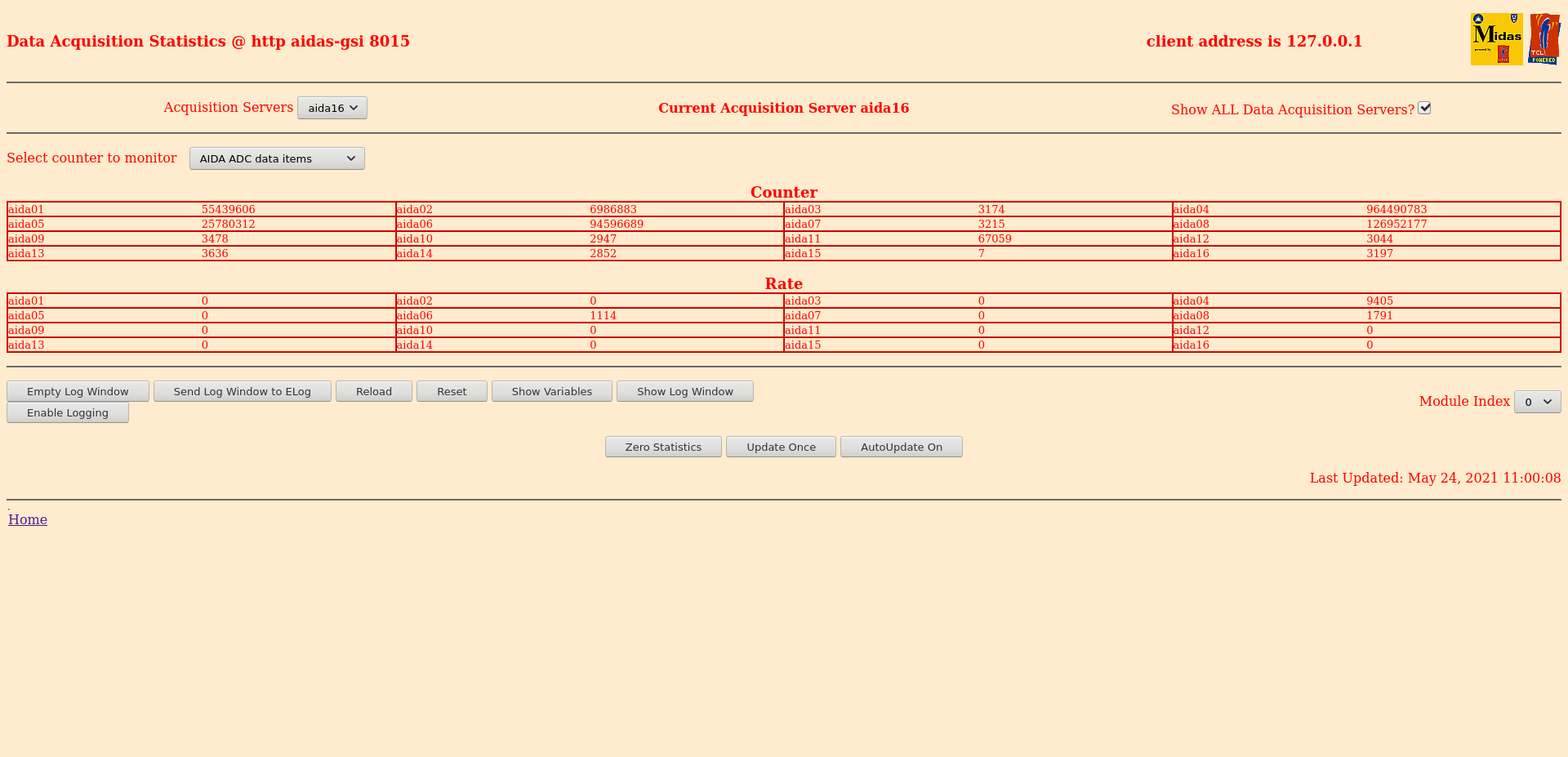

      ADC data items - attachment 15

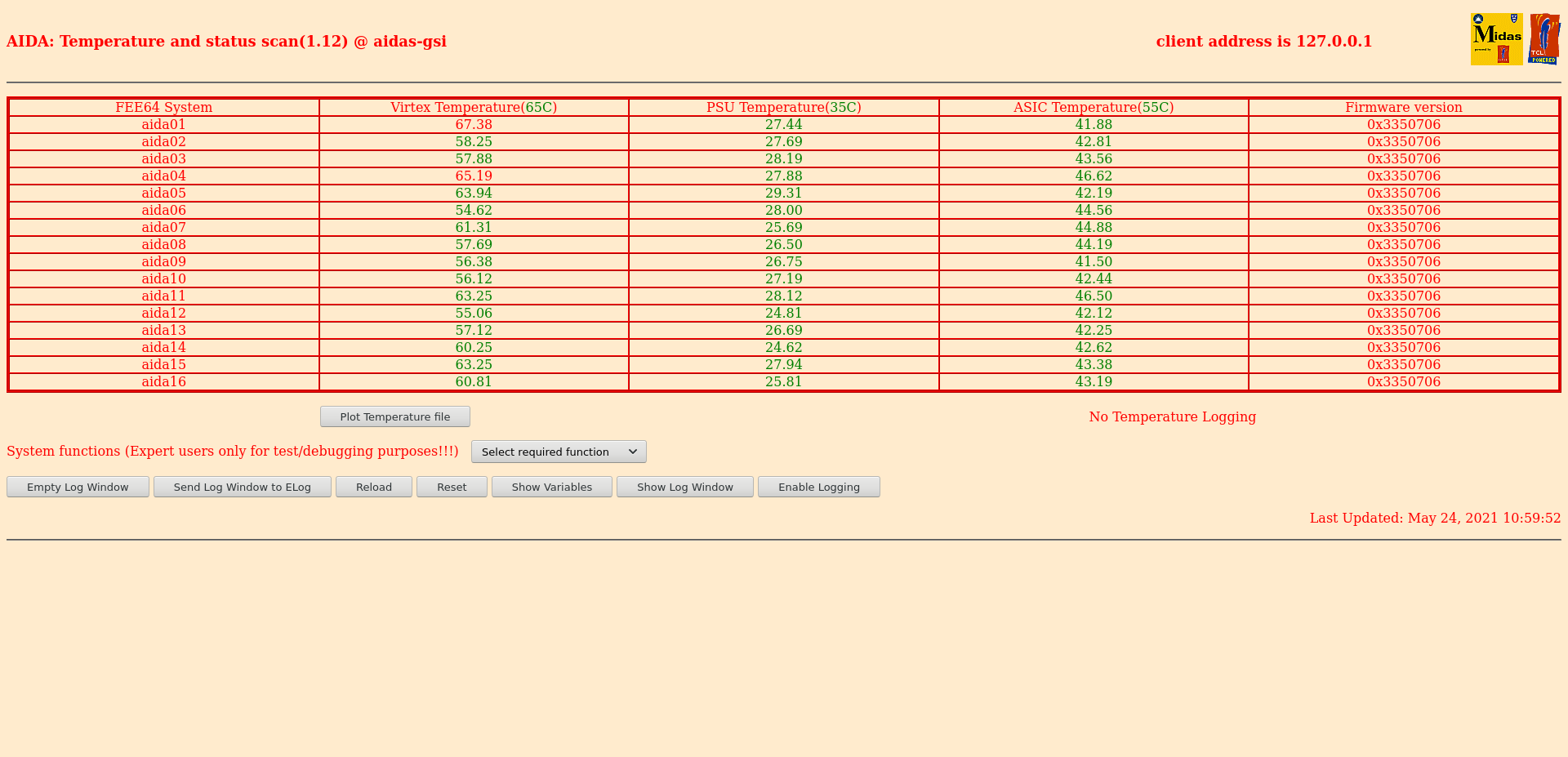

      FEE64 temperatures OK - attachment 16
      DSSSD bias & leakage currents OK - attachment 17
      Merger/Tape Server/Merger statistics - attachment 18
       no merger errors reported since previous restart

analysis of file R18_74
       max dead time 0.05%

10.17 ASIC check
      All histograms, statistics, merger statistics zero'd

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

Screenshot_2021-05-24_AIDA_Alerting_-_Grafana.png Original size: 2108x1310

Attachment 2:

Screenshot_2021-05-24_Statistics_aidas-gsi(4).png Original size: 1920x927

Attachment 3:

Screenshot_2021-05-24_Statistics_aidas-gsi(3).png Original size: 1920x927

Attachment 4:

Screenshot_2021-05-24_Statistics_aidas-gsi(2).png Original size: 1920x927

Attachment 5:

Screenshot_2021-05-24_Statistics_aidas-gsi(1).png Original size: 1920x927

Attachment 6:

Screenshot_2021-05-24_Spectrum_Browser_aidas-gsi(8).png Original size: 1908x1122

Attachment 7:

Screenshot_2021-05-24_Spectrum_Browser_aidas-gsi(7).png Original size: 1908x1122

Attachment 8:

Screenshot_2021-05-24_Spectrum_Browser_aidas-gsi(6).png Original size: 1908x1118

Attachment 9:

Screenshot_2021-05-24_Spectrum_Browser_aidas-gsi(5).png Original size: 1908x1118

Attachment 10:

Screenshot_2021-05-24_Spectrum_Browser_aidas-gsi(4).png Original size: 1908x1122

Attachment 11:

Screenshot_2021-05-24_Spectrum_Browser_aidas-gsi(3).png Original size: 1908x1122

Attachment 12:

Screenshot_2021-05-24_Spectrum_Browser_aidas-gsi(2).png Original size: 1908x1122

Attachment 13:

Screenshot_2021-05-24_Spectrum_Browser_aidas-gsi(1).png Original size: 1908x1120

Attachment 14:

Screenshot_2021-05-24_Spectrum_Browser_aidas-gsi.png Original size: 1908x1122

Attachment 15:

Screenshot_2021-05-24_Statistics_aidas-gsi.png Original size: 1920x927

Attachment 16:

Screenshot_2021-05-24_Temperature_and_status_scan_aidas-gsi.png Original size: 1920x927

Attachment 17:

900.png Original size: 502x344

Attachment 18:

901.png Original size: 3840x1080

Attachment 19:

R18_74

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:   42982076 (   14466.2 Hz)
        Other data format:  218937925 (   73686.5 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:         59 (       0.0 Hz)
                               RESUME:         59 (       0.0 Hz)
                              SYNC100:      43069 (      14.5 Hz)
                              WR48-63:      43069 (      14.5 Hz)
                           FEE64 disc:    1163669 (     391.6 Hz)
                             MBS info:  217688000 (   73265.8 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:          0 (       0.0 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:     2971.209 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.000                0.000
  1                0.000                0.000
  2                0.425                0.000
  3                1.488                0.000
  4                0.000                0.000
  5                0.000             2622.333
  6                0.000                0.000
  7                0.000             2340.476
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0         64          0          0          0          0          0          0          0          0          0          0          0
  1       2227          3          0          0          0          0          1          1          1          0          0          0
  2         75  108903724          0          0         25         25      19964      19964          0  108863746          0          0
  3   35357926  110031040          0          0         34         34      21525      21525    1163668  108824254          0          0
  4         89          0          0          0          0          0          0          0          0          0          0          0
  5    3145189       1316          0          0          0          0        658        658          0          0          0          0
  6         64          0          0          0          0          0          0          0          0          0          0          0
  7    4475895       1842          0          0          0          0        921        921          0          0          0          0
  8         56          0          0          0          0          0          0          0          0          0          0          0
  9         67          0          0          0          0          0          0          0          0          0          0          0
 10        115          0          0          0          0          0          0          0          0          0          0          0
 11         65          0          0          0          0          0          0          0          0          0          0          0
 12         65          0          0          0          0          0          0          0          0          0          0          0
 13         77          0          0          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0          0          0          0
 15        102          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   40.766s (  784.975 blocks/s,  49.061 Mb/s)

Attachment 20:

Drop attachments here...

ELOG V3.1.4-unknown
