12.16 DAQ continues file S496/R18_324
      alpha background

Tape server c. 2.5Mb/s
      ASIC check
      Tape server c. 300kb/s - presumably hot HEC channels

12.20 All system wide checks OK *except*

Base 		Current 	Difference
aida01 fault 	 0x82b0 : 	 0x82b1 : 	 1
aida02 fault 	 0xfe72 : 	 0xfe73 : 	 1
aida03 fault 	 0x97f4 : 	 0x97f5 : 	 1
aida04 fault 	 0x950 : 	 0x951 : 	 1
aida05 fault 	 0x8e93 : 	 0x8e94 : 	 1
aida06 fault 	 0x545a : 	 0x545b : 	 1
aida07 fault 	 0xc04d : 	 0xc04e : 	 1
aida08 fault 	 0xa0f7 : 	 0xa0f8 : 	 1
White Rabbit error counter test result: Passed 8, Failed 8

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) :	4	8	16	32	64	128	256	512	1k	2k	4k
aida01 :      2      6      6      2      1      3      2      2      2      4      6   : 37016
aida02 :      3      6      5      3      3      4      3      2      1      3      7   : 38572
aida03 :     21     10      8      6      3      3      2      3      2      4      6   : 37924
aida04 :     29     15      4      5      3      4      2      3      3      3      6   : 37004
aida05 :     17      5      2      2      2      2      2      2      2      4      6   : 36940
aida06 :      1      6      0      1      2      2      2      3      3      4      6   : 38356
aida07 :     11      6      7      4      3      3      3      3      2      4      6   : 38028
aida08 :     13      8      3      2      2      3      3      2      1      3      7   : 38372
aida09 :      7      9      2      1      3      3      3      3      2      4      6   : 37860
aida10 :      9      8      4      2      0      3      3      3      1      4      6   : 36708
aida11 :     16      6      3      2      2      3      3      3      1      4      6   : 36832
aida12 :     21     10      7      4      2      4      2      2      1      3      7   : 38420
aida13 :      8      3      3      1      3      3      3      3      2      4      6   : 37832
aida14 :     14      3      6      1      0      4      2      2      2      4      6   : 37072
aida15 :      2      4      2      2      1      3      3      4      2      4      6   : 38216
aida16 :     16      5      5      3      0      3      2      2      2      4      6   : 37016

Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same

FEE : aida01 =>   Options file size is 1026 	 Last changed Sun May 23 12:04:25 CEST 2021
 FEE : aida02 =>   Options file size is 1025 	 Last changed Sun May 23 00:19:21 CEST 2021
 FEE : aida03 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:50 CEST 2021
 FEE : aida04 =>   Options file size is 1025 	 Last changed Fri May 14 16:54:56 CEST 2021
 FEE : aida05 =>   Options file size is 1025 	 Last changed Mon May 17 06:25:41 CEST 2021
 FEE : aida06 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:59 CEST 2021
 FEE : aida07 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:02 CEST 2021
 FEE : aida08 =>   Options file size is 1025 	 Last changed Sun May 23 00:16:54 CEST 2021
 FEE : aida09 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:08 CEST 2021
 FEE : aida10 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida11 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida12 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida13 =>   Options file size is 1025 	 Last changed Fri May 07 19:40:34 CEST 2021
 FEE : aida14 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida15 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida16 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021

Grafana - DSSSD bias & leakage cuuent - most recent 7 days - attachment 1

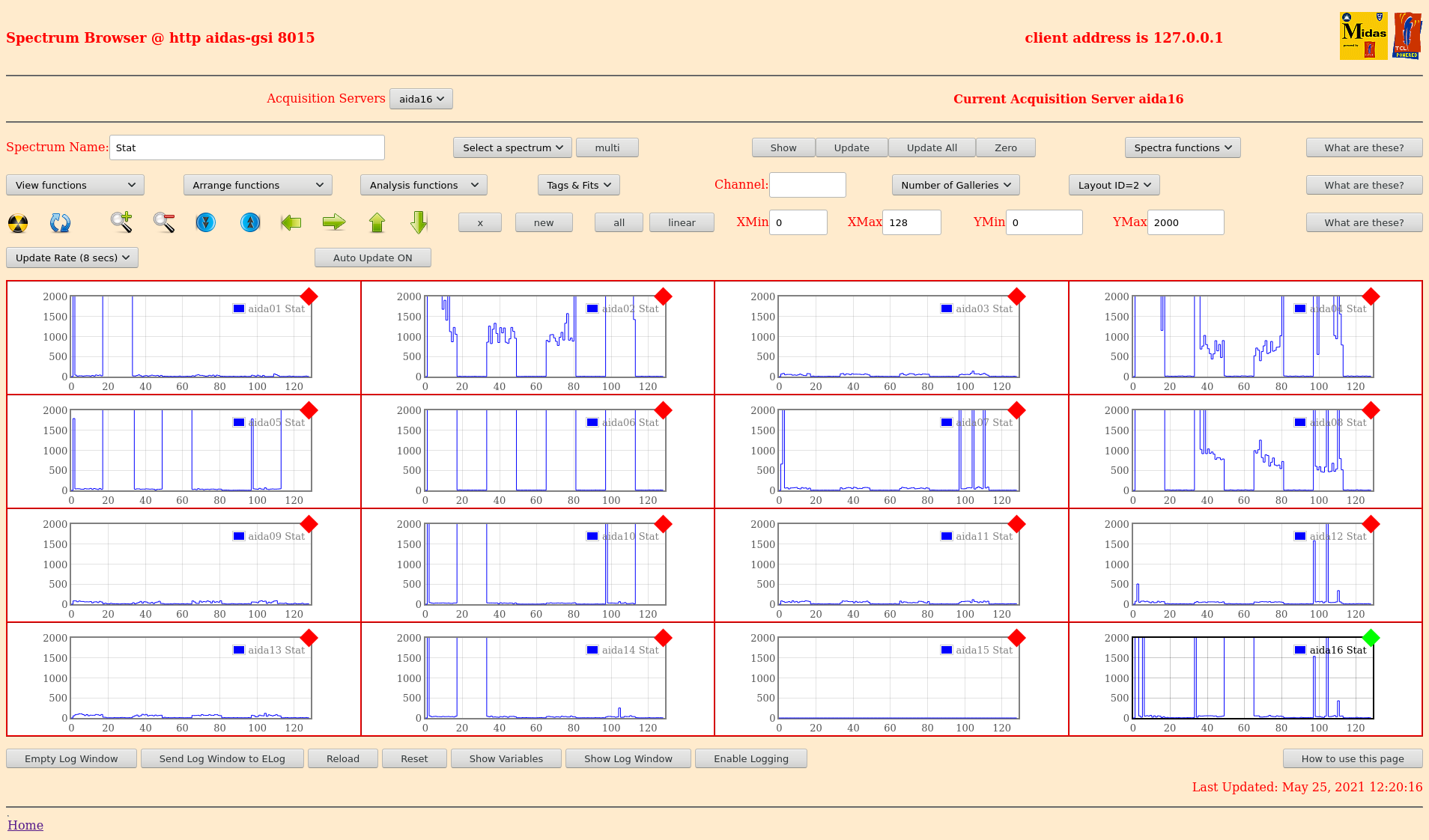

      Rate spectra - attachment 2
      ADC data item stats - attachment 3

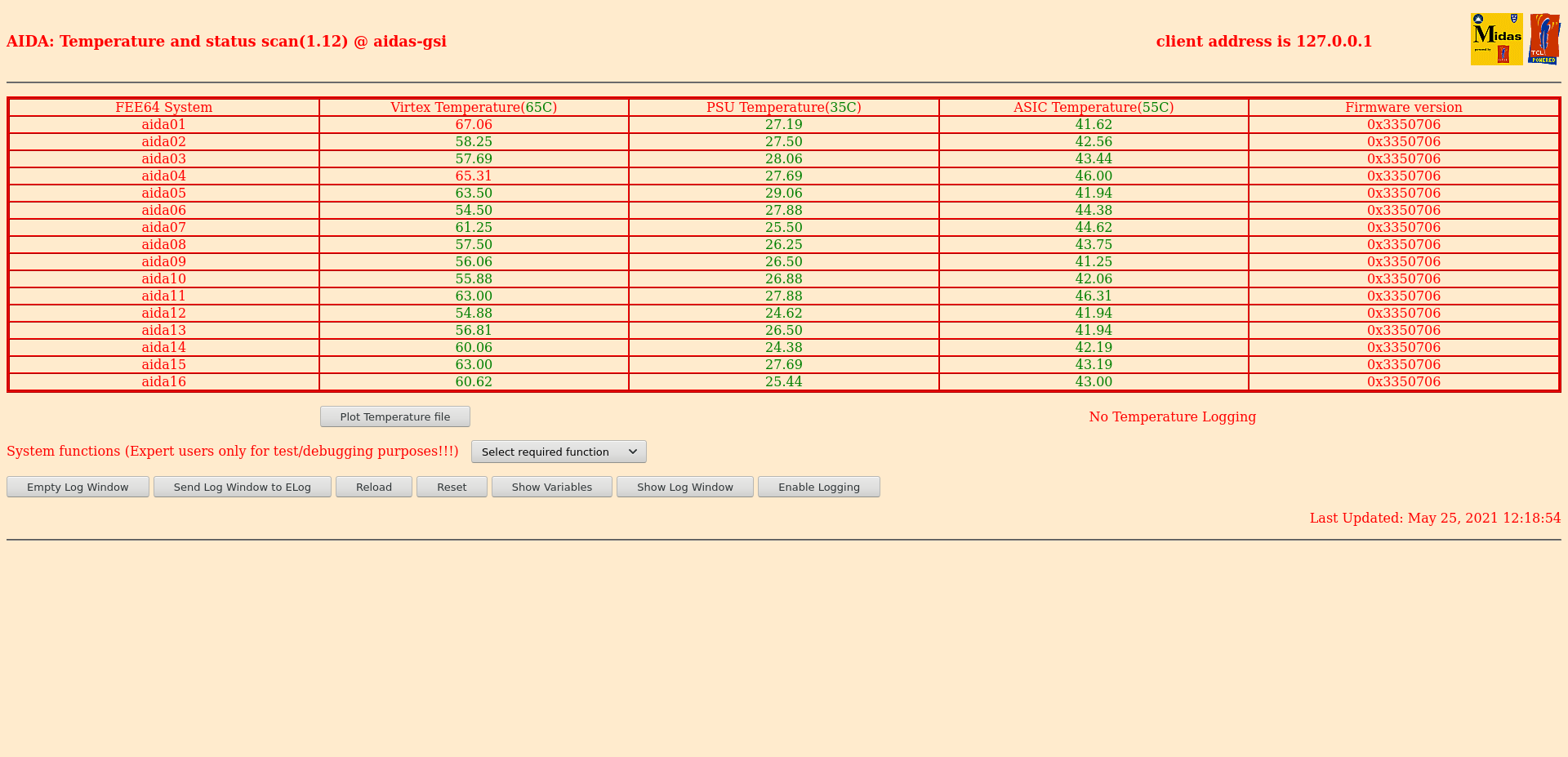

      FEE64 temps OK - attachment 4

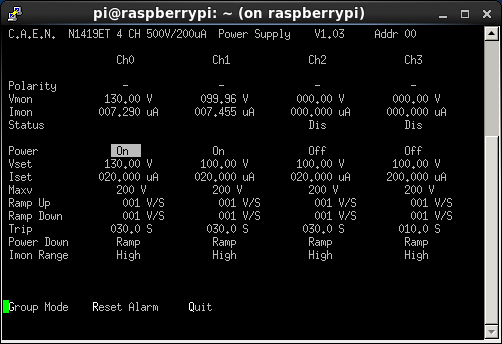

      DSSSD bias & leakage current OK - attachment 5
      Merger/Tape Server/Merger stats - attachment 6
       no merger errors reported since previous restart

17.30 analysis of file S496/R18_340
       max deadtime 0.36% aida04
