14.22 DAQ continues - file S496/R18_369
      alpha background

All system wide checks OK *except*

Base 		Current 	Difference
aida01 fault 	 0x82b0 : 	 0x82b1 : 	 1
aida02 fault 	 0xfe72 : 	 0xfe73 : 	 1
aida03 fault 	 0x97f4 : 	 0x97f5 : 	 1
aida04 fault 	 0x950 : 	 0x951 : 	 1
aida05 fault 	 0x8e93 : 	 0x8e94 : 	 1
aida06 fault 	 0x545a : 	 0x545b : 	 1
aida07 fault 	 0xc04d : 	 0xc04e : 	 1
aida08 fault 	 0xa0f7 : 	 0xa0f8 : 	 1
White Rabbit error counter test result: Passed 8, Failed 8

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) :	4	8	16	32	64	128	256	512	1k	2k	4k
aida01 :     12      4      6      1      2      3      2      2      2      4      6   : 37072
aida02 :     12      2      4      1      3      4      3      3      2      4      6   : 37984
aida03 :     12      6      7      6      2      4      3      2      3      3      6   : 36624
aida04 :     36     11      4      6      4      3      2      3      3      3      6   : 36968
aida05 :      2      4      6      3      2      2      2      2      2      4      6   : 36968
aida06 :      8      5      3      2      2      2      2      3      3      4      6   : 38456
aida07 :     10      4      6      4      3      3      3      3      2      4      6   : 37992
aida08 :     21      8      3      2      3      3      3      3      2      4      6   : 37956
aida09 :     17     10      3      2      3      4      3      3      1      4      6   : 37060
aida10 :      3      6     10      2      1      3      3      3      1      4      6   : 36828
aida11 :     12      6      4      2      2      3      3      3      1      4      6   : 36832
aida12 :      2      9      5      1      3      3      2      3      2      4      6   : 37632
aida13 :      4      7      2      1      3      3      3      3      2      4      6   : 37832
aida14 :     15      6      6      1      0      4      2      2      2      4      6   : 37100
aida15 :      5      4      3      2      1      3      3      4      2      4      6   : 38244
aida16 :     17      6      6      2      1      3      2      2      2      4      6   : 37076

Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same

FEE : aida01 =>   Options file size is 1026 	 Last changed Sun May 23 12:04:25 CEST 2021
 FEE : aida02 =>   Options file size is 1025 	 Last changed Sun May 23 00:19:21 CEST 2021
 FEE : aida03 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:50 CEST 2021
 FEE : aida04 =>   Options file size is 1025 	 Last changed Fri May 14 16:54:56 CEST 2021
 FEE : aida05 =>   Options file size is 1025 	 Last changed Mon May 17 06:25:41 CEST 2021
 FEE : aida06 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:59 CEST 2021
 FEE : aida07 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:02 CEST 2021
 FEE : aida08 =>   Options file size is 1025 	 Last changed Sun May 23 00:16:54 CEST 2021
 FEE : aida09 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:08 CEST 2021
 FEE : aida10 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida11 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida12 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida13 =>   Options file size is 1025 	 Last changed Fri May 07 19:40:34 CEST 2021
 FEE : aida14 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida15 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida16 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021

Grafana - DSSSD bias & leakage cuuent - most recent 7 days - attachment 1

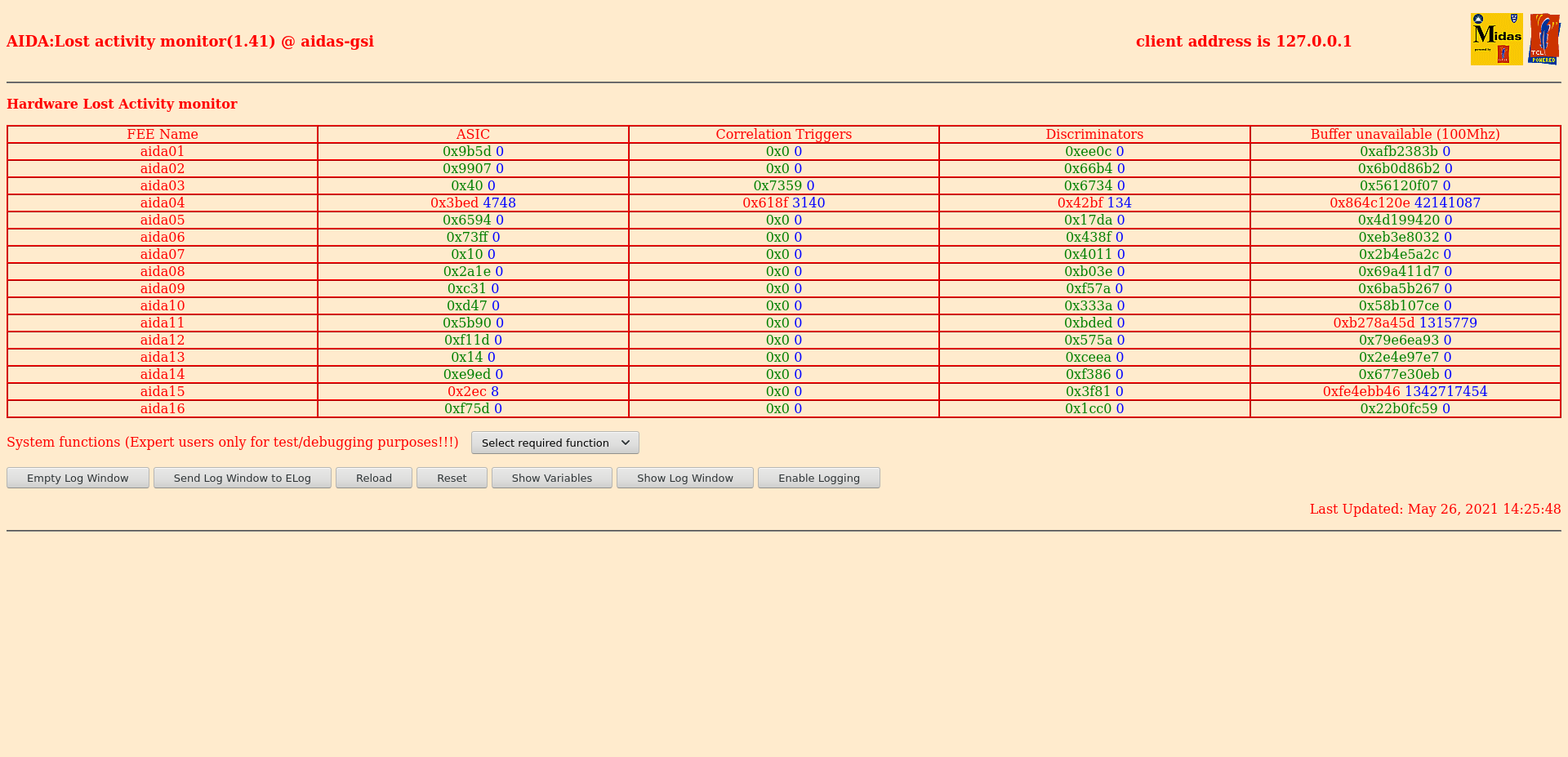

      Lost activity monitor - attachment 2

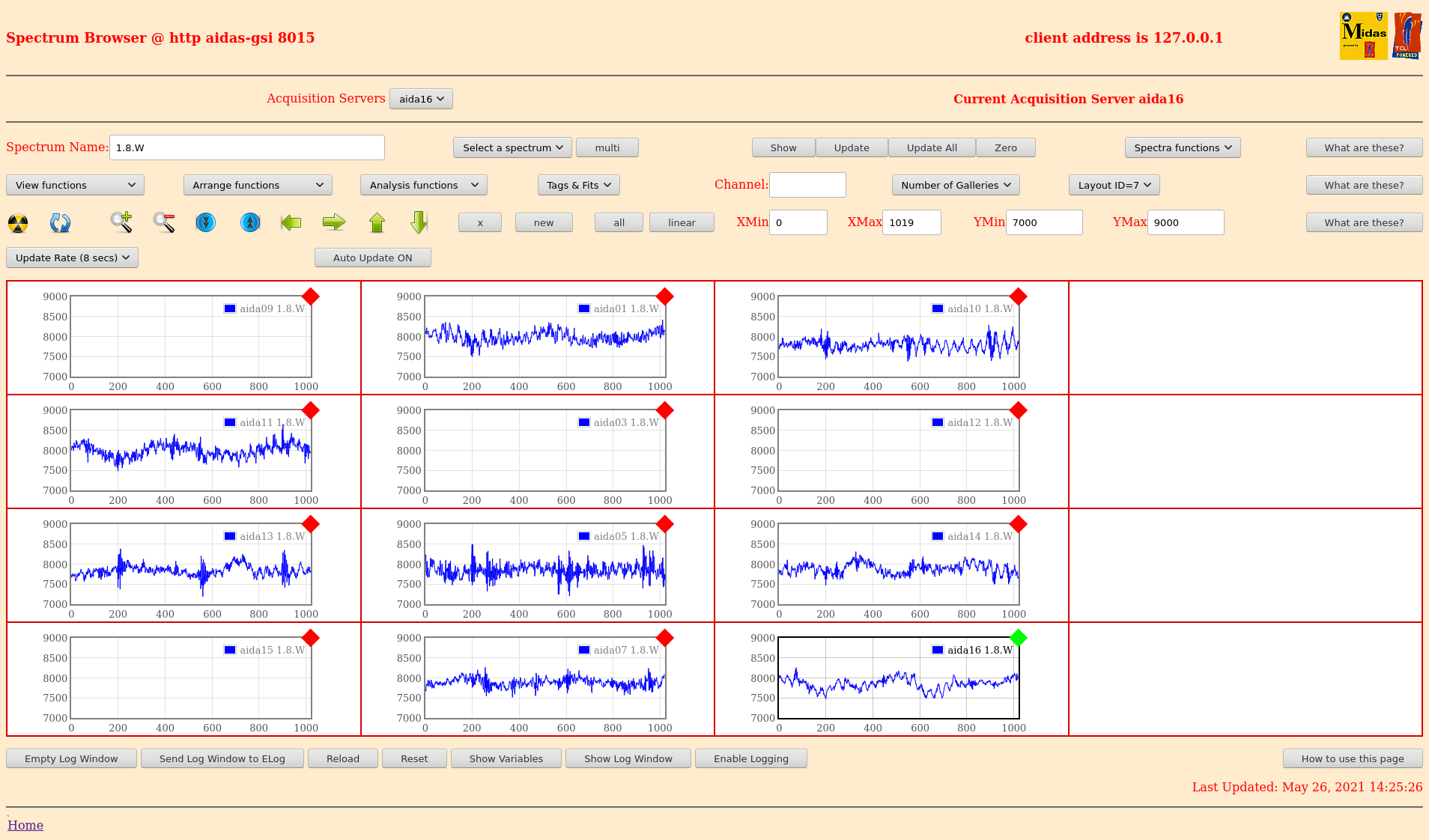

      1.8.W spectra - attachments 3 & 4
      ADC data item stats - attachment 5

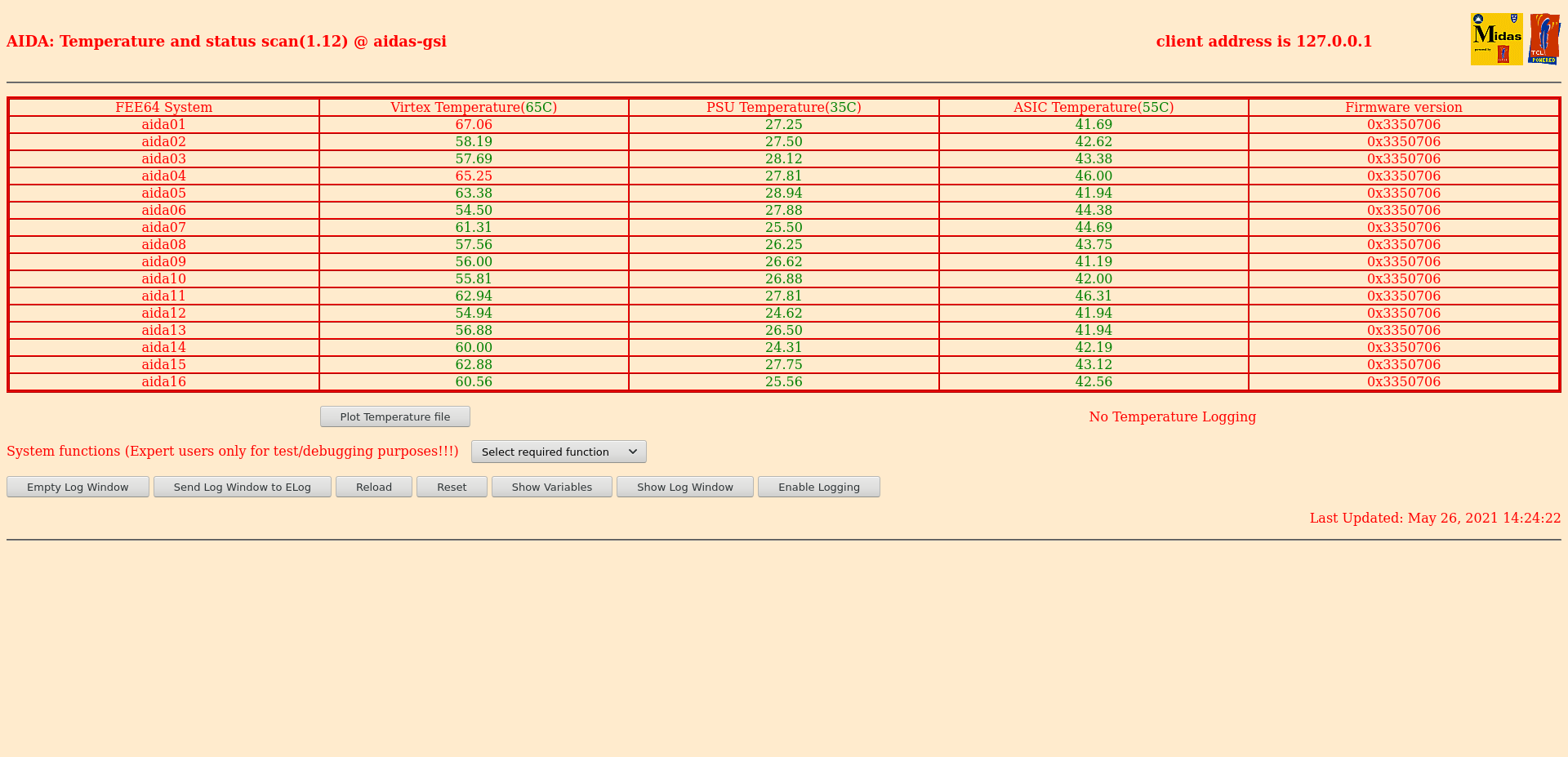

      FEE64 temps OK - attachment 6
      DSSSD bias & leakage current OK - attachment 7
      Merger/Tape Server/Merger stats - attachment 8
       no merger errors reported since previous restart

14.30 analysis of file S496/R18_340 - attachment 9
       max deadtime 0.31% aida04
