11.30 DAQ continues - file S496/R18_472
alpha background
All system wide checks OK *except*
FEE64 module aida06 global clocks failed, 6
Clock status test result: Passed 15, Failed 1
Understand status as follows
Status bit 3 : firmware PLL that creates clocks from external clock not locked
Status bit 2 : always logic '1'
Status bit 1 : LMK3200(2) PLL and clock distribution chip not locked to external clock
Status bit 0 : LMK3200(1) PLL and clock distribution chip not locked to external clock
If all these bits are not set then the operation of the firmware is unreliable
Base Current Difference
aida01 fault 0x82b0 : 0x82b2 : 2
aida02 fault 0xfe72 : 0xfe74 : 2
aida03 fault 0x97f4 : 0x97f6 : 2
aida04 fault 0x950 : 0x952 : 2
aida05 fault 0x8e93 : 0x8e95 : 2
aida06 fault 0x545a : 0x545c : 2
aida07 fault 0xc04d : 0xc04f : 2
aida08 fault 0xa0f7 : 0xa0f9 : 2
White Rabbit error counter test result: Passed 8, Failed 8
Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR
Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) : 4 8 16 32 64 128 256 512 1k 2k 4k
aida01 : 1 4 7 1 3 2 2 2 2 4 6 : 36980
aida02 : 3 1 5 1 2 4 3 3 2 4 6 : 37892
aida03 : 8 8 6 6 3 3 2 3 3 3 6 : 36800
aida04 : 37 12 5 6 3 4 2 3 3 3 6 : 37060
aida05 : 11 5 6 4 2 2 2 2 2 4 6 : 37044
aida06 : 4 3 3 3 2 2 2 3 3 4 6 : 38456
aida07 : 1 12 3 2 0 3 3 2 2 4 6 : 37204
aida08 : 13 8 1 2 3 4 3 3 2 4 6 : 38020
aida09 : 7 7 5 1 1 3 2 2 2 4 6 : 36996
aida10 : 12 7 9 2 1 3 3 3 1 4 6 : 36856
aida11 : 2 9 3 1 2 3 3 3 1 4 6 : 36768
aida12 : 11 4 3 3 2 4 2 3 2 4 6 : 37724
aida13 : 10 8 6 2 2 3 2 2 2 4 6 : 37128
aida14 : 16 7 7 1 0 4 2 2 2 4 6 : 37128
aida15 : 12 6 2 2 1 3 3 4 2 4 6 : 38272
aida16 : 9 4 10 1 2 3 2 2 2 4 6 : 37124
Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same
FEE : aida01 => Options file size is 1026 Last changed Sun May 23 12:04:25 CEST 2021
FEE : aida02 => Options file size is 1025 Last changed Sun May 23 00:19:21 CEST 2021
FEE : aida03 => Options file size is 1014 Last changed Thu Apr 29 14:43:50 CEST 2021
FEE : aida04 => Options file size is 1025 Last changed Fri May 14 16:54:56 CEST 2021
FEE : aida05 => Options file size is 1025 Last changed Mon May 17 06:25:41 CEST 2021
FEE : aida06 => Options file size is 1014 Last changed Thu Apr 29 14:43:59 CEST 2021
FEE : aida07 => Options file size is 1014 Last changed Thu Apr 29 14:44:02 CEST 2021
FEE : aida08 => Options file size is 1025 Last changed Sun May 23 00:16:54 CEST 2021
FEE : aida09 => Options file size is 1014 Last changed Thu Apr 29 14:44:08 CEST 2021
FEE : aida10 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida11 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida12 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida13 => Options file size is 1025 Last changed Fri May 07 19:40:34 CEST 2021
FEE : aida14 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida15 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida16 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
Grafana - DSSSD bias & leakage current - most recent 7 days - attachment 1

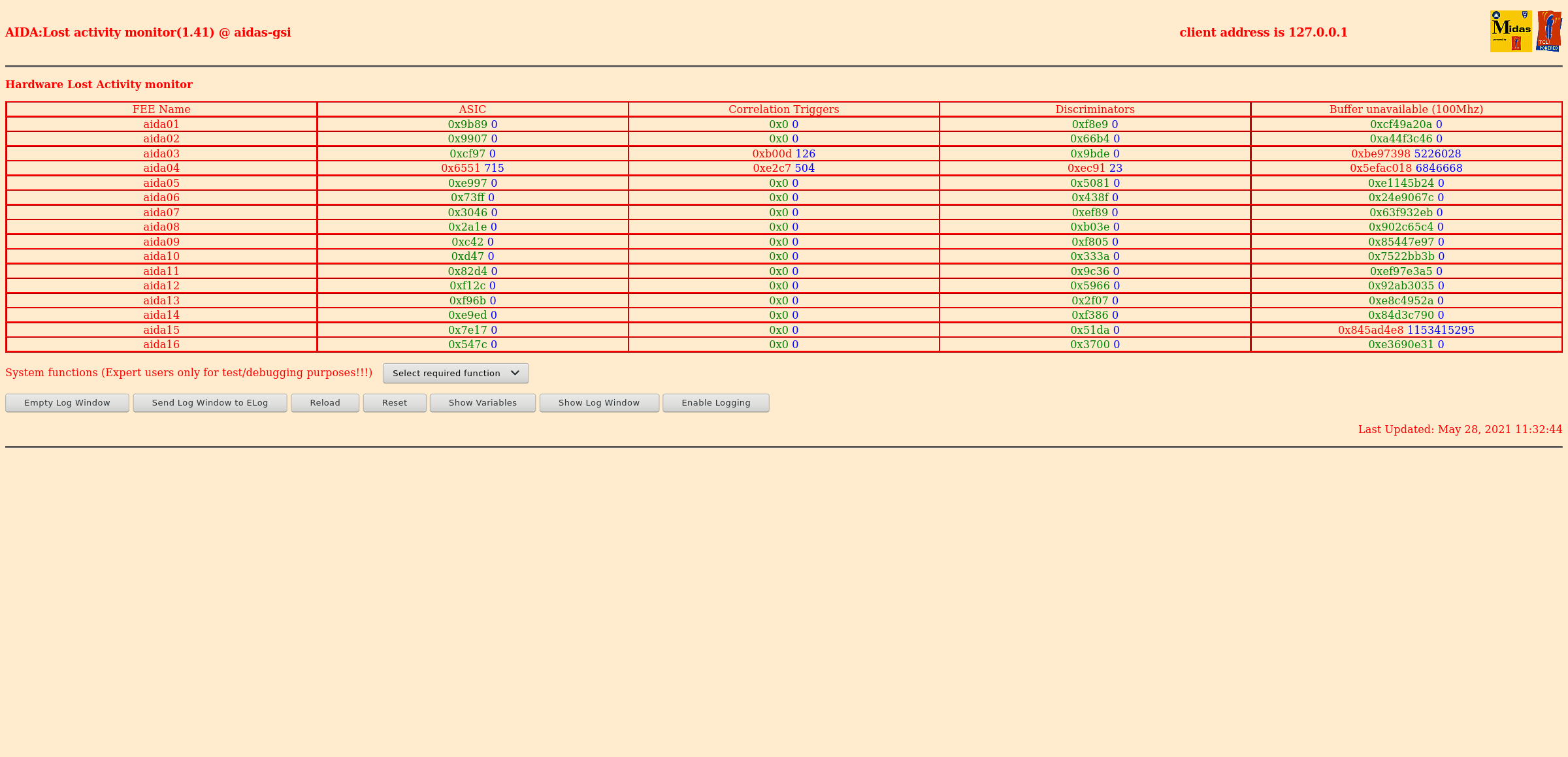

Lost activity monitor - attachment 2

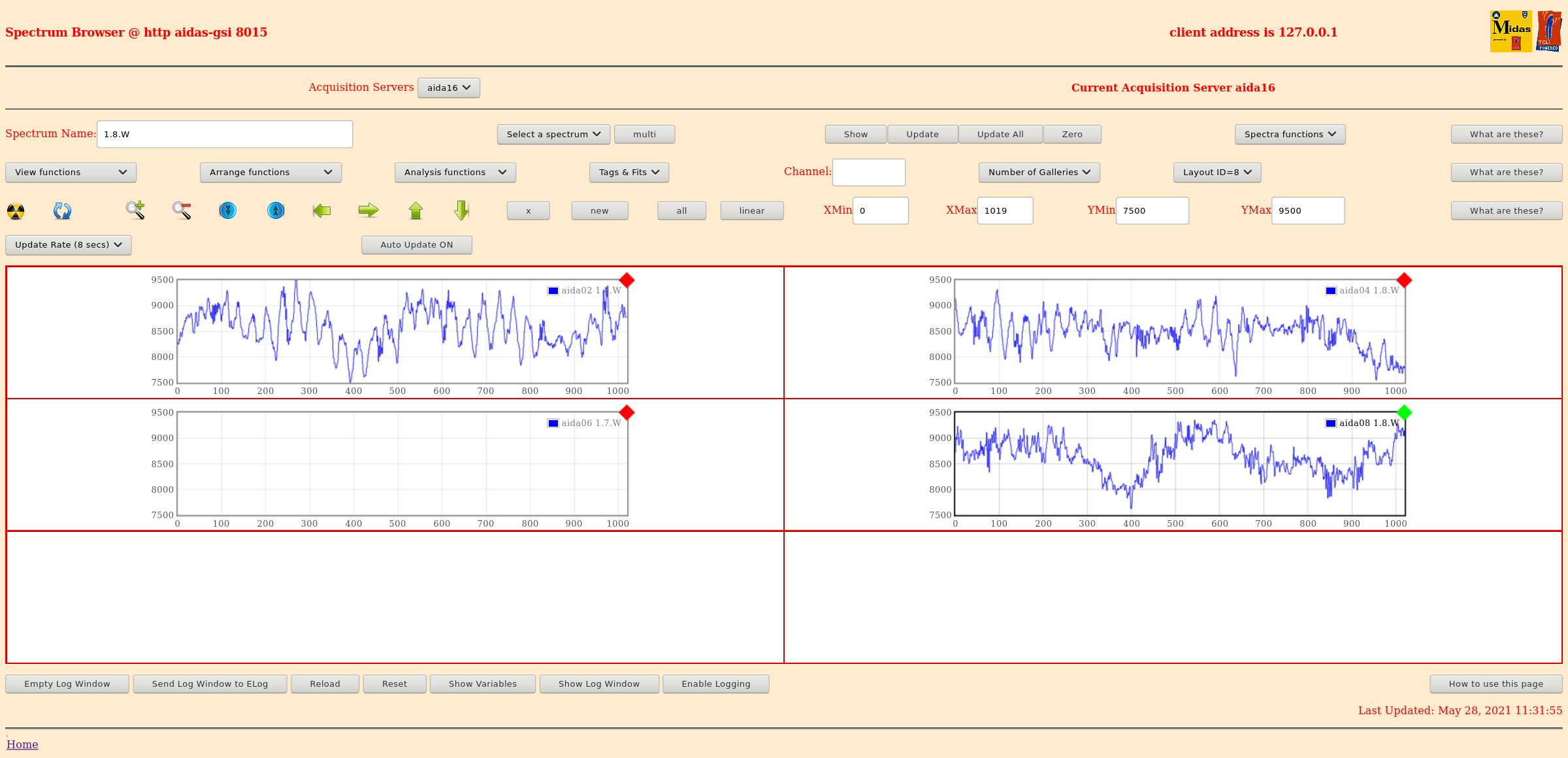

1.8.W spectra - attachments 3 & 4

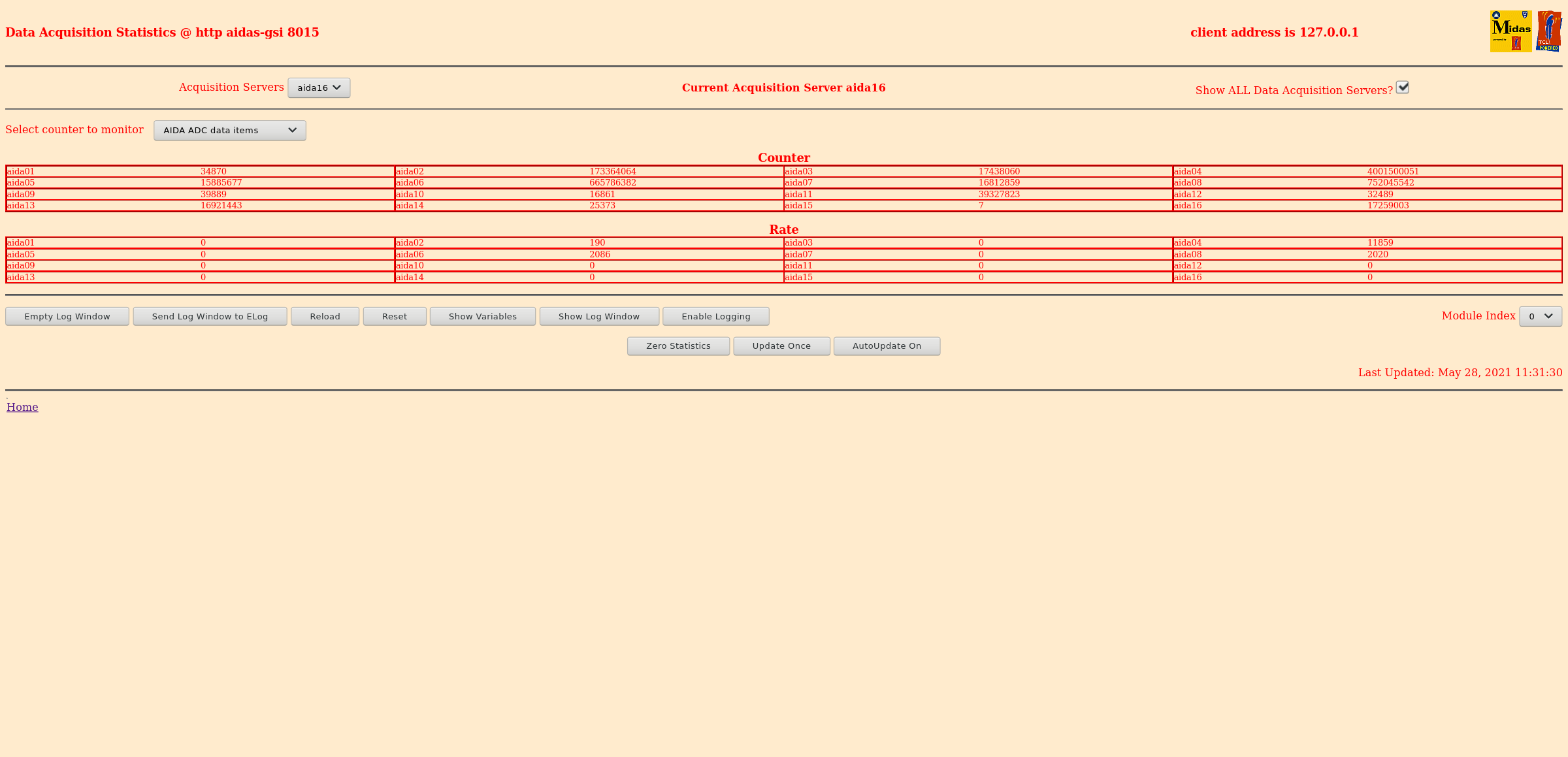

ADC data item stats - attachment 5
FEE64 temps OK - attachment 6
DSSSD bias & leakage current OK - attachment 7
Merger/Tape Server/Merger stats - attachment 8
no merger errors reported since previous restart
14.30 analysis of file S496/R18_471 - attachment 9
max deadtime 0.18% aida04 |
|
|
|
|
|
.png.png "Screenshot_2021-05-28_Spectrum_Browser_aidas-gsi(1).png")
|
|
|
|
|
|
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 57407666 ( 20753.5 Hz)
Other data format: 204512336 ( 73933.4 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 116 ( 0.0 Hz)
RESUME: 116 ( 0.0 Hz)
SYNC100: 42303 ( 15.3 Hz)
WR48-63: 42303 ( 15.3 Hz)
FEE64 disc: 1160567 ( 419.6 Hz)
MBS info: 203266931 ( 73483.1 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 109 ( 0.0 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 2766.172 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.000 0.000
1 0.000 2700.364
2 0.332 0.000
3 4.856 0.000
4 0.000 0.000
5 0.000 1685.309
6 0.000 0.000
7 0.000 1567.327
8 0.000 0.000
9 0.000 0.000
10 0.000 0.000
11 0.000 0.000
12 0.000 0.000
13 0.000 0.000
14 0.000 0.000
15 0.000 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 181 23 0 0 0 0 0 0 23 0 0 13
1 838470 386 0 0 0 0 166 166 54 0 0 0
2 162 101753181 0 0 19 19 17931 17931 15 101717266 0 5
3 42392398 102752755 0 0 97 97 21331 21331 1160234 101549665 0 12
4 211 21 0 0 0 0 0 0 21 0 0 10
5 6478076 2740 0 0 0 0 1337 1337 66 0 0 0
6 260 17 0 0 0 0 0 0 17 0 0 4
7 7695649 3163 0 0 0 0 1537 1537 89 0 0 28
8 132 14 0 0 0 0 1 1 12 0 0 10
9 368 5 0 0 0 0 0 0 5 0 0 4
10 173 18 0 0 0 0 0 0 18 0 0 5
11 303 5 0 0 0 0 0 0 5 0 0 5
12 186 1 0 0 0 0 0 0 1 0 0 7
13 585 2 0 0 0 0 0 0 2 0 0 2
14 0 0 0 0 0 0 0 0 0 0 0 0
15 512 5 0 0 0 0 0 0 5 0 0 4
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 31.742s ( 1008.122 blocks/s, 63.008 Mb/s)
|
