14.10 DAQ continues - file S496/R18_539
      alpha background

increased data rate due to ht HEC channels since c. 06.00 this am - ASIC check fixes problem

All system wide checks OK *except*

Base 		Current 	Difference
aida01 fault 	 0x82b0 : 	 0x82b7 : 	 7
aida02 fault 	 0xfe72 : 	 0xfe79 : 	 7
aida03 fault 	 0x97f4 : 	 0x97fb : 	 7
aida04 fault 	 0x950 : 	 0x957 : 	 7
aida05 fault 	 0x8e93 : 	 0x8e97 : 	 4
aida06 fault 	 0x545a : 	 0x545e : 	 4
aida07 fault 	 0xc04d : 	 0xc051 : 	 4
aida08 fault 	 0xa0f7 : 	 0xa0fb : 	 4
White Rabbit error counter test result: Passed 8, Failed 8

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) :	4	8	16	32	64	128	256	512	1k	2k	4k
aida01 :     15      8      7      2      2      2      2      2      2      4      6   : 37036
aida02 :     14      3      5      2      2      4      3      3      2      4      6   : 37984
aida03 :     15     11      8      6      3      3      2      3      3      3      6   : 36884
aida04 :     43     13      5      5      3      4      2      3      3      3      6   : 37060
aida05 :     19      3      5      4      2      2      2      2      2      4      6   : 37044
aida06 :     17      4      1      3      2      3      3      4      2      4      6   : 38356
aida07 :     16      6      2      1      0      2      2      3      2      4      6   : 37296
aida08 :     21      8      1      1      3      4      4      3      2      4      6   : 38276
aida09 :     13     10      2      1      2      3      2      2      2      4      6   : 37060
aida10 :     13      9      4      1      1      3      3      3      1      4      6   : 36764
aida11 :     13      9      2      1      2      3      3      3      1      4      6   : 36796
aida12 :     11      6      4      2      2      4      2      3      2      4      6   : 37724
aida13 :      7      6      6      2      1      3      2      2      2      4      6   : 37036
aida14 :      9      7      7      1      1      3      2      2      2      4      6   : 37036
aida15 :     14      5      2      2      1      3      3      4      2      4      6   : 38272
aida16 :      9      4     10      1      2      3      2      2      2      4      6   : 37124

Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same

FEE : aida01 =>   Options file size is 1026 	 Last changed Sun May 23 12:04:25 CEST 2021
 FEE : aida02 =>   Options file size is 1025 	 Last changed Sun May 23 00:19:21 CEST 2021
 FEE : aida03 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:50 CEST 2021
 FEE : aida04 =>   Options file size is 1025 	 Last changed Fri May 14 16:54:56 CEST 2021
 FEE : aida05 =>   Options file size is 1025 	 Last changed Mon May 17 06:25:41 CEST 2021
 FEE : aida06 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:59 CEST 2021
 FEE : aida07 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:02 CEST 2021
 FEE : aida08 =>   Options file size is 1025 	 Last changed Sun May 23 00:16:54 CEST 2021
 FEE : aida09 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:08 CEST 2021
 FEE : aida10 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida11 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida12 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida13 =>   Options file size is 1025 	 Last changed Fri May 07 19:40:34 CEST 2021
 FEE : aida14 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida15 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida16 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021

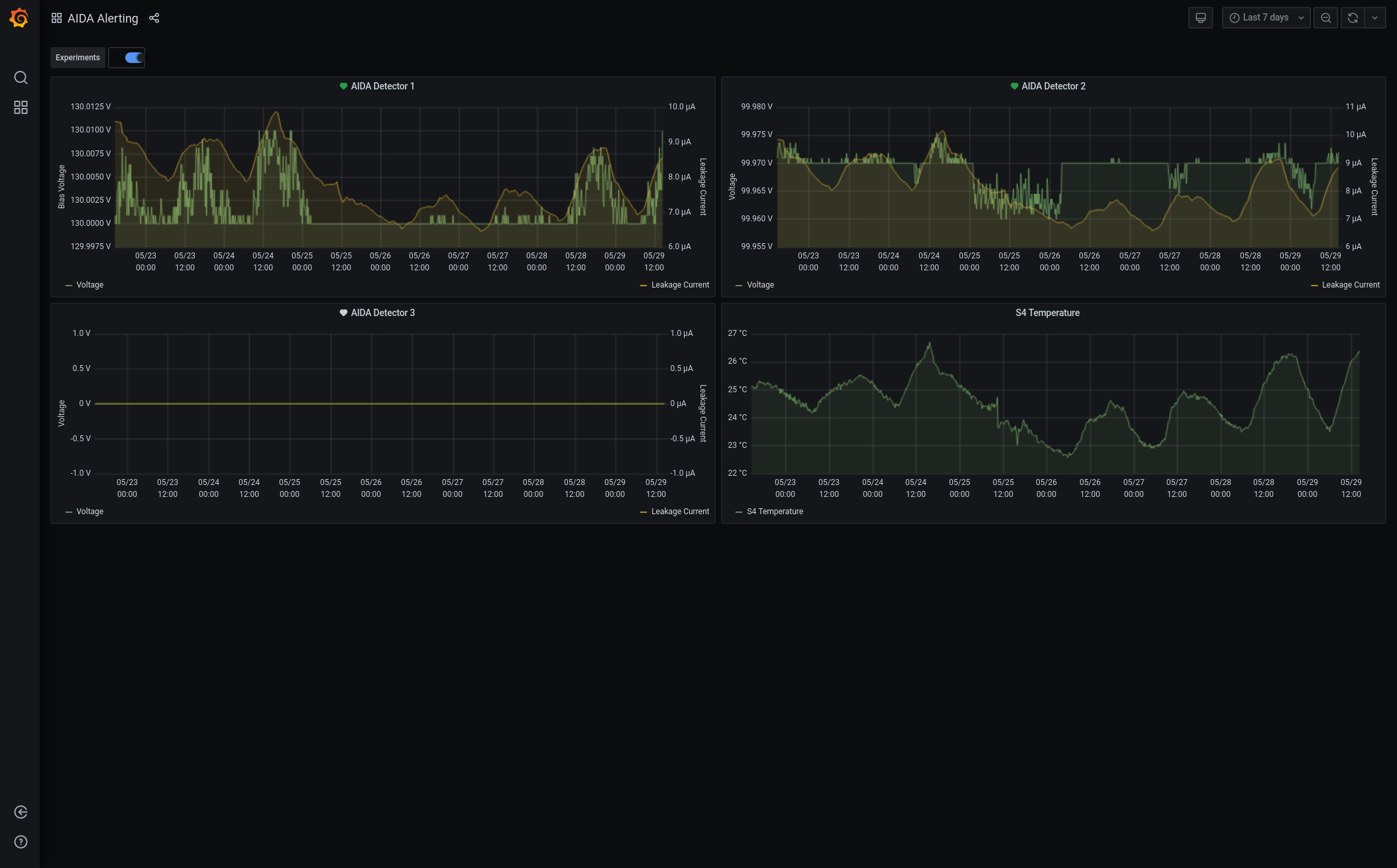

Grafana - DSSSD bias & leakage current - most recent 7 days - attachment 1
      Lost activity monitor - attachment 2

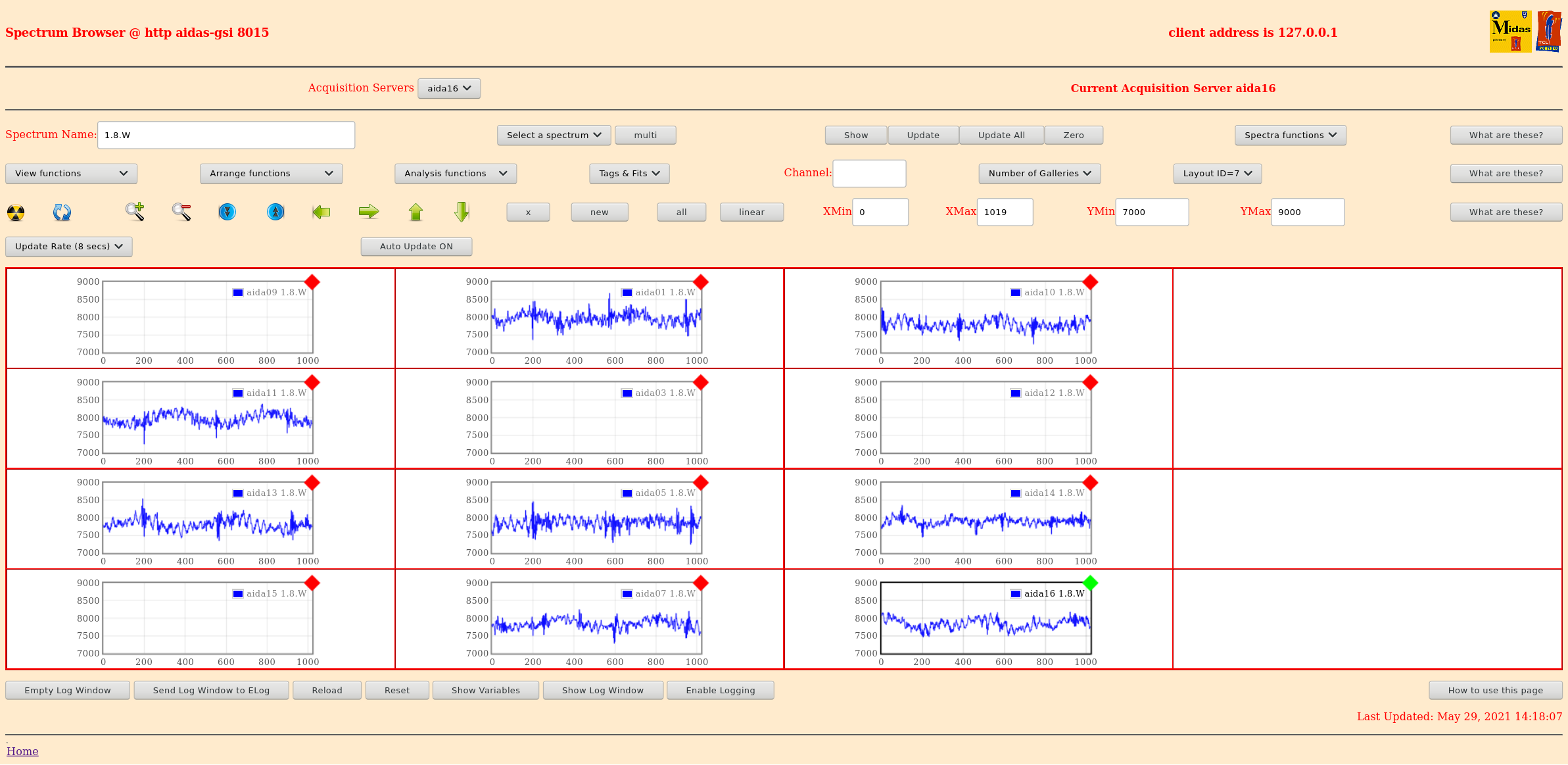

      1.8.W spectra - attachments 3 & 4
      ADC data item stats - attachment 5
      FEE64 temps OK - attachment 6
      DSSSD bias & leakage current OK - attachment 7
      Merger/Tape Server/Merger stats - attachment 8
       no merger errors reported since previous restart

14.24 All histograms, statistics and merger statistics zero'd

16.16 analysis of file S496/R18_541 - attachment 9
       max deadtime 0.12% aida04

18.40 DAQ continues - file S496/R18_551
      alpha background

increased data rate due to ht HEC channels since c. 18.00 this am - ASIC check fixes problem

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

Screenshot_2021-05-29_AIDA_Alerting_-_Grafana.png Original size: 2108x1310

Attachment 2:

Screenshot_2021-05-29_Lost_activity_monitor_aidas-gsi.png Original size: 2400x1159

Attachment 3:

Screenshot_2021-05-29_Spectrum_Browser_aidas-gsi(1).png Original size: 2400x1160

Attachment 4:

Screenshot_2021-05-29_Spectrum_Browser_aidas-gsi.png Original size: 2385x1163

Attachment 5:

Screenshot_2021-05-29_Statistics_aidas-gsi.png Original size: 2400x1159

Attachment 6:

Screenshot_2021-05-29_Temperature_and_status_scan_aidas-gsi.png Original size: 2400x1159

Attachment 7:

950.png Original size: 502x344

Attachment 8:

951.png Original size: 3840x1080

Attachment 9:

R18_541

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:   46792076 (   18702.9 Hz)
        Other data format:  215127929 (   85987.1 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:         89 (       0.0 Hz)
                               RESUME:         89 (       0.0 Hz)
                              SYNC100:      41318 (      16.5 Hz)
                              WR48-63:      41318 (      16.5 Hz)
                           FEE64 disc:    1013016 (     404.9 Hz)
                             MBS info:  214032099 (   85549.1 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:          0 (       0.0 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:     2501.862 s
