09.55 DAQ continues - file S496/R18_588
      alpha background

increased data rate due to hot HEC channels since c. 06.00 this am - ASIC check fixes problem

All system wide checks OK *except*

Base 		Current 	Difference
aida01 fault 	 0x82b0 : 	 0x82b7 : 	 7
aida02 fault 	 0xfe72 : 	 0xfe79 : 	 7
aida03 fault 	 0x97f4 : 	 0x97fb : 	 7
aida04 fault 	 0x950 : 	 0x957 : 	 7
aida05 fault 	 0x8e93 : 	 0x8e98 : 	 5
aida06 fault 	 0x545a : 	 0x545f : 	 5
aida07 fault 	 0xc04d : 	 0xc052 : 	 5
aida08 fault 	 0xa0f7 : 	 0xa0fc : 	 5
White Rabbit error counter test result: Passed 8, Failed 8

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) :	4	8	16	32	64	128	256	512	1k	2k	4k
aida01 :      6      9      5      1      3      2      2      2      2      4      6   : 37008
aida02 :      3      5      5      2      2      4      3      3      2      4      6   : 37956
aida03 :     22     12      7      5      3      3      2      3      3      3      6   : 36872
aida04 :     40     13      5      5      3      4      2      3      3      3      6   : 37048
aida05 :     15      5      5      4      2      2      2      2      2      4      6   : 37044
aida06 :     11      6      2      1      2      3      3      4      2      4      6   : 38300
aida07 :     17      5      4      3      1      3      3      2      2      4      6   : 37324
aida08 :      1      8      1      2      2      4      4      3      2      4      6   : 38164
aida09 :     10      8      6      1      2      4      3      3      1      4      6   : 36968
aida10 :     14      7      5      2      1      3      3      3      1      4      6   : 36800
aida11 :      7      9      3      1      2      3      3      3      1      4      6   : 36788
aida12 :      3      5      2      3      1      4      2      3      2      4      6   : 37620
aida13 :     12      4      4      2      1      3      2      2      2      4      6   : 37008
aida14 :     11     10      5      1      1      3      2      2      2      4      6   : 37036
aida15 :     11      5      1      2      1      3      3      4      2      4      6   : 38244
aida16 :     10      4      8      1      2      3      2      2      2      4      6   : 37096

Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same

FEE : aida01 =>   Options file size is 1026 	 Last changed Sun May 23 12:04:25 CEST 2021
 FEE : aida02 =>   Options file size is 1025 	 Last changed Sun May 23 00:19:21 CEST 2021
 FEE : aida03 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:50 CEST 2021
 FEE : aida04 =>   Options file size is 1025 	 Last changed Fri May 14 16:54:56 CEST 2021
 FEE : aida05 =>   Options file size is 1025 	 Last changed Mon May 17 06:25:41 CEST 2021
 FEE : aida06 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:59 CEST 2021
 FEE : aida07 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:02 CEST 2021
 FEE : aida08 =>   Options file size is 1025 	 Last changed Sun May 23 00:16:54 CEST 2021
 FEE : aida09 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:08 CEST 2021
 FEE : aida10 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida11 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida12 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida13 =>   Options file size is 1025 	 Last changed Fri May 07 19:40:34 CEST 2021
 FEE : aida14 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida15 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida16 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021

Grafana - DSSSD bias & leakage current - most recent 7 days - attachment 1

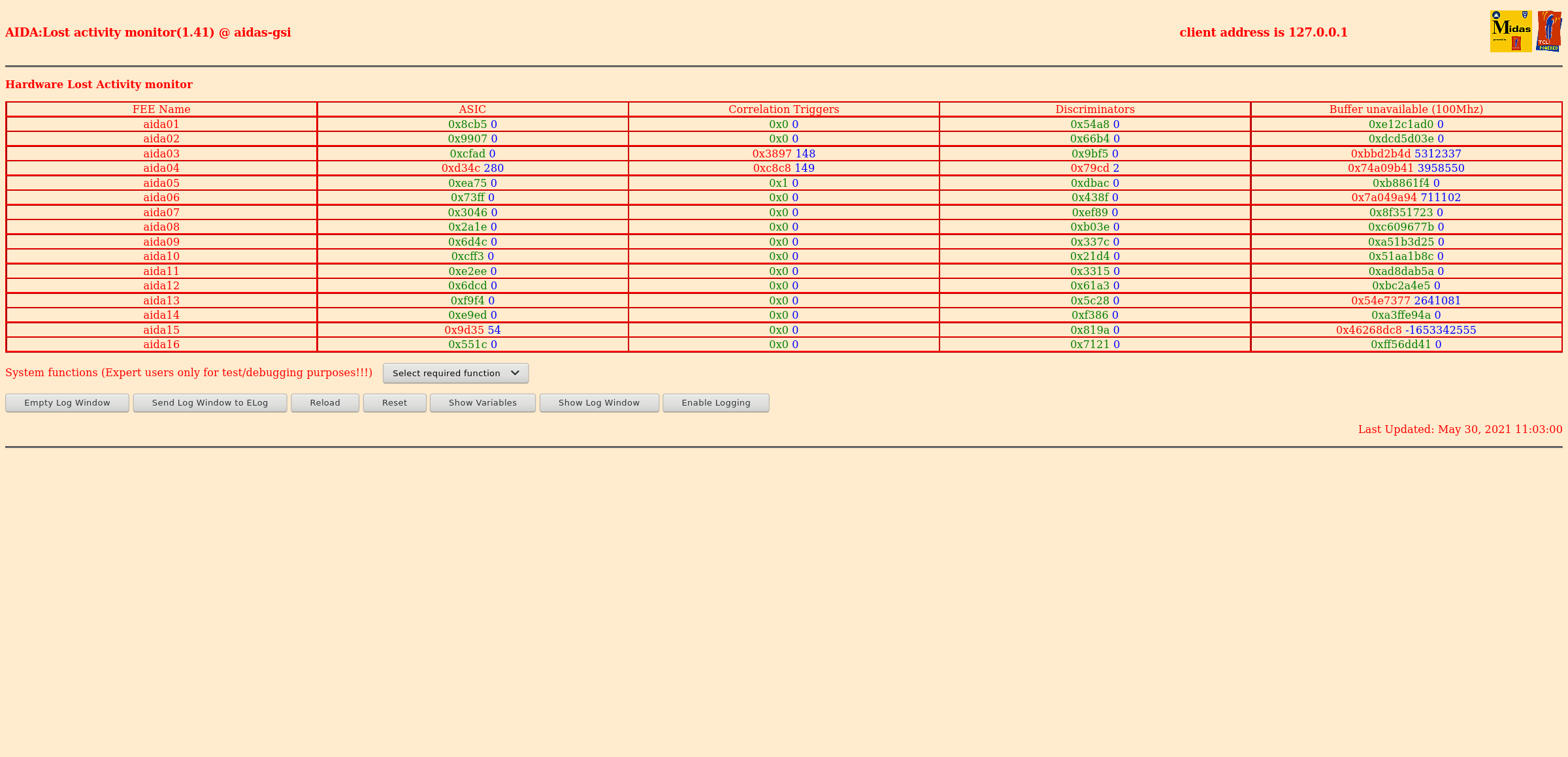

      Lost activity monitor - attachment 2
      1.8.W spectra - attachments 3 & 4
      ADC data item stats - attachment 5
      FEE64 temps OK - attachment 6
      DSSSD bias & leakage current OK - attachment 7
      Merger/Tape Server/Merger stats - attachment 8
       no merger errors reported since previous restart

14.24 All histograms, statistics and merger statistics zero'd

16.16 analysis of file S496/R18_541 - attachment 9
       max deadtime 0.02% aida03

18.40 DAQ continues - file S496/R18_589
      alpha background

increased data rate due to hot HEC channels since c. 18.00 this am - ASIC check fixes problem

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

Screenshot_2021-05-30_AIDA_Alerting_-_Grafana.png Original size: 2108x1310

Attachment 2:

Screenshot_2021-05-30_Lost_activity_monitor_aidas-gsi.png Original size: 2400x1159

Attachment 3:

Screenshot_2021-05-30_Spectrum_Browser_aidas-gsi(1).png Original size: 2385x1163

Attachment 4:

Screenshot_2021-05-30_Spectrum_Browser_aidas-gsi.png Original size: 2400x1160

Attachment 5:

Screenshot_2021-05-30_Statistics_aidas-gsi.png Original size: 2400x1159

Attachment 6:

Screenshot_2021-05-30_Temperature_and_status_scan_aidas-gsi.png Original size: 2400x1159

Attachment 7:

960.png Original size: 502x344

Attachment 8:

961.png Original size: 3840x1080

Attachment 9:

R18_589

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      31985
          ADC data format:   58630511 (   25364.6 Hz)
        Other data format:  203166719 (   87893.5 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:         35 (       0.0 Hz)
                               RESUME:         35 (       0.0 Hz)
                              SYNC100:      40596 (      17.6 Hz)
                              WR48-63:      40596 (      17.6 Hz)
                           FEE64 disc:    1341777 (     580.5 Hz)
                             MBS info:  201743680 (   87277.8 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:          0 (       0.0 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:     2311.511 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.000                0.000
  1                0.000             1879.226
  2                0.365                0.000
  3                0.313                0.000
  4                0.000             1697.189
  5                0.000              557.330
  6                0.000             1686.560
  7                0.000              647.171
  8                0.000                0.000
  9                0.000                0.000
 10                0.382                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0        157          0          0          0          0          0          0          0          0          0          0          0
  1    3314609       1296          0          0          0          0        648        648          0          0          0          0
  2        413   87031526          0          0         19         19      14856      14856          0   87001776          0          0
  3   42258127   88383449          0          0         15         15      18954      18954    1341775   87003736          0          0
  4        153    6936262          0          0          0          0        860        860          0    6934542          0          0
  5    6312304    6939162          0          0          0          0       2310       2310          0    6934542          0          0
  6        544    6936170          0          0          0          0        814        814          0    6934542          0          0
  7    6741331    6938850          0          0          0          0       2154       2154          0    6934542          0          0
  8        448          0          0          0          0          0          0          0          0          0          0          0
  9         79          0          0          0          0          0          0          0          0          0          0          0
 10       1189          2          0          0          1          1          0          0          0          0          0          0
 11        111          2          0          0          0          0          0          0          2          0          0          0
 12        767          0          0          0          0          0          0          0          0          0          0          0
 13         99          0          0          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0          0          0          0
 15        180          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   31.504s ( 1015.271 blocks/s,  63.454 Mb/s)

Attachment 10:

Drop attachments here...

ELOG V3.1.4-unknown
