On 01/06/21 aida-3 was rebooted as the graphical user interface had frozen.
We were also unable to connected to MIDAS via ssh port forwarding.

Since the restart we have been unable to write to file.

The tapeserver will allocate/mount/open a file but nothing will be written to it.
The merger will be receiving data but never shows as having any "Current links with data".

/MIDAS currently points to lrwxrwxrwx. 1 root root 45 Jan 23  2019 /MIDAS -> /home/npg/MIDAS_Releases/23Jan19/MIDAS_200119

The current disk structure is:
[npg@aidas-gsi npg]$ lsblk
NAME   MAJ:MIN RM   SIZE RO TYPE MOUNTPOINT
sr0     11:0    1  1024M  0 rom
sdb      8:16   0   7.3T  0 disk
&#9500;&#9472;sdb1   8:17   0   200M  0 part
&#9500;&#9472;sdb2   8:18   0   500M  0 part
&#9492;&#9472;sdb3   8:19   0   7.3T  0 part
  &#9500;&#9472;vg_aidas2-lv_root (dm-2)
       253:2    0    50G  0 lvm
  &#9500;&#9472;vg_aidas2-lv_home (dm-3)
       253:3    0   7.2T  0 lvm  /media/1e121361-83d3-4825-b6ae-8700b07e0ca7
  &#9492;&#9472;vg_aidas2-lv_swap (dm-4)
       253:4    0   7.8G  0 lvm
sdc      8:32   0   7.3T  0 disk
&#9492;&#9472;sdc1   8:33   0   7.3T  0 part /media/ThirdDrive
sdd      8:48   0   7.3T  0 disk
&#9492;&#9472;sdd1   8:49   0   7.3T  0 part /media/SecondDrive
sda      8:0    0 465.8G  0 disk
&#9500;&#9472;sda1   8:1    0   200M  0 part /boot/efi
&#9500;&#9472;sda2   8:2    0   500M  0 part /boot
&#9492;&#9472;sda3   8:3    0 465.1G  0 part
  &#9500;&#9472;vg_aidasgsi-lv_root (dm-0)
       253:0    0    50G  0 lvm  /
  &#9500;&#9472;vg_aidasgsi-lv_swap (dm-1)
       253:1    0   7.8G  0 lvm  [SWAP]
  &#9492;&#9472;vg_aidasgsi-lv_home (dm-5)
       253:5    0 407.3G  0 lvm  /home

Terminal outputs for the HTTPd, Merger and TapeServer terminals - attachments 1-3

TapeServer config file - attachment 4
Merger options - attachment 5

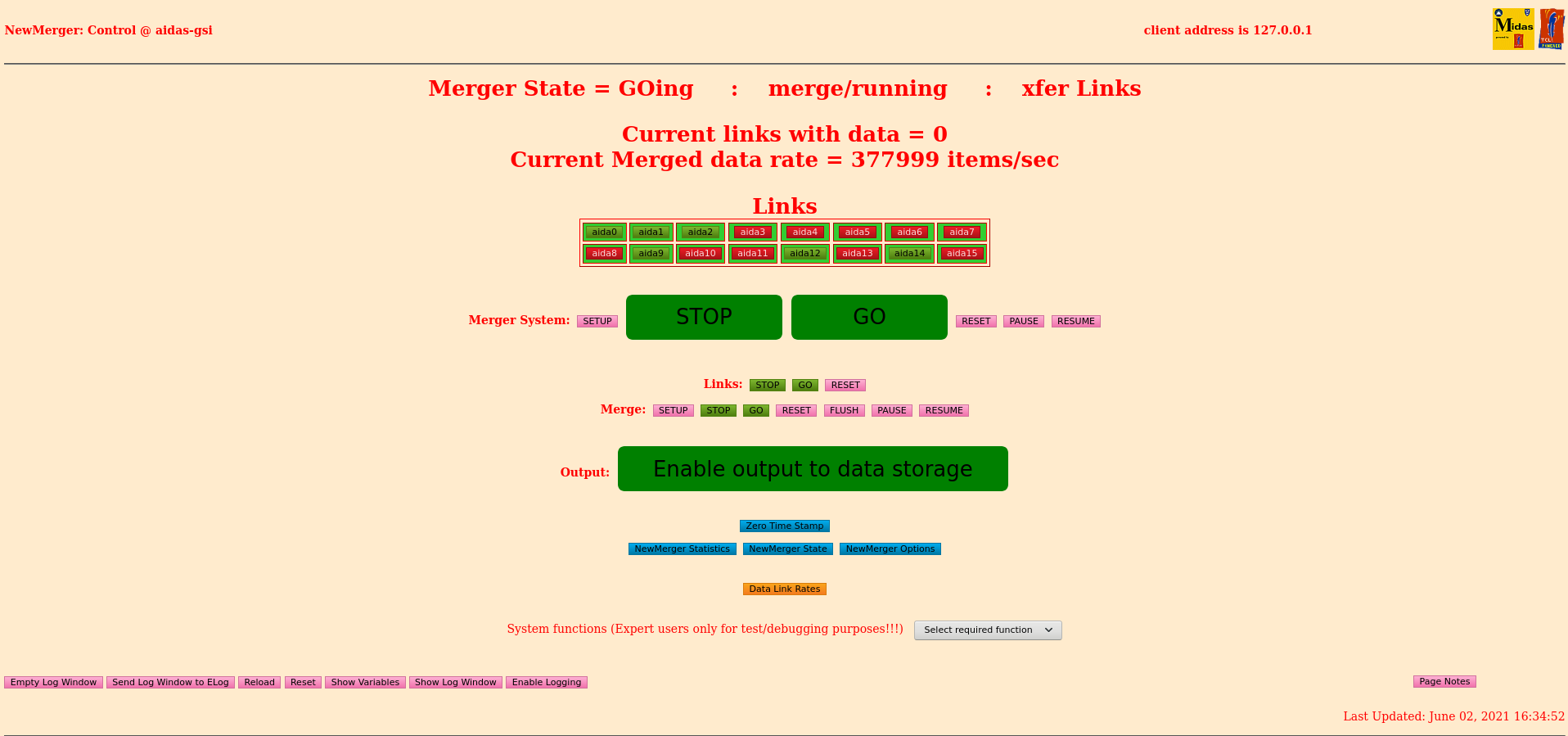

Note in the merger window the top bar is different to what we have seen previously - Attachment 6 and https://elog.ph.ed.ac.uk/DESPEC/210418_124830/51.png

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

210602_MergerTape_HTTPd_Startup

tidy up
tclsh8.5_copy2: no process killed

System identified is CPU x86_64; Platform is unix; OS is Linux and Version is 2.6.32-696.el6.x86_64
Environment selected is CPU x64_64; Platform unix; OS Linux64 and Operating System Linux64
MIDASBASE = /MIDAS and MIDAS_LIBRARY = /MIDAS/TclHttpd/Linux64
PATH = /MIDAS/bin_Linux64:/MIDAS/TclHttpd/Linux64:/MIDAS/Linux/bin64:/usr/lib64/qt-3.3/bin:/usr/local/bin:/usr/bin:/bin:/usr/local/sbin:/usr/sbin:/sbin:/home/npg/bin
Computer Name = aidas-gsi; Temp Directory = /tmp/tcl25624
package limit is not available: can't find package limit
Running with default file descriptor limit
package setuid is not available: can't find package setuid
Could not change to user 50 group 50: not owner
/debug user "debug" password "z5y30nlwy2e4"
httpd started on port 8115

Custom startup from /MIDAS/config/TclHttpd/aidas-gsi@8115/startup.tcl
/DataBaseAccessServer
/NetVarService
/SigTaskService
Loaded MemSasAccess
/SpectrumService
/TapeServer
loading tcl/NewMergerControl.tcl for namespace ::
/DataAcquisitionControlServer
DefineMessage unknown
Run Control Server Implementation for MERGE
RunControlServer loaded
loading Html/RunControl/implementation.tcl
/MIDAS/TclHttpd/Html/RunControl/common.tcl returned z=1 and couldn't read file "/MIDAS/TclHttpd/Html/RunControl/common.tcl": no such file or directory
ReadRegister failed: Name=NetVar.EXEC.ID; Code= 0x10004; Info= Register name does not exist
Created UI registers
RunControl loaded
loading Html/NewMerger/RunControl/implementation.tcl for namespace ::
ReadRegister failed: Name=NetVar.MERGE.ID; Code= 0x10004; Info= Register name does not exist
Created UI registers
NewMerge Control loaded
Completed custom startup from /MIDAS/TclHttpd/Html/NewMerger/RunControl/stats.defn.tcl
Shared memory area located at 0x7f34d3028000
Tape Server comms table located at 0x7f34d3028000
MERGE command  30
setup MERGER
Stop Merge
Halt (1)
Action has completed: MergeCommand 2 Halt
Setup Merge
Setup (1)
Action has completed: MergeCommand 1 Setup
MERGE command  32
go MERGER
Go Merge
Go (1)
Action has completed: MergeCommand 3 Go
link 0 GO (1)
Action has completed: MergeCommand 22 {link 0 GO} 0 2
link 1 GO (1)
Action has completed: MergeCommand 22 {link 1 GO} 1 2
link 2 GO (1)
Action has completed: MergeCommand 22 {link 2 GO} 2 2
link 3 GO (1)
Action has completed: MergeCommand 22 {link 3 GO} 3 2
link 4 GO (1)
Action has completed: MergeCommand 22 {link 4 GO} 4 2
link 5 GO (1)
Action has completed: MergeCommand 22 {link 5 GO} 5 2
link 6 GO (1)
Action has completed: MergeCommand 22 {link 6 GO} 6 2
link 7 GO (1)
Action has completed: MergeCommand 22 {link 7 GO} 7 2
link 8 GO (1)
Action has completed: MergeCommand 22 {link 8 GO} 8 2
link 9 GO (1)
Action has completed: MergeCommand 22 {link 9 GO} 9 2
link 10 GO (1)
Action has completed: MergeCommand 22 {link 10 GO} 10 2
link 11 GO (1)
Action has completed: MergeCommand 22 {link 11 GO} 11 2
link 12 GO (1)
Action has completed: MergeCommand 22 {link 12 GO} 12 2
link 13 GO (1)
Action has completed: MergeCommand 22 {link 13 GO} 13 2
link 14 GO (1)
Action has completed: MergeCommand 22 {link 14 GO} 14 2
link 15 GO (1)
Action has completed: MergeCommand 22 {link 15 GO} 15 2
Resume MERGER

Attachment 2:

210602_NewMerger_Startup

Tidy up
MERGE: no process killed
merge64.AD: no process killed
Starting New Merger

[1] 25659
MERGE Master (25659): Message logger not contacted.
MERGE Master (25659): MIDAS MERGE Server 64 bit Build May 11 2021  20:32:01
Creating NetVars
Creating NetVars complete
MERGE Master (25659): MIDAS MERGE Server 64 bit Build May 11 2021  20:32:01
MERGE Master (25659): Configuration: TCP port base=11001 ; SHM key=11000; ids=16; links=16; Hardware=0
MERGE Master (25659): File mapped object /SHM_11000 of size 536628 created
MERGE Master (25659): Memory mapping 536628 bytes
MERGE Master (25659): Shared memory segment located at address 0x7fc0a99b8000.
MERGE Master (25659): File mapped object /SHM_11001 of size 100669480 created
MERGE Master (25659): Memory mapping 100669480 bytes
MERGE Master (25659): Shared memory segment located at address 0x7fc0a39b6000.
MERGE Master (25659): File mapped object /SHM_11002 of size 100669480 created
MERGE Master (25659): Memory mapping 100669480 bytes
MERGE Master (25659): Shared memory segment located at address 0x7fc09d9b4000.
MERGE Master (25659): File mapped object /SHM_11003 of size 100669480 created
MERGE Master (25659): Memory mapping 100669480 bytes
MERGE Master (25659): Shared memory segment located at address 0x7fc0979b2000.
MERGE Master (25659): File mapped object /SHM_11004 of size 100669480 created
MERGE Master (25659): Memory mapping 100669480 bytes
MERGE Master (25659): Shared memory segment located at address 0x7fc0919b0000.
MERGE Master (25659): File mapped object /SHM_11005 of size 100669480 created
MERGE Master (25659): Memory mapping 100669480 bytes
MERGE Master (25659): Shared memory segment located at address 0x7fc08b9ae000.
MERGE Master (25659): File mapped object /SHM_11006 of size 100669480 created
MERGE Master (25659): Memory mapping 100669480 bytes
MERGE Master (25659): Shared memory segment located at address 0x7fc0859ac000.
MERGE Master (25659): File mapped object /SHM_11007 of size 100669480 created
MERGE Master (25659): Memory mapping 100669480 bytes
MERGE Master (25659): Shared memory segment located at address 0x7fc07f9aa000.
MERGE Master (25659): File mapped object /SHM_11008 of size 100669480 created
MERGE Master (25659): Memory mapping 100669480 bytes
MERGE Master (25659): Shared memory segment located at address 0x7fc0799a8000.
MERGE Master (25659): File mapped object /SHM_11009 of size 100669480 created
MERGE Master (25659): Memory mapping 100669480 bytes
MERGE Master (25659): Shared memory segment located at address 0x7fc0739a6000.
MERGE Master (25659): File mapped object /SHM_11010 of size 100669480 created
MERGE Master (25659): Memory mapping 100669480 bytes
MERGE Master (25659): Shared memory segment located at address 0x7fc06d9a4000.
MERGE Master (25659): File mapped object /SHM_11011 of size 100669480 created
MERGE Master (25659): Memory mapping 100669480 bytes
MERGE Master (25659): Shared memory segment located at address 0x7fc0679a2000.
MERGE Master (25659): File mapped object /SHM_11012 of size 100669480 created
MERGE Master (25659): Memory mapping 100669480 bytes
MERGE Master (25659): Shared memory segment located at address 0x7fc0619a0000.
MERGE Master (25659): File mapped object /SHM_11013 of size 100669480 created
MERGE Master (25659): Memory mapping 100669480 bytes
MERGE Master (25659): Shared memory segment located at address 0x7fc05b99e000.
MERGE Master (25659): File mapped object /SHM_11014 of size 100669480 created
MERGE Master (25659): Memory mapping 100669480 bytes
MERGE Master (25659): Shared memory segment located at address 0x7fc05599c000.
MERGE Master (25659): File mapped object /SHM_11015 of size 100669480 created
MERGE Master (25659): Memory mapping 100669480 bytes
MERGE Master (25659): Shared memory segment located at address 0x7fc04f99a000.
MERGE Master (25659): File mapped object /SHM_11016 of size 100669480 created
MERGE Master (25659): Memory mapping 100669480 bytes
MERGE Master (25659): Shared memory segment located at address 0x7fc049998000.
MERGE Master (25659): Shared memory segment located at address 0x7fc049998000.
MERGE Master (25659): Starting stats/rates task
MERGE Master (25659): Stats/Rates task has pid 25661
MERGE Master (25659): Starting 16 link tasks
MERGE Master (25659): Link task has pid 25662
MERGE Master (25659): Link task has pid 25663
MERGE Statistics/Rates (25661): Message logger not contacted.
MERGE Statistics/Rates (25661): MIDAS MERGE Statistics 64 bit Build May 11 2021  20:32:03
Creating NetVars
Creating NetVars complete
MERGE Master (25659): Link task has pid 25664
MERGE Data Link (25662): Message logger not contacted.
MERGE Data Link (25662): MIDAS MERGE Data Link 64 bit Build May 11 2021  20:32:02
Creating NetVars
Creating NetVars complete
MERGE Data Link (25662): Configuration: index = 0, SHM key=11000, TCP port base = 11001, module = -1, hardware = 0
MERGE Data Link (25662): File mapped object /SHM_11000 accessed
MERGE Data Link (25662): Memory mapping 536628 bytes
MERGE Data Link (25662): Shared memory segment located at address 0x7f198ee7a000.
MERGE Data Link (25662): Allocated 71720 bytes for local input buffer
MERGE Data Link (25662): File mapped object /SHM_11001 accessed
MERGE Data Link (25662): Memory mapping 100669480 bytes
MERGE Data Link (25662): Shared memory segment located at address 0x7f1988e78000.
MERGE Master (25659): Link task has pid 25665
MERGE Data Link (25663): Message logger not contacted.
MERGE Data Link (25663): MIDAS MERGE Data Link 64 bit Build May 11 2021  20:32:02
Creating NetVars
Creating NetVars complete
MERGE Data Link (25663): Configuration: index = 1, SHM key=11000, TCP port base = 11002, module = 0, hardware = 0
MERGE Data Link (25663): File mapped object /SHM_11000 accessed
MERGE Data Link (25663): Memory mapping 536628 bytes
MERGE Data Link (25663): Shared memory segment located at address 0x7f3bee603000.
MERGE Data Link (25663): Allocated 71720 bytes for local input buffer
MERGE Data Link (25663): File mapped object /SHM_11002 accessed
MERGE Data Link (25663): Memory mapping 100669480 bytes
MERGE Data Link (25663): Shared memory segment located at address 0x7f3be8601000.
MERGE Master (25659): Link task has pid 25666
MERGE Data Link (25664): Message logger not contacted.
MERGE Data Link (25665): Message logger not contacted.
MERGE Data Link (25664): MIDAS MERGE Data Link 64 bit Build May 11 2021  20:32:02
MERGE Data Link (25665): MIDAS MERGE Data Link 64 bit Build May 11 2021  20:32:02
Creating NetVars
Creating NetVars
Creating NetVars complete
MERGE Data Link (25665): Configuration: index = 3, SHM key=11000, TCP port base = 11004, module = 2, hardware = 0
MERGE Data Link (25665): File mapped object /SHM_11000 accessed
MERGE Data Link (25665): Memory mapping 536628 bytes
MERGE Data Link (25665): Shared memory segment located at address 0x7f7418ae6000.
MERGE Data Link (25665): Allocated 71720 bytes for local input buffer
MERGE Data Link (25665): File mapped object /SHM_11004 accessed
MERGE Data Link (25665): Memory mapping 100669480 bytes
MERGE Data Link (25665): Shared memory segment located at address 0x7f7412ae4000.
Creating NetVars complete
MERGE Data Link (25664): Configuration: index = 2, SHM key=11000, TCP port base = 11003, module = 1, hardware = 0
MERGE Data Link (25664): File mapped object /SHM_11000 accessed
MERGE Data Link (25664): Memory mapping 536628 bytes
MERGE Data Link (25664): Shared memory segment located at address 0x7f0da72c8000.
MERGE Data Link (25664): Allocated 71720 bytes for local input buffer
MERGE Data Link (25664): File mapped object /SHM_11003 accessed
MERGE Data Link (25664): Memory mapping 100669480 bytes
MERGE Data Link (25664): Shared memory segment located at address 0x7f0da12c6000.
MERGE Master (25659): Link task has pid 25667
MERGE Master (25659): Link task has pid 25668
MERGE Data Link (25666): Message logger not contacted.
MERGE Data Link (25666): MIDAS MERGE Data Link 64 bit Build May 11 2021  20:32:02
Creating NetVars
Creating NetVars complete
MERGE Data Link (25666): Configuration: index = 4, SHM key=11000, TCP port base = 11005, module = 3, hardware = 0
MERGE Data Link (25666): File mapped object /SHM_11000 accessed
MERGE Data Link (25666): Memory mapping 536628 bytes
MERGE Data Link (25666): Shared memory segment located at address 0x7fb7f4ec2000.
MERGE Data Link (25666): Allocated 71720 bytes for local input buffer
MERGE Data Link (25666): File mapped object /SHM_11005 accessed
MERGE Data Link (25666): Memory mapping 100669480 bytes
MERGE Data Link (25666): Shared memory segment located at address 0x7fb7eeec0000.
MERGE Master (25659): Link task has pid 25669
MERGE Data Link (25667): Message logger not contacted.
MERGE Data Link (25667): MIDAS MERGE Data Link 64 bit Build May 11 2021  20:32:02
Creating NetVars
Creating NetVars complete
MERGE Data Link (25667): Configuration: index = 5, SHM key=11000, TCP port base = 11006, module = 4, hardware = 0
MERGE Data Link (25667): File mapped object /SHM_11000 accessed
MERGE Data Link (25667): Memory mapping 536628 bytes
MERGE Data Link (25667): Shared memory segment located at address 0x7f8b878c9000.
MERGE Data Link (25667): Allocated 71720 bytes for local input buffer
MERGE Data Link (25667): File mapped object /SHM_11006 accessed
MERGE Data Link (25667): Memory mapping 100669480 bytes
MERGE Data Link (25667): Shared memory segment located at address 0x7f8b818c7000.
MERGE Master (25659): Link task has pid 25670
MERGE Data Link (25668): Message logger not contacted.
MERGE Data Link (25668): MIDAS MERGE Data Link 64 bit Build May 11 2021  20:32:02
Creating NetVars
MERGE Master (25659): Link task has pid 25671
Creating NetVars complete
MERGE Data Link (25668): Configuration: index = 6, SHM key=11000, TCP port base = 11007, module = 5, hardware = 0
MERGE Data Link (25668): File mapped object /SHM_11000 accessed
MERGE Data Link (25668): Memory mapping 536628 bytes
MERGE Data Link (25668): Shared memory segment located at address 0x7f88c7c9a000.
MERGE Data Link (25668): Allocated 71720 bytes for local input buffer
MERGE Data Link (25668): File mapped object /SHM_11007 accessed
MERGE Data Link (25668): Memory mapping 100669480 bytes
MERGE Data Link (25668): Shared memory segment located at address 0x7f88c1c98000.
MERGE Data Link (25669): Message logger not contacted.
MERGE Data Link (25669): MIDAS MERGE Data Link 64 bit Build May 11 2021  20:32:02
Creating NetVars
MERGE Master (25659): Link task has pid 25672
Creating NetVars complete
MERGE Data Link (25669): Configuration: index = 7, SHM key=11000, TCP port base = 11008, module = 6, hardware = 0
MERGE Data Link (25669): File mapped object /SHM_11000 accessed
MERGE Data Link (25669): Memory mapping 536628 bytes
MERGE Data Link (25669): Shared memory segment located at address 0x7f87e7704000.
MERGE Data Link (25669): Allocated 71720 bytes for local input buffer
MERGE Data Link (25669): File mapped object /SHM_11008 accessed
MERGE Data Link (25669): Memory mapping 100669480 bytes
MERGE Data Link (25669): Shared memory segment located at address 0x7f87e1702000.
MERGE Data Link (25671): Message logger not contacted.
MERGE Data Link (25671): MIDAS MERGE Data Link 64 bit Build May 11 2021  20:32:02
Creating NetVars
Creating NetVars complete
MERGE Data Link (25671): Configuration: index = 9, SHM key=11000, TCP port base = 11010, module = 8, hardware = 0
MERGE Data Link (25671): File mapped object /SHM_11000 accessed
MERGE Data Link (25671): Memory mapping 536628 bytes
MERGE Data Link (25671): Shared memory segment located at address 0x7f38b4f59000.
MERGE Data Link (25671): Allocated 71720 bytes for local input buffer
MERGE Data Link (25671): File mapped object /SHM_11010 accessed
MERGE Data Link (25671): Memory mapping 100669480 bytes
MERGE Data Link (25671): Shared memory segment located at address 0x7f38aef57000.
MERGE Data Link (25670): Message logger not contacted.
MERGE Data Link (25670): MIDAS MERGE Data Link 64 bit Build May 11 2021  20:32:02
Creating NetVars
MERGE Master (25659): Link task has pid 25673
Creating NetVars complete
MERGE Data Link (25670): Configuration: index = 8, SHM key=11000, TCP port base = 11009, module = 7, hardware = 0
MERGE Data Link (25670): File mapped object /SHM_11000 accessed
MERGE Data Link (25670): Memory mapping 536628 bytes
MERGE Data Link (25672): Message logger not contacted.
MERGE Data Link (25670): Shared memory segment located at address 0x7ff7744ce000.
MERGE Data Link (25672): MIDAS MERGE Data Link 64 bit Build May 11 2021  20:32:02
Creating NetVars
MERGE Data Link (25670): Allocated 71720 bytes for local input buffer
MERGE Data Link (25670): File mapped object /SHM_11009 accessed
MERGE Data Link (25670): Memory mapping 100669480 bytes
MERGE Data Link (25670): Shared memory segment located at address 0x7ff76e4cc000.
Creating NetVars complete
MERGE Data Link (25672): Configuration: index = 10, SHM key=11000, TCP port base = 11011, module = 9, hardware = 0
MERGE Data Link (25672): File mapped object /SHM_11000 accessed
MERGE Data Link (25672): Memory mapping 536628 bytes
MERGE Data Link (25672): Shared memory segment located at address 0x7f4bb287e000.
MERGE Data Link (25672): Allocated 71720 bytes for local input buffer
MERGE Data Link (25672): File mapped object /SHM_11011 accessed
MERGE Data Link (25672): Memory mapping 100669480 bytes
MERGE Data Link (25672): Shared memory segment located at address 0x7f4bac87c000.
MERGE Master (25659): Link task has pid 25674
MERGE Data Link (25673): Message logger not contacted.
MERGE Data Link (25673): MIDAS MERGE Data Link 64 bit Build May 11 2021  20:32:02
Creating NetVars
Creating NetVars complete
MERGE Data Link (25673): Configuration: index = 11, SHM key=11000, TCP port base = 11012, module = 10, hardware = 0
MERGE Data Link (25673): File mapped object /SHM_11000 accessed
MERGE Data Link (25673): Memory mapping 536628 bytes
MERGE Data Link (25673): Shared memory segment located at address 0x7fe3cd54a000.
MERGE Data Link (25673): Allocated 71720 bytes for local input buffer
MERGE Data Link (25673): File mapped object /SHM_11012 accessed
MERGE Data Link (25673): Memory mapping 100669480 bytes
MERGE Data Link (25673): Shared memory segment located at address 0x7fe3c7548000.
MERGE Master (25659): Link task has pid 25675
MERGE Data Link (25674): Message logger not contacted.
MERGE Data Link (25674): MIDAS MERGE Data Link 64 bit Build May 11 2021  20:32:02
Creating NetVars
Creating NetVars complete
MERGE Data Link (25674): Configuration: index = 12, SHM key=11000, TCP port base = 11013, module = 11, hardware = 0
MERGE Data Link (25674): File mapped object /SHM_11000 accessed
MERGE Data Link (25674): Memory mapping 536628 bytes
MERGE Data Link (25674): Shared memory segment located at address 0x7faec5dbd000.
MERGE Data Link (25674): Allocated 71720 bytes for local input buffer
MERGE Data Link (25674): File mapped object /SHM_11013 accessed
MERGE Data Link (25674): Memory mapping 100669480 bytes
MERGE Data Link (25674): Shared memory segment located at address 0x7faebfdbb000.
MERGE Master (25659): Link task has pid 25676
MERGE Master (25659): Link task has pid 25677
MERGE Data Link (25675): Message logger not contacted.
MERGE Data Link (25675): MIDAS MERGE Data Link 64 bit Build May 11 2021  20:32:02
Creating NetVars
Creating NetVars complete
MERGE Data Link (25675): Configuration: index = 13, SHM key=11000, TCP port base = 11014, module = 12, hardware = 0
MERGE Data Link (25675): File mapped object /SHM_11000 accessed
MERGE Data Link (25675): Memory mapping 536628 bytes
MERGE Data Link (25675): Shared memory segment located at address 0x7fef43120000.
MERGE Data Link (25675): Allocated 71720 bytes for local input buffer
MERGE Data Link (25675): File mapped object /SHM_11014 accessed
MERGE Data Link (25675): Memory mapping 100669480 bytes
MERGE Data Link (25675): Shared memory segment located at address 0x7fef3d11e000.
MERGE Data Link (25676): Message logger not contacted.
MERGE Data Link (25676): MIDAS MERGE Data Link 64 bit Build May 11 2021  20:32:02
Creating NetVars
Creating NetVars complete
MERGE Data Link (25676): Configuration: index = 14, SHM key=11000, TCP port base = 11015, module = 13, hardware = 0
MERGE Data Link (25676): File mapped object /SHM_11000 accessed
MERGE Data Link (25676): Memory mapping 536628 bytes
MERGE Data Link (25676): Shared memory segment located at address 0x7f6aea271000.
MERGE Data Link (25676): Allocated 71720 bytes for local input buffer
MERGE Data Link (25676): File mapped object /SHM_11015 accessed
MERGE Data Link (25676): Memory mapping 100669480 bytes
MERGE Data Link (25676): Shared memory segment located at address 0x7f6ae426f000.
MERGE Data Link (25677): Message logger not contacted.
MERGE Data Link (25677): MIDAS MERGE Data Link 64 bit Build May 11 2021  20:32:02
Creating NetVars
Creating NetVars complete
MERGE Data Link (25677): Configuration: index = 15, SHM key=11000, TCP port base = 11016, module = 14, hardware = 0
MERGE Data Link (25677): File mapped object /SHM_11000 accessed
MERGE Data Link (25677): Memory mapping 536628 bytes
MERGE Data Link (25677): Shared memory segment located at address 0x7fc4281e9000.
MERGE Data Link (25677): Allocated 71720 bytes for local input buffer
MERGE Data Link (25677): File mapped object /SHM_11016 accessed
MERGE Data Link (25677): Memory mapping 100669480 bytes
MERGE Data Link (25677): Shared memory segment located at address 0x7fc4221e7000.
MERGE Statistics/Rates (25661): MIDAS MERGE Statistics 64 bit Build May 11 2021  20:32:03
MERGE Statistics thread starting
MERGE Data Link (25665): Shared memory segment located at address 0x7f7412ae4000.
MERGE Data Link (25665): Shared memory segment located at address 0x7f7412ae4000.
MERGE Data Link (25663): Shared memory segment located at address 0x7f3be8601000.
MERGE Data Link (25663): Shared memory segment located at address 0x7f3be8601000.
MERGE Data Link (25662): Shared memory segment located at address 0x7f1988e78000.
MERGE Data Link (25662): Shared memory segment located at address 0x7f1988e78000.
MERGE Data Link (25667): Shared memory segment located at address 0x7f8b818c7000.
MERGE Data Link (25667): Shared memory segment located at address 0x7f8b818c7000.
MERGE Data Link (25668): Shared memory segment located at address 0x7f88c1c98000.
MERGE Data Link (25668): Shared memory segment located at address 0x7f88c1c98000.
MERGE Data Link (25664): Shared memory segment located at address 0x7f0da12c6000.
MERGE Data Link (25664): Shared memory segment located at address 0x7f0da12c6000.
MERGE Data Link (25666): Shared memory segment located at address 0x7fb7eeec0000.
MERGE Data Link (25666): Shared memory segment located at address 0x7fb7eeec0000.
MERGE Data Link (25670): Shared memory segment located at address 0x7ff76e4cc000.
MERGE Data Link (25670): Shared memory segment located at address 0x7ff76e4cc000.
MERGE Data Link (25673): Shared memory segment located at address 0x7fe3c7548000.
MERGE Data Link (25673): Shared memory segment located at address 0x7fe3c7548000.
MERGE Data Link (25672): Shared memory segment located at address 0x7f4bac87c000.

... 201 more lines ...

Attachment 3:

210602_TapeServerStartup

Tidy up
master(4596): Operation not permitted
Starting Tape Server

[1] 25639
MIDAS Tape Server: Message logger not contacted.
MIDAS Tape Server: MIDAS Tape Server Build Mar 16 2021  12:22:14
MIDAS Tape Server: Unable to change scheduling priority - Permission denied
MIDAS Tape Server: Using default startup
MIDAS Tape Server: Configuration: UDP port = 10205, SHM key=10205.
MIDAS Tape Server: File mapped object /SHM_10205 of size 1331104 created
MIDAS Tape Server: Shared memory ID is 3
MIDAS Tape Server: Shared memory segment located at address 7fdf19721000.
MIDAS Tape Server: Configuration file used - /MIDAS/config/TS_10205/TS_configuration
MIDAS Tape Server: Stats task /MIDAS/TapeServer/Linux64/stats
MIDAS Tape Server: Using device file /dev/file/0 /MIDAS/TapeServer/Linux64/driver
MIDAS Tape Server: Using device file /dev/file/1 /MIDAS/TapeServer/Linux64/driver
MIDAS Tape Server: Using device sink /dev/null/0 /MIDAS/TapeServer/Linux64/driver
MIDAS Tape Server: Data link /MIDAS/TapeServer/Linux64/linkTCP 10305
MIDAS Tape Server: Data link /MIDAS/TapeServer/Linux64/linkTCP 21001 21002
MIDAS Tape Server: Message reporting level = 0x180fff8
MIDAS Tape Server: Message logging level = 0xfff8
MIDAS Tape Server: Tape Server Options = 0x0
MIDAS Tape Server: File device path base = /TapeData
MIDAS Tape Server: Data buffer size = 65536
MIDAS Tape Server: Tape block size = 65536
MIDAS Tape Server: File mapped object /SHM_110205 of size 4195880 created
MIDAS Tape Server: Shared memory ID is 3
MIDAS Tape Server: Shared memory segment located at address 7fdf19320000.
MIDAS Tape Server: File mapped object /SHM_210205 of size 3100 created
MIDAS Tape Server: Shared memory ID is 3
MIDAS Tape Server: Shared memory segment located at address 7fdf19881000.
MIDAS Tape Server: Capabilities restored.
MIDAS Tape Server: Master global area initialised.
MIDAS Tape Server: Stats task has pid 25641
MIDAS Tape Server: Driver process for /dev/file/0 has pid 25642
MIDAS Tape Server: Driver process for /dev/file/1 has pid 25643
MIDAS Tape Server: Driver process for /dev/null/0 has pid 25644
MIDAS Tape Server: Link task 0 has pid 25645
MIDAS Tape Server: Link task 1 has pid 25646
MIDAS Tape Server: Starting the RPC interface
MIDAS Tape Statistics: Message logger not contacted.
MIDAS Tape Statistics: MIDAS Tape Statistics Build Mar 16 2021  12:22:20
MIDAS Tape Statistics: Started with args 10205
MIDAS Tape Statistics: Configuration: SHM key=10205
MIDAS Tape Statistics: File mapped object /SHM_10205 of size 1331104 created
MIDAS Tape Statistics: Shared memory ID is 3
MIDAS Tape Statistics: Shared memory segment located at address 7f9c551f7000.
MIDAS Data Link (25645): Message logger not contacted.
MIDAS Data Link (25645): MIDAS Tape Data Link Build Mar 16 2021  12:22:19
MIDAS Data Link (25645): Started with args 10205 10305
MIDAS Data Link (25645): Configuration: SHM key=10205, TCP port = 10305, Data Stream = 1
MIDAS Tape Driver (25644): Message logger not contacted.
MIDAS Tape Driver (25644): Message logger not contacted.
MIDAS Data Link (25646): Message logger not contacted.
MIDAS Tape Driver (25644): Started with args 2 10205
MIDAS Data Link (25645): File mapped object /SHM_10205 of size 1331104 created
MIDAS Data Link (25645): Shared memory ID is 3
MIDAS Data Link (25645): Shared memory segment located at address 7f6ba30ef000.
MIDAS Data Link (25646): MIDAS Tape Data Link Build Mar 16 2021  12:22:19
MIDAS Tape Driver (25644): Configuration: driver=2, key=10205.
MIDAS Data Link (25646): Started with args 10205 21001 21002
MIDAS Data Link (25645): Starting the network interface
MIDAS Tape Driver (25644): File mapped object /SHM_10205 of size 1331104 created
MIDAS Data Link (25646): Configuration: SHM key=10205, TCP port = 21001, Data Stream = 2
MIDAS Tape Driver (25644): Shared memory ID is 3
MIDAS Tape Driver (25644): Shared memory segment located at address 7f09d718d000.
MIDAS Tape Driver (25644): Using device /dev/null/0 of type sink.
MIDAS Data Link (25646): File mapped object /SHM_10205 of size 1331104 created
MIDAS Data Link (25646): Shared memory ID is 3
MIDAS Data Link (25646): Shared memory segment located at address 7fa75ae3c000.
MIDAS Data Link (25646): Starting the network interface
MIDAS Tape Driver (25642): Message logger not contacted.
MIDAS Data Link (25645): TCP socket receive buffer was 87380 - now 249856
MIDAS Tape Driver (25642): Message logger not contacted.
MIDAS Tape Driver (25642): Started with args 0 10205
MIDAS Tape Driver (25642): Configuration: driver=0, key=10205.
MIDAS Tape Driver (25643): Message logger not contacted.
MIDAS Tape Driver (25642): File mapped object /SHM_10205 of size 1331104 created
MIDAS Tape Driver (25643): Message logger not contacted.
MIDAS Tape Driver (25642): Shared memory ID is 3
MIDAS Data Link (25646): TCP socket receive buffer was 87380 - now 249856
MIDAS Data Link (25645): TCP socket send buffer was 16384 - now 249856
MIDAS Tape Driver (25643): Started with args 1 10205
MIDAS Tape Driver (25642): Shared memory segment located at address 7f48b1ea4000.
MIDAS Tape Driver (25642): Using device /dev/file/0 of type file.
MIDAS Data Link (25645): MIDAS Data Link thread 0 using TCP port 10305.
MIDAS Data Link (25645): Entering server loop
MIDAS Tape Driver (25643): Configuration: driver=1, key=10205.
MIDAS Data Link (25645): thread 0 listening on port 10305
MIDAS Tape Driver (25643): File mapped object /SHM_10205 of size 1331104 created
MIDAS Tape Driver (25643): Shared memory ID is 3
MIDAS Tape Driver (25643): Shared memory segment located at address 7f6044052000.
MIDAS Data Link (25646): TCP socket send buffer was 16384 - now 249856
MIDAS Tape Driver (25643): Using device /dev/file/1 of type file.
MIDAS Data Link (25646): MIDAS Data Link thread 0 using TCP port 21001.
MIDAS Data Link (25646): TCP socket receive buffer was 87380 - now 249856
MIDAS Data Link (25646): TCP socket send buffer was 16384 - now 249856
MIDAS Data Link (25646): MIDAS Data Link thread 1 using TCP port 21002.
MIDAS Data Link (25646): Entering server loop
MIDAS Data Link (25646): thread 0 listening on port 21001
MIDAS Data Link (25646): thread 1 listening on port 21002
MIDAS Tape Server: Created RPC Program 28000205 Version 4 on UDP port 10205.
MIDAS Tape Server: Entering server loop
MIDAS Tape Server: MIDAS Tape Server now available on UDP port 10205.
MIDAS Data Link (25645): thread 0 accepted connection from 127.0.0.1, port 37330
MIDAS Data Link (25645): buffer size changed to 65536
MIDAS Tape Server: device /dev/file/0 allocated.
MIDAS Tape Server: Mounting volume S496 on device /dev/file/0.
MIDAS Tape Server: Opening file R31 on device /dev/file/0.
2222 64 0 31056336
3333 31056336 2048000 1 15

Attachment 4:

TS_configuration

#device configuration information
#    any line starting with a # is a comment and is ignored
stats /MIDAS/TapeServer/Linux64/stats
#    devices available   -   list ends with a null line
#    format       class_name     device_name    driver_task_path_name
#       class_name MUST be one of dlt, exabyte, scsitape, sink
file          /dev/file/0    /MIDAS/TapeServer/Linux64/driver
file          /dev/file/1    /MIDAS/TapeServer/Linux64/driver
sink          /dev/null/0     /MIDAS/TapeServer/Linux64/driver

#data link configuration information  - list end with a null line
#    format   link_task_path_name
/MIDAS/TapeServer/Linux64/linkTCP 10305
/MIDAS/TapeServer/Linux64/linkTCP 21001 21002

#program options - list end with a null line
#tapeserver_options 0x2
tapeserver_options 0x0
msg_reporting_level 0x0180fff8
#   use 0x0080fff8 to enable msg logging
msg_logging_level 0xfff8
#    default for following is 16Kbytes - both MUST be the same at present
data_buffer_size 64
tape_block_size 64
disc_file_size 2000
#
file_path_base  /TapeData

#end of information

Attachment 5:

CONTENTS

Index string MERGE.LinksAvailable&&RunNumber&&MERGE.LinksInUse&&MERGE.RunOptions
Stat.shift string 0
0x0006dead string 0x0000
MERGE.LinksAvailable string 16
Stat.offset string 0
RunNumber string 0
Rate.channels string 1024
Stat.channels string 1024
MERGE.RunOptions string 3
MERGE.LinksInUse string 1%1%1%1%1%1%1%1%1%1%1%1%1%1%1%1%
Merge.LinksInUse string 1%1%1%1%1%1%1%1%1%1%1%1%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%

Attachment 6:

210602_merger.png Original size: 1916x899

Attachment 7:

Drop attachments here...

ELOG V3.1.4-unknown
