Message ID: 354
Entry time: Thu Jun 3 10:16:39 2021
|
| Author: |
TD |
| Subject: |
Thursday 3 June |
|
|
11.19 Hot HEC channels multiple FEE64s
ASIC check fixes
System wide checks OK * except*
Base Current Difference
aida01 fault 0x8940 : 0x8941 : 1
aida02 fault 0x9b32 : 0x9b33 : 1
aida03 fault 0xf266 : 0xf267 : 1
aida04 fault 0x579b : 0x579c : 1
White Rabbit error counter test result: Passed 12, Failed 4
Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR
Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) : 4 8 16 32 64 128 256 512 1k 2k 4k
aida01 : 11 4 2 2 2 2 2 3 2 4 7 : 41516
aida02 : 10 7 2 0 1 2 2 3 2 4 7 : 41408
aida03 : 10 8 2 2 2 4 1 4 2 3 7 : 40008
aida04 : 5 4 4 2 2 3 1 4 2 3 7 : 39860
aida05 : 12 3 2 2 1 2 2 3 2 4 7 : 41448
aida06 : 15 9 2 2 3 2 1 3 2 4 7 : 41380
aida07 : 12 8 1 2 2 3 3 2 2 4 7 : 41408
aida08 : 9 6 3 1 2 3 3 2 2 4 7 : 41380
aida09 : 15 6 1 1 2 2 2 3 2 4 7 : 41500
aida10 : 15 6 3 2 1 3 3 2 1 4 7 : 40348
aida11 : 8 2 1 1 1 3 1 3 2 4 7 : 41248
aida12 : 18 3 2 1 3 3 2 2 2 4 7 : 41184
aida13 : 7 4 1 4 3 4 3 3 1 4 7 : 41100
aida14 : 18 6 1 4 3 4 2 2 1 4 7 : 40392
aida15 : 7 7 1 3 1 2 1 3 2 4 7 : 41220
aida16 : 4 4 2 3 3 3 2 4 1 4 7 : 41200
Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same
FEE : aida01 => Options file size is 1026 Last changed Wed Jun 02 16:27:30 CEST 2021
FEE : aida02 => Options file size is 1025 Last changed Sun May 23 00:19:21 CEST 2021
FEE : aida03 => Options file size is 1014 Last changed Thu Apr 29 14:43:50 CEST 2021
FEE : aida04 => Options file size is 1025 Last changed Fri May 14 16:54:56 CEST 2021
FEE : aida05 => Options file size is 1025 Last changed Mon May 17 06:25:41 CEST 2021
FEE : aida06 => Options file size is 1014 Last changed Thu Apr 29 14:43:59 CEST 2021
FEE : aida07 => Options file size is 1014 Last changed Thu Apr 29 14:44:02 CEST 2021
FEE : aida08 => Options file size is 1025 Last changed Sun May 23 00:16:54 CEST 2021
FEE : aida09 => Options file size is 1014 Last changed Thu Apr 29 14:44:08 CEST 2021
FEE : aida10 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida11 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida12 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida13 => Options file size is 1025 Last changed Fri May 07 19:40:34 CEST 2021
FEE : aida14 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida15 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida16 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021

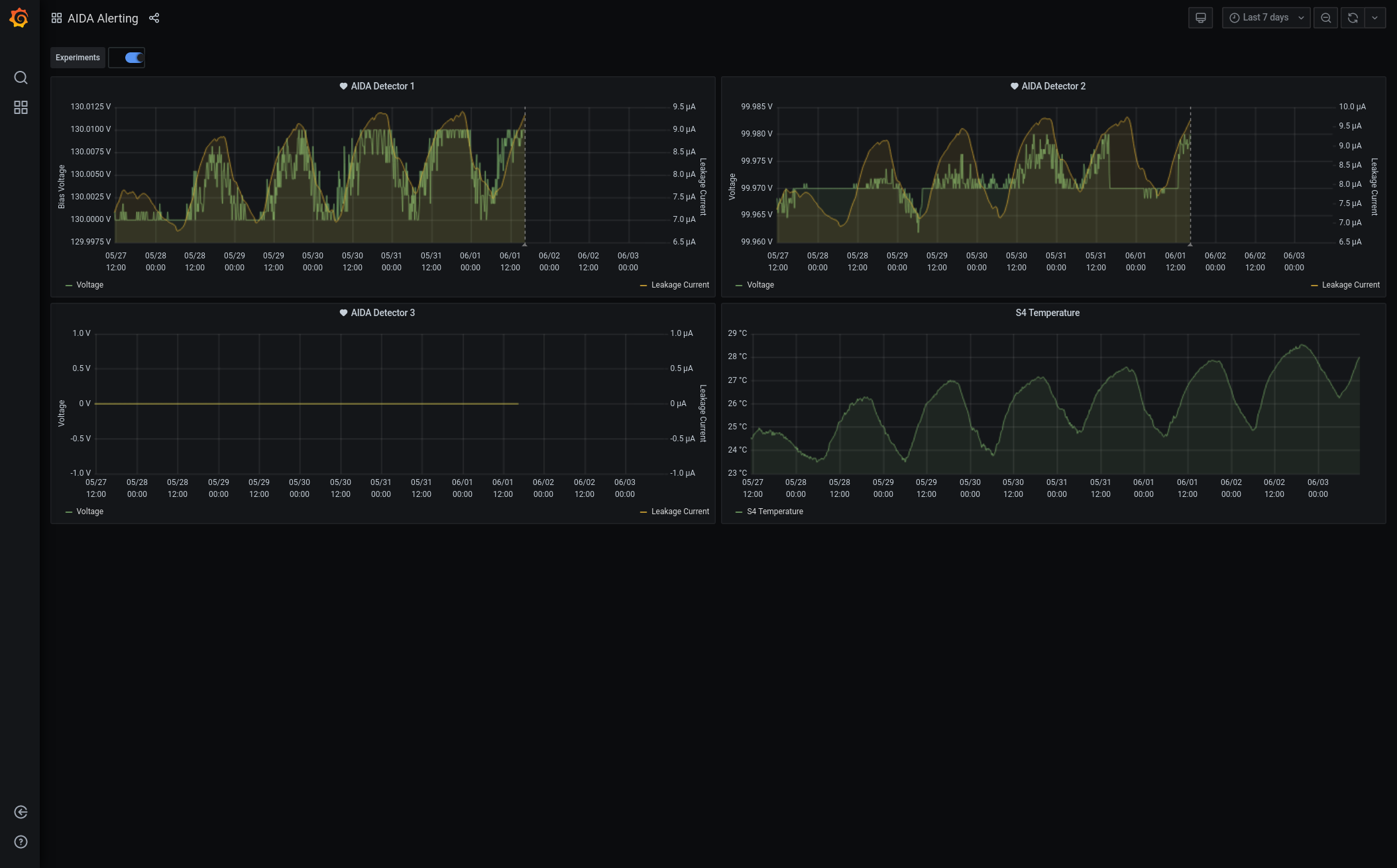

Grafana - DSSSD bias & leakage current - most recent 7 days - attachment 1

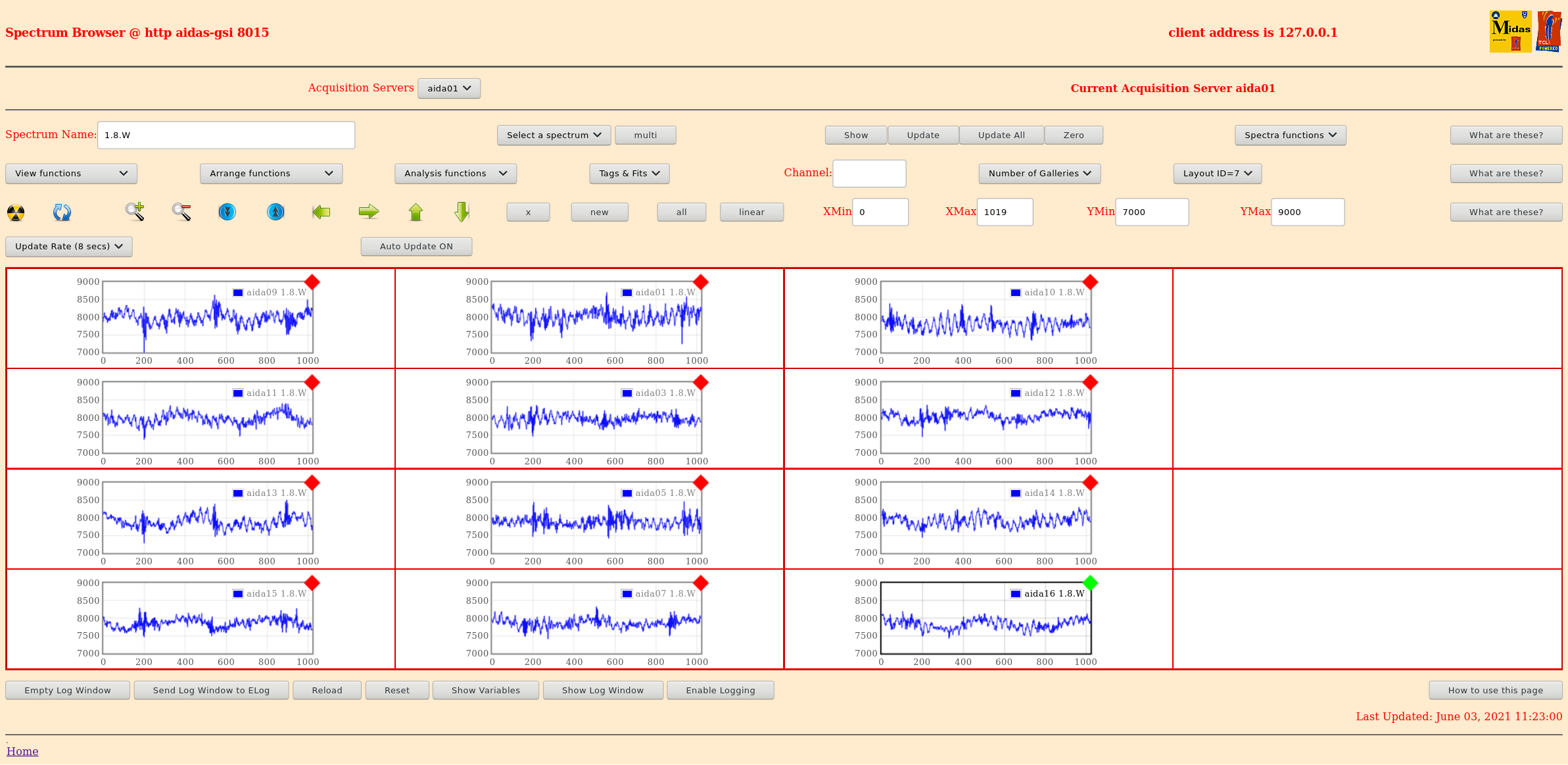

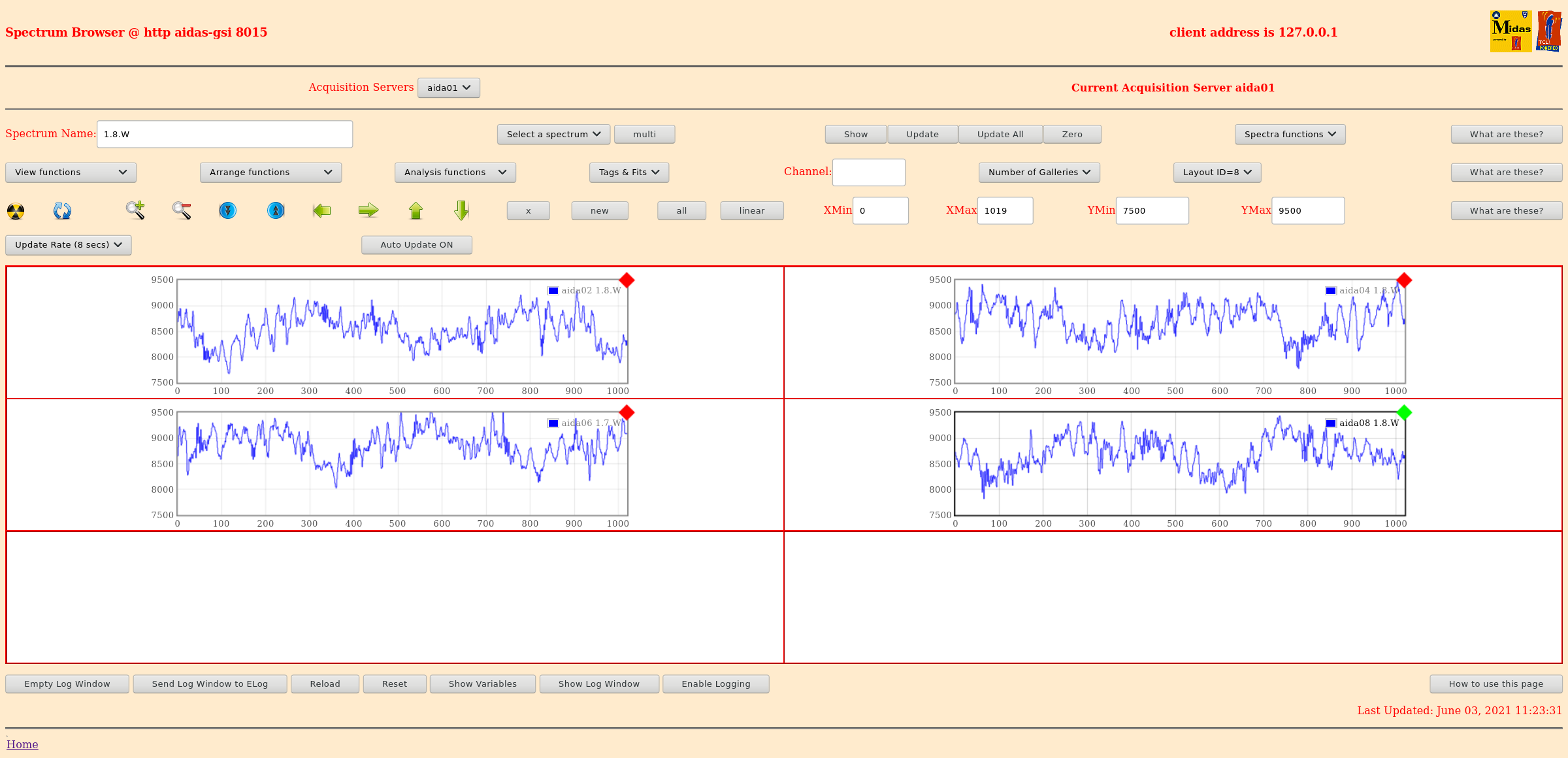

1.8.W spectra - 20us FSR - attachments 2 & 3
ADC data items - attachment 4
FEE64 temperatures OK - attachment 5
DSSSD bias & leakage currents OK - attachment 6
Merger/Tape Server/Merger statistics - attachment 7
no merger errors reported since previous restart
11.43 Fixed merger issue which stopped output from merger - see https://elog.ph.ed.ac.uk/DESPEC/36
13.09 analysis of file S496/R31_16 - attachment 8
max deadtime 0.31% aida04 |
|
|
|
.png.png "Screenshot_2021-06-03_Spectrum_Browser_aidas-gsi(1).png")
|
|
|
|
|
|
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 50135749 ( 17884.4 Hz)
Other data format: 211784253 ( 75547.7 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 199 ( 0.1 Hz)
RESUME: 199 ( 0.1 Hz)
SYNC100: 42443 ( 15.1 Hz)
WR48-63: 42443 ( 15.1 Hz)
FEE64 disc: 1081490 ( 385.8 Hz)
MBS info: 210617479 ( 75131.4 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 4 ( 0.0 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 2803.320 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.000 0.000
1 0.000 2522.967
2 0.535 0.000
3 8.636 0.000
4 0.000 0.000
5 0.000 2119.634
6 0.000 0.000
7 0.000 2067.036
8 0.000 0.000
9 0.000 0.000
10 0.000 0.000
11 0.000 0.000
12 0.000 0.000
13 0.000 0.000
14 0.000 0.000
15 0.000 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 196 2 0 0 0 0 0 0 2 0 0 2
1 193203 74 0 0 0 0 37 37 0 0 0 0
2 471 105497692 0 0 26 26 18605 18605 0 105460430 0 0
3 40159698 106282506 0 0 173 173 21812 21812 1081487 105157049 0 0
4 128 0 0 0 0 0 0 0 0 0 0 0
5 4517663 1914 0 0 0 0 957 957 0 0 0 0
6 641 2 0 0 0 0 1 1 0 0 0 0
7 5260254 2060 0 0 0 0 1030 1030 0 0 0 0
8 463 0 0 0 0 0 0 0 0 0 0 0
9 104 0 0 0 0 0 0 0 0 0 0 0
10 1026 2 0 0 0 0 1 1 0 0 0 0
11 141 1 0 0 0 0 0 0 1 0 0 1
12 786 0 0 0 0 0 0 0 0 0 0 0
13 109 0 0 0 0 0 0 0 0 0 0 0
14 687 0 0 0 0 0 0 0 0 0 0 0
15 179 0 0 0 0 0 0 0 0 0 0 1
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 28.445s ( 1124.966 blocks/s, 70.310 Mb/s)
|
