Entry time:

Fri Jun 4 08:40:52 2021

Author*:

Subject*:

09.20 DAQ found stopped
      files in /TapeData/S496 indicate increased data rate yesterday evening from c. 18.00 until data stopped at c. midnight
      aida15 rebooted at 00.02

regained control of DAQ and issued DAQ STOP by restarting NewMerger *twice*

11.00 DAQ reset and setup
      All system wide checks OK *except*

Base 		Current 	Difference
aida05 fault 	 0x4d3c : 	 0x4d3c : 	 0
aida05 : WR status 0x10
 White Rabbit error counter test result: Passed 15, Failed 1

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) :	4	8	16	32	64	128	256	512	1k	2k	4k
aida01 :      2      4      2      8      5      4      1      2      2      4      7   : 41352
aida02 :      0      3      3      6      6      4      1      2      2      4      7   : 41352
aida03 :      2      4      2     12      1      3      2      2      2      4      7   : 41352
aida04 :      2      2      1      7      4      3      2      2      2      4      7   : 41352
aida05 :      2      3      1      5      3      2      3      2      2      4      7   : 41360
aida06 :      2      4      2      6      4      3      2      2      2      4      7   : 41352
aida07 :      1      5      2      9      4      2      4      3      1      4      7   : 41324
aida08 :      0      3      1      7      4      3      4      3      1      4      7   : 41352
aida09 :      3      3      0      8      2      2      3      2      2      4      7   : 41380
aida10 :      1      2      2     11      3      2      3      3      3      3      7   : 41044
aida11 :      2      3      1      6      6      4      2      3      3      3      7   : 41072
aida12 :      4      2      1      8      3      3      3      3      1      4      7   : 41072
aida13 :      2      4      1      8      4      4      2      3      3      3      7   : 41016
aida14 :      1      4      1      9      4      4      2      3      3      3      7   : 41044
aida15 :      0      5      1      2      2      1      2      4      3      4      7   : 42872
aida16 :      1      3      2      9      4      4      4      4      2      3      7   : 41052

Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same

FEE : aida01 =>   Options file size is 1026 	 Last changed Fri Jun 04 09:30:42 CEST 2021
 FEE : aida02 =>   Options file size is 1025 	 Last changed Sun May 23 00:19:21 CEST 2021
 FEE : aida03 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:50 CEST 2021
 FEE : aida04 =>   Options file size is 1025 	 Last changed Fri May 14 16:54:56 CEST 2021
 FEE : aida05 =>   Options file size is 1025 	 Last changed Mon May 17 06:25:41 CEST 2021
 FEE : aida06 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:59 CEST 2021
 FEE : aida07 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:02 CEST 2021
 FEE : aida08 =>   Options file size is 1025 	 Last changed Sun May 23 00:16:54 CEST 2021
 FEE : aida09 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:08 CEST 2021
 FEE : aida10 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida11 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida12 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida13 =>   Options file size is 1025 	 Last changed Fri May 07 19:40:34 CEST 2021
 FEE : aida14 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida15 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida16 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021

11.03 DAQ resumes file S496/R32
      alpha background

slow comparator 0x64
      BNC PB-5 pulser OFF

11.09 1.8.W spectra - 20us FSR - attachments 1 & 2
      Grafana - DSSSD bias & leakage current - most recent 7 days - attachment 3
      ADC data items - attachment 4

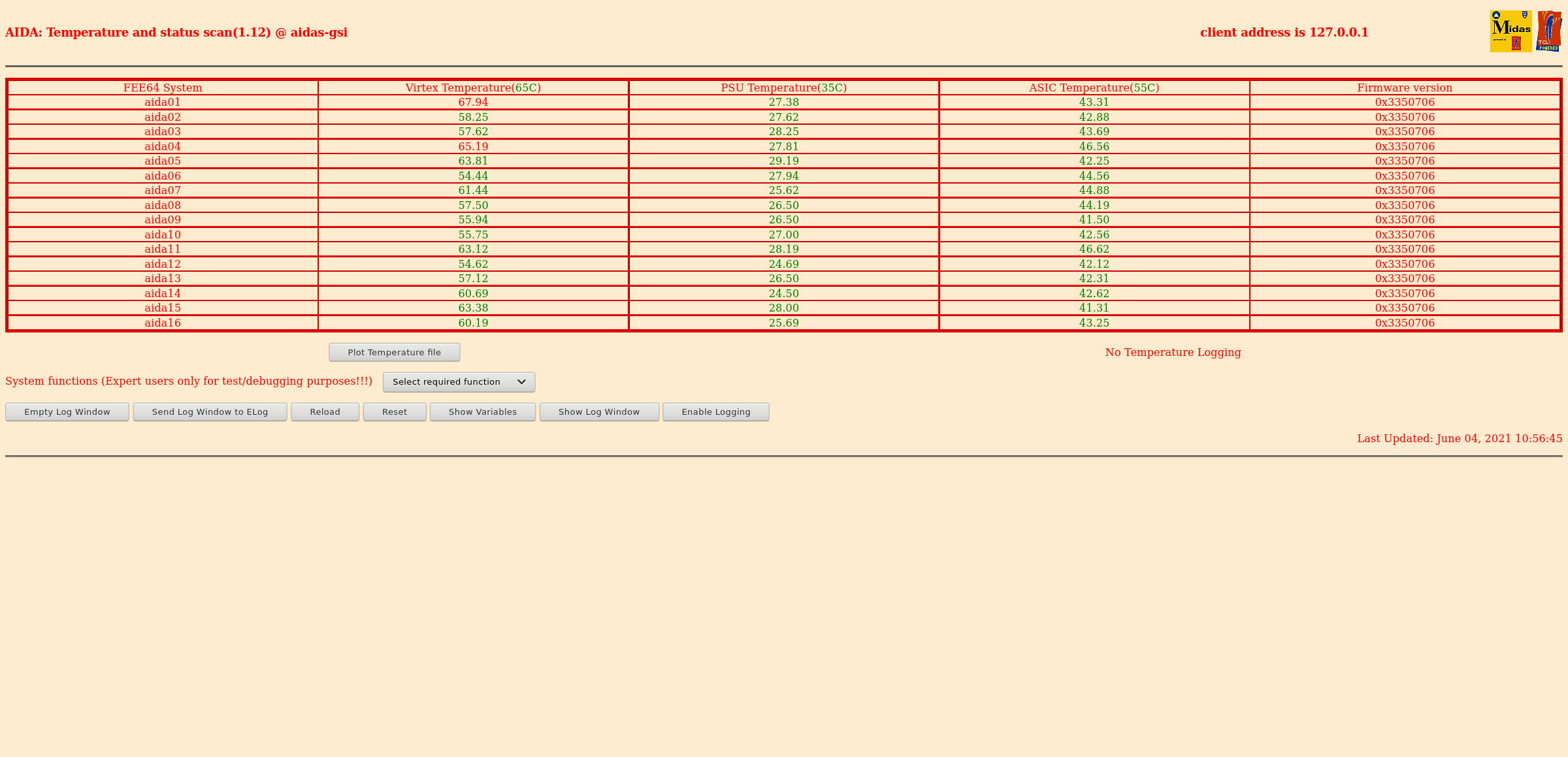

      FEE64 temperatures OK - attachment 5
      DSSSD bias & leakage currents OK - attachment 6
      Merger/Tape Server/Merger statistics - attachment 7
       no merger errors reported since previous restart

13.07 analysis of file S496/R32_16 - attachment 8
       max deadtime 0.18% aida04

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

Screenshot_2021-06-04_Spectrum_Browser_aidas-gsi(1).png Original size: 2385x1163

Attachment 2:

Screenshot_2021-06-04_Spectrum_Browser_aidas-gsi.png Original size: 2400x1160

Attachment 3:

Screenshot_2021-06-04_AIDA_Alerting_-_Grafana.png Original size: 2108x1310

Attachment 4:

Screenshot_2021-06-04_Statistics_aidas-gsi.png Original size: 2400x1159

Attachment 5:

Screenshot_2021-06-04_Temperature_and_status_scan_aidas-gsi.png Original size: 2400x1159

Attachment 6:

980.png Original size: 502x344

Attachment 7:

981.png Original size: 3840x1080

Attachment 8:

R32_16

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:   49166189 (   17465.0 Hz)
        Other data format:  212753815 (   75575.1 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        137 (       0.0 Hz)
                               RESUME:        137 (       0.0 Hz)
                              SYNC100:      42486 (      15.1 Hz)
                              WR48-63:      42486 (      15.1 Hz)
                           FEE64 disc:    1037793 (     368.6 Hz)
                             MBS info:  211630776 (   75176.2 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:          0 (       0.0 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:     2815.130 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.000                0.000
  1                0.000             2759.088
  2                0.741                0.000
  3                4.946                0.000
  4                0.000                0.000
  5                0.000             2173.993
  6                0.000                0.000
  7                0.000             2104.432
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0        184          0          0          0          0          0          0          0          0          0          0          0
  1     115458         62          0          0          0          0         31         31          0          0          0          0
  2        444  105932150          0          0         36         36      18754      18754          0  105894570          0          0
  3   39683483  106817705          0          0        101        101      21752      21752    1037793  105736206          0          0
  4        154          0          0          0          0          0          0          0          0          0          0          0
  5    4413391       1852          0          0          0          0        926        926          0          0          0          0
  6        586          0          0          0          0          0          0          0          0          0          0          0
  7    4948958       2044          0          0          0          0       1022       1022          0          0          0          0
  8        489          0          0          0          0          0          0          0          0          0          0          0
  9         77          0          0          0          0          0          0          0          0          0          0          0
 10       1172          0          0          0          0          0          0          0          0          0          0          0
 11        163          2          0          0          0          0          1          1          0          0          0          0
 12        754          0          0          0          0          0          0          0          0          0          0          0
 13         94          0          0          0          0          0          0          0          0          0          0          0
 14        605          0          0          0          0          0          0          0          0          0          0          0
 15        177          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   29.027s ( 1102.409 blocks/s,  68.901 Mb/s)

Attachment 9:

Drop attachments here...

ELOG V3.1.4-unknown
