12.25 DAQ continues OK - file S496/R32_48
      alpha background

All system wide checks OK *except*

Base 		Current 	Difference
aida01 fault 	 0x8944 : 	 0x8946 : 	 2
aida02 fault 	 0x9b36 : 	 0x9b38 : 	 2
aida03 fault 	 0xf26b : 	 0xf26d : 	 2
aida04 fault 	 0x57a0 : 	 0x57a2 : 	 2
aida05 fault 	 0x4d3c : 	 0x4d3d : 	 1
aida05 : WR status 0x10
 aida06 fault 	 0x640c : 	 0x640d : 	 1
aida07 fault 	 0x255e : 	 0x255f : 	 1
aida08 fault 	 0xffbd : 	 0xffbe : 	 1
White Rabbit error counter test result: Passed 8, Failed 8

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) :	4	8	16	32	64	128	256	512	1k	2k	4k
aida01 :     10      6      1      2      4      4      2      2      1      4      7   : 40360
aida02 :      4      3      3      3      3      4      2      2      1      4      7   : 40312
aida03 :     13      5      4      4      2      4      1      3      2      3      7   : 39580
aida04 :     16      5      3      3      2      4      1      3      2      3      7   : 39544
aida05 :      8      6      1      2      3      3      1      3      1      4      7   : 40416
aida06 :      4      3      2      1      3      3      1      3      1      4      7   : 40360
aida07 :      6      6      2      4      4      2      3      2      1      4      7   : 40424
aida08 :      6      4      1      1      4      3      3      2      1      4      7   : 40424
aida09 :     16      1      3      1      0      2      2      3      1      4      7   : 40344
aida10 :      2      5      1      4      1      3      2      4      2      3      7   : 40064
aida11 :     14      3      2      1      4      4      3      3      2      3      7   : 40080
aida12 :     11      2      2      4      4      4      3      3      2      3      7   : 40156
aida13 :     11      3      2      2      3      4      3      3      2      3      7   : 40036
aida14 :      6      5      0      4      3      4      3      3      2      3      7   : 40064
aida15 :     11      6      3      1      3      1      2      4      1      4      7   : 40940
aida16 :     12      5      0      4      4      4      3      3      2      3      7   : 40152

Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same

FEE : aida01 =>   Options file size is 1026 	 Last changed Fri Jun 04 09:30:42 CEST 2021
 FEE : aida02 =>   Options file size is 1025 	 Last changed Sun May 23 00:19:21 CEST 2021
 FEE : aida03 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:50 CEST 2021
 FEE : aida04 =>   Options file size is 1025 	 Last changed Fri May 14 16:54:56 CEST 2021
 FEE : aida05 =>   Options file size is 1025 	 Last changed Mon May 17 06:25:41 CEST 2021
 FEE : aida06 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:59 CEST 2021
 FEE : aida07 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:02 CEST 2021
 FEE : aida08 =>   Options file size is 1025 	 Last changed Sun May 23 00:16:54 CEST 2021
 FEE : aida09 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:08 CEST 2021
 FEE : aida10 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida11 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida12 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida13 =>   Options file size is 1025 	 Last changed Fri May 07 19:40:34 CEST 2021
 FEE : aida14 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida15 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida16 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021

Grafana - DSSSD bias & leakage current - most recent 7 days - attachment 1

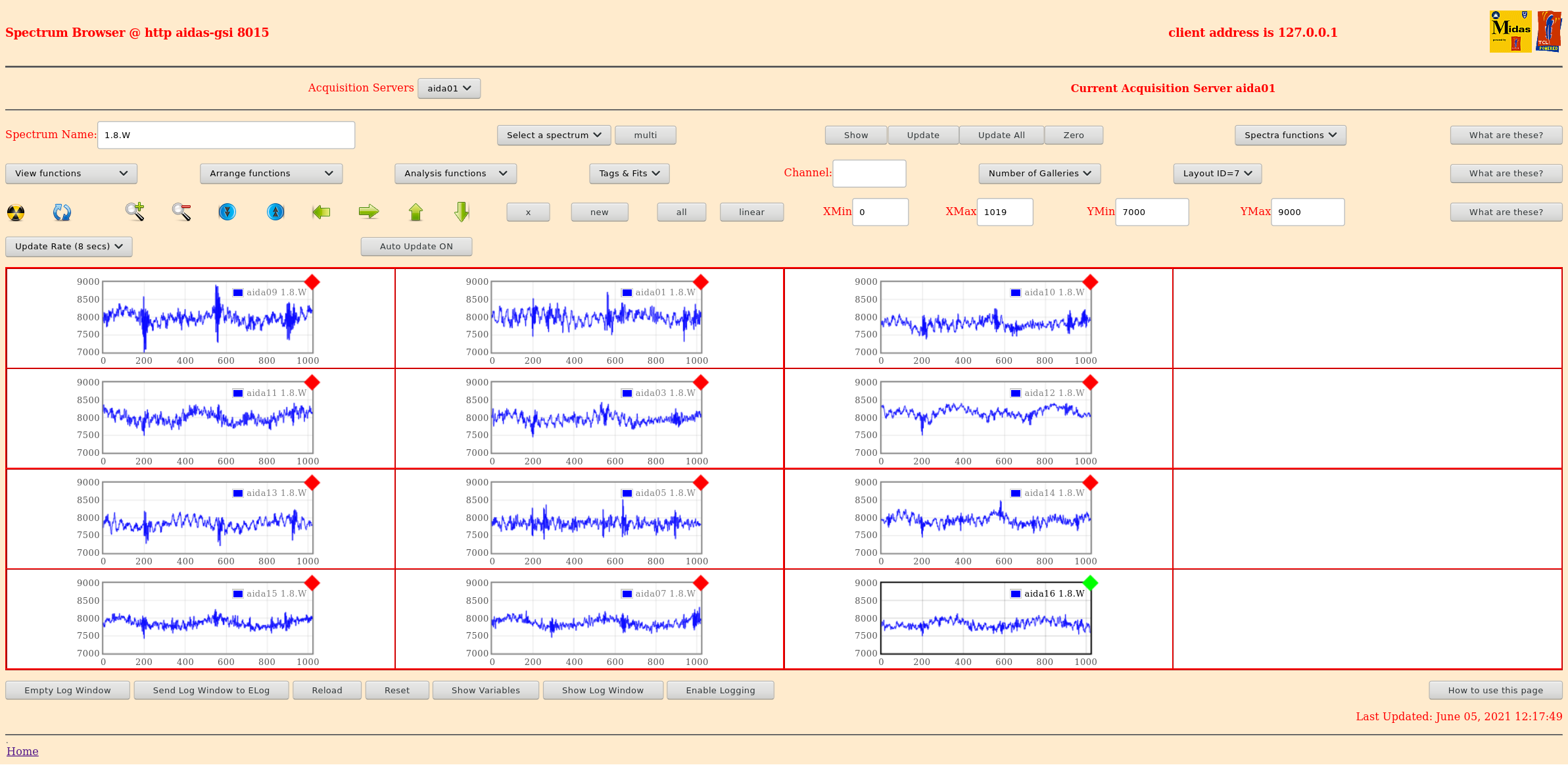

      1.8.W spectra - 20us FSR - attachments 2 & 3
      ADC data items - attachment 4
      FEE64 temperatures OK - attachment 5
      DSSSD bias & leakage currents OK - attachment 6
      Merger/Tape Server/Merger statistics - attachment 7
       no merger errors reported since previous restart

analysis of file S496/R32_47 - attachment 8
       max deadtime 0.35% aida04

13.56 Lost activity monitor - see attachment 9

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

Screenshot_2021-06-05_AIDA_Alerting_-_Grafana.png Original size: 2108x1310

Attachment 2:

Screenshot_2021-06-05_Spectrum_Browser_aidas-gsi(1).png Original size: 2400x1160

Attachment 3:

Screenshot_2021-06-05_Spectrum_Browser_aidas-gsi.png Original size: 2385x1163

Attachment 4:

Screenshot_2021-06-05_Statistics_aidas-gsi.png Original size: 2400x1159

Attachment 5:

Screenshot_2021-06-05_Temperature_and_status_scan_aidas-gsi.png Original size: 2400x1159

Attachment 6:

982.png Original size: 502x344

Attachment 7:

983.png Original size: 3840x1080

Attachment 8:

R32_47
