Entry time:

Sun Jun 6 14:15:05 2021

Author*:

Subject*:

14.15 DAQ continues file S496/R32_117
      Hot HEC channels multiple FEE64s from c. 06.00 this morning
      ASIC check fixes

System wide checks OK *except*

Base 		Current 	Difference
aida01 fault 	 0x8944 : 	 0x8946 : 	 2
aida02 fault 	 0x9b36 : 	 0x9b38 : 	 2
aida03 fault 	 0xf26b : 	 0xf26d : 	 2
aida04 fault 	 0x57a0 : 	 0x57a2 : 	 2
aida05 fault 	 0x4d3c : 	 0x4d3d : 	 1
aida05 : WR status 0x10
 aida06 fault 	 0x640c : 	 0x640d : 	 1
aida07 fault 	 0x255e : 	 0x255f : 	 1
aida08 fault 	 0xffbd : 	 0xffbe : 	 1
White Rabbit error counter test result: Passed 8, Failed 8

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) :	4	8	16	32	64	128	256	512	1k	2k	4k
aida01 :     15     12     12      3      3      4      2      2      1      4      7   : 40572
aida02 :      7      8     10      5      2      3      3      2      1      4      7   : 40604
aida03 :     27     10      4      8      1      4      1      3      2      3      7   : 39740
aida04 :     18      7      4      5      1      3      2      3      2      3      7   : 39712
aida05 :     15     13      8      4      1      3      1      3      1      4      7   : 40548
aida06 :     14      8      8      6      3      2      1      3      1      4      7   : 40568
aida07 :     11      4      5      6      2      3      3      2      1      4      7   : 40540
aida08 :     15      6      5      3      4      3      3      2      1      4      7   : 40604
aida09 :     18      4      4      3      3      2      2      3      1      4      7   : 40648
aida10 :     12      6      8      6      1      1      1      3      1      4      7   : 40288
aida11 :     16      8      6      6      4      4      3      3      2      3      7   : 40352
aida12 :     10      7      4      8      3      4      3      3      2      3      7   : 40288
aida13 :     15      7      5      4      5      4      3      3      2      3      7   : 40324
aida14 :      9      4      6      7      3      4      3      3      2      3      7   : 40260
aida15 :     12      4      8      3      2      2      2      4      1      4      7   : 41136
aida16 :     11      8      6      6      3      4      3      3      2      3      7   : 40268

Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same

FEE : aida01 =>   Options file size is 1026 	 Last changed Fri Jun 04 09:30:42 CEST 2021
 FEE : aida02 =>   Options file size is 1025 	 Last changed Sun May 23 00:19:21 CEST 2021
 FEE : aida03 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:50 CEST 2021
 FEE : aida04 =>   Options file size is 1025 	 Last changed Fri May 14 16:54:56 CEST 2021
 FEE : aida05 =>   Options file size is 1025 	 Last changed Mon May 17 06:25:41 CEST 2021
 FEE : aida06 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:59 CEST 2021
 FEE : aida07 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:02 CEST 2021
 FEE : aida08 =>   Options file size is 1025 	 Last changed Sun May 23 00:16:54 CEST 2021
 FEE : aida09 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:08 CEST 2021
 FEE : aida10 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida11 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida12 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida13 =>   Options file size is 1025 	 Last changed Fri May 07 19:40:34 CEST 2021
 FEE : aida14 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida15 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida16 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021

Grafana - DSSSD bias & leakage current - most recent 7 days - attachment 1
      Lost activity monitor - attachment 2

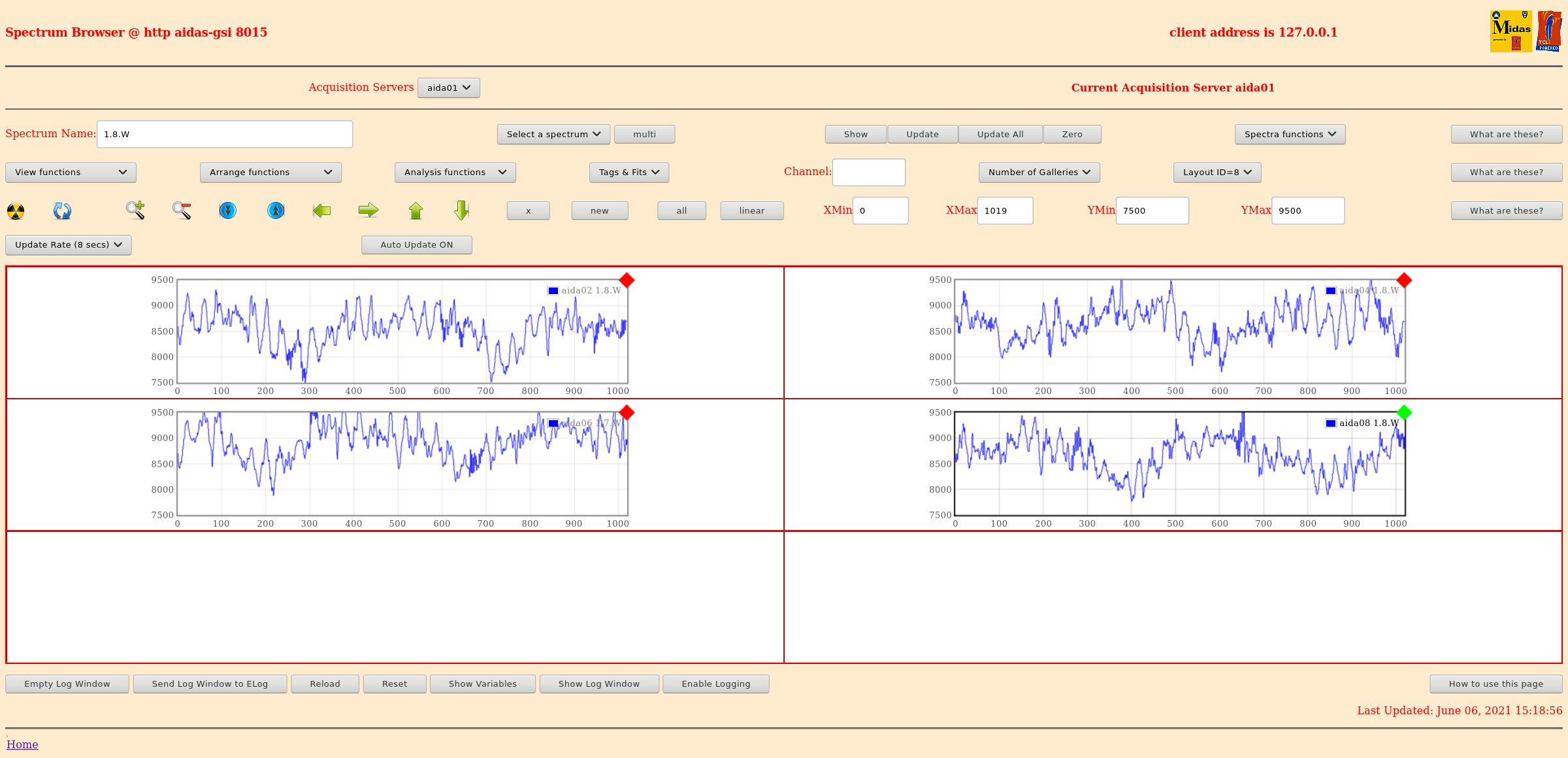

      1.8.W spectra - 20us FSR - attachments 3 & 4
      ADC data items - attachment 5
      FEE64 temperatures OK - attachment 6

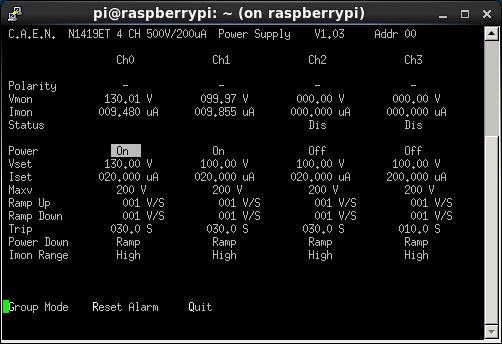

      DSSSD bias & leakage currents OK - attachment 7

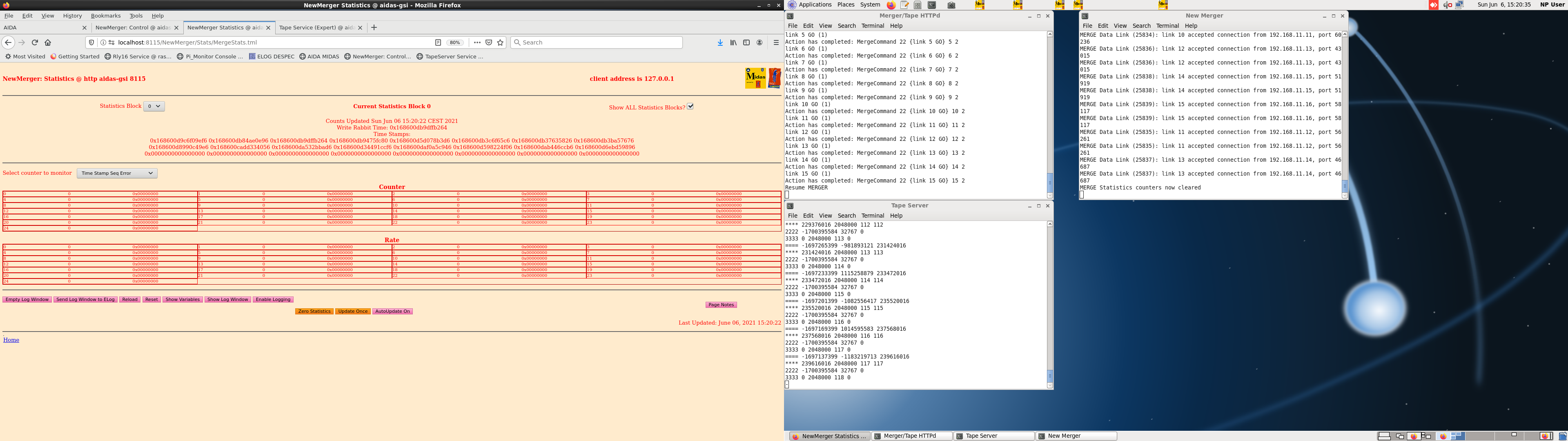

      Merger/Tape Server/Merger statistics - attachment 8
       no merger errors reported since previous restart

16.28 analysis of file S496/R32_118 - attachment 9
       max deadtime 0.28% aida04

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

Screenshot_2021-06-06_AIDA_Alerting_-_Grafana.png Original size: 2108x1310

Attachment 2:

Screenshot_2021-06-06_Lost_activity_monitor_aidas-gsi.png Original size: 2400x1159

Attachment 3:

Screenshot_2021-06-06_Spectrum_Browser_aidas-gsi(1).png Original size: 2385x1163

Attachment 4:

Screenshot_2021-06-06_Spectrum_Browser_aidas-gsi.png Original size: 2400x1160

Attachment 5:

Screenshot_2021-06-06_Statistics_aidas-gsi.png Original size: 2400x1159

Attachment 6:

Screenshot_2021-06-06_Temperature_and_status_scan_aidas-gsi.png Original size: 2400x1159

Attachment 7:

984.png Original size: 502x344

Attachment 8:

985.png Original size: 3840x1080

Attachment 9:

R32_118

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:   48860593 (   17844.1 Hz)
        Other data format:  213059412 (   77810.4 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        101 (       0.0 Hz)
                               RESUME:        101 (       0.0 Hz)
                              SYNC100:      42200 (      15.4 Hz)
                              WR48-63:      42200 (      15.4 Hz)
                           FEE64 disc:    1112345 (     406.2 Hz)
                             MBS info:  211862465 (   77373.2 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:          0 (       0.0 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:     2738.188 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.000                0.000
  1                0.000             2613.952
  2                0.575                0.000
  3                7.745                0.000
  4                0.000                0.000
  5                0.000             2154.815
  6                0.000                0.000
  7                0.000             1921.162
  8                0.000              777.447
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0        155          0          0          0          0          0          0          0          0          0          0          0
  1      66625         28          0          0          0          0         14         14          0          0          0          0
  2        415  106108157          0          0         26         26      18899      18899          0  106070307          0          0
  3   39298810  106947309          0          0         75         75      21328      21328    1112345  105792158          0          0
  4        171          0          0          0          0          0          0          0          0          0          0          0
  5    4255149       1684          0          0          0          0        842        842          0          0          0          0
  6        596          0          0          0          0          0          0          0          0          0          0          0
  7    5234928       2226          0          0          0          0       1113       1113          0          0          0          0
  8        493          4          0          0          0          0          2          2          0          0          0          0
  9         92          0          0          0          0          0          0          0          0          0          0          0
 10       1212          2          0          0          0          0          1          1          0          0          0          0
 11        160          0          0          0          0          0          0          0          0          0          0          0
 12        781          0          0          0          0          0          0          0          0          0          0          0
 13         89          0          0          0          0          0          0          0          0          0          0          0
 14        724          2          0          0          0          0          1          1          0          0          0          0
 15        193          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   28.738s ( 1113.497 blocks/s,  69.594 Mb/s)

Attachment 10:

Drop attachments here...

ELOG V3.1.4-unknown
